Ryobi 766r 41BD766G034 (2004) Gas String Trimmer

Model: 766r 41BD766G034 41BD766G034 766r (2004)

Back To Assemblies


product name

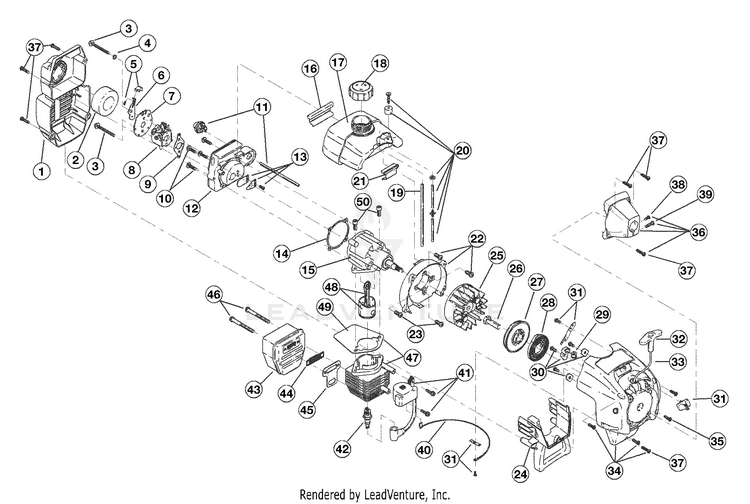

Engine Parts

...
...
1
Air Cleaner Cover Assembly (includes 2 & 38) (includes 2 & 37) MTD-753-04511

...
2
Air Cleaner Filter MTD-791-180350B

...
3
ASSEMBLY, CARBURETOR MO MTD-791-180351

...
4
SPRING WASHER .317 X .625 X .020 MTD-936-0271

...
5
ASSEMBLY, CHOKE KNOB & MTD-791-182202

...
6
CHOKE LEVER ASSEMBLY:W/ (includes 5) MTD-753-04418

...
7
PLATE ASSEMBLY:CHOKE:WV (includes 6) MTD-753-04419

...
8
CARB ASSEMBLY A-SERIES (includes 9 & 20) MTD-791-182875

...
9
CARBURETOR GASKET MTD-791P610675

...
10
SCREW, 10-24X.75 T-2 MTD-791-181860

...
11
Primer and Hose Assembly MTD-791-683974B

...
12
CARBURETOR MOUNT ASSEMBLY (includes 10) MTD-753-1196

...
13
REED VALVE ASSEMBLY MTD-791-684451

...
14
Carburetor Mount Gasket MTD-753-1208

...
15
CRANKCASE ASSEMBLY:NON-CL: (includes 10 & 23) MTD-753-04272

...
16
PAD, REAR MOUNT PAD MTD-791-612134

...
17
TANK ASSEMBLY:B (includes 18-20) MTD-753-04311

...
18
Fuel Tank Cap MTD-791-182612

...
19
Fuel Return Line MTD-791-181086

...
20
Fuel Line Assembly MTD-791-682039

...
21
PAD, FRONT MOUNTING MTD-791-145308

...
22
ASSEMBLY, SHROUD ASSEMB (includes 23) MTD-791-153520

...
23
SCREW, 1/4-20X.562 F MTD-791-181861

...
24
EXTN-SHROUD W/STAN (includes 37) MTD-753-04611

...
25
Flywheel Assembly MTD-753-05240

...
26
NUT, SQUARE DRIVE MTD-791-610303

...
27
START PULLEY KIT MTD-753-04232

...
28
Recoil Spring MTD-791-613102

...
29
Rope Guide MTD-791-611061

...
30
ASSEMBLY, PULLEY RETAIN MTD-791-181441

...
31
SWITCH ASSEMBLY (includes 40) MTD-791-181442

...
32
Pull Handle MTD-631-04164B


...
34
STARTER HOUSING ASSEMBLY (includes 27-33, 35, 37 & 40) MTD-791-181443

...
35
SCREW:10-32X.5 MTD-1964

...
36
ASM-CLUTCH COVER NLAUD (includes 37-39) MTD-753-04889

...
37
Cover Screw MTD-791-181345

...
38
Anti-Rotation Screw MTD-791-182519

...
39
Clamping Screw MTD-791-181345

...
40
LEAD, WIRE IDC 500 MTD-791-180036

...
41
IGNITION MODULE ASSEMBLY MTD-753-04125

...
42
Spark Plug MTD-791-610311B

...
43
MUFFLER ASM CAT NLAUD (includes 44-46) MTD-753-05169

...
44
SCRN:SPK ARST:A-31 MTD-791-182747

...
45
Muffler Gasket MTD-753-04619

...
46
ASSEMBLY, MUFFLER MOUNTING BOLTS MTD-791-147575

...
47
Cylinder Assembly (includes 51 & 52) (includes 49 & 50) MTD-753-04814

...
48
PISTON ASSEMBLY:W/ROD/RIN MTD-753-04367

...
49
Cylinder Gasket MTD-753-04182

...
50
Cylinder Bolt MTD-791-182723

...
xx
KIT-ENGINE GASK Item Not Shown MTD-791-182067

...
xx
O.E.M. Carburetor Repair Kit (Walbro) Item Not Shown MTD-791-180602

...
xx
SET, WALBRO LIMITE Item Not Shown MTD-791-181873

...
xx
Piston Ring Item Not Shown MTD-753-1209

...
xx
SHORTBLOCK:31CC:NC:KEYL (includes 10, 15, 23, 42, 47-50) Item Not Shown MTD-753-04173

The Ryobi 766r Gas String Trimmer is perfect for maintaining a well-groomed lawn. Its powerful engine allows for effective cutting of thick grass and stubborn weeds. The lightweight design enhances maneuverability, while the ergonomic handle ensures comfort during use. Experience reliable trimming performance with the Ryobi 766r.

Why Choose Us for Ryobi 766r 41BD766G034 Gas String Trimmer Parts?

PartsWarehouse specializes in supplying high-quality OEM parts for the Ryobi 766r Gas String Trimmer. Trust us to provide the parts you need to keep your equipment running smoothly.
