Ryobi 765r 41ADL02G734 Gas String Trimmer

Model: 765r 41ADL02G734 41ADL02G734 765r

Save Part Not Listed?
product name

Engine Parts

...
...
1
COVER ASSEMBLY (includes 2 & 36) MTD-753-04105
...
2
Air Cleaner Filter MTD-791-180350B
...
3
ASSEMBLY, CARBURETOR MO MTD-791-180351
...
4
SPRING WASHER .317 X .625 X .020 MTD-936-0271
...
5
CHOKE LEVER ASSEMBLY:W/ (includes 6) MTD-753-04418
...
6
ASSEMBLY, CHOKE KNOB & MTD-791-182202
...
7
PLATE ASSEMBLY:CHOKE:WV (includes 5 & 6) MTD-753-04419
...
8
CARBURETOR ASSEMBLY (includes 9 & 20) MTD-753-04106
...
9
CARBURETOR GASKET MTD-791P610675
...
10
SCREW, 10-24X.75 T-2 MTD-791-181860
...
11
Primer and Hose Assembly MTD-791-683974B
...
12
CARBURETOR MOUNT ASSEMBLY (includes 10, 13 & 14) MTD-753-1196
...
13
REED VALVE ASSEMBLY MTD-791-684451
...
14
Carburetor Mount Gasket MTD-753-1208
...
15
CRANKCASE ASSEMBLY:W/PSHF: (includes 10 & 23) MTD-753-04319
...
16
PAD, REAR MOUNT PAD MTD-791-612134
...
17
FUEL TANK ASSEMBLY (includes 18-20) MTD-791-181152
...
18
FUEL CAP ASSEMBLY 43MM-6 W/O HOLE MTD-791-182271
...
19
Fuel Return Line MTD-791-181086
...
20
Fuel Line Assembly MTD-791-682039
...
21
PAD, FRONT MOUNTING MTD-791-145308
...
22
ASSEMBLY, SHROUD ASSEMB (includes 23) MTD-791-153520
...
23
SCREW, 1/4-20X.562 F MTD-791-181861
...
24
EXTN-SHROUD W/STAN MTD-753-04611
...
25
Flywheel Assembly MTD-753-05240
...
26
NUT, SQUARE DRIVE MTD-791-610303
...
27
START PULLEY KIT MTD-753-04232
...
28
Recoil Spring MTD-791-613102
...
29
Rope Guide MTD-791-611061
...
30
ASSEMBLY, PULLEY RETAIN MTD-791-181889
...
31
SWITCH ASSEMBLY (includes 38) MTD-791-182389
...
32
Pull Handle MTD-631-04164B
...
33
Rope MTD-791-613103
...
34
STARTER HOUSING ASSEMBLY (includes 27-33, 35 & 36) MTD-753-04231
...
35
SCREW:10-32X.5 MTD-1964
...
36
Cover Screw MTD-791-181345
...
37
CLAMP ASSEMBLY-LOWER MTD-791-153597
...
38
LEAD, WIRE IDC 500 MTD-791-180036
...
39
IGNITION MODULE ASSEMBLY MTD-753-04125
...
40
Spark Plug MTD-791-610311B
...
41
MUFFLER ASSEMBLY WITH GASKET (includes 42-47) MTD-753-04110
...
42
Muffler Gasket MTD-753-04619
...
43
ASSEMBLY, MUFFLER MOUNTING BOLTS MTD-791-147575
...
44
SCREEN-SPARK AR MTD-753-04312
...
45
MUFFLER ASSEMBLY MTD-753-04313
...
46
MUFFLER ASSEMBLY MTD-753-04314
...
47
MUFFLER ASSEMBLY MTD-753-04315
...
48
Cylinder Assembly (includes 51 & 52) (includes 50 & 51) MTD-753-04814
...
49
PISTON ASSEMBLY:W/ROD/RIN MTD-753-04367
...
50
GASKET:CYL:HTSHLD:EP MTD-753-1197
...
51
Cylinder Bolt MTD-791-182723
...
xx
KIT-ENGINE GASKET Not Shown MTD-753-04183
...
xx
O.E.M. Carburetor Repair Kit Not Shown MTD-791-180602
...
xx
Gasket-Diaphragm Repair Kit Not Shown MTD-791-181069
...
xx
Piston Ring Not Shown MTD-753-1209
...
xx
SHBLK:31CC:NON-CLU (includes 41-47); Not Shown MTD-753-04146

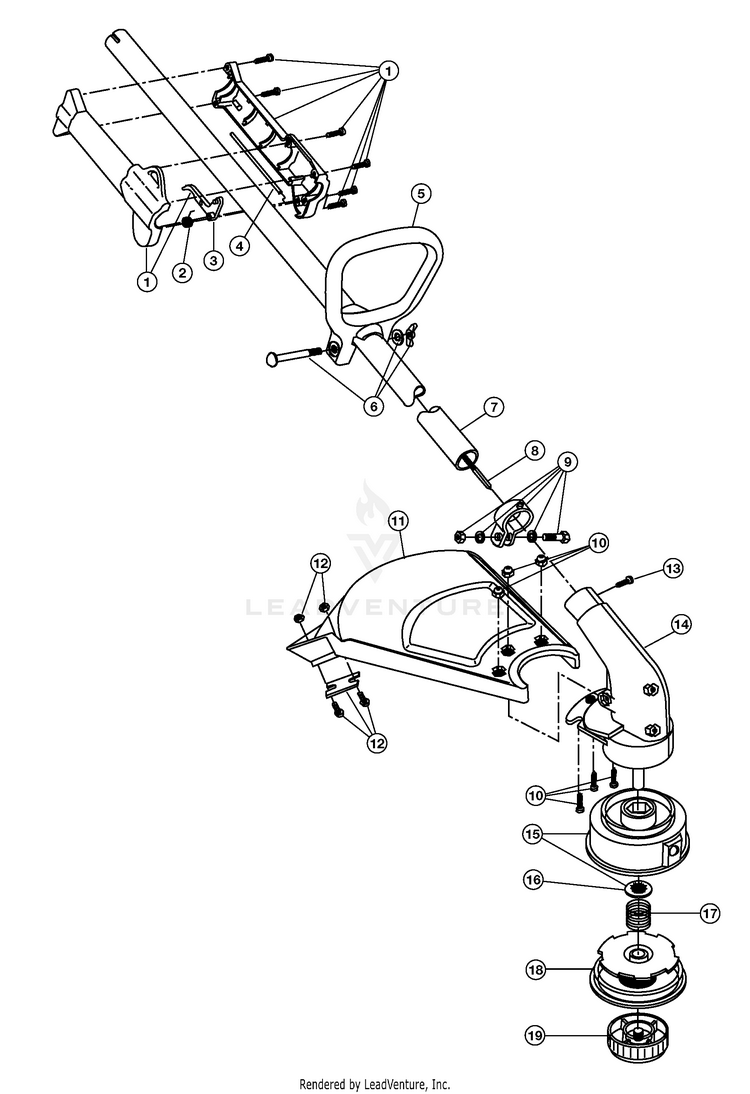

Trimmer

...
...
1
THROTTLE GRIP ASSEMBLY WOOP MTD-753-04927
...
2
Throttle Trigger Spring MTD-791-610314
...
3
Throttle Trigger MTD-791-181807
...
4
Throttle Cable Housing Assembly MTD-791-182068
...
5
D-HANDLE AND HARDWARE (includes 6) MTD-791-153064
...
6
D-Handle Hardware MTD-791-181587
...
7
HOUSING ASSEMBLY:DR MTD-753-04250
...
8
Flexible Drive Shaft MTD-753-04251
...
9
CLAMP ASSEMBLY-LOWER MTD-791-153597
...
10
ASSEMBLY, GUARD MOUNTING SCREWS MTD-791-180547
...
11
GUARD & BLADE ASSEMBLY MTD-1A6902
...
12
BLADE ASSEMBLY MTD-791-181823
...
13
Anti-Rotation Screw MTD-791-145569
...
14
ASSEMBLY, GEARBOX MTD-791-180549
...
15
Outer Spool Assembly MTD-791-153619
...
16
Retainer MTD-791-610660
...
17
Spring MTD-791-610317B
...
18
Inner Reel MTD-794-610318
...
19
Bump Head Knob Assembly MTD-791-153066B
...
xx
LINE .080 Optional Accessory; Not Shown MTD-791-610375
...
xx
Reel & Line Assembly Optional Accessory; Not Shown MTD-791-153577B
