Ryobi 750r 41BD750A034 Gas String Trimmer

Model: 750r 41BD750A034 41BD750A034 750r

Back To Assemblies

Save Part Not Listed?

Popular Parts

Assembly, Primer Bulb/H MTD-791-683974B

Assembly, Fuel Line Assembly MTD-791-682039

Line, Fuel Return MTD-791-181086

Screw, MTD-791-181345

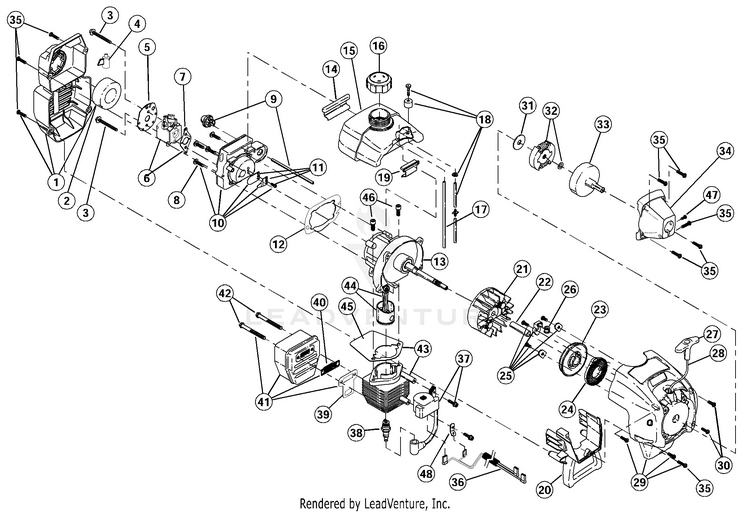

Engine Parts

AIR CLEANER/MUFFLER COVER ASSEMBLY (includes 2 & 35) MTD-753-1192

Air Cleaner Filter MTD-791-180350B

ASSEMBLY, CARBURETOR MO MTD-791-180351

CHOKE LEVER MTD-753-04227

PLATE ASSEMBLY:CHOKE:WV MTD-753-04419

Carburetor Assembly (includes 7 & 17) MTD-753-04338

CARBURETOR GASKET MTD-791P610675

SCREW, 10-24X.75 T-2 MTD-791-181860

Primer and Hose Assembly MTD-791-683974B

CARBURETOR MOUNT ASSEMBLY (includes 8 & 11) MTD-753-1196

REED VALVE ASSEMBLY MTD-791-684451

Carburetor Mount Gasket MTD-753-1208

CRANKCASE SERV ASSEMBLY:-9 (includes 23) MTD-753-04332

PAD, REAR MOUNT PAD MTD-791-612134

TANK ASSEMBLY:B (includes 16-18) MTD-753-04311

Fuel Tank Cap MTD-791-182612

Fuel Return Line MTD-791-181086

Fuel Line Assembly MTD-791-682039

PAD, FRONT MOUNTING MTD-791-145308

EXTN-SHROUD W/STAN MTD-753-04611

Flywheel Assembly MTD-753-05240

SPACER MTD-791-181065

START PULLEY KIT MTD-753-04232

Recoil Spring MTD-791-613102

ASSEMBLY, PULLEY RETAIN MTD-791-181441

Rope Guide MTD-791-611061

Pull Handle MTD-631-04164B

Rope MTD-791-613103

STARTER HOUSING ASSEMBLY (includes 23-28 & 30) MTD-791-181797

SCREW:10-32X.5 MTD-1964

Washer MTD-9162-1

Clutch Rotor Assembly MTD-791-181445

Clutch Drum Assembly MTD-791-153592

ASM-CLUTCH COVER NLAUD (includes 35 & 47) MTD-753-04889

Cover Screw MTD-791-181345

LEAD ASSEMBLY-WIRE MTD-753-1188

IGNITION MODULE ASSEMBLY MTD-753-04337

Spark Plug MTD-791-610311B

Muffler Gasket MTD-753-04619

SCRN:SPK ARST:A-31 MTD-791-182747

MUFFLER ASM CAT NLAUD (includes 39, 40 & 42) MTD-753-05169

ASSEMBLY, MUFFLER MOUNTING BOLTS MTD-791-147575

Cylinder Assembly (includes 51 & 52) (includes 44 & 45) MTD-753-04814

PISTON ASSEMBLY:W/ROD/RIN MTD-753-04367

GASKET:CYL:HTSHLD:EP MTD-753-1197

Cylinder Bolt MTD-791-182723

Anti-Rotation Screw MTD-791-182519

TAB, GROUND MTD-791-611063

ENGINE GASKET KIT Item not shown MTD-753-04134

O.E.M. Carburetor Repair Kit Item not shown MTD-791-180090

Gasket Diaphragm Repair Kit Item not shown MTD-791-181069

Piston Ring Item not shown MTD-753-1209

SHORTBLOCK:31CC:CLU:W/S (includes 13, 41, 46-49); Item not shown MTD-753-04334

Clutch Springs (Qty. 2) Item not shown MTD-791-181599

The Ryobi 750r Gas String Trimmer is your go-to tool for maintaining a pristine lawn. Featuring a robust engine, this trimmer cuts through thick grass and stubborn weeds with ease. Its lightweight construction and comfortable grip enhance usability, making it an essential part of your gardening arsenal. Keep your yard looking great with the Ryobi 750r.
