Ryobi 725r 41ED725A034 Gas String Trimmer

Model: 725r 41ED725A034 41ED725A034 725r

Back To Assemblies

Save Part Not Listed?

Popular Parts

Assembly, Primer Bulb/H MTD-791-683974B

Assembly, Fuel Line Assembly MTD-791-682039

Line, Fuel Return MTD-791-181086

Screw, MTD-791-181345

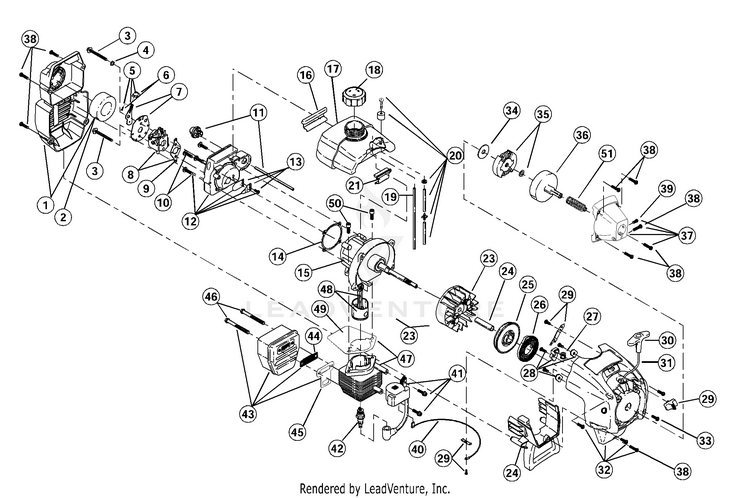

Engine Parts

Air Cleaner Cover Assembly (includes 2 & 38) (includes 2) MTD-753-04511

Air Cleaner Filter MTD-791-180350B

ASSEMBLY, CARBURETOR MO MTD-791-180351

SPRING WASHER .317 X .625 X .020 MTD-936-0271

CHOKE LEVER ASSEMBLY:W/ (includes 6) MTD-753-04418

ASSEMBLY, CHOKE KNOB & MTD-791-182202

PLATE ASSEMBLY:CHOKE:WV (includes 5) MTD-753-04419

CARBURETOR ASSEMBLY W/FUEL LINE (includes 9 & 20) MTD-753-04333

CARBURETOR GASKET MTD-791P610675

SCREW, 10-24X.75 T-2 MTD-791-181860

Primer and Hose Assembly MTD-791-683974B

CARBURETOR MOUNT ASSEMBLY (includes 10) MTD-753-1196

REED VALVE ASSEMBLY MTD-791-684451

Carburetor Mount Gasket MTD-753-1208

CRANKCASE SERV ASSEMBLY:-9 MTD-753-04332

PAD, REAR MOUNT PAD MTD-791-612134

TANK ASSEMBLY:B (includes 18-20) MTD-753-04311

Fuel Tank Cap MTD-791-182612

Fuel Return Line MTD-791-181086

Fuel Line Assembly MTD-791-682039

PAD, FRONT MOUNTING MTD-791-145308

EXTN-SHROUD W/STAN MTD-753-04611

Flywheel Assembly MTD-753-05240

SPACER MTD-791-181065

START PULLEY KIT MTD-753-04232

Recoil Spring MTD-791-613102

Rope Guide MTD-791-611061

ASSEMBLY, PULLEY RETAIN MTD-791-181441

SWITCH ASSEMBLY MTD-791-181442

Pull Handle MTD-631-04164B

Rope MTD-791-613103

STARTER HOUSING ASSEMBLY (includes 25-31 & 38) MTD-791-181443

SCREW:10-32X.5 MTD-1964

Washer MTD-9162-1

Clutch Rotor Assembly MTD-791-181445

Clutch Drum Assembly MTD-791-153592

ASM-CLUTCH COVER NLAUD MTD-753-04889

Screw MTD-791-181345

Anti-Rotation Screw MTD-791-182519

LEAD, WIRE IDC 500 MTD-791-180036

MODULE ASSEMBLY WITH HARDWARE MTD-753-04324

Spark Plug MTD-791-610311B

MUFFLER ASM CAT NLAUD (includes 44-46) MTD-753-05169

SCRN:SPK ARST:A-31 MTD-791-182747

Muffler Gasket MTD-753-04619

ASSEMBLY, MUFFLER MOUNTING BOLTS MTD-791-147575

Cylinder Assembly (includes 51 & 52) (includes 52) MTD-753-04814

PISTON ASSEMBLY:W/ROD/RIN MTD-753-04367

GASKET:CYL:HTSHLD:EP MTD-753-1197

Cylinder Bolt MTD-791-182723

SPRING, COMPRESSION S MTD-791-612468

ENGINE GASKET KIT Not Shown MTD-753-04134

O.E.M. Carburetor Repair Kit (Walbro) Not Shown MTD-791-180602

SET, WALBRO LIMITE Not Shown MTD-791-181873

Piston Ring Not Shown MTD-753-1209

SHORTBLOCK:31CC:CLU:W/S (includes 10, 15, 42, 47-50); Not Shown MTD-753-04334

Clutch Springs (Qty. 2) Not Shown MTD-791-181599
