Ryobi 725r 41CD725A034 Gas String Trimmer

Model: 725r 41CD725A034 41CD725A034 725r

Save Part Not Listed?
product name

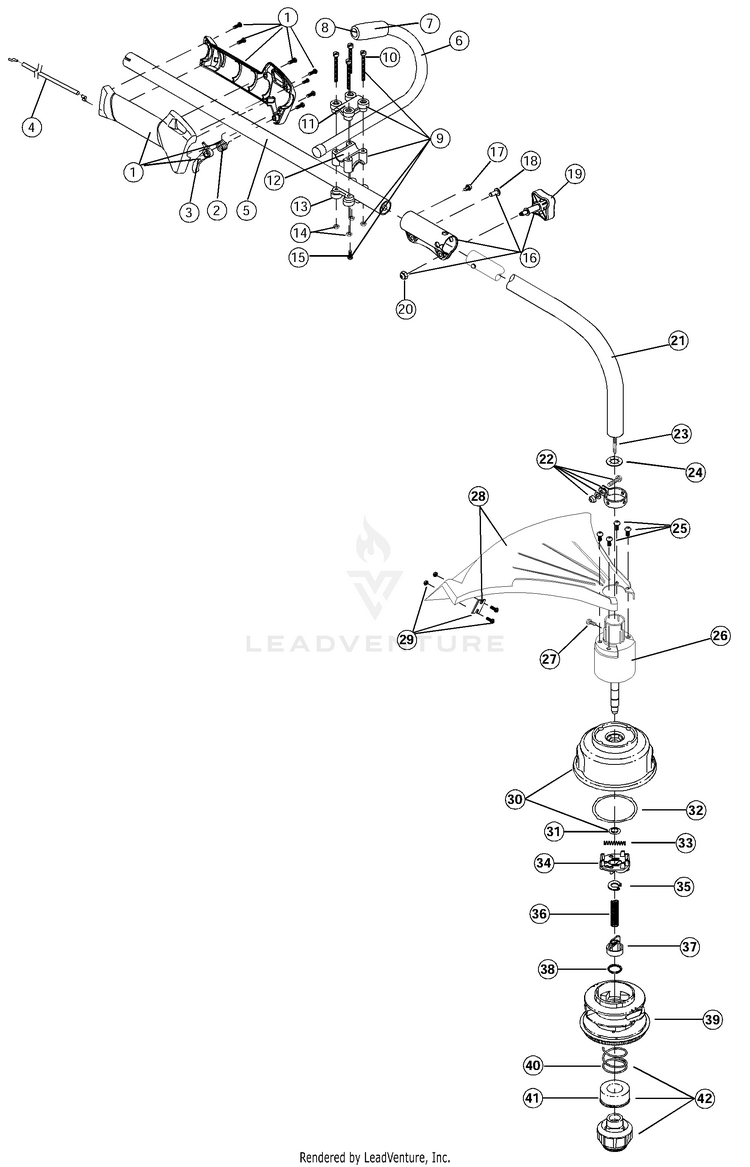

Boom And Trimmer Parts

...
...
1
GRIP (includes 2 & 3) MTD-791-182808
...
2
Throttle Trigger Spring MTD-791-610314
...
3
THROTTLE TRIGGERYDMN YE MTD-753-04295
...
4
Throttle Cable Assembly MTD-791-182068
...
5
Upper Drive Shaft Housing Assembly MTD-753-04344
...
6
ASSEMBLY, J-HANDLE (BLACK) (includes 7 & 8) MTD-791-180687
...
7
GRIP-HANDLE MTD-791-612831
...
8
Tube Closure MTD-791-612021
...
9
Handle Bracket Assembly (includes 10-15) MTD-791-683295
...
10
Screw MTD-791-181811
...
11
Upper Handle Clamp MTD-791-181812
...
12
Middle Handle Clamp MTD-791-181813
...
13
Lower Handle Clamp MTD-791-181814
...
14
Nut MTD-791-181815
...
15
Anti-Rotation Screw MTD-791-145569
...
16
Click-Link Coupler (includes 17-20) MTD-791-181616
...
17
Screw MTD-791-182057
...
18
Bolt MTD-791-181617
...
19
ADJUSTMENT KNO MTD-791-181618
...
20
NUT, ELASTIC LOCK MTD-791-181886
...
21
Drive Shaft Housing Assembly MTD-753-1218
...
22
CLAMP ASSEMBLY-LOWER MTD-791-153597
...
23
Lower Flexible Drive Shaft MTD-791-181852
...
24
Palnut MTD-753-04348
...
25
SCREW, #10-24X.50 M MTD-791-181858
...
26
BUSHING HO MTD-791-181857
...
27
Anti-Rotation Screw MTD-791-145569
...
28
Shield and Blade Assembly (includes 29) MTD-791-683274
...
29
Blade Assembly MTD-791-682061
...
30
Outer Spool and Eyelet Assembly w/Retainer MTD-791-181457
...
31
Retainer MTD-791-181458
...
32
Thrust Washer MTD-791-181561
...
33
SPRING, SPEED SPOOL S MTD-791-181459
...
34
Slider MTD-753-04257
...
35
E-Clip MTD-791-181532
...
36
SPRING, PLUNGER MTD-791-181531
...
37
PLUNGER, SPEED SPO MTD-791-181462
...
38
C-CLIP MTD-791-181463
...
39
Reel and Line Assembly MTD-791-181460B
...
40
Large Spring MTD-791-181465
...
41
SEAL, SPEED SPOOL MTD-791-181467
...
42
BUMP HEAD KNOB ASSEMBLY MTD-791-181468B
...
xx
Reel and Line Assembly (8 ft - 10 ft lengths); Optional Accessory; Item not shown MTD-791-181460B
...
xx
Reel and Line Assembly Optional Accessory; Item not shown MTD-791-181460B
...
xx
Shoulder Strap Assembly Optional Accessory; Item not shown MTD-791-682075B

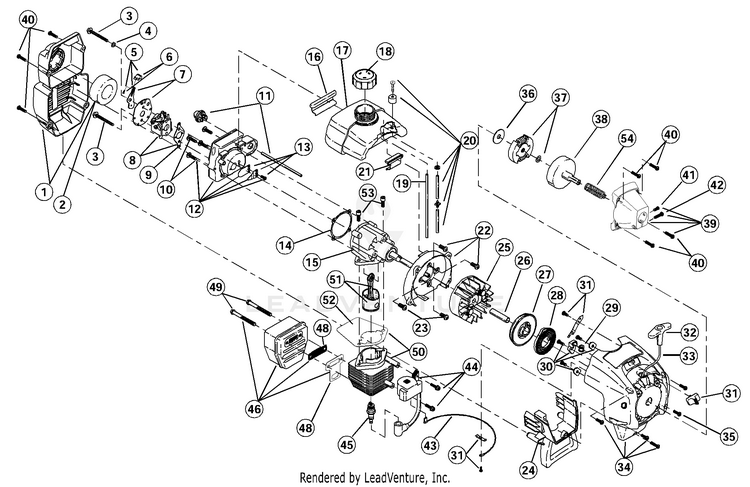

Engine Parts

...
...
1
Air Cleaner Cover Assembly (includes 2 & 38) (includes 2 & 40) MTD-753-04511
...
2
Air Cleaner Filter MTD-791-180350B
...
3
ASSEMBLY, CARBURETOR MO MTD-791-180351
...
4
SPRING WASHER .317 X .625 X .020 MTD-936-0271
...
5
CHOKE LEVER ASSEMBLY:W/ (includes 6) MTD-753-04418
...
6
ASSEMBLY, CHOKE KNOB & MTD-791-182202
...
7
PLATE ASSEMBLY:CHOKE:WV (includes 5) MTD-753-04419
...
8
CARB:A-SERIES:ZAMA (includes 9) MTD-753-04255
...
9
CARBURETOR GASKET MTD-791P610675
...
10
SCREW, 10-24X.75 T-2 MTD-791-181860
...
11
Primer and Hose Assembly MTD-791-683974B
...
12
CARBURETOR MOUNT ASSEMBLY (includes 10 & 13) MTD-753-1196
...
13
REED VALVE ASSEMBLY MTD-791-684451
...
14
Carburetor Mount Gasket MTD-753-1208
...
15
ASSEMBLY, CRANK (includes 10 & 23) MTD-791-182791
...
16
PAD, REAR MOUNT PAD MTD-791-612134
...
17
TANK ASSEMBLY:B (includes 18-20) MTD-791-181438
...
18
Fuel Tank Cap MTD-791-182612
...
19
Fuel Return Line MTD-791-181086
...
20
Fuel Line Assembly MTD-791-682039
...
21
PAD, FRONT MOUNTING MTD-791-145308
...
22
ASSEMBLY, SHROUD ASSEMB MTD-791-153520
...
23
SCREW, 1/4-20X.562 F MTD-791-181861
...
24
EXTN-SHROUD W/STAN MTD-753-04611
...
25
Flywheel Assembly MTD-753-05240
...
26
SPACER MTD-791-181065
...
27
START PULLEY KIT MTD-753-04232
...
28
Recoil Spring MTD-791-613102
...
29
Rope Guide MTD-791-611061
...
30
ASSEMBLY, PULLEY RETAIN MTD-791-181441
...
31
SWITCH ASSEMBLY (includes 43) MTD-791-181442
...
32
Pull Handle MTD-631-04164B
...
33
Rope MTD-791-613103
...
34
STARTER HOUSING ASSEMBLY (includes 27-33 & 35) MTD-791-181443
...
35
SCREW:10-32X.5 MTD-1964
...
36
Washer MTD-9162-1
...
37
Clutch Rotor Assembly MTD-791-181445
...
38
Clutch Drum Assembly MTD-791-153592
...
39
ASM-CLUTCH COVER NLAUD (includes 40-42) MTD-753-04889
...
40
Cover Screw MTD-791-181345
...
41
Anti-Rotation Screw MTD-791-182519
...
42
Clamping Screw MTD-791-181345
...
43
LEAD, WIRE IDC 500 MTD-791-180036
...
44
IGNITION MODULE ASSEMBLY MTD-753-04125
...
45
Spark Plug MTD-791-610311B
...
46
MUFFLER ASM CAT NLAUD (includes 47-49) MTD-753-05169
...
47
SCRN:SPK ARST:A-31 MTD-791-182747
...
48
Muffler Gasket MTD-753-04619
...
49
ASSEMBLY, MUFFLER MOUNTING BOLTS MTD-791-147575
...
50
Cylinder Assembly (includes 51 & 52) (includes 52) MTD-753-04814
...
51
PISTON ASSEMBLY:W/ROD/RIN MTD-753-04367
...
52
GASKET:CYL:HTSHLD:EP MTD-753-1197
...
53
Cylinder Bolt MTD-791-182723
...
54
SPRING, COMPRESSION S MTD-791-612468
...
xx
ENGINE GASKET KIT Item not shown MTD-753-04134
...
xx
O.E.M. Carburetor Repair Kit (Zama) Item not shown MTD-791-180090
...
xx
Gasket Diaphragm Repair Kit (Zama) Item not shown MTD-791-180091
...
xx
Piston Ring Item not shown MTD-753-1209
...
xx
SHORT BLOCK ASSEMBLY (includes 10, 15, 23, 45, 50-53); Item not shown MTD-753-1210
...
xx
Clutch Springs (Qty. 2) Item not shown MTD-791-181599

The Ryobi 725r Gas String Trimmer is designed for optimal performance and convenience in lawn care. Its robust engine provides efficient cutting through thick grass and weeds, ensuring your yard looks well-kept. The lightweight design enhances usability, while the ergonomic handle allows for comfortable operation. Maintain a beautiful lawn effortlessly with the Ryobi 725r.

Why Choose Us for Ryobi 725r 41CD725A034 Gas String Trimmer Parts?
PartsWarehouse is your trusted source for high-quality OEM parts for the Ryobi 725r Gas String Trimmer. Our parts help keep your equipment running smoothly and efficiently.
