product name

Ryobi 725r 41ADL04A734 Gas String Trimmer

Model: 725r 41ADL04A734 41ADL04A734 725r

Save Part Not Listed?
product name

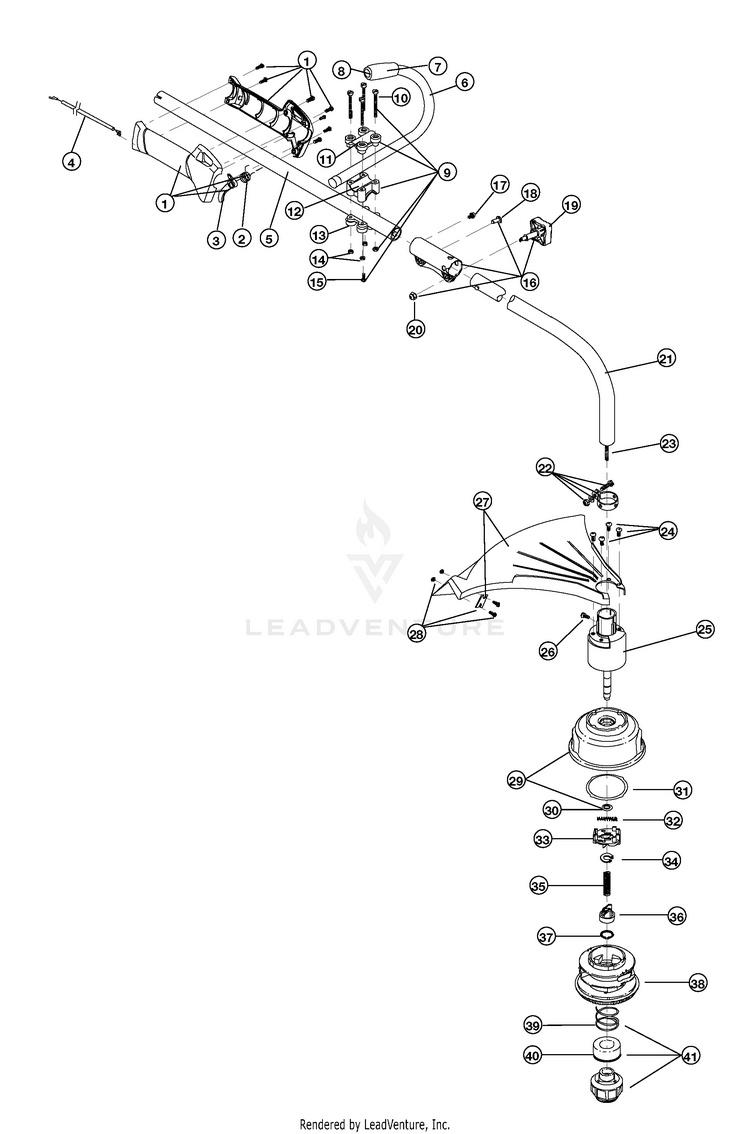

Boom And Trimmer Parts

...
...
1
THROTTLE GRIP ASSEMBLY WOOP (includes 2 & 3) MTD-753-04927
...
2
Throttle Trigger Spring MTD-791-610314
...
3
Throttle Trigger MTD-791-181807
...
4
Throttle Cable MTD-791-182068
...
5
Upper Drive Shaft Housing MTD-753-04344
...
6
ASSEMBLY, J-HANDLE (BLACK) (includes 7 & 8) MTD-791-180687
...
7
GRIP-HANDLE MTD-791-612831
...
8
Tube Closure MTD-791-612021
...
9
Handle Bracket Assembly (includes 10-15) MTD-791-683295
...
10
Screw MTD-791-181811
...
11
Upper Handle Clamp MTD-791-181812
...
12
Middle Handle Clamp MTD-791-181813
...
13
Lower Handle Clamp MTD-791-181814
...
14
Nut MTD-791-181815
...
15
Anti-Rotation Screw MTD-791-145569
...
16
Click-Link Coupler (includes 17-20) MTD-791-181616
...
17
Screw MTD-791-182057
...
18
Bolt MTD-791-181617
...
19
ADJUSTMENT KNO MTD-791-181618
...
20
NUT, ELASTIC LOCK MTD-791-181886
...
21
Drive Shaft Housing Assembly MTD-753-1218
...
22
CLAMP ASSEMBLY-LOWER MTD-791-153597
...
23
Lower Flexible Drive Shaft MTD-791-181852
...
24
SCREW, #10-24X.50 M MTD-791-181858
...
25
BUSHING HO MTD-791-181857
...
26
Anti-Rotation Screw MTD-791-145569
...
27
SHIELD ASSEMBLY WITH BLADE (includes 28) MTD-791-181659
...
28
BLADE ASSEMBLY MTD-791-181823
...
29
Outer Spool and Eyelet Assembly w/ Retainer MTD-791-181457
...
30
Retainer MTD-791-181458
...
31
Thrust Washer MTD-791-181561
...
32
SPRING, SPEED SPOOL S MTD-791-181459
...
33
Slider MTD-753-04257
...
34
E-Clip MTD-791-181532
...
35
SPRING, PLUNGER MTD-791-181531
...
36
PLUNGER, SPEED SPO MTD-791-181462
...
37
C-CLIP MTD-791-181463
...
38
Reel and Line Assembly MTD-791-181460B
...
39
Large Spring MTD-791-181465
...
40
SEAL, SPEED SPOOL MTD-791-181467
...
41
BUMP HEAD KNOB ASSEMBLY MTD-791-181468B
...
xx
Reel and Line Assembly Optional Accessory; Not Shown MTD-791-181460B
...
xx
Shoulder Strap Assembly Optional Accessory; Not Shown MTD-791-682075B

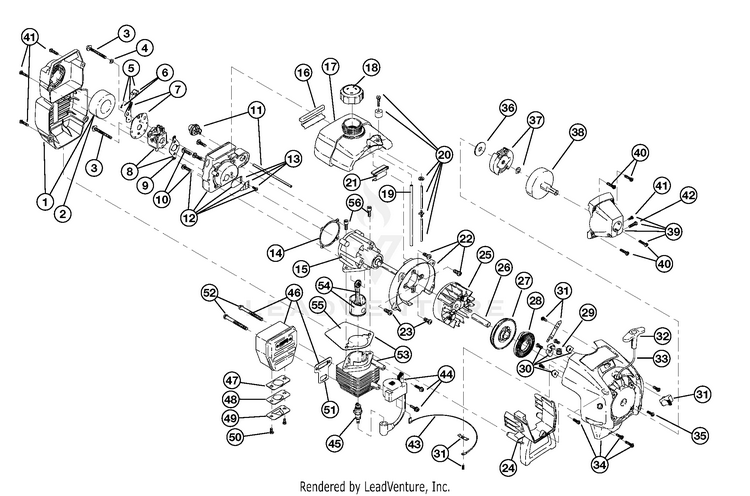

Engine Parts

...
...
1
COVER ASSEMBLY (includes 2 & 40) MTD-753-04105
...
2
Air Cleaner Filter MTD-791-180350B
...
3
ASSEMBLY, CARBURETOR MO MTD-791-180351
...
4
SPRING WASHER .317 X .625 X .020 MTD-936-0271
...
5
CHOKE LEVER ASSEMBLY:W/ (includes 6) MTD-753-04418
...
6
ASSEMBLY, CHOKE KNOB & MTD-791-182202
...
7
PLATE ASSEMBLY:CHOKE:WV (includes 5) MTD-753-04419
...
8
CARBURETOR ASSEMBLY (includes 9 & 20) MTD-753-04106
...
9
CARBURETOR GASKET MTD-791P610675
...
10
SCREW, 10-24X.75 T-2 MTD-791-181860
...
11
Primer and Hose Assembly MTD-791-683974B
...
12
CARBURETOR MOUNT ASSEMBLY (includes 10) MTD-753-1196
...
13
REED VALVE ASSEMBLY MTD-791-684451
...
14
Carburetor Mount Gasket MTD-753-1208
...
15
ASSEMBLY, CRANK (includes 10) MTD-791-182791
...
16
PAD, REAR MOUNT PAD MTD-791-612134
...
17
TANK ASSEMBLY:B (includes 18-20) MTD-753-04311
...
18
Fuel Tank Cap MTD-791-182612
...
19
Fuel Return Line MTD-791-181086
...
20
Fuel Line Assembly MTD-791-682039
...
21
PAD, FRONT MOUNTING MTD-791-145308
...
22
ASSEMBLY, SHROUD ASSEMB MTD-791-153520
...
23
SCREW, 1/4-20X.562 F MTD-791-181861
...
24
EXTN-SHROUD W/STAN MTD-753-04611
...
25
Flywheel Assembly MTD-753-05240
...
26
SPACER MTD-791-181065
...
27
START PULLEY KIT MTD-753-04232
...
28
Recoil Spring MTD-791-613102
...
29
Rope Guide MTD-791-611061
...
30
ASSEMBLY, PULLEY RETAIN MTD-791-181441
...
31
SWITCH ASSEMBLY (includes 43) MTD-791-181442
...
32
Pull Handle MTD-631-04164B
...
33
Rope MTD-791-613103
...
34
STARTER HOUSING ASSEMBLY (includes 27-33 & 43) MTD-791-181443
...
35
SCREW:10-32X.5 MTD-1964
...
36
Washer MTD-9162-1
...
37
Clutch Rotor Assembly MTD-791-181445
...
38
Clutch Drum MTD-791-153592
...
39
ASM-CLUTCH COVER NLAUD (includes 40-42) MTD-753-04889
...
40
Cover Screw MTD-791-181345
...
41
Anti-Rotation Screw MTD-791-182519
...
42
Clamping Screw MTD-791-181345
...
43
LEAD, WIRE IDC 500 MTD-791-180036
...
44
MODULE ASSEMBLY PULSE CARBURETOR MTD-753-04109
...
45
Spark Plug MTD-791-610311B
...
46
MUFFLER ASSEMBLY WITH GASKET (includes 47-52) MTD-753-04110
...
47
SCREEN-SPARK AR MTD-753-04312
...
48
MUFFLER ASSEMBLY MTD-753-04313
...
49
MUFFLER ASSEMBLY MTD-753-04314
...
50
MUFFLER ASSEMBLY MTD-753-04315
...
51
Muffler Gasket MTD-753-04619
...
52
ASSEMBLY, MUFFLER MOUNTING BOLTS MTD-791-147575
...
53
Cylinder Assembly (includes 51 & 52) (includes 55) MTD-753-04814
...
54
PISTON ASSEMBLY:W/ROD/RIN MTD-753-04367
...
55
Cylinder Gasket MTD-791-182723
...
56
Cylinder Bolt MTD-791-610674
...
xx
KIT-ENGINE GASKET Not Shown MTD-753-04183
...
xx
O.E.M. Carburetor Repair Kit Not Shown MTD-791-180602
...
xx
SET, WALBRO LIMITE Not Shown MTD-791-181873
...
xx
Piston Ring Not Shown MTD-753-1209
...
xx
SHORTBLOCK:31CC:CLU:CAR (includes 10, 15, 23, 45, 53-56); Not Shown MTD-753-04112
...
xx
SET, STARTER HOUSI Not Shown MTD-791-181501
...
xx
SEAL, SEAL Not Shown MTD-791-610309
...
xx
Clutch Springs (Qty. 2) Not Shown MTD-791-181599

The Ryobi 725r Gas String Trimmer combines power and efficiency, making it an essential tool for lawn maintenance. Its powerful engine provides the necessary strength to handle tough trimming tasks effortlessly. The lightweight and ergonomic design enhance comfort, allowing you to work for extended periods without fatigue. Experience exceptional cutting performance with the Ryobi 725r.

Why Choose Us for Ryobi 725r 41ADL04A734 Gas String Trimmer Parts?
At PartsWarehouse, we specialize in supplying high-quality OEM parts for the Ryobi 725r Gas String Trimmer. Trust us for all your replacement needs to keep your trimmer performing at its best.
