Ryobi 725r 41ADL04A034 Gas String Trimmer

Model: 725r 41ADL04A034 41ADL04A034 725r

Save Part Not Listed?
product name

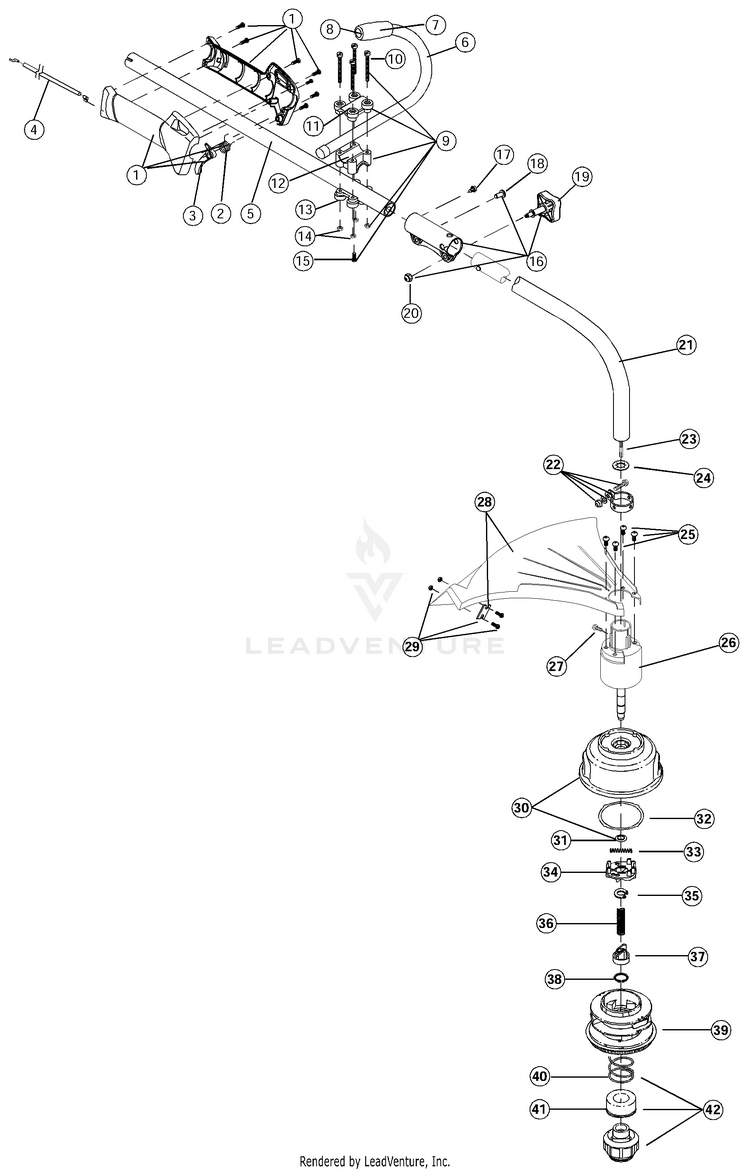

Boom And Trimmer Parts

...
...
1
THROTTLE &TRIGGER HOUSING ASSEMBLY (includes 2 & 3) MTD-753-04279
...
2
Throttle Trigger Spring MTD-791-610314
...
3
THROTTLE TRIGGERYDMN YE MTD-753-04295
...
4
Throttle Cable Assembly MTD-791-182068
...
5
Upper Drive Shaft Housing Assembly MTD-753-04344
...
6
ASSEMBLY, J-HANDLE (BLACK) (includes 7 & 8) MTD-791-180687
...
7
GRIP-HANDLE MTD-791-612831
...
8
Tube Closure MTD-791-612021
...
9
Handle Bracket Assembly (includes 10-15) MTD-791-683295
...
10
Screw MTD-791-181811
...
11
Upper Handle Clamp MTD-791-181812
...
12
Middle Handle Clamp MTD-791-181813
...
13
Lower Handle Clamp MTD-791-181814
...
14
Nut MTD-791-181815
...
15
Anti-Rotation Screw MTD-791-145569
...
16
Split Boom Coupler (Incl Ref No. 10-13) (includes 17-20) MTD-753-1190
...
17
Screw MTD-791-182057
...
18
Bolt MTD-791-181617
...
19
ADJUSTMENT KNO MTD-791-181618B
...
20
NUT, ELASTIC LOCK MTD-791-181886
...
21
Drive Shaft Housing Assembly MTD-753-1218
...
22
CLAMP ASSEMBLY-LOWER (includes 26) MTD-791-153597
...
23
Lower Flexible Drive Shaft MTD-791-181852
...
24
Palnut MTD-753-04348
...
25
SCREW, #10-24X.50 M MTD-791-181858
...
26
BUSHING HO MTD-791-181857
...
27
Anti-Rotation Screw MTD-791-145569
...
28
Shield and Blade Assembly (includes 29) MTD-791-683274
...
29
Blade Assembly MTD-791-682061
...
30
Outer Spool and Eyelet Assembly w/Retainer MTD-791-181457
...
31
Retainer MTD-791-181458
...
32
Thrust Washer MTD-791-181561
...
33
SPRING, SPEED SPOOL S MTD-791-181459
...
34
Slider MTD-753-04257
...
35
E-Clip MTD-791-181532
...
36
SPRING, PLUNGER MTD-791-181531
...
37
PLUNGER, SPEED SPO MTD-791-181462
...
38
C-CLIP MTD-791-181463
...
39
Reel and Line Assembly MTD-791-181460B
...
40
Large Spring MTD-791-181465B
...
41
SEAL, SPEED SPOOL MTD-791-181467
...
42
BUMP HEAD KNOB ASSEMBLY MTD-791-181468B
...
xx
Reel and Line Assembly Optional Accessory; Item not shown MTD-791-181460B
...
xx
Shoulder Strap Assembly Optional Accessory; Item not shown MTD-791-682075B

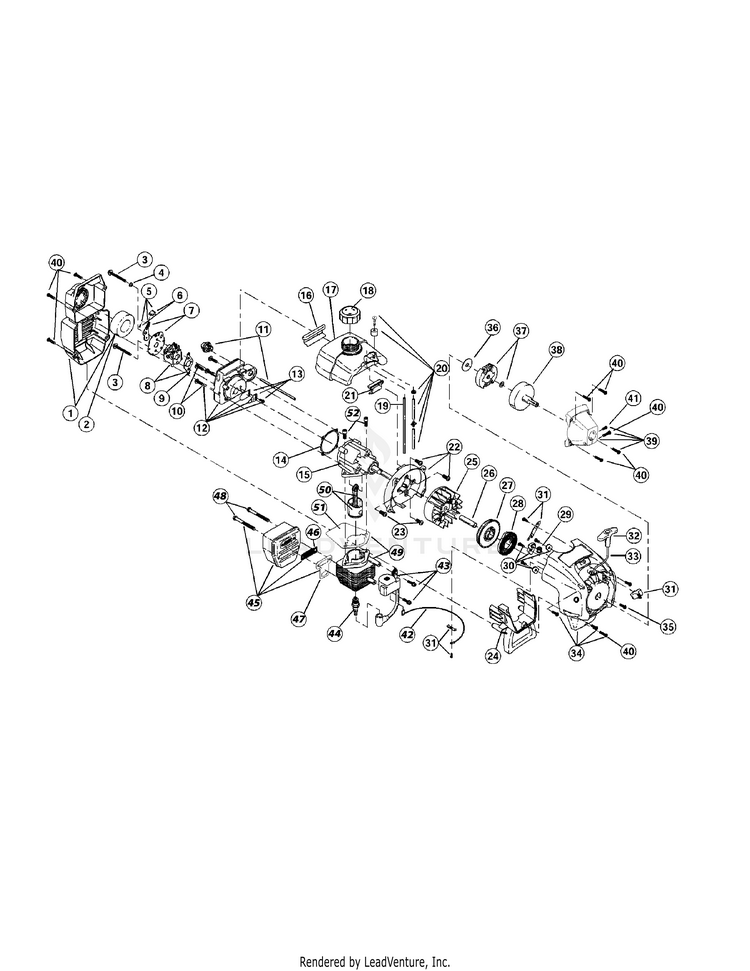

Engine Parts

...
...
1
Air Cleaner Cover Assembly (includes 2 & 38) (Incl. Ref No. 2 & 40) MTD-753-04511
...
2
Air Cleaner Filter MTD-791-180350B
...
3
ASSEMBLY, CARBURETOR MO MTD-791-180351
...
4
SPRING WASHER .317 X .625 X .020 MTD-936-0271
...
5
CHOKE LEVER ASSEMBLY:W/ (Incl. Ref No. 6) MTD-753-04418
...
6
ASSEMBLY, CHOKE KNOB & MTD-791-182202
...
7
PLATE ASSEMBLY:CHOKE:WV (Incl. Ref No. 5) MTD-753-04419
...
8
CARB ASSEMBLY A-SERIES (Incl. Ref No. 9) MTD-791-182875
...
9
CARBURETOR GASKET MTD-791P610675
...
10
SCREW, 10-24X.75 T-2 MTD-791-181860
...
11
Primer and Hose Assembly MTD-791-683974B
...
12
CARBURETOR MOUNT ASSEMBLY (Incl. Ref No. 10 & 13) MTD-753-1196
...
13
REED VALVE ASSEMBLY MTD-791-684451
...
14
Carburetor Mount Gasket MTD-753-1208
...
15
ASSEMBLY, CRANK (Incl. Ref No. 10 & 23) MTD-791-182791
...
16
PAD, REAR MOUNT PAD MTD-791-612134
...
17
TANK ASSEMBLY:B (Incl. Ref No. 18-20) MTD-753-04311
...
18
Fuel Tank Cap MTD-791-182612
...
19
Fuel Return Line MTD-791-181086
...
20
Fuel Line Assembly MTD-791-682039
...
21
PAD, FRONT MOUNTING MTD-791-145308
...
22
ASSEMBLY, SHROUD ASSEMB MTD-791-153520
...
23
SCREW, 1/4-20X.562 F MTD-791-181861
...
24
EXTN-SHROUD W/STAN MTD-753-04611
...
25
Flywheel Assembly MTD-753-05240
...
26
SPACER MTD-791-181065
...
27
START PULLEY KIT MTD-753-04232
...
28
Recoil Spring MTD-791-613102
...
29
Rope Guide MTD-791-611061
...
30
ASSEMBLY, PULLEY RETAIN MTD-791-181441
...
31
SWITCH ASSEMBLY (Incl. Ref No. 42) MTD-791-181442
...
32
Pull Handle MTD-631-04164B
...
33
Rope MTD-791-613103
...
34
STARTER HOUSING ASSEMBLY (Incl. Ref No. 27-33 & 35) MTD-791-181443
...
35
SCREW:10-32X.5 MTD-1964
...
36
Washer MTD-9162-1
...
37
Clutch Rotor Assembly MTD-791-181445
...
38
Clutch Drum Assembly MTD-791-153592
...
39
ASM-CLUTCH COVER NLAUD (Incl. Ref No. 40-41) MTD-753-04889
...
40
Cover Screw MTD-791-181345
...
41
Anti-Rotation Screw MTD-791-182519
...
42
LEAD, WIRE IDC 500 MTD-791-180036
...
43
IGNITION MODULE ASSEMBLY MTD-753-04125
...
44
Spark Plug MTD-791-610311B
...
45
MUFFLER ASM CAT NLAUD (Incl. Ref No. 46-48) MTD-753-05169
...
46
SCRN:SPK ARST:A-31 MTD-791-182747
...
47
Muffler Gasket MTD-753-04619
...
48
ASSEMBLY, MUFFLER MOUNTING BOLTS MTD-791-147575
...
49
Cylinder Assembly (includes 51 & 52) (Incl. Ref No. 51) MTD-753-04814
...
50
PISTON ASSEMBLY:W/ROD/RIN MTD-753-04367
...
51
Cylinder Gasket MTD-791-610674
...
52
Cylinder Bolt MTD-791-182723
...
xx
KIT-ENGINE GASK Item Not Shown MTD-791-182067
...
xx
O.E.M. Carburetor Repair Kit (Zama) Item Not Shown MTD-791-180090
...
xx
Gasket Diaphragm Repair Kit (Zama) Item Not Shown MTD-791-180091
...
xx
Piston Ring Item Not Shown MTD-753-1209
...
xx
SHORT BLOCK ASSEMBLY (Incl. Ref No. 10,15,23, 44, 49-52)Item Not Shown MTD-753-1210
...
xx
Clutch Springs (Qty. 2) Item Not Shown MTD-791-181599
