Ryobi 704r VP 41AD7V4G034 Gas String Trimmer

Model: 704r VP 41AD7V4G034 41AD7V4G034 704r VP

Save Part Not Listed?
product name

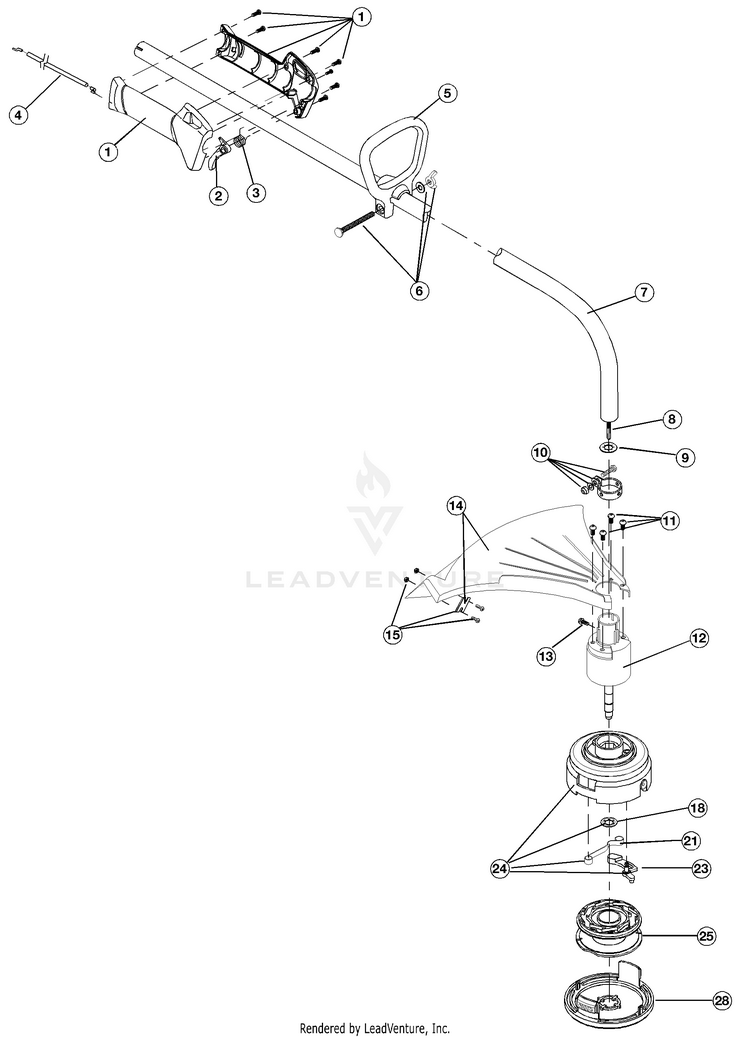

Boom And Trimmer Parts (SN 011 And Greater)

...
...
1
GRIP MTD-791-182808
...
2
Throttle Trigger Spring MTD-791-610314
...
3
THROTTLE TRIGGERYDMN YE MTD-753-04295
...
4
Throttle Cable Assembly MTD-791-182068
...
5
D-HANDLE AND HARDWARE MTD-791-153064
...
6
D-Handle Hardware MTD-791-181587
...
7
ASSEMBLY, DRIVE SHAFT H MTD-791-181555
...
8
Flexible Drive Shaft MTD-753-04117
...
9
Palnut MTD-753-04348
...
10
CLAMP ASSEMBLY-LOWER MTD-791-153597
...
11
SCREW, #10-24X.50 M MTD-791-181858
...
12
SHAFT ASSEMBLY- MTD-791-182870
...
13
Anti-Rotation Screw MTD-791-145569
...
14
Shield and Blade Assembly (includes 15) MTD-791-683274
...
15
Blade Assembly MTD-791-682061
...
18
ASSEMBLY, PISTO MTD-791-182458
...
21
PAWL SPRING MTD-791-182842
...
23
PAWL-RATCH MTD-791-182843
...
24
SPOOL ASSEMBLY-OUTER MTD-791-182841
...
25
REEL-INNER MTD-791-182844
...
28
SPOOL COVER MTD-791-182845
...
xx
LINE .080 Optional Accessory; Item not shown MTD-791-610375
...
xx
AFS REPLACEMENT ASSEMBLY Optional Accessory; Item not shown MTD-791-00052
...
xx
HEAD ASSEMBLY-TRIMMER Optional Accessory; Item not shown MTD-791-182840
...
xx
Shoulder Strap Assembly Optional Accessory; Item not shown MTD-791-682075B

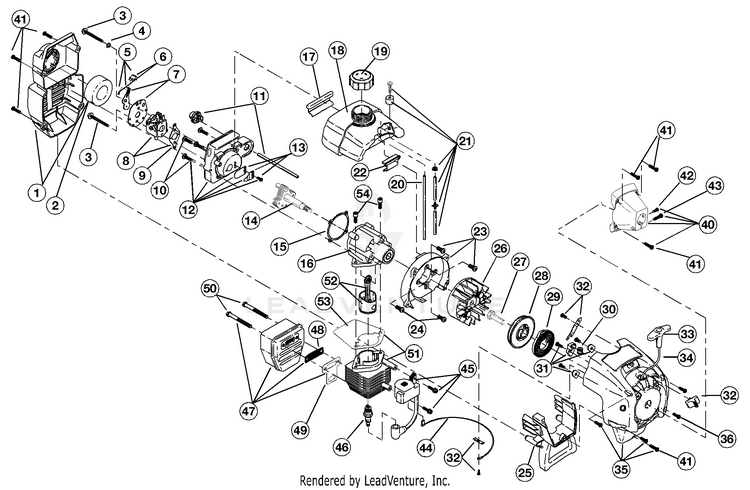

Engine Parts (S/N 011...... And Greater)

...
...
1
Air Cleaner Cover Assembly (includes 2 & 38) (includes 2 & 41) MTD-753-04511
...
2
Air Cleaner Filter MTD-791-180350B
...
3
ASSEMBLY, CARBURETOR MO MTD-791-180351
...
4
Wavey Washer MTD-791-180352
...
5
CHOKE LEVER ASSEMBLY:W/ (includes 6) MTD-753-04418
...
6
ASSEMBLY, CHOKE KNOB & MTD-791-182202
...
7
PLATE ASSEMBLY:CHOKE:WV (includes 5) MTD-753-04419
...
8
CARB ASSEMBLY A-SERIES (includes 9 & 21) MTD-791-182875
...
9
CARBURETOR GASKET MTD-791P610675
...
10
SCREW, 10-24X.75 T-2 MTD-791-181860
...
11
Primer and Hose Assembly MTD-791-683974B
...
12
CARBURETOR MOUNT ASSEMBLY (includes 10) MTD-753-1196
...
13
REED VALVE ASSEMBLY MTD-791-684451
...
14
ASSEMBLY, POWER SHAFT MTD-791-181866
...
15
Carburetor Mount Gasket MTD-753-1208
...
16
CRANK CASE SERVICE ASSEMBLY (includes 10, 14 & 24) MTD-791-182807
...
17
PAD, REAR MOUNT PAD MTD-791-612134
...
18
TANK ASSEMBLY:B (includes 19-21) MTD-791-181438
...
19
Fuel Cap Assembly MTD-791-181559
...
20
Fuel Return Line MTD-791-181086
...
21
Fuel Line Assembly MTD-791-682039
...
22
PAD, FRONT MOUNTING MTD-791-145308
...
23
ASSEMBLY, SHROUD ASSEMB MTD-791-153520
...
24
SCREW, 1/4-20X.562 F MTD-791-181861
...
25
EXTN-SHROUD W/STAN MTD-753-04611
...
26
Flywheel Assembly MTD-753-05240
...
27
NUT, SQUARE DRIVE MTD-791-610303
...
28
START PULLEY KIT MTD-753-04232
...
29
Recoil Spring MTD-791-613102
...
30
Rope Guide MTD-791-611061
...
31
ASSEMBLY, PULLEY RETAIN MTD-791-181441
...
32
SWITCH ASSEMBLY (includes 44) MTD-791-181442
...
33
Pull Handle MTD-631-04164B
...
34
Rope MTD-791-613103
...
35
STARTER HOUSING ASSEMBLY (includes 28-34 & 44) MTD-791-181443
...
36
SCREW:10-32X.5 MTD-1964
...
37
Washer MTD-9162-1
...
38
Clutch Rotor Assembly MTD-791-181445
...
39
Clutch Drum Assembly MTD-791-153592
...
40
ASM-CLUTCH COVER NLAUD (includes 41-43) MTD-753-04889
...
41
Cover Screw MTD-791-181345
...
42
Anti-Rotation Screw MTD-791-181345
...
43
Clamping Screw MTD-791-182519
...
44
LEAD, WIRE IDC 500 MTD-791-180036
...
45
IGNITION MODULE ASSEMBLY MTD-753-04125
...
46
Spark Plug MTD-791-610311B
...
47
MUFFLER ASM CAT NLAUD (includes 48-50) MTD-753-05169
...
48
SCRN:SPK ARST:A-31 MTD-791-182747
...
49
Muffler Gasket MTD-753-04619
...
50
ASSEMBLY, MUFFLER MOUNTING BOLTS MTD-791-147575
...
51
Cylinder Assembly (includes 51 & 52) (includes 53) MTD-753-04814
...
52
PISTON ASSEMBLY:W/ROD/RIN MTD-753-04367
...
53
Cylinder Gasket MTD-791-610674
...
54
SCREW, 1/4-20X.625 S MTD-791-181870
...
xx
KIT, ENGINE GASKET Item not shown MTD-791-180011
...
xx
O.E.M. Carburetor Repair Kit (Walbro) Item not shown MTD-791-180602
...
xx
O.E.M. Carburetor Repair Kit (Zama) Item not shown MTD-791-180090
...
xx
SET, WALBRO LIMITE Item not shown MTD-791-181873
...
xx
Gasket Diaphragm Repair Kit (Zama) Item not shown MTD-791-180091
...
xx
RING:31CC:PSTN:BARREL FACED Item not shown MTD-791-180530
...
xx
SHORT BLOCK ASSEMBLY (includes 10, 14, 16, 24, 46, 51-54); Item not shown MTD-791-182792
...
xx
SET, STARTER HOUSI Item not shown MTD-791-181501
...
xx
SEAL, SEAL Item not shown MTD-791-610309
...
xx
Clutch Springs (Qty. 2) Item not shown MTD-791-181599

The Ryobi 704r VP Gas String Trimmer offers a combination of power and versatility for all your lawn care needs. With its efficient engine, this trimmer tackles tough cutting tasks effortlessly. Its lightweight design ensures ease of use, while the ergonomic handle enhances comfort, allowing for extended use without fatigue. The Ryobi 704r VP is perfect for maintaining a tidy and beautiful yard.
