Ryobi 700rVP 41AD7VPG734 Gas String Trimmer

Model: 700rVP 41AD7VPG734 41AD7VPG734 700rVP

Back To Assemblies

Save Part Not Listed?

Popular Parts

Assembly, Primer Bulb/H MTD-791-683974B

Assembly, Fuel Line Assembly MTD-791-682039

Line, Fuel Return MTD-791-181086

Screw, MTD-791-181345

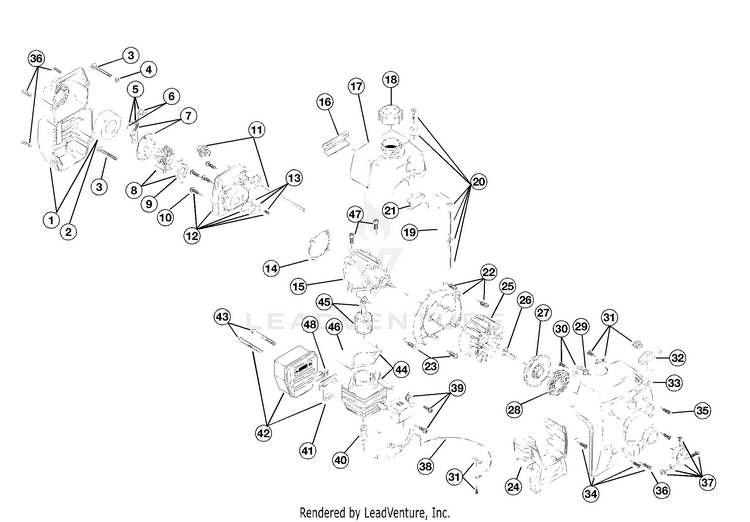

Engine Parts

Air Cleaner Cover Assembly (includes 2 & 38) (includes 2 & 36) MTD-753-04511

Air Cleaner Filter MTD-791-180350B

ASSEMBLY, CARBURETOR MO MTD-791-180351

SPRING WASHER .317 X .625 X .020 MTD-936-0271

Choke Lever Assembly (includes 6) MTD-791-182201

ASSEMBLY, CHOKE KNOB & MTD-791-182202

Choke Lever and Plate (includes 5 & 6) MTD-791-182203

CARB ASSEMBLY A-SERIES (includes 9 & 20) MTD-791-182875

CARBURETOR GASKET MTD-791P610675

SCREW, 10-24X.75 T-2 MTD-791-181860

Primer and Hose Assembly MTD-791-683974B

CARBURETOR MOUNT ASSEMBLY (includes 10 & 14) MTD-753-1196

REED VALVE ASSEMBLY MTD-791-684451

Carburetor Mount Gasket MTD-753-1208

CRANKCASE ASSEMBLY: (includes 10 & 23) MTD-791-181865

PAD, REAR MOUNT PAD MTD-791-612134

FUEL TANK ASSEMBLY (includes 18-20) MTD-791-181152

Fuel Cap Assembly MTD-791-182612

Fuel Return Line MTD-791-181086

Fuel Line Assembly MTD-791-682039

PAD, FRONT MOUNTING MTD-791-145308

ASSEMBLY, SHROUD ASSEMB (includes 23) MTD-791-153520

SCREW, 1/4-20X.562 F MTD-791-181861

EXTN-SHROUD W/STAN MTD-753-04611

Flywheel Assembly MTD-753-05240

NUT, SQUARE DRIVE MTD-791-610303

START PULLEY KIT MTD-753-04232

Recoil Spring MTD-791-613102

Rope Guide MTD-791-611061

ASSEMBLY, PULLEY RETAIN MTD-791-181889

ASSEMBLY, SWIT (includes 38) MTD-791-182185

Pull Handle MTD-631-04164B

Rope MTD-791-613103

ASSEMBLY, START (includes 27-33 & 35) MTD-791-181927

SCREW:10-32X.5 MTD-1964

Cover Screw MTD-791-181345

CLAMP ASSEMBLY-LOWER MTD-791-153597

LEAD, WIRE IDC 500 MTD-791-180036

IGNITION MODULE ASSEMBLY MTD-753-04125

Spark Plug MTD-791-610311B

Muffler Gasket MTD-753-04619

MUFFLER ASM CAT NLAUD (includes 43 & 48) MTD-753-05169

ASSEMBLY, MUFFLER MOUNTING BOLTS MTD-791-147575

Cylinder Assembly (includes 51 & 52) MTD-753-04814

PISTON ASSEMBLY:W/ROD/RIN MTD-753-04367

GASKET:CYL:HTSHLD:EP MTD-753-1197

Cylinder Bolt MTD-791-182723

SCRN:SPK ARST:A-31 MTD-791-182747

Engine Gasket Kit Not Shown MTD-753-043134

O.E.M. Carburetor Repair Kit (Zama) Not Shown MTD-791-180090

Gasket Diaphragm Repair Kit (Zama) Not Shown MTD-791-180091

Piston Ring Not Shown MTD-753-1209

SHORTBLOCK:31CC:NC:KEYL (includes 10, 15, 40, 44-47); Not Shown MTD-753-04173
