Ryobi 700r 41BDL01G034 Gas String Trimmer

Model: 700r 41BDL01G034 41BDL01G034 700r


product name

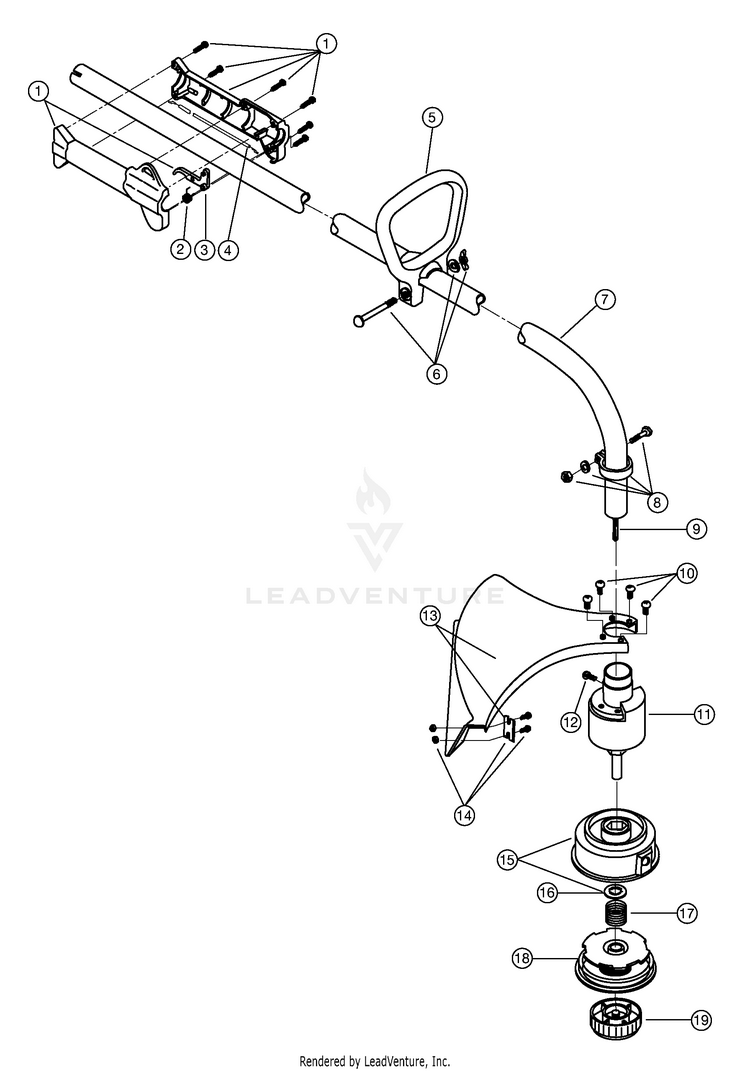

Boom And Trimmer

...
...
1
THROTTLE GRIP ASSEMBLY WOOP (Incl Ref No. 2 & 3) MTD-753-04927

...
2
Throttle Trigger Spring MTD-791-610314

...
3
Throttle Trigger MTD-791-181807

...
4
Throttle Cable Assembly MTD-791-182068

...
5
D-HANDLE AND HARDWARE (Incl Ref No. 6) MTD-791-153064

...
6
D-Handle Hardware MTD-791-181587

...
7
ASSEMBLY, DRIVE SHAFT H MTD-791-181893

...
8
CLAMP ASSEMBLY-LOWER MTD-791-153597

...
9
Flexible Drive Shaft MTD-753-04280

...
10
SCREW, #10-24X.50 M MTD-791-181858

...
11
SHAFT ASSEMBLY-BRG HOUSING MTD-791-181784

...
12
Anti-Rotation Screw MTD-791-145569

...
13
SHIELD ASSEMBLY WITH BLADE (Incl Ref No. 14) MTD-791-181659

...
14
BLADE ASSEMBLY MTD-791-181823

...
15
Outer Spool Assembly (Incl Ref No. 16) MTD-791-153619

...
16

...

...
18
Inner Reel MTD-753-1155

...
19
Bump Head Knob Assembly MTD-791-153066B

...
xx
LINE .080 Optional Accessories;Items Not Shown MTD-791-610375

...
xx
Reel & Line Assembly Optional Accessories;Items Not Shown MTD-791-153577B

...
xx
Bump Head Assembly Optional Accessories;Items Not Shown MTD-791-180897B

...
xx
Shoulder Strap Assembly Optional Accessories;Items Not Shown MTD-791-682075B

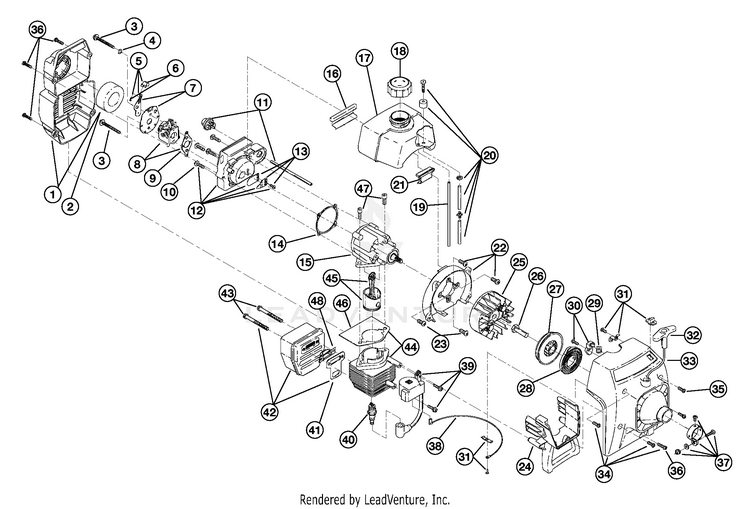

Engine

...
...
1
Air Cleaner Cover Assembly (includes 2 & 38) (includes 2 & 36) MTD-753-04511

...
2
Air Cleaner Filter MTD-791-180350B

...
3
ASSEMBLY, CARBURETOR MO MTD-791-180351

...
4
SPRING WASHER .317 X .625 X .020 MTD-936-0271

...
5
CHOKE LEVER ASSEMBLY:W/ (includes 6) MTD-753-04418

...
6
ASSEMBLY, CHOKE KNOB & MTD-791-182202

...
7
PLATE ASSEMBLY:CHOKE:WV (includes 5 & 6) MTD-753-04419

...
8
CARB ASSEMBLY A-SERIES (includes 9 & 20) MTD-791-182875

...
9
CARBURETOR GASKET MTD-791P610675

...
10
SCREW, 10-24X.75 T-2 MTD-791-181860

...
11
Primer and Hose Assembly MTD-791-683974B

...
12
CARBURETOR MOUNT ASSEMBLY (includes 10 & 14) MTD-753-1196

...
13
REED VALVE ASSEMBLY MTD-791-684451

...
14
Carburetor Mount Gasket MTD-753-1208

...
15
CRANKCASE ASSEMBLY: (includes 10 & 23) MTD-791-181865

...
16
PAD, REAR MOUNT PAD MTD-791-612134

...
17
FUEL TANK ASSEMBLY (includes 18 & 20) MTD-791-181152

...
18
Fuel Tank Cap MTD-791-182612

...
19
Fuel Return Line MTD-791-181086

...
20
Fuel Line Assembly MTD-791-682039

...
21
PAD, FRONT MOUNTING MTD-791-145308

...
22
ASSEMBLY, SHROUD ASSEMB (includes 23) MTD-791-153520

...
23
SCREW, 1/4-20X.562 F MTD-791-181861

...
24
EXTN-SHROUD W/STAN MTD-753-04611

...
25
Flywheel Assembly MTD-753-05240

...
26
NUT, SQUARE DRIVE MTD-791-610303

...
27
START PULLEY KIT MTD-753-04232

...
28
Recoil Spring MTD-791-613102

...
29
Rope Guide MTD-791-611061

...
30
ASSEMBLY, PULLEY RETAIN MTD-791-181889

...
31
ASSEMBLY, SWITCH IDC 50 (includes 38) MTD-791-180035

...
32
Pull Handle MTD-631-04164B


...
34
STARTER HOUSING ASSEMBLY (includes 27-33 & 35) MTD-753-04231

...
35
SCREW:10-32X.5 MTD-1964

...
36
Cover Screw MTD-791-181345

...
37
CLAMP ASSEMBLY-LOWER MTD-791-153597

...
38
LEAD, WIRE IDC 500 MTD-791-180036

...
39
IGNITION MODULE ASSEMBLY MTD-753-04125

...
40
Spark Plug MTD-791-610311B

...
41
Muffler Gasket MTD-753-04619

...
42
MUFFLER ASM CAT NLAUD (includes 41 & 43) MTD-753-05169

...
43
ASSEMBLY, MUFFLER MOUNTING BOLTS MTD-791-147575

...
44
Cylinder Assembly (includes 51 & 52) (includes 46 & 47) MTD-753-04814

...
45
PISTON ASSEMBLY:W/ROD/RIN MTD-753-04367

...
46
GASKET:CYL:HTSHLD:EP MTD-753-1197

...
47
Cylinder Bolt MTD-791-182723

...
48
SCRN:SPK ARST:A-31 MTD-791-182747

...
xx
ENGINE GASKET KIT Items Not Shown MTD-753-04134

...
xx
O.E.M. Carburetor Repair Kit (Zama) Items Not Shown MTD-791-180090

...
xx
Gasket Diaphragm Repair Kit (Zama) Items Not Shown MTD-791-180091

...
xx
Piston Ring Items Not Shown MTD-753-1209

...
xx
SHORTBLOCK:31CC:NC:KEYL (includes 10, 15, 40, 44-47); Not Shown MTD-753-04173

The Ryobi 700r Gas String Trimmer is a reliable tool designed for efficient lawn maintenance. With its powerful engine, this trimmer effectively tackles tough grass and weeds, ensuring a well-kept yard. The lightweight and ergonomic design enhance maneuverability, allowing users to navigate around flower beds and garden paths easily. Perfect for both casual and avid gardeners, the Ryobi 700r ensures your outdoor space remains tidy and beautiful.

Why Choose Us for Ryobi 700r 41BDL01G034 Gas String Trimmer Parts?
At PartsWarehouse, we provide a full selection of OEM parts for the Ryobi 700r Gas String Trimmer. Our quality components ensure your equipment operates at peak performance, so you can maintain your yard with confidence.
