Ryobi 700r 41AD700G734 Gas String Trimmer

Model: 700r 41AD700G734 41AD700G734 700r

Save Part Not Listed?

Popular Parts

Spring - Spool MTD-791-610317B

Knob Assembly - Bump 20 MTD-791-153066B

Assembly, Fuel Line Assembly MTD-791-682039

Reel - Inner Spool MTD-753-1155

Boom And Trimmer Parts

THROTTLE GRIP ASSEMBLY WOOP (Incl. Ref No. 2 & 3) MTD-753-04927

Throttle Trigger Spring MTD-791-610314

Throttle Trigger MTD-791-181807

Throttle Cable Assembly MTD-791-182068

D-HANDLE AND HARDWARE (Incl. Ref No. 6) MTD-791-153064

D-Handle Hardware MTD-791-181587

ASSEMBLY, BOOM 49" CURVED MTD-791-182605

CLAMP ASSEMBLY-LOWER MTD-791-153597

Flexible Drive Shaft MTD-753-04280

Shield Mounting Screw MTD-753-04282

SHAFT ASSEMBLY-BRG HOUSING MTD-791-181784

Anti-Rotation Screw MTD-791-145569

Shield and Blade Assembly (Incl. Ref No.14) MTD-753-04283

Blade Assembly MTD-791-180553

Outer Spool Assembly (Incl. Ref No.16) MTD-791-153619

Retainer MTD-791-610660

Spring MTD-791-610317B

Inner Reel MTD-753-1155

Bump Head Knob Assembly MTD-791-153066B

Shoulder Strap Assembly Optional Accessories;Not Shown MTD-791-682075B

LINE .080 Optional Accessories;Not Shown MTD-791-610375

Reel and Line Assembly Optional Accessories;Not Shown MTD-791-153577B

Bump Head Assembly Optional Accessories;Not Shown MTD-791-180897B

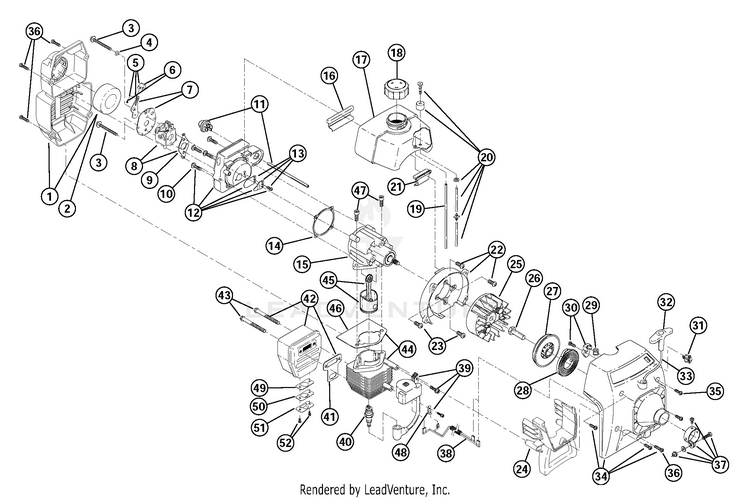

Engine Parts

COVER ASSEMBLY (Includes 2 & 36) MTD-753-04105

Air Cleaner Filter MTD-791-180350B

ASSEMBLY, CARBURETOR MO MTD-791-180351

SPRING WASHER .317 X .625 X .020 MTD-936-0271

CHOKE LEVER ASSEMBLY:W/ (Includes 6) MTD-753-04418

ASSEMBLY, CHOKE KNOB & MTD-791-182202

PLATE ASSEMBLY:CHOKE:WV (Includes 5 & 6) MTD-753-04419

CARBURETOR ASSEMBLY (Includes 9 & 20) MTD-753-04106

CARBURETOR GASKET MTD-791P610675

SCREW, 10-24X.75 T-2 MTD-791-181860

Primer and Hose Assembly MTD-791-683974B

CARBURETOR MOUNT ASSEMBLY (Includes 10, 13 & 14) MTD-753-1196

REED VALVE ASSEMBLY MTD-791-684451

Carburetor Mount Gasket MTD-753-1208

CRANKCASE ASSEMBLY: MTD-791-181865

CRANKCASE ASSEMBLY:W/PSHF: Includes 10 & 23 MTD-753-04319

PAD, REAR MOUNT PAD MTD-791-612134

FUEL TANK ASSEMBLY (Includes 18 & 20) MTD-791-181152

CAP, FUEL TANK MTD-791-181795

Fuel Return Line MTD-791-181086

Fuel Line Assembly MTD-791-682039

PAD, FRONT MOUNTING MTD-791-145308

ASSEMBLY, SHROUD ASSEMB (Includes 23) MTD-791-153520

SCREW, 1/4-20X.562 F MTD-791-181861

EXTN-SHROUD W/STAN MTD-753-04611

Flywheel Assembly MTD-753-05240

NUT, SQUARE DRIVE MTD-791-610303

START PULLEY KIT MTD-753-04232

Recoil Spring MTD-791-613102

Rope Guide MTD-791-611061

ASSEMBLY, PULLEY RETAIN MTD-791-181889

SWITCH:POS ON/OFF:WEAD (Includes 38) MTD-753-04241

Pull Handle MTD-631-04164B

Rope MTD-791-613103

STARTER HOUSING ASSEMBLY (Includes 27-33, 35 & 36) MTD-753-04300

SCREW:10-32X.5 MTD-1964

Cover Screw MTD-791-181345

CLAMP ASSEMBLY-LOWER MTD-791-153597

WIRE:LEAD:RED/BK MTD-794-00028

MODULE ASSEMBLY PULSE CARBURETOR MTD-753-04109

Spark Plug MTD-791-610311B

Muffler Gasket MTD-753-04619

MUFFLER ASSEMBLY WITH GASKET (Includes 41 & 43) MTD-753-04110

ASSEMBLY, MUFFLER MOUNTING BOLTS MTD-791-147575

Cylinder Assembly (includes 51 & 52) (Includes 46 & 47) MTD-753-04814

PISTON ASSEMBLY:W/ROD/RIN MTD-753-04367

Cylinder Gasket MTD-753-04182

Cylinder Bolt MTD-791-182723

TAB, GROUND MTD-791-611063

SCREEN-SPARK AR MTD-753-04312

MUFFLER ASSEMBLY MTD-753-04313

MUFFLER ASSEMBLY MTD-753-04314

MUFFLER ASSEMBLY MTD-753-04315

KIT-ENGINE GASKET Not Shown MTD-753-04183

O.E.M. Carburetor Repair Kit Not Shown MTD-791-180602

Gasket Diaphragm Repair Kit Not Shown MTD-791-181069

Piston Ring Not Shown MTD-753-1209

SHBLK:31CC:NON-CLU (Includes 14, 16, 41, 44-47); Not Shown MTD-753-04146
