Ryobi 650r 41AN650G034 Gas String Trimmer

Model: 650r 41AN650G034 41AN650G034 650r

Save Part Not Listed?
product name

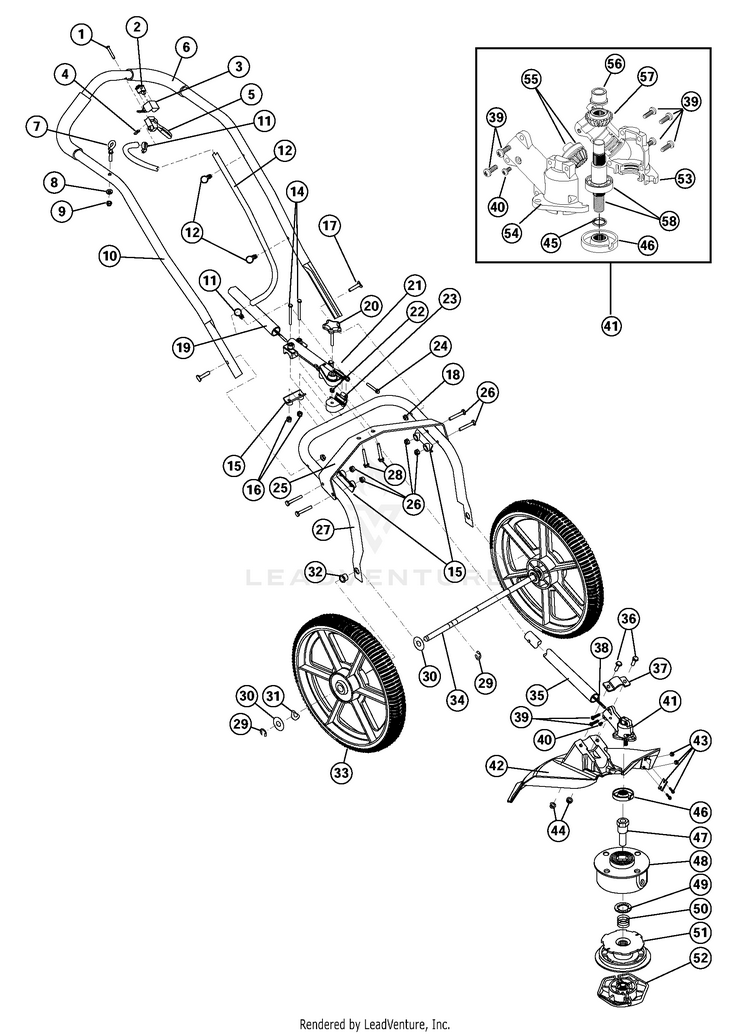

Boom And Trimmer

...
...
1
SCREW:THROT MT MTD-753-04185
...
2
On/Off Switch 19 MTD-791-182405
...
3
BRACKET, SWITCH MTD-791-182672
...
4
WELDNUT:RN1510 #10 MTD-753-04186
...
5
THROT TRIG ASSEMBLY MTD-753-04187
...
6
FOAM GRIP MTD-753-04189
...
7
ROPE GUIDE MTD-753-04190
...
8
WASH, FLAT SPECIAL MTD-4150
...
9
Hex Lock Nut MTD-712-0324
...
10
HANDLEBAR MTD-753-04191
...
11
Cable Tie MTD-725-0157
...
12
WIRE CLIP MTD-753-04192
...
13
COVER:THROT CBL MTD-753-04193
...
14
Hex Screw, 1/4-20 x 2.50 MTD-710-1122
...
15
BRACKET-RET CLAMP MTD-753-04195
...
16
Hex Lock Nut MTD-712-0324
...
17
CARRIAGE BOLT MTD-9686A-1
...
18
LOCKNUT, ¼ "-20 W/ MTD-791-182652
...
19
UPPER DRIVE SHAFT MTD-753-04197
...
20
KNOB-STAR MTD-753-04198
...
21
UPPER CLAMP MTD-753-04199
...
22
Hex L-Nut 5/16-18 Thd. MTD-712-0429
...
23
CLAMP:GRIP MTD-753-04201
...
24
Hex Wash. TT-Tap Scr. 1/4-20 x 1.75 Lg. MTD-710-1026
...
25
BRACKET:SUPPORT MTD-753-04203
...
26
Hex Head Cap Screw MTD-753-04204
...
27
HANDLEBAR: MTD-753-04205
...
28
SCREW:TT:1/4-20:1.50 MTD-753-04206
...
29
RING:.500 DIA SH MTD-753-04207
...
30
FLAT WASHER MTD-936-0456
...
31
SPRING WASHER .50 x 1.0 x .022 MTD-736-0182
...
32
AXLE BUSHING MTD-741-04009
...
33
WHEEL ASSEMBLY 14X1.8 MTD-734-04030
...
34
AXLE MTD-753-04212
...
35
LOWER DRIVE SHAFT ASSEMBLY MTD-753-04213
...
36
Bolt (includes 44) MTD-791-182200
...
37
BRACKET-BOOM MTD-753-04214
...
38
Drive Shaft MTD-791-613300
...
39
SCREW #10-24X11/16 T-25 MTD-791-182195
...
40
Anti-Rotation Screw MTD-791-182519
...
41
2 Piece Gearbox Assembly (includes 39, 40 & 45) MTD-791-182193
...
42
GD ASSEMBLY MTD-753-04215
...
43
Cutoff Blade Assembly MTD-791-682061
...
44
LOCKNUT, ¼ "-20 W/ MTD-791-182652
...
45
O-RING MTD-753-1159
...
46
Spacer MTD-791-182196
...
47
Spool Shaft MTD-791-612483
...
48
SPOOL ASM-OUTER 3000 NLAUD MTD-791-683301
...
49
RETAINER MTD-1772
...
50
Spring MTD-791-6120636B
...
51
Inner Reel MTD-791-147495
...
52
KNOB ASSEMBLY-BUMP 3000 STRG TRM MTD-791-180814B
...
53
LEFT HOUSING 2 Piece Gearbox Assembly Parts - Item 27 MTD-791-182191
...
54
RIGHT HOUSING 2 Piece Gearbox Assembly Parts - Item 27 MTD-791-182192
...
55
Pinion Gear Assembly 2 Piece Gearbox Assembly Parts - Item 27 MTD-791-182194
...
56
BUSHING-OUTPUT SHA 2 Piece Gearbox Assembly Parts - Item 27 MTD-791-182199
...
57
GEAR-OUTPUT SHAFT 2 Piece Gearbox Assembly Parts - Item 27 MTD-791-182198
...
58
SHAFT-ASSEMBLY-OUTPUT (includes 56 & 57); 2 Piece Gearbox Assembly Parts - Item 27 MTD-791-182197
...
xx
REPLACEMENT LINE .105'' Optional Accessories; Parts Not Shown MTD-753-04216
...
xx
Reel and Line Assembly (NOT SHOWN) Optional Accessories; Parts Not Shown MTD-753-1224
...
xx
Bump Head Assembly (includes 47-52); Optional Accessories; Parts Not Shown MTD-791-147498

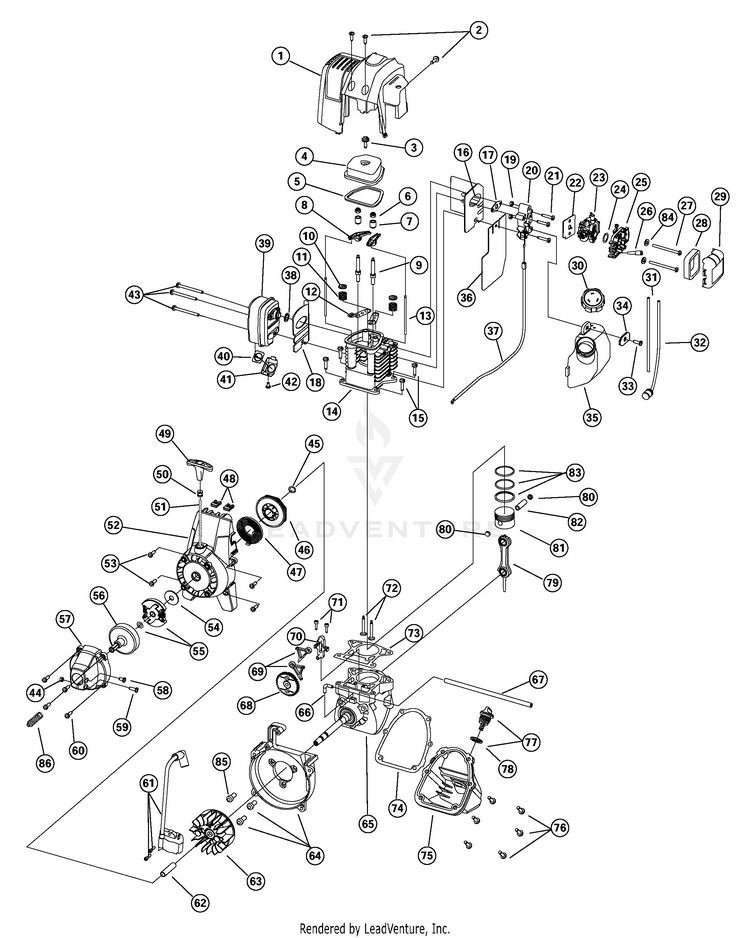

Engine

...
...
1
COVER ASSEMBLY:ENG:MFLR MTD-753-1222
...
2
Engine Cover Screws MTD-753-04994
...
3
Valve Cover Screw MTD-791-181025
...
4
COVER, VALVE W/O BRE MTD-791-182098
...
5
Valve Cover Gasket MTD-791-182099
...
6
NUT, ROCKER ADJUST MTD-791-182340
...
7
PIVOT, ROCKER ARM MTD-791-182101
...
8
ARM, ROCKER MTD-791-182100
...
9
STUD, ROCKER ARM MTD-791-182341
...
10
RET, VALVE SPRING MTD-791-182103
...
11
SPRING, VALVE MTD-791-181038
...
12
GUIDE, PUSH ROD MTD-791-182102
...
13
ROD, PUSH MTD-791-181033
...
14
CYLINDER ASSEMB (includes 9-11, 14, 16 & 80) MTD-791-182745
...
15
SCREW, M5 X18 MTD-9052-1
...
16
INTAKE BAFFLE MTD-753-1226
...
17
Carburetor Mount Gasket MTD-791-182749
...
18
BAFFLE:MFLR:EXHAUST MTD-753-1232
...
19
NUT-DEE HANDLE MTD-791-181034
...
20
Carburetor Mount (includes 20) MTD-791-182347
...
21
SCR, CARBU MTD-791-182348
...
22
CARBURETOR GASKET MTD-791-182732
...
23
Carburetor with Primer MTD-753-1225
...
24
O-Ring, Carburetor MTD-791-181751
...
25
Air Cleaner Assembly (includes 29 & 30) MTD-753-04223
...
26
Breather Tube MTD-791-182097
...
27
SCREW 5M X 0.8-7 NLAUD MTD-791-181750
...
28
Air Filter MTD-791-181757
...
29
Air Cleaner Assembly MTD-753-04223
...
30
FUEL CAP ASSEMBLY 43MM-6 W/O HOLE MTD-791-182271
...
31
Fuel Return Line MTD-791-182352
...
32
Fuel Pick-Up Line with Filter MTD-791-182353
...
33
SCREW, FUEL TANK BRA MTD-791-181080
...
34
RET, LOWER STAMPIN MTD-791-182354
...
35
FUEL TANK ASSEMBLY (includes 31-33) MTD-791-182355
...
36
BAFFLE, FU MTD-791-182356
...
37
Throttle Cable MTD-753-1231
...
38
MUFFLER GASKET MTD-9094-1
...
39
MUFFLER & GASKET (includes 40, 42-44) MTD-791-182359
...
40
SCREEN, AC MUFFLER SPARK MTD-791-180890
...
41
COVER, SCREEN MTD-791-181045
...
42
SCREW, SCREEN COVER MTD-791-181046
...
43
SCREW, MUFFLER MTD-791-182361
...
44
NUT:#8-32: MTD-753-1241
...
45
Pulley Retainer MTD-753-04288
...
46
PULLEY:START MTD-753-1199
...
47
SPR START MTD-753-1236
...
48
Nut Clip MTD-791-182366
...
49
Pull Handle MTD-631-04164B
...
50
Rope Guide MTD-791-611061
...
51
Rope MTD-791-613103
...
52
Screw MTD-9054
...
53
START HSG ASSEMBLY (includes 49-56) MTD-753-04154
...
54
Washer MTD-9162-1
...
55
Clutch with Spacer MTD-753-1238
...
56
Clutch Drum MTD-791-153592
...
57
CLUTCH COVER MTD-753-1239
...
58
Anti-Rotation Screw MTD-791-145569
...
59
SCREW:8-32X1.00":MAC MTD-753-1240
...
60
Clutch Cover Screw MTD-791-181345
...
61
IGNITION MODULE WITH SCREWS MTD-791-182725
...
62
SPACER MTD-791-181065
...
63
Flywheel Assembly MTD-753-05240
...
64
ASSEMBLY, SHROUD (AC-2. (includes 93) MTD-791-182743
...
65
ASSEMBLY, CRANKCASE & P (includes 70-74) MTD-791-182376
...
66
SEAL, SEAL MTD-791-610309
...
67
Bearing MTD-791-182372
...
68
ASSEMBLY, POWERSHAFT & MTD-791-182380
...
69
FOLLOWER, MTD-753-1242
...
70
BRACKET, CAM MTD-791-181013
...
71
SCR, CAM BRACKET MTD-791-181012
...
72
VALVE MTD-791-181040
...
73
GASKET, CYLINDER B MTD-791-182374
...
74
GASKET, OIL PAN MTD-791-181018
...
75
PAN, OIL W/ GASKET (includes 81 & 83) MTD-791-182377
...
76
Screw MTD-9054
...
77
Dipstick Assembly (includes 85) MTD-791-182378
...
78
O-Ring MTD-791-182290
...
79
ROD, CONNECTING MTD-791-181009
...
80
BUTTON, WRIST PIN MTD-791-181008
...
81
PISTON ASSEMBLY:PSTN MTD-753-1243
...
82
PIN, WRIST MTD-791-181006
...
83
RING SET:PISTON MTD-753-04801
...
84
Washer MTD-791-182409
...
85
SCREW, 1/4-20X.562 F MTD-791-181861
...
86
SPRING, COMPRESSION S MTD-791-612468
...
87
GROMMET, WIRE (AC- MTD-791-182537
...
xx
Spark Plug Parts not shown MTD-794-00082
...
xx
SHORTBLOCK ASSEMBLY (includes 3-17, 69-90); Parts not shown MTD-753-04087
...
xx
Flywheel Assembly Parts not shown MTD-753-05240
...
xx
Carburetor Repair Kit Parts not shown MTD-753-04014

The Ryobi 650r Gas String Trimmer is a powerful tool designed for effective yard maintenance. Its robust engine delivers impressive cutting power, making it easy to manage overgrown grass and weeds. The lightweight construction and comfortable grip allow for easy maneuverability, ensuring you can tackle any trimming task with confidence. Perfect for homeowners looking to keep their lawns tidy, the Ryobi 650r is an excellent addition to your outdoor toolkit.
