Ryobi 13AD678G034 (2002) Lawn Tractor

Model: 13AD678G034 (2002)

Back To Assemblies

Save Part Not Listed?

Popular Parts

Screw - Hex Wash Sf MTD-710-0599

Pin-Cotter-1/8 Diax 1.25 MTD-714-0470

Screw - Hex Wash Hd MTD-710-0604A

Washer - Lock 5/16 MTD-936-0119

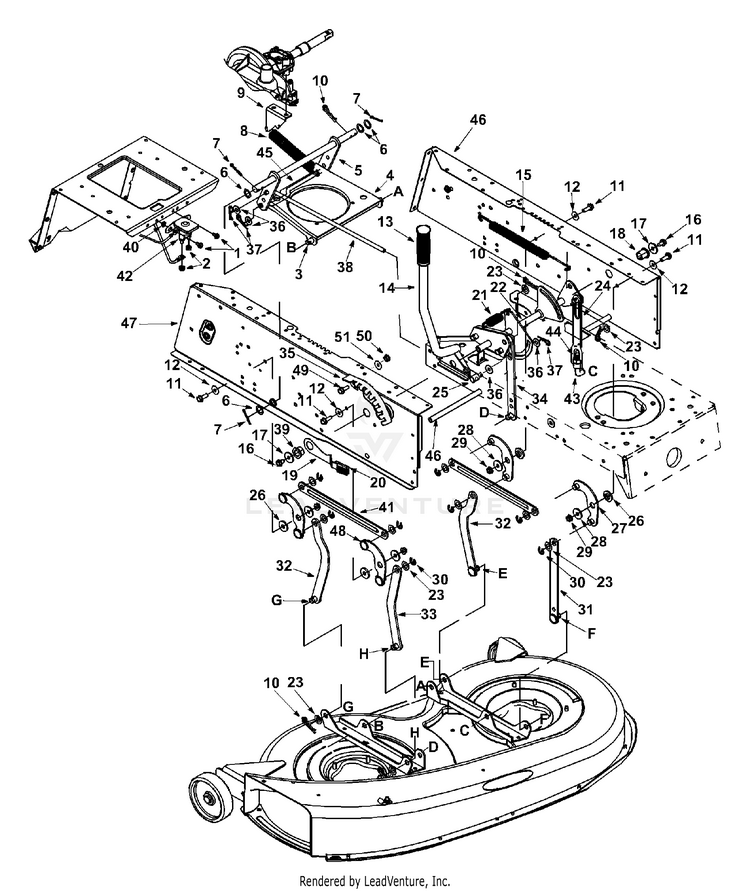

Deck Lift & Hanger Assembly

Self Tap Screw 1/4-20 x .50" Lg. MTD-710-0599

Sems Hex Nut 1/4-20 MTD-712-0271

SHAFT .50 DIA x 10.50 LG MTD-738-0670A

STABILIZER BRACKET BLACK MTD-17636D-0637

SHAFT ASSY (POWDER BLACK) MTD-97624-0637

Fl-Wash. MTD-936-0256

Cotter Pin 1/8" Dia. MTD-714-0470

Ext. Spring .94" O.D. x 7.58" MTD-932-0556

Spring Retainer Brkt. MTD-17128A-0637

Cotter Pin MTD-714-0147

SCREW 5/16-18 x .875 GR5 HXFLG HD MTD-710-1238A

Bell-Wash. .325" I.D. MTD-736-0425

LIFT HANDLE GRIP MTD-720-0233

DECK LIFT HANDLE ASS'Y MTD-17675A

EXTENSION SPRING MTD-732-0638

TT-Tap Scr. 5/16-18 x ..625" Lg. MTD-710-0604A

Fl-Wash. .344 I.D. x 1.25 O.D. MTD-736-0231

Flange Bearing .632 ID MTD-741-0487C

HEIGHT ADJUSTER STOP LEVER ASSEMBLY (Incl. #20) MTD-683-0003

KNOB-HGT ADJ-BLACK Optional MTD-08540

EXTENSION SPRING MTD-932-0637

LIFT SHAFT ASS'Y MTD-17637A

Fl-Wash. .53 I.D. x .93 O.D. MTD-736-0160

Adj. Deck Lift Link MTD-17712-0637

FERRULE 3/8-24 x .375 x 1.31 LG MTD-911-0723A

SPACER MTD-948-0331

PIVOT LINK (LH) MTD-983-0029A-0637

Fl-Wash. .344 I.D. x .125 O.D. MTD-736-0231

HEX FLANGE NUT MTD-712-3004A

E-RING FOR .500 MTD-916-0104

DECK HANGER LINK ASS'Y MTD-14804A

DECK HANGER LINK ASS'Y MTD-17710

HANGER-DECK LINK MTD-14800A

DECK LIFT LINK (POWDER BLACK) MTD-14802A-0637

Index Brkt. MTD-783-04113P

FLAT WASHER .38X.88 MTD-736-0267

Hairpin Clip MTD-714-0145

Deck Belt Disengagement Rod MTD-747-0598

Flange Bearing .83 I.D. x .62 O.D. MTD-748-0176

L-Wash. MTD-736-0222

CONNECTING ROD MTD-783-0103-0637

Solenoid MTD-925-1426A

LIFT ADJUSTMENT LINKER MTD-911-0841

Hex Nut 1/2-20 Grade 5 MTD-912-3066

ROD .380 DIA x 9.34"L MTD-738-0669

ROD-RUNNING BOARD MTD-738-0526

UPPER FRAME (LH) MTD-783-0043B

UPPER FRAME (RH) MTD-783-0042D

PIVOT LINK ASSEMBLY (RH) MTD-683-0028A

SCREW 5/16-18 x .75 GR5 MTD-710-3008

HEX NUT 5/16-18 MTD-712-3010

Lock Wash. 5/16" I.D. MTD-936-0119
