Ryobi 13AD678G034 (2002) Lawn Tractor

Model: 13AD678G034 (2002)

Back To Assemblies

Save Part Not Listed?
product name

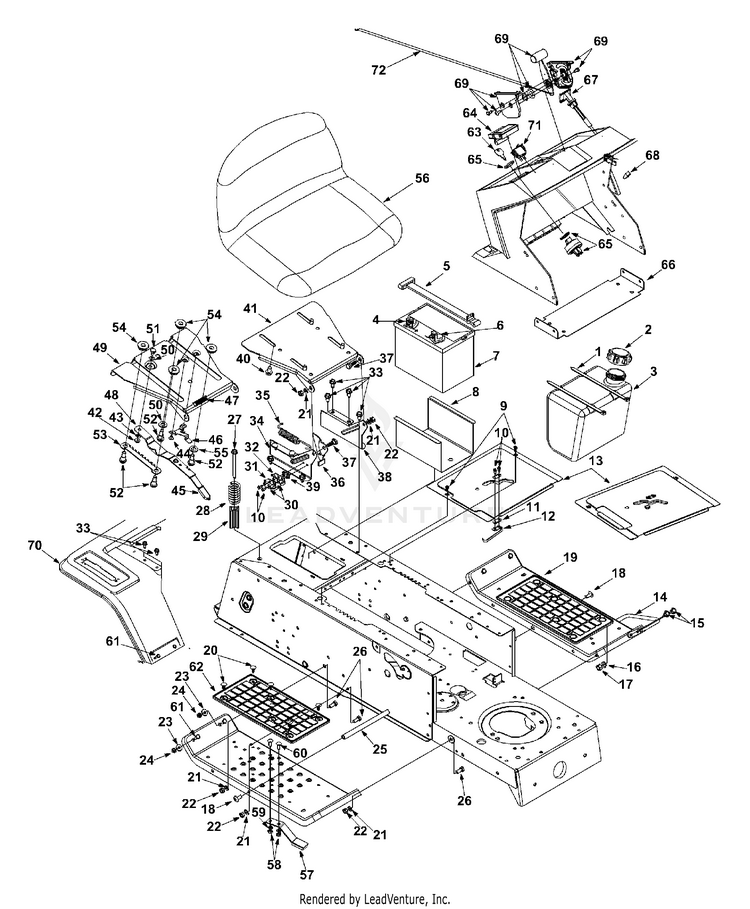

Seat, Fuel Tank, Battery, Frame

...
...
1
Cable Tie MTD-726-0230
...
2
TANK CAP MTD-751-0603B
...
3
FUEL TANK 1.36 GAL MTD-751-0555D
...
3
FUEL TANK 1.36 GAL MTD-751-0555D
...
3
TANK FUEL MTD-751-0657
...
4
Sems Hex Nut 1/4-20 Thd. MTD-712-0271
...
5
Battery Strap MTD-723-3064
...
6
Hex Hd. Cap Screw 1/4-20 Gr. 5 MTD-710-3015
...
7
BATTERY MTD-925-1707D
...
8
Battery Tray MTD-783-0345-0637
...
9
Truss Mach. B-Tap Scr. #10 x .5" Lg. MTD-710-0351
...
10
Hex AB-Tap Scr. #8 x .50" Lg. MTD-710-0227
...
11
Insulatop Nut Plate MTD-926-0320
...
12
Reverse Safety Switch MTD-725-1643
...
13
Shift Cover MTD-17286B-0637
...
13
SHIFT COVER MTD-17954B-0637
...
14
PEDAL STOP ROD MTD-747-1216
...
15
TT-Tap Scr. 5/16-18 x .625" Lg. MTD-710-0604A
...
16
L-Wash. 3/8 MTD-736-0169
...
17
HEX NUT 3/8-16 GR5 MTD-712-3017
...
18
Truss Mach. Scr. 5/16-18 x .75" MTD-710-0323
...
19
RUNNING BOARD MTD-17770H
...
20
Ratchet Clip MTD-726-3046
...
21
Lock Wash. 5/16" I.D. MTD-936-0119
...
22
HEX NUT 5/16-18 MTD-712-3010
...
23
SPRING WASHER BELL MTD-736-0270
...
24
HEX NUT MTD-712-3006
...
25
ROD-RUNNING BOARD MTD-738-0526
...
26
SCREW 5/16-18 x .75 GR5 MTD-710-3008
...
27
Hex Tap Scr. 5/16-18 x 3.25" Lg. MTD-710-1208
...
28
COMPRESSION SPRING MTD-732-0735A
...
29
SPRING SPACER MTD-748-0347A
...
30
Insulator Plate MTD-726-0279
...
31
Outer Seat Spring Switch MTD-925-1303
...
32
Inner Spring Switch Spring MTD-725-1439
...
33
Hex Wash. AB Scr. 5/16-12 x .75" MTD-710-0726
...
34
R. H. Pivot Seat Support Brkt. MTD-17950A-0637
...
35
Extension Spring MTD-932-0581B
...
36
BRACKET-SEAT LIFT MTD-17239C
...
37
Shoulder Bolt .437" Dia. x .268" MTD-738-0296
...
38
L.H. Pivot Seat Support Brkt. MTD-17951A-0637
...
39
Insulator Boss Plate MTD-726-0278
...
40
Hex Tap Scr. 3/8-16 x .62" Lg. MTD-710-0870
...
41
SEAT PIVOT BRACKET MTD-783-0039A
...
42
LOCK NUT 1/4 MTD-912-3027
...
43
Spring Wash. .265 I.D. x .562 O.D. MTD-936-0175
...
44
Hex Wash. Hd. B-Tap Scr. MTD-710-1268
...
45
Seat Adj. Grip (Optional) MTD-720-0309A
...
46
Seat Adj. Stop (Optional) MTD-783-0611
...
47
Compression Spring (Optional) MTD-732-0499
...
48
LEVER SEAT (Optional) MTD-783-0609
...
49
SEAT PIVOT BRACKET (Optional) MTD-783-0607A
...
50
Fl-Wash. .344 I.D. x .62 O.D. (Optional) MTD-736-0204
...
51
Shoulder Bolt .34" x 1/4-20 Thd. (Optional) MTD-738-0137A
...
52
SHOULDER SCREW .50 x .39 3/8 (Optional) MTD-738-1007
...
53
Seat Adj. Selector (Optional) MTD-783-0753
...
54
SEAT ADJUST SPACER (Optional) MTD-731-1989
...
55
Fl-Wash. .344 I.D. x .62 O.D. MTD-736-0192
...
56
LOW BACK SEAT BLACK W/SWITCH MTD-957-0378
...
56
SEAT MTD-957-0360A
...
56
SEAT-V-550 4 BOLT MTD-757-0348A
...
56
Seat - 14-1/4" High MTD-957-0350
...
57
Blade Brake Assembly MTD-961-0168D
...
58
HEX NUT MTD-712-3006
...
59
L-Wash. 1/4" I.D. MTD-936-0329
...
60
Carriage Bolt 1/4-20 x .62" Lg. MTD-710-0703
...
61
SCREW 1/4-20 x .620 GR5 MTD-710-0751
...
62
FOOT PAD MTD-735-0689A
...
62
Abrasive Foot Pad Not Shown MTD-723-0422A
...
63
Key MTD-925-0201
...
64
Ammeter MTD-925-0925
...
65
Ignition Switch - 5 Pin MTD-925-0267B
...
65
Ignition Switch - 6 Pin MTD-925-1396A
...
66
GAS TANK SUPPORT BRKT. MTD-17632B
...
67
CHOKE CONTROL 20" MTD-746-0720
...
67
Choke Control 23" MTD-946-0616A
...
67
CHOKE CONTROL CABLE 29'' MTD-746-3021
...
67
Choke Control 38" MTD-746-0614A
...
67
Choke Control 44.0" Lg. MTD-946-0613A
...
68
CLIP-CHOKE RETAINER MTD-17782
...
69
Throttle Box Ass'y MTD-831-0823A
...
70
FENDER-RR W/FRAME MTD-17870C
...
70
FENDER-RR Not Shown MTD-17871B
...
71
Light Switch MTD-925-0634
...
72
Throttle Control Wire 18.5" MTD-946-0638
...
72
Throttle Control Wire 18.5" MTD-946-0638
...
72
Throttle Wire MTD-946-0634
...
72
Throttle Wire MTD-946-0634
...
xx
DASH PANEL Not Shown MTD-731-2515
...
xx
DASH PANEL Not Shown MTD-731-1337A
