Ryobi 13AD678G034 (2002) Lawn Tractor

Model: 13AD678G034 (2002)

Back To Assemblies

Save Part Not Listed?

Popular Parts

Screw - Hex Wash Sf MTD-710-0599

Blade-21.23 2N1 MTD-942-04308A

Screw - Hex Wash Hd MTD-710-1260A

Nut - Hex Flange 5/8 MTD-712-0417A

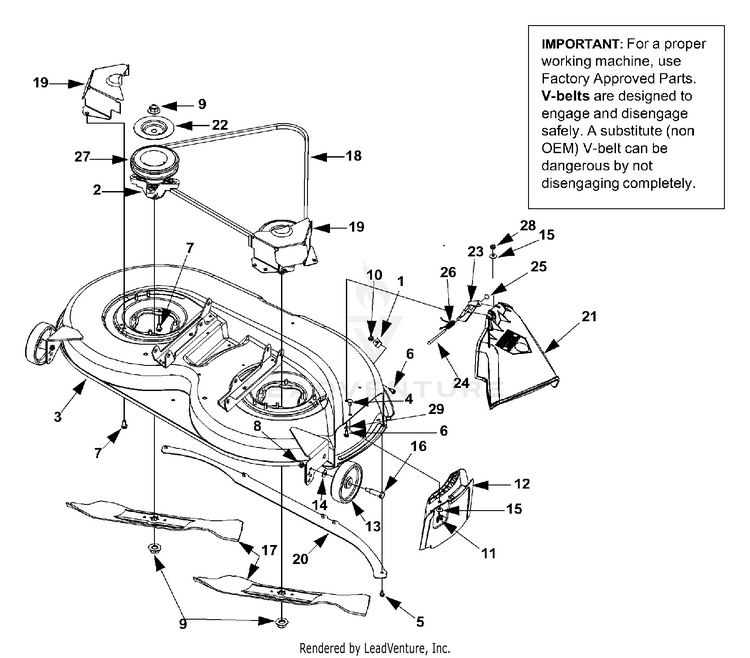

Deck Assembly "G"

Retainer Hook Bracket MTD-96606

Spindle Assembly MTD-918-0142C

42" Deck Assembly Must be ordered with 4 digit color code. MTD-983-0141B

KIT-DECK 42" S (For Service) Must be ordered with 4 digit color code. MTD-753-0698

Carriage Bolt 1/4-20 Lg. MTD-710-0134

Hex Wash. Hd. TT-Tap Screw 1/4-20 Thd. MTD-710-0599

SCREW 1/4-20 x .620 GR5 MTD-710-0751

Hex Wash. TT-Tap Scr. 5/16-18 x .75" MTD-710-1260A

Jam Nut 3/8-16 MTD-712-0181

HEX NUT Deck pulley and blade nuts must be torqued to 100 ft. lbs. if removed or replaced. MTD-712-0417A

LOCK NUT 1/4 MTD-912-3027

WING NUT 1/4-20 Optional MTD-712-3087

Mulch Plug Optional MTD-731-2363

DECK WHEEL (5.0 DIA X 1.38) MTD-734-06265

Bell-Wash. .40" I.D. x .88" O.D. MTD-736-0105

SPRING WASHER BELL Optional MTD-736-0270

Shld. Bolt .498" Dia. x 1.53" MTD-938-0373

Blade, 21.23", Star 3-in-1 MTD-942-0616A

21.23" BLADE (2N1) (For bagging and side dischrg) MTD-942-04308A

Upper V-belt MTD-954-0371A

Belt Guard MTD-783-0149B

Deck Skirt MTD-753-0884

CHUTE ASSEMBLY (Incl. Ref. 23,24,25,26) MTD-631-05229

Chute Deflector MTD-731-1031B

BRAKE DISC BRACKET MTD-783-0342A

Hinge Mounting Brkt. MTD-703-1693A

Hinge Pin MTD-911-0792

PUSH NUT MTD-726-0106

Torsion Spring MTD-732-0602A

5.75" Dia. Pulley Deck pulley and blade nuts must be torqued to 100 ft. lbs. if removed or replaced. MTD-756-1188

HEX NUT MTD-712-3006

Push Nut MTD-726-0233
