Roper YRT18VKXJW00

Model: YRT18VKXJW00

Save Part Not Listed?
product name

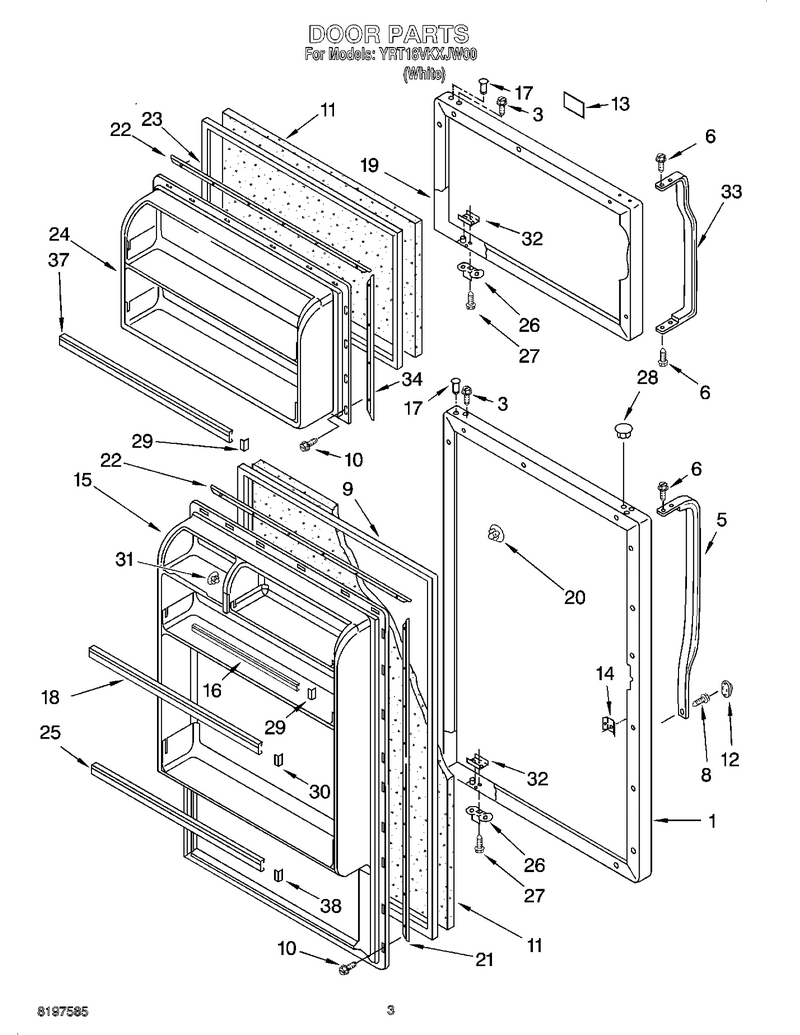

02 - Door Parts

...
...
1
Refrigerator Door Panel (Also Order Item 11) WPL-2197087
...
3
Screw WPL-WP8281206
...
5
Handle WPL-WP2202807W
...
6
Screw WPL-WP489357
...
8
Screw WPL-WP8281146
...
9
Gasket-Fip WPL-WP2319264T
...
10
Screw WPL-WP489442
...
11
Foam Insulation (Required When Replacing Exterior Door Panel) WPL-876029
...
12
Cover WPL-WP2202819W
...
13
Nameplate WPL-2212479
...
14
Plate WPL-WP939101
...
15
Interior Door Panel (Refrigerator) WPL-2197158
...
16
Trim-Door WPL-WP2163629
...
17
Thimble WPL-WP2183003
...
18
Trim-Door WPL-WP1120826
...
19
Freezer Door Panel (Also Order Item 11) WPL-2197086
...
20
Plug-Hndle WPL-WP2189000
...
21
Retainer, Gasket WPL-2197082
...
22
Retainer, Gasket WPL-1120614
...
23
Gasket-Dor WPL-2188462A
...
24
Interior Door Panel (Freezer) WPL-2197159
...
25
Trim-Door WPL-WP2197356
...
26
Bracket WPL-W11745278
...
27
Screw WPL-WP488921
...
28
Button-Plg WPL-WP2212648
...
29
Endcap-Trm WPL-WP2156007
...
30
Endcap-Trm WPL-WP2156006
...
31
Hole Plug WPL-2163372
...
32
Tap Plate WPL-2183000
...
33
Handle WPL-WP2202098
...
34
Retainer, Gasket WPL-1122553
...
37
Trim-Door WPL-WP2163629
...
38
Plug-Trim WPL-2159365

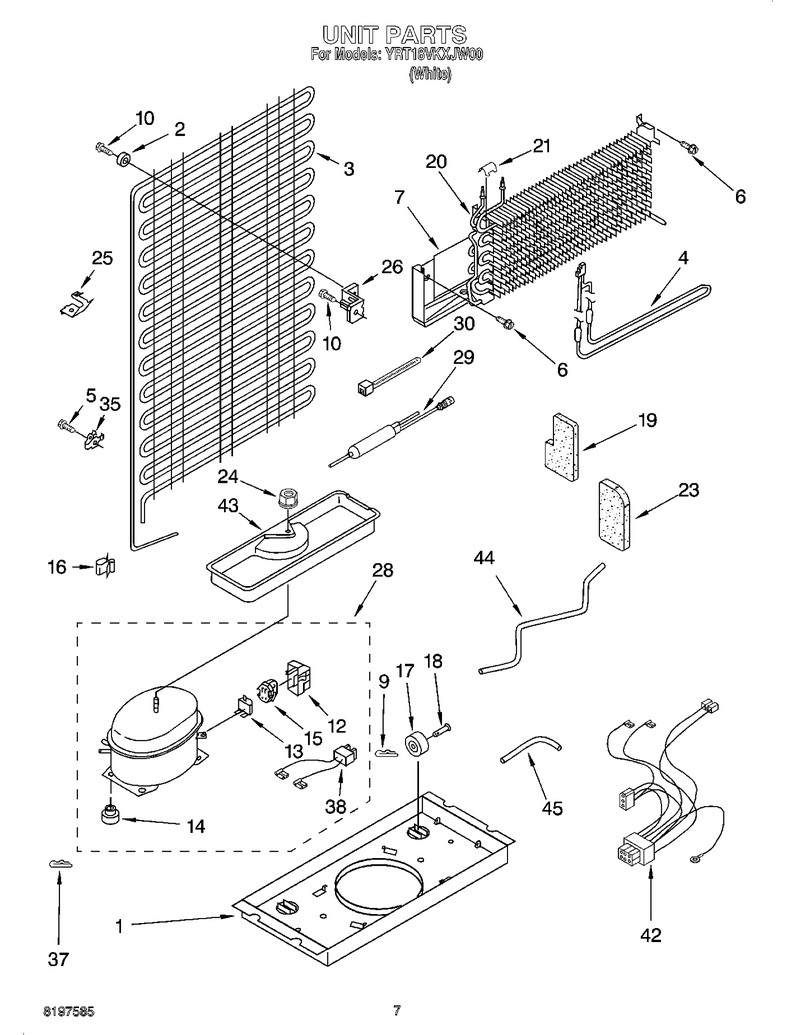

04 - Unit Parts

...
...
1
Support WPL-WPW10222451
...
2
Bumper WPL-944772
...
3
Condenser WPL-WP2252730
...
4
Heater WPL-WP2263749
...
5
Screw WPL-WP965173
...
6
Screw WPL-WP489442
...
7
Heat Shield WPL-2319224
...
9
Pin-Hitch WPL-WP2174706
...
10
Screw WPL-WP488163
...
12
Cover-Term WPL-WP2162358
...
13
Overload (Includes Relay) (Service) WPL-4387913
...
14
Grommet WPL-WP4387558
...
15
Relay-Strt WPL-W10920279
...
16
Clip WPL-W10812038
...
17
Roller-Cab WPL-WPW10475495
...
18
Axle WPL-W11594405
...
19
Support-Ev WPL-8201619
...
20
Evaporator WPL-WP2263920
...
21
Clip, Evaporator Tube WPL-9791833
...
23
Support-Ev WPL-8201619
...
24
Nut WPL-285002
...
25
Clip WPL-4386951
...
26
Bracket, Condenser WPL-944791
...
28
Compressor WPL-W10309989
...
29
Drier-Tube WPL-W10843121
...
30
Tie-Wire WPL-WPW10339879
...
35
Clip, Tube (4) WPL-510414
...
37
Clip, Compressor WPL-24364001
...
38
Wire WPL-WP2172890
...
42
Wire Assy. Unit WPL-2177021
...
43
Tray-Evap WPL-WP2201801
...
44
Tube, Discharge WPL-2174791
...
45
Valve, Access (5/8``) WPL-978029

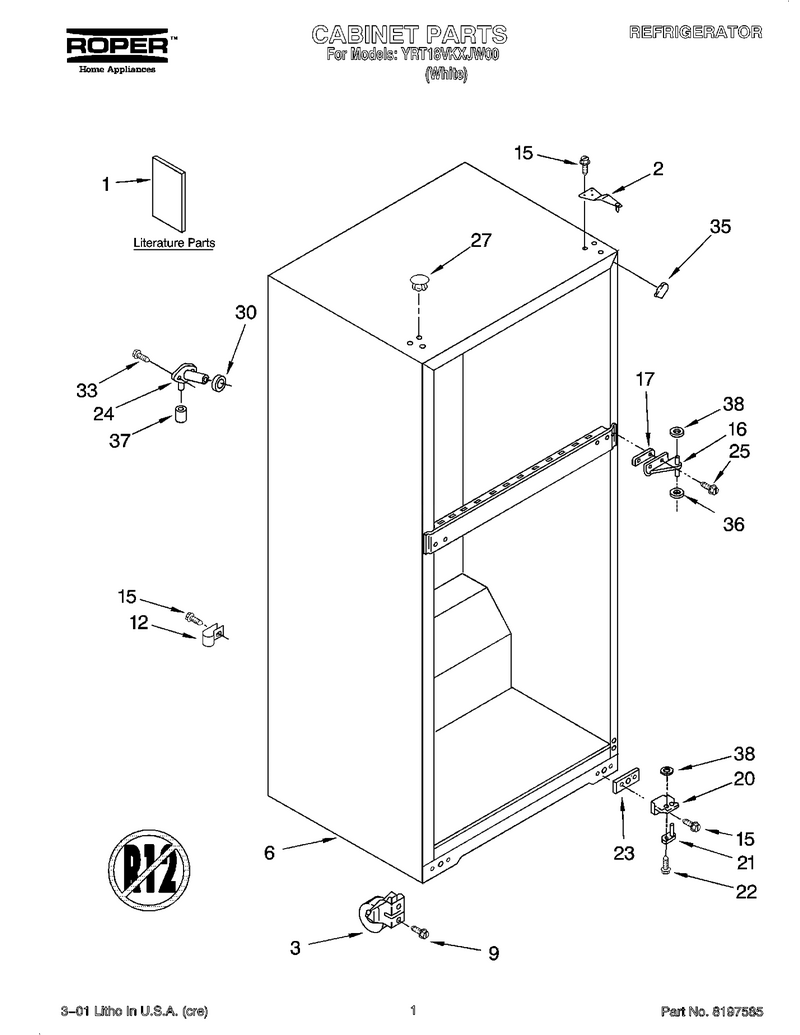

01 - Cabinet Parts

...
...
1
Literature Parts (Use & Care Guide) WPL-LIT2213100
...
2
Hinge-Door WPL-WP2261963
...
3
Roller-Front WPL-2324094
...
6
Cabinet, (Not A Serviceable Part) WPL---
...
9
Screw WPL-2222100
...
12
Clamp, Cord WPL-549193
...
15
Screw WPL-WP489497
...
16
Hinge-Door WPL-WP2166037
...
17
Shim Hinge, Center WPL-2166043
...
20
Hinge WPL-WP2325482
...
21
Hinge-Pin WPL-WP9791682
...
22
Screw WPL-WP488714
...
23
Shim WPL-WP2201567
...
24
Fitting WPL-WP2196157
...
25
Screw WPL-489498
...
27
Button-Plg WPL-WP2151652
...
30
Gasket WPL-WP1106508
...
33
Screw WPL-WPW10141645
...
35
Filler WPL-W10859322
...
36
Washer WPL-WP488296
...
37
Cap-Tube WPL-WP487996
...
38
Washer WPL-WP487802

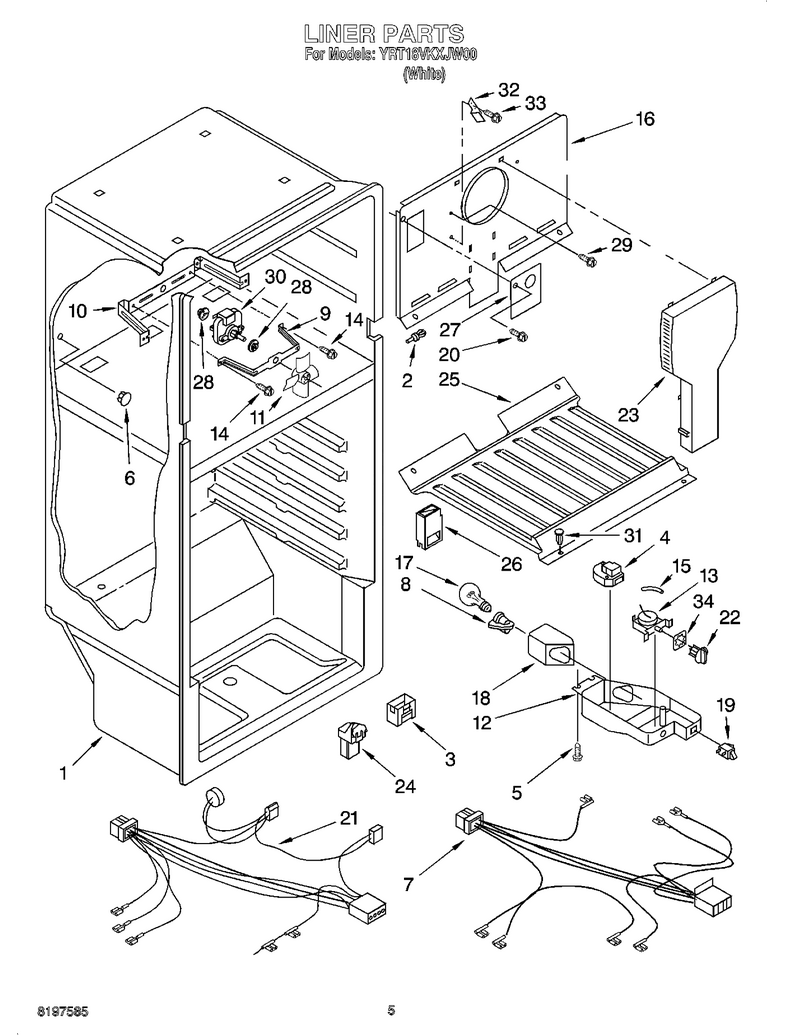

03 - Liner Parts

...
...
1
Liner (Not A Serviceable Part) WPL---
...
2
Rivet-Plastic WPL-939962
...
3
Cover WPL-WP2183061
...
4
Timer-Def WPL-WP2183400
...
5
Screw WPL-WP489174
...
6
Button-Plg WPL-WP941839
...
7
Wire Assembly (Control Box) WPL-2176927
...
8
Capacitor (Service) WPL-4387478
...
9
Bracket WPL-WPW10180172
...
10
Bracket WPL-WP2197405
...
11
Blade-Fan WPL-WP1100939
...
12
Control Box WPL-2215213
...
13
Thermostat WPL-WPW10511937
...
14
Screw WPL-WP489399
...
15
Barrier WPL-WP2196003
...
16
Cover, Evaporator WPL-2201205
...
17
Light Bulb WPL-8009
...
18
Lens-Light WPL-W11034434
...
19
Switch WPL-W11384469
...
20
Screw WPL-WP489442
...
21
Harns-Wire WPL-WP2192096
...
22
Knob-Therm WPL-WP2202885
...
23
Air Tower WPL-9790408
...
24
Hood&foil WPL-WP2316186
...
25
Floor WPL-WP2174798
...
26
Diffuser WPL-WP2221992
...
27
Cover WPL-WP2217784
...
28
Grommet WPL-WP2264462
...
29
Screw WPL-WP489474
...
30
Motor-Evap WPL-WPW10189703
...
31
Rivet WPL-WP489115
...
32
Deflector, Air WPL-2197416
...
33
Screw WPL-WP965173
...
34
Retainer WPL-2165773

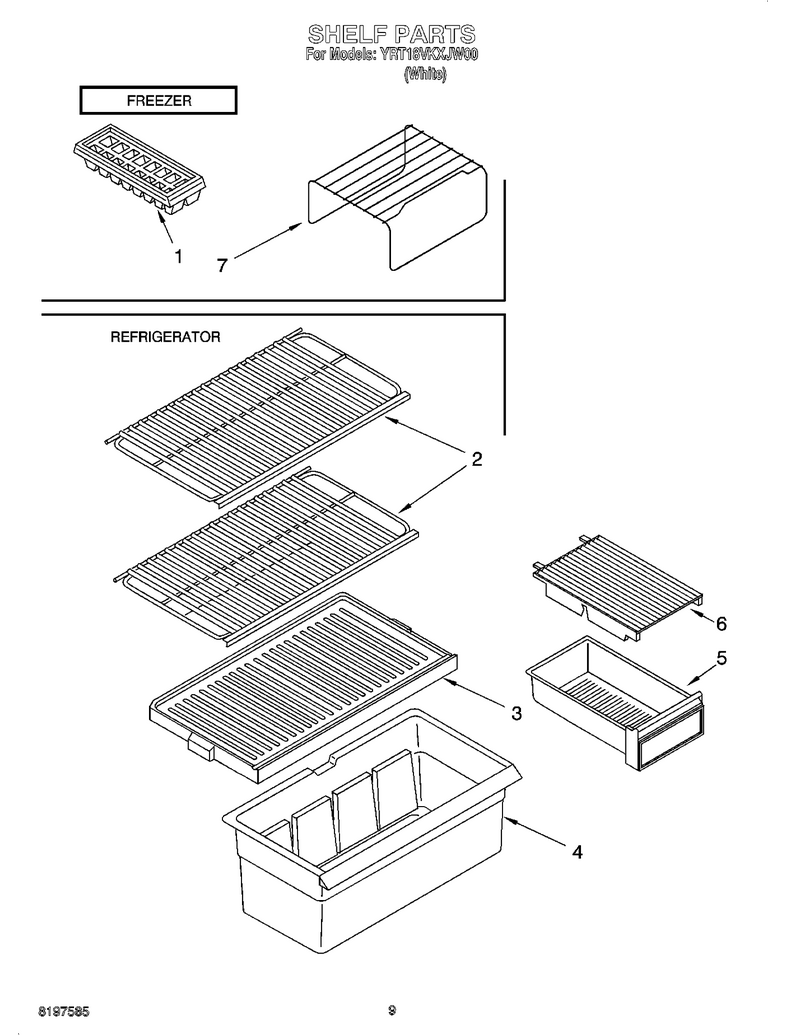

05 - Shelf Parts, Optional Parts

...
...
Grease WPL-WP542638
...
1
Tray WPL-WP841180A
...
2
Shelf-Glas WPL-W11181679
...
3
Cover WPL-W11547193
...
4
Pan-Crispr WPL-WP2192009
...
5
Pan-Meat WPL-WP2183273
...
6
Cover, Meat Pan WPL-9790379
...
7
Shelf-Wire WPL-WPW10401596
