Roper YRT14ZKYGW00

Model: YRT14ZKYGW00

Save Part Not Listed?
product name

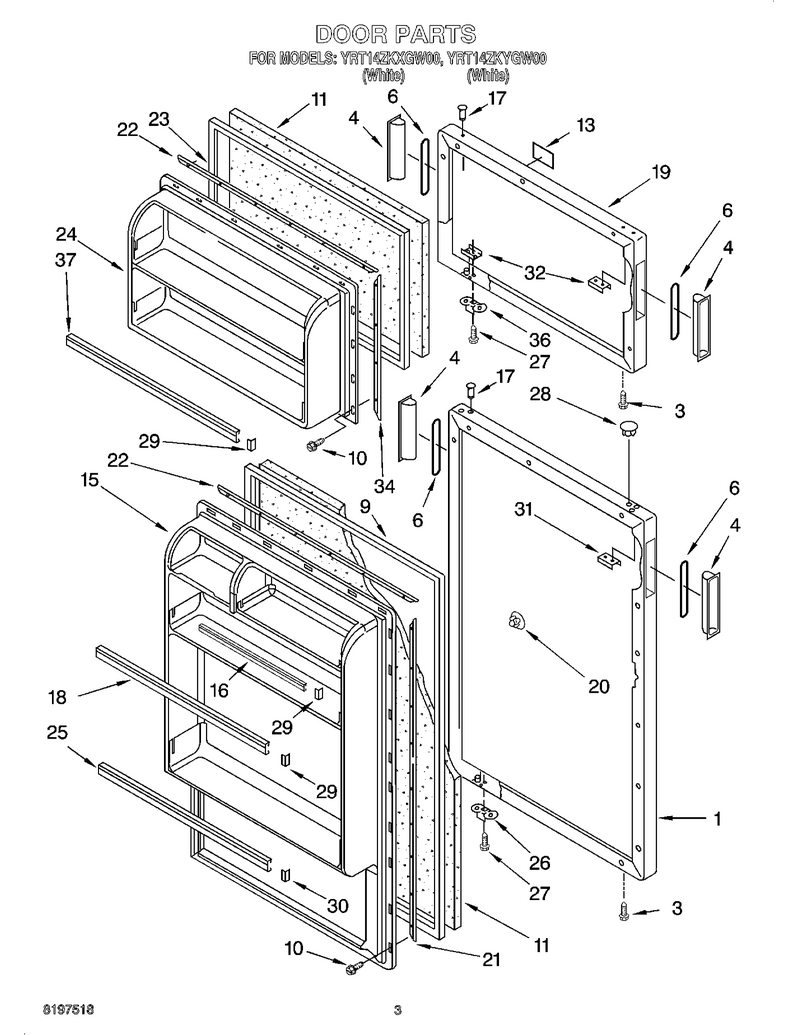

02 - Door Parts

...
...
1
Panel-Ext WPL-4389194
...
3
Screw WPL-WP8281206
...
4
Handle WPL-WP984493
...
6
Gasket, Handle WPL-2222107
...
9
Gasket-Dor WPL-2188448A
...
10
Screw WPL-WP489442
...
11
Foam Insulation (Required When Replacing Exterior Door Panel) WPL-876029
...
13
Nameplate WPL-2212479
...
14
Plate WPL-WP939101
...
15
Interior Door Panel (Refrigerator) WPL-2173725
...
16
Trim-Door WPL-WP2163629
...
17
Thimble WPL-WP2183003
...
18
Trim-Door WPL-WP2163629
...
19
Panel-Ext WPL-4389187
...
20
Plug-Hndle WPL-WP2189000
...
21
Retainer, Gasket WPL-1122551
...
22
Retainer, Gasket WPL-1120614
...
23
Gasket-Dor WPL-2188462A
...
24
Interior Door Panel (Freezer) WPL-9790358
...
25
Trim-Door WPL-WP1120826
...
26
Bracket WPL-W11745278
...
27
Screw WPL-WP488921
...
28
Button-Plg WPL-WP2212648
...
29
Endcap-Trm WPL-WP2156007
...
30
Endcap-Trm WPL-WP2156006
...
31
Hole Plug WPL-2163372
...
32
Plate WPL-W10833053
...
34
Retainer, Gasket WPL-1122553
...
36
Bracket WPL-W11745278
...
37
Trim-Door WPL-WP2163629

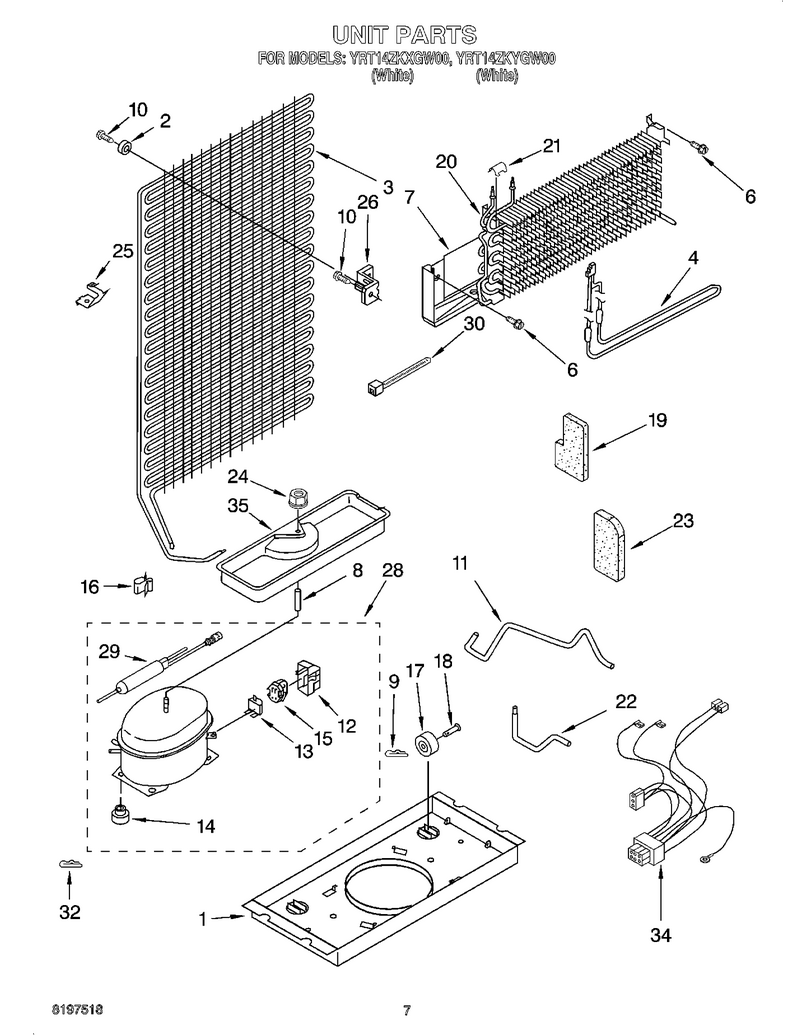

04 - Unit Parts

...
...
1
Support WPL-WPW10222451
...
2
Bumper WPL-944772
...
3
Condenser WPL-WP2252730
...
4
Heater WPL-WP2263749
...
6
Screw WPL-WP489442
...
7
Heat Shield WPL-2319224
...
8
Spacer WPL-2176844
...
9
Pin-Hitch WPL-WP2174706
...
10
Screw WPL-WP488163
...
11
Tube, Discharge WPL-2176854
...
12
Cover-Term WPL-WP2162358
...
13
Overload WPL-WP4387938
...
14
Grommet (4) ((Production)) WPL-876811
...
15
Overload WPL-WP4387938
...
16
Clip WPL-W10812038
...
17
Roller-Cab WPL-WPW10475495
...
18
Axle WPL-W11594405
...
19
Support-Ev WPL-8201619
...
20
Evaporator WPL-WP2263919
...
21
Clip WPL-9791833
...
22
Tube, Process WPL-2192332
...
23
Support-Ev WPL-8201619
...
24
Nut WPL-285002
...
25
Clip WPL-4386951
...
26
Bracket, Condenser WPL-944791
...
28
Compressor WPL-W10823815
...
29
Drier-Tube WPL-W10843121
...
30
Tie-Wire WPL-WPW10339879
...
32
Clip, Compressor WPL-24364001
...
34
Assembly, Unit Wire WPL-W10151647
...
35
Valve, Access (1/2``) WPL-978028

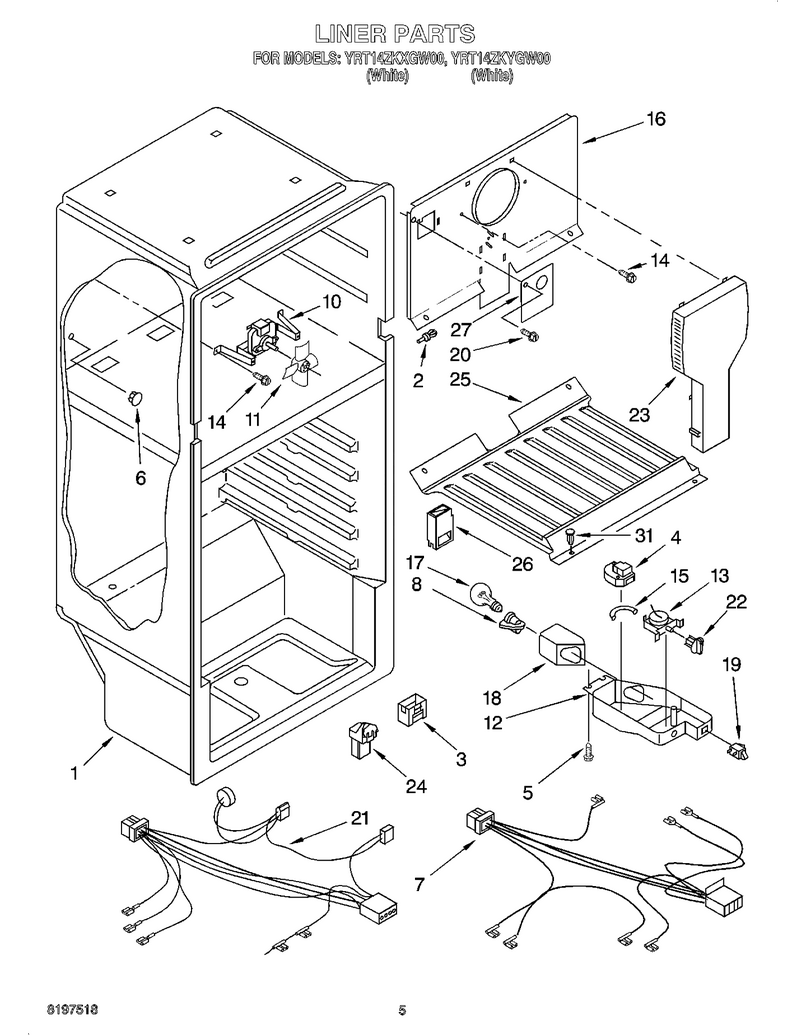

03 - Liner Parts

...
...
Enamel, Almond (13 Oz. Spray Can) WPL-350956
...
1
Liner (Not A Serviceable Part) WPL---
...
2
Rivet-Plastic WPL-939962
...
3
Cover WPL-WP2183061
...
4
Timer-Def WPL-WP2183400
...
5
Screw WPL-WP489174
...
6
Button-Plg WPL-WP941839
...
7
Wire Assy. Control Box WPL-2176927
...
8
Capacitor (Service) WPL-4387478
...
10
Motor-Evap WPL-WPW10189703
...
11
Blade-Fan WPL-WP1100939
...
12
Control Box WPL-2215213
...
13
Thermostat WPL-WPW10567140
...
14
Screw WPL-WP489474
...
15
Barrier WPL-WP2196003
...
16
Cover, Evaporator WPL-2201205
...
17
Light Bulb WPL-8009
...
18
Lens-Light WPL-W11034434
...
19
Switch WPL-W11384469
...
20
Screw WPL-WP489442
...
21
Harns-Wire WPL-WP2192096
...
22
Knob-Therm WPL-WP2202885
...
23
Air Tower WPL-9790408
...
24
Hood&foil WPL-WP2316186
...
25
Floor WPL-WP2174798
...
26
Diffuser WPL-WP2221992
...
27
Cover WPL-WP2217784
...
31
Kit, Insulation (2 Pcs.) 3`` X 24 `` X 48``) WPL-876370

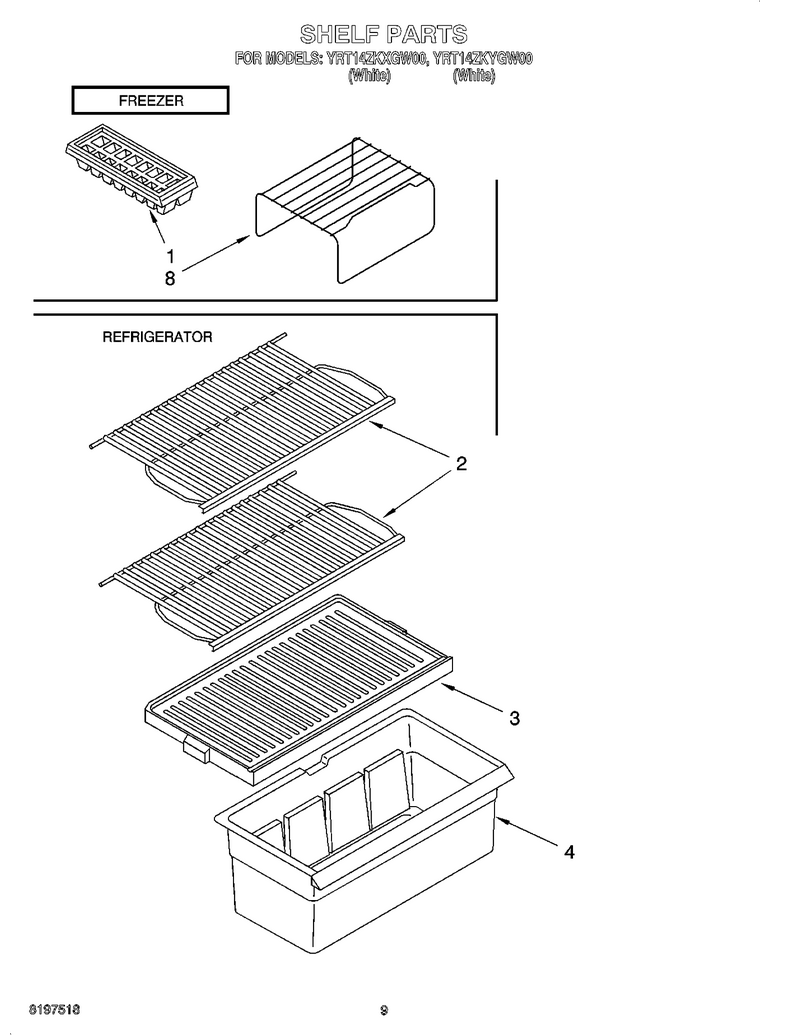

05 - Shelf Parts

...
...
1
Tray WPL-WP841180A
...
2
Shelf-Wire WPL-WP2192515
...
3
Cover WPL-W11547193
...
4
Pan-Crispr WPL-WP2192009
...
8
Shelf-Wire WPL-WPW10401596

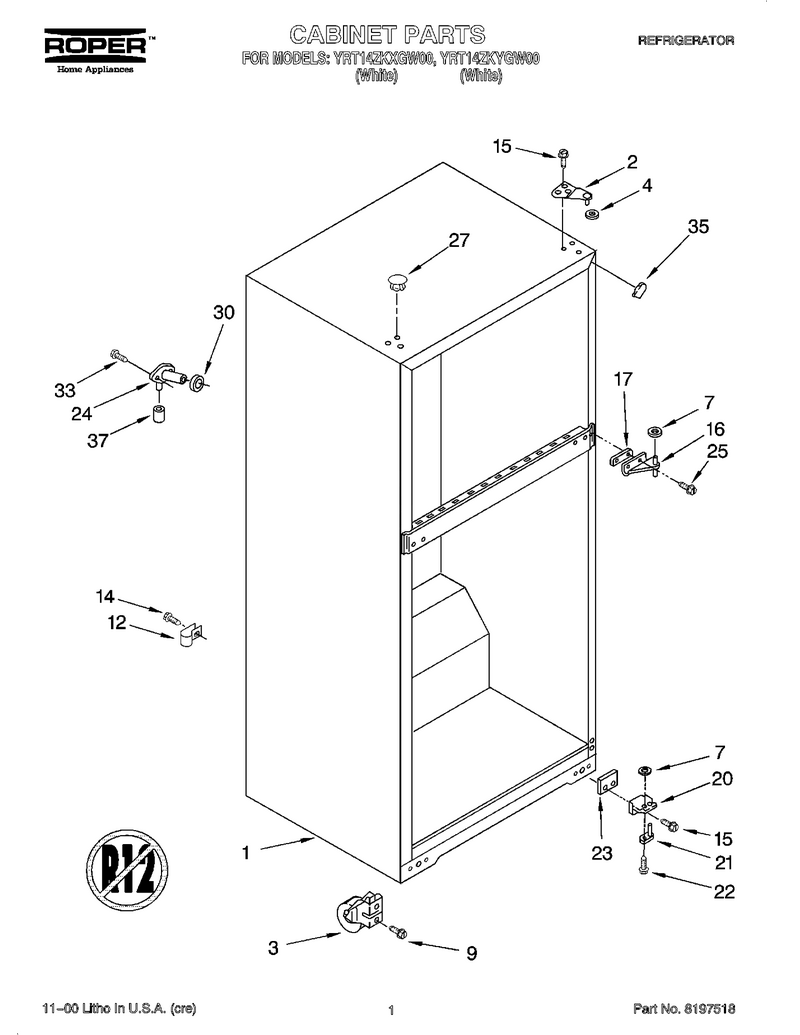

01 - Cabinet Parts

...
...
1
Cabinet, (Not A Serviceable Part) WPL---
...
2
Hinge-Door WPL-WP2261963
...
3
Roller-Front WPL-2324094
...
4
Washer WPL-WP487576
...
7
Washer WPL-WP487802
...
9
Screw WPL-2222100
...
12
Clamp, Cord WPL-549193
...
14
Screw WPL-WP489442
...
15
Screw WPL-WP489497
...
16
Hinge-Door WPL-WP2166037
...
17
Shim Hinge, Center WPL-2166043
...
20
Hinge WPL-WP2325482
...
21
Hinge-Pin WPL-WP9791682
...
22
Screw WPL-WP488714
...
23
Shim WPL-WP2201567
...
24
Fitting WPL-WP2196157
...
25
Screw WPL-489498
...
27
Button-Plg WPL-WP2151652
...
30
Gasket WPL-WP1106508
...
33
Screw WPL-WPW10141645
...
35
Filler WPL-W10859322
...
37
Cap-Tube WPL-WP487996
