product name

Roper X10002W03

Model: X10002W03

Save Part Not Listed?
product name

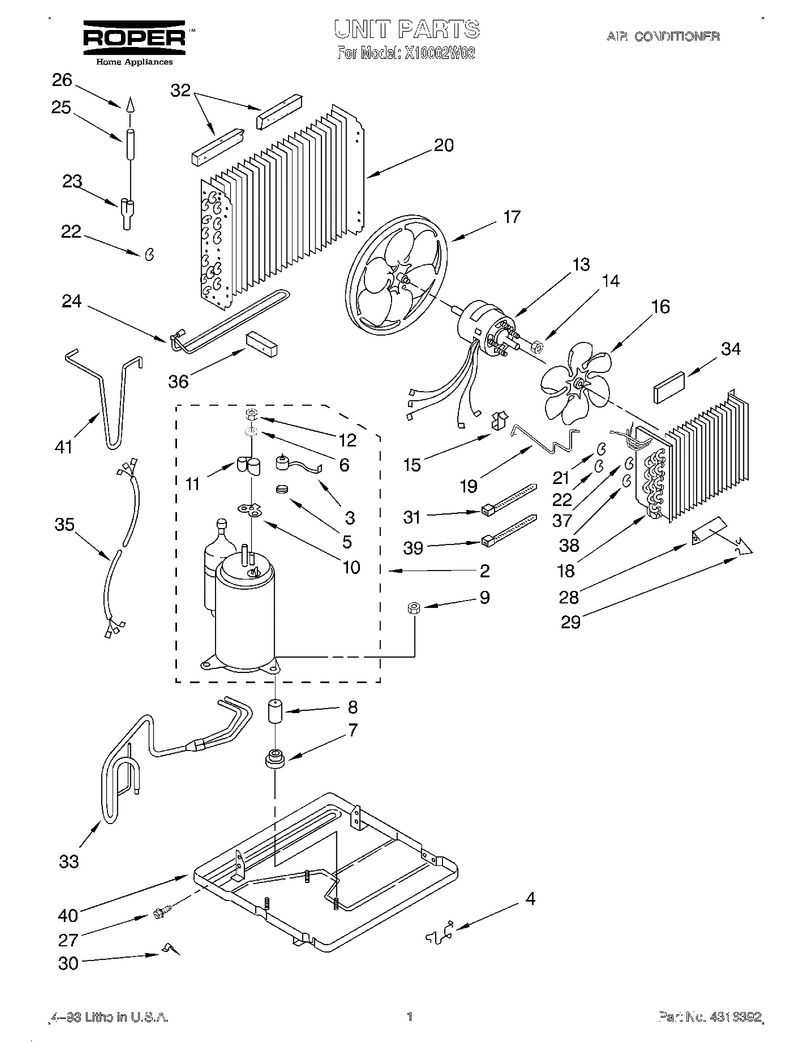

01 - Unit, Lit/optional

...
...
Tech Sheet WPL-LIT1159051
...
2
Compressor WPL-4388232
...
3
Overload WPL-951865
...
4
Clip WPL-1165803
...
5
Spring-Ovr WPL-WP950032
...
6
Gasket, Nut WPL-950037
...
7
Grommet WPL-WP950021
...
8
Sleeve, Compressor Mounting (3) WPL-950020
...
9
Nut, Lock (3) WPL-858121
...
10
Gasket-Cov WPL-WP950035
...
11
Cover-Term WPL-WP950036
...
12
Nut-Mtg WPL-WP950027
...
13
Motor, Fan WPL-947852
...
14
Nut WPL-WP488130
...
15
Clamp, Cable WPL-852451
...
16
Fan, Blade Evaporator WPL-997887
...
17
Blade, Condenser Fan WPL-997904
...
18
Evaporator WPL-1156743
...
19
Tube-Restr WPL-WP484322
...
20
Condenser WPL-1168429
...
21
Bend, Return Evaporator (12) WPL-708531
...
22
Bend, Return Condenser (13) Evaporator (2) WPL-708532
...
23
Tube, Flow Divider WPL-947364
...
24
Tube, Wet Loop WPL-1168421
...
25
Tube & Strainer (Includes Illus. 50) WPL-484230
...
26
Strainer, Tube WPL-49599
...
27
Screw WPL-WP489069
...
28
Anticipator, Temperature WPL-994262
...
29
Clip, Temperature Anticipator WPL-475577
...
30
Clamp, Tube WPL-642684
...
31
Tie-Wire WPL-WPW10339879
...
32
Seal-Strip WPL-855842
...
33
Tube, Suction WPL-1163999
...
34
Seal-Strip WPL-1160613
...
35
Harness, Wiring WPL-484136
...
36
Seal-Strip WPL-WP854334
...
37
Bend, Return (2) WPL-1158407
...
38
Bend, Return (2) WPL-1156533
...
39
Tie-Wire WPL-WPW10339879
...
40
Base WPL-950019
...
41
Tube, Discharge WPL-1161574

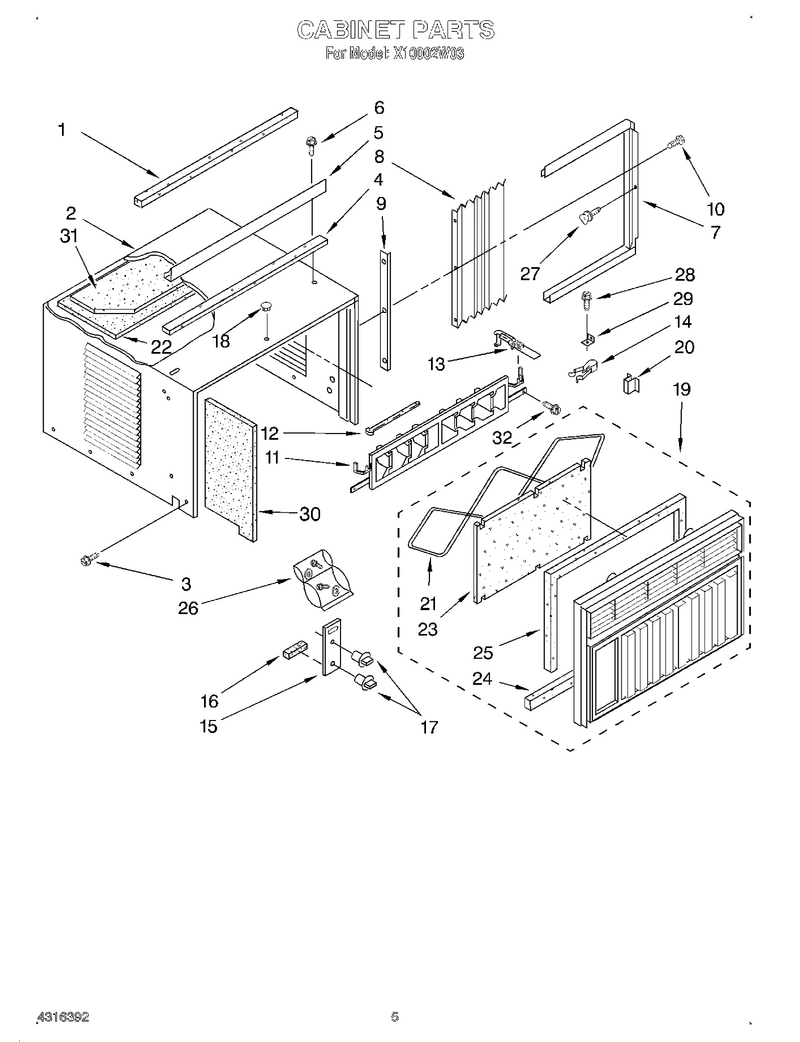

03 - Cabinet

...
...
1
Seal, Meeting Rail WPL-855841
...
2
Cabinet WPL-1167178
...
3
Screw WPL-WP489069
...
4
Seal, Strip WPL-855265
...
5
Channel, Top Mounting WPL-993786
...
6
Screw WPL-WP308685
...
7
Housing, Curtain (Left Side) (Includes No.22) WPL-1164154
...
8
Curtain WPL-4388581
...
9
Retainer, Curtain (2) WPL-644224
...
10
Screw WPL-W10856125
...
11
Louver, Vertical WPL-1166081
...
12
Link, Vertical Louver WPL-855158
...
13
Handle, Vertical Louver WPL-1161636
...
14
Spring, Detent WPL-644006
...
15
Plate, Escutcheon WPL-1158167
...
16
Seal, Panel WPL-853170
...
17
Knob-Cntrl WPL-WP1162672
...
18
Cover, Hole WPL-1157126
...
19
Front, Cabinet WPL-1159826
...
20
Clip, Vertical Louver (2) WPL-1158294
...
21
Retainer, Filter WPL-476707
...
22
Insulation Cabinet Top WPL-1163429
...
23
Filter-Air WPL-WP876775
...
24
Seal, Meeting Rail WPL-855841
...
25
Seal, Strip (Top & Sides) WPL-645883
...
26
Bag, Accessory WPL-476180
...
27
Screw, Thumb (2) WPL-475581
...
28
Screw, Wood WPL-47435
...
29
Bracket, Window Lock WPL-644228
...
30
Cabinet, Insul. (Left Side) WPL-1167177
...
31
Insul. To Cond. WPL-1158501
...
32
Screw WPL-WP98520

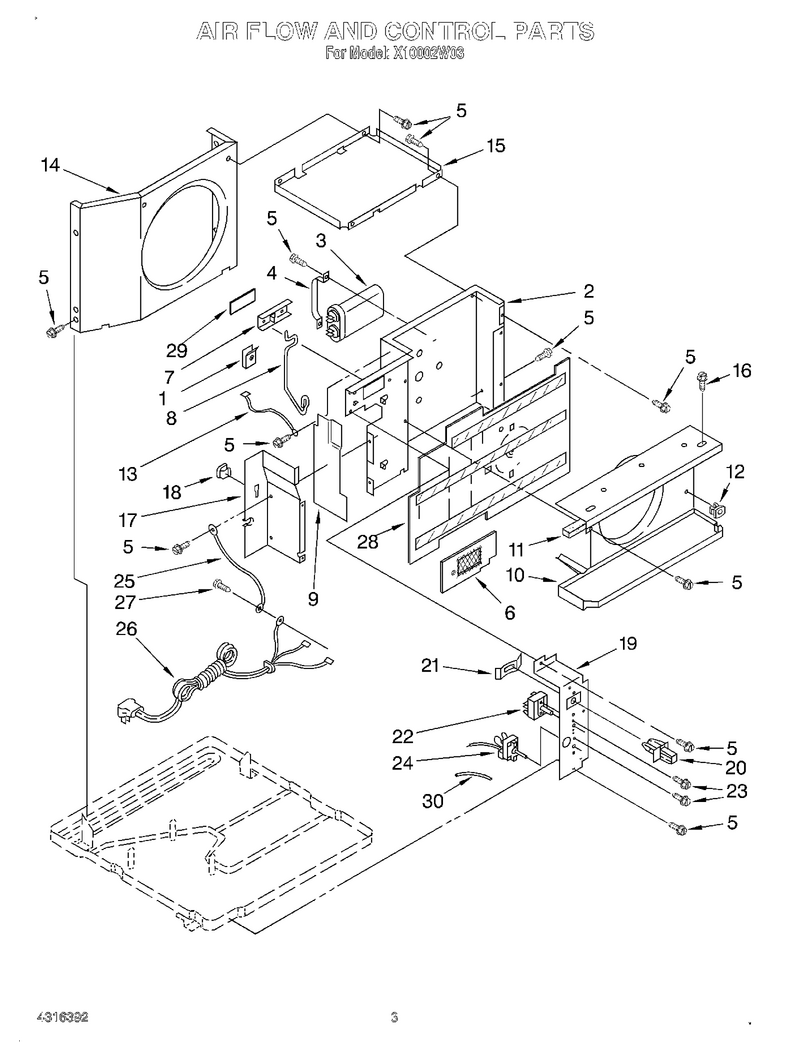

02 - Air Flow And Control

...
...
1
Clip, Exhaust Door WPL-1162627
...
2
Dividing Wall WPL-1165182
...
3
Capacitor WPL-4318133
...
4
Bracket, Running Capacitor WPL-856105
...
5
Screw WPL-WP489069
...
6
Screen, Insulation Assembly WPL-1162926
...
7
Door, Exhaust WPL-1158280
...
8
Arm, Exhaust Door WPL-856042
...
9
Insulation, Dividing Wall WPL-1163514
...
10
Shroud, Evaporator WPL-856039
...
11
Insulation, Top WPL-1157942
...
12
Fastener, Snap WPL-487808
...
13
Wire-Elect WPL-947292
...
14
Shroud, Condenser WPL-856037
...
15
Support, Unit (2) WPL-1156536
...
16
Screw WPL-WP488729
...
17
Extension, Dividing Wall WPL-994560
...
18
Clip, Retainer WPL-644401
...
19
Panel, Control WPL-996966
...
20
Actuator, Door WPL-953066
...
21
Retainer, Detent Spring WPL-853565
...
22
Switch, Rotary WPL-950521
...
23
Screw, Machine 6-32 X .175 (4) WPL-488734
...
24
Thermostat WPL-485760
...
25
Wire, Ground WPL-857078
...
26
Cord-Power WPL-859442
...
27
Screw WPL-WPW10141604
...
28
Insulation Dividing Wall WPL-1163432
...
29
Barrier, Glass WPL-776780
...
30
Insulator, Sleeve Temp. Control WPL-475841

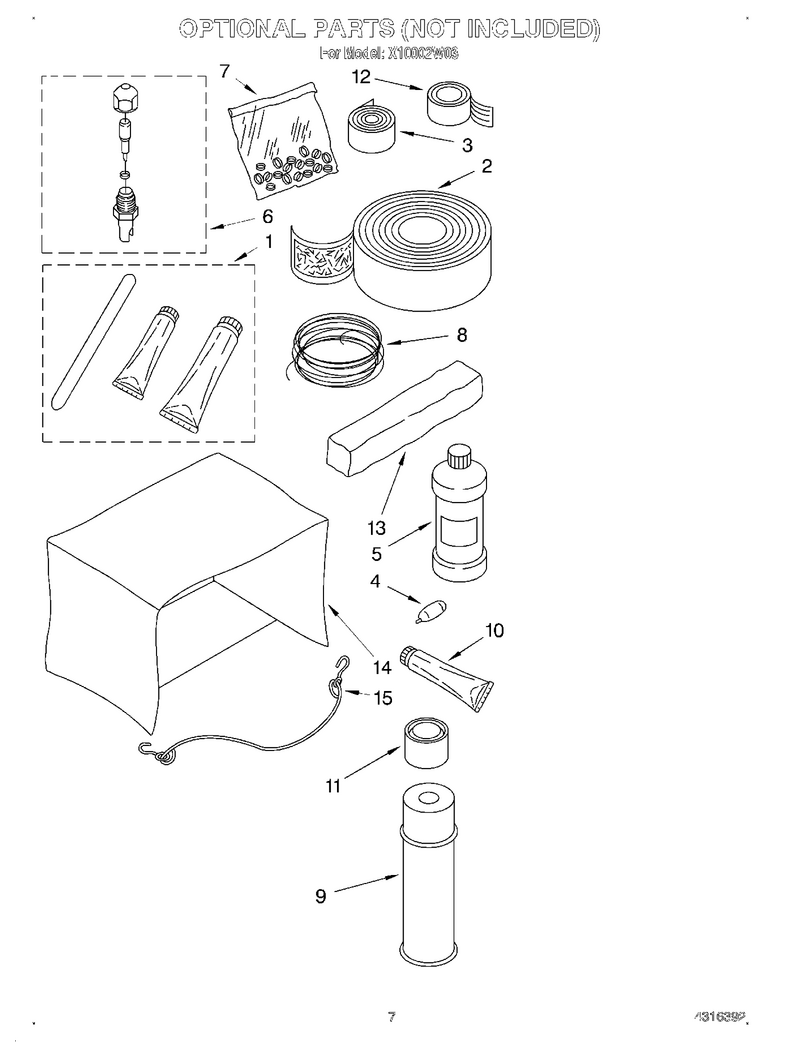

04 - Optional

...
...
1
Epoxy, Tube (Aluminum Repair) WPL-799833
...
2
Tape, No Drip 30` WPL-505168
...
3
Tape WPL-W11238399
...
4
Oil, Turbine 1 Fl. Oz. WPL-10943
...
5
Oil, Turbine 8 Fl. Oz. WPL-99243
...
6
Valve, Access (3/8`` Tube O.d.) WPL-978027
...
7
Seal, Ring (Access Valve) (20 - Pack) WPL-978865
...
8
Wire (14 Ga. 150 C Black) WPL-242820
...
9
Adhesive WPL-4210500
...
10
Adhesive WPL-WP279368
...
11
Paint, Touch-Up Starlight Gray 1/2 Pint (Lacquer) WPL-485426
...
12
Sealer, Permagum 4 - 1` Strips WPL-212643
...
13
Miscellaneous, Sealer WPL-4318168
...
14
Cover, Winter (22``x15``x3 To 18``) WPL-484184
...
15
Retainer, Cord (Winter Cover) WPL-813610
