Roper X10002G0

Model: X10002G0

Save Part Not Listed?
product name

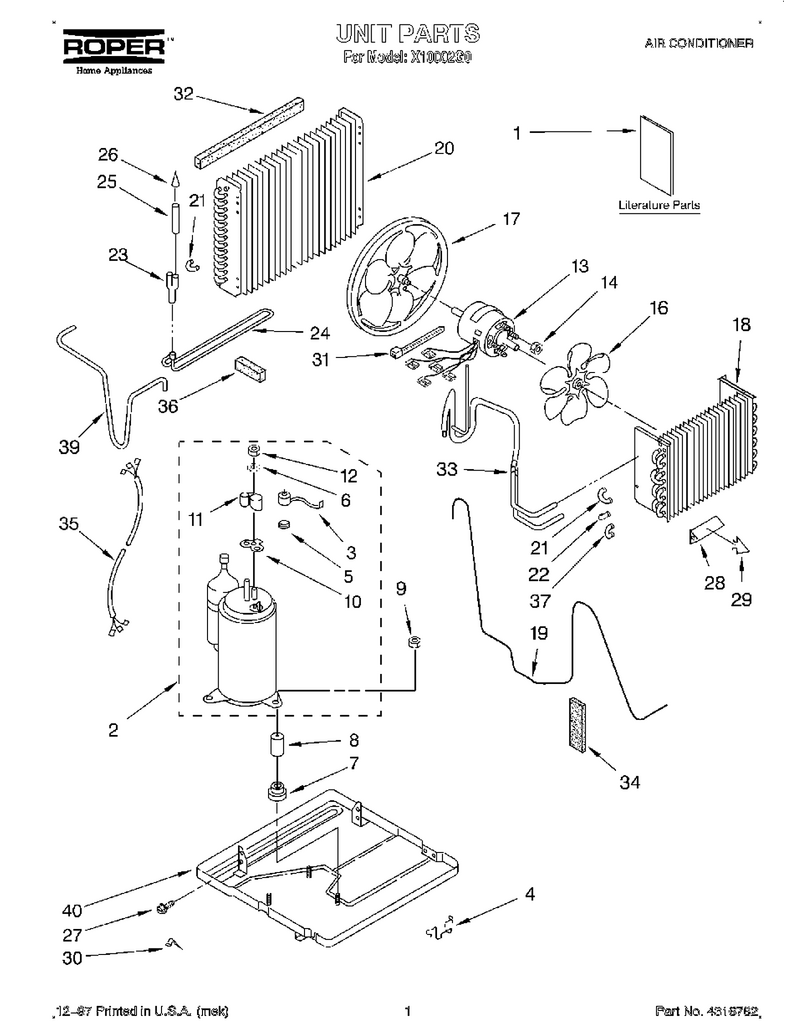

01 - Unit, Literature

...
...
1
Use And Care Guide WPL-LIT1169347
...
2
Compressor WPL-4388232
...
3
Overload WPL-951865
...
4
Clip WPL-1165803
...
5
Spring-Ovr WPL-WP950032
...
6
Gasket, Nut WPL-950037
...
7
Grommet WPL-WP950021
...
8
Sleeve, Compressor Mounting (3) WPL-950020
...
9
Nut, Lock (3) WPL-858121
...
10
Gasket-Cov WPL-WP950035
...
11
Cover-Term WPL-WP950036
...
12
Nut-Mtg WPL-WP950027
...
13
Motor, Fan WPL-1172020
...
14
Nut WPL-WP488130
...
16
Fan, Blade Evaporator WPL-997887
...
17
Blade, Condenser Fan WPL-997904
...
18
Evaporator WPL-1164692
...
19
Tube-Restr WPL-WP484322
...
20
Condenser WPL-1168429
...
21
Bend, Return Evaporator (6) Condenser (13) WPL-708531
...
22
Bend, Return Evaporator (1) WPL-708532
...
23
Tube, Flow Divider WPL-1162071
...
24
Tube, Wet Loop WPL-1168421
...
25
Tube & Strainer (Includes Illus. 50) WPL-484230
...
26
Strainer, Tube WPL-49599
...
27
Screw WPL-WP489069
...
28
Anticipator, Temperature WPL-994262
...
29
Clip, Temperature Anticipator WPL-475577
...
30
Clamp, Tube WPL-642684
...
31
Tie-Wire WPL-WPW10339879
...
32
Seal-Strip WPL-855842
...
33
Tube, Suction WPL-1164706
...
34
Seal-Strip WPL-1160613
...
35
Harness, Wiring WPL-484136
...
36
Seal-Strip WPL-WP854334
...
37
Bend, Return (1) WPL-1158407
...
39
Tube, Discharge WPL-1161574
...
40
Base WPL-950019

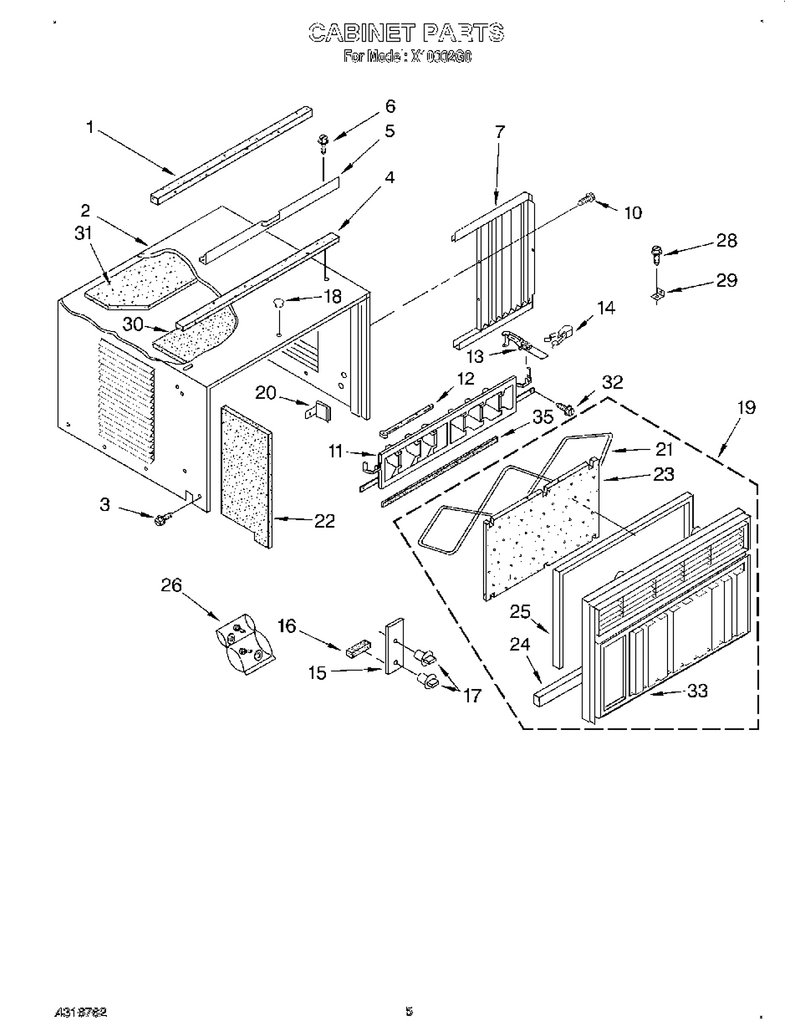

03 - Cabinet

...
...
1
Seal, Meeting Rail WPL-855841
...
2
Cabinet WPL-1167178
...
3
Screw WPL-WP489069
...
4
Seal, Strip WPL-855265
...
5
Channel, Top Mounting WPL-1169001
...
6
Screw WPL-WP308685
...
7
Housing, Curtain L.s. WPL-1164154
...
10
Screw WPL-W10856125
...
11
Louver, Vertical WPL-1166081
...
12
Link, Vertical Louver (2) WPL-855158
...
13
Handle, Vertical Louver (2) WPL-1161636
...
14
Spring, Detent (2) WPL-644006
...
15
Plate, Escutcheon WPL-1172321
...
16
Seal, Panel WPL-853170
...
17
Knob, Control (2) WPL-1167618
...
18
Cover, Hole WPL-1157126
...
19
Front, Cabinet Complete WPL-1159825
...
20
Clip, Vertical Louver (2) WPL-1158294
...
21
Retainer, Filter WPL-476707
...
22
Insulation, (Left Side) WPL-1163431
...
23
Filter-Air WPL-WP876775
...
24
Seal, Meeting Rail WPL-855841
...
25
Seal, Strip (Top & Sides) WPL-645883
...
26
Bag, Accessory WPL-476180
...
28
Screw, Wood WPL-47435
...
29
Bracket, Window Lock WPL-644228
...
30
Insul. Cabinet Top WPL-1163429
...
31
Insul. Cabinet WPL-1158501
...
32
Screw WPL-WP98520
...
33
Front, Cabinet WPL-1159826
...
35
Seal, Cabinet Bottom WPL-647854

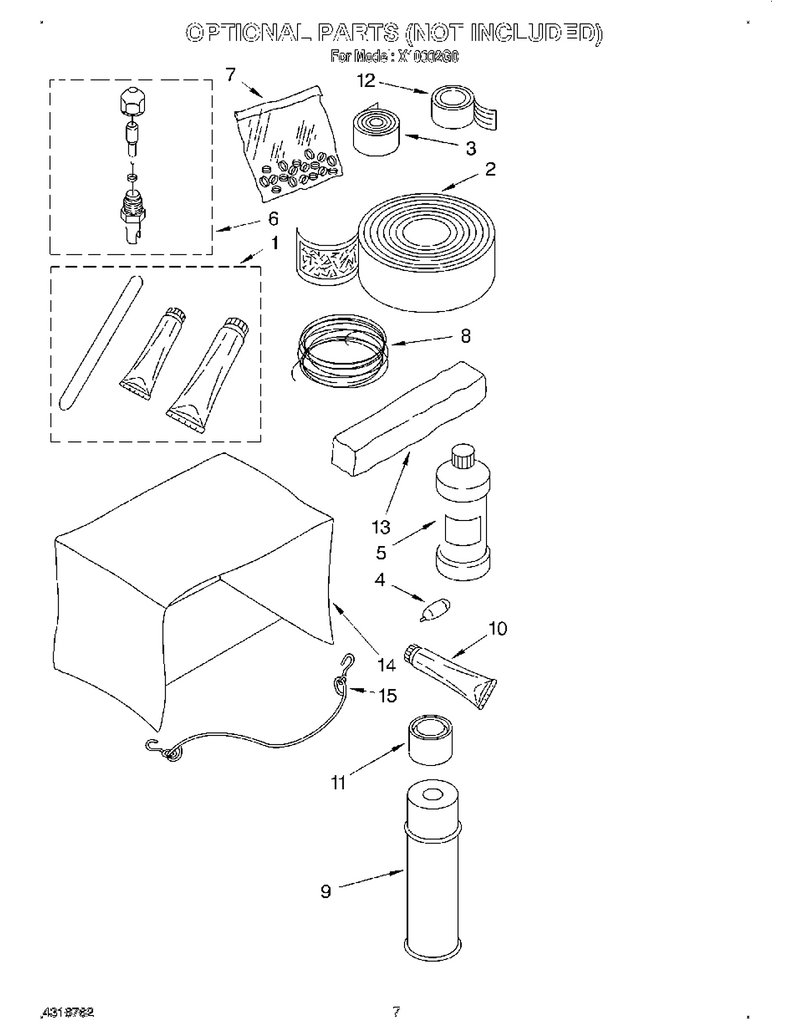

04 - Optional

...
...
1
Epoxy, Tube (Aluminum Repair) WPL-799833
...
2
Tape, No Drip 30` WPL-505168
...
3
Tape WPL-W11238399
...
4
Oil, Turbine 1 Fl. Oz. WPL-10943
...
5
Oil, Turbine 8 Fl. Oz. WPL-99243
...
6
Valve WPL-WP978025
...
7
Seal, Ring (Access Valve) (20 - Pack) WPL-978865
...
8
Wire, 25`` Roll (White 12 Ga.) WPL-47263
...
9
Adhesive WPL-4210500
...
10
Adhesive WPL-WP279368
...
11
Paint, Touch-Up Starlight Gray 1/2 Pint (Lacquer) WPL-485426
...
12
Sealer, Gum (4 Feet) WPL-212643
...
13
Miscellaneous, Sealer WPL-4318168
...
14
Cover, Winter (28 X 19 X 31``) WPL-484066
...
15
Retainer, Cord (Winter Cover) WPL-813610

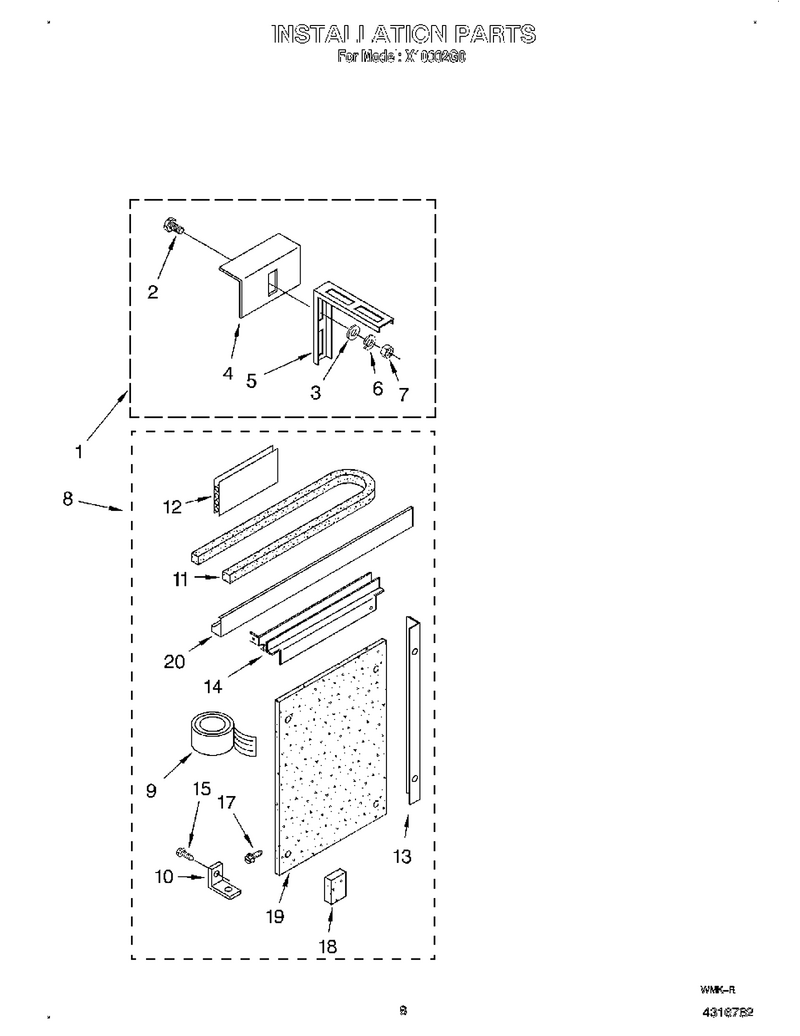

05 - Installation

...
...
Instructions, Installation (Outside Sill Kit) WPL-LIT485706
...
1
Kit, Outside Sill (For Additional Support) WPL-485678
...
2
Bolt, 1/4-20 X 3/4 (6) WPL-488750
...
3
Washer WPL-WP120393
...
4
Bracket, Sill (2) WPL-645515
...
5
Bracket, Rail (2) WPL-485466
...
6
Washer, Lock (6) WPL-486009
...
7
Nut, 1/4-20 (6) WPL-487541
...
8
Kit, Economy Installation WPL-1155851
...
9
Seal, Strip WPL-855265
...
10
Bracket, Window Lock WPL-644228
...
11
Seal, Meeting Rail WPL-855841
...
12
Sealer, Permagum WPL-212643
...
13
Angle, Side (2) WPL-646233
...
14
Bracket, Top Mounting ((Right Side)) WPL-645562
...
15
Screw, Wood WPL-47435
...
17
Screw WPL-WP965173
...
18
Spacer, Block (2) WPL-995274
...
19
Board, Filler WPL-876826
...
20
Wide Window Kit (Use With 1155851 For Windows Up To 54 Inches Wide) WPL-485676

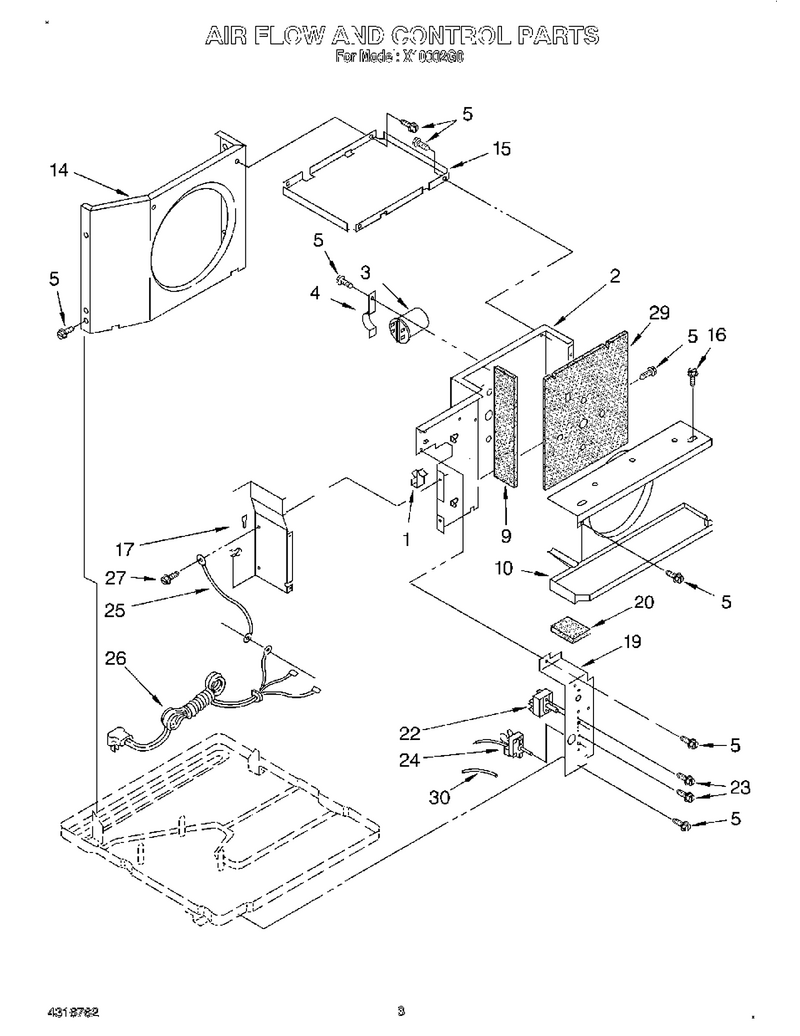

02 - Airflow And Control

...
...
1
Clamp, Cable WPL-852451
...
2
Wall, Dividing WPL-1167155
...
3
Capacitor WPL-WP1162594
...
4
Bracket, Running Capacitor WPL-1167611
...
5
Screw WPL-WP489069
...
9
Insulation (Side, Dividing Wall) WPL-1166339
...
10
Shroud, Evaporator WPL-856039
...
14
Shroud, Condenser WPL-856037
...
15
Support, Unit (2) WPL-1156536
...
16
Screw WPL-WP488729
...
17
Extension, Dividing Wall (Requires Insulation Part No. 469938) WPL-994560
...
19
Panel, Control WPL-1159147
...
20
Insulation, Panel Control WPL-1159104
...
22
Switch-Rot WPL-813585
...
23
Screw, Machine 6-32 X .175 (4) WPL-488734
...
24
Thermostat WPL-485760
...
25
Wire, Ground WPL-857078
...
26
Cord-Power WPL-1165242
...
27
Screw WPL-WPW10141604
...
29
Insulation (Back, Dividing Wall) WPL-1166338
...
30
Insulator, Sleeve WPL-475841
