Roper X07002F00

Model: X07002F00

Save Part Not Listed?
product name

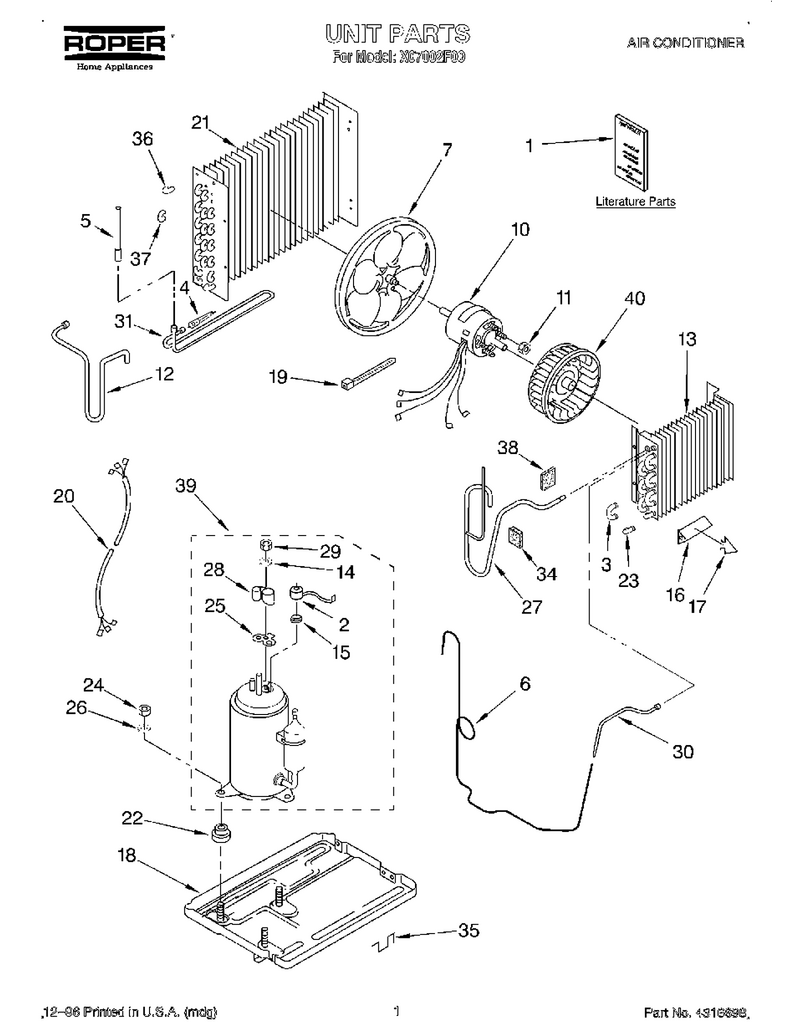

01 - Unit, Literature

...
...
1
Literature Parts (Wiring Diagram) WPL-LIT1165173
...
2
Overload WPL-WP1161170
...
3
Bend-Retrn WPL-WP855199
...
4
Strainer WPL-WP1162526
...
5
Tube, Process WPL-1168423
...
6
Tube-Restr WPL-WP484324
...
7
Blade, Fan WPL-1158524
...
10
Motor, Fan WPL-1181773
...
11
Nut WPL-WP488130
...
12
Tube, Discharge WPL-1162781
...
13
Evaporator WPL-1169737
...
14
Gasket WPL-950037
...
15
Spring-Ovr WPL-WP950032
...
16
Anticipator, Temperature WPL-994262
...
17
Clip, Anticipator WPL-475577
...
18
Base WPL-1157926
...
19
Tie-Wire WPL-WPW10339879
...
20
Harness, Wiring WPL-484136
...
21
Condenser WPL-1169245
...
22
Grommet (3) WPL-950212
...
23
Bend-Retrn WPL-WP855199
...
24
Locknut (3) WPL-858122
...
25
Gasket-Cov WPL-WP950035
...
26
Washer WPL-WP120393
...
27
Tube, Suction WPL-1166117
...
28
Cover-Term WPL-WP950036
...
29
Nut-Mtg WPL-WP950027
...
30
Tube, Feeder (Restrictor) WPL-1165066
...
31
Tube, Condenser Extension WPL-1160799
...
34
Seal, Foam WPL-1159443
...
35
Clip WPL-1165803
...
36
Bend, Return (4) WPL-708532
...
37
Bend, Return (13) WPL-708531
...
38
Sealer, Tube WPL-1164551
...
39
Compressor WPL-4389169
...
40
Wheel, Blower WPL-1164650

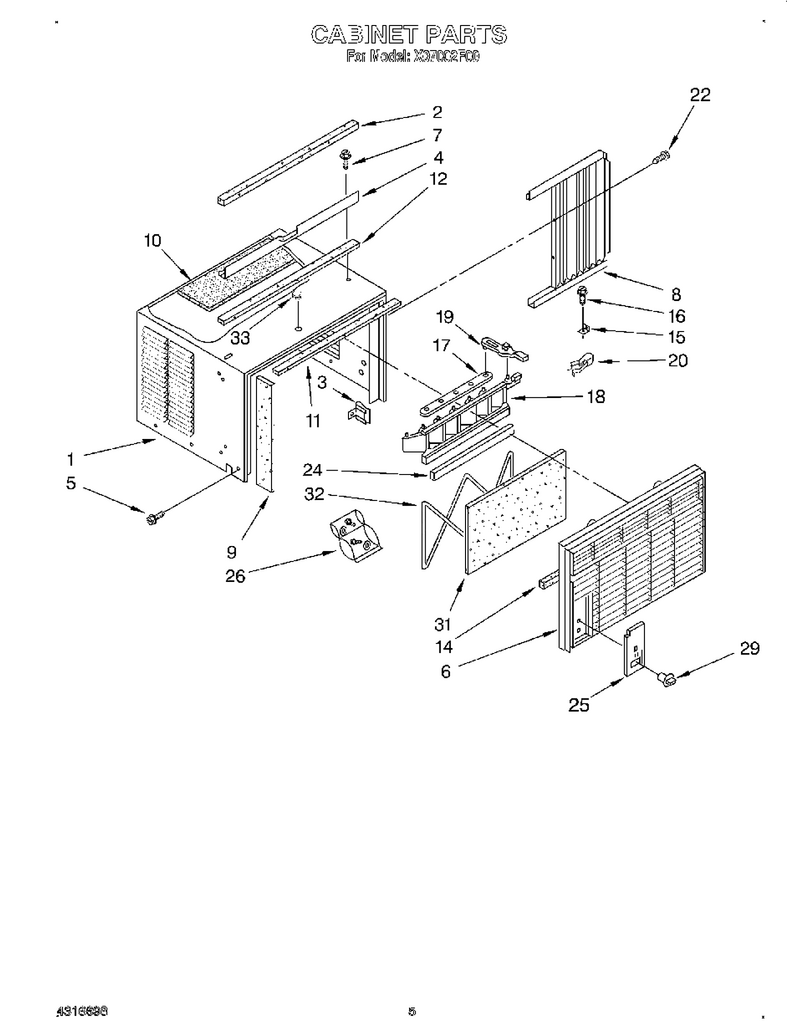

03 - Cabinet

...
...
1
Cabinet WPL-1169770
...
2
Seal, Meeting Rail WPL-855841
...
3
Clip WPL-1158294
...
4
Channel, Top WPL-1168393
...
5
Screw WPL-WP489069
...
6
Front, Cabinet WPL-950281
...
7
Screw WPL-WP308685
...
8
Curtain WPL-WP8011308
...
9
Insulation, Side WPL-950169
...
10
Insulation, Top WPL-1157942
...
11
Seal, Cabinet Bottom WPL-647854
...
12
Seal, Strip WPL-855265
...
14
Seal-Strip WPL-WP854334
...
15
Bracket, Window WPL-644228
...
16
Screw, Wood WPL-47435
...
17
Link, Louver WPL-645684
...
18
Louver, Vertical WPL-1158325
...
19
Handle, Louver WPL-648626
...
20
Spring, Louver WPL-649967
...
22
Screw WPL-W10856125
...
24
Seal, Cabinet Bottom WPL-647854
...
25
Escutcheon WPL-1159407
...
26
Bag, Accessory WPL-476180
...
29
Knob-Cntrl WPL-WP1158639
...
31
Filter-Air WPL-WP876775
...
32
Retainer, Filter WPL-476707
...
33
Cover, Hole WPL-1157126

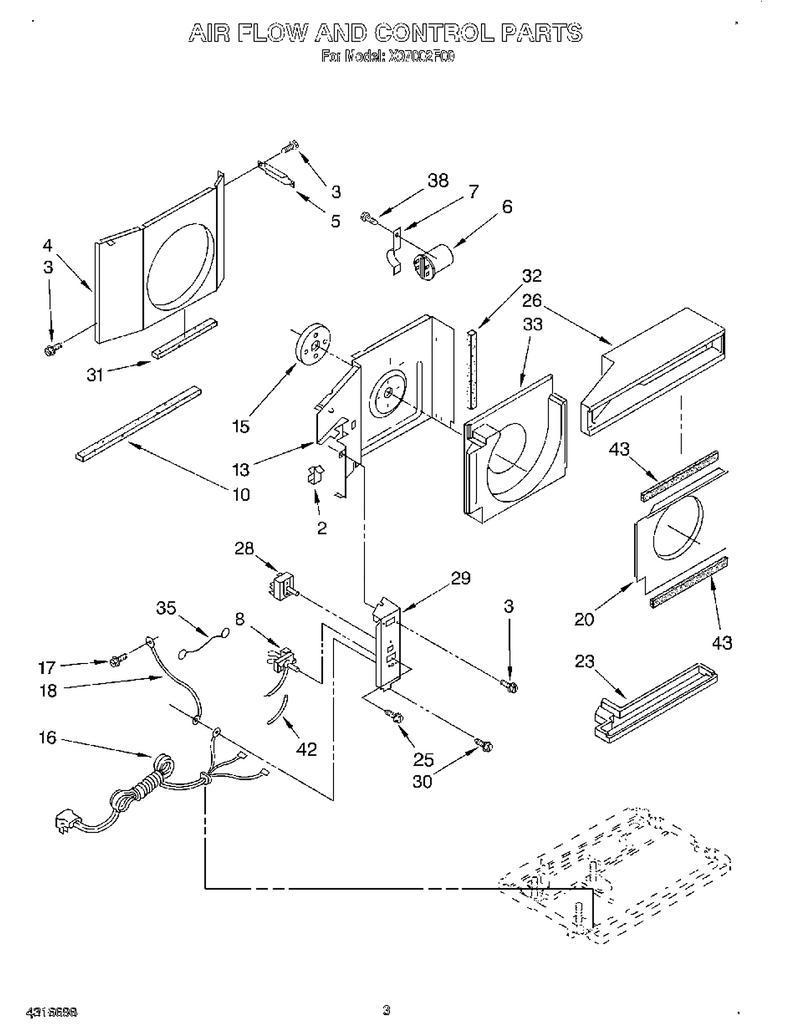

02 - Airflow And Control

...
...
2
Clamp, Wiring WPL-852451
...
3
Screw WPL-WP489069
...
4
Shroud, Condenser WPL-1157908
...
5
Support WPL-649880
...
6
Capacitor, Running WPL-1162595
...
7
Bracket, Capacitor WPL-1167611
...
8
Thermostat WPL-485760
...
10
Seal-Strip WPL-1160613
...
13
Wall, Dividing WPL-1158451
...
15
Insulation, Motor WPL-1158469
...
16
Cord, Appliance WPL-1165240
...
17
Screw WPL-WP98520
...
18
Wire, Ground WPL-857078
...
20
Shroud, Evaporator WPL-1164655
...
23
Pan, Evaporator WPL-1164671
...
25
Screw, 6-32 X .175 WPL-488734
...
26
Hood, Air Housing WPL-1164670
...
28
Switch, Rotary WPL-1165251
...
29
Panel, Control WPL-1158285
...
30
Screw WPL-WP98520
...
31
Seal-Strip WPL-WP854334
...
32
Seal-Strip WPL-WP854334
...
33
Housing, Air WPL-1164648
...
35
Wire, Lead WPL-1160302
...
38
Screw, No.8-18 X 3/8``, Hwhtcs WPL-4159456
...
42
Sleeve, Insul. WPL-475841
...
43
Seal-Strip WPL-1160613

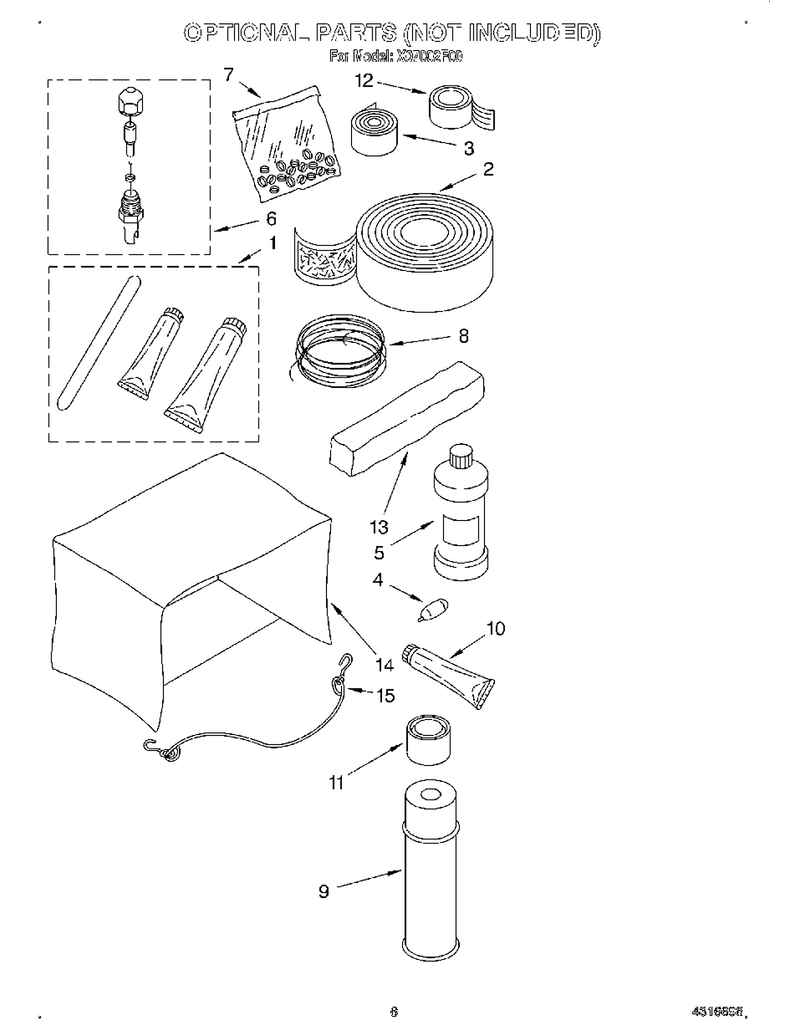

04 - Optional

...
...
1
Epoxy, Tube (Aluminum Repair) WPL-799833
...
2
Tape, No Drip 30` WPL-505168
...
3
Tape WPL-W11238399
...
4
Oil, Turbine 1 Fl. Oz. WPL-10943
...
5
Oil, Turbine 8 Fl. Oz. WPL-99243
...
6
Valve, Access (3/4`` Tube O.d.) WPL-978030
...
7
Seal, Ring (Access Valve) (20 - Pack) WPL-978865
...
8
Wire, 25`` Roll (White 12 Ga.) WPL-47263
...
9
Adhesive WPL-4210500
...
10
Adhesive WPL-WP279368
...
11
Paint, Touch-Up Starlight Gray 1/2 Pint (Lacquer) WPL-485426
...
12
Sealer, Permagum 4 - 1` Strips WPL-212643
...
13
Miscellaneous, Sealer WPL-4318168
...
14
Cover, Winter (27 X 19 X 6 To 27``) WPL-484069
...
15
Retainer, Cord (Winter Cover) WPL-813610

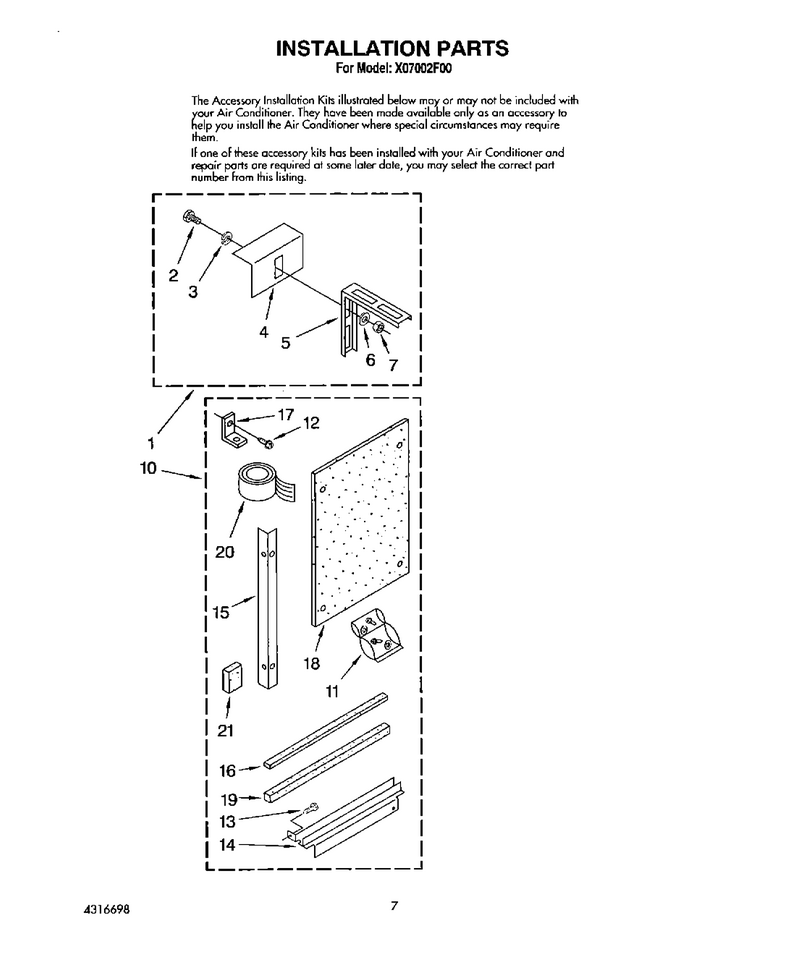

05 - Installation

...
...
Instructions, Installation (Outside Sill Kit) WPL-LIT485706
...
1
Kit, Outside Sill (For Additional Support) WPL-485678
...
2
Bolt, 1/4-20 X 3/4 (6) WPL-488750
...
3
Washer WPL-WP120393
...
4
Bracket, Sill (2) WPL-645515
...
5
Bracket, Rail (2) WPL-485466
...
6
Washer, Lock (6) WPL-486009
...
7
Nut, 1/4-20 (6) WPL-487541
...
10
Kit, Window Installation WPL-994818
...
11
Bag, Accessory WPL-858358
...
12
Screw, Wood WPL-47435
...
13
Screw WPL-WP965173
...
14
Bracket, Mounting ((Right Side)) WPL-645562
...
15
Angle, Side WPL-646988
...
16
Seal, Strip WPL-855265
...
17
Bracket, Window Lock WPL-644228
...
18
Board, Filler (2) WPL-876826
...
19
Seal, Meeting Rail WPL-855841
...
20
Sealer, Gum (4 Feet) WPL-212643
...
21
Spacer, Block WPL-995274
