Roper X05002X03

Model: X05002X03

Save Part Not Listed?
product name

Popular Parts

Popular Parts

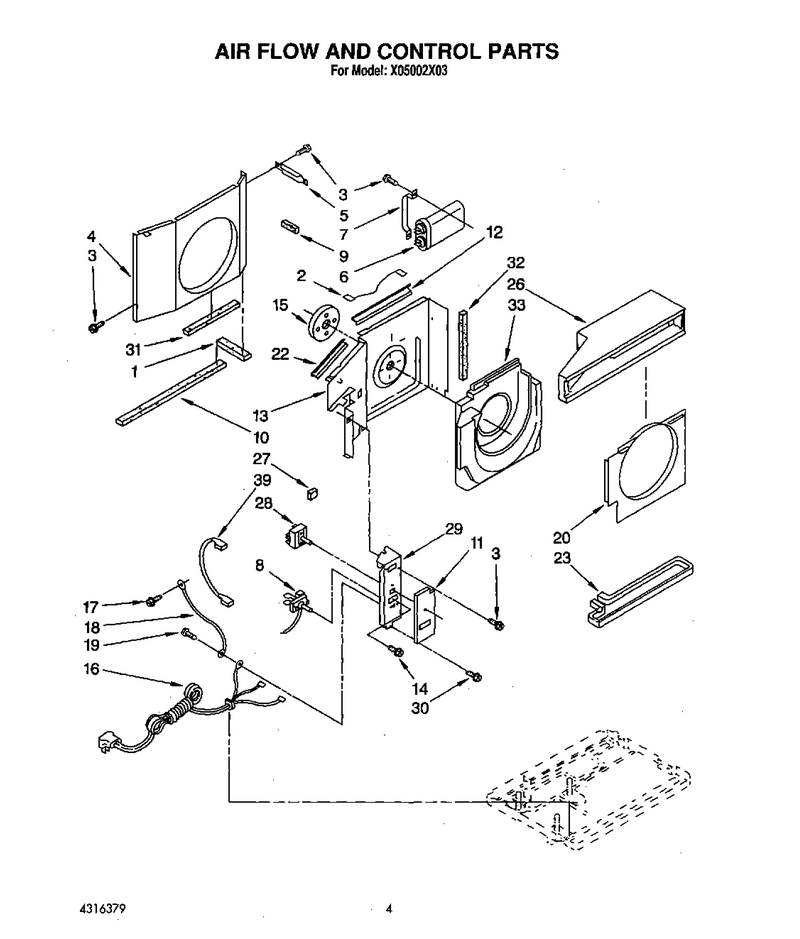

02 - Air Flow And Control

...
...
1
Seal, Condensate WPL-646870
...
2
Wire, Lead WPL-1160302
...
3
Screw WPL-WP489069
...
4
Shroud, Condenser WPL-1157908
...
5
Support WPL-649880
...
6
Capacitor WPL-4318106
...
7
Bracket, Capacitor WPL-856105
...
8
Thermostat WPL-485760
...
9
Seal, Strip WPL-855265
...
10
Seal, Front (Top & Sides) WPL-649725
...
11
Insulation, Control Panel WPL-1159414
...
12
Guard, Edge WPL-1161209
...
13
Wall, Dividing WPL-1158451
...
14
Screw, WPL-488734
...
15
Insulation, Motor WPL-1158469
...
16
Cord-Power WPL-859442
...
17
Screw, No.8-18 X 3/8``, Hwhtcs WPL-4159456
...
18
Wire, Ground WPL-857078
...
19
Screw WPL-WP98520
...
20
Shroud, Evaporator WPL-1159348
...
22
Edge, Guard Seal WPL-1161209
...
23
Pan, Evaporator WPL-1159428
...
26
Hood, Air Housing WPL-1159347
...
27
Seal, Foam WPL-1159443
...
28
Switch, Rotary WPL-950524
...
29
Panel, Control WPL-1158285
...
30
Screw WPL-W10856125
...
31
Seal-Strip WPL-WP854334
...
32
Seal-Strip WPL-WP854334
...
33
Housing, Air WPL-1159346
...
39
Wire, Jumper WPL-1158937

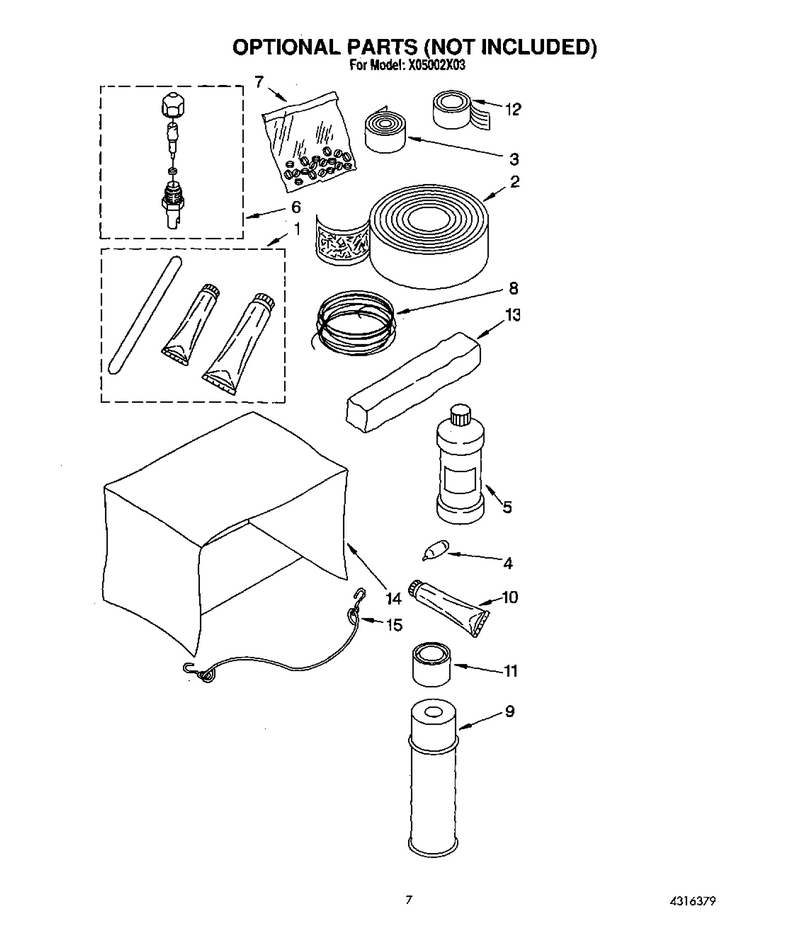

04 - Optional

...
...
1
Epoxy, Tube (Aluminum Repair) WPL-799833
...
2
Tape, No Drip 30` WPL-505168
...
3
Tape WPL-W11238399
...
4
Oil, Turbine 1 Fl. Oz. WPL-10943
...
5
Oil, Turbine 8 Fl. Oz. WPL-99243
...
6
Valve WPL-WP978025
...
7
Seal, Ring (Access Valve) (20 - Pack) WPL-978865
...
8
Wire, 25`` Roll (White 12 Ga.) WPL-47263
...
9
Adhesive WPL-4210500
...
10
Adhesive WPL-WP279368
...
11
Paint, Touch-Up Starlight Gray 1/2 Pint (Lacquer) WPL-485426
...
12
Sealer, Permagum 4 - 1` Strips WPL-212643
...
13
Miscellaneous, Sealer WPL-4318168
...
14
Cover, Winter (22``x15``x3 To 18``) WPL-484184
...
15
Retainer, Cord (Winter Cover) WPL-813610

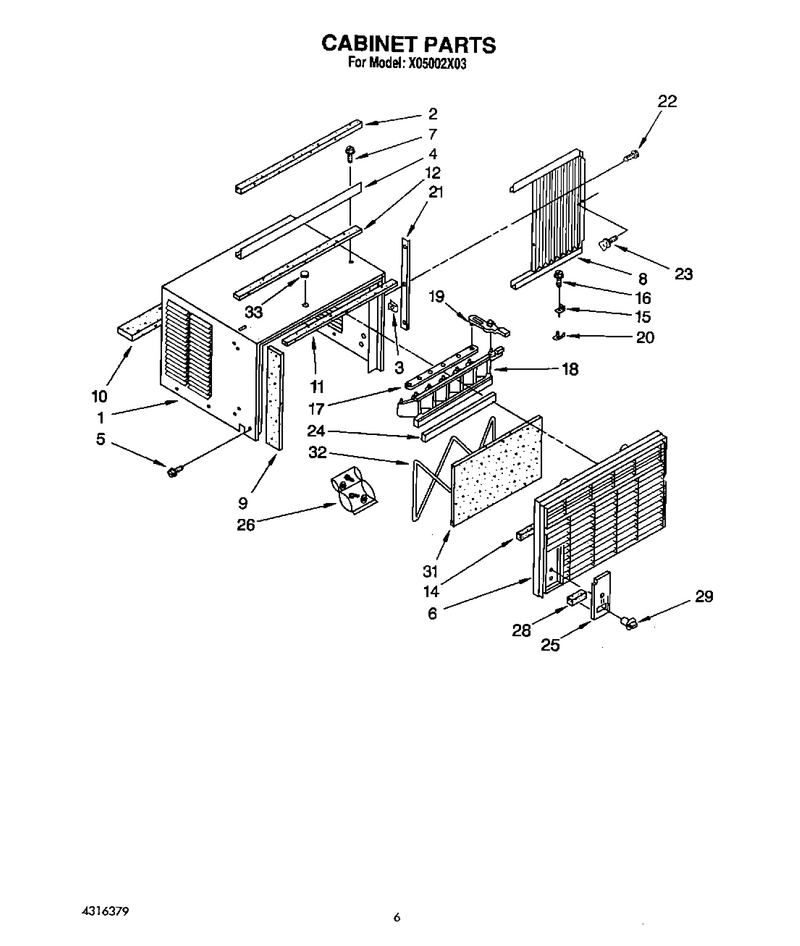

03 - Cabinet

...
...
1
Cabinet WPL-1169770
...
2
Seal, Meeting Rail WPL-855841
...
3
Clip WPL-1158294
...
4
Channel, Top WPL-993849
...
5
Screw WPL-WP489069
...
6
Front, Cabinet WPL-950281
...
7
Screw WPL-WP308685
...
8
Curtain (L.s.) WPL-8011311
...
9
Insulation, Side WPL-950169
...
10
Insulation, Top WPL-1157942
...
11
Seal, Cabinet Bottom WPL-647854
...
12
Seal, Strip WPL-855265
...
14
Seal-Strip WPL-WP854334
...
15
Bracket, Window WPL-644228
...
16
Screw, Wood WPL-47435
...
17
Link, Louver (2) WPL-645684
...
18
Louver, Vertical WPL-1158325
...
19
Handle, Louver (2) WPL-648626
...
20
Spring, Louver WPL-649967
...
21
Retainer, Curtain (2) WPL-646160
...
22
Screw WPL-WP98520
...
23
Screw, Thumb WPL-475581
...
24
Seal, Cabinet Bottom WPL-647854
...
25
Escutcheon WPL-1159407
...
26
Bag, Accessory WPL-476180
...
28
Seal-Strip WPL-WP854334
...
29
Knob-Cntrl WPL-WP1158639
...
31
Filter-Air WPL-WP876775
...
32
Retainer, Filter WPL-476707
...
33
Cover, Hole WPL-1157126

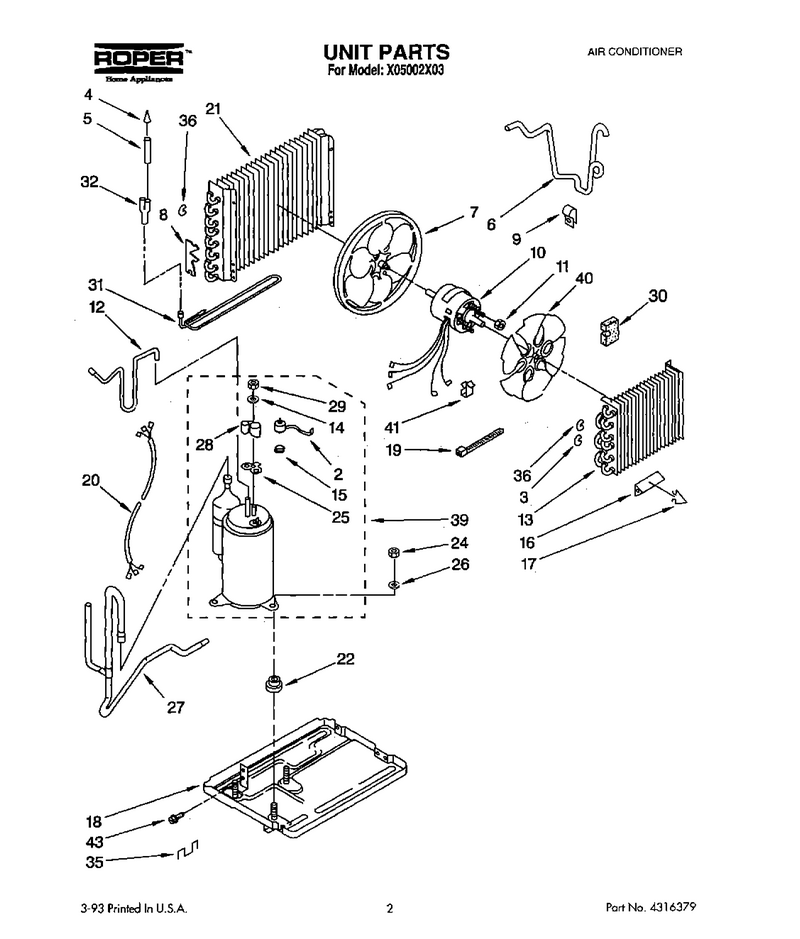

01 - Unit, Lit/optional

...
...
List, Repair Parts WPL-LIT4316379
...
2
Overload WPL-1156601
...
3
Bend, Return (13) WPL-708531
...
4
Strainer WPL-49599
...
5
Tube & Strainer (Includes Illus. 50) WPL-484230
...
6
Tube-Restr WPL-WP484324
...
7
Blade, Fan WPL-1158524
...
8
Retainer, Wet Loop WPL-1162924
...
9
Clamp, Tube WPL-855930
...
10
Motor-Fan WPL-819234
...
11
Nut WPL-WP488130
...
12
Tube, Discharge WPL-1162781
...
13
Evaporator WPL-1161721
...
14
Gasket WPL-950037
...
15
Spring-Ovr WPL-WP950032
...
16
Anticipator, Temperature WPL-994262
...
17
Clip, Anticipator WPL-475577
...
18
Base WPL-1157926
...
19
Tie-Wire WPL-WPW10339879
...
20
Harness, Wiring WPL-484136
...
21
Condenser WPL-1169526
...
22
Grommet (3) WPL-950212
...
24
Locknut (3) WPL-858122
...
25
Gasket-Cov WPL-WP950035
...
26
Washer WPL-WP120393
...
27
Tube, Suction WPL-1163928
...
28
Cover-Term WPL-WP950036
...
29
Nut-Mtg WPL-WP950027
...
30
Sealer, Tube Foam WPL-1160617
...
31
Tube, Condenser Extension WPL-1160799
...
32
Tube, Flow Divider WPL-947364
...
35
Clip WPL-1165803
...
36
Bend, Return (4) WPL-708532
...
39
Compressor Assembly WPL-4318000
...
40
Fan, Blade Evaporator WPL-997886
...
41
Clamp, Wiring WPL-852451
...
43
Screw WPL-WP489069
