Roper X05002X00

Model: X05002X00

Save Part Not Listed?
product name

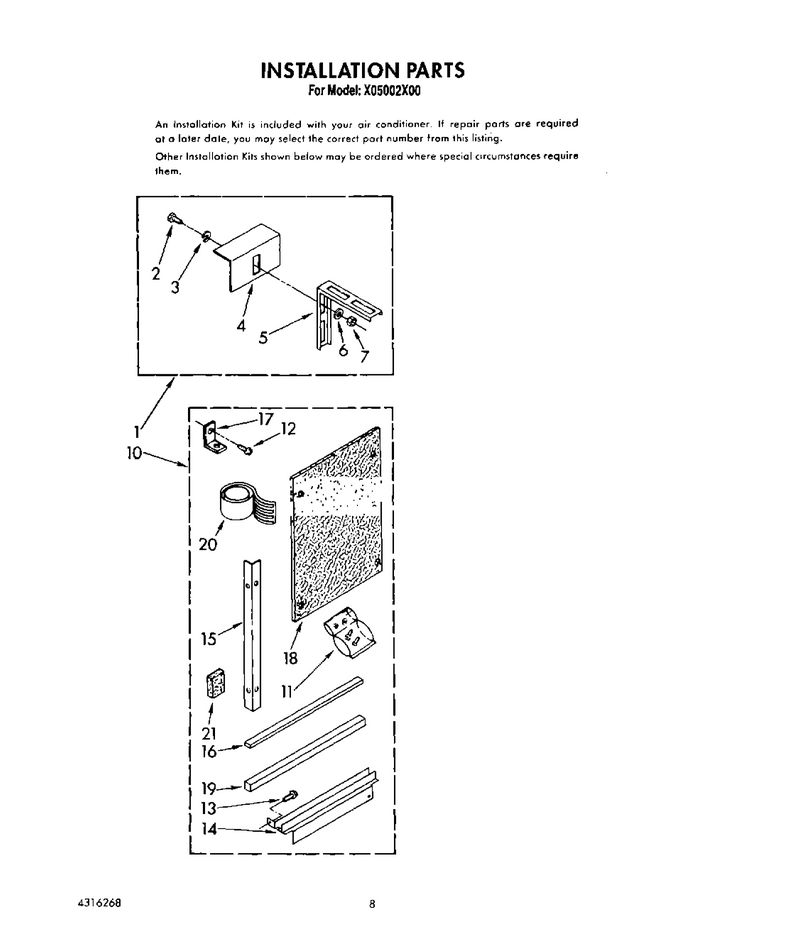

06 - Installation Parts

...
...
Instructions, Installation (Outside Sill Kit) WPL-LIT485706
...
1
Kit, Outside Sill (For Additional Support) WPL-485678
...
2
Bolt, 1/4-20 X 3/4 (6) WPL-488750
...
3
Washer WPL-WP120393
...
4
Bracket, Sill (2) WPL-645515
...
5
Bracket, Rail (2) WPL-485466
...
6
Washer, Lock (6) WPL-486009
...
7
Nut, 1/4-20 (6) WPL-487541
...
10
Kit, Window Installation WPL-994818
...
11
Bag, Accessory WPL-858358
...
12
Screw, Wood WPL-47435
...
13
Screw WPL-WP965173
...
14
Bracket, Mounting (Left Side) WPL-645563
...
15
Angle, Side WPL-646988
...
16
Seal, Strip WPL-855265
...
17
Bracket, Window Lock WPL-644228
...
18
Board, Filler (2) WPL-876826
...
19
Seal, Meeting Rail WPL-855841
...
20
Sealer, Gum (4 Feet) WPL-212643
...
21
Spacer, Block WPL-995274

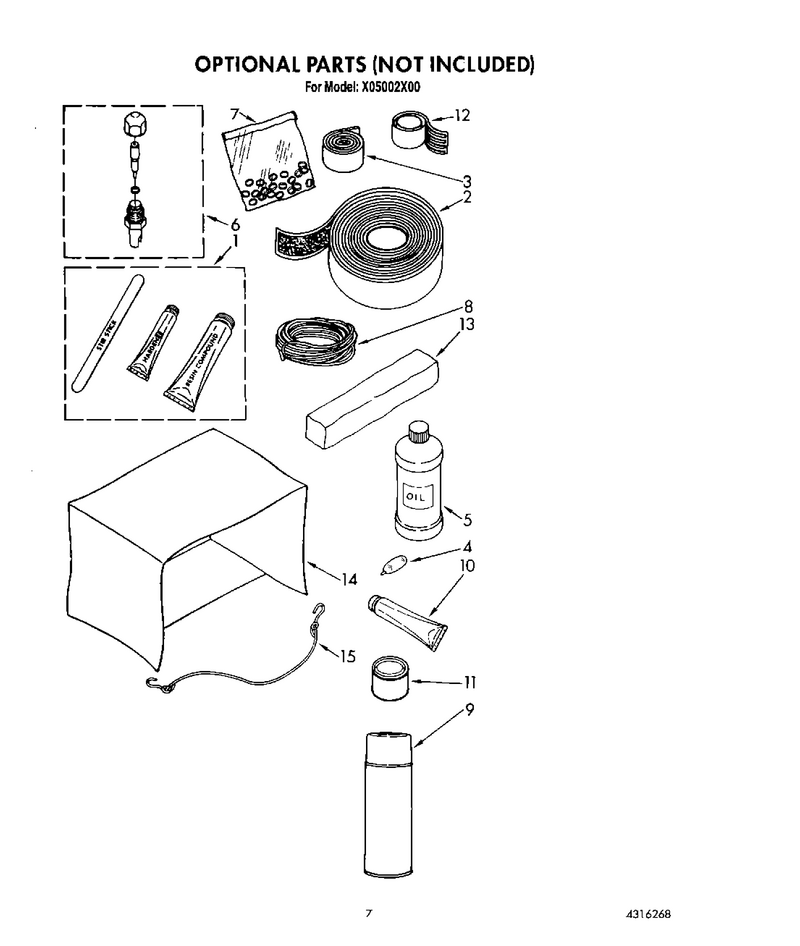

05 - Optional

...
...
1
Epoxy, Tube (Aluminum Repair) WPL-799833
...
2
Tape, No Drip 30` WPL-505168
...
3
Tape WPL-W11238399
...
4
Oil, Turbine 1 Fl. Oz. WPL-10943
...
5
Oil, Turbine 8 Fl. Oz. WPL-99243
...
6
Valve WPL-WP978025
...
7
Seal, Ring (Access Valve) (20 - Pack) WPL-978865
...
8
Wire (14 Ga. 150 C Red) WPL-242825
...
9
Adhesive WPL-4210500
...
10
Adhesive WPL-WP279368
...
11
Paint, Touch-Up Starlight Gray 1/2 Pint (Lacquer) WPL-485426
...
12
Sealer, Permagum 4 - 1` Strips WPL-212643
...
13
Miscellaneous, Sealer WPL-4318168
...
14
Cover, Winter (27 X 19 X 6 To 27``) WPL-484069
...
15
Retainer, Cord (Winter Cover) WPL-813610

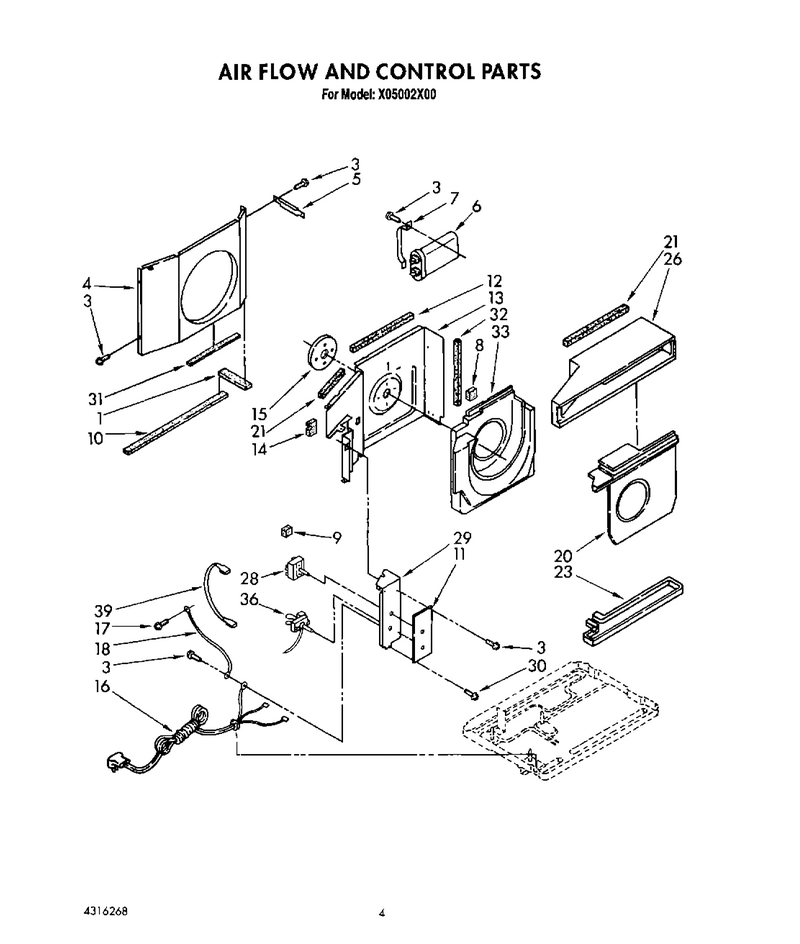

03 - Airflow And Control

...
...
1
Seal, Condensate WPL-646870
...
3
Screw WPL-WP98520
...
4
Shroud, Condenser WPL-1157908
...
5
Support WPL-649880
...
6
Capacitor WPL-4318099
...
7
Bracket, Capacitor WPL-856105
...
8
Seal, Strip WPL-855265
...
9
Seal, Switch WPL-1159443
...
10
Seal, Front (Top & Sides) WPL-649725
...
11
Insulation, Control Panel WPL-1159414
...
12
Seal-Strip WPL-WP854334
...
13
Wall, Dividing WPL-1158451
...
14
Sealer, Tube WPL-1160884
...
15
Insulation, Motor WPL-1158469
...
16
Cord-Power WPL-859442
...
17
Screw, No.8-18 X 3/8``, Hwhtcs WPL-4159456
...
18
Wire, Ground WPL-857078
...
20
Orifice, Air Housing WPL-1157950
...
21
Seal-Strip WPL-WP854334
...
23
Pan, Evaporator WPL-1157948
...
26
Hood, Air Housing WPL-1158464
...
28
Switch, Rotary WPL-950524
...
29
Panel, Control WPL-1158285
...
30
Screw, 6-32 X .175 WPL-488734
...
31
Seal-Strip WPL-WP854334
...
32
Seal-Strip WPL-WP854334
...
33
Housing, Air WPL-1157949
...
36
Thermostat WPL-485760
...
39
Wire, Jumper WPL-1158937

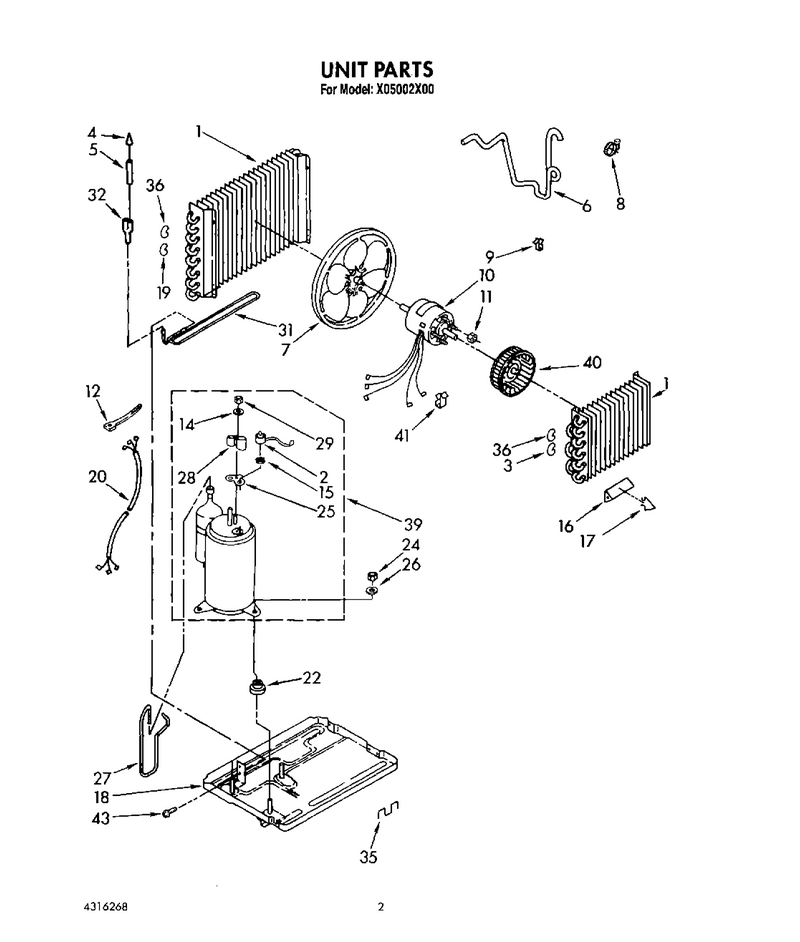

02 - Unit, Lit/optional

...
...
Tech Sheet WPL-LIT1158477
...
1
Condenser WPL-1169528
...
2
Overload WPL-1156601
...
3
Bend, Return Evaporator (3) WPL-708531
...
4
Strainer WPL-49599
...
5
Tube & Strainer (Includes Illus. 50) WPL-484230
...
6
Tube-Restr WPL-WP484323
...
7
Blade, Fan WPL-1158524
...
8
Clamp, Tube WPL-855930
...
9
Clamp, Tube WPL-855930
...
10
Motor-Fan WPL-819376
...
11
Nut WPL-WP488130
...
12
Tie-Wire WPL-WPW10339879
...
13
Evaporator WPL-1157931
...
14
Gasket WPL-950037
...
15
Spring-Ovr WPL-WP950032
...
16
Anticipator, Temperature WPL-994262
...
17
Clip, Anticipator WPL-475577
...
18
Base WPL-1157926
...
19
Bend, Return (11) WPL-1157936
...
20
Harness, Wiring WPL-484136
...
22
Grommet (3) WPL-950212
...
24
Locknut (3) WPL-858122
...
25
Gasket-Cov WPL-WP950035
...
26
Washer WPL-WP120393
...
27
Tube, Suction WPL-1158304
...
28
Cover-Term WPL-WP950036
...
29
Nut-Mtg WPL-WP950027
...
31
Tube, Condenser Extension WPL-1160799
...
32
Tube, Flow Divider WPL-947364
...
35
Clip WPL-1165803
...
36
Bend, Return Evaporator (8) Condenser (11) WPL-708532
...
39
Compressor WPL-4210324
...
40
Wheel, Blower WPL-1158986
...
41
Clamp, Wiring WPL-852451
...
43
Screw WPL-WP489069

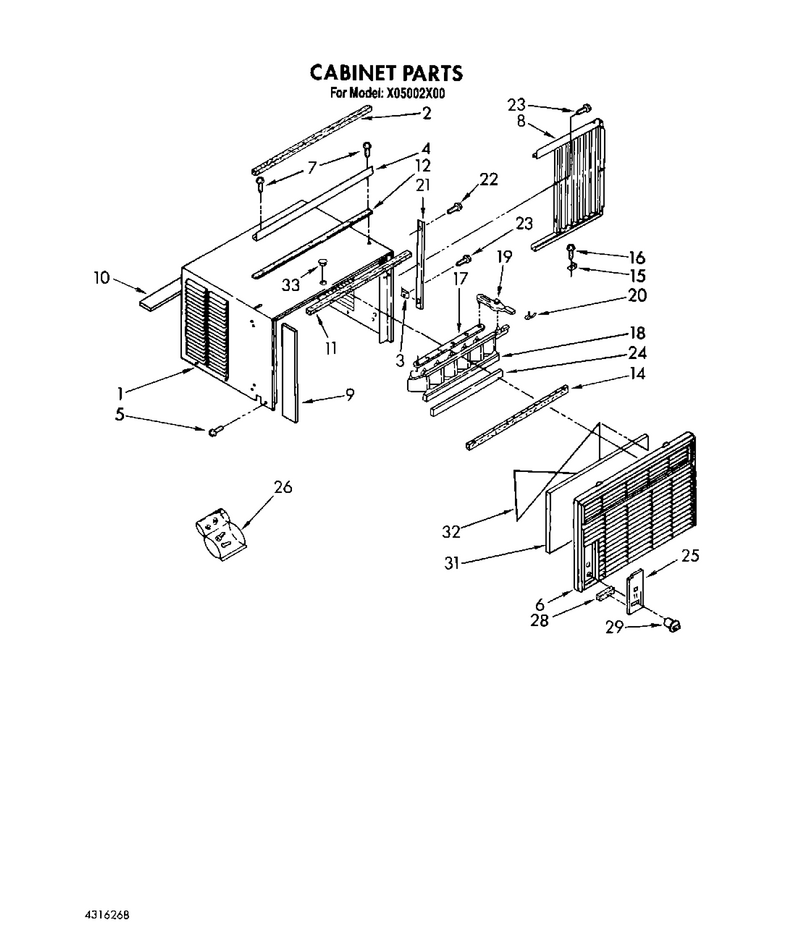

04 - Cabinet

...
...
1
Cabinet WPL-1169770
...
2
Seal, Meeting Rail WPL-855841
...
3
Clip WPL-1158294
...
4
Channel, Top WPL-993849
...
5
Screw WPL-WP489069
...
6
Front, Cabinet WPL-950281
...
7
Screw WPL-WP308685
...
8
Curtain (L.s.) WPL-8011311
...
9
Insulation, Side WPL-950169
...
10
Insulation, Top WPL-1157942
...
11
Seal, Cabinet Bottom WPL-647854
...
12
Seal, Strip WPL-855265
...
14
Seal-Strip WPL-WP854334
...
15
Bracket, Window WPL-644228
...
16
Screw, Wood WPL-47435
...
17
Link, Louver (2) WPL-645684
...
18
Louver, Vertical WPL-1158325
...
19
Handle, Louver (2) WPL-648626
...
20
Spring, Louver WPL-649967
...
21
Retainer, Curtain (2) WPL-646160
...
22
Screw WPL-WP98520
...
23
Screw (6) WPL-488730
...
24
Seal, Cabinet Bottom WPL-647854
...
25
Escutcheon WPL-1159407
...
26
Bag, Accessory WPL-476180
...
28
Seal-Strip WPL-WP854334
...
29
Knob-Cntrl WPL-WP1158639
...
31
Filter-Air WPL-WP876775
...
32
Retainer, Filter WPL-476707
...
33
Cover, Hole WPL-1157126
