Roper X05002V0

Model: X05002V0

Save Part Not Listed?
product name

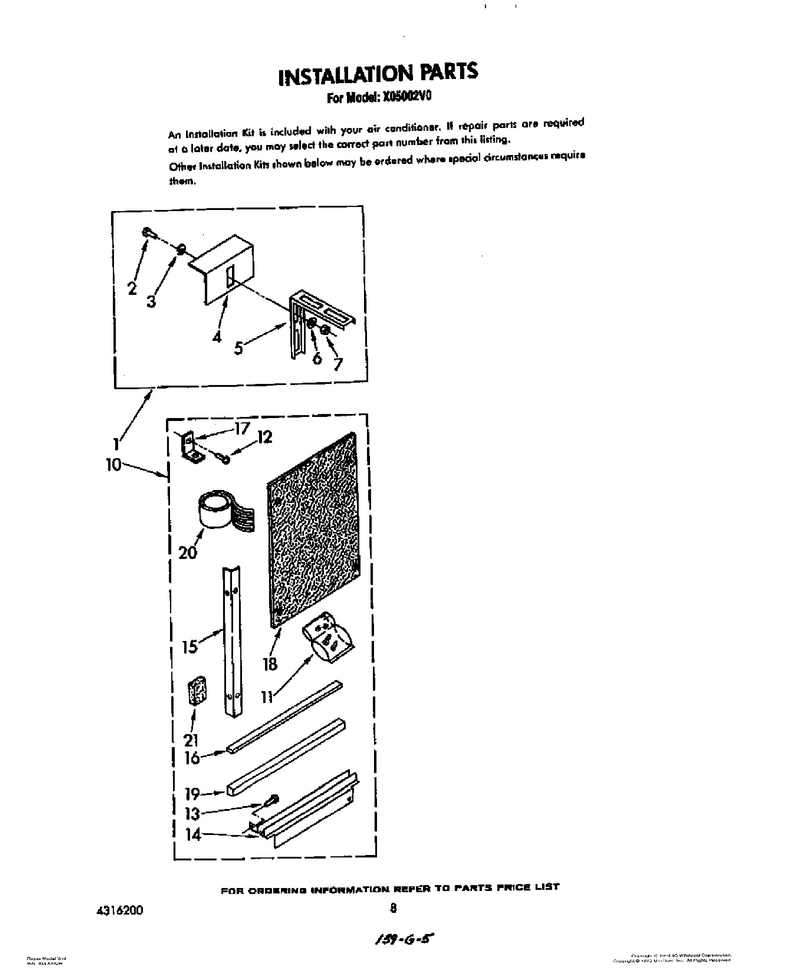

06 - Installation

...
...
Instructions, Installation (Outside Sill Kit) WPL-LIT485706
...
1
Kit, Outside Sill (For Additional Support) WPL-485678
...
2
Bolt, 1/4-20 X 3/4 (6) WPL-488750
...
3
Washer WPL-WP120393
...
4
Bracket, Sill (2) WPL-645515
...
5
Bracket, Rail (2) WPL-485466
...
6
Washer, Lock (6) WPL-486009
...
7
Nut, 1/4-20 (6) WPL-487541
...
10
Kit, Window Installation WPL-994818
...
11
Bag, Accessory WPL-858358
...
12
Screw, Wood WPL-47435
...
13
Screw WPL-WP965173
...
14
Bracket, Mounting ((Right Side)) WPL-645562
...
15
Angle, Side (2) WPL-646988
...
16
Seal, Strip WPL-855265
...
17
Bracket, Window Lock WPL-644228
...
18
Board, Filler (2) WPL-876826
...
19
Seal, Meeting Rail WPL-855841
...
20
Sealer, Gum (4 Feet) WPL-212643
...
21
Spacer, Block WPL-995274

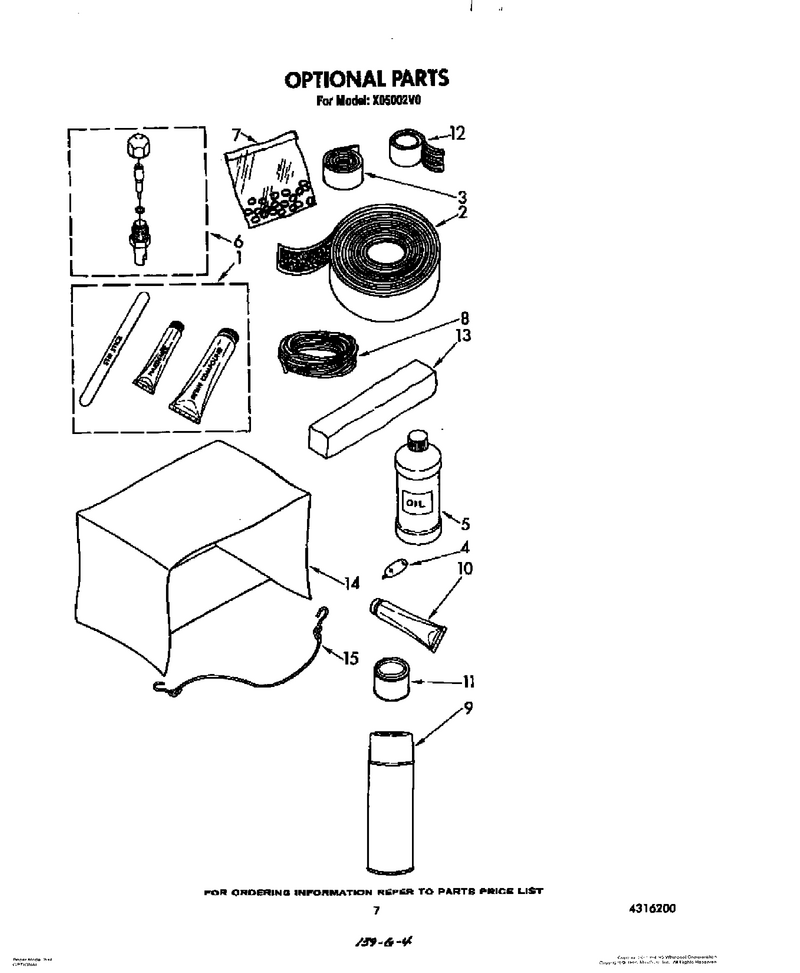

05 - Optional

...
...
1
Epoxy, Tube (Aluminum Repair) WPL-799833
...
2
Tape, No Drip 30` WPL-505168
...
3
Tape WPL-W11238399
...
4
Oil, Turbine 1 Fl. Oz. WPL-10943
...
5
Oil, Turbine 8 Fl. Oz. WPL-99243
...
6
Valve, Access (5/8`` Tube O.d.) WPL-978029
...
7
Seal, Ring (Access Valve) (20 - Pack) WPL-978865
...
8
Wire, 25` Roll (Red 12 Ga.) WPL-299885
...
9
Adhesive WPL-4210500
...
10
Adhesive WPL-WP279368
...
11
Paint, Touch-Up Starlight Gray 1/2 Pint (Lacquer) WPL-485426
...
12
Sealer, Permagum 4 - 1` Strips WPL-212643
...
13
Miscellaneous, Sealer WPL-4318168
...
14
Cover, Winter (27 X 19 X 6 To 27``) WPL-484069
...
15
Retainer, Cord (Winter Cover) WPL-813610

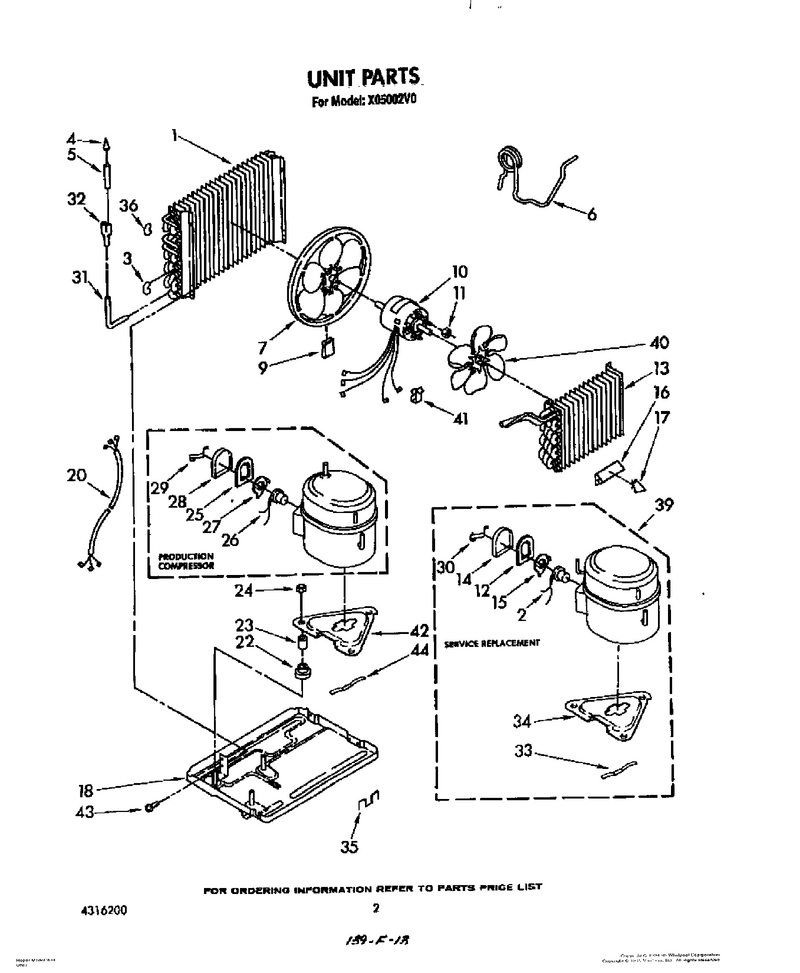

02 - Unit, Lit/optional

...
...
Guide, Operation WPL-LIT1158169
...
1
Condenser WPL-1155727
...
2
Overload WPL-949996
...
3
Bend, Return (13) WPL-708531
...
4
Strainer WPL-49599
...
5
Tube & Strainer (Includes Illus. 4) WPL-484230
...
6
Tube-Restr WPL-WP484323
...
7
Blade, Fan WPL-1155859
...
9
Clip, Balancing WPL-485334
...
10
Motor-Fan WPL-819376
...
11
Nut WPL-WP488130
...
12
Gasket, Cover WPL-643296
...
13
Evaporator WPL-485976
...
14
Cover, Terminal WPL-1167005
...
15
Spring, Overload WPL-643298
...
16
Anticipator, Temperature WPL-994262
...
17
Clip, Anticipator WPL-475577
...
18
Base WPL-950323
...
20
Harness, Wiring WPL-484136
...
22
Grommet WPL-553583
...
23
Sleeve (4) (Service Only) WPL-4387559
...
24
Locknut (3) WPL-858121
...
25
Gasket, Terminal Cover WPL-643296
...
26
Overload WPL-949996
...
27
Spring, Overload WPL-643298
...
28
Cover, Terminal WPL-1167005
...
29
Retainer, Terminal Cover WPL-643299
...
30
Retainer, Cover WPL-643299
...
31
Tube, Connecting WPL-1158703
...
32
Tube, Flow Divider WPL-947364
...
33
Spring, Mtg WPL-643179
...
34
Plate, Mtg WPL-484033
...
35
Clip WPL-1165803
...
36
Bend, Return (4) WPL-708532
...
39
Compressor WPL-4387518
...
40
Fan, Blade Evaporator WPL-1156923
...
41
Clamp, Wiring WPL-852451
...
42
Plate, Mounting Compressor WPL-949975
...
43
Screw WPL-WP489069
...
44
Spring, Mounting WPL-643179

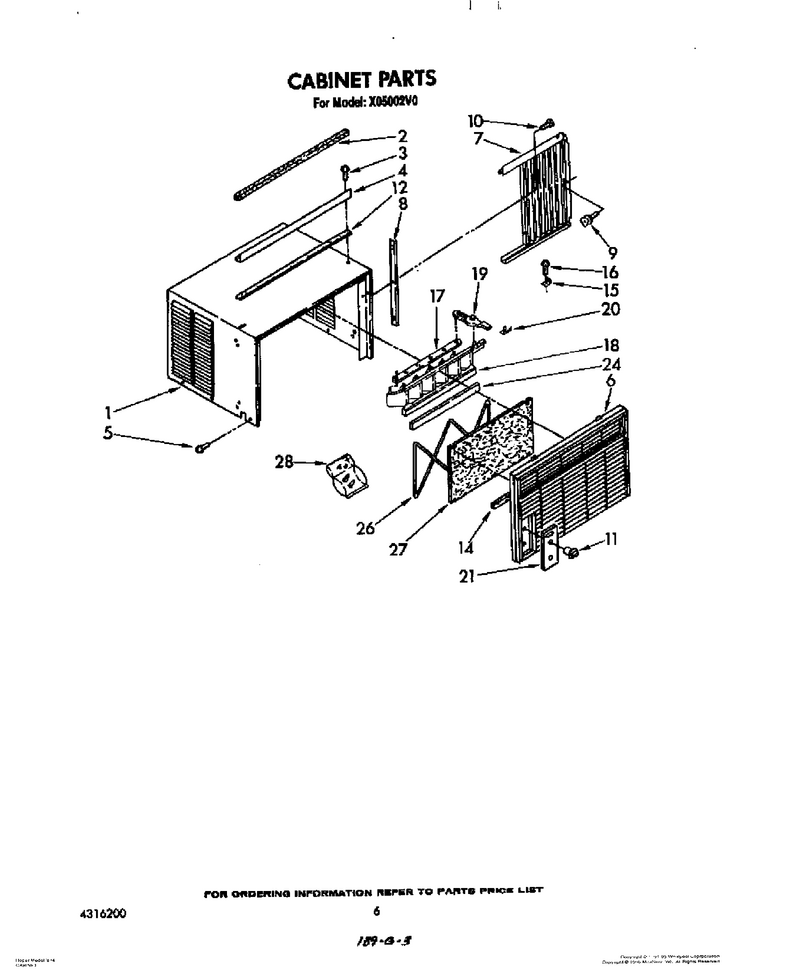

04 - Cabinet

...
...
1
Cabinet WPL-1157276
...
2
Seal, Meeting Rail WPL-855841
...
3
Screw WPL-WP308685
...
4
Channel, Top WPL-993849
...
5
Screw WPL-WP489128
...
6
Front, Cabinet WPL-950281
...
7
Curtain (L.s.) WPL-8011311
...
8
Retainer, Curtain (2) WPL-646160
...
9
Thumbscrew (2) WPL-475581
...
10
Screw, 8 X 7/16 (6) WPL-488730
...
11
Knob, Control (2) WPL-953054
...
12
Seal, Strip WPL-855265
...
14
Seal-Strip WPL-WP854334
...
15
Bracket, Window WPL-644228
...
16
Screw, Wood WPL-47435
...
17
Link, Louver (2) WPL-645684
...
18
Louver, Vertical WPL-1157284
...
19
Handle, Louver (2) WPL-648626
...
20
Spring, Louver WPL-649967
...
21
Plate, Escutcheon WPL-1158176
...
24
Seal, Cabinet Bottom WPL-647854
...
26
Retainer, Filter WPL-476707
...
27
Filter-Air WPL-WP876775
...
28
Bag, Accessory WPL-476180

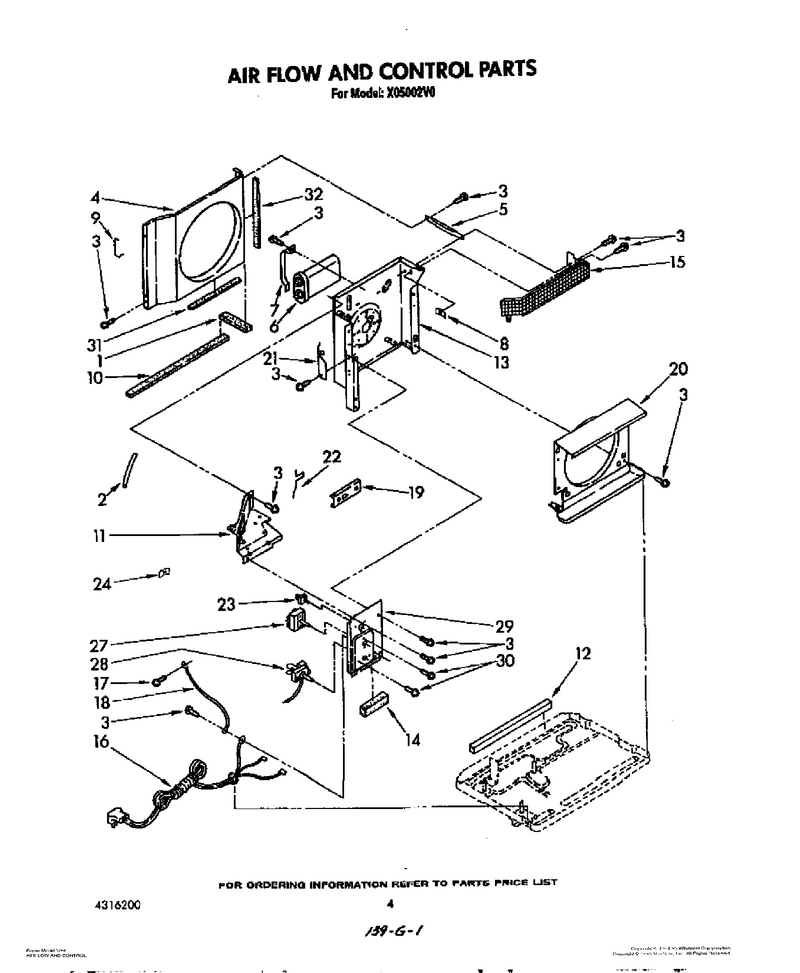

03 - Airflow And Control

...
...
1
Seal, Condensate WPL-646870
...
2
Sealer, Gum (4 Feet) WPL-212643
...
3
Screw, 10a X 3/8 (2) WPL-254217
...
4
Shroud-Evp WPL-646126
...
5
Support WPL-649880
...
6
Capacitor WPL-978893
...
7
Bracket, Capacitor WPL-856105
...
8
Nut, Speed No.8a WPL-486288
...
9
Clip, Shroud WPL-994686
...
10
Seal, Cabinet Bottom WPL-647854
...
11
Extension, Dividing Wall WPL-646130
...
12
Seal, Front (Top & Sides) WPL-649725
...
13
Wall, Dividing WPL-859822
...
14
Seal-Strip WPL-853915
...
15
Guard, Evaporator Impeller WPL-996685
...
16
Cord-Power WPL-859442
...
17
Screw WPL-WPW10141604
...
18
Wire, Ground WPL-857078
...
19
Door, Exhaust WPL-1158280
...
20
Shroud, Evaporator WPL-996748
...
21
Plate, Dividing Wall WPL-859890
...
22
Arm, Door WPL-950255
...
23
Actuatur, Door WPL-953066
...
24
Retainer, Detent Spring WPL-853565
...
27
Switch, Rotary WPL-950521
...
28
Thermostat WPL-485760
...
29
Panel, Control WPL-993398
...
30
Screw, 6-32 X .175 WPL-488734
...
31
Seal-Strip WPL-WP854334
...
32
Seal, Strip WPL-855265
