Roper WU4406V3

Model: WU4406V3

Save Part Not Listed?
product name

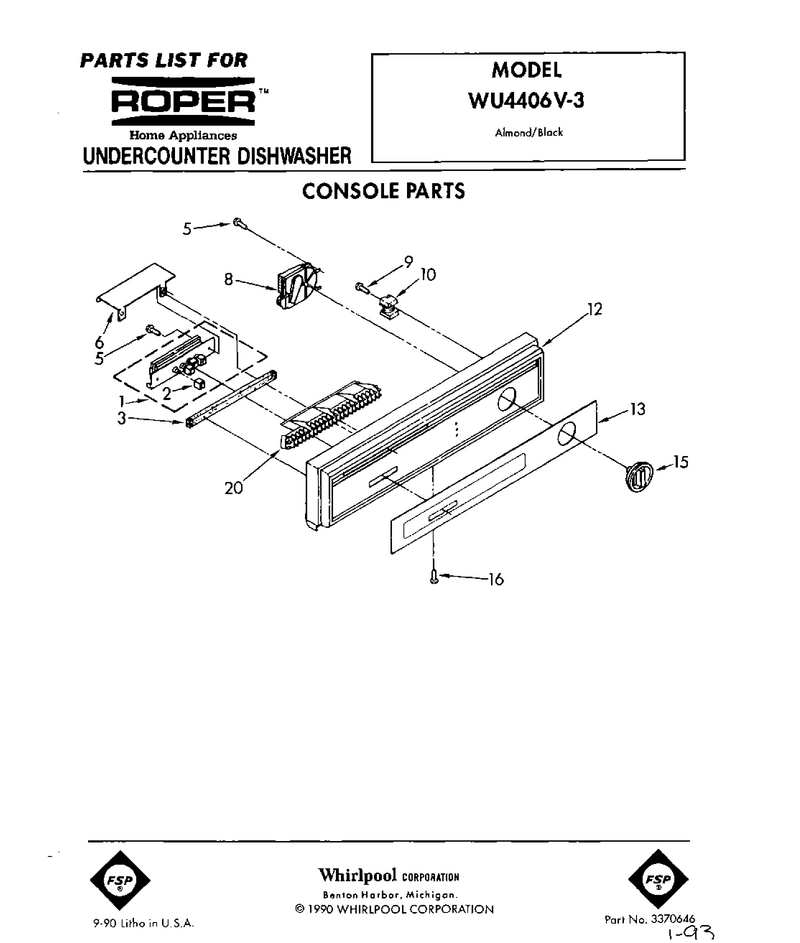

01 - Console

...
...
1
Switch, Pushbutton WPL-3368542
...
2
Button (4) WPL-304456
...
3
Foam, Seal WPL-3368537
...
5
Screw WPL-WP304231
...
6
Shield, Sound WPL-3368538
...
8
Timer WPL-3368830
...
9
Screw, 7-18 X 1-3/8 WPL-304232
...
10
Relay, Start WPL-304658
...
12
Console (Includes Items 13 & 20) WPL-3369918
...
13
Insert, Decorative WPL-3369917
...
15
Knob, Timer WPL-3367843
...
16
Screw WPL-WP488729
...
20
Grill, Vent WPL-304602

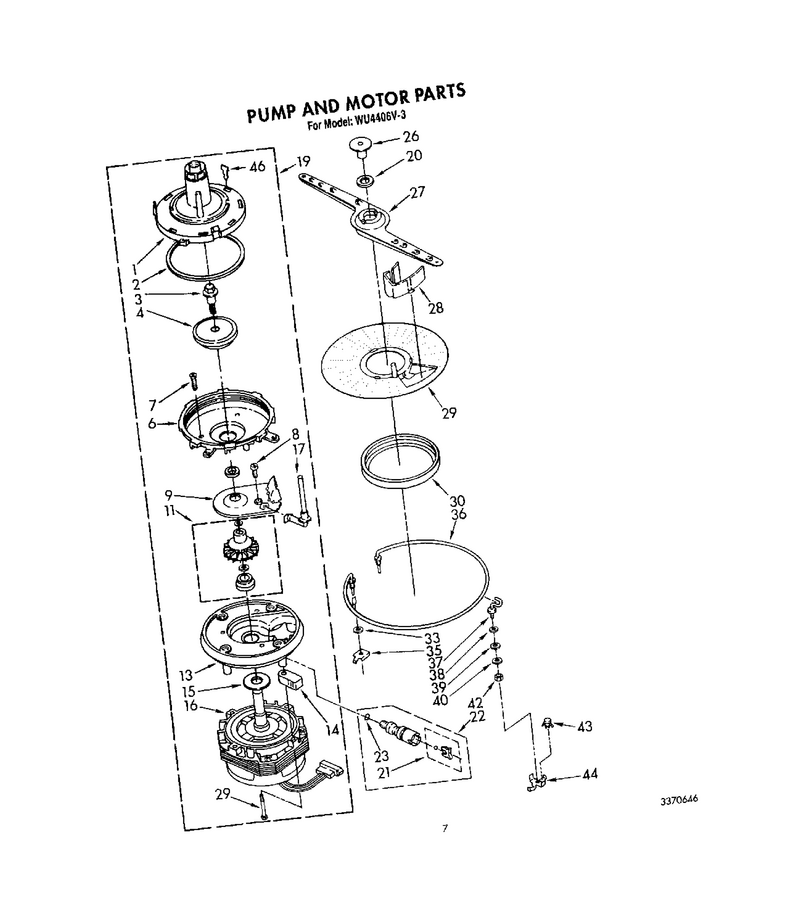

05 - Pump And Motor

...
...
1
Pump Housing, Upper WPL-3367439
...
2
Seal, Ring WPL-718259
...
3
Screw WPL-WP3371152
...
4
Impeller WPL-8193529
...
6
Pump Housing, Lower WPL-718222
...
7
Screw, 8-18 X 1.38 WPL-718257
...
8
Screw WPL-WP9741232
...
9
Coverplate WPL-300084
...
11
Impeller WPL-8193529
...
12
Screw, 13-16 (4) WPL-3369331
...
13
Base, Pump WPL-3367203
...
14
Support WPL-WP3367197
...
15
Slinger WPL-W10909679
...
16
Motor WPL-3369473
...
17
Bleeder Assembly WPL-718629
...
19
Pump & Motor Assembly WPL-3369477
...
20
Bearing WPL-WP719576
...
21
Check Ball & Retainer WPL-675488
...
22
Valve, Check (Includes Illus. 21 & 23) WPL-675238
...
23
``o`` Ring WPL-95080
...
26
Cap WPL-WP3367910
...
27
Spray Arm, Lower WPL-302767
...
28
Guard, Screen WPL-300988
...
29
Screen, Sump WPL-718226
...
30
Gasket, Pump WPL-717000
...
33
Washer WPL-WP717273
...
35
Nut, 7/16-20 (2) WPL-718537
...
36
Heater WPL-675489
...
37
Supprt-Htr WPL-675484
...
38
Washer, Retainer (2) WPL-717289
...
39
Washer (2) WPL-14351
...
40
Washer (2) WPL-711284
...
42
Nut, 10-32 (2) WPL-120614
...
43
Thermostat (Alternate) WPL-303282
...
44
Bracket, Thermostat WPL-3368272
...
46
Key, Pump Housing WPL-301936

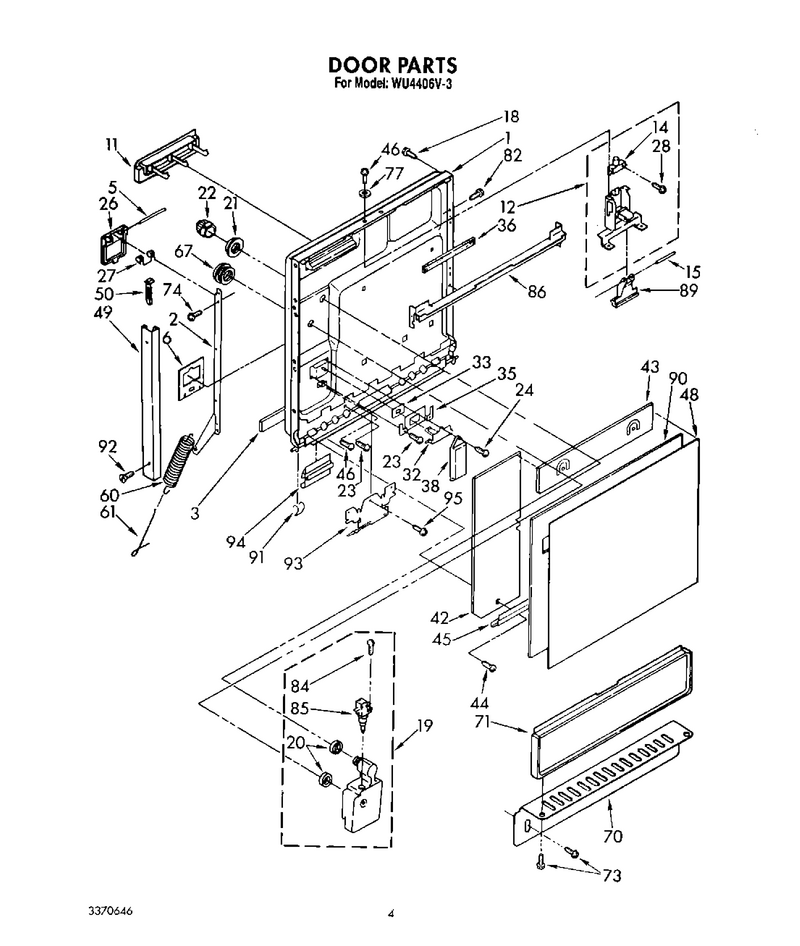

03 - Door

...
...
1
Door-Inner WPL-675619
...
2
Support, Door (R.h.) WPL-3367201
...
3
Gasket WPL-675582
...
5
Cover WPL-4387043
...
6
Barrier WPL-303978
...
11
Screen, Vent WPL-300246
...
12
Latch Assembly WPL-3367058
...
14
Switch, Interlock WPL-660951
...
15
Pin, Pivot WPL-300234
...
18
Screw, 8-18 X 1-7/8 (2) WPL-304233
...
19
Dispenser WPL-675551
...
20
Washer (2) WPL-713080
...
21
Nut, 1-14 WPL-718575
...
22
Cap WPL-718577
...
23
Screw WPL-WP304231
...
24
Screw WPL-718250
...
26
Cover WPL-4387043
...
27
Spring WPL-WP8066018
...
28
Screw, 6-32 X 1 WPL-301582
...
32
Lever, Catch WPL-300119
...
33
Seal WPL-WP300105
...
35
Retainer, Seal WPL-300104
...
36
Foam, Seal WPL-3368537
...
38
Actuator WPL-300109
...
42
Barrier, Door WPL-303223
...
43
Barrier, Console WPL-303908
...
44
Screw WPL-W11693756
...
45
Panel, Edging (Door) WPL-304047
...
46
Screw WPL-WP489128
...
48
Panel, Front (Almond/black) WPL-304668
...
49
Trim, Door L.h. (Includes Item 50) WPL-3368000
...
50
Clip, Trim Guard (2) WPL-3367172
...
60
Spring WPL-675611
...
61
Retainer WPL-WP716401
...
67
Cap, Drip WPL-718576
...
70
Plate, Toe WPL-3367470
...
71
Panel WPL-WP3367793
...
73
Screw WPL-WP302868
...
74
Screw WPL-WP488627
...
77
Washer WPL-300237
...
82
Screw WPL-WP489069
...
84
Screw, 4-20 X 3/8 (2) WPL-304444
...
85
Actuator Assembly WPL-304443
...
86
Rail, Support WPL-304391
...
89
Lever WPL-3367283
...
90
Spacer, Panel WPL-301957
...
91
Clip, Wire WPL-301857
...
92
Screw, 8 - 18 (4) WPL-3367288
...
93
Shield, Harness WPL-303362
...
94
Retainer, Clip WPL-3367720
...
95
Screw WPL-WP488729

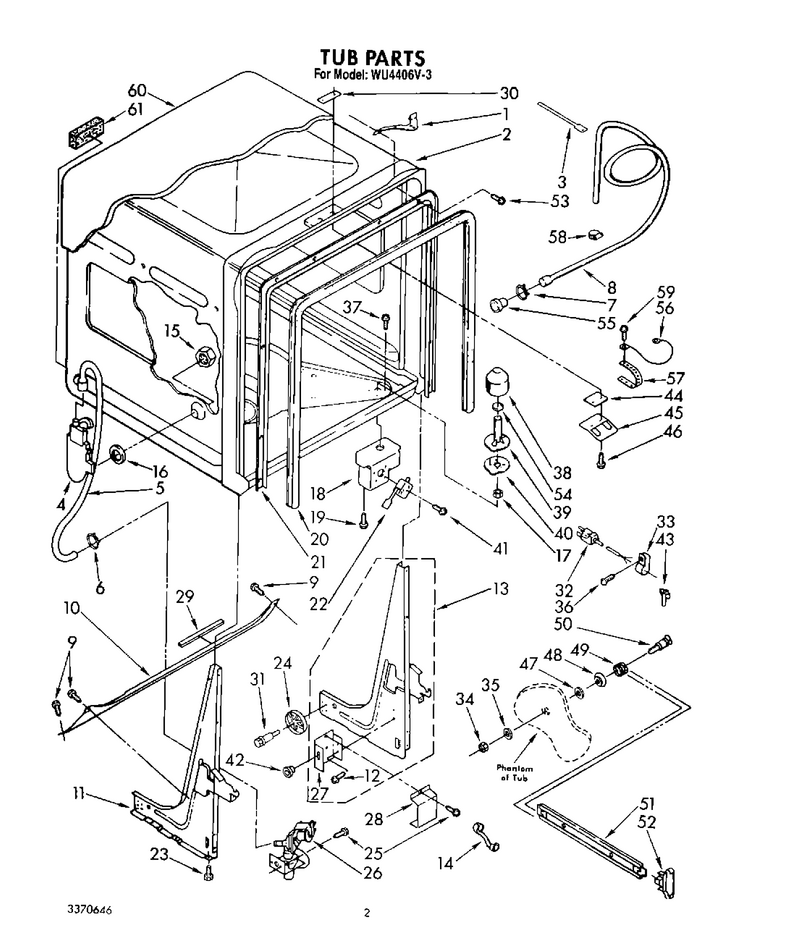

02 - Tub, Lit/optional

...
...
Platinum (Uncut) WPL-285368
...
1
Bracket, Mounting (2) WPL-300796
...
2
Tub-Dishwr WPL-675630
...
3
Tie-Wire WPL-WPW10144763
...
4
Inlet, Water WPL-3367572
...
5
Button Kit WPL-304670
...
6
Clamp WPL-WP596669
...
7
Clamp WPL-WP356138
...
8
Hose-Drain WPL-675544
...
9
Screw WPL-WP302868
...
10
Brace WPL-3368647
...
11
Leg & Hinge Assembly, L.h. WPL-3367284
...
12
Screw, 8-32 X 3/8 WPL-718178
...
13
Leg & Hinge Assembly, R.h. WPL-3367498
...
14
Relief, Strain WPL-3370307
...
15
Nut, 7/8-16 WPL-713799
...
16
Gasket WPL-713878
...
17
Nut, 1/8 WPL-717488
...
18
Bracket, Overflow WPL-719342
...
19
Screw, 8 X 1/2 (3) WPL-718250
...
20
Gasket WPL-WP3368007
...
21
Retainer WPL-WP3368002
...
22
Switch, Pressure WPL-66074-1
...
23
Levler-Leg WPL-8193716
...
24
Wheel WPL-WP302819
...
25
Screw WPL-WP489128
...
26
Valve, Water Inlet WPL-303650
...
27
Terminal Box WPL-3378131
...
28
Cover, Terminal Box WPL-300068
...
29
Protector, Edge WPL-3367669
...
30
Nut, Twin Spring WPL-303080
...
31
Screw, Shoulder WPL-3370389
...
32
Power Cord WPL-302764
...
33
Clamp WPL-596553
...
34
Locknut, 10-32 (8) WPL-718829
...
35
Washer (8) WPL-717624
...
36
Screw, 8-18 X 5/8 WPL-719266
...
37
Screw WPL-WP488729
...
38
Float WPL-718035
...
39
Standpipe WPL-675485
...
40
Gasket, Overflow WPL-719966
...
41
Screw, 4-40 X 9/16 WPL-302203
...
42
Bushing WPL-302770
...
43
Wire Nut WPL-770754
...
44
Shim WPL-712302
...
45
Strike WPL-300233
...
46
Screw WPL-WP308685
...
47
Washer (8) WPL-718750
...
48
Washer, Cup (8) WPL-718817
...
49
Wheel Assembly (8) WPL-300844
...
50
Screw, Shoulder (8) WPL-712499
...
51
Track (2) WPL-300846
...
52
Endcap WPL-WP300845
...
53
Screw WPL-WP3368008
...
54
Gasket (2) WPL-301662
...
55
Insert, Cup-Hose WPL-301656
...
56
Wire, Ground WPL-303485
...
57
Ground Strap WPL-22965
...
58
Clamp WPL-WP3367052
...
59
Screw, 10-24 X 1 WPL-132848
...
60
Shield WPL-W11086533
...
61
Block, Foam WPL-3368107

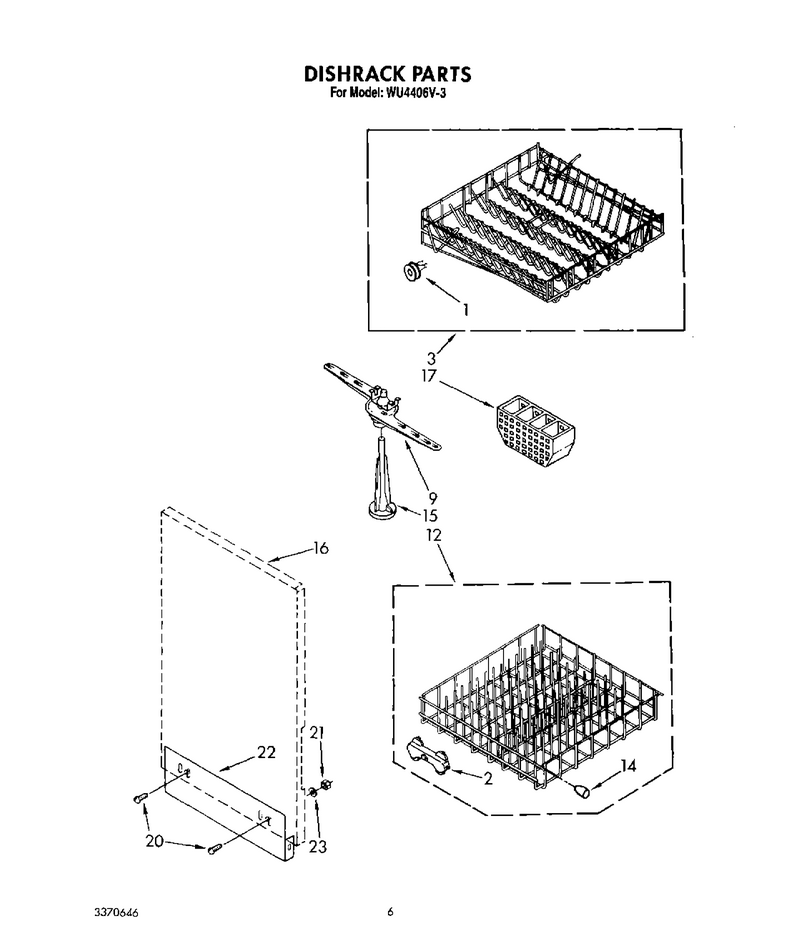

04 - Dishrack

...
...
1
Wheel & Axle Assembly (4) WPL-300995
...
2
Wheel WPL-WP3376961
...
3
Dishrack WPL-W11169039
...
9
Arm-Spray WPL-WP304204
...
12
Dishrack WPL-W10311986
...
14
Bumper WPL-304490
...
15
Tower WPL-WP304170
...
16
Side Panel Kits (Almond) WPL-4317929
...
17
Baskt-Ware WPL-WP8539066
...
20
Screw WPL-WP9419621
...
21
Nut WPL-W10080180
...
22
Panel WPL-WP3367549
...
23
Washer WPL-W11089212

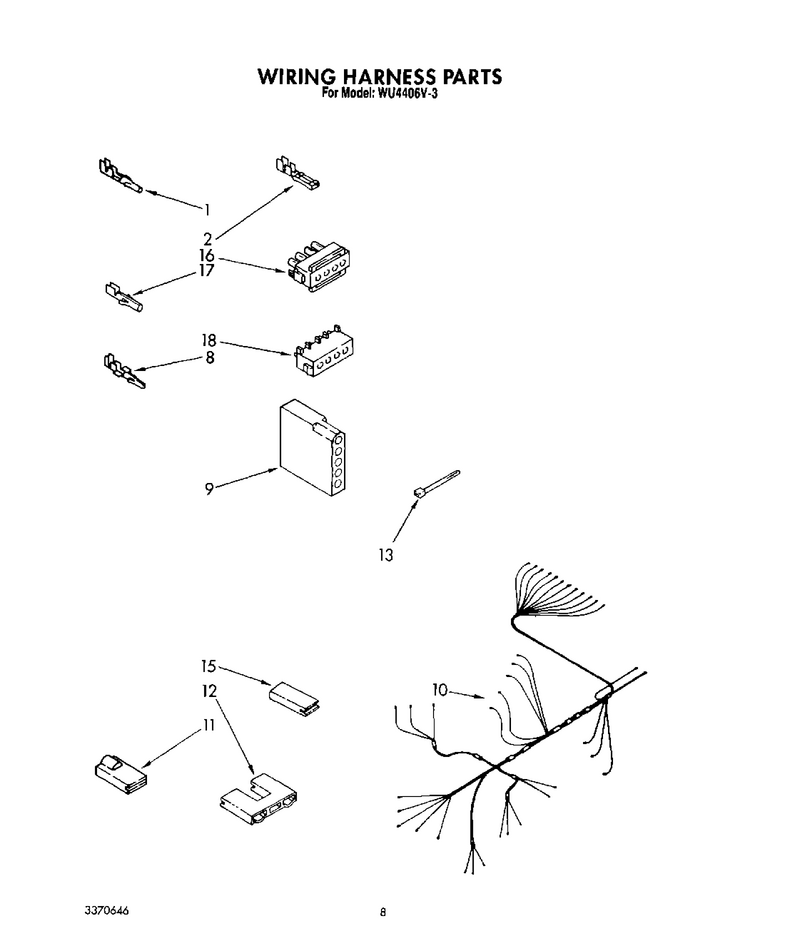

06 - Wiring Harness

...
...
1
Terminal WPL-WP94614
...
2
Terminal, Female WPL-352088
...
8
Terminal WPL-WP596797
...
9
Receptacle (5-Circuit) WPL-719585
...
10
Harness, Wiring WPL-3370030
...
11
Terminal, Insulator WPL-358736
...
12
Connector Block (Alternate) WPL-374230
...
13
Tie-Wire WPL-WPW10339879
...
15
Insulator, Terminal WPL-358736
...
16
Housing, Plug WPL-3367837
...
17
Terminal WPL-304412
...
18
Connector, Block WPL-3367820
