Roper WU0800XX1

Model: WU0800XX1

Save Part Not Listed?
product name

Popular Parts

Popular Parts

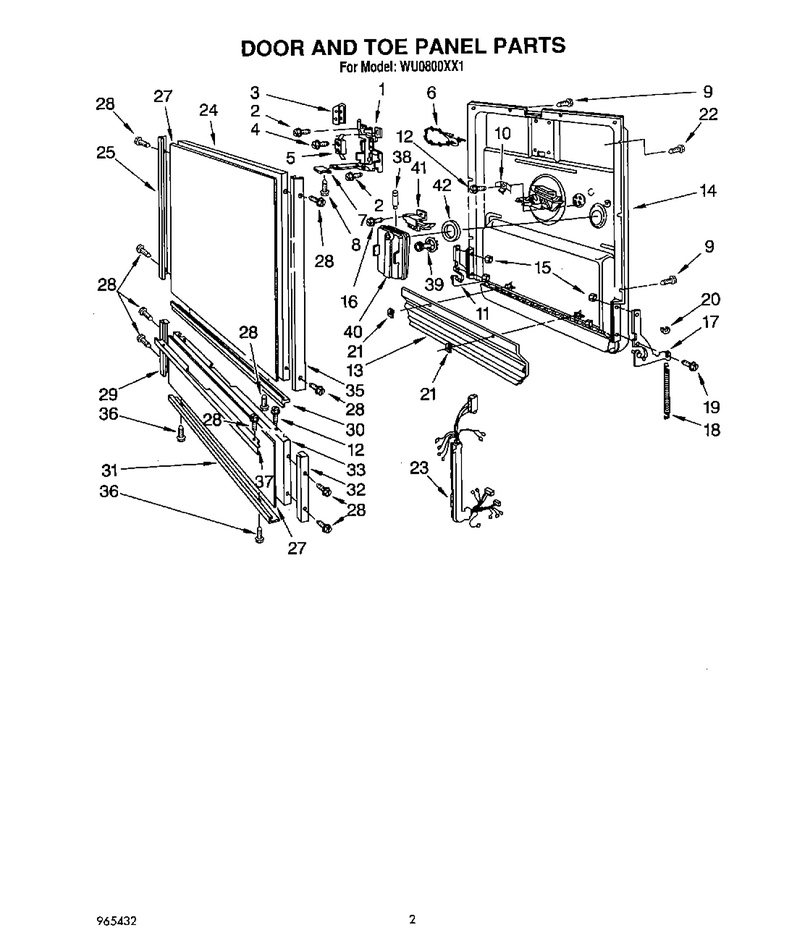

02 - Door And Toe Panel

...
...
1
Latch Assembly WPL-965404
...
2
Screw, 8 X 5/8 WPL-4340832
...
3
Switch Cover WPL-965165
...
4
Screw, 6-32 X 1 WPL-965166
...
5
Switch WPL-965167
...
6
Tie-Wire WPL-WPW10339879
...
7
Latch Knob WPL-965169
...
8
Screw, 8-32 X 5/16 WPL-965194
...
9
Screw, 8 X 7/16 WPL-4340841
...
10
Terminal, Grounding WPL-965171
...
11
Counterbalance Arm, L.h. WPL-965172
...
12
Screw, 8 X 3/8 WPL-4340701
...
13
Baffle Seal WPL-965358
...
14
Door, Inner WPL-965431
...
15
Nut WPL-W10080180
...
16
Screw, 8a X 3 WPL-965301
...
17
Counterbalance Arm, R.h. WPL-965178
...
18
Door Spring (2) WPL-4340462
...
19
Screw, 10-24 X 5/8 WPL-965180
...
20
Spring Pad (2) WPL-965181
...
21
Clip WPL-965405
...
22
Screw WPL-W11693756
...
23
Harness, Wiring WPL-965441
...
24
Door Panel (White) WPL-965184
...
25
Trim, Door Side L.h. WPL-965426
...
27
Door Panel Insert (Almond & Black) WPL-4340800
...
28
Screw, 8 X 1/2 WPL-965412
...
29
Trim, Access Panel L.h. WPL-965424
...
30
Door Trim, Bottom WPL-965359
...
31
Access Trim, Bottom WPL-965413
...
32
Trim, Access Panel R.h. WPL-965423
...
33
Access Panel (White) WPL-4340601
...
35
Trim, Door Side R.h. WPL-965425
...
36
Screw, 8 X 3/8 WPL-965301
...
37
Trim, Access Panel Top WPL-965339
...
38
Plunger WPL-965428
...
39
Plug-Fill WPL-8194392
...
40
Dispenser WPL-4169077
...
41
Bi-Metal WPL-965566
...
42
Grommet, Dispenser WPL-4340168

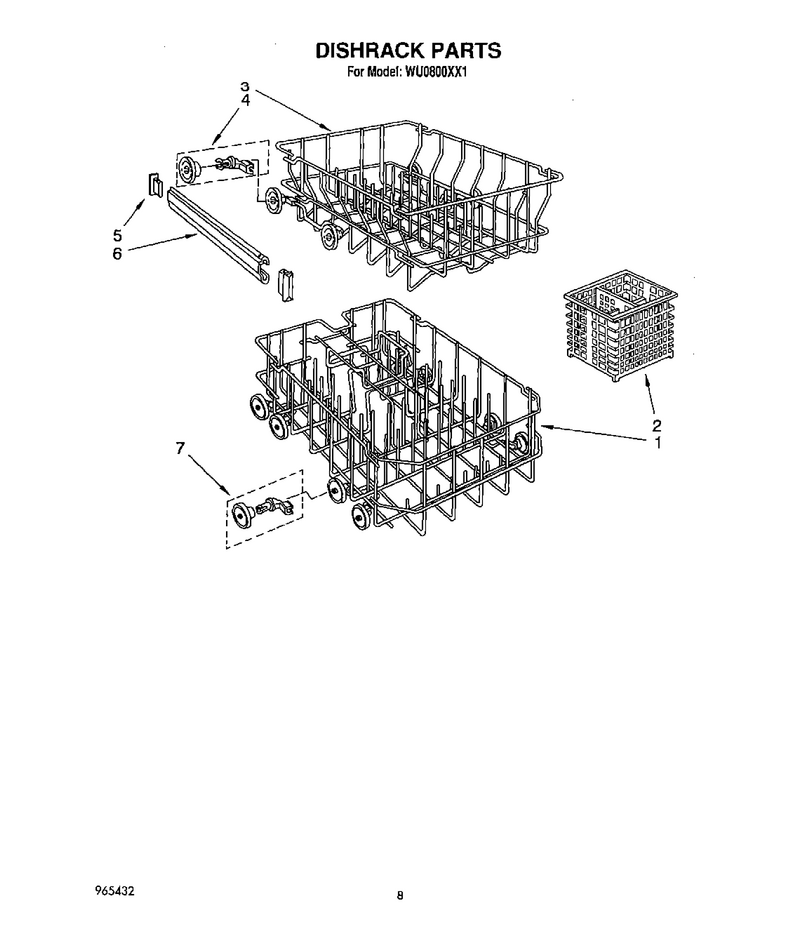

07 - Dishrack

...
...
1
Lower Rack Assembly (Includes Item 7) WPL-965366
...
2
Silverware Basket WPL-965290
...
3
Upper Rack Assembly (Includes Item 4) WPL-965392
...
4
Wheel Assembly, Upper Rack (4) WPL-965416
...
5
End Cap, Slide (4) WPL-965399
...
6
Slide, Rack (2) WPL-965294
...
7
Wheel Assembly, Lower Rack (4) WPL-965365

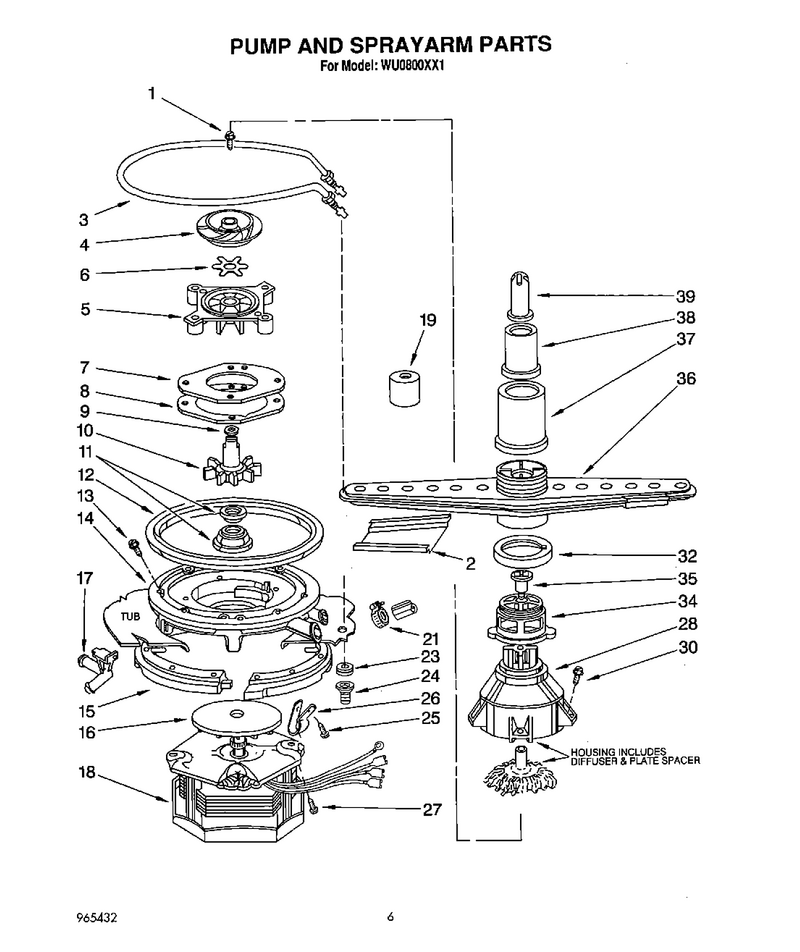

05 - Pump And Sprayarm

...
...
1
Screw, No.10-32 X 2 1/4 WPL-4340235
...
2
Shield, Spray Arm WPL-965445
...
3
Heater WPL-965443
...
4
Upper Impeller WPL-965384
...
5
Spacer Plate WPL-965385
...
6
Macerator WPL-965390
...
7
Pump Plate WPL-4340510
...
8
Pump Gasket WPL-4340487
...
9
O-Ring WPL-4340254
...
10
Pump Seal Kit WPL-965396
...
11
Water Seal WPL-4340106
...
12
Gasket, Pump WPL-965320
...
13
Screw, 10 X 1 Hex Wash. Hd. St. Stl. (6) WPL-965222
...
14
Housing, Pump WPL-965386
...
15
Clamp Ring (2) WPL-965287
...
16
Watershield Assembly WPL-4340897
...
17
Valve, Check WPL-965418
...
18
Motor-Pump WPL-965564
...
19
Seal Installation Tool WPL-4340107
...
21
Clamp, Hose WPL-4161505
...
23
Heater Grommet WPL-965283
...
24
Heater Nut, 1/2 WPL-965282
...
25
Screw WPL-W11693756
...
26
Clamp WPL-4340643
...
27
Screw, 10 X 1 WPL-4340828
...
28
Impeller Housing WPL-965387
...
30
Screw, 10 - 2 WPL-4340412
...
32
Shield, Bearing WPL-965324
...
34
Bearing WPL-965420
...
35
Sprayarm Bolt WPL-965323
...
36
Sprayarm Assembly WPL-965442
...
37
Tower Base WPL-965277
...
38
Tower Section WPL-965276
...
39
Tower Tip WPL-965275

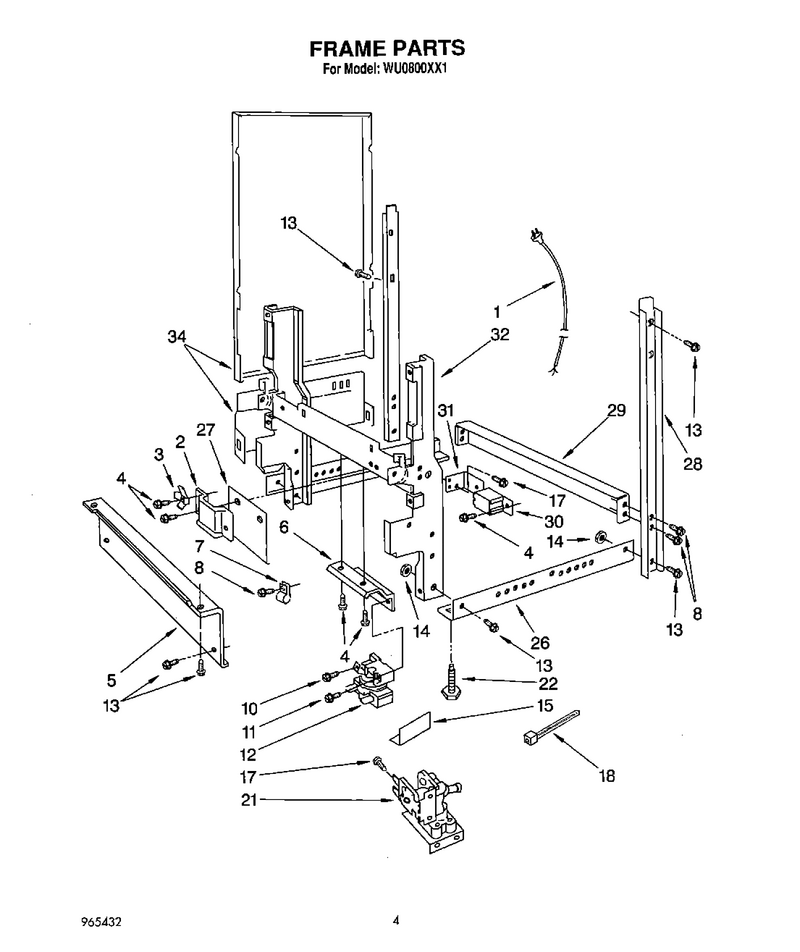

04 - Frame, Lit/optional

...
...
Tine Tip Repair Kit (Blue - Enough For Two Complete Dishracks) WPL-675677
...
1
Power Cord (Optional) WPL-965337
...
2
Clamp, Wiring WPL-965248
...
3
Terminal, Grounding WPL-965300
...
4
Screw, 8 X 3/8 WPL-965301
...
5
Toeplate WPL-965249
...
6
Terminal Bracket WPL-965334
...
7
Clamp, Wire WPL-965161
...
8
Screw WPL-WP488729
...
10
Screw WPL-WP486579
...
11
Screw, 8-32 X 1-1/4 WPL-965436
...
12
Motor Relay WPL-965254
...
13
Screw, 1/4-20 X 1/2 WPL-4340307
...
14
Nut, 10-24 (4) WPL-4342593
...
15
Shield, Relay WPL-965450
...
17
Screw, 10 X 1/2 WPL-4340341
...
18
Clip, Harness (2) WPL-3391249
...
21
Valve-Inlt WPL-965453
...
22
Levelers (4) WPL-965355
...
26
Angle, Base (2) WPL-4342620
...
27
Shield, Wire WPL-4340862
...
28
Channel, Side (2) WPL-965269
...
29
Brace, Rear WPL-965437
...
30
Cover, Junction Box WPL-965414
...
31
Bracket, Junction Box WPL-965272
...
32
Hinge Weld Assembly WPL-965336
...
34
Side Panel Kit (White) WPL-965303

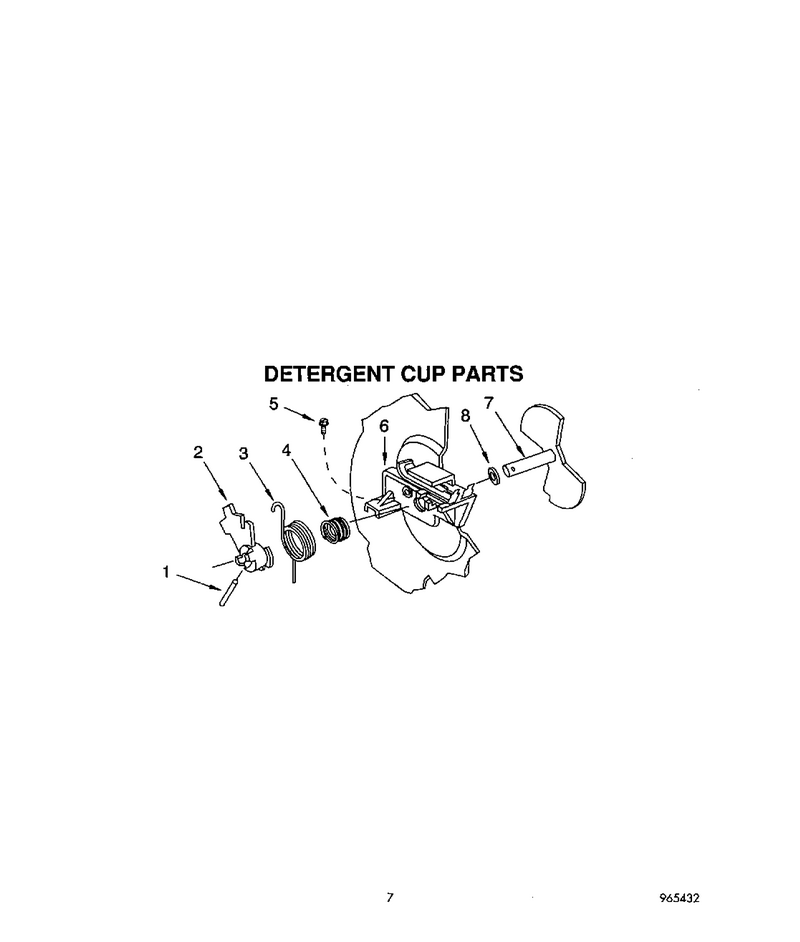

06 - Detergent Cup

...
...
1
Det-Cup WPL-965446
...
2
Det-Cup WPL-965446
...
3
Spring, Cam WPL-965201
...
4
Spring, Cam Compression WPL-965202
...
5
Screw, 8 X 5/8 WPL-4340832
...
6
Bi-Metal Assembly WPL-965430
...
7
Det-Cup WPL-965446
...
8
``o`` Ring (Includes Illus. 1, 2, 7) WPL-965207

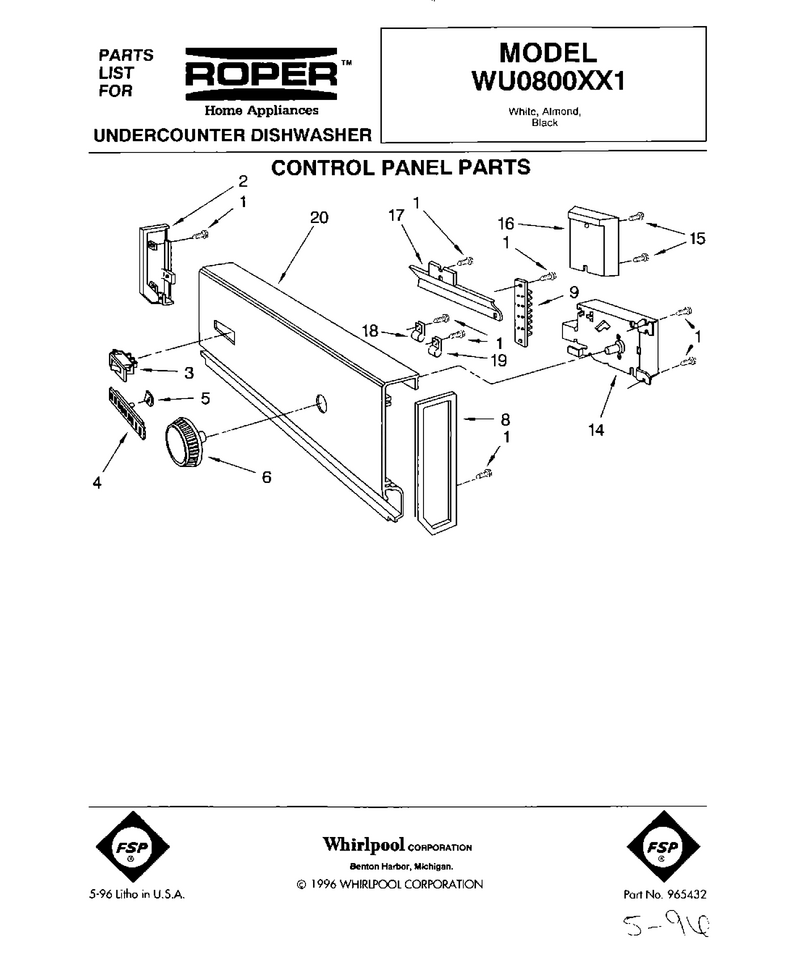

01 - Control Panel

...
...
1
Screw, 8 X 7/16 WPL-965333
...
2
End Cap, L.h. WPL-965144
...
3
Swtch-Lite WPL-WP4314961
...
4
Vent Grille WPL-965146
...
5
Clip WPL-965147
...
6
Timer Knob WPL-4342579
...
8
End Cap, R.h. WPL-965150
...
9
Terminal Board WPL-965151
...
14
Timer WPL-965444
...
15
Screw WPL-WP355214
...
16
Splash Pan WPL-965158
...
17
Shield, Vent Slot WPL-965159
...
18
Clamp, Wire WPL-596171
...
19
Clamp, Wire WPL-965161
...
20
Console Panel WPL-965403

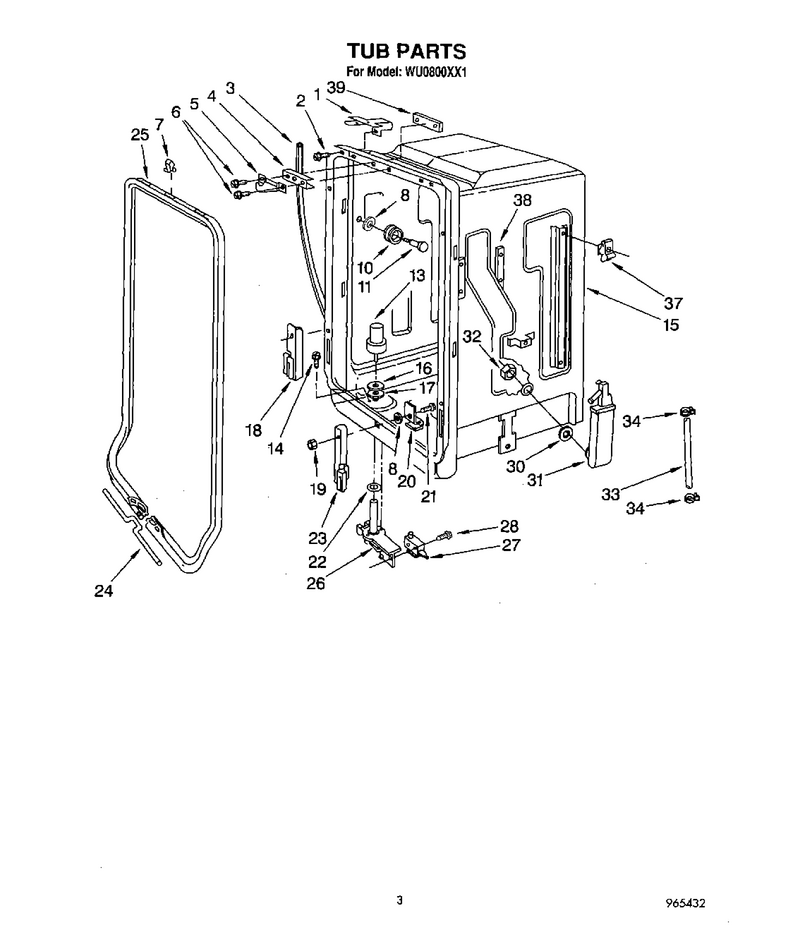

03 - Tub

...
...
1
Clip, Attach (2) WPL-4343143
...
2
Screw WPL-WP355214
...
3
Drain Hose WPL-965406
...
4
Shim WPL-4340875
...
5
Strike WPL-965213
...
6
Screw, 10-16 X 3/4 WPL-489003
...
7
Gasket Clip Kit (Includes Item 20) WPL-965215
...
8
Sealing Washer WPL-965315
...
10
Roller WPL-965417
...
11
Shoulder Screw (Includes Item 8) WPL-4340681
...
13
Float WPL-965451
...
14
Screw, 10 X 7/8 WPL-965452
...
15
Tub (Includes Illus. 25) WPL-965340
...
16
Float Tube Plate WPL-965224
...
17
Float Tube Gasket WPL-965225
...
18
Arm Guide, L.h. WPL-965226
...
19
Nut WPL-WP486255
...
20
Gasket Clip WPL-965228
...
21
Screw, 8-32 X 1/2 WPL-965229
...
22
``o`` Ring WPL-965230
...
23
Arm Guide, R.h. WPL-965231
...
24
Junction Rod WPL-965407
...
25
Gasket, Tub (Includes Items 7 & 24) WPL-965381
...
26
Float Assembly (Includes Items 16, 17, 22, 27 & 28) WPL-965234
...
27
Switch, Float WPL-965520
...
28
Screw, 4-24 X 5/8 WPL-965377
...
30
Gasket, Inlet WPL-965342
...
31
Water Inlet WPL-965343
...
32
Nut WPL-965341
...
33
Tubing, Inlet (Includes Item 34) WPL-965241
...
34
Clamp, Hose WPL-4161505
...
37
Cage Nut WPL-965245
...
38
Tapping Plate (4) WPL-965246
...
39
Latch Plate WPL-965313
