Roper RUD5000KB0

Model: RUD5000KB0

Save Part Not Listed?
product name

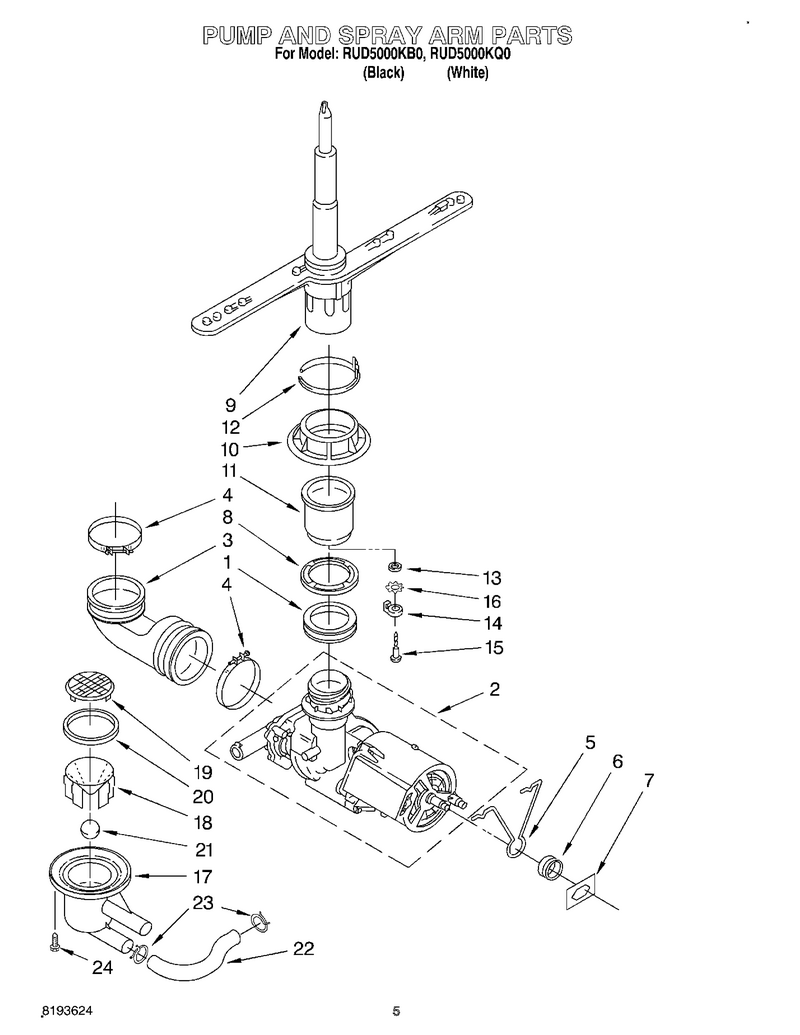

04 - Pump And Sprayarm

...
...
1
Grommet, Pump Seal WPL-3369037
...
2
Pump&motor WPL-WPW10247394
...
3
Hose WPL-W11189178
...
4
Clamp (2) WPL-3400959
...
5
Support, Motor WPL-3369033
...
6
Grommet, Motor Support WPL-3369032
...
7
Push-Nut, Motor Support WPL-3370856
...
8
Washer, Grommet WPL-3369038
...
9
Arm-Spray WPL-WPW10164258
...
10
Nut, Pump Outlet WPL-8268883
...
11
Support WPL-WP3371745
...
12
Seal WPL-WP3369045
...
13
Washer WPL-3369044
...
14
Bearing WPL-3371746
...
15
Support WPL-WP3371745
...
16
Washer, Curved WPL-3371634
...
17
Separator WPL-8520840
...
18
Funnel-Sep WPL-WP3369176
...
19
Grate-Sep WPL-WP3369326
...
20
Seal WPL-WP3369177
...
21
Ball-Check WPL-WP3369178
...
22
Hose, Collector WPL-3369179
...
23
Hose, Clamp WPL-371499
...
24
Screw 10-16, Hi-Lo (4) WPL-3369181

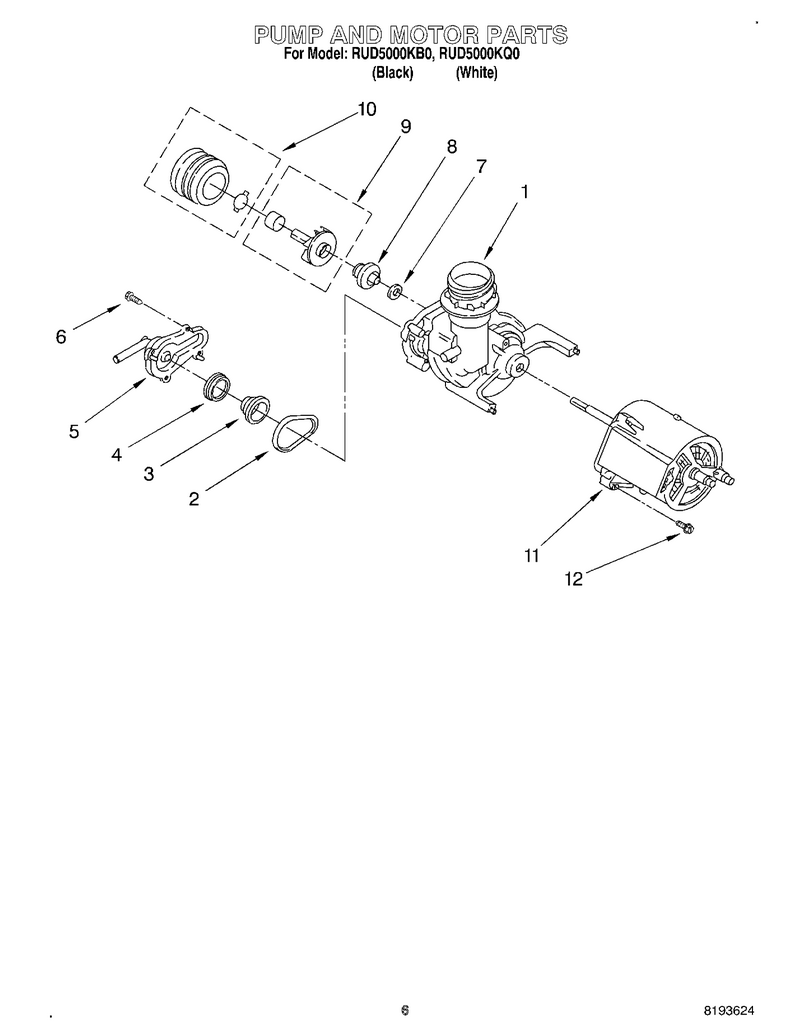

05 - Pump And Motor

...
...
1
Housing WPL-WP3369011
...
2
Seal WPL-WP3369031
...
3
Diaphragm WPL-WP8563504
...
4
Ring WPL-W10858635
...
5
Cover, Drain Valve WPL-3369030
...
6
Screw-Torx WPL-WP3368921
...
7
Seal-Seat WPL-WP3369020
...
8
Seal-Head WPL-WP3385557
...
9
Impeller WPL-4386996A
...
10
Disk-Mount WPL-WP3369012
...
11
Motor-Pump WPL-WP8283457
...
12
Screw (3) WPL-3368922

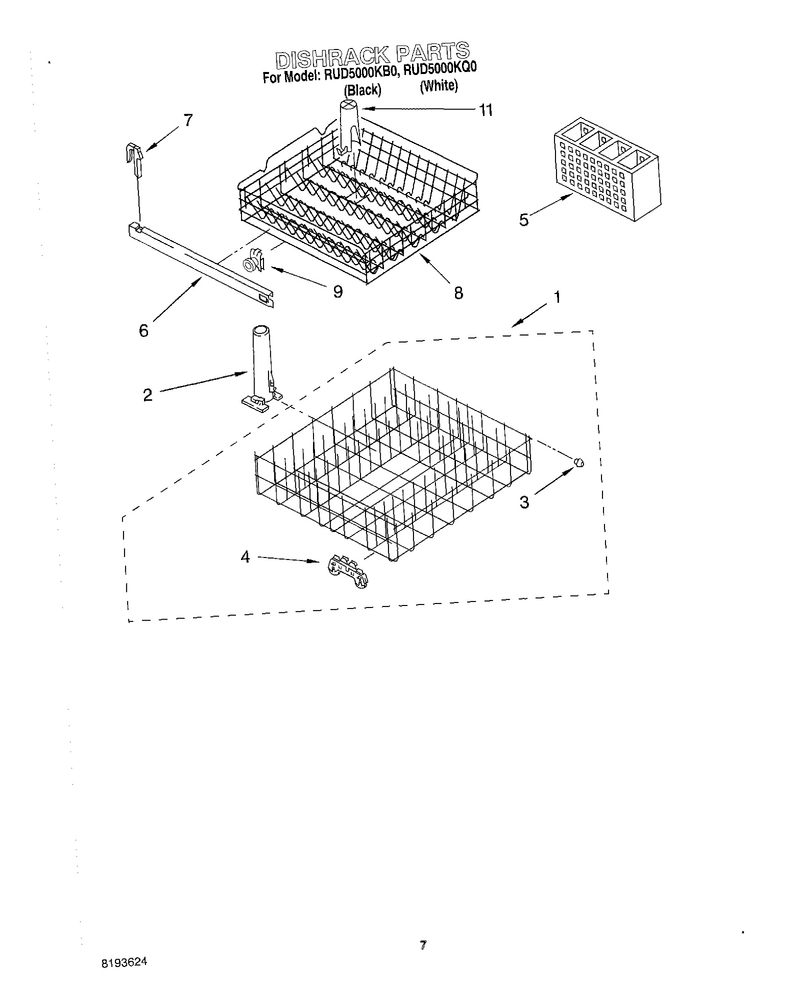

06 - Dishrack

...
...
1
Dishrack WPL-W10161215
...
2
Protector WPL-WP8268825
...
3
Bumper WPL-WP3385142
...
4
Wheel WPL-WP8268645
...
5
Baskt-Ware WPL-WP8268864
...
6
Track WPL-WP3385089
...
7
Stop WPL-WP3379941
...
8
Dishrack WPL-W11169039
...
9
Wheel & Axle Assembly (4) WPL-8268846
...
11
Diffuser, Water WPL-8519550

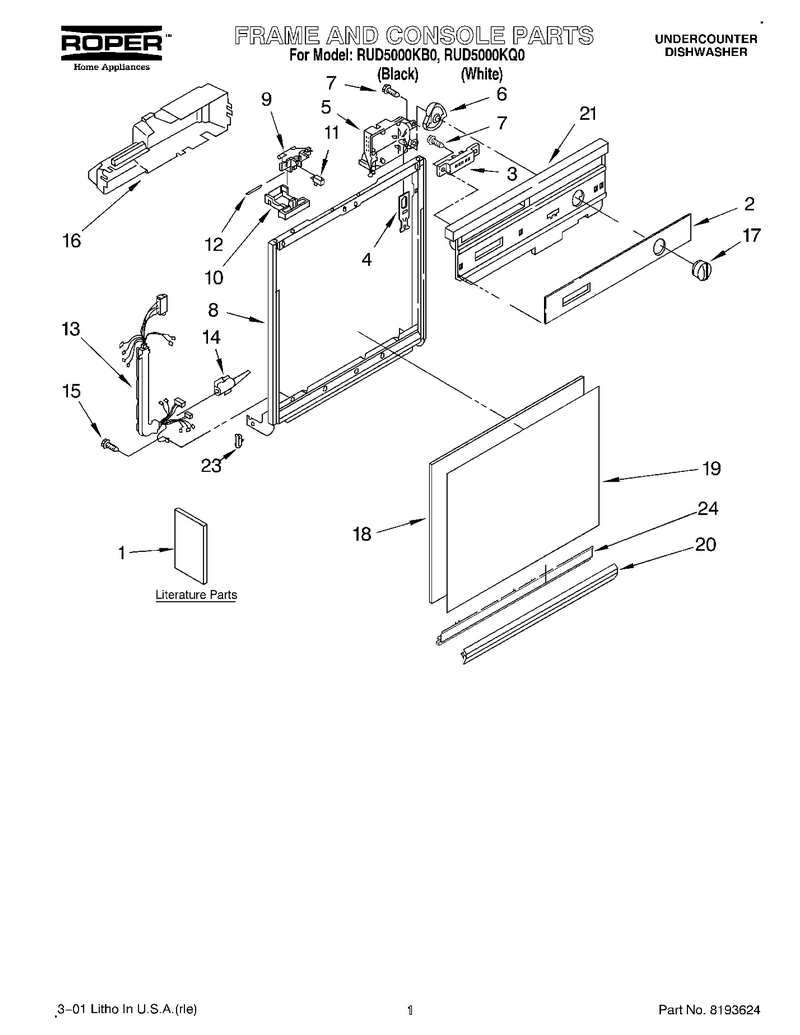

01 - Frame And Console, Literature

...
...
1
Literature Parts (Guide, Energy) WPL-LIT8274628
...
2
Insert, Console (Black) WPL-8051738
...
3
Switch, 5-Pushbutton (White) WPL-8051973
...
4
Follower, Cam WPL-3368997
...
5
Timer WPL-3375080
...
6
Cam WPL-WP8271510
...
7
Screw WPL-WP304231
...
8
Door Frame (Includes Item 24) (White) WPL-3374712
...
9
Bolt-Latch WPL-WP3380854
...
10
Lever WPL-WP3368954
...
11
Switch-Kit WPL-4318273
...
12
Pin WPL-WP3368955
...
13
Harness And Protector WPL-8271445
...
14
Elbow, Harness WPL-3376405
...
15
Screw WPL-WP3400892
...
16
Cover Timer WPL-3375473
...
17
Knob, Timer (Black) WPL-3368998
...
18
Spacer, Corrugated WPL-3368979
...
19
Panel WPL-WP3369769
...
20
Retainer WPL-WP3374010
...
21
Console (Includes Item 2) (White) WPL-8274795
...
23
Bearing WPL-WP3373234
...
24
Channel WPL-WP3374716

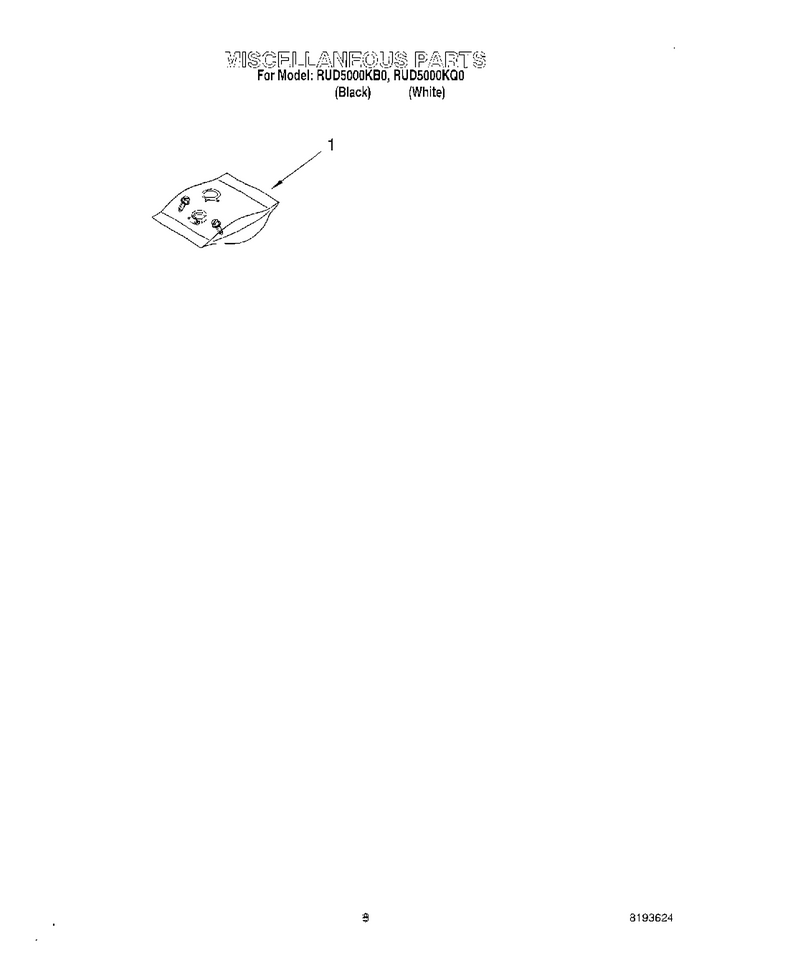

07 - Miscellaneous, Optional

...
...
1
Paint, Touch-Up (1/2oz. Black) WPL-72032

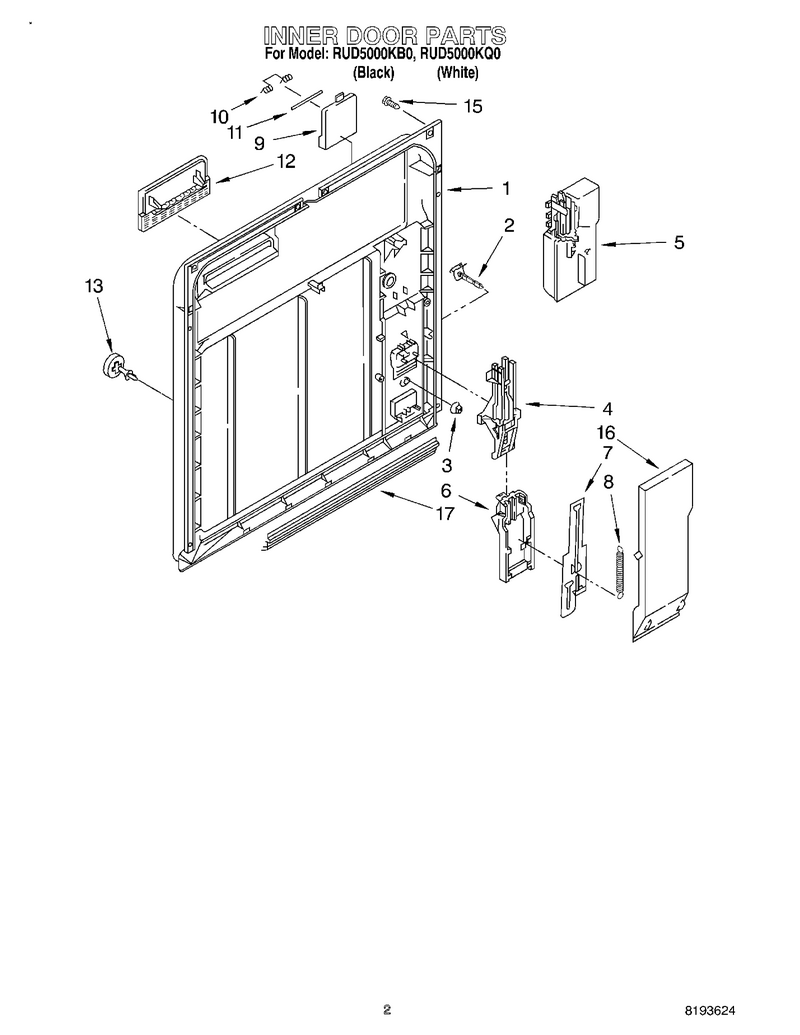

02 - Inner Door

...
...
1
Door-Inner WPL-WP8528310
...
2
Latch Door Kit WPL-676413
...
3
Latch Door Kit WPL-676413
...
4
Actuator WPL-8193646
...
5
Dispenser WPL-WP8052027
...
6
Draw Bar WPL-WP3369000
...
7
Actuator WPL-8193646
...
8
Spring WPL-WP3368999
...
9
Cover WPL-WP3378138
...
10
Spring WPL-WP8066018
...
11
Pin-Dowel WPL-WP3372028
...
12
Screen WPL-WP3371710
...
13
Cap WPL-WP3378134
...
15
Screw WPL-WPW10348413
...
16
Cover, Drip WPL-3371569
...
17
Spatter Shield WPL-3369479

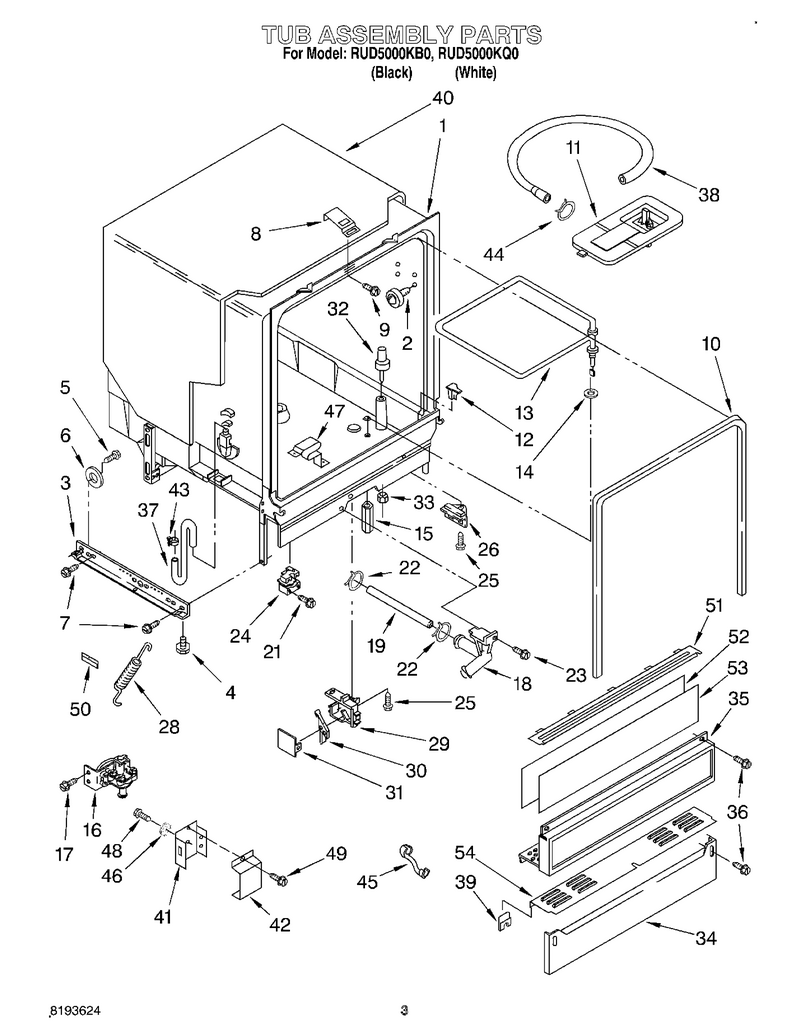

03 - Tub Assembly

...
...
1
Tub-Dishwr WPL-W10082653
...
2
Tub, Wheel Assembly (8) WPL-3380371
...
3
Runner (2) WPL-3368933
...
4
Levler-Leg WPL-8193716
...
5
Screw, Shoulder (2) WPL-3370389
...
6
Wheel WPL-WP302819
...
7
Screw WPL-WP681414
...
8
Strike WPL-WP3378149
...
9
Screw WPL-WP3374720
...
10
Gasket WPL-WPW10509257
...
11
Grate WPL-WP3369322
...
12
Deflector WPL-WP8528862
...
13
Heater WPL-WPW10082894
...
14
Washer WPL-WP717273
...
15
Nut (2) (Heater Terminal) WPL-8268548
...
16
Valve-Inlt WPL-W10844024
...
17
Screw WPL-WP489069
...
18
Check, Valve Assembly WPL-3369421
...
19
Hose, Coupler WPL-3369180
...
21
Screw WPL-WP489128
...
22
Clamp WPL-371499
...
23
Screw WPL-W11693756
...
24
Relay WPL-W10102260
...
25
Screw WPL-WP304231
...
26
Fuse WPL-WP3368928
...
28
Spring WPL-WP3373228
...
29
Housing, Float Switch WPL-3369048
...
30
Switch WPL-WPW10102498
...
31
Cover, Switch Housing WPL-3369049
...
32
Float WPL-WP8519552
...
33
Nut WPL-717488
...
34
Panel-Toe WPL-WP3379920
...
35
Panel WPL-WP3369193
...
36
Screw WPL-WP302868
...
37
Hose-Fill WPL-WP304669
...
38
Hose-Drain WPL-WP3374077
...
39
Clip WPL-WP3378123
...
40
Shield WPL-W11086533
...
41
Terminal Box WPL-3378131
...
42
Cover Assembly Terminal Box WPL-300068
...
43
Clamp WPL-WP596669
...
44
Clamp WPL-WP356138
...
45
Relief, Strain WPL-3370307
...
46
Washer WPL-WP3378128
...
47
Support, Heater WPL-3379740
...
48
Screw WPL-WP3400014
...
49
Screw, 8-18 WPL-3369138
...
50
Friction Pad (Velcro) WPL-8052018
...
51
Retainer, Access (White) WPL-3372413
...
52
Spacer, Corrugated WPL-3369526
...
53
Access Panel (White/black) WPL-3370868
...
54
Extension WPL-WP3374728
