product name

Roper RTG5243BL0

Model: RTG5243BL0

Save Part Not Listed?
product name

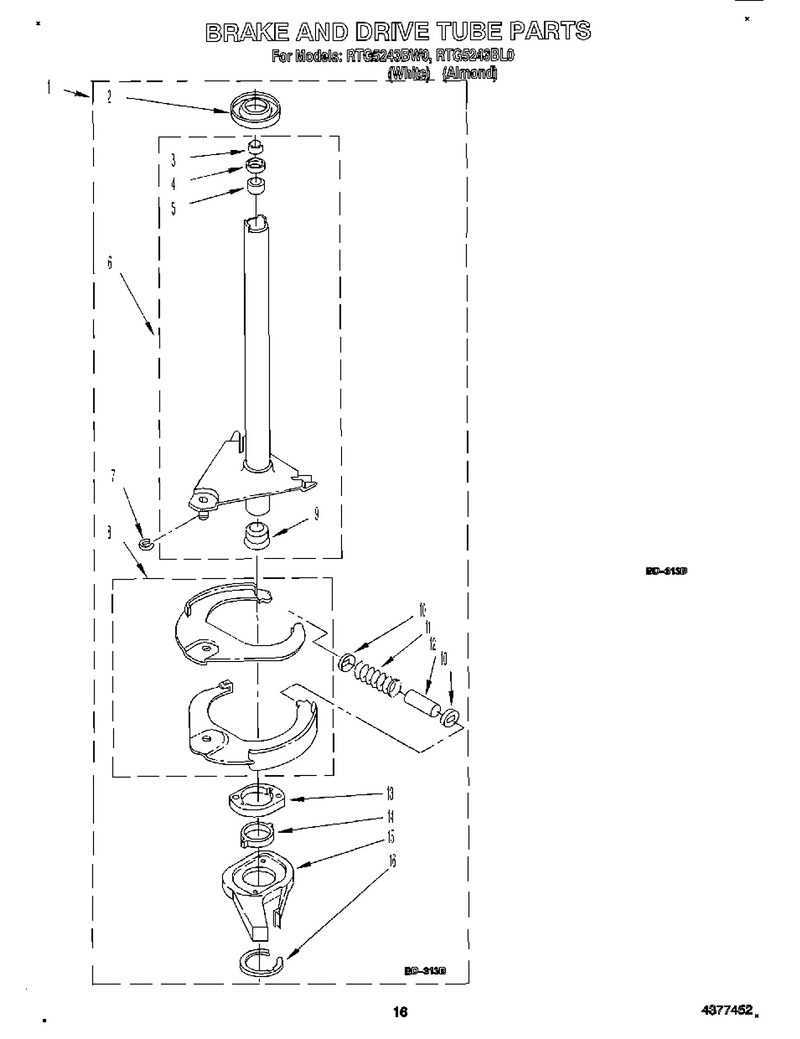

13 - Brake And Drive Tube

...
...
1
Basktdrive WPL-W10820043
...
2
Ring WPL-WP62658
...
3
Seal-Shaft WPL-WP91939
...
4
Seal-Shaft WPL-WP356427
...
5
Spacer, Drive Tube WPL-356937
...
6
Tube-Spin WPL-WP64208
...
7
Ring, Retaining WPL-W10083190
...
8
Shoe-Brake WPL-285438
...
9
Bearing WPL-WP8546462
...
10
Sleeve WPL-285658
...
11
Spring WPL-WP63748
...
12
Sleeve WPL-285658
...
13
Cam-Brake WPL-WP8546461
...
14
Sleeve WPL-WP63022
...
15
Lining WPL-285790
...
16
Ring-Wire WPL-W11033823

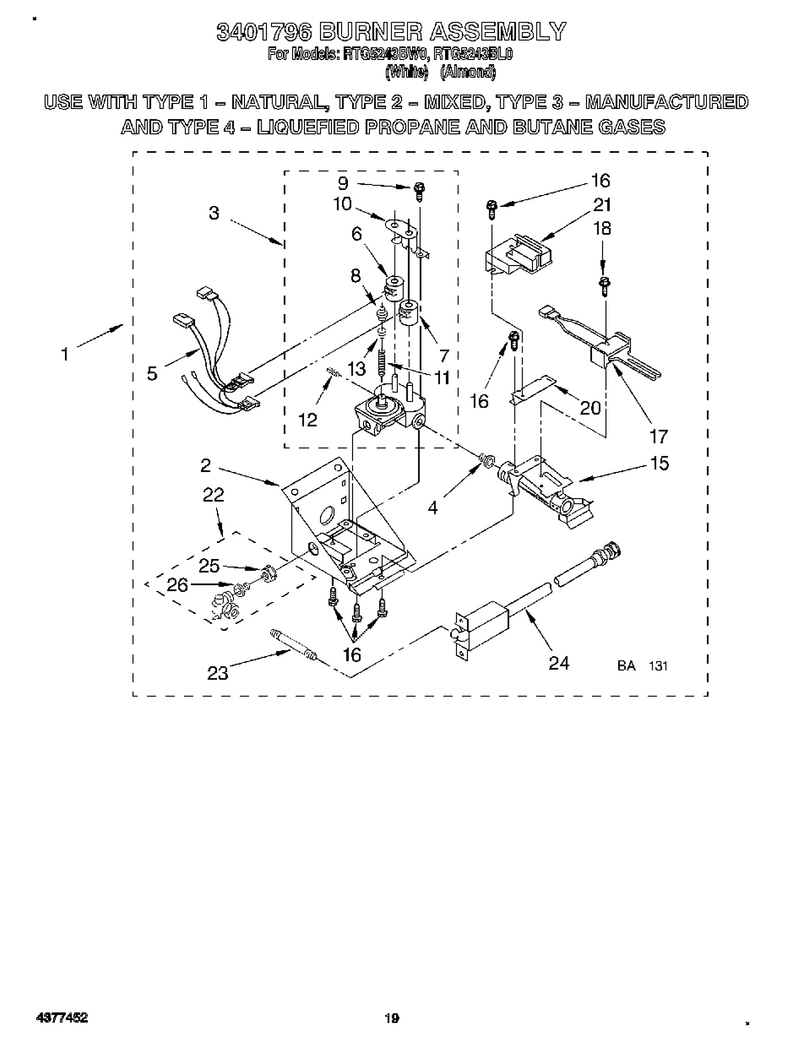

16 - 3401796 Burner Assembly

...
...
1
Burner-Gas WPL-279734
...
2
Base, Burner WPL-697408
...
3
Valve WPL-279888
...
4
Orifce-Gas WPL-WP347743
...
5
Harns-Wire WPL-WP3401849
...
6
Coil-Valve WPL-279834
...
7
Coil-Valve WPL-279834
...
8
Limiter WPL-WP694424
...
9
Screw, 8-32 WPL-694421
...
10
Bracket, Shunt WPL-694538
...
11
Spring WPL-WP694422
...
12
Pipe Plug WPL-W10295523
...
13
Regulator WPL-WP694423
...
15
Burner WPL-8578392
...
16
Screw WPL-WP693995
...
17
Ignitor WPL-279311
...
18
Screw WPL-WPW10366705
...
20
Bracket, Sensor WPL-697409
...
21
Sensor WPL-WP338906
...
22
Valve, Shutoff WPL-697441
...
23
Pipe WPL-W10110397
...
24
Supply Line (Gas) WPL-3391118
...
25
Nut, Compression WPL-233076
...
26
Lp Gas Con WPL-W10402145

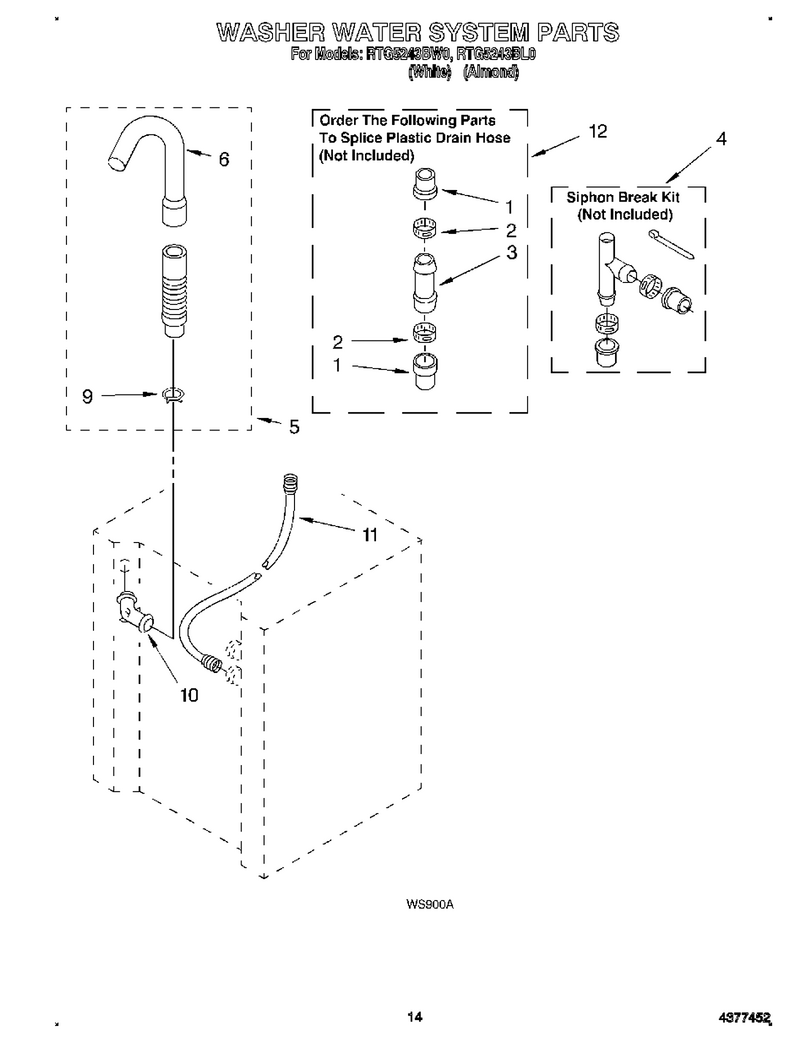

11 - Washer Water System

...
...
1
Sleeve Kit, Plastic Drain Hose (Contains 2 Sleeves) WPL-285321
...
2
Clamp WPL-WP285655
...
3
Couplr-Hse WPL-WP16272
...
4
Siphon Break Kit (Not Included) WPL-285320
...
5
Accessory Parts, 8' Drain Hose W/clamp WPL-285666
...
6
Nozzle WPL-WP3357027
...
9
Clamp WPL-WP3357331
...
10
Connector WPL-W11213338
...
11
Hose-Fill WPL-WP89503
...
12
Connector Kit, Plastic Drain Hose WPL-285442

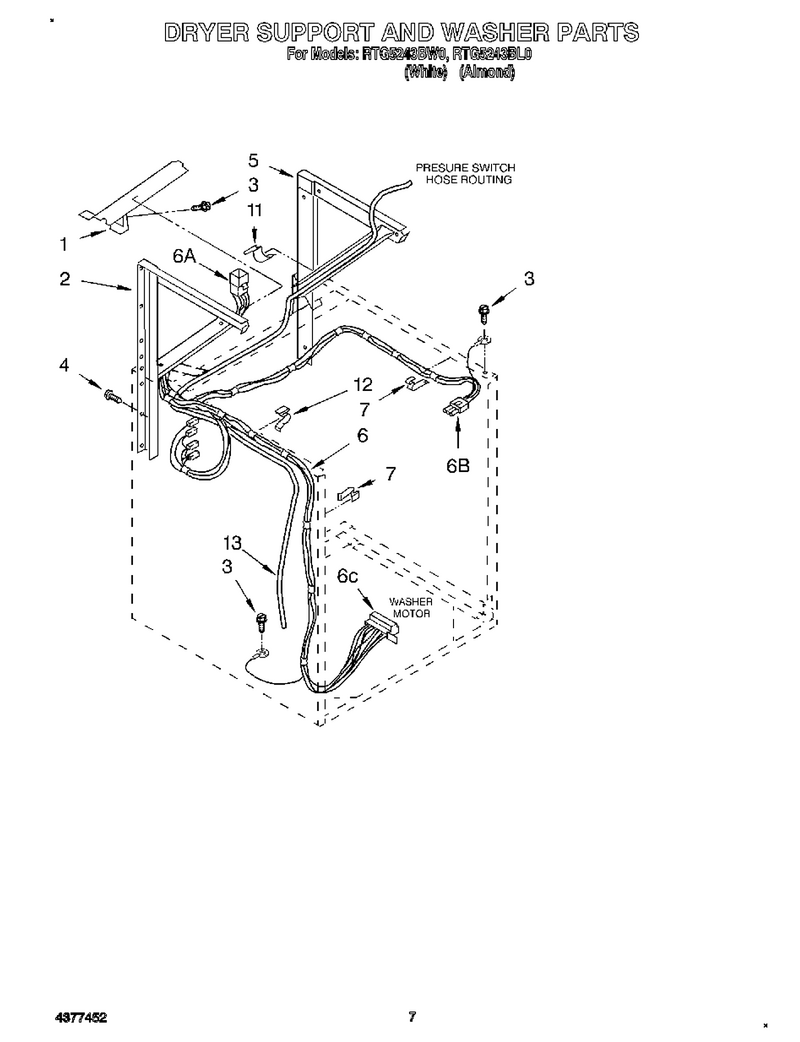

05 - Dryer Support And Washer

...
...
1
Cover, Channel WPL-694304
...
2
Support WPL-W11174025
...
3
Screw WPL-WP681414
...
4
Screw WPL-W11676450
...
5
Support WPL-W11174024
...
6
Harness, Upper (Automatic) (Includes Illus. 6a, 6b & 6c) WPL-3388677
...
6A
Plug, Terminal (12-Way) (Connects With Automatic Console Harness) WPL-696074
...
6B
Connector WPL-WP62889
...
6C
Connector WPL-WP62505
...
7
Clip WPL-8528351
...
11
Clip WPL-WP90016
...
12
Clip WPL-693141
...
13
Hose, Pressure Switch WPL-W10834213

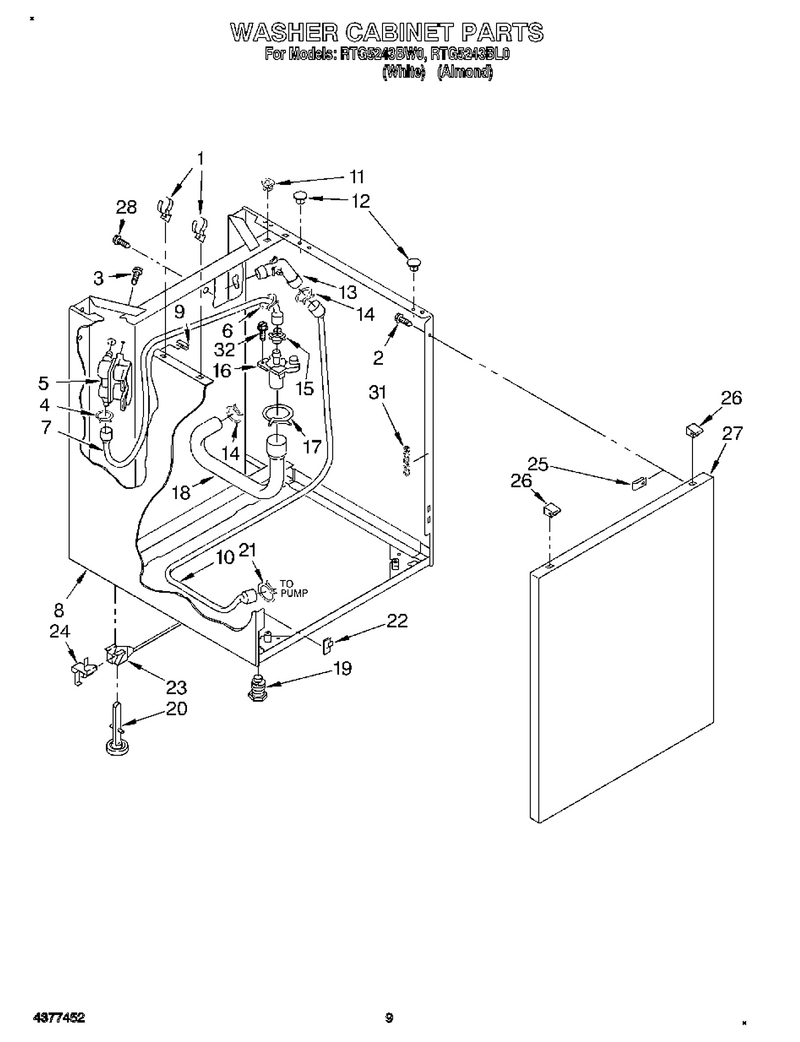

07 - Washer Cabinet

...
...
1
Clip, Condenser (2) WPL-356746
...
2
Screw WPL-WP681414
...
3
Screw WPL-WP3390631
...
4
Clamp WPL-WP596669
...
5
Valve WPL-285805
...
6
Clamp WPL-WP596669
...
7
Hose WPL-WP692699
...
8
Cabinet (Almond) WPL-696014
...
9
Protector, Edge WPL-3390046
...
10
Hose WPL-WP696710
...
11
Nut WPL-WP692400
...
12
Button-Plg WPL-WP660975
...
13
Connector WPL-W11213338
...
14
Clamp WPL-WP285655
...
15
Cap WPL-WP356471
...
16
Siphon WPL-WP356363
...
17
Clamp WPL-WP616099
...
18
Hose WPL-WP696394
...
19
Feet-Lvlng WPL-WP367594
...
20
Feet-Lvlng WPL-WP358594
...
21
Clamp WPL-WP285655
...
22
Clip WPL-W10854425
...
23
Link WPL-WP358652
...
24
Clip WPL-WP359364
...
25
Nut WPL-WP98234
...
26
Lock WPL-WP345670
...
27
Panel WPL-285882
...
28
Screw WPL-WP681414
...
31
Foam (2) WPL-3350013
...
32
Screw WPL-60001022

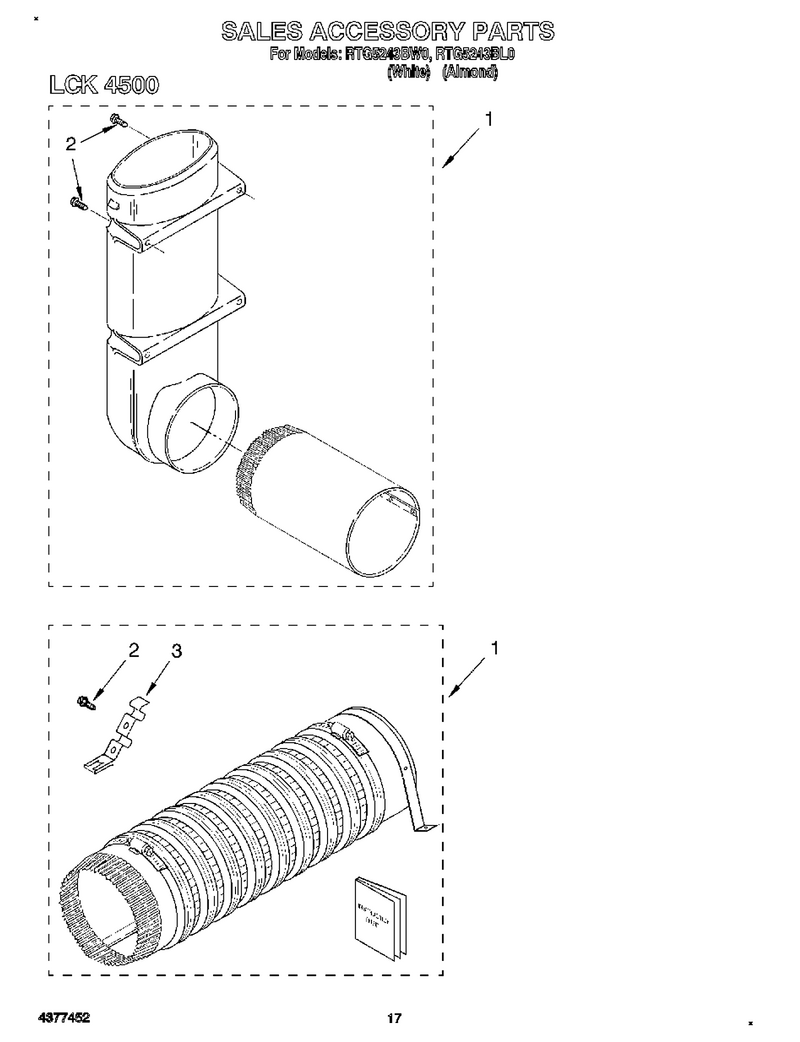

14 - Sales Accessory

...
...
1
Side Exhaust Extension Kit (Complete) WPL-279823
...
2
Screw WPL-WP681414
...
3
Clip WPL-WP3395536

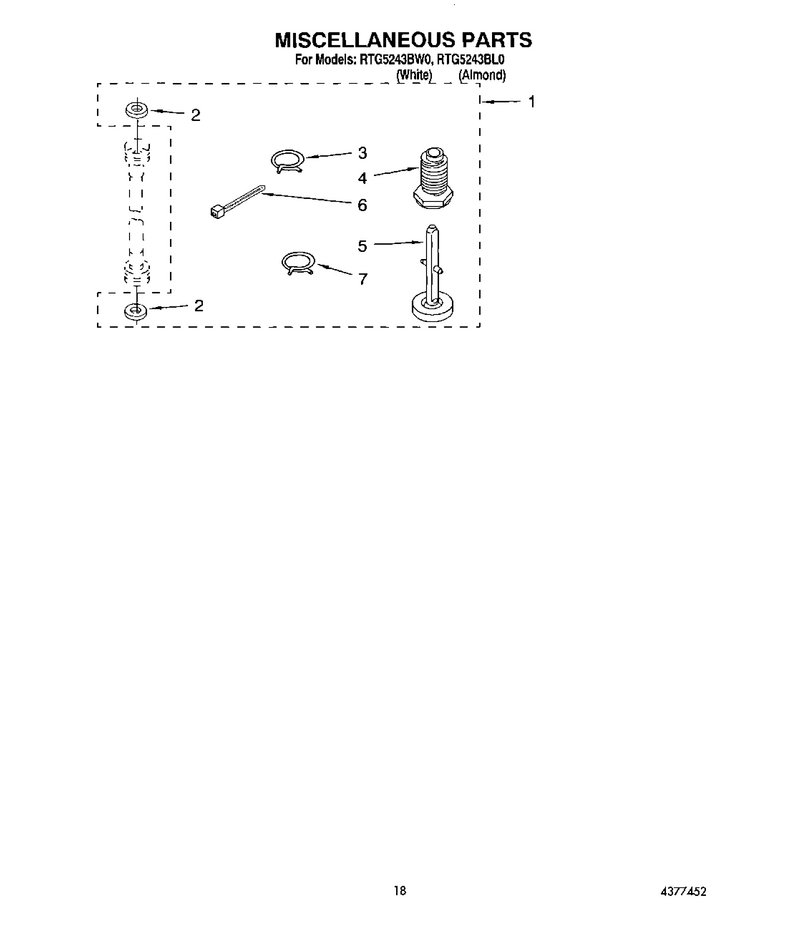

15 - Miscellaneous, Lit/optional

...
...
Almond (Uncut) WPL-978883
...
1
Parts-Misc WPL-WPW10112403
...
2
Washer WPL-WP16123
...
3
Clamp WPL-WP285655
...
4
Feet-Lvlng WPL-WP367594
...
5
Feet-Lvlng WPL-WP358594
...
6
Tie-Wire WPL-WPW10339879
...
7
Clamp WPL-WP3357331

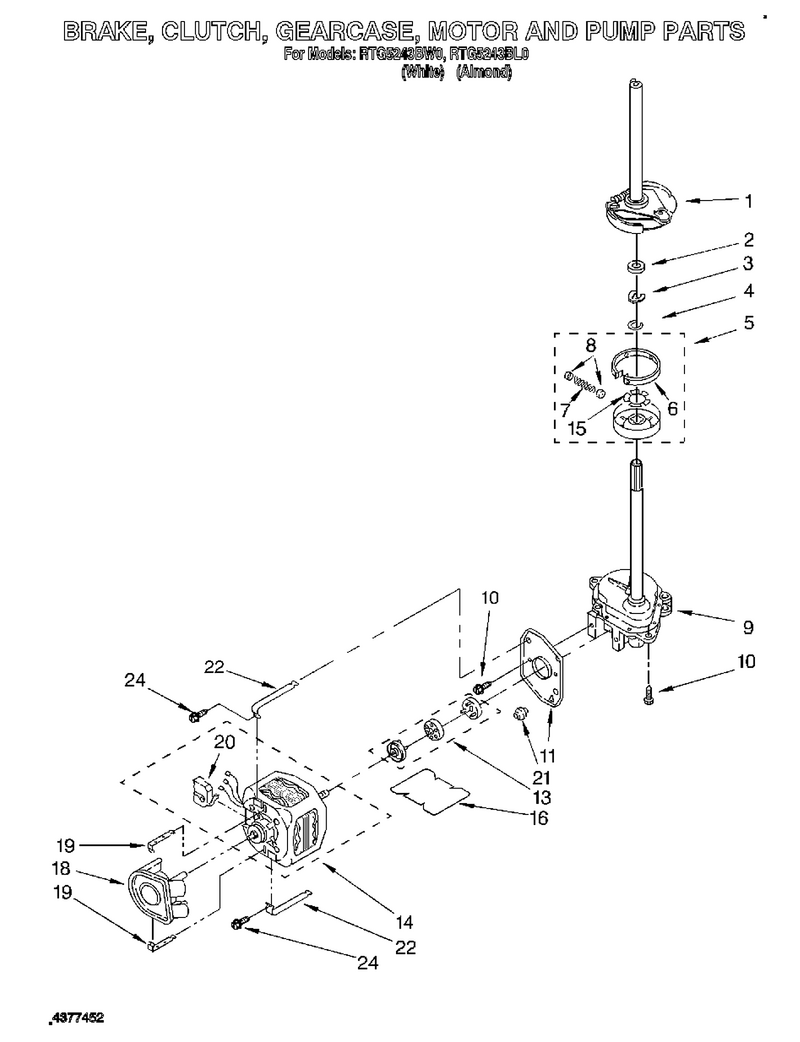

08 - Brake, Clutch, Gearcase, Motor And Pump

...
...
1
Basktdrive WPL-W10820043
...
2
Washer WPL-WP63292
...
3
Ring WPL-WPW10080230
...
4
Ring WPL-285353
...
5
Clutch WPL-285785
...
6
Lining WPL-285790
...
7
Spring WPL-WP8559387
...
8
Cap WPL-WP62646
...
9
Gearcase WPL-3360629
...
10
Screw WPL-WP3400516
...
11
Plate WPL-WP62611
...
13
Coupling WPL-285753A
...
14
Motor-Drve WPL-WP661600
...
15
Clip WPL-WP3355454
...
16
Shield WPL-WP3946532
...
18
Pump-Water WPL-WP3363394
...
19
Retainer WPL-WP8546127
...
20
Switch-Mtr WPL-WP8529896
...
21
Grommet WPL-WP62691
...
22
Retainer WPL-WPW10086010
...
24
Screw WPL-WP273556

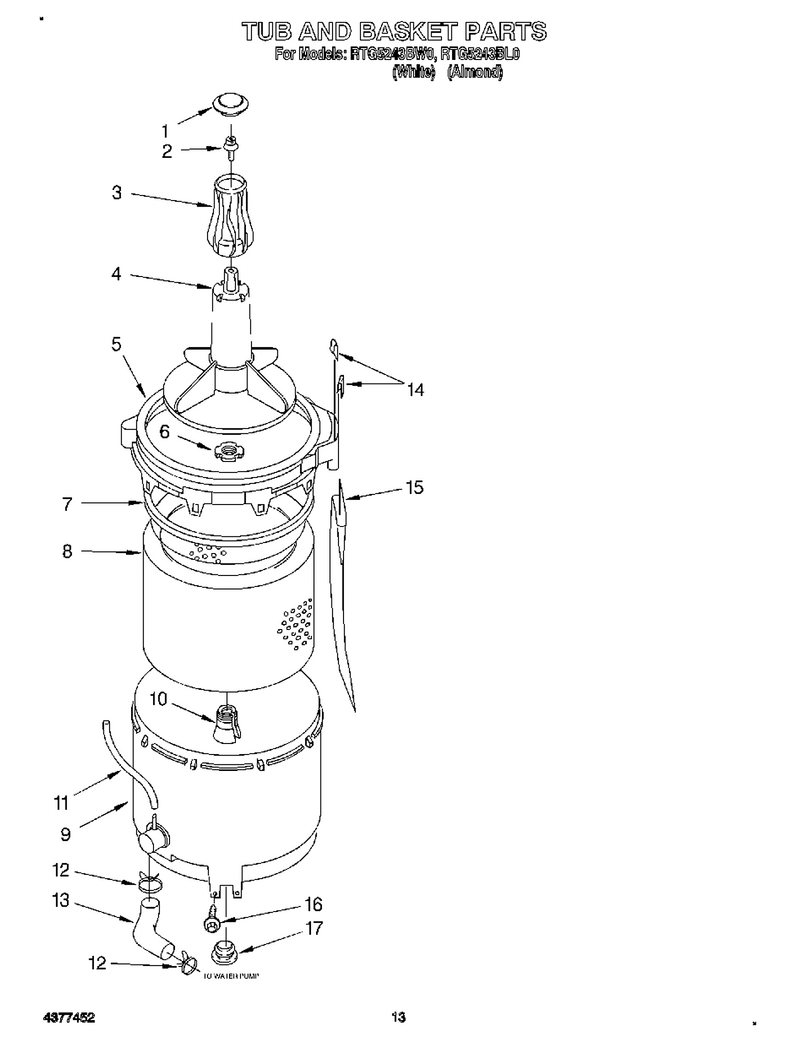

10 - Tub And Basket

...
...
1
Cap WPL-WP3355758
...
2
Screw WPL-WP358237
...
3
Filter WPL-WP63840
...
4
Agitator WPL-WP3349098
...
5
Ring-Tub WPL-W10831641
...
6
Nut-Spaner WPL-WP21366
...
7
Seal-Tub WPL-WP3359587
...
8
Basket WPL-3351985
...
9
Tub WPL-63782
...
10
Block WPL-WP389140
...
11
Hose, Pressure Switch WPL-W10834213
...
12
Clamp WPL-WP371502
...
13
Hose WPL-280120
...
14
Foam Strip WPL-8577411
...
15
Tube, Drain Off WPL-356398
...
16
Screw WPL-W11573574
...
17
Gasket WPL-W10814296

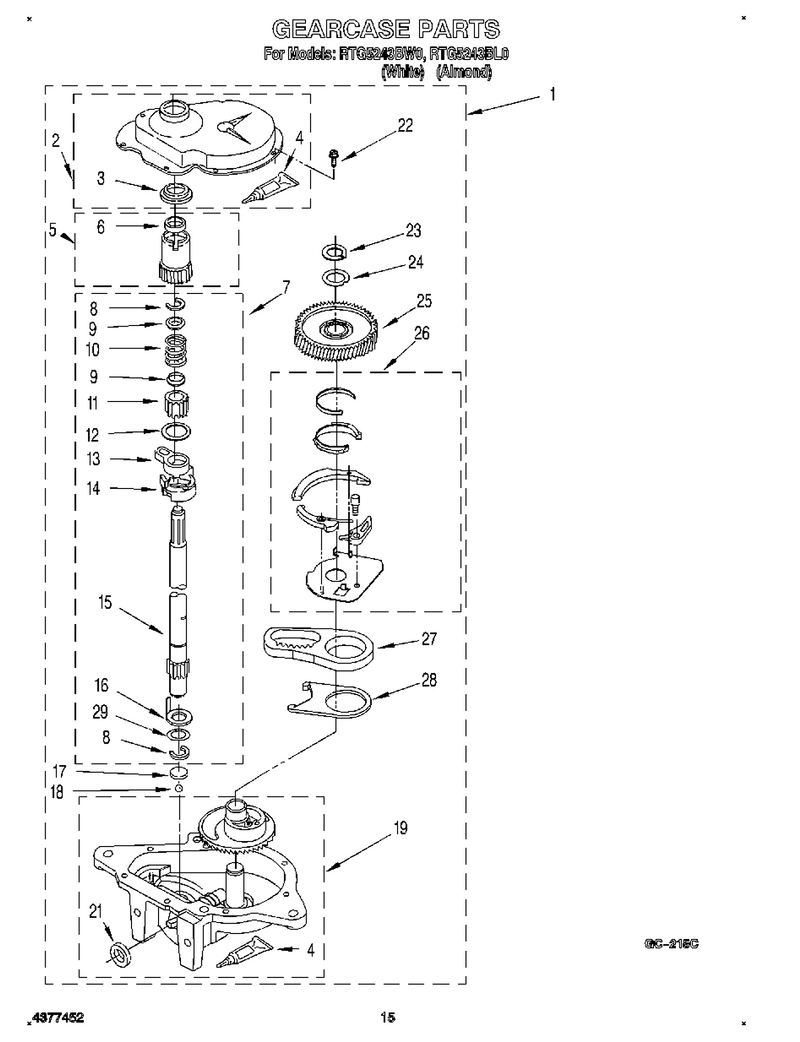

12 - Gearcase

...
...
1
Gearcase WPL-3360629
...
2
Cover, Gearcase WPL-285202
...
3
Seal-Cover WPL-WP3349985
...
4
Sealer WPL-WP285195
...
5
Gearcase WPL-3360629
...
6
Seal-Shaft WPL-WP356427
...
7
Shaft-Agit WPL-WP389387
...
8
Ring, Retaining (2) WPL-90369
...
9
Retainer, Spring WPL-62677
...
10
Spring, Agitator WPL-62676
...
11
Shaft-Agit WPL-WP389387
...
12
Washer, Agitator Gear WPL-62619
...
13
Shaft-Agit WPL-WP389387
...
14
Shaft-Agit WPL-WP389387
...
15
Shaft-Agit WPL-WP389387
...
16
Washer, Cam Thrust WPL-62618
...
17
Bearing WPL-285205
...
18
Bearing WPL-285205
...
19
Gearcase WPL-285515
...
21
Seal, Thrust Plug WPL-285352
...
22
Screw WPL-WP3351614
...
23
Ring-Retnr WPL-285765
...
24
Washer Kit, Thrust WPL-285766
...
25
Gearcase WPL-3360629
...
26
Neutrl-Pak WPL-388253A
...
27
Gearcase WPL-3360629
...
28
Gearcase WPL-3360629
...
29
Washer WPL-WP388815

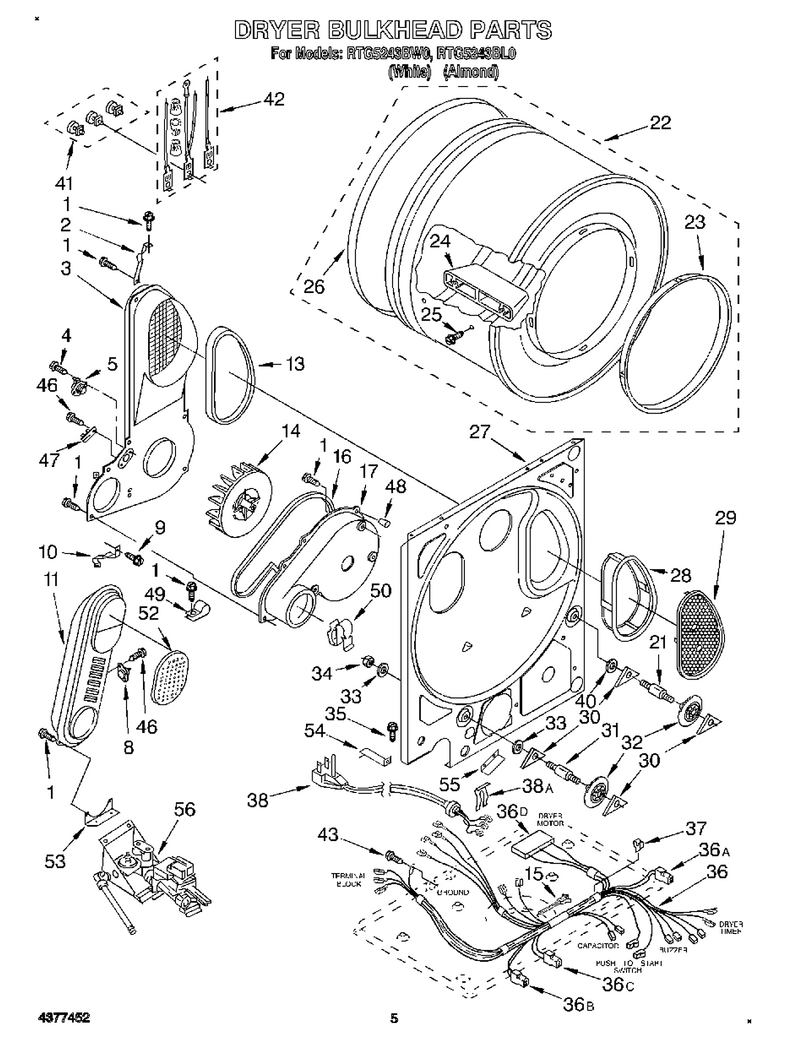

04 - Dryer Bulkhead

...
...
1
Screw WPL-WP681414
...
2
Clip WPL-345396
...
3
Air Duct & Cover WPL-696529
...
4
Screw WPL-WP488729
...
5
Thrmst-Fix WPL-WP3398128
...
8
Thrmst-Fix WPL-WP341196
...
9
Screw WPL-WP489463
...
10
Clip WPL-279771
...
11
Box-Heater WPL-280007
...
13
Seal WPL-WP339956
...
14
Wheel WPL-WP696426
...
15
Tie-Wire WPL-WP3391018
...
16
Seal, Fan Scroll WPL-696658
...
17
Scroll-Fan WPL-WP696418
...
21
Shaft WPL-WPW10359269
...
22
Drum WPL-3391834
...
23
Bearng-Rng WPL-WP3394508
...
24
Baffle-Drm WPL-685207
...
25
Screw WPL-WPW10109200
...
26
Seal WPL-279735
...
27
Bulkhead WPL-697540
...
28
Cover WPL-W10828351
...
29
Cover WPL-W10828351
...
30
Ring WPL-WPW10512946
...
31
Shaft WPL-WPW10359270
...
32
Support WPL-349241T
...
33
Washer WPL-WP348197
...
34
Nut WPL-WP3359452
...
35
Screw WPL-WP3390631
...
36
Harness, Main Dryer Wiring (Includes Illus. 36a, 36b, 36c, 36d & 36e) WPL-3398874
...
36A
Receptacle, Terminal (2-Way) (Connects With Door Switch Harness) WPL-717252
...
36B
Receptacle, (Gas Valve) WPL-697780
...
36C
Connector WPL-WP62889
...
36D
Receptacle, Multi-Terminal (Connects With Dryer Motor) WPL-3395683
...
37
Clip WPL-693141
...
38
Cord, Power WPL-694018
...
38A
Clip WPL-W11712577
...
40
Washer WPL-WP3388703
...
41
Screw Kit (For Terminal Block) WPL-279393
...
42
Terminal, Tinned & Brass (3) (Includes Illus. 41) WPL-279318
...
43
Screw WPL-W10850756
...
46
Screw WPL-WP90767
...
47
Fuse-Thrml WPL-WP3392519
...
48
Tip-Tines WPL-W10491983
...
49
Clamp, Tubing WPL-488946
...
50
Clip WPL-WP3400935
...
52
Cover, Manifold WPL-345335
...
53
Support, Heater Box WPL-347455
...
54
Support, Corner Gas WPL-3387208
...
55
Guard WPL-697571
...
56
Burner-Gas WPL-279734

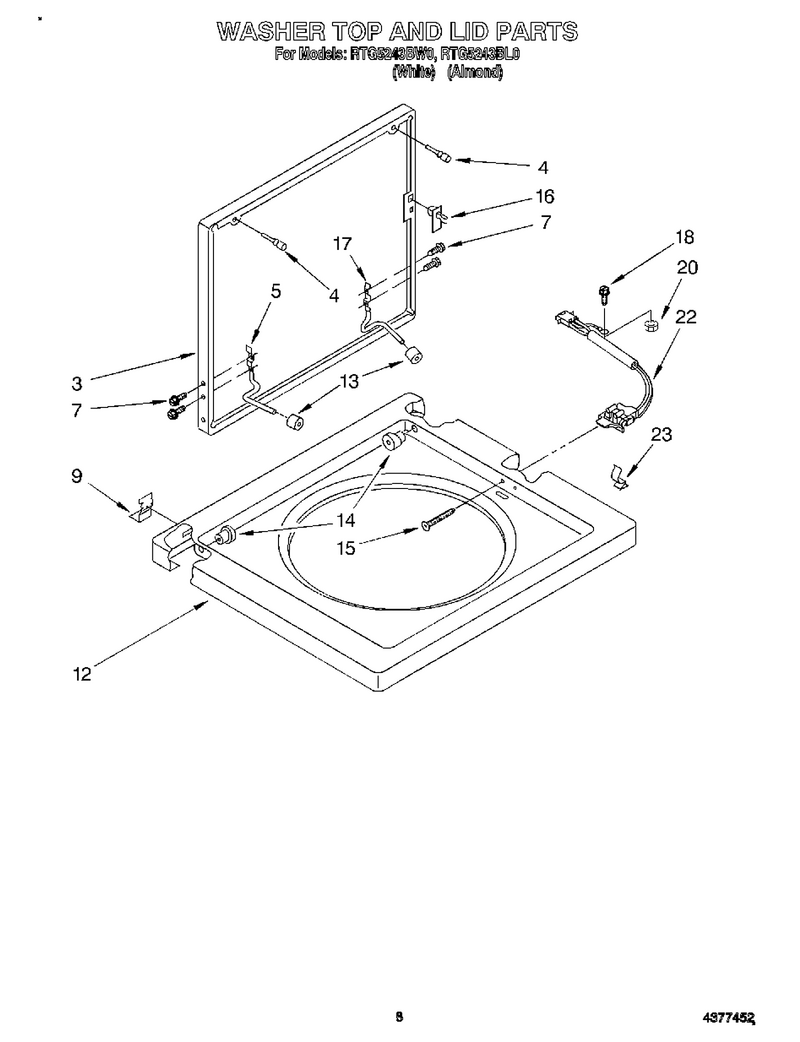

06 - Washer Top And Lid

...
...
3
Lid (Almond) WPL-3398844
...
4
Bumper WPL-80011
...
5
Hinge, Lid (L.h.) WPL-384458
...
7
Screw WPL-WPW10119828
...
9
Clip WPL-WP692985
...
12
Top (Almond) WPL-384694
...
13
Bumper WPL-WP19119
...
14
Bearing WPL-WP21258
...
15
Screw WPL-WP3356311
...
16
Strike WPL-WP358684
...
17
Hinge, Lid (R.h.) WPL-384459
...
18
Screw WPL-WP308544
...
20
Nut WPL-W10080180
...
22
Switch-Lid WPL-WP3355806
...
23
Clip WPL-WP90016

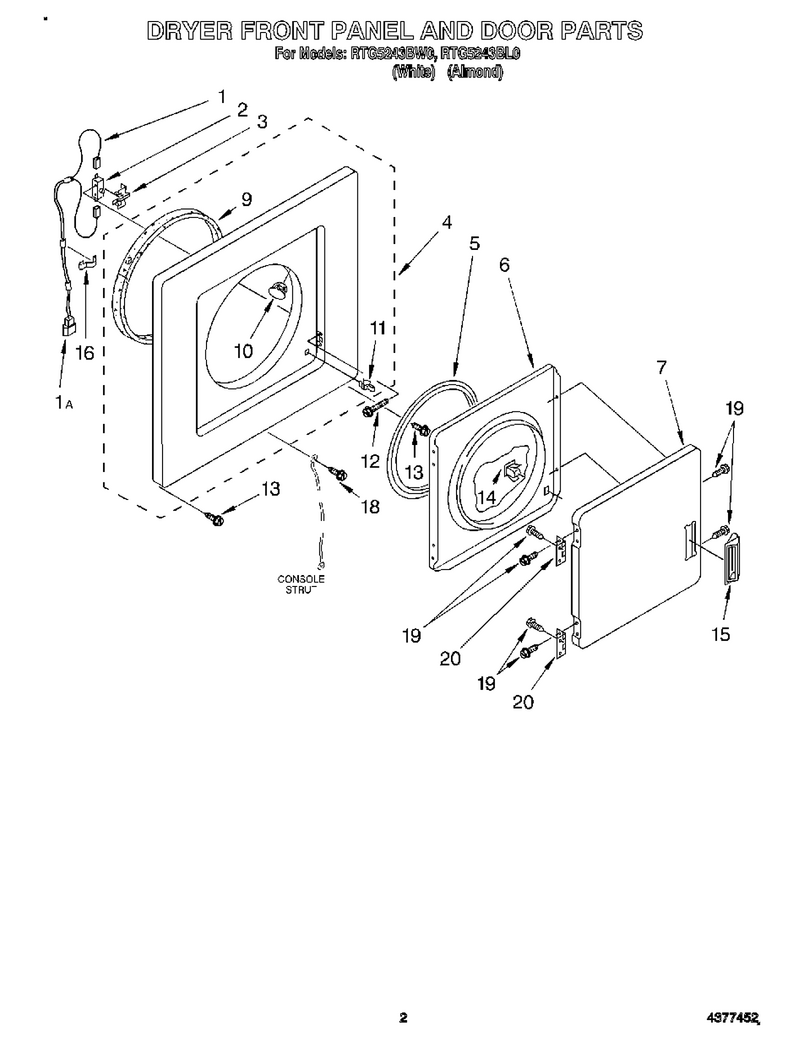

02 - Dryer Front Panel And Door

...
...
1
Harness, Door Switch (Includes Illus. 1a) WPL-692728
...
1A
Connector WPL-WP717253
...
2
Switch-Lid WPL-W10820036
...
3
Actuator WPL-WP691581
...
4
Panel WPL-285314
...
5
Seal-Door WPL-W11613302
...
6
Door WPL-280077
...
7
Door WPL-WP348205
...
9
Air Channel Box WPL-279264
...
10
Clip WPL-279220
...
11
Latch WPL-279570
...
12
Screw WPL-WP98129
...
13
Screw WPL-WP681414
...
14
Catch WPL-WP3389441
...
15
Handle WPL-WP689308
...
16
Support Protector WPL-692846
...
18
Screw WPL-WP3390631
...
19
Screw WPL-WP694091
...
20
Hinge WPL-WP348023

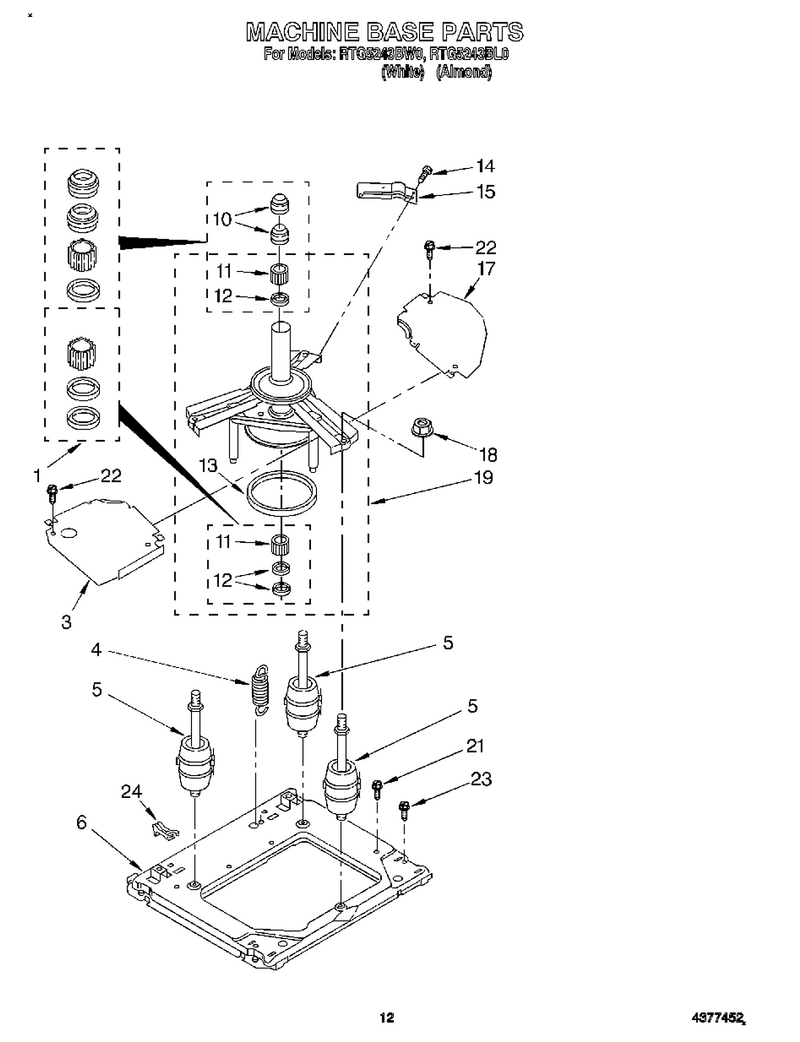

09 - Machine Base

...
...
1
Centerpost Bearing Kit (Incls. Illus. 10, 11, & 12) WPL-285203
...
3
Shield WPL-WP64137
...
4
Spring WPL-WPW10250667
...
5
Spring WPL-W10207783
...
6
Base WPL-WP8577373
...
10
Seal WPL-WP8577376
...
11
Bearing WPL-WP8546455
...
12
Seal WPL-W11095997
...
13
Ring WPL-WP63134
...
14
Screw WPL-WP681414
...
15
Bracket, Counterweight Spring WPL-63636
...
17
Shield, Tub WPL-63637
...
18
Nut WPL-279710
...
19
Support WPL-W10863713
...
21
Screw WPL-WP681414
...
22
Screw WPL-WP90767
...
23
Screw & Washer (Base To Cabinet) WPL-386011
...
24
Block, Restraint (2) WPL-696044

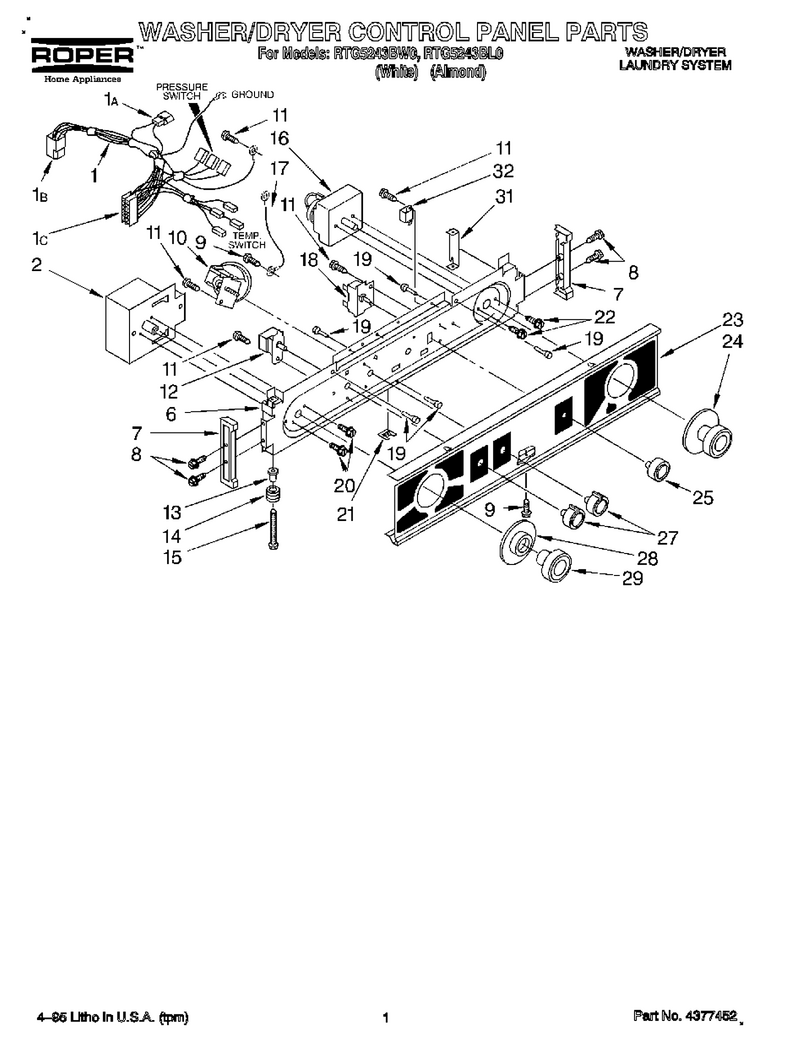

01 - Washer/dryer Control Panel

...
...
1
Harness, Console Wiring (Automatic) (Includes Illus. 1a, 1b & 1c) WPL-3398879
...
1A
Plug, Terminal (2-Way) (Connects With Main Dryer Harness) WPL-3350130
...
1B
Receptacle, Connector (Connects With Lower Automatic Harness) WPL-696073
...
1C
Connector WPL-W10876590
...
2
Timer WPL-WP3946432
...
6
Bracket, Control WPL-694338
...
7
End Cap, Console (L.h. & R.h.) WPL-692993
...
8
Screw, End Cap Mounting (4) (6-32 X 3/4) WPL-348689
...
9
Screw WPL-WP694091
...
10
Switch-Wl WPL-WP3362987
...
11
Screw WPL-WP3390631
...
12
Switch, Water Temperature WPL-3363042
...
13
Sleeve, Console Lock Screw (2) WPL-693711
...
14
Sprng-Lock WPL-WP693151
...
15
Screw, Console Lock (2) WPL-693710
...
16
Timer, Control (60 Hz.) (Dryer) (Timer Motor Not Serviceable) WPL-696165
...
17
Strut, Console WPL-693175
...
18
Switch, Push-To-Start WPL-279173
...
19
Bumper, Console (5) WPL-693152
...
20
Screw WPL-WP356418
...
21
Clip, Console WPL-694037
...
22
Screw WPL-WP3400882
...
23
Panel, Control WPL-3398826
...
24
Knob, Timer (Dryer) WPL-3401717
...
25
Knob, Push-To-Start WPL-3391829
...
27
Knob WPL-3935959
...
28
Dial, Timer (Washer) WPL-3946332
...
29
Dial WPL-280193
...
31
Lock-Cnsle WPL-WP692983
...
32
Buzzer-Adj WPL-WP694419

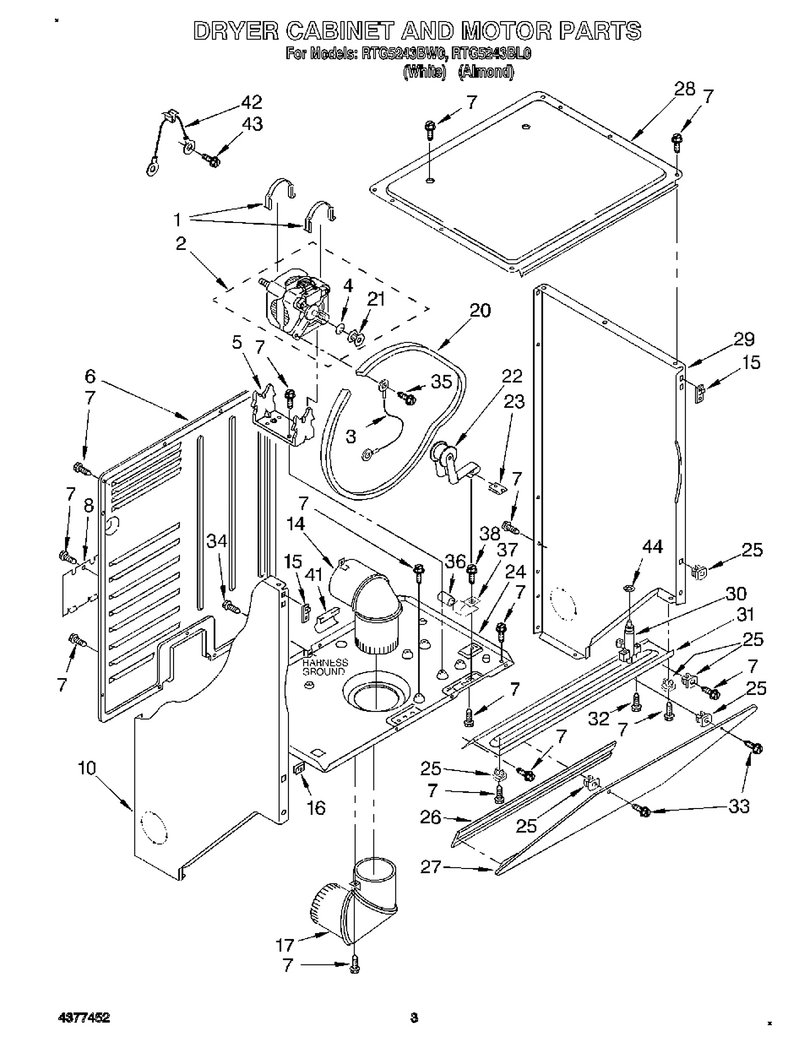

03 - Dryer Cabinet And Motor

...
...
1
Clamp WPL-WP660658
...
2
Motor-Drve WPL-279827
...
3
Wire, Motor Ground WPL-687261
...
4
Rstrnr-Blt WPL-WP3393657
...
5
Base WPL-696541
...
6
Panel WPL-280069
...
7
Screw WPL-WP681414
...
8
Cover WPL-WP3394228
...
10
Panel, Side (L.h.) (Almond) WPL-3402294
...
14
Elbow WPL-WP3399602
...
15
Clip WPL-W10854425
...
16
Nut WPL-WP98234
...
17
Elbow, Lower WPL-3399603
...
20
Belt, Drive WPL-3394652
...
21
Pulley, Motor WPL-8066051
...
22
Pulley-Idr WPL-WP691366
...
23
Nut WPL-WP692771
...
24
Base, Dryer WPL-3399633
...
25
Nut WPL-WP692400
...
26
Cove WPL-WP692926
...
27
Panel, Transition (Almond) WPL-692934
...
28
Top-Dryer WPL-WP692641
...
29
Panel WPL-WP3402287
...
30
Latch-Lid WPL-WP693145
...
31
Closure WPL-WP692781
...
32
Screw & Washer (3) (Lid Latch Mounting) WPL-354975
...
33
Screw WPL-WP693304
...
34
Screw WPL-W10850756
...
35
Screw WPL-WP3390631
...
36
Capacitor WPL-WP8572717
...
37
Clamp, Capacitor WPL-357030
...
38
Screw WPL-WP681414
...
41
Edge, Protector WPL-686770
...
42
Cable WPL-3388580
...
43
Screw WPL-WP681414
...
44
Clip WPL-WP90296
Schematic Image Zoomed
Scroll to zoom • Drag to pan • Click to close
Press Esc or click background to close Pinch to zoom • Tap to close
Shopper Approved
USA Today Champions 2025
BBB Accredited
Newsweek Best Online Shops 2025
Google Reviews
Processing
