Roper RT21SKXJN00

Model: RT21SKXJN00

Save Part Not Listed?
product name

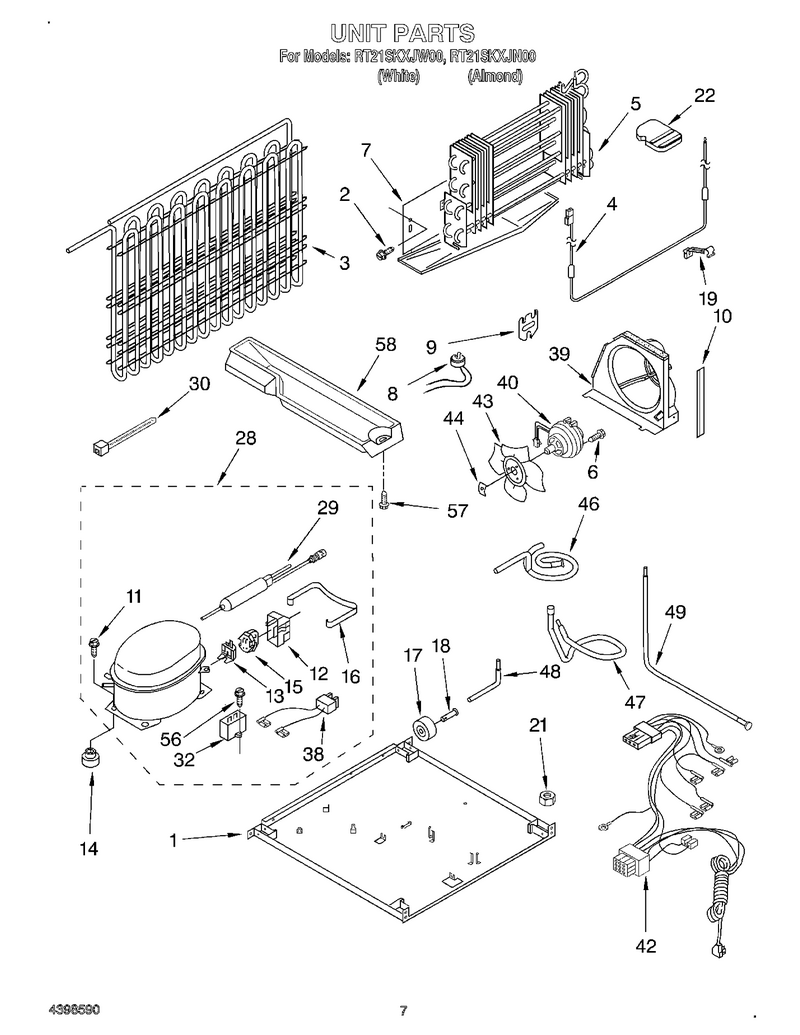

04 - Unit

...
...
1
Plate, Unit Mounting WPL-2201162
...
2
Screw WPL-WP489478
...
3
Condenser WPL-2183849
...
4
Heater WPL-WP2315530
...
5
Evaporator Assy. WPL-2195390
...
6
Screw WPL-WP8281196
...
7
Drain Pan WPL-2172620
...
8
Bimetl-Def WPL-WP4387503
...
9
Bracket, Heater WPL-2176301
...
10
Extension, Air Baffle WPL-2300638
...
11
Grommet (4) ((Production)) WPL-876811
...
12
Cover WPL-1105055
...
13
Overload (Production) WPL-2183409
...
14
Grommet (4) ((Production)) WPL-876811
...
15
Relay-Strt WPL-WP10097204
...
16
Cover, Strap WPL-943322
...
17
Roller-Cab WPL-WPW10475495
...
18
Axle WPL-W11594405
...
19
Clip, Heater WPL-2182338
...
21
Nut (Not Serviced) WPL---
...
22
Support Block WPL-2201185
...
28
Tube Kit WPL-876765
...
29
Drier-Tube WPL-W10843121
...
30
Tie-Wire WPL-WPW10339879
...
32
Capacitor WPL-WP4387764
...
38
Wire WPL-WP2172890
...
39
Baffle-Air WPL-WP2198921
...
40
Motor-Cond WPL-W10822259
...
42
Wire Assy. Unit WPL-2200629
...
43
Blade-Fan WPL-WP2190685
...
44
Nut WPL-WP486692
...
46
Tube, Discharge WPL-2201141
...
47
Tube, Suction WPL-2189173
...
48
Tube, Process WPL-2154109
...
49
Tube, Condenser To Heat Loop WPL-2174670
...
56
Screw WPL-W11693756
...
57
Screw WPL-489462
...
58
Valve, Access (5/16``) WPL-978026

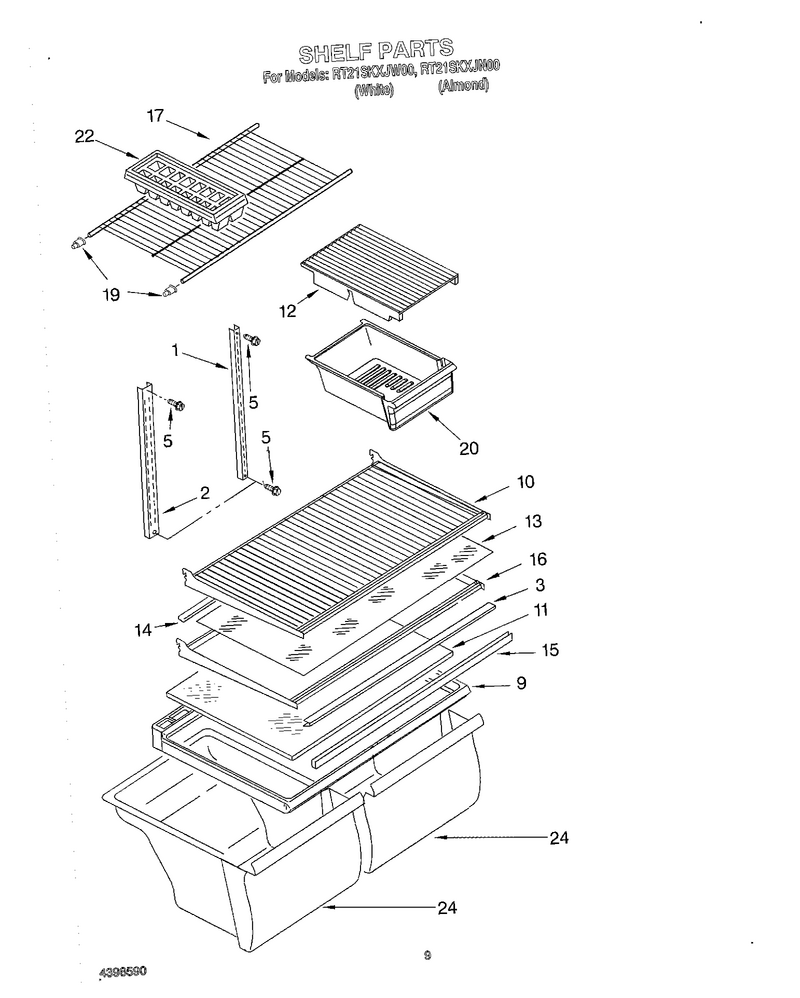

05 - Shelf, Optional

...
...
1
Shelf, Ladder (2) WPL-2202822
...
2
Shelf, Ladder Center WPL-2202821
...
3
Trim, Shelf Front WPL-2201136
...
5
Screw WPL-WP489478
...
9
Cover WPL-WP2314549
...
10
Shelf, Cantilever WPL-2195398
...
11
Shelf-Glas WPL-WP2176225
...
12
Cover, Meat Pan WPL-2163848
...
13
Glass, Full Shelf WPL-2174693
...
14
Trim, Rear Shelf WPL-2193395
...
15
Support WPL-WP2172748
...
16
Frame-Shlf WPL-WP2201104
...
17
Shelf, Freezer WPL-2189454
...
19
Cup, Shelf Mtg. WPL-2163762
...
20
Pan-Meat WPL-WP2218127K
...
22
Tray WPL-WP841180A
...
24
Sealer WPL-WP505587

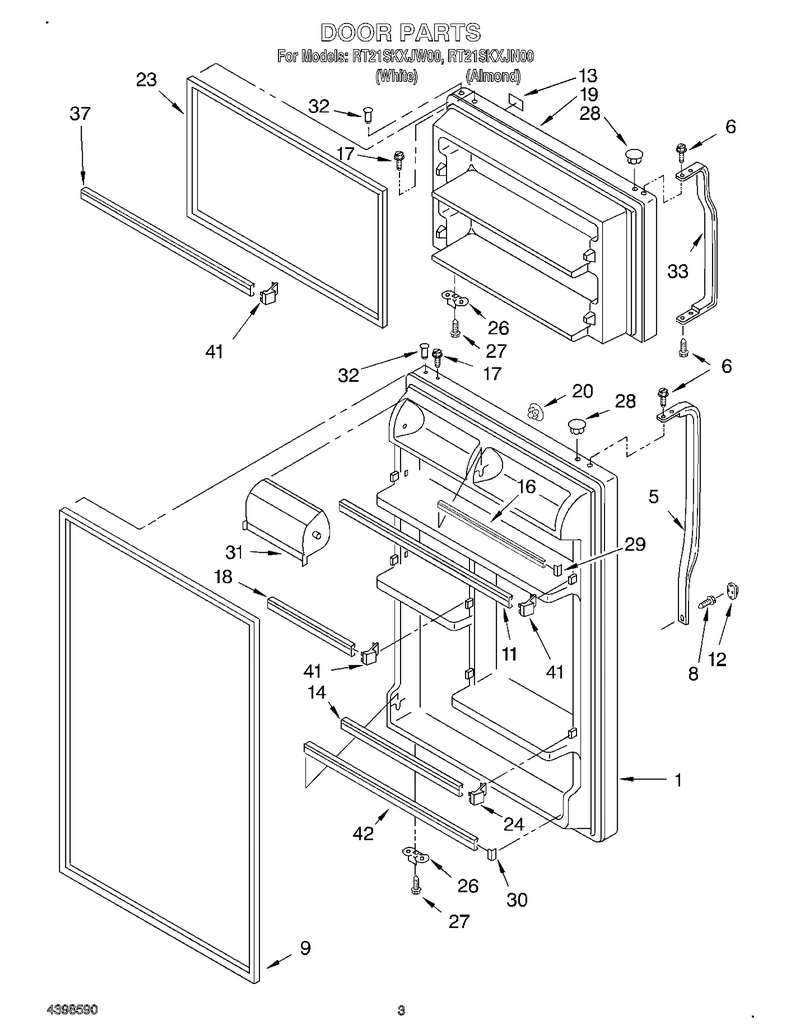

02 - Door

...
...
1
Dor-Fip Wh WPL-L2183946
...
5
Handle WPL-WP2202807W
...
6
Screw WPL-WP489357
...
8
Screw WPL-WP8281146
...
9
Door Gasket, Magnetic WPL-2159061
...
11
Trim-Door WPL-WP2201061
...
12
Cover, Screw (Almond) WPL-2202819N
...
13
Nameplate (Almond) WPL-2200504
...
14
Trim-Door WPL-WP2195943
...
16
Trim-Door WPL-WP2201061
...
17
Screw WPL-WP8281206
...
18
Trim-Door WPL-WP2201062
...
19
Dor-Fip WPL-W11023679
...
20
Plug-Hndle WPL-WP2189008
...
23
Door Gasket, Magnetic WPL-2159060
...
24
Endcap WPL-WP2195915
...
26
Bracket WPL-W11745278
...
27
Screw WPL-WP488921
...
28
Button-Plg WPL-WP2212648
...
29
Endcap-Trm WPL-WP2156007
...
30
Endcap-Trm WPL-WP2156006
...
31
Compartment Door WPL-2205233
...
32
Thimble WPL-WP2183003
...
33
Handle WPL-WP2202806W
...
37
Trim-Door WPL-WP2201060
...
41
Endcap WPL-WP2156003
...
42
Trim-Door WPL-WPW10421486

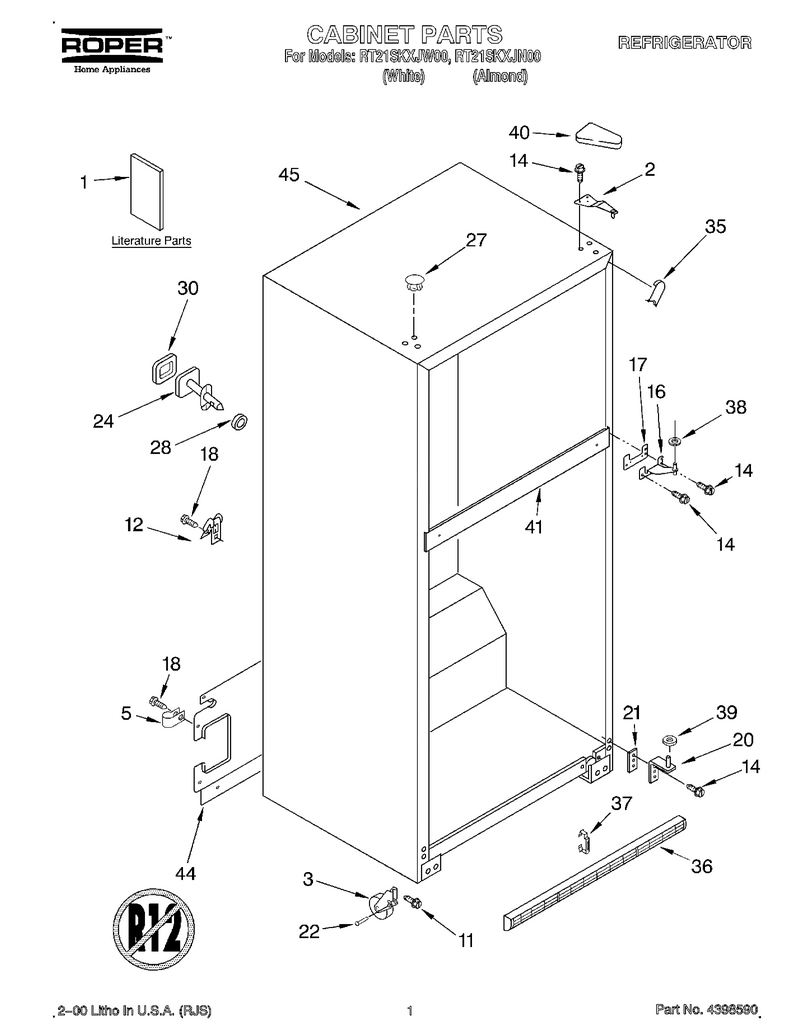

01 - Cabinet, Literature

...
...
1
Literature Parts (Use & Care Guide) WPL-LIT2199011
...
2
Hinge-Door WPL-WP2261963
...
3
Roller-Cab WPL-WP2166108
...
5
Clamp WPL-WP488366
...
11
Screw WPL-WP3400504
...
12
Clamp, Cord WPL-549193
...
14
Screw WPL-WP489497
...
16
Hinge-Door WPL-WP2254618
...
17
Shim WPL-WP2183854
...
18
Screw WPL-WP489464
...
20
Hinge-Door WPL-WP2254473
...
21
Shim, Bottom Hinge WPL-2172743
...
22
Axle WPL-W11594405
...
24
Fitting, Water Tube (Not Serviced) WPL---
...
27
Button-Plg WPL-WP2151652
...
28
Seal, Front (Not Serviced) WPL---
...
30
Seal, Rear (Not Serviced) WPL---
...
35
Corner Filler (2) (Almond) WPL-2201015
...
36
Grille WPL-WP2254313
...
37
Clip WPL-WP2189356
...
38
Washer WPL-WP489467
...
39
Washer WPL-WP487576
...
40
Cover WPL-WP2213360
...
41
Rail Center (Not Serviced) WPL---
...
44
Cover, Unit WPL-2189476

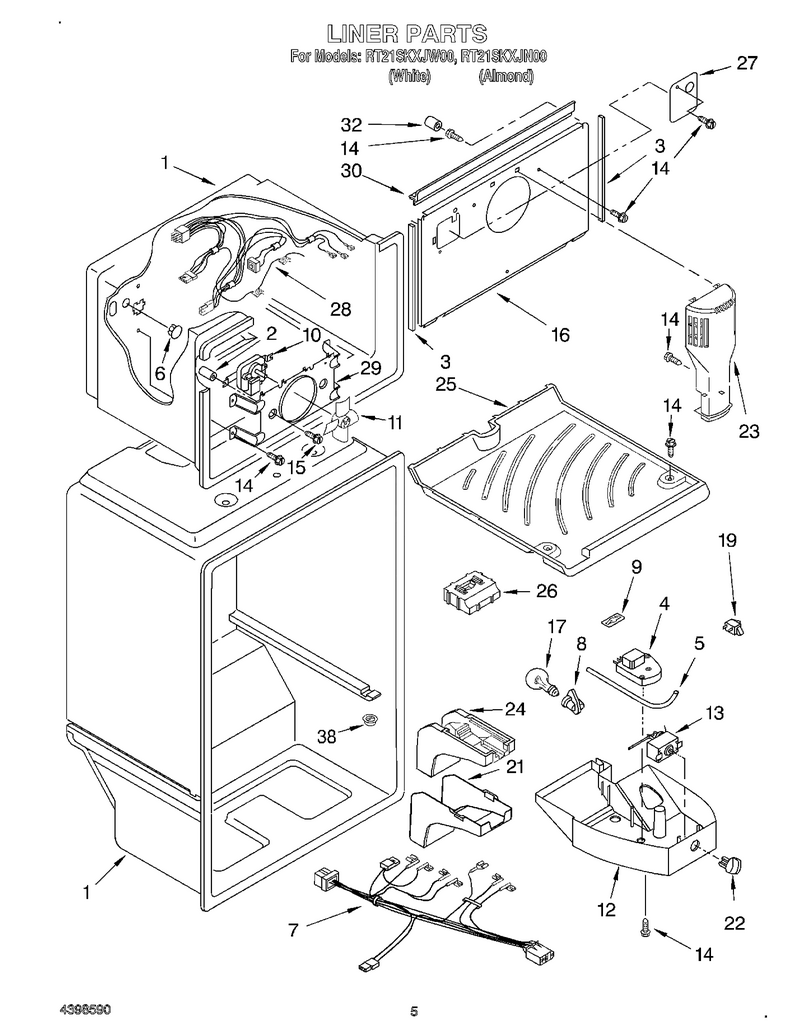

03 - Liner

...
...
1
Liner (Not A Serviceable Part) WPL---
...
2
Grommet WPL-WP531933
...
3
Gasket WPL-WP2254360
...
4
Timer-Def WPL-W10822278
...
5
Barrier WPL-WP2196003
...
6
Button-Plg WPL-WP941839
...
7
Wire Assy. Control Box WPL-2204616
...
8
Capacitor (Service) WPL-4387478
...
9
Clip, Defrost Timer WPL-2176341
...
10
Motor-Evap WPL-WP4389142
...
11
Blade-Fan WPL-WP2163777
...
12
Control Box WPL-2200948
...
13
Thermostat WPL-WP2204605
...
14
Screw WPL-WP489478
...
15
Screw WPL-489412
...
16
Cover-Evaporator WPL-2189823
...
17
Bulb-Light WPL-W10887190
...
19
Switch WPL-W11384469
...
21
Cover, Air Diffuser WPL-2176281
...
22
Knob-Therm WPL-WP2202885
...
23
Air-Tower WPL-WP2182340
...
24
Diffuser WPL-WP2189452
...
25
Floor, Freezer WPL-2184617
...
26
Air Diffuser, Top WPL-2204690
...
27
Cover WPL-WP2217784
...
28
Wire Assembly, Freezer Compartment WPL-2187279
...
29
Bracket, Fan Motor WPL-2200641
...
30
Gasket WPL-WP2254360
...
32
Cap-Tube WPL-WP487996
...
38
Releas-Vac WPL-WP2210509
