Roper RT21AKXKQ06

Model: RT21AKXKQ06

Save Part Not Listed?
product name

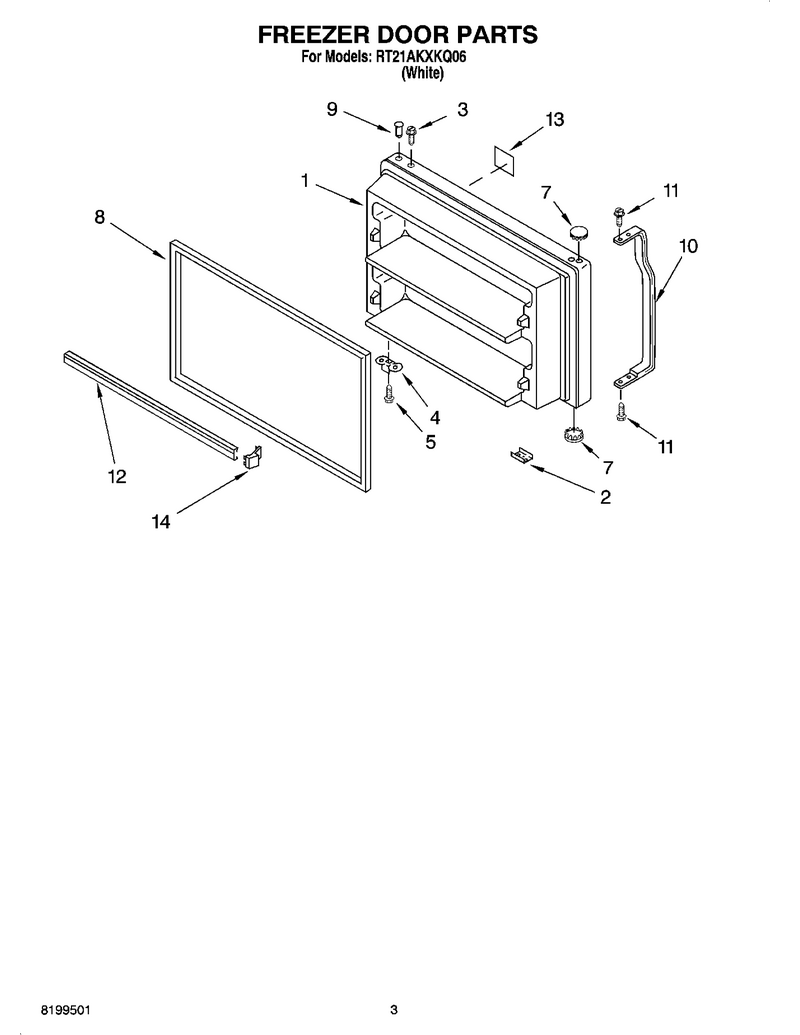

02 - Freezer Door Parts

...
...
1
Dor-Fip WPL-W11023679
...
2
Plate WPL-W10833053
...
3
Screw WPL-WP8281206
...
4
Bracket WPL-W11745278
...
5
Screw WPL-WP488921
...
7
Button-Plg WPL-WP2212648
...
8
Door Gasket, Magnetic (Mist Beige) WPL-2159060
...
9
Thimble WPL-WP2183003
...
10
Handle WPL-WP2202806W
...
11
Screw WPL-WP489357
...
12
Trim-Door WPL-WP2201060
...
13
Nameplate WPL-2163676
...
14
Endcap WPL-WP2156003

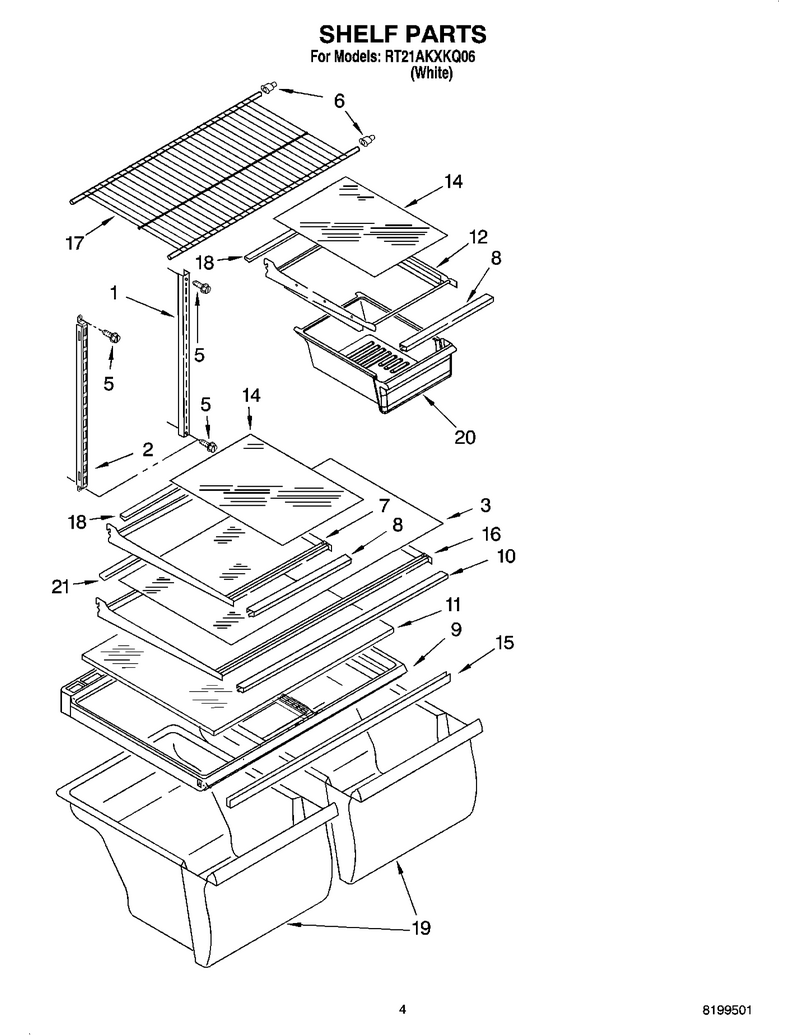

03 - Shelf Parts

...
...
1
Shelf, Ladder (2) WPL-2210522
...
2
Shelf, Ladder Center WPL-2300520
...
3
Glass, Full Shelf WPL-2174693
...
5
Screw WPL-WP489478
...
6
Cup, Shelf Mtg. WPL-2163762
...
7
Frame-Shlf WPL-WP2201102
...
8
Trim, Shelf Front WPL-2188685
...
9
Cover WPL-WP2314549
...
10
Trim-Shelf WPL-WP2188691
...
11
Shelf-Glas WPL-WP2176225
...
12
Pan, Shelf Cantilever WPL-2201106
...
14
Glass, Shelf WPL-2174694
...
15
Support WPL-WP2172748
...
16
Frame-Shlf WPL-WP2201104
...
17
Shelf, Freezer WPL-2189454
...
18
Trim-Shelf WPL-WP2188689
...
19
Pan-Crispr WPL-W10854037
...
20
Pan-Meat WPL-WP2218132K
...
21
Trim-Shelf WPL-WP2188689

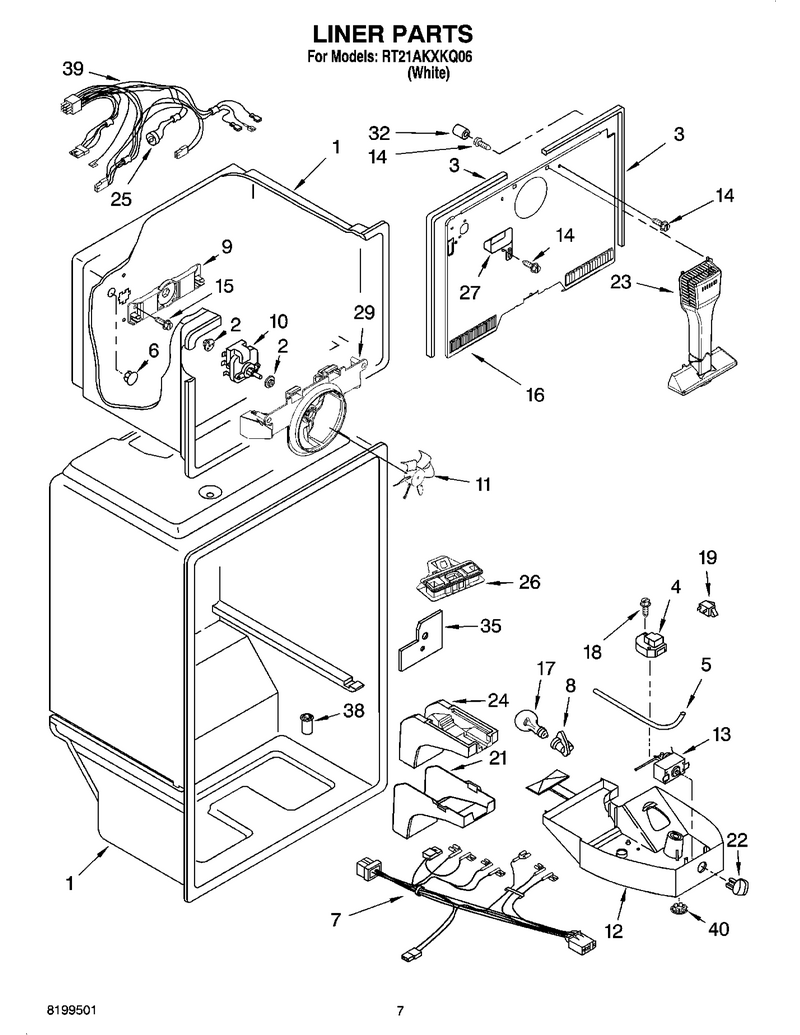

05 - Liner Parts

...
...
1
Liner (Not A Serviceable Part) WPL---
...
2
Grommet WPL-WP2264462
...
3
Gasket WPL-WP2254360
...
4
Timer-Def WPL-WP2314156
...
5
Barrier WPL-WP2196003
...
6
Button-Plg WPL-WP941839
...
7
Wire Assembly Control Box WPL-2187885
...
8
Capacitor (Service) WPL-4387478
...
9
Bracket Evap. Fan, Rear WPL-2254454
...
10
Motor-Evap WPL-WPW10189703
...
11
Blade-Fan WPL-WP2163777
...
12
Control Box WPL-2218381
...
13
Thermostat WPL-WP2204605
...
14
Screw WPL-WP489478
...
15
Screw WPL-WP488163
...
16
Cover, Evaporator WPL-2254263
...
17
Bulb-Light WPL-W10887190
...
18
Screw WPL-WP98129
...
19
Switch WPL-W11384469
...
21
Cover, Air Diffuser WPL-2176281
...
22
Knob-Therm WPL-WP2202885
...
23
Air-Tower WPL-WP2254354
...
24
Diffuser WPL-WP2189452
...
25
Bimetl-Def WPL-WP2321800
...
26
Air Separator Assembly WPL-2212439
...
27
Cover, Hole WPL-2205003
...
29
Bracket, Fan Motor WPL-2254453
...
32
Cap-Tube WPL-WP487996
...
35
Shield, Heat WPL-2204639
...
38
Releas-Vac WPL-WP2210509
...
39
Wire Assembly, Freezer Compartment (Includes Item 35) WPL-2310099
...
40
Hole Plug, Control Box WPL-940014

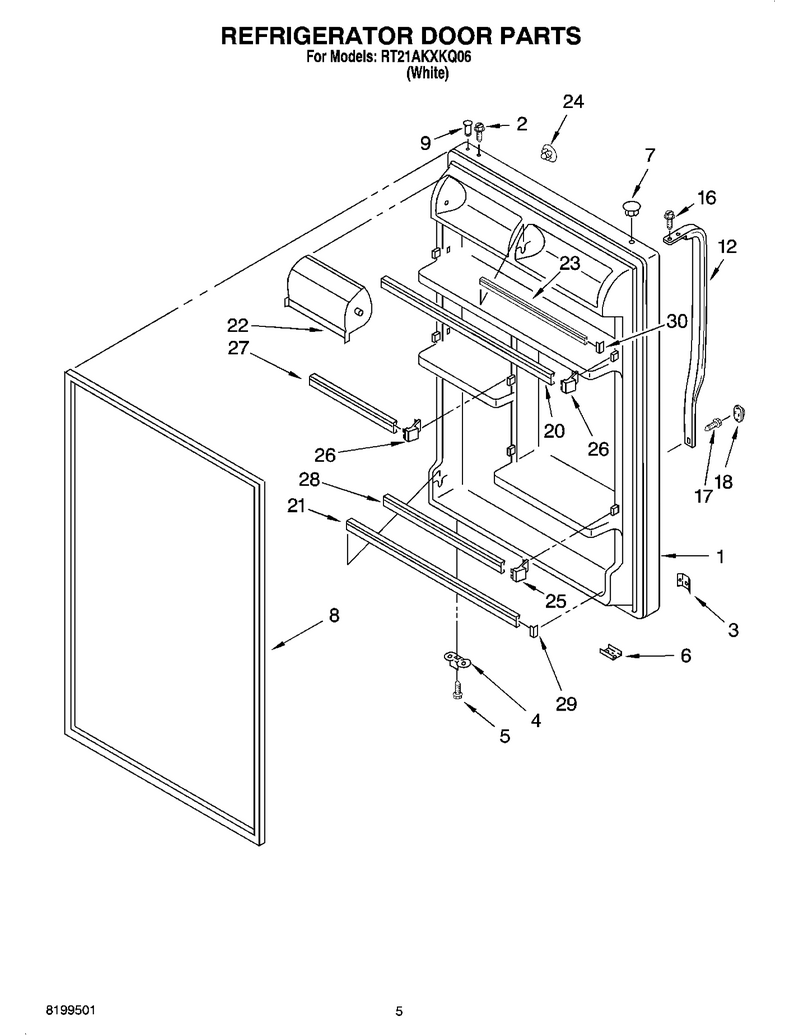

04 - Refrigerator Door Parts

...
...
1
Dor-Fip Wh WPL-L2183915
...
2
Screw WPL-WP8281206
...
3
Plate WPL-WP939101
...
4
Bracket WPL-W11745278
...
5
Screw WPL-WP488921
...
6
Plate WPL-W10833053
...
7
Button-Plg WPL-WP2212648
...
8
Door Gasket, Magnetic (Mist Beige) WPL-2159061
...
9
Thimble WPL-WP2183003
...
12
Handle WPL-WP2202807W
...
16
Screw WPL-WP489357
...
17
Screw WPL-WP8281146
...
18
Cover WPL-WP2202819W
...
20
Trim-Door WPL-WP2201061
...
21
Trim-Door WPL-WPW10421486
...
22
Door-Comp WPL-WP2218118
...
23
Trim-Door WPL-WP2201061
...
24
Plug-Hndle WPL-WP2189000
...
25
Endcap WPL-WP2195915
...
26
Endcap WPL-WP2156003
...
27
Trim-Door WPL-WP2201062
...
28
Trim-Door WPL-WP2195943
...
29
Endcap-Trm WPL-WP2156006
...
30
Endcap-Trm WPL-WP2156007

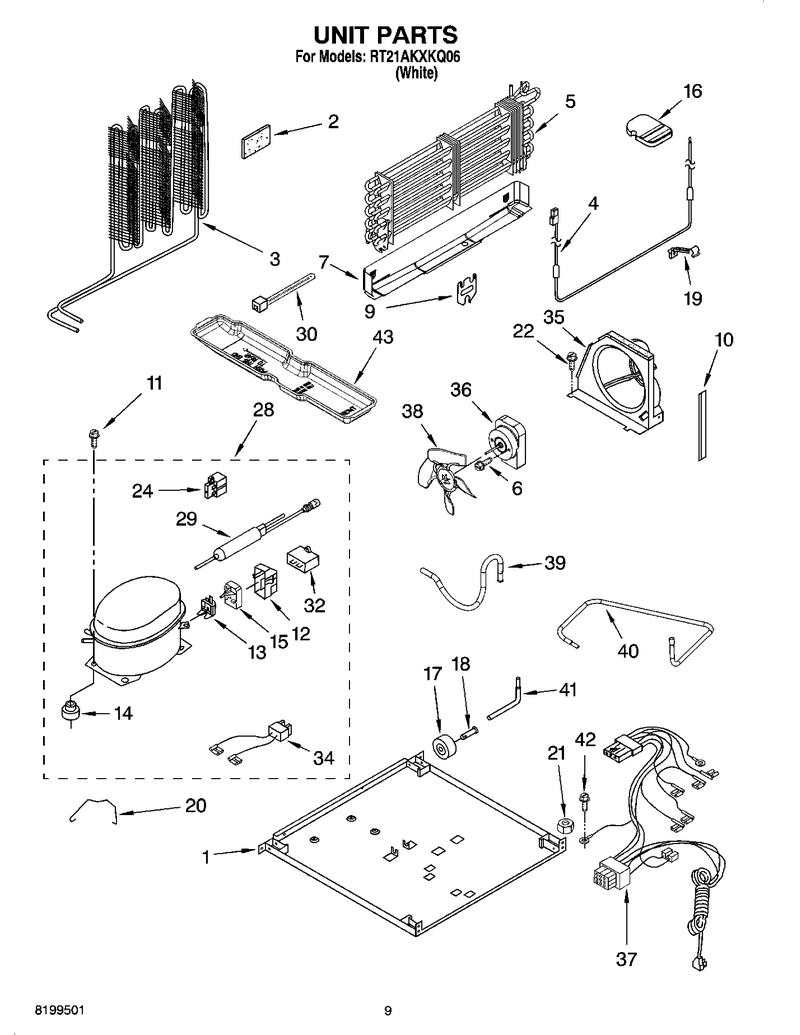

06 - Unit Parts, Optional Parts

...
...
Primer, White (12 Oz. Spray Can) WPL-350942
...
1
Plate, Unit Mounting WPL-2225596
...
2
Insulation WPL-W11553819
...
3
Condenser WPL-WP2214960
...
4
Heater WPL-WPW10140847
...
5
Evaporator Assy. WPL-2254249
...
6
Screw WPL-WPW10171469
...
7
Drain Pan WPL-2254295
...
9
Bracket, Heater WPL-2176301
...
10
Extension, Air Baffle WPL-2300638
...
11
Grommet (4) ((Production)) WPL-876811
...
12
Cover-Term WPL-WP2162358
...
13
Overload WPL-WP2214067
...
14
Grommet WPL-WP4387558
...
15
Start-Dev WPL-WP2225785
...
16
Support Block WPL-2201185
...
17
Roller-Cab WPL-WPW10475495
...
18
Axle WPL-W11594405
...
19
Clip, Heater WPL-2182338
...
20
Bale Strap WPL-2212996
...
21
Nut (Not Serviced) WPL---
...
22
Screw WPL-3400518
...
24
Relay-Strt WPL-W10920279
...
28
Compressor WPL-W10309988
...
29
Drier-Tube WPL-W10843121
...
30
Tie-Wire WPL-WPW10339879
...
32
Capacitor WPL-WPW10662129
...
34
Wire WPL-WP2172890
...
35
Air Baffle WPL-2302249
...
36
Motor-Cond WPL-WP2188874
...
37
Wire Assembly, Unit WPL-2187382
...
38
Blade-Fan WPL-W11458267
...
39
Tube, Discharge WPL-2225564
...
40
Tube, Suction WPL-2225565
...
41
Tube, Process WPL-2154109
...
42
Screw WPL-WP489128
...
43
Valve, Access (3/8``) WPL-978027

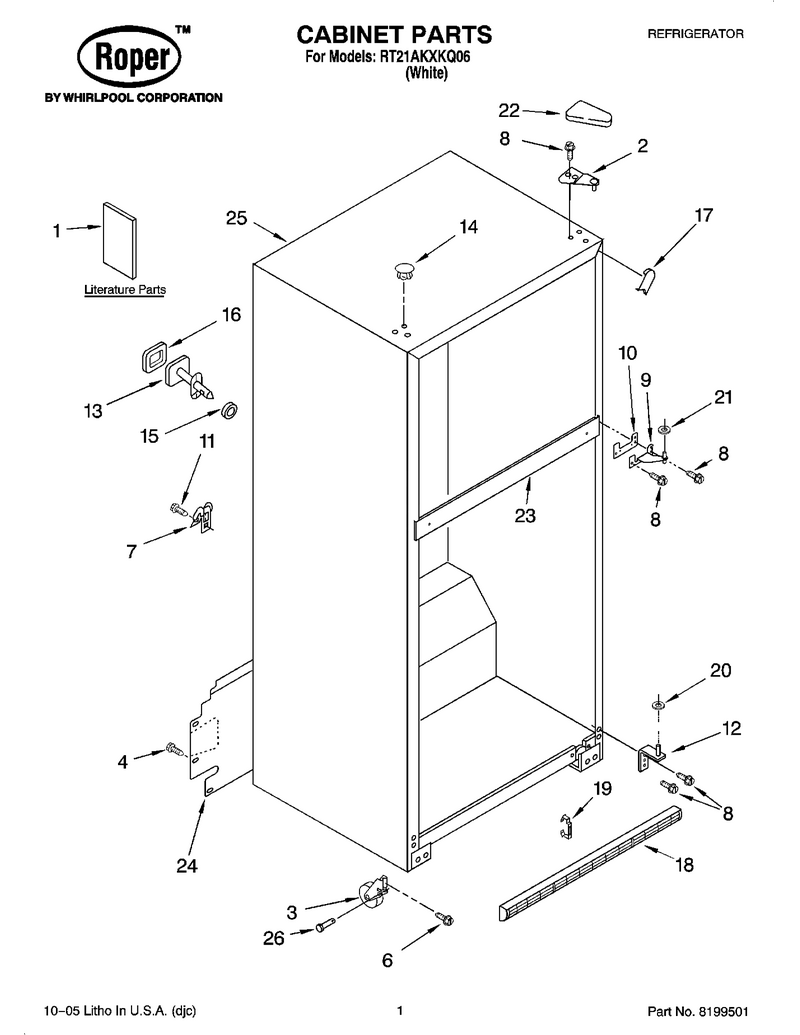

01 - Cabinet Parts

...
...
1
Energy Label WPL-2302173
...
2
Hinge-Door WPL-WP2261963
...
3
Roller-Cab WPL-WP2166108
...
4
Screw WPL-WP489427
...
6
Screw WPL-WP3400504
...
7
Clamp, Cord WPL-549193
...
8
Screw WPL-WP489497
...
9
Hinge-Door WPL-WP2254618
...
10
Shim WPL-WP2183854
...
11
Screw WPL-WP489464
...
12
Hinge-Door WPL-WP2254473
...
13
Fitting, Water Tube (Not Serviced) WPL---
...
14
Button-Plg WPL-WP2151652
...
15
Seal, Front (Not Serviced) WPL---
...
16
Seal, Rear (Not Serviced) WPL---
...
17
Filler WPL-WPW10283959
...
18
Grille WPL-WP2254313
...
19
Clip WPL-WP2189356
...
20
Washer WPL-WP487576
...
21
Washer WPL-WP489467
...
22
Cover WPL-WP2213360
...
23
Rail Center (Not Serviced) WPL---
...
24
Cover-Unit WPL-WP2254576
...
25
Cabinet (Not A Serviceable Part) WPL---
...
26
Axle WPL-W11594405
