Roper RT21AKXGN00

Model: RT21AKXGN00

Save Part Not Listed?
product name

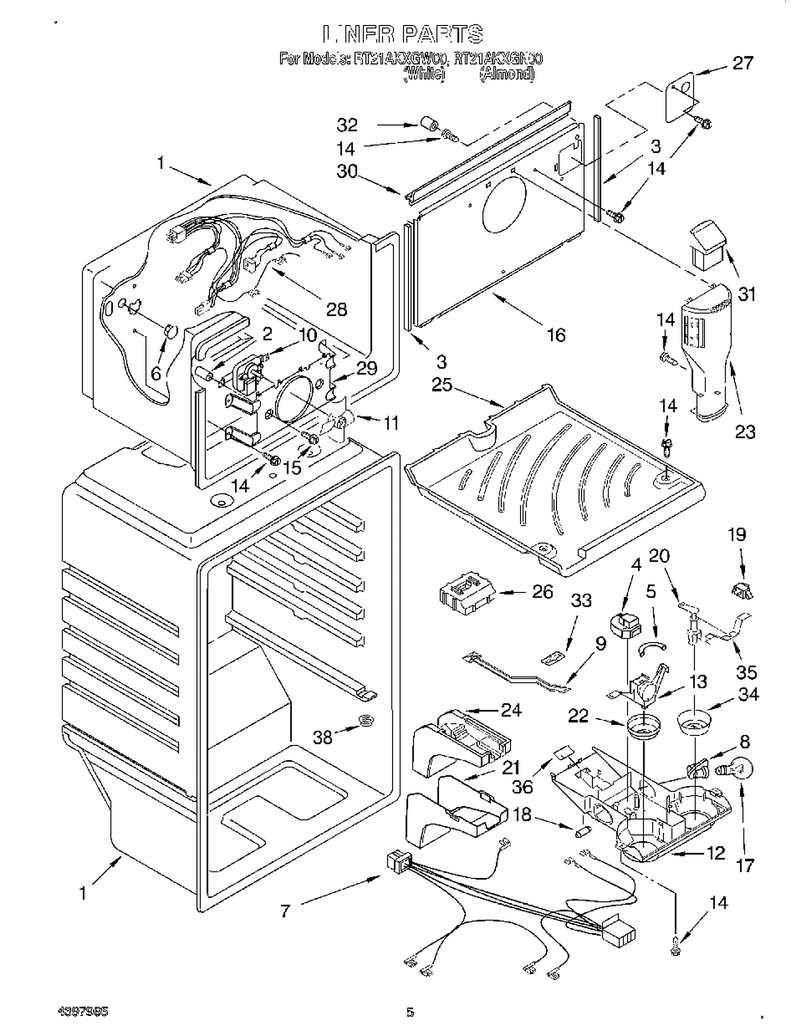

03 - Liner

...
...
1
Liner (Not A Serviceable Part) WPL---
...
2
Grommet WPL-WP531933
...
3
Gasket WPL-WP2254360
...
4
Timer-Def WPL-W10822278
...
5
Barrier WPL-WP2196003
...
6
Button-Plg WPL-WP941839
...
7
Wire Assy. Control Box WPL-2200827
...
8
Capacitor (Service) WPL-4387478
...
9
Damper, Air WPL-4387121
...
10
Motor-Evap WPL-WP4389142
...
11
Blade-Fan WPL-WP2163777
...
12
Control Box WPL-2179790
...
13
Thermostat WPL-4387562
...
14
Screw WPL-WP489478
...
15
Screw WPL-489412
...
16
Cover-Evaporator WPL-2189823
...
17
Light Bulb WPL-8009
...
18
Weight, Thermal WPL-2163802
...
19
Switch WPL-W11384469
...
20
Damper, Air WPL-4387121
...
21
Cover, Air Diffuser WPL-2176281
...
22
Knob-Therm WPL-WP2193455
...
23
Air-Tower WPL-WP2182340
...
24
Diffuser WPL-WP2189452
...
25
Floor, Freezer WPL-2184617
...
26
Air Diffuser, Top WPL-2179877
...
27
Cover WPL-WP2217784
...
28
Wire Assembly, Frz. Compartment WPL-2195656
...
29
Bracket, Fan Motor WPL-2200641
...
30
Gasket WPL-WP2254360
...
31
Insert WPL-4388450
...
32
Cap-Tube WPL-WP487996
...
33
Clip, Defrost Timer WPL-2176341
...
34
Knob, Damper WPL-2176297
...
35
Bracket, Damper Knob WPL-2163810
...
36
Seal WPL-WP2205079
...
38
Releas-Vac WPL-WP2210509

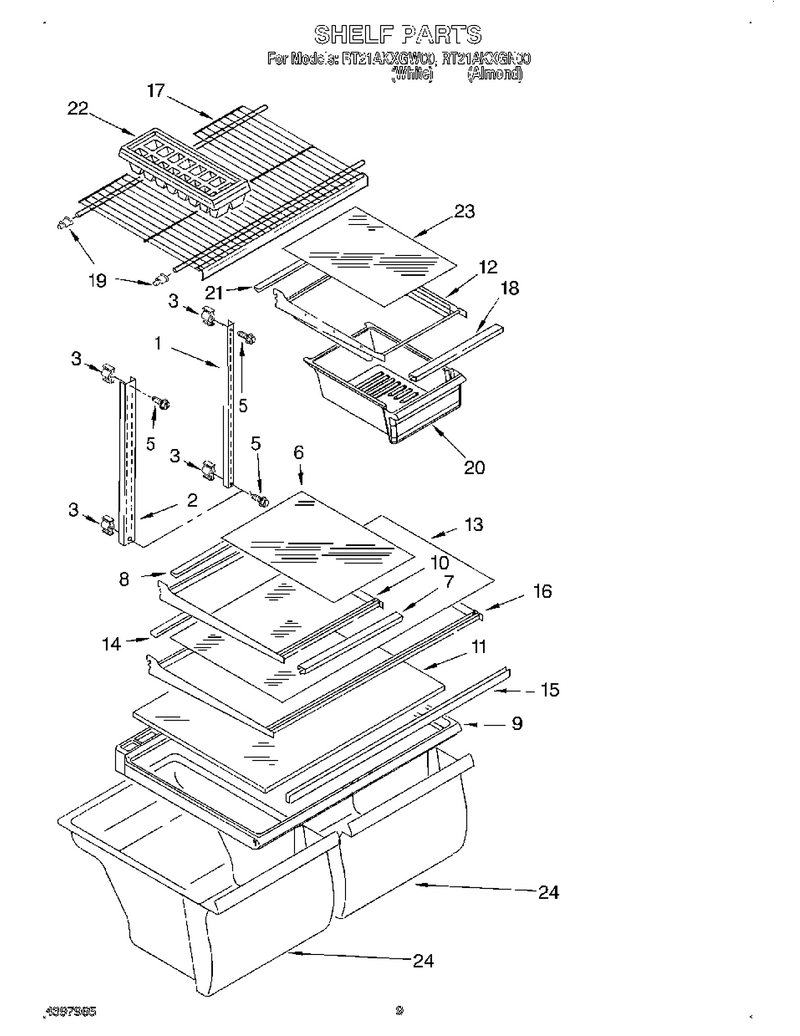

05 - Shelf, Lit/optional

...
...
Torx Key WPL-1117510
...
1
Shelf, Ladder (2) WPL-2163756
...
2
Shelf, Ladder Center WPL-2163826
...
3
Screw Support Center WPL-2189314
...
5
Screw WPL-W11544659
...
6
Glass, Shelf WPL-2174694
...
7
Trim, Shelf WPL-2176263
...
8
Trim, Shelf Rear WPL-2193393
...
9
Cover WPL-WP2314549
...
10
Frame-Shlf WPL-WP2201102
...
11
Shelf-Glas WPL-WP2176225
...
12
Pan Shelf, Cantilever WPL-2176306
...
13
Glass, Full Shelf WPL-2174693
...
14
Trim, Rear Shelf WPL-2193395
...
15
Support WPL-WP2172748
...
16
Shelf, Full Cantilever WPL-2163863
...
17
Shelf, Freezer WPL-2184667
...
18
Trim, Shelf WPL-2193396
...
19
Cup, Shelf Mtg. WPL-2163762
...
20
Pan-Meat WPL-WP2218132K
...
21
Trim, Shelf Rear WPL-2193393
...
22
Tray WPL-WP841180A
...
23
Glass, Shelf WPL-2174694
...
24
Pan-Crispr WPL-W10854037
...
100
Cement, Alumilastic (1 1/4 Oz.) WPL-542639

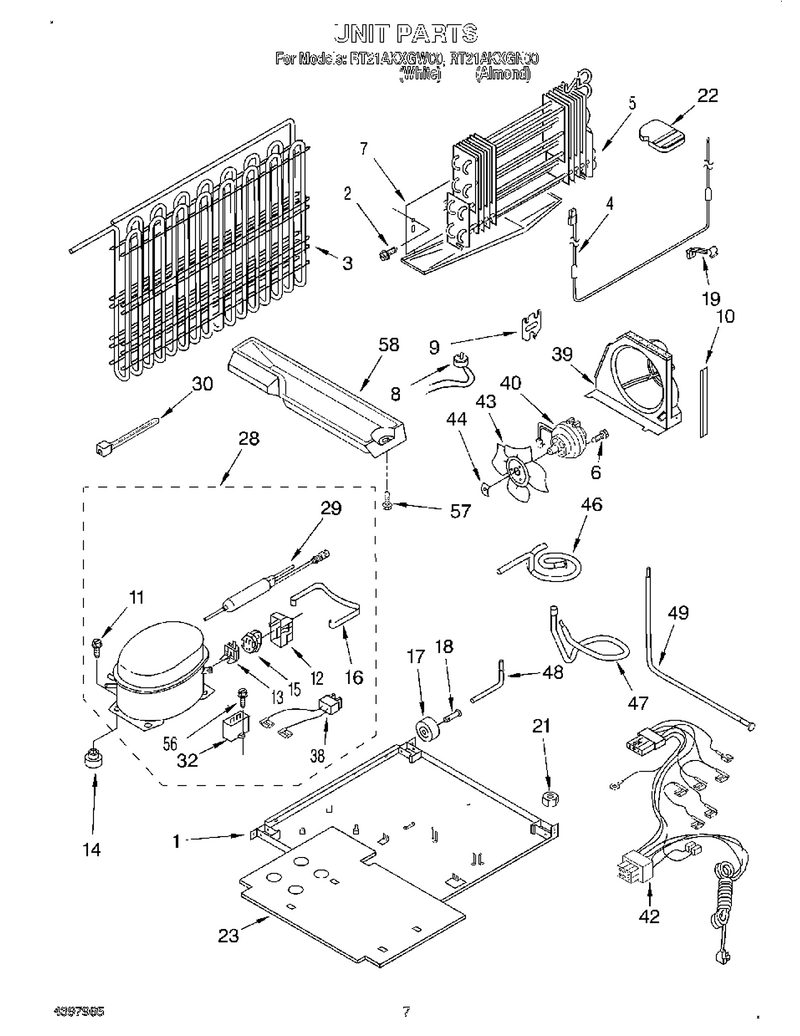

04 - Unit

...
...
1
Plate, Unit Mounting WPL-2195272
...
2
Screw WPL-WP489478
...
3
Condenser WPL-2195400
...
4
Heater WPL-WP2315530
...
5
Evaporator Assy. WPL-2195390
...
6
Screw WPL-WP8281196
...
7
Drain Pan WPL-2172620
...
8
Bimetl-Def WPL-WP4387503
...
9
Bracket, Heater WPL-2176301
...
10
Extension, Air Baffle WPL-2300638
...
11
Screw WPL-W11661574
...
12
Cover WPL-1105055
...
13
Overload (Includes Relay) (Service) WPL-4387913
...
14
Grommet (4) ((Production)) WPL-876811
...
15
Relay (See Overload) WPL---
...
16
Cover, Strap WPL-943322
...
17
Roller-Cab WPL-4388239
...
18
Axle WPL-W11594405
...
19
Clip, Heater WPL-2182338
...
21
Nut (Not Serviced) WPL---
...
22
Support Block WPL-2189906
...
23
Cover, Unit WPL-2198740
...
28
Tube Kit WPL-876765
...
29
Drier-Tube WPL-W10843121
...
30
Tie-Wire WPL-WPW10339879
...
32
Capacitor (Service Only) WPL-2169137
...
38
Wire WPL-WP2172890
...
39
Baffle-Air WPL-WP2198921
...
40
Motor-Cond WPL-W10822259
...
42
Wire Assy. Unit WPL-2189997
...
43
Blade-Fan WPL-WP2190685
...
44
Nut WPL-WP486692
...
46
Tube, Discharge WPL-2201141
...
47
Tube, Suction WPL-2189173
...
48
Tube, Process WPL-2154109
...
49
Tube, Condenser To Heat Loop WPL-2174670
...
56
Grommet (4) ((Production)) WPL-876811
...
57
Screw WPL-489462
...
58
Valve, Access (5/8``) WPL-978029

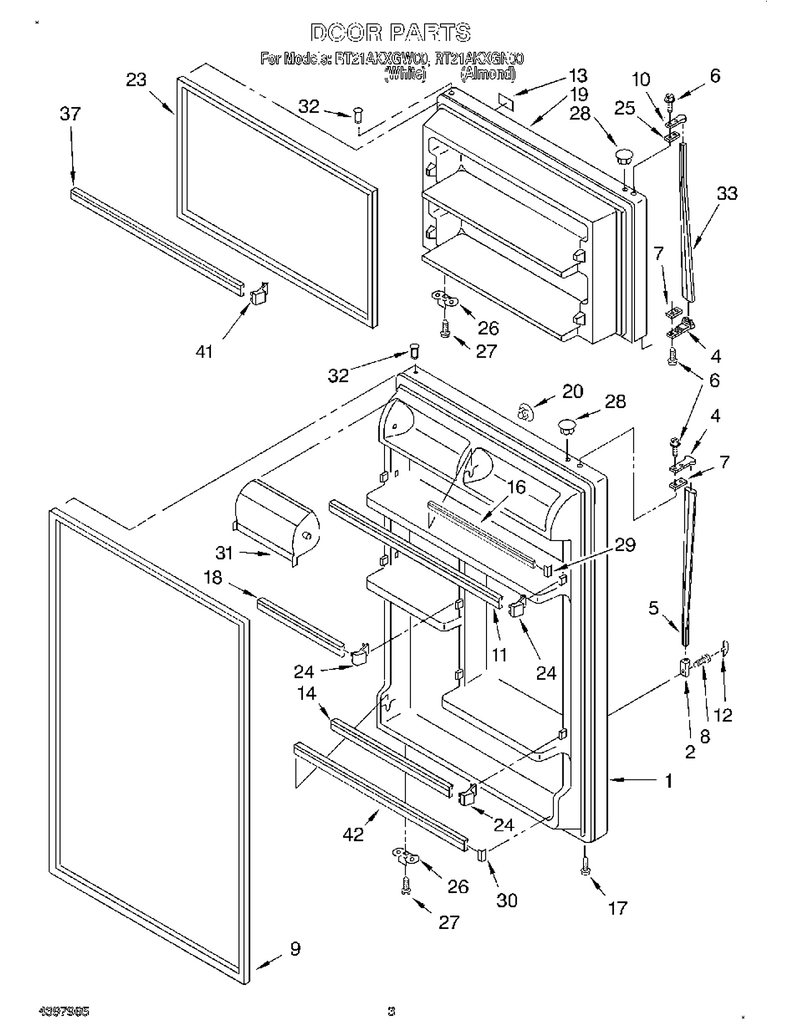

02 - Door

...
...
1
Dor-Fip Al WPL-L2183947
...
2
Endcap-Hdl WPL-819342
...
4
Endcap-Hdl WPL-819342
...
5
Handle WPL-WP2162555
...
6
Screw WPL-WP488920
...
7
Spacer WPL-WP943188
...
8
Screw WPL-WP488729
...
9
Door Gasket, Magnetic WPL-2159061
...
10
Endcap-Hdl WPL-819342
...
11
Trim-Door WPL-WP2195944
...
12
Cover WPL-WP9791769
...
13
Nameplate (White) WPL-2200503
...
14
Trim-Door WPL-WP2195943
...
16
Trim-Door WPL-WP2201061
...
17
Screw WPL-WP8281206
...
18
Trim-Door WPL-WP2157313
...
19
Dor-Fip WPL-W11023679
...
20
Plug-Hndle WPL-WP2189008
...
23
Door Gasket, Magnetic WPL-2159060
...
24
Endcap WPL-WP2195915
...
25
Shim WPL-943187
...
26
Bracket WPL-W11745278
...
27
Screw WPL-WP488921
...
28
Hole Plug (Almond) WPL-989196
...
29
Endcap-Trm WPL-WP2156007
...
30
Endcap-Trm WPL-WP2156006
...
31
Door-Comp WPL-WP2218118
...
32
Thimble WPL-WP2183003
...
33
Handle, F.c. (Almond) WPL-2171044
...
37
Trim-Door WPL-WP2195947
...
41
Endcap WPL-WP2195916K
...
42
Trim-Door WPL-WPW10421486
...
100
Featurepak (Includes 11, 14, 16, 18, 24, 29, 30, 37, 41, 42) Also See Shelf Page. WPL-2199045

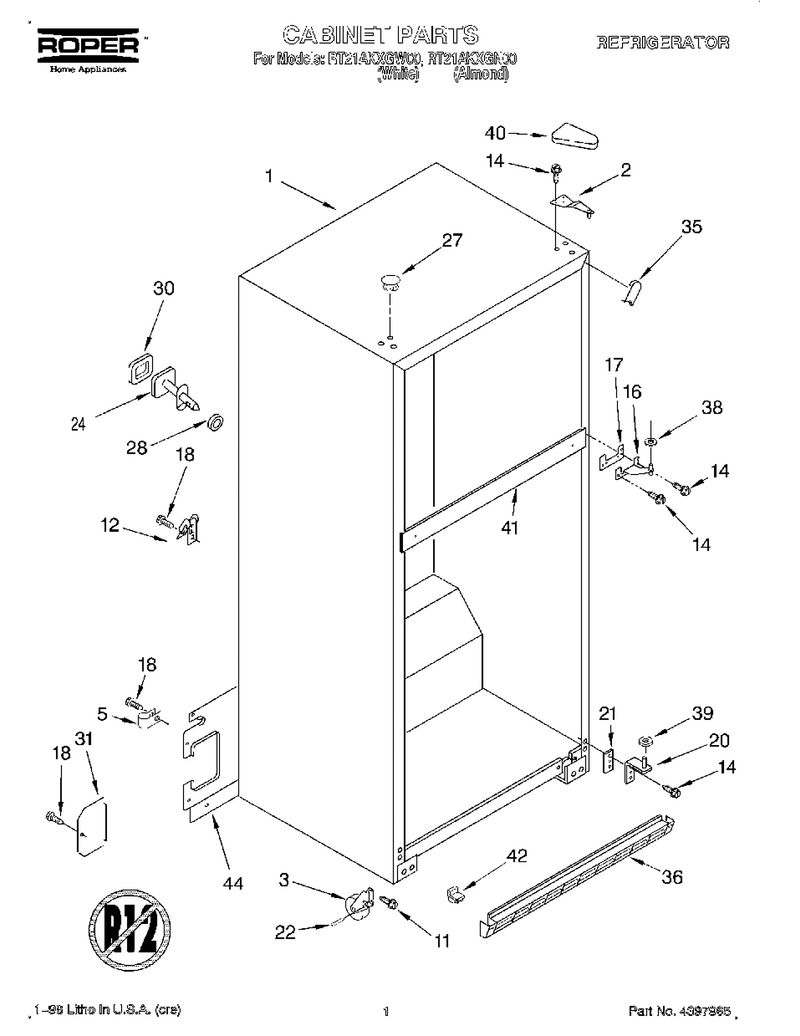

01 - Cabinet

...
...
1
Cabinet (Not A Serviceable Part) WPL---
...
2
Hinge-Door WPL-WP2261963
...
3
Roller-Cab WPL-WP2166108
...
5
Clamp WPL-WP488366
...
11
Screw-Kit WPL-4388557
...
12
Clamp, Cord WPL-549193
...
14
Screw WPL-WP489497
...
16
Hinge-Door WPL-WP2254618
...
17
Shim WPL-WP2183854
...
18
Screw WPL-WP489464
...
20
Hinge-Door WPL-WP2254473
...
21
Shim, Bottom Hinge WPL-2172743
...
22
Axle WPL-W11594405
...
24
Fitting, Water Tube (Not Serviced) WPL---
...
27
Hole Plug WPL-2151653
...
28
Seal, Front (Not Serviced) WPL---
...
30
Seal, Rear (Not Serviced) WPL---
...
31
Cover, Water Valve WPL-2166251
...
35
Corner Filler (2) (Almond) WPL-2201015
...
36
Grille (Almond) WPL-2183992
...
38
Washer WPL-WP489467
...
39
Washer WPL-WP487576
...
40
Cover WPL-WP2213360
...
41
Rail Center (Not Serviced) WPL---
...
42
Corner Filler, Grille (White) WPL-2166156
...
44
Cover-Unit WPL-WP2302358
