Roper RT20AKXXW01

Model: RT20AKXXW01

Save Part Not Listed?
product name

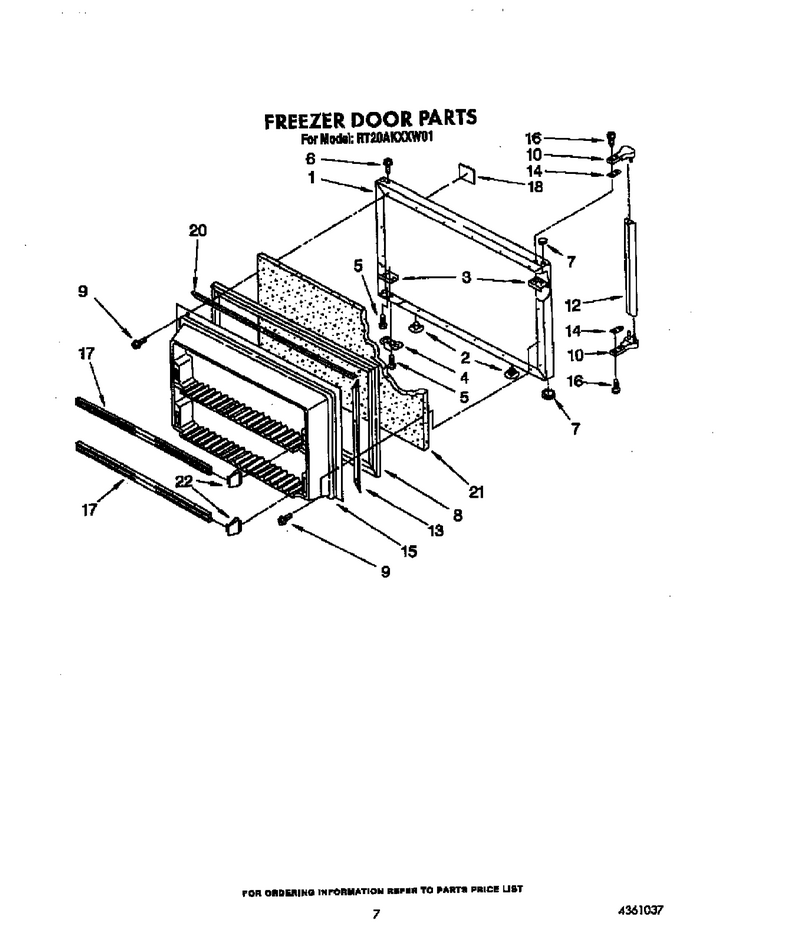

06 - Freezer Door

...
...
1
Panel, Freezer Door (Also Order Item 21) (White) WPL-1122550
...
2
Hole Plug (2) (White) WPL-534927
...
3
Plate WPL-W10833053
...
4
Bracket WPL-W11745278
...
5
Screw WPL-WP488921
...
6
Screw WPL-WP8281206
...
7
Button-Plg WPL-WP2212648
...
8
Gasket-Dor WPL-2188460A
...
9
Screw WPL-WPW10141645
...
10
End Cap, Handle (2) WPL-944157
...
12
Handle, Center WPL-1119757
...
13
Retainer, Gasket WPL-1122553
...
14
Spacer WPL-WP943188
...
15
Interior Door Panel WPL-1122575
...
16
Screw WPL-WP488920
...
17
Trim, Shelf WPL-2152563
...
18
Nameplate WPL-1124315
...
20
Retainer, Gasket WPL-1122552
...
21
Kit, Foam Slab (Required When Replacing Exterior Door Panel) WPL-876029
...
22
Endcap-Trm WPL-4386917

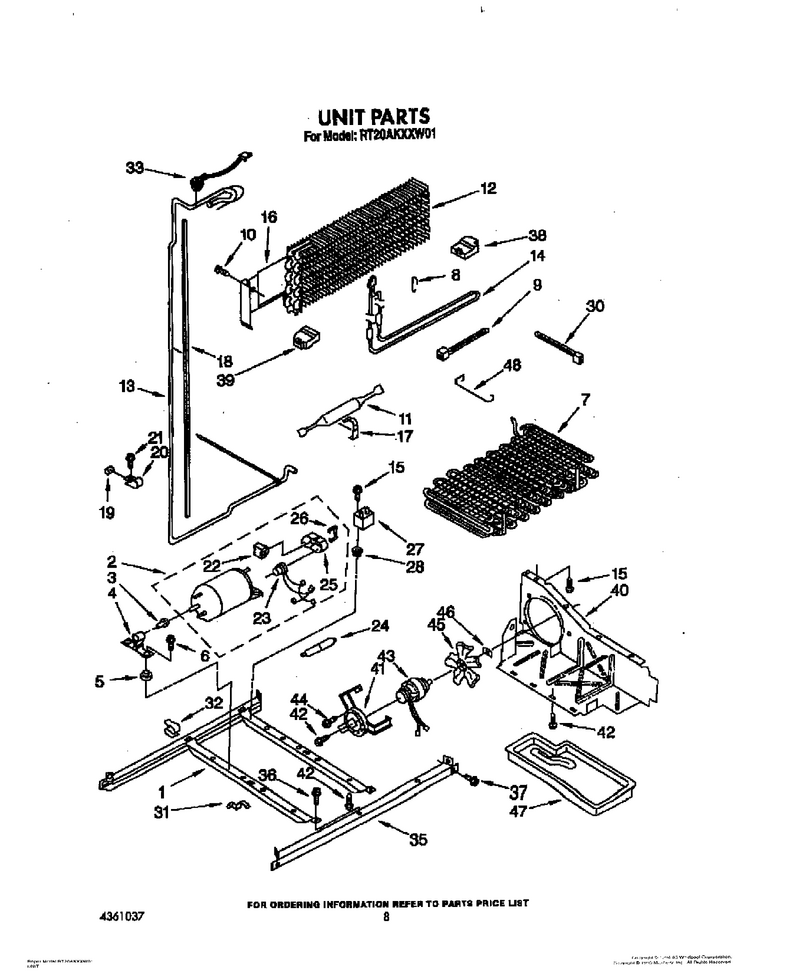

07 - Unit

...
...
1
Unit, Frame WPL-2154451
...
2
Compressor Kit Includes Items (22, 23, 25, 26) WPL-4317834
...
3
Grommet, Compressor Bracket WPL-1105219
...
4
Bracket, Mounting WPL-1105220
...
5
Grommet, Compressor (4) WPL-1105200
...
6
Screw (4) WPL-489334
...
7
Condenser Assembly WPL-2149613
...
8
Support, Heater WPL-851358
...
9
Clip, Harness (2) WPL-3391249
...
10
Screw WPL-WP965173
...
11
Drier-Tube WPL-W10843121
...
12
Evaporator WPL-2153979
...
13
Heat, Exchanger WPL-2149616
...
14
Heater, Defrost WPL-2149645
...
15
Screw WPL-WP489478
...
16
Heat Shield WPL-1105545
...
17
Clamp, Dryer WPL-1127590
...
18
Sleeve WPL-WP2002171
...
19
Dampener WPL-1108064
...
20
Tube Clamp (2) WPL-510716
...
21
Screw WPL-WPW10141625
...
22
Relay, (For Service Compressor Only) WPL-1108066
...
23
Overload WPL-819098
...
24
Muffler WPL-1118921
...
25
Terminal Cover WPL-1105221
...
26
Strap, Cover WPL-1105222
...
27
Capacitor WPL-WPW10662129
...
28
Grommet (4) WPL-937252
...
30
Strap WPL-851095
...
31
Clip, Unit Cover WPL-548744
...
32
Clip, Wire (2) WPL-548745
...
33
Bimetl-Def WPL-WP4387503
...
35
Unit, Rail WPL-2149717
...
36
Screw WPL-WP489427
...
37
Screw (4) WPL-489340
...
38
Support, Evap. (Right Side) WPL-1118550
...
39
Support, Evaporator (L.s.) WPL-1118551
...
40
Air Baffle WPL-2169417
...
41
Fan, Mounting Bracket WPL-548695
...
42
Screw, No.8-18 X 3/8``, Hwhtcs WPL-4159456
...
43
Motor-Cond WPL-833697
...
44
Screw, 8-32 X 3/8 WPL-681390
...
45
Blade-Fan WPL-WP1108179
...
46
Nut WPL-WP486692
...
47
Tray-Evap WPL-WPW10614158
...
48
Valve, Access (3/16``) WPL-876764

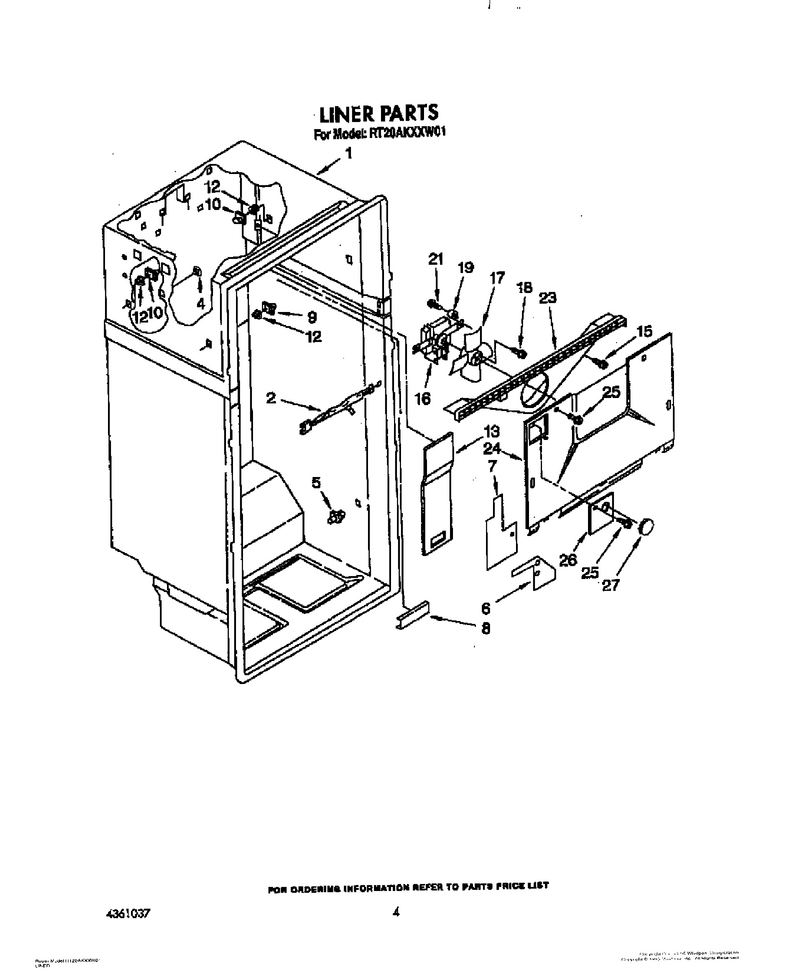

03 - Liner

...
...
1
Liner (Not A Serviceable Part) WPL---
...
2
Harns-Wire WPL-WP1127626
...
4
Button-Plg WPL-WP941839
...
5
Stud-Shelf WPL-W10854959
...
6
Electrical Shield WPL-2151521
...
7
Electrical Shield WPL-2151616
...
8
Electrical, Shield WPL-1106892
...
9
Stud-Shelf WPL-W11581579
...
10
Stud-Shelf WPL-819091
...
12
Stud-Shelf WPL-W11581579
...
13
Cover, Air Duct WPL-2157410
...
15
Screw WPL-WP489478
...
16
Motor-Evap WPL-482731
...
17
Blade-Fan WPL-WP1100938
...
18
Screw WPL-WP487887
...
19
Grommet WPL-WP531933
...
21
Screw WPL-489168
...
23
Scroll, Fan WPL-2169467
...
24
Evaporator Cover WPL-1118708
...
25
Screw WPL-WP488729
...
26
Cover WPL-WP2217784
...
27
Hole Plug WPL-1103725

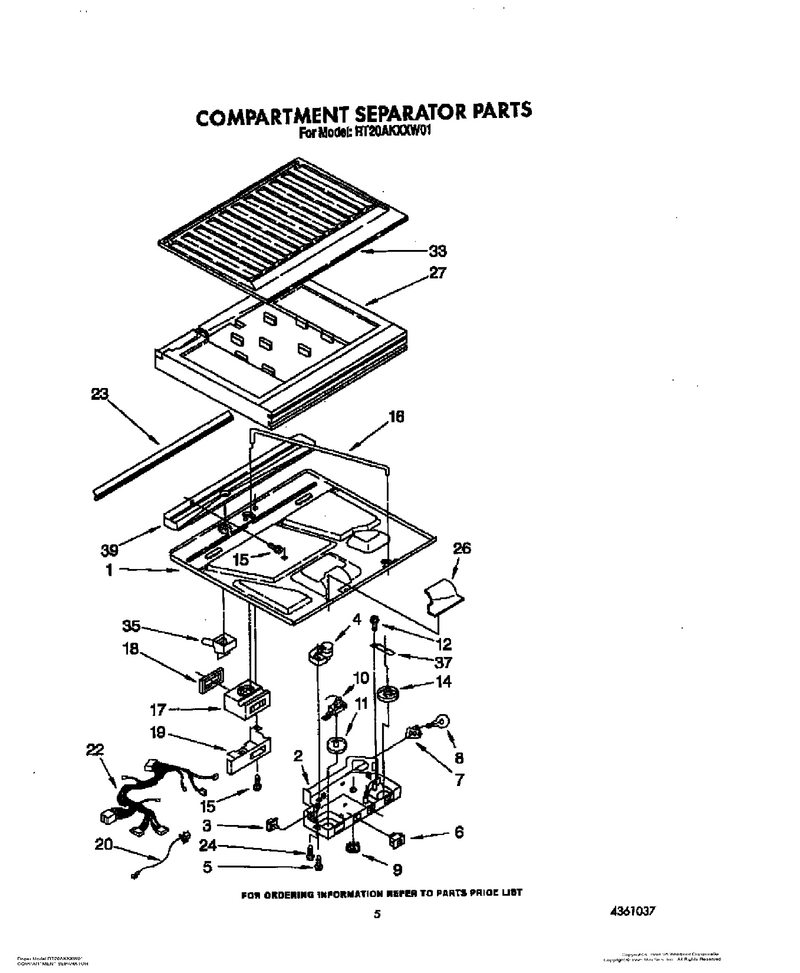

04 - Compartment Separator

...
...
1
Bottom, Compartment Separator WPL-2172816
...
2
Box, Control WPL-1105455
...
3
Switch WPL-WP2149705
...
4
Timer-Def WPL-W10822278
...
5
Screw WPL-WP487353
...
6
Switch-Pm WPL-WP938213
...
7
Capacitor (Service) WPL-4387478
...
8
Bulb-Light WPL-W11679940
...
9
Hole Plug WPL-940014
...
10
Thermostat WPL-1123394
...
11
Knob, Thermostat WPL-1106931
...
12
Screw WPL-WP965173
...
14
Knob WPL-1115047
...
15
Screw WPL-WP489478
...
16
Rod, Connecting WPL-1105459
...
17
Air Diffuser Assembly WPL-2160771
...
18
Gasket, Air Diffuser WPL-2157255
...
19
Cover, Air Diffuser WPL-1108176
...
20
Ground Wire WPL-1114482
...
22
Wiring Assembly, Control Box WPL-2154418
...
23
Gasket, Bottom Separator WPL-2159734
...
24
Screw WPL-WP489478
...
26
Insulation, Filler WPL-942817
...
27
Insulation, Compartment Separator WPL-1105463
...
33
Separator, Compartment (Top) WPL-1129022
...
35
Cup, Drain WPL-937065
...
37
Bracket, Control Knob WPL-1105457
...
39
Drain Pan WPL-1105521

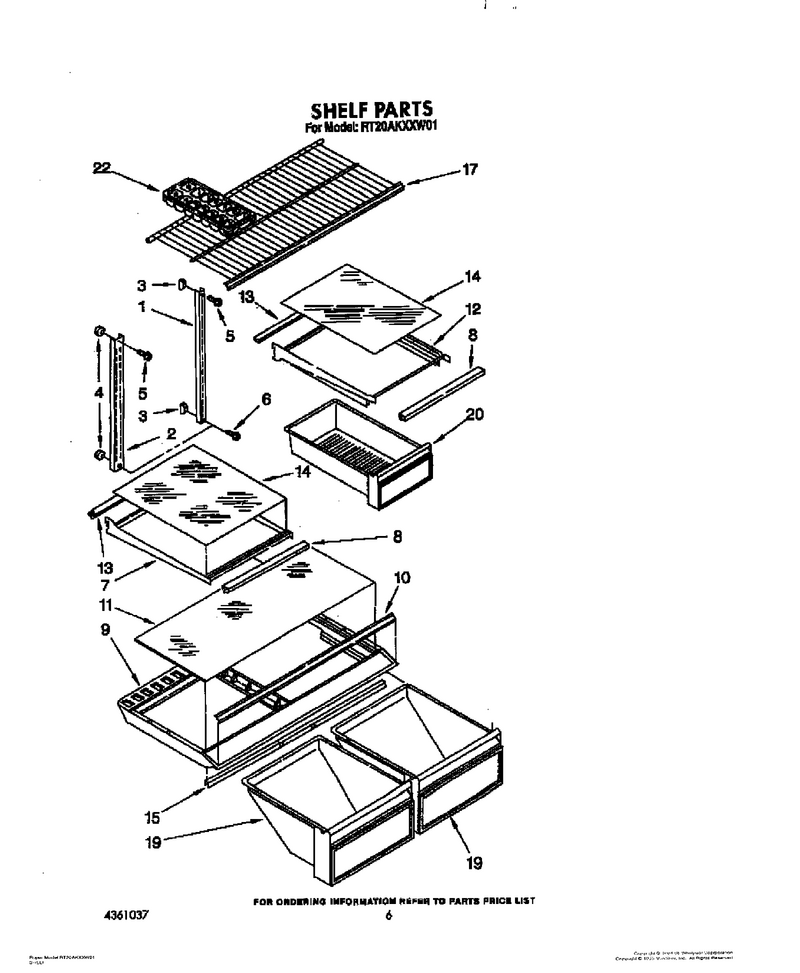

05 - Shelf

...
...
1
Shelf, Ladder (2) WPL-1114466
...
2
Shelf, Ladder Center WPL-1114465
...
3
Screw, Support (4) WPL-520965
...
4
Support WPL-938459
...
5
Screw WPL-489383
...
6
Screw WPL-WP488163
...
7
Shelf, Cantilever WPL-2173421
...
8
Trim, Shelf WPL-1124366
...
9
Cover WPL-WP2151749
...
10
Trim, Crisper Cover WPL-2172711
...
11
Shelf-Glas WPL-WP2164376
...
12
Pan Shelf, Cantilever WPL-1110756
...
13
Retainer, Shelf WPL-1125525
...
14
Shelf-Glas WPL-2164378
...
15
Support WPL-WP2172748
...
17
Shelf, Freezer WPL-1106615
...
19
Pan-Crispr WPL-1120427
...
20
Pan-Meat WPL-1126921
...
22
Tray WPL-WP841180A

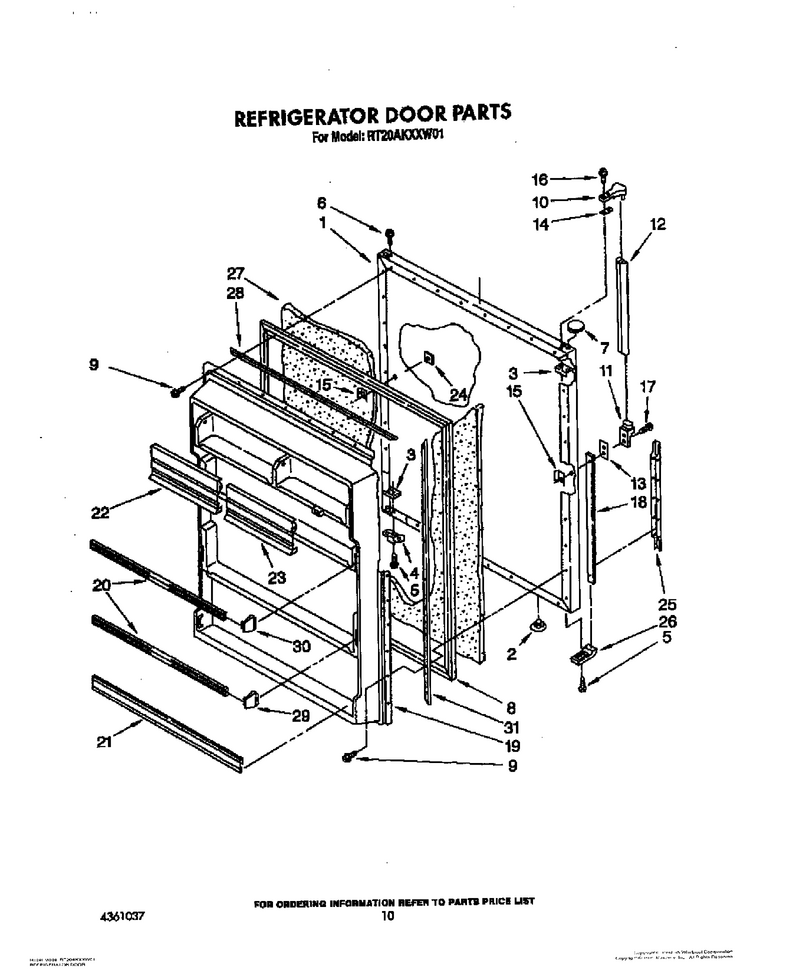

08 - Refrigerator Door, Lit/optional

...
...
Xenamel, Almond (13 Oz. Spray Can) WPL-350956
...
1
Panel, Refrigerator Door (Also Order Item 27) (White) WPL-1122549
...
2
Hole Plug (2) WPL-534927
...
3
Plate WPL-W10833053
...
4
Bracket WPL-W11745278
...
5
Screw WPL-WP488921
...
6
Screw WPL-WP8281206
...
7
Hole Plug (Almond) WPL-989196
...
8
Gasket-Dor WPL-2188450A
...
9
Screw WPL-WPW10141645
...
10
End Cap, Top WPL-944157
...
11
Handle End, Center WPL-936930
...
12
Handle, Center WPL-1119757
...
13
Shim, Handle WPL-935076
...
14
Spacer WPL-WP943188
...
15
Plate WPL-WP939101
...
16
Screw WPL-WP488920
...
17
Screw WPL-WP488729
...
18
Retainer, Insert WPL-1118080
...
19
Interior Door Panel WPL-2156205
...
20
Trim, Shelf WPL-2152563
...
21
Trim-Door WPL-WP1120826
...
22
Compartment Door, Utility WPL-1114427
...
23
Compartment, Butter Door WPL-1114426
...
24
Plug-Hndle WPL-WP2189008
...
25
Insert, Handle WPL-1124378
...
26
Endcap WPL-1124684
...
27
Foam Insulation (Required When Replacing Exterior Door Panel) WPL-876029
...
28
Gasket, Retainer WPL-1122552
...
29
Endcap-Trm WPL-4318297
...
30
Endcap-Trm WPL-4386917
...
31
Sealer WPL-WP505587

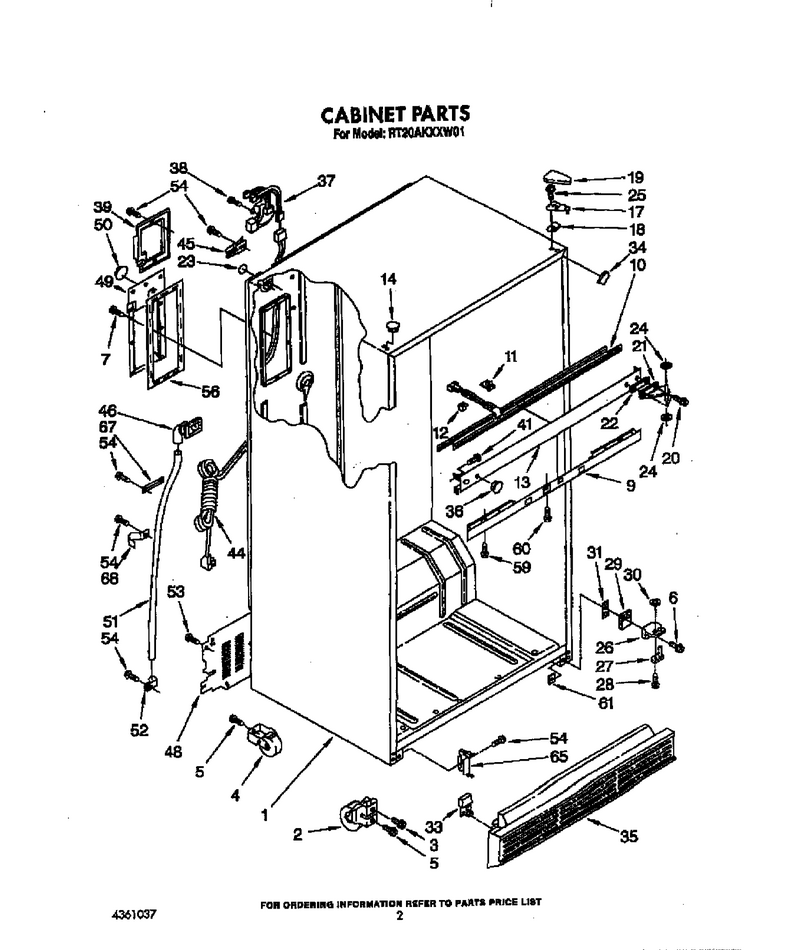

02 - Cabinet

...
...
1
Cabinet (Not A Serviceable Part) WPL---
...
2
Roller, Front WPL-2152011
...
3
Screw, Adjusting WPL-488681
...
4
Roller-Cab WPL-WPW10250570
...
5
Screw WPL-WP489427
...
6
Screw WPL-489327
...
7
Screw WPL-WP489464
...
9
Control, Front Cover WPL-1114312
...
10
Heater, Mullion WPL-1105433
...
11
Clip, Mullion (3) WPL-2149060
...
12
Spacer (3) WPL-2149077
...
13
Center Rail WPL-2172705
...
14
Button-Plg WPL-WP2151652
...
17
Shim, Hinge Top WPL-1100513
...
18
Shim, Hinge Top WPL-1100511
...
19
Hinge Cover (White) WPL-1119787
...
20
Screw WPL-WP999367
...
21
Hinge-Door WPL-W10851192
...
22
Shim, Hinge Center WPL-836155
...
23
Icemaker, Hole Seal WPL-2185731
...
24
Washer WPL-WP488296
...
25
Screw WPL-WP489349
...
26
Hinge Butt, Bottom WPL-836159
...
27
Pin-Hinge WPL-WP654366
...
28
Screw WPL-WP488714
...
29
Shim WPL-4388138
...
30
Washer WPL-WP489200
...
31
Spacer, Hinge WPL-1129868
...
33
Corner Filler, Grille WPL-1118078
...
34
Filler, Wrapper (Almond) WPL-2196095
...
35
Grille WPL-WP2155476
...
36
Hole Plug (3) (White) WPL-842031
...
37
Cabinet, Wiring Assembly WPL-2149634
...
38
Screw WPL-WP250830
...
39
Cover, Wiring WPL-1105606
...
41
Screw WPL-WP489174
...
44
Cord, Service WPL-937360
...
45
Clamp WPL-937357
...
46
Fitting, Drain WPL-937062
...
48
Cover, Unit WPL-1105531
...
49
Cover, Plug WPL-2147326
...
50
Icemaker, Hole Seal WPL-2185731
...
51
Tube-Drain WPL-8316810
...
52
Clamp WPL-836077
...
53
Screw WPL-WPW10141645
...
54
Screw WPL-WP489478
...
56
Sealing Gasket WPL-1115322
...
59
Screw WPL-WP488163
...
60
Screw WPL-WP489174
...
61
Tap-Plate, Bottom Hinge WPL-2147310
...
65
Clip WPL-WP2155013
...
67
Tube Clamp WPL-1105607
...
68
Clamp WPL-1110564
