Roper RT18DKXWW00

Model: RT18DKXWW00

Save Part Not Listed?
product name

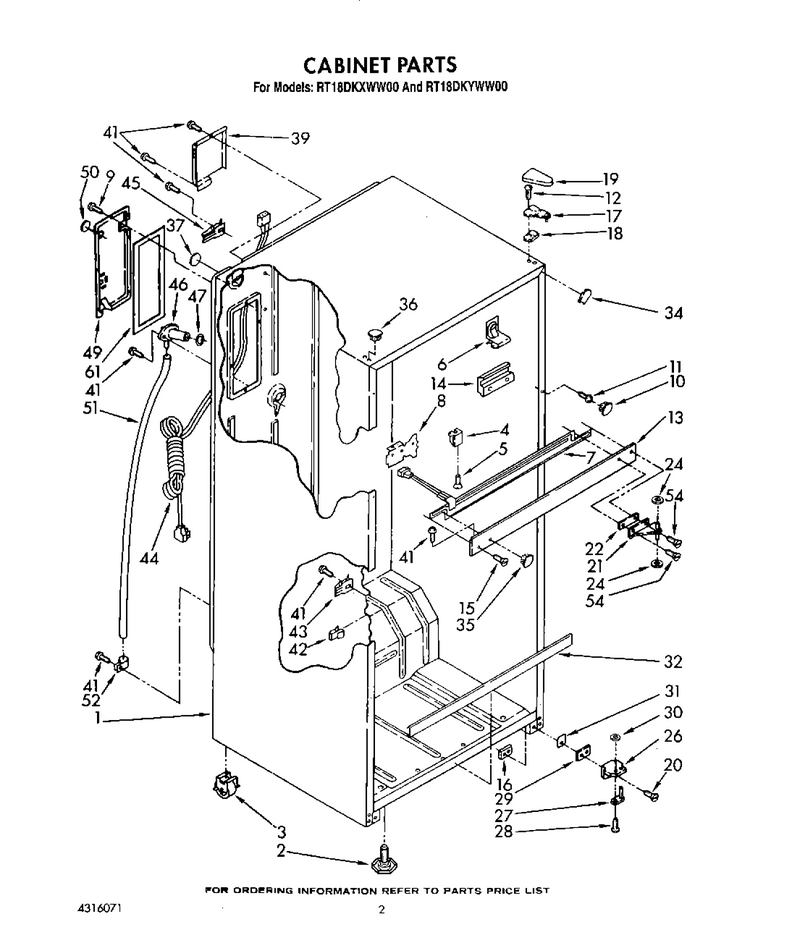

02 - Cabinet

...
...
1
Cabinet (Not A Serviceable Part) WPL---
...
2
Leveler WPL-4389110
...
3
Roller, Rear (2) WPL-2152014
...
4
Spacer (2) WPL-2149077
...
5
Screw WPL-WP488163
...
6
Clip, Mullion (3) WPL-2149060
...
7
Heater WPL-483140
...
8
Center Rail, Bracket (2) WPL-1110231
...
9
Screw WPL-WP489464
...
10
Hole Plug (2) (Almond) WPL-1126571
...
11
Screw, (Repair) WPL-487246
...
12
Screw (Repair) WPL-489297
...
13
Center Rail (Golden Harvest) WPL-1110344
...
14
Center, Rail Shim (2) WPL-2151428
...
15
Screw WPL-489319
...
16
Tap Plate (2) WPL-2147312
...
17
Shim, Hinge Top WPL-1100513
...
18
Shim, Hinge Top WPL-1100511
...
19
Hinge Cover (Golden Harvest) WPL-989896
...
20
Screw (Repair) WPL-489297
...
21
Hinge-Door WPL-W10851192
...
22
Shim, Hinge Center WPL-836155
...
24
Washer WPL-WP488296
...
26
Hinge Butt, Bottom WPL-1123882
...
27
Pin-Hinge WPL-WP654366
...
28
Screw WPL-WP488714
...
29
Shim, Bottom WPL-943708
...
30
Washer, 7/64 WPL-489201
...
31
Cover, Glider Rail (2) (Golden Harvest) WPL-2151423
...
32
Cover, Deck Rail (Almond) WPL-1109368
...
34
Filler, Wrap Corner (2) (White) WPL-1110684
...
35
Hole Plug (White) WPL-1119707
...
36
Hole Plug (3) (Golden Harvest) WPL-989876
...
37
Icemaker, Hole Seal WPL-2185731
...
39
Cover, Wiring WPL-942845
...
41
Screw WPL-WP489478
...
42
Clip WPL-W10812038
...
43
Clamp, Service Cord WPL-549193
...
44
Cord, Service WPL-937360
...
45
Clamp WPL-937357
...
46
Fitting, Drain WPL-942813
...
47
Seal, Gasket WPL-1106507
...
49
Plug Assembly WPL-1106511
...
50
Icemaker, Hole Seal WPL-2185731
...
51
Tube-Drain WPL-8316810
...
52
Clamp WPL-519405
...
54
Screw WPL-WP999367
...
61
Seal, Gasket WPL-1106510

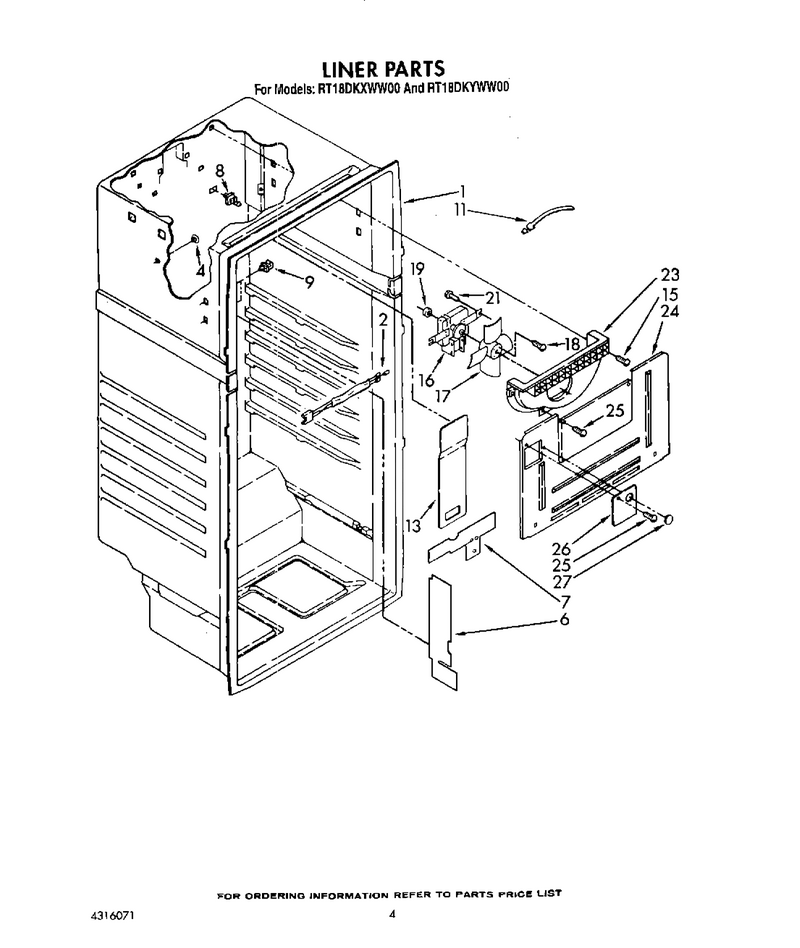

03 - Liner

...
...
1
Liner (Not A Serviceable Part) WPL---
...
2
Harns-Wire WPL-WP1127626
...
4
Button-Plg WPL-WP941839
...
6
Side, Electric Shield WPL-942751
...
7
Top, Electric Shield WPL-1129068
...
8
Stud, Evaporator (2) WPL-942750
...
9
Stud-Shelf WPL-WP939065
...
11
Clip, Harness (2) WPL-3391249
...
13
Cover-Duct WPL-2157409
...
15
Screw WPL-WP681414
...
16
Motor-Evap WPL-482731
...
17
Blade-Fan WPL-WP1100938
...
18
Screw WPL-WP487887
...
19
Grommet WPL-WP531933
...
21
Screw (2) WPL-489168
...
23
Scroll, Fan WPL-2178956
...
24
Evaporator Cover WPL-943741
...
25
Screw WPL-WP488729
...
26
Cover WPL-WP2217784
...
27
Hole Plug WPL-1103725

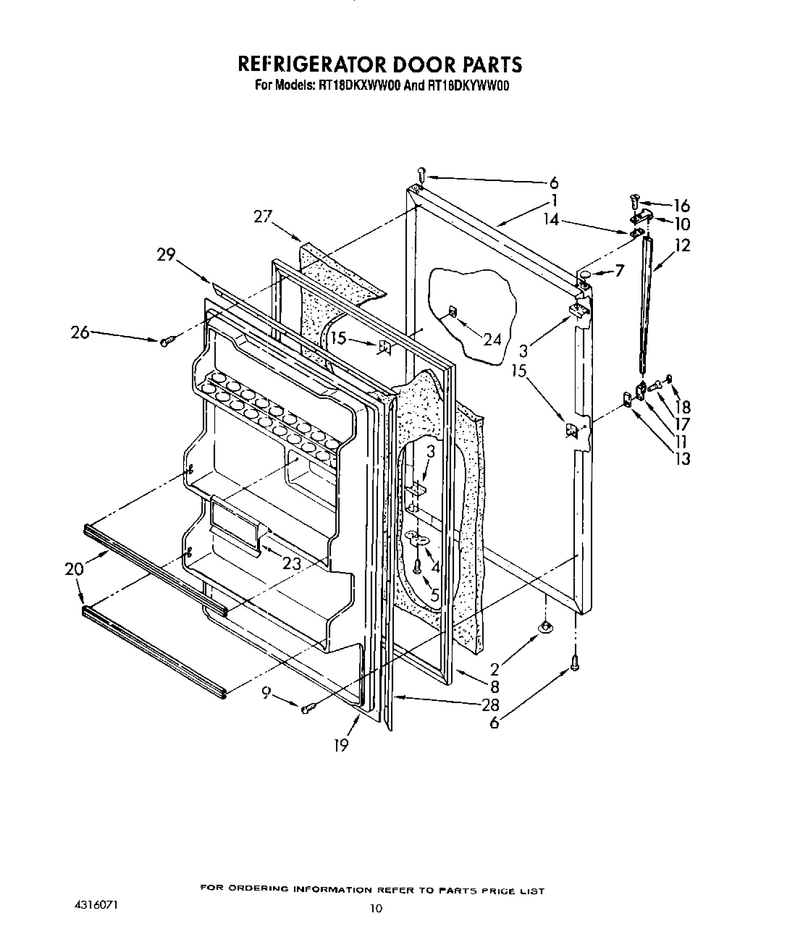

08 - Lit/optional

...
...
Energy Label WPL-LIT2150257
...
1
Panel, Refrigerator Door (Also Order Item 27) (Golden Harvest) WPL-1104634
...
2
Hole Plug (2) WPL-534927
...
3
Plate WPL-W10833053
...
4
Bracket WPL-W11745278
...
5
Screw (Repair) WPL-488930
...
6
Screw (Repair) WPL-488930
...
7
Button-Plg WPL-WP2212648
...
8
Gasket-Dor WPL-2188444A
...
9
Screw WPL-WPW10141645
...
10
Endcap-Hdl WPL-819342
...
11
Endcap-Hdl WPL-819342
...
12
Handle WPL-W10373956
...
13
Shim, Handle End (Side) WPL-992872
...
14
Spacer WPL-WP943188
...
15
Plate WPL-WP939101
...
16
Screw WPL-WP488920
...
17
Screw WPL-WP488729
...
18
Cover WPL-WP1101634
...
19
Panel-Int WPL-4210592
...
20
Trim, Door (2) WPL-1116062
...
23
Door-Comp WPL-943975
...
24
Plug-Hndle WPL-WP2189008
...
26
Screw WPL-WP488729
...
27
Foam Insulation (Required When Replacing Exterior Door Panel) WPL-876029
...
28
Gasket Retainer, Side (2) WPL-1120615
...
29
Kit, Foam Slab (30`` X 32 1/2`` X 1 1/2``) WPL-876029

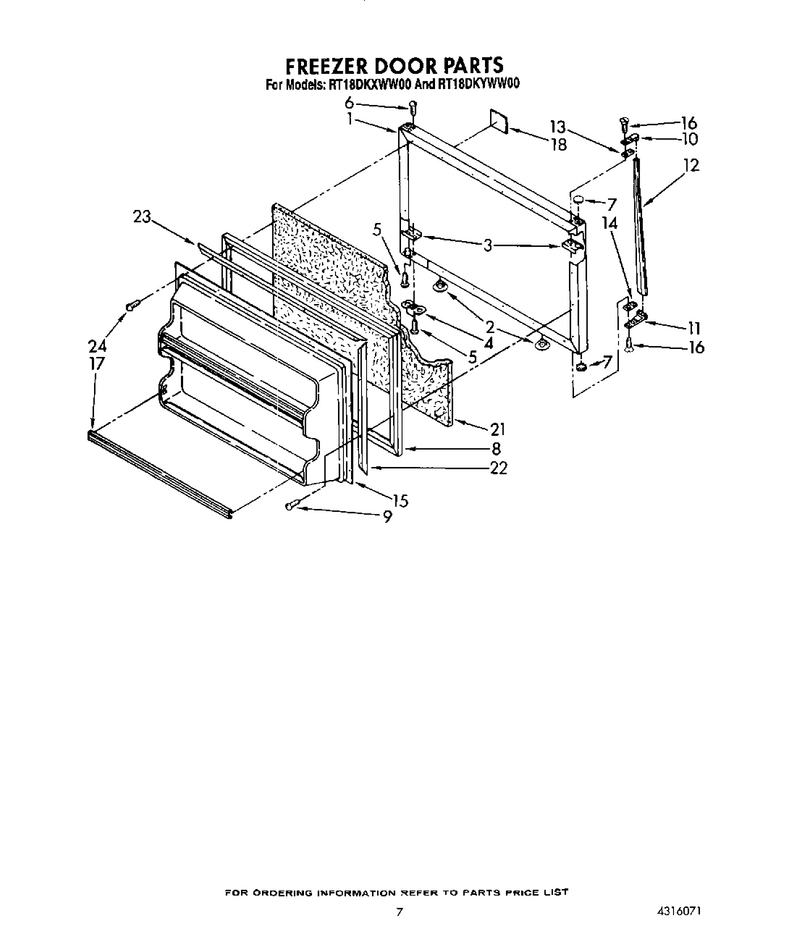

06 - Freezer Door

...
...
1
Panel, Freezer Door (Also Order Item 21) (White) WPL-1104640
...
2
Plug, Hole WPL-534927
...
3
Plate WPL-W10833053
...
4
Bracket WPL-W11745278
...
5
Screw (Repair) WPL-488930
...
6
Screw (Repair) WPL-488930
...
7
Button-Plg WPL-WP2212648
...
8
Door Gasket, Magnetic WPL-1122830
...
9
Screw WPL-WP489069
...
10
Handle End, Top WPL-1108955
...
11
Endcap-Hdl WPL-819342
...
12
Handle WPL-W10373956
...
13
Shim, Handle WPL-943187
...
14
Spacer WPL-WP943188
...
15
Panel-Int WPL-4210591
...
16
Screw (Repair) WPL-488923
...
17
Trim, Door Shelf WPL-1116065
...
18
Nameplate WPL-1124315
...
21
Kit, Foam Slab WPL-876029
...
22
Gasket Retainer, Side (2) WPL-1120613
...
23
Gasket Retainer, Top & Bottom (2) WPL-1120616
...
24
Screw WPL-WP488729

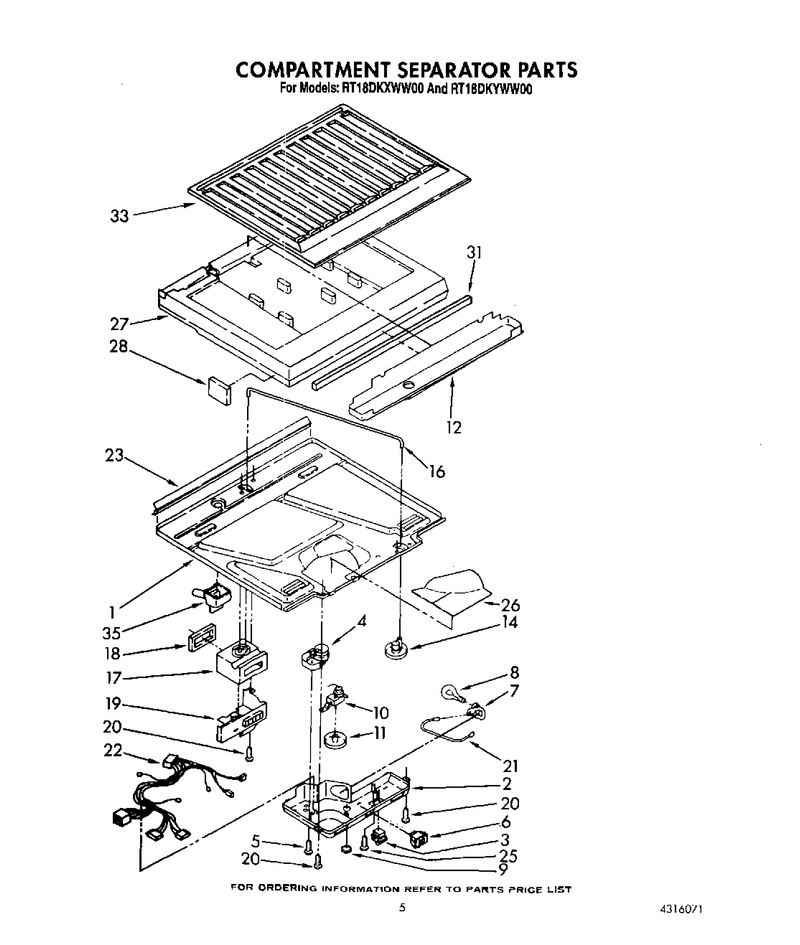

04 - Compartment Separator

...
...
1
Bottom, Compartment Separator WPL-1111796
...
2
Box, Control WPL-1126703
...
3
Switch WPL-W11384469
...
4
Timer-Def WPL-W10822278
...
5
Screw WPL-WP487353
...
6
Switch-Pm WPL-WP938213
...
7
Capacitor (Service) WPL-4387478
...
8
Bulb-Light WPL-W11679940
...
9
Hole Plug WPL-940014
...
10
Thermostat WPL-1123394
...
11
Knob, Thermostat WPL-2148148
...
12
Drain Pan WPL-1108358
...
14
Knob, Air Control WPL-2148149
...
16
Rod, Connecting WPL-943713
...
17
Air Diffuser Assembly WPL-1118774
...
18
Gasket, Air Diffuser WPL-2157255
...
19
Cover, Air Diffuser WPL-1108176
...
20
Screw WPL-WP681414
...
21
Wiring Assembly WPL-937078
...
22
Wiring Assembly, Control Box & Cabinet WPL-2149659
...
23
Gasket, Bottom Separator WPL-2159734
...
25
Screw, 8-15 X 1-3/8 WPL-488678
...
26
Insulation, Filler WPL-1108196
...
27
Insulation, Compartment Separator WPL-1123391
...
28
Pad (2) WPL-946367
...
31
Insulation, Center Rail WPL-1111503
...
33
Separator, Compartment (Top) WPL-1119325
...
35
Cup, Drain WPL-939191

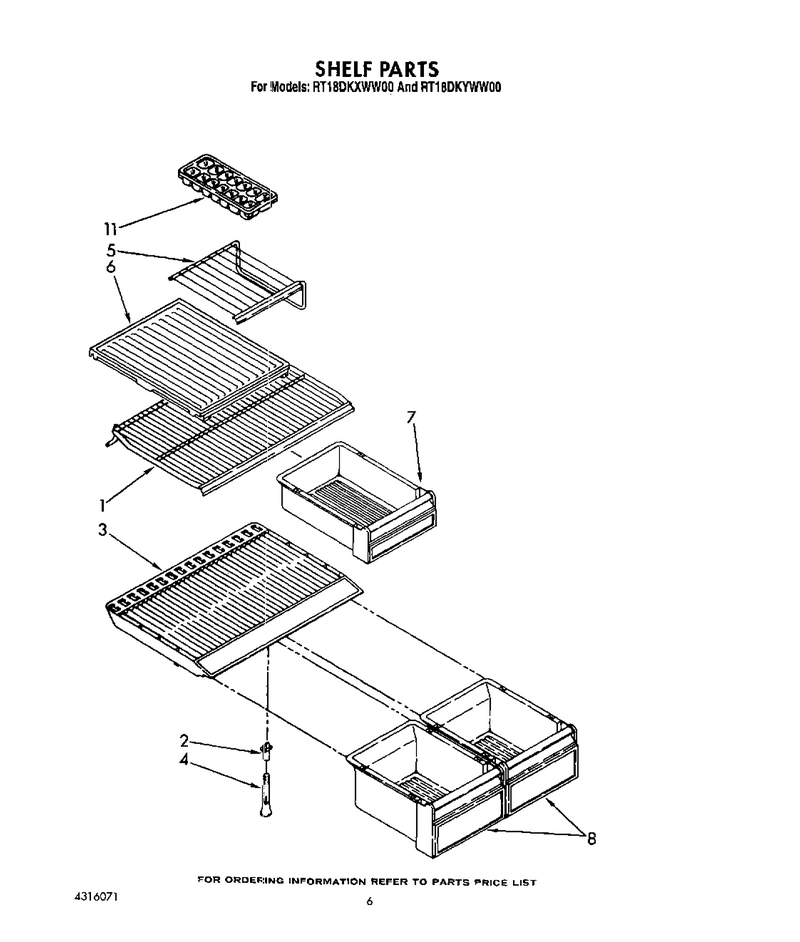

05 - Shelf

...
...
1
Shelf, Pullout (3) WPL-943719
...
2
Support, Crisper Cover WPL-1103731
...
3
Crisper Cover (For Platinum Model Only) WPL-943731
...
4
Post WPL-WP836410
...
5
Shelf, Ice Cube Pan WPL-2151427
...
6
Cover, Meat Pan WPL-1126678
...
7
Pan, Meat WPL-1119357
...
8
Pan, Crisper WPL-943737
...
11
Tray WPL-WP841180A

07 - Unit, Refrigerator Door

...
...
1
Screw WPL-WP489427
...
2
Bumper (2) WPL-1103640
...
3
Condenser WPL-2183168
...
4
Clip, Tube (2) WPL-1106781
...
5
Sleeve WPL-WP2002171
...
6
Spacer WPL-1105130
...
7
Heat Shield Evaporator WPL-1108359
...
8
Tube Clamp WPL-510716
...
9
Dampener WPL-1118608
...
11
Spring, Relay Case WPL-938384
...
12
Case, Relay WPL-1108115
...
13
Overload WPL-819198
...
14
Screw WPL-WP489174
...
15
Relay-Strt WPL-WP2262181
...
16
Screw WPL-489050
...
18
Screw WPL-WP965173
...
19
Tube, Clamp WPL-489151
...
20
Condenser, Stand-Off WPL-1100637
...
21
Screw WPL-WP489478
...
22
Evaporator WPL-943762
...
23
Clip WPL-4386951
...
24
Nut WPL-285002
...
25
Tray-Evap WPL-WP2201801
...
26
Restrictor Sleeve WPL-510446
...
27
Drier-Tube WPL-W10843121
...
28
Compressor WPL-W10439638
...
29
Clamp, Dryer WPL-1127590
...
30
Unit Mounting Plate WPL-1118781
...
31
Exchanger, Heat WPL-1127721
...
32
Condenser, Stand-Off WPL-1100637
...
33
Heater, Defrost WPL-1127660
...
34
Capacitor WPL-WPW10662129
...
35
Bimetl-Def WPL-WP4387499
...
36
Clamp WPL-942873
...
37
Grommet (4) ((Production)) WPL-876811
...
38
Support, Heater WPL-1108172
...
39
Grommet (4) ((Production)) WPL-876811
...
43
Relay-Strt WPL-WP2262181
...
44
Overload WPL-819100
...
45
Cover WPL-1108115
...
46
Strap WPL-938384
...
47
Capacitor WPL-483059
...
48
Unit Mounting Rail WPL-1118783
...
49
Screw WPL-WP965173
...
51
Nut WPL-489142
...
52
Washer WPL-489143
...
56
Valve, Access (3/4``) WPL-978030
