Roper RT18DKXJN00

Model: RT18DKXJN00

Save Part Not Listed?
product name

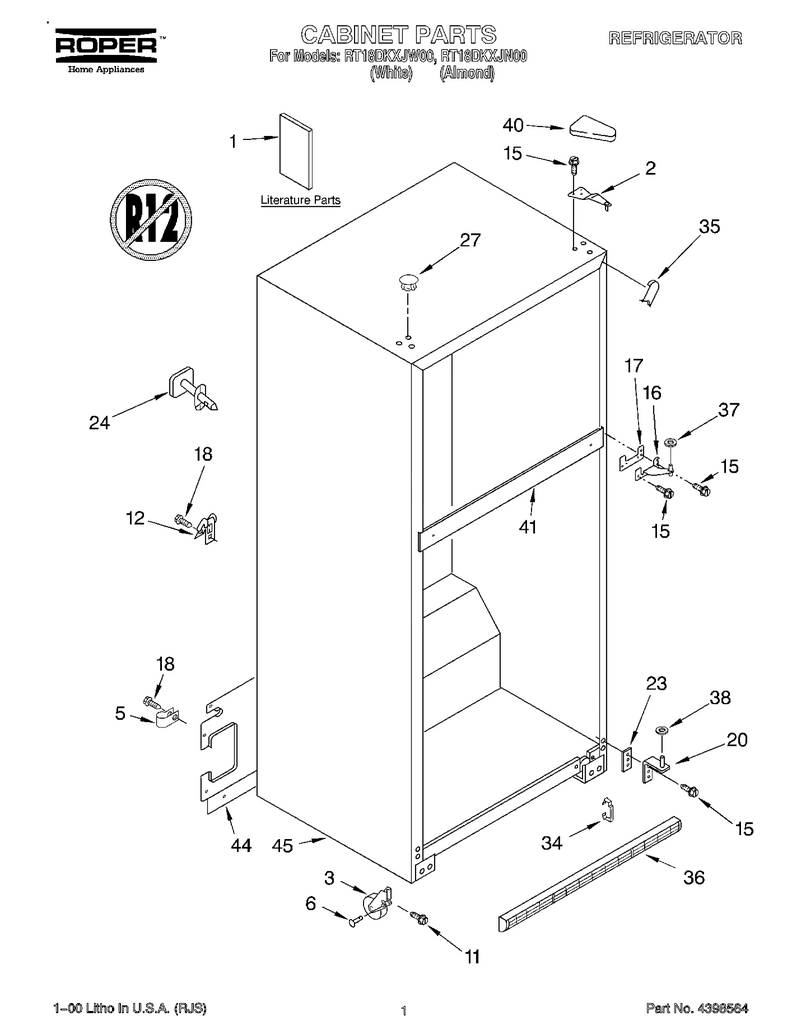

01 - Cabinet, Literature

...
...
1
Literature Parts (Use & Care Guide) WPL-LIT2199011
...
2
Hinge-Door WPL-WP2261963
...
3
Roller-Cab WPL-WP2166108
...
5
Clamp WPL-WP488366
...
6
Axle WPL-W11594405
...
11
Screw WPL-WP3400504
...
12
Clamp, Cord WPL-549193
...
15
Screw WPL-WP489497
...
16
Hinge-Door WPL-WP2254618
...
17
Shim WPL-WP2183854
...
18
Screw WPL-WP489464
...
20
Hinge-Door WPL-WP2254473
...
23
Shim, Bottom Hinge WPL-2172743
...
24
Fitting, Water Tube (Not Serviced) WPL---
...
27
Hole Plug WPL-2151653
...
34
Clip WPL-WP2189356
...
35
Filler WPL-WPW10283959
...
36
Grille (Almond) WPL-2201010
...
37
Washer WPL-WP489467
...
38
Washer WPL-WP487576
...
40
Cover WPL-WP2213360
...
41
Rail Center (Not Serviced) WPL---
...
44
Cover-Unit WPL-WP2189475

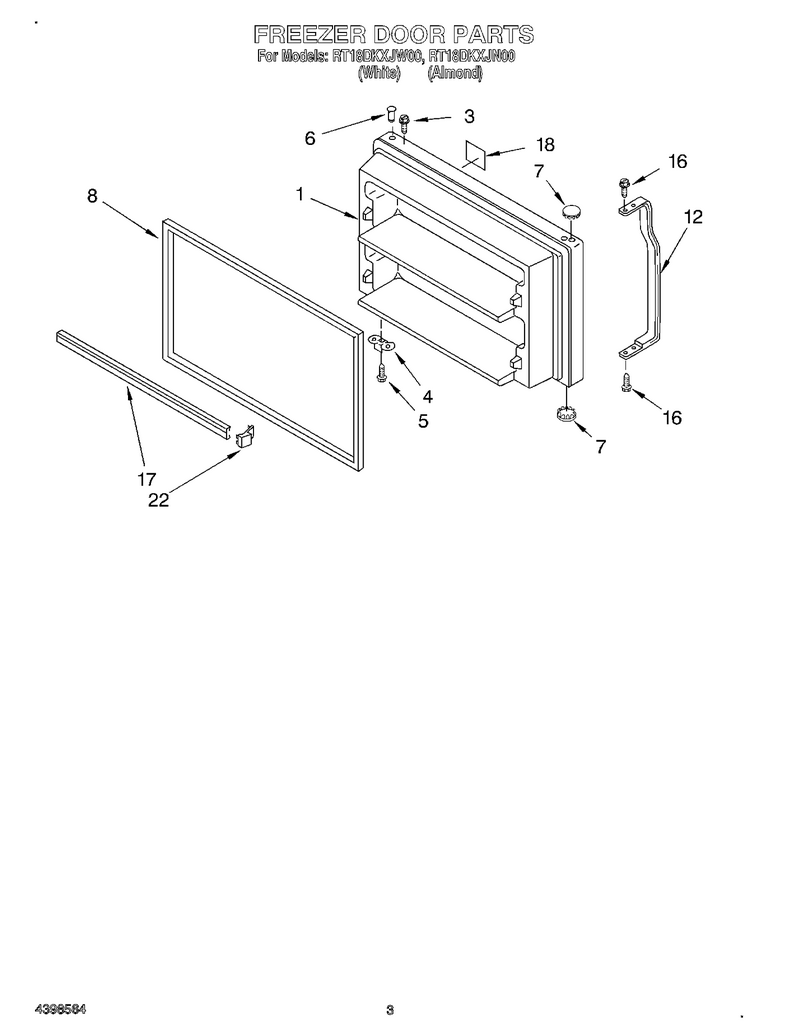

02 - Freezer Door

...
...
1
Dor-Fip Wh WPL-L2182487
...
3
Screw WPL-WP8281206
...
4
Bracket WPL-W11745278
...
5
Screw WPL-WP488921
...
6
Thimble WPL-WP2183003
...
7
Button-Plg WPL-WP2212648
...
8
Door Gasket, Magnetic WPL-2159327
...
12
Handle, Door (Almond Panel) WPL-2202806N
...
16
Screw WPL-WP489357
...
17
Trim-Door WPL-WP2157313
...
18
Nameplate (Almond) WPL-2200504
...
22
Endcap WPL-WP2156003

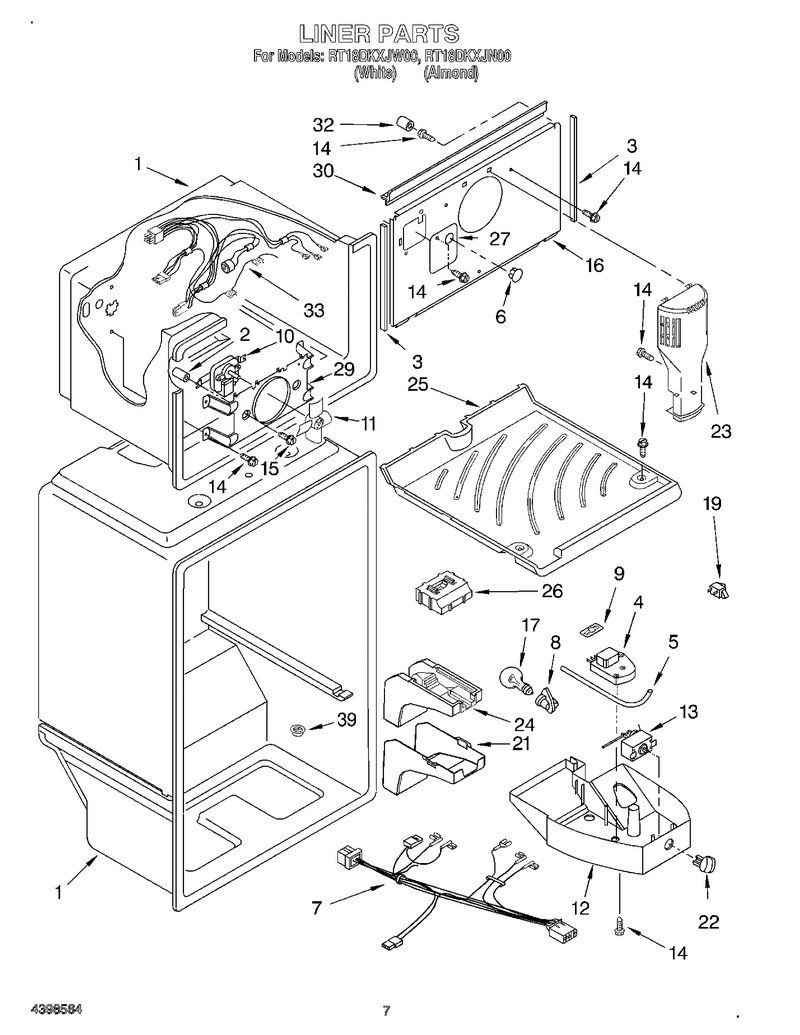

05 - Liner

...
...
1
Liner (Not A Serviceable Part) WPL---
...
2
Grommet WPL-WP531933
...
3
Gasket WPL-WP2254360
...
4
Timer-Def WPL-W10822278
...
5
Barrier WPL-WP2196003
...
6
Button-Plg WPL-WP941839
...
7
Wire Assy. Control Box WPL-2204616
...
8
Capacitor (Service) WPL-4387478
...
9
Clip, Defrost Timer WPL-2176341
...
10
Motor-Evap WPL-WP4389142
...
11
Blade-Fan WPL-WP2163777
...
12
Control Box WPL-2200948
...
13
Thermostat WPL-WP2204605
...
14
Screw WPL-WP489478
...
15
Screw WPL-489412
...
16
Cover-Evap WPL-4388740
...
17
Bulb-Light WPL-W10887190
...
19
Switch WPL-W11384469
...
21
Cover, Air Diffuser WPL-2176281
...
22
Knob-Therm WPL-WP2202885
...
23
Air-Tower WPL-WP2182340
...
24
Diffuser WPL-WP2189452
...
25
Freezer Floor WPL-2172565
...
26
Air Diffuser, Top WPL-2200793
...
27
Cover WPL-WP2217784
...
29
Bracket, Fan Motor WPL-2200641
...
30
Gasket WPL-WP2254360
...
32
Cap-Tube WPL-WP487996
...
33
Wire Assembly, Freezer Compartment WPL-2200630
...
39
Releas-Vac WPL-WP2210509

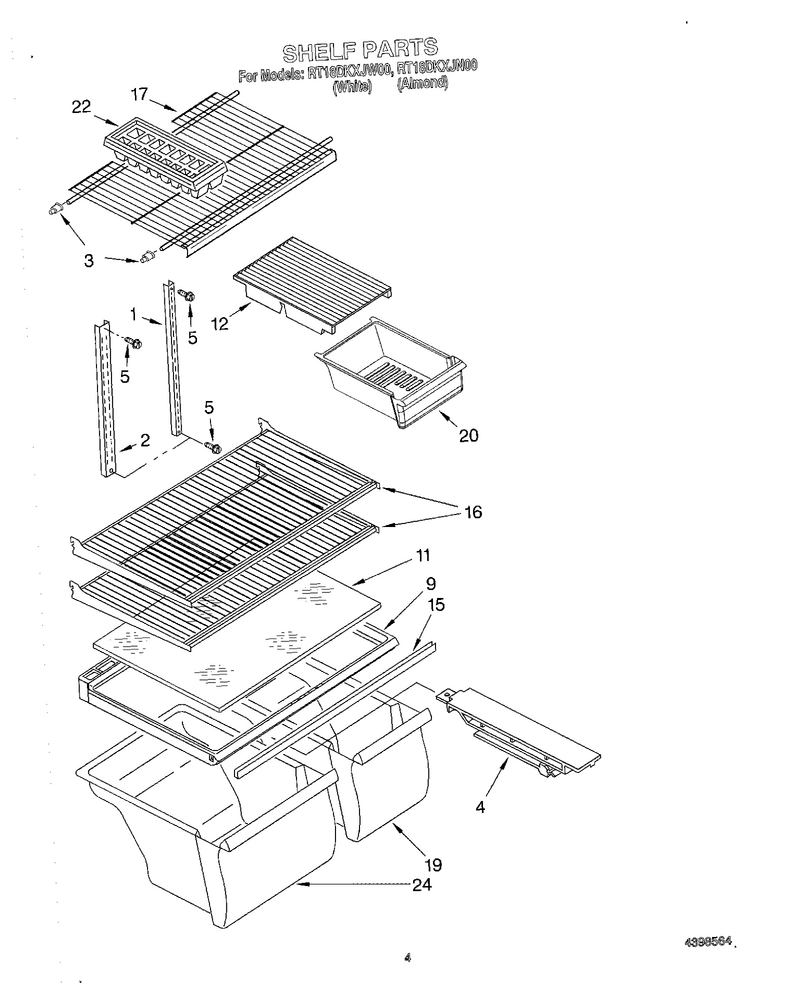

03 - Shelf

...
...
1
Shelf, Ladder (2) WPL-2202822
...
2
Shelf, Ladder Center WPL-2202821
...
3
Cup, Shelf Mtg. WPL-2163762
...
4
Track WPL-WP2163835
...
5
Screw WPL-WP489478
...
9
Cover WPL-WP2314548
...
11
Shelf-Glas WPL-WP2169921
...
12
Pan, Cover WPL-2163848
...
15
Support WPL-WP2172748
...
16
Shelf, Full Cantilever WPL-2163856
...
17
Shelf, Freezer WPL-2189453
...
19
Pan-Crispr WPL-W10856580
...
20
Pan, Meat WPL-2200920K
...
22
Tray WPL-WP841180A
...
24
Pan-Crispr WPL-W10854037

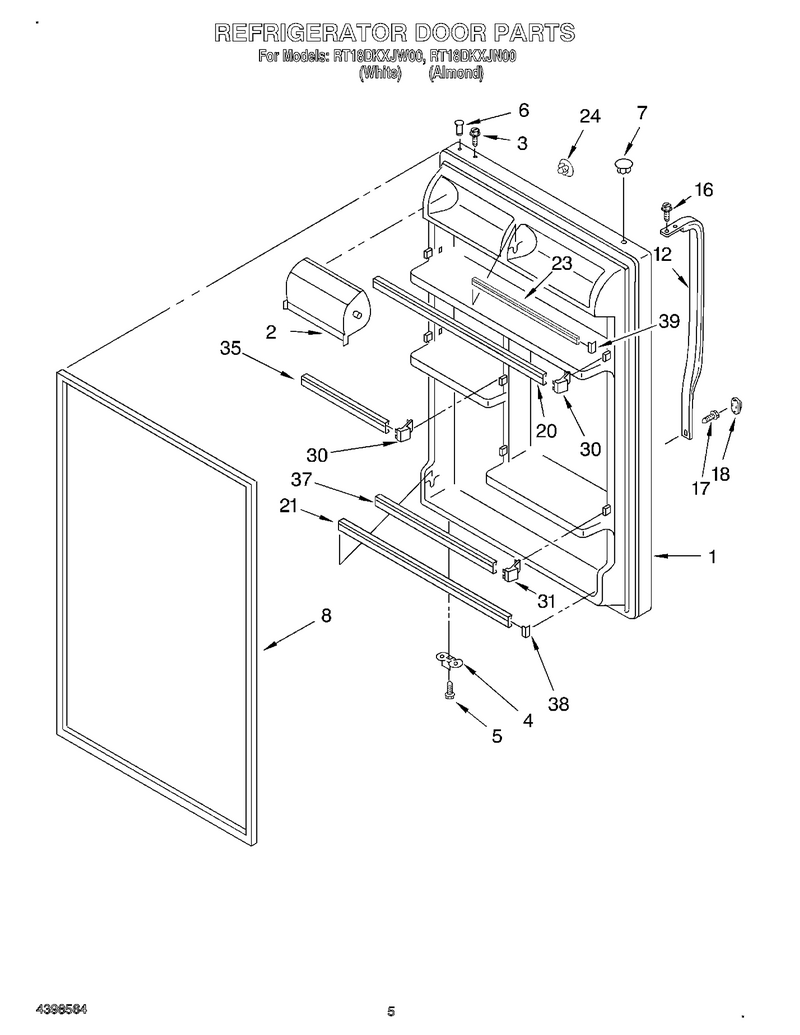

04 - Refrigerator Door

...
...
1
Dor-Fip Al WPL-L2183949
...
2
Door, Compartment WPL-2205232
...
3
Screw WPL-WP8281206
...
4
Bracket WPL-W11745278
...
5
Screw WPL-WP488921
...
6
Thimble WPL-WP2183003
...
7
Button-Plg WPL-WP2212648
...
8
Door Gasket, Magnetic WPL-2159057
...
12
Handle WPL-WP2202807T
...
16
Screw WPL-WP489357
...
17
Screw WPL-WP8281146
...
18
Cover WPL-WP2202819W
...
20
Trim-Door WPL-WP2201051
...
21
Trim-Door WPL-WPW10421484
...
23
Trim-Door WPL-WP2201061
...
24
Plug-Hndle WPL-WP2189008
...
30
Endcap WPL-WP2156003
...
31
Endcap WPL-WP2195915
...
35
Trim-Door WPL-WP2201052
...
37
Trim-Door WPL-WP2195943
...
38
Endcap-Trm WPL-WP2156006
...
39
Endcap-Trm WPL-WP2156007

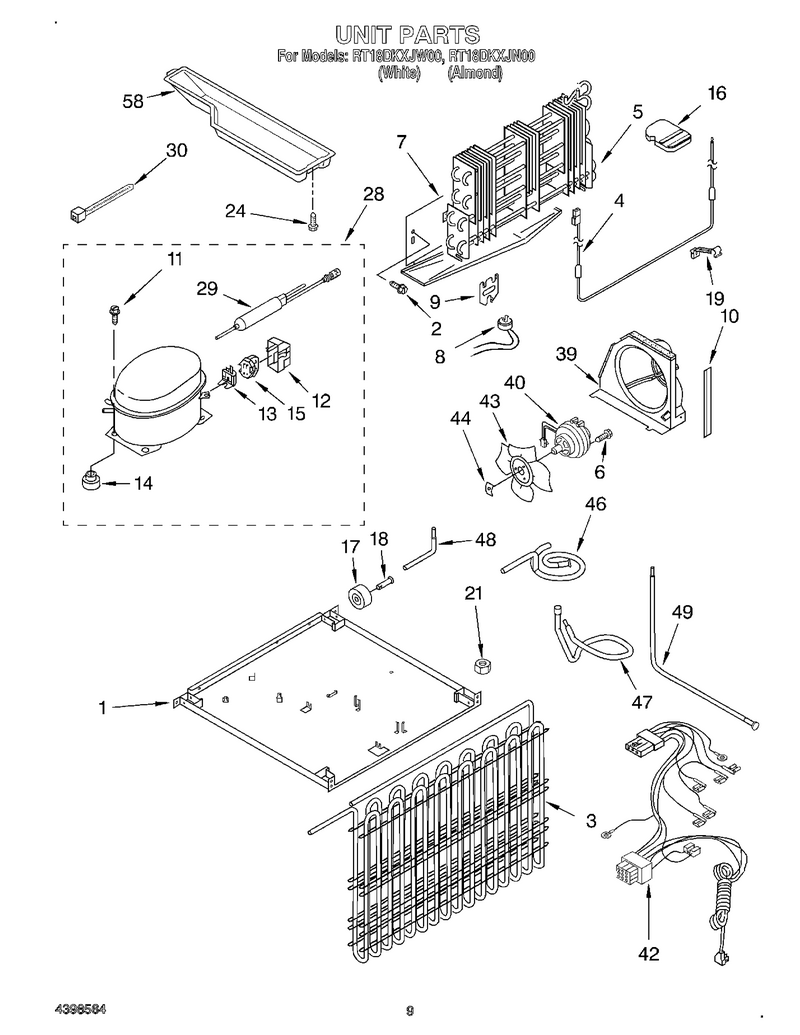

06 - Unit

...
...
1
Plate, Unit Mounting WPL-2201161
...
2
Screw WPL-WP489478
...
3
Condenser WPL-2183849
...
4
Heater WPL-WP2315531
...
5
Evaporator Assy. WPL-2195391
...
6
Screw WPL-WP8281196
...
7
Drain Pan WPL-2172619
...
8
Bimetl-Def WPL-WP4387503
...
9
Bracket, Heater WPL-2176301
...
10
Extension, Air Baffle WPL-2300638
...
11
Grommet (4) ((Production)) WPL-876811
...
12
Cover-Term WPL-WP2162358
...
13
Overload WPL-WP4387938
...
14
Grommet (4) ((Production)) WPL-876811
...
15
Overload WPL-WP4387938
...
16
Support Block WPL-2201184
...
17
Roller-Cab WPL-WPW10475495
...
18
Axle WPL-W11594405
...
19
Clip, Heater WPL-2182338
...
21
Nut (Not Serviced) WPL---
...
24
Screw WPL-489462
...
28
Compressor WPL-W10823815
...
29
Drier-Tube WPL-W10843121
...
30
Tie-Wire WPL-WPW10339879
...
39
Baffle-Air WPL-WP2198921
...
40
Motor-Cond WPL-W10822259
...
42
Wire Assy. Unit WPL-2199117
...
43
Blade-Fan WPL-WP2190685
...
44
Nut WPL-WP486692
...
46
Tube, Discharge WPL-2201142
...
47
Tube, Suction WPL-2189161
...
48
Tube, Process WPL-W10528578
...
49
Tube, Condenser To Heat Loop WPL-2174670
...
58
Sealer WPL-WP505587
