Roper RT18AKXXW01

Model: RT18AKXXW01

Save Part Not Listed?
product name

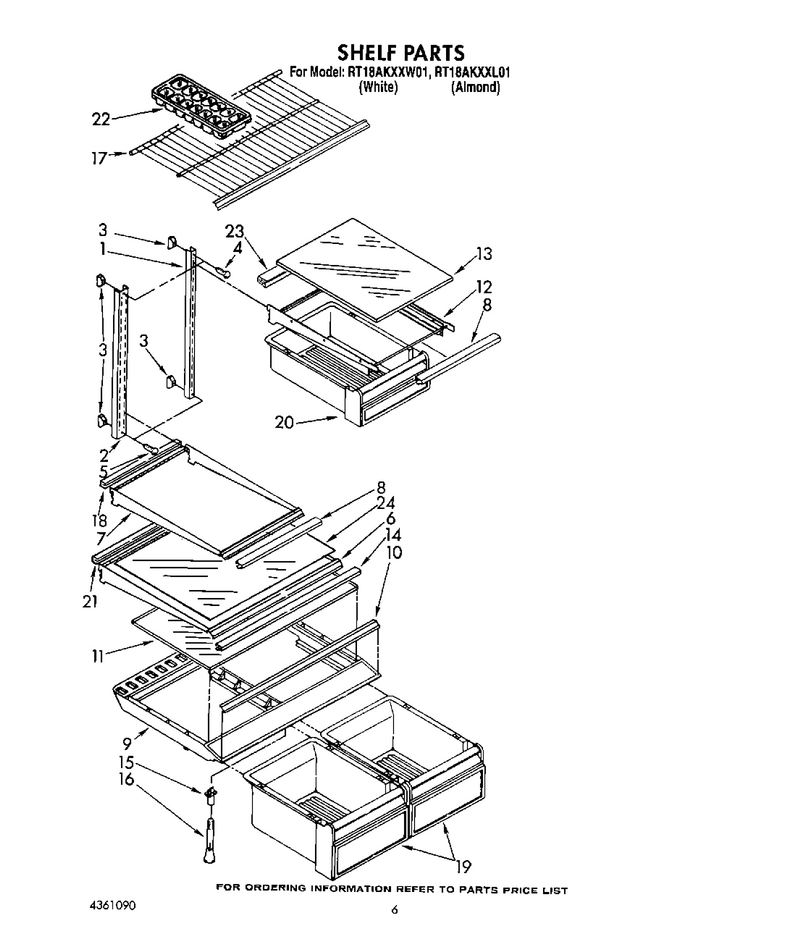

05 - Shelf

...
...
1
Shelf, Ladder (2) WPL-1103177
...
2
Shelf, Ladder Center WPL-1114465
...
3
Screw, Support (4) WPL-520965
...
4
Screw WPL-489383
...
5
Screw WPL-WP488163
...
6
Shelf, Wire Cantilever Full Shelf WPL-1111848
...
7
Shelf, Cantilever WPL-1111846
...
8
Trim, Shelf WPL-1124402
...
9
Cover, Crisper WPL-2151745
...
10
Trim, Crisper Cover WPL-946436
...
11
Glass, Crisper Cover WPL-1111829
...
12
Pan Shelf, Cantilever WPL-1111774
...
13
Shelf-Glas WPL-2151945
...
14
Trim, Shelf WPL-1124404
...
15
Support, Crisper Cover WPL-1103731
...
16
Post WPL-WP836410
...
17
Shelf, Freezer WPL-943725
...
18
Reflector WPL-1120791
...
19
Pan, Crisper WPL-943737
...
20
Pan, Meat WPL-1111866
...
21
Reflector WPL-1120794
...
22
Tray WPL-WP841180A
...
23
Retainer, Shelf WPL-1125525
...
24
Shelf, Glass WPL-2152401

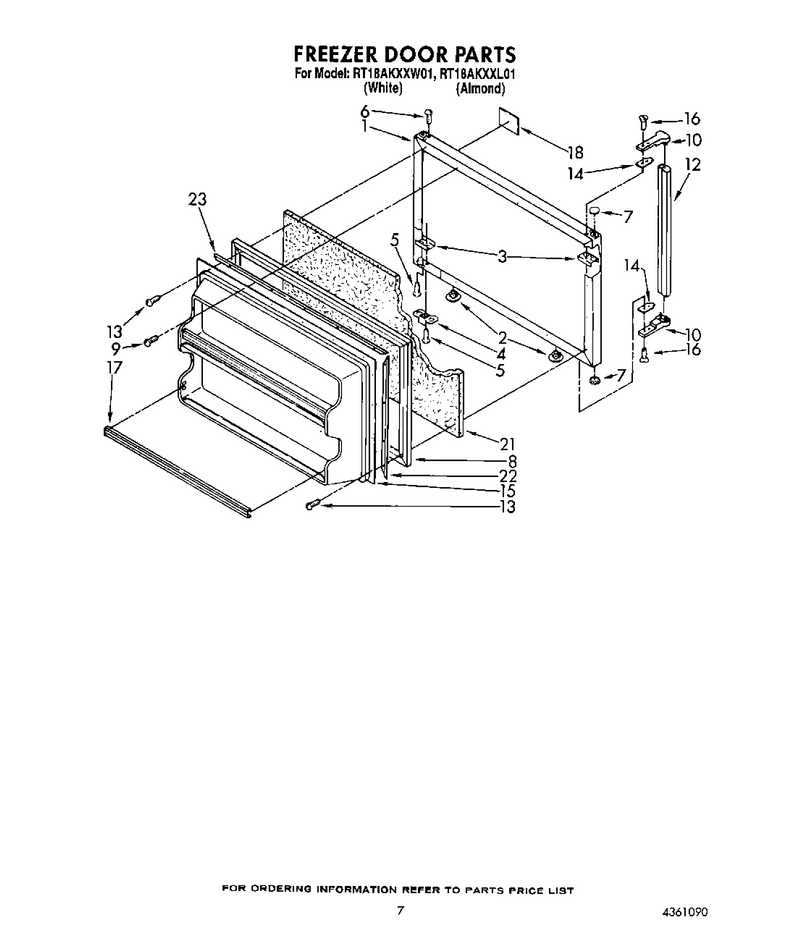

06 - Freezer Door

...
...
1
Panel, Freezer Door (Also Order Item 21) (Almond) WPL-1104644
...
2
Plug, Hole WPL-534927
...
3
Plate WPL-W10833053
...
4
Bracket WPL-W11745278
...
5
Screw WPL-WP488921
...
6
Screw WPL-WP8281206
...
7
Button-Plg WPL-WP2212648
...
8
Door Gasket, Magnetic WPL-1122830
...
9
Screw WPL-WP489069
...
10
End Cap (2) WPL-944157
...
12
Handle, Center WPL-1119757
...
13
Screw WPL-WP488729
...
14
Spacer WPL-WP943188
...
15
Interior Door Panel WPL-1120635
...
16
Screw WPL-WP488920
...
17
Trim, Door (2) WPL-1120775
...
18
Nameplate WPL-1124315
...
21
Kit, Foam Slab WPL-876029
...
22
Gasket Retainer, Side (2) WPL-1120613
...
23
Gasket Retainer, Top & Bottom (2) WPL-1120616

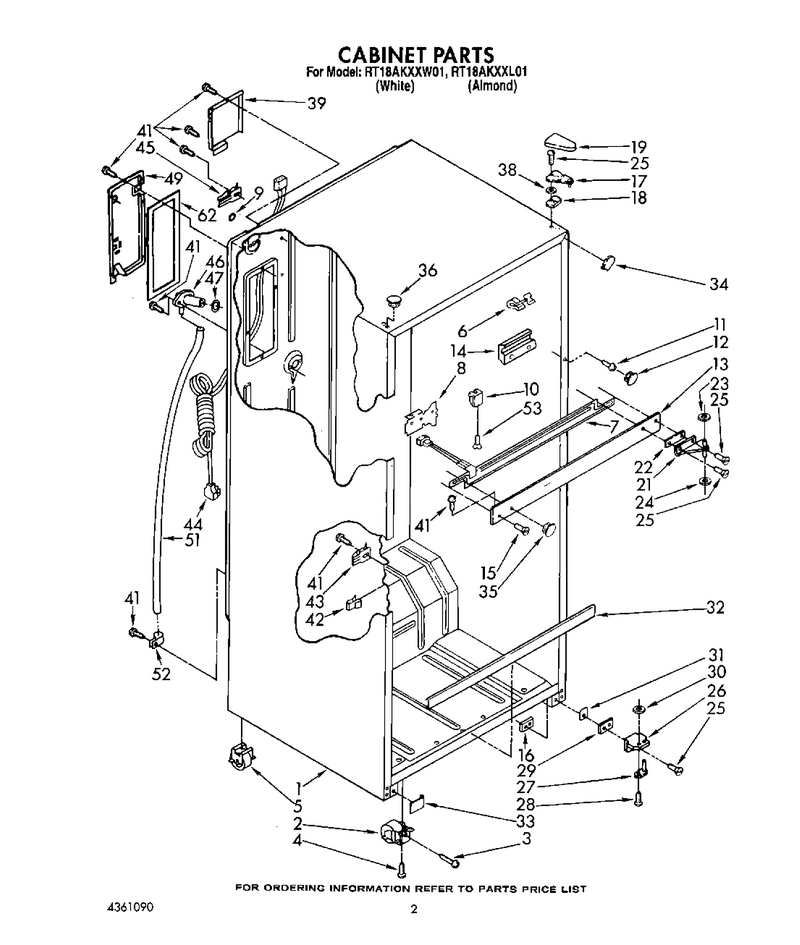

02 - Cabinet

...
...
1
Cabinet (Not A Serviceable Part) WPL---
...
2
Roller, Front WPL-2152013
...
3
Screw, Adjusting WPL-488681
...
4
Screw, 10-32 X 1/2 Hex Washer Head W/ground Ring WPL-311996
...
5
Roller, Rear WPL-2152014
...
6
Clip, Mullion (3) WPL-2149060
...
7
Heater WPL-483140
...
8
Center Rail, Bracket (2) WPL-1110231
...
9
Icemaker, Hole Seal WPL-2185731
...
10
Spacer (2) WPL-2149077
...
11
Screw (2) WPL-489319
...
12
Hole Plug (2) (Almond) WPL-1126571
...
13
Center Rail (Almond) WPL-1110345
...
14
Center, Rail Shim (2) WPL-2151428
...
15
Screw, WPL-489370
...
16
Tap Plate (2) WPL-2147312
...
17
Shim, Hinge Top WPL-1100513
...
18
Shim, Hinge Top WPL-1100511
...
19
Hinge Cover (White) WPL-1119787
...
21
Hinge-Door WPL-W10851192
...
22
Shim, Hinge Center WPL-836155
...
23
Washer WPL-WP489200
...
24
Washer WPL-WP488296
...
25
Screw WPL-489327
...
26
Hinge Butt, Bottom WPL-1123882
...
27
Pin-Hinge WPL-WP654366
...
28
Screw WPL-WP488714
...
29
Shim, Bottom WPL-943708
...
30
Washer, 7/64 WPL-489201
...
31
Cover, Glider Rail (White) WPL-2151421
...
32
Cover, Deck Rail (Almond) WPL-1109368
...
33
Cover, Glider Rail (White) WPL-943552
...
34
Filler, Wrap Corner (White) WPL-1110684
...
35
Hole Plug (White) WPL-1119707
...
36
Button-Plg WPL-WP2151652
...
38
Washer WPL-WP487576
...
39
Cover, Wiring WPL-942845
...
41
Screw WPL-WP489464
...
42
Clip WPL-W10812038
...
43
Clamp, Service Cord WPL-549193
...
44
Cord, Service WPL-937360
...
45
Clamp WPL-937357
...
46
Fitting, Drain WPL-942813
...
47
Seal, Gasket WPL-1106507
...
49
Plug Assembly WPL-1106511
...
51
Tube-Drain WPL-8316810
...
52
Clamp WPL-519405
...
53
Screw WPL-WP489174
...
62
Seal, Gasket WPL-1106510

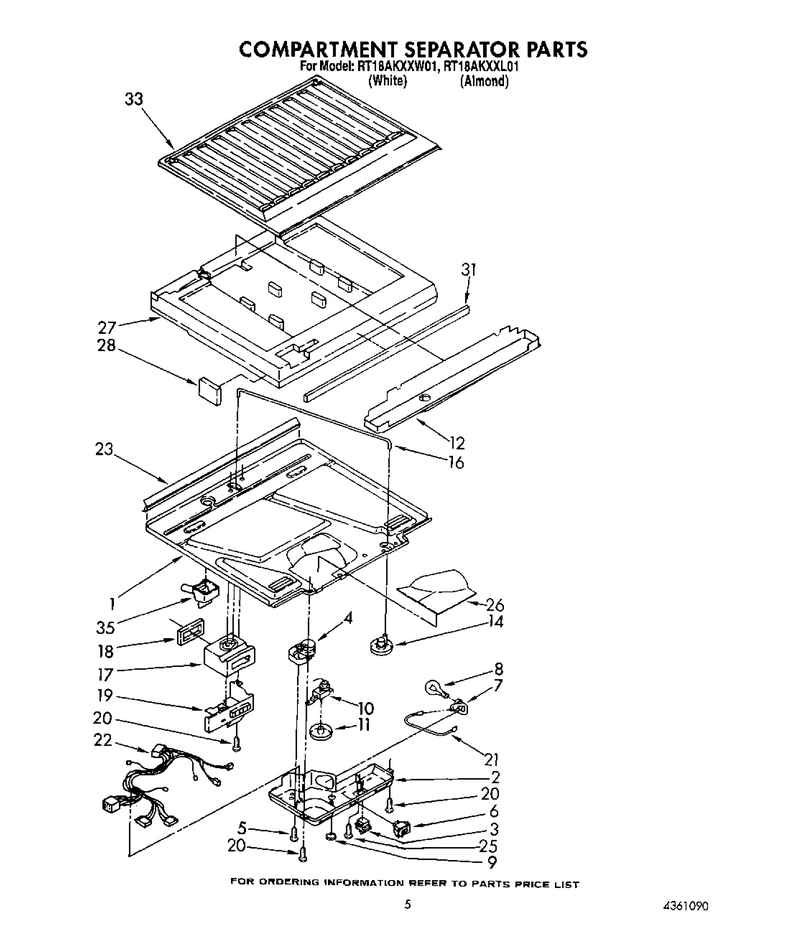

04 - Compartment Separator

...
...
1
Bottom, Compartment Separator WPL-1111796
...
2
Box, Control WPL-1126703
...
3
Switch WPL-W11384469
...
4
Timer-Def WPL-W10822278
...
5
Screw WPL-WP487353
...
6
Switch-Pm WPL-WP938213
...
7
Capacitor (Service) WPL-4387478
...
8
Bulb-Light WPL-W11679940
...
9
Hole Plug WPL-940014
...
10
Thermostat WPL-1123394
...
11
Knob, Thermostat WPL-2148148
...
12
Drain Pan WPL-1108358
...
14
Knob, Air Control WPL-2148149
...
16
Rod, Connecting WPL-943713
...
17
Air Diffuser Assembly WPL-1118774
...
18
Gasket, Air Diffuser WPL-2157255
...
19
Cover, Air Diffuser WPL-1108176
...
20
Screw WPL-WP489478
...
21
Wiring Assembly WPL-937078
...
22
Wiring, Assembly Control Box WPL-2154705
...
23
Gasket, Bottom Separator WPL-2159734
...
25
Screw, 8 X 1-3/8 WPL-488678
...
26
Insulation, Filler WPL-1108196
...
27
Insulation, Compartment Separator WPL-1123391
...
28
Pad (2) WPL-946367
...
31
Insulation, Center Rail WPL-1111503
...
33
Separator, Compartment (Top) WPL-1119325
...
35
Cup, Drain WPL-939191

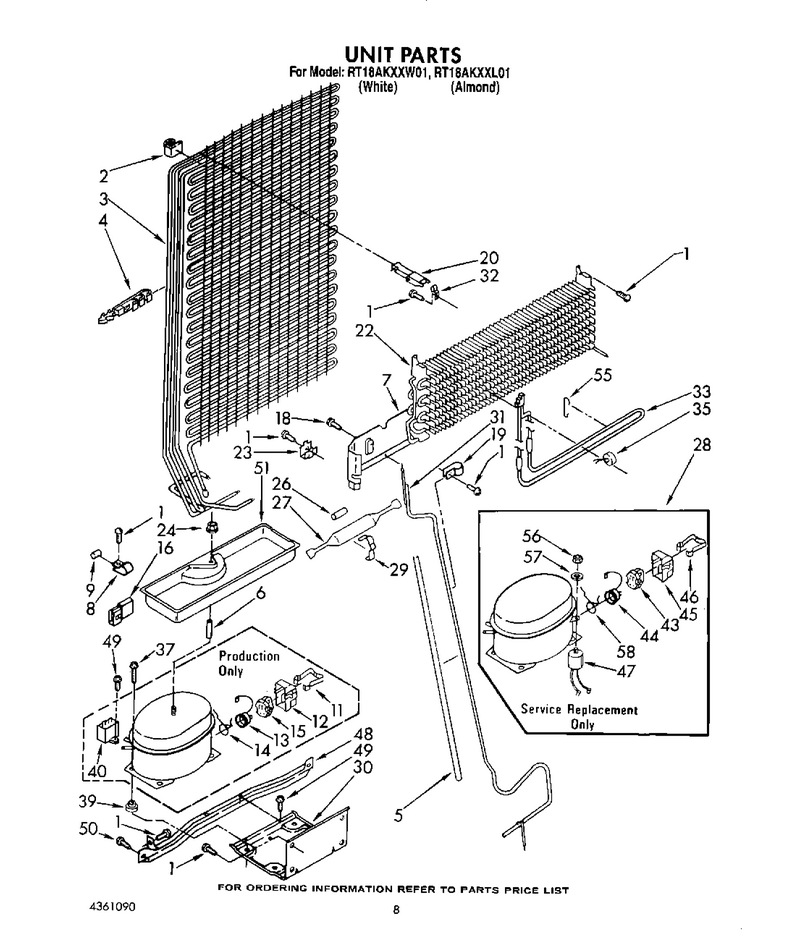

07 - Unit

...
...
1
Screw WPL-WP489478
...
2
Bumper (2) WPL-1103640
...
3
Condenser WPL-2183168
...
4
Clip, Tube (2) WPL-1106781
...
5
Sleeve WPL-WP2002171
...
6
Spacer WPL-2154438
...
7
Heat Shield Evaporator WPL-1108359
...
8
Tube Clamp WPL-510716
...
9
Dampener WPL-1118608
...
11
Spring, Relay Case WPL-938384
...
12
Case, Relay WPL-1108115
...
13
Overload WPL-1108114
...
14
Wire WPL-WP2172890
...
15
Relay-Strt WPL-WP2262181
...
16
Connector WPL-WP717253
...
18
Screw WPL-WP965173
...
19
Tube, Clamp WPL-489151
...
20
Condenser, Stand-Off WPL-1100637
...
22
Evaporator WPL-943762
...
23
Clip WPL-4386951
...
24
Nut WPL-285002
...
26
Restrictor Sleeve WPL-510446
...
27
Drier-Tube WPL-W10843121
...
28
Compressor WPL-W10439638
...
29
Clamp, Dryer WPL-1127590
...
30
Unit Mounting Plate WPL-1118781
...
31
Exchanger, Heat WPL-1127721
...
32
Condenser, Stand-Off WPL-1100637
...
33
Heater, Defrost WPL-1127660
...
35
Bimetl-Def WPL-WPW10225581
...
37
Grommet (4) ((Production)) WPL-876811
...
39
Grommet (4) ((Production)) WPL-876811
...
40
Capacitor WPL-WPW10662129
...
43
Relay-Strt WPL-WP2262181
...
44
Overload WPL-819100
...
45
Cover WPL-1108115
...
46
Strap WPL-938384
...
47
Capacitor WPL-483059
...
48
Unit Mounting Rail WPL-1118783
...
49
Screw WPL-WP965173
...
50
Screw WPL-WP489427
...
51
Tray-Evap WPL-WP2201801
...
55
Support, Heater WPL-1108172
...
56
Nut WPL-489142
...
57
Washer WPL-489143
...
58
Valve, Access (3/16``) WPL-876764

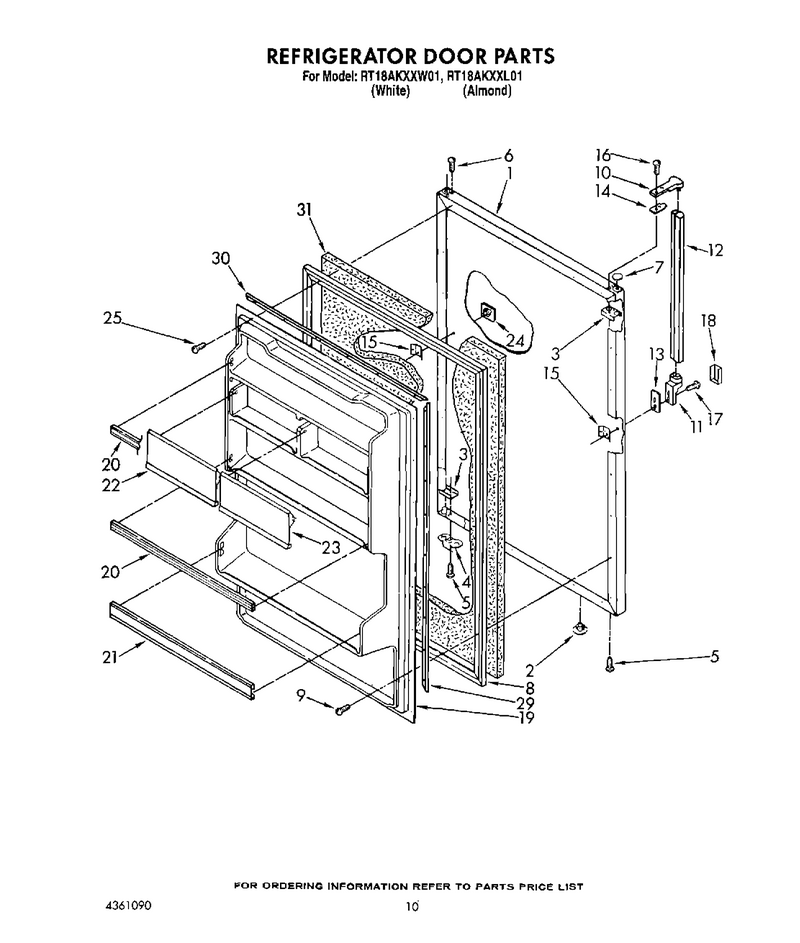

08 - Refrigerator Door, Lit/optional

...
...
Xleveler, Enamel (13 Oz. Spray Can) WPL-350941
...
1
Panel, Refrigerator Door (Almond) (Also Order Item 31) WPL-1104636
...
2
Hole Plug (2) WPL-534927
...
3
Plate WPL-W10833053
...
4
Bracket WPL-W11745278
...
5
Screw WPL-WP488921
...
6
Screw WPL-WP8281206
...
7
Button-Plg WPL-WP2212648
...
8
Gasket-Dor WPL-2188444A
...
9
Screw WPL-WPW10141645
...
10
Handle End WPL-944157
...
11
Handle End, Side WPL-935105
...
12
Handle, Center WPL-1119757
...
13
Shim, Handle End (Side) WPL-935076
...
14
Spacer WPL-WP943188
...
15
Plate WPL-WP939101
...
16
Screw WPL-WP488920
...
17
Screw WPL-WP488729
...
18
Screw, Cover WPL-987873
...
19
Panel-Int WPL-4210592
...
20
Trim, Door (2) WPL-1120775
...
21
Trim-Door WPL-WP1120826
...
22
Compartment Door WPL-2152438
...
23
Compartment Door WPL-2152438
...
24
Plug-Hndle WPL-WP2189008
...
25
Screw WPL-WP488729
...
29
Gasket Retainer, Side (2) WPL-1120615
...
30
Gasket Retainer, Top & Bottom (2) WPL-1120616
...
31
Enamel, Almond (1 Qt. Uncut) WPL-978883

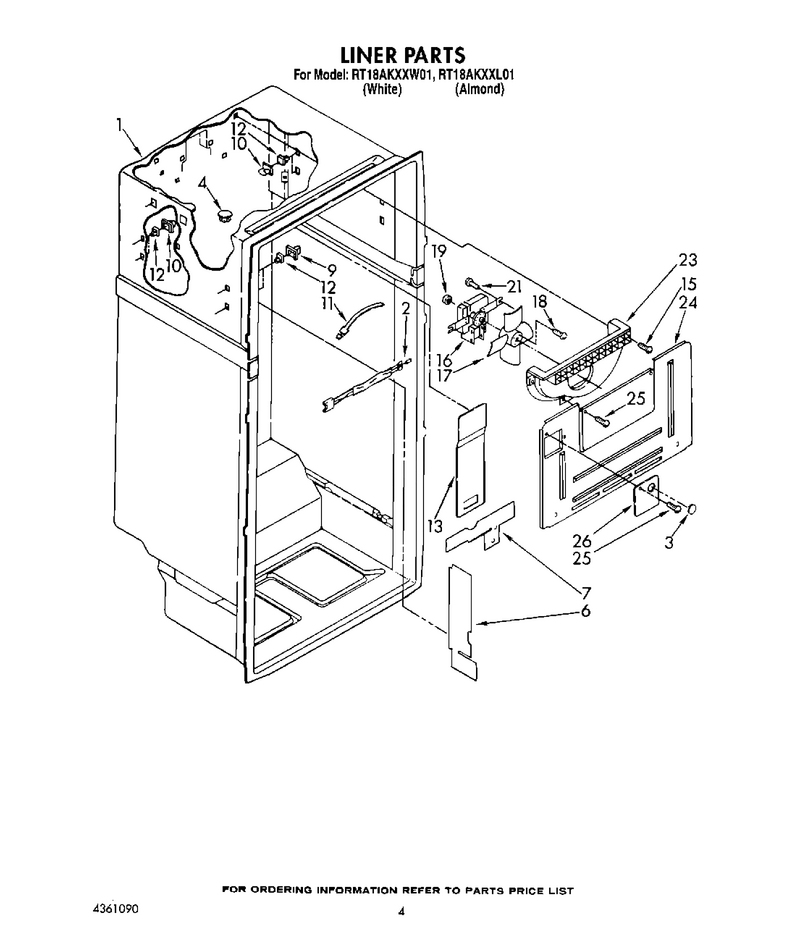

03 - Liner

...
...
1
Liner (Not A Serviceable Part) WPL---
...
2
Harns-Wire WPL-WP1127626
...
3
Hole Plug WPL-1103725
...
4
Button-Plg WPL-WP941839
...
6
Side, Electric Shield WPL-942751
...
7
Top, Electric Shield WPL-1129068
...
9
Stud-Shelf WPL-W11581579
...
10
Stud-Shelf WPL-819091
...
11
Clip, Harness (2) WPL-3391249
...
12
Stud-Shelf WPL-W11581579
...
13
Cover-Duct WPL-2157409
...
15
Screw WPL-WP489478
...
16
Motor-Evap WPL-482731
...
17
Blade-Fan WPL-WP1100938
...
18
Screw WPL-WP487887
...
19
Grommet WPL-WP531933
...
21
Screw (2) WPL-489168
...
23
Scroll, Fan WPL-2178956
...
24
Evaporator Cover WPL-943741
...
25
Screw WPL-WP488729
...
26
Cover WPL-WP2217784
