Roper RT18AKXJN00

Model: RT18AKXJN00

Save Part Not Listed?
product name

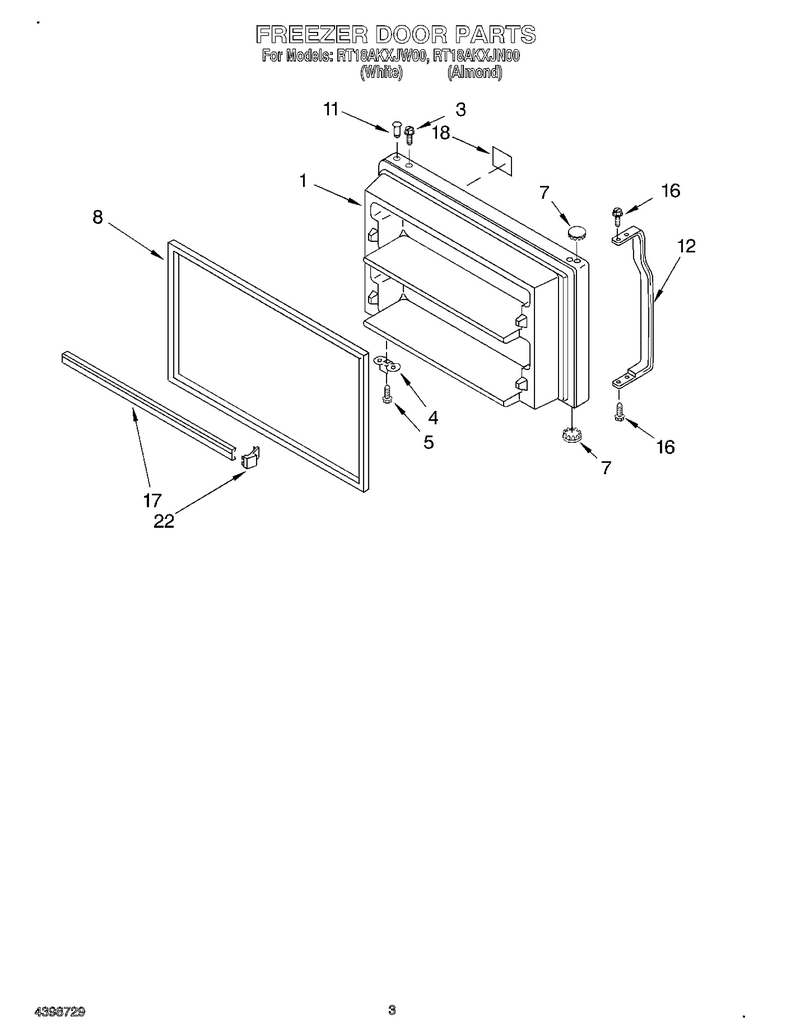

02 - Freezer Door

...
...
1
Dor-Fip Wh WPL-L2182487
...
3
Screw WPL-WP8281206
...
4
Bracket WPL-W11745278
...
5
Screw WPL-WP488921
...
7
Hole Plug (Almond) WPL-989196
...
8
Door Gasket, Magnetic (Service) WPL-2159327
...
11
Thimble WPL-WP2183003
...
12
Handle WPL-WP2202806W
...
16
Screw WPL-WP489357
...
17
Trim-Door WPL-WP2157313
...
18
Nameplate (Almond) WPL-2212480
...
22
Endcap WPL-WP2156003

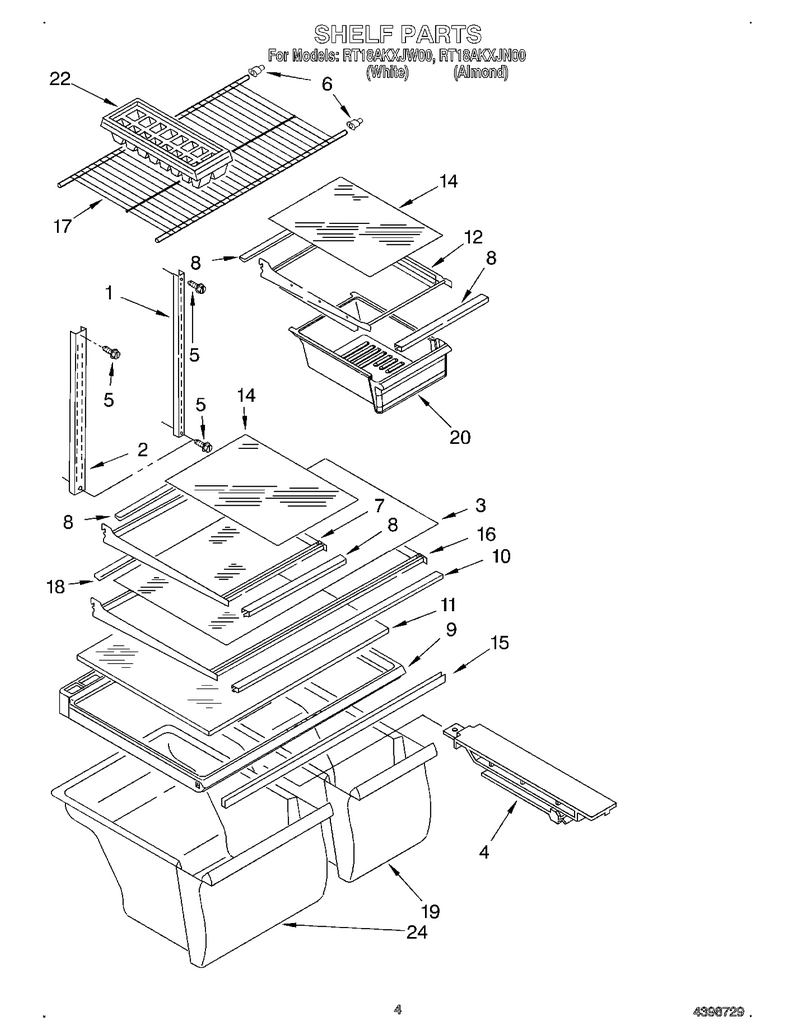

03 - Shelf

...
...
1
Shelf, Ladder (2) WPL-2210522
...
2
Shelf, Ladder Center WPL-2202821
...
3
Shelf-Glas WPL-WP2177824
...
4
Track WPL-WP2163835
...
5
Screw WPL-WP489478
...
6
Cup, Shelf Mtg. WPL-2163762
...
7
Frame-Shlf WPL-WP2201101
...
8
Trim, Shelf Front WPL-2201097
...
9
Cover WPL-WP2314548
...
10
Trim-Shelf WPL-2201135
...
11
Shelf-Glas WPL-WP2169921
...
12
Frame-Shlf WPL-WP2201105
...
14
Glass, Shelf WPL-2169917
...
15
Support WPL-WP2172748
...
16
Shelf, Full Cantilever WPL-2201103
...
17
Shelf, Freezer WPL-2189453
...
18
Trim, Shelf Rear WPL-2193394
...
19
Pan-Crispr WPL-W10856580
...
20
Pan-Meat WPL-WP2218127K
...
22
Tray WPL-WP841180A
...
24
Pan-Crispr WPL-W10854037

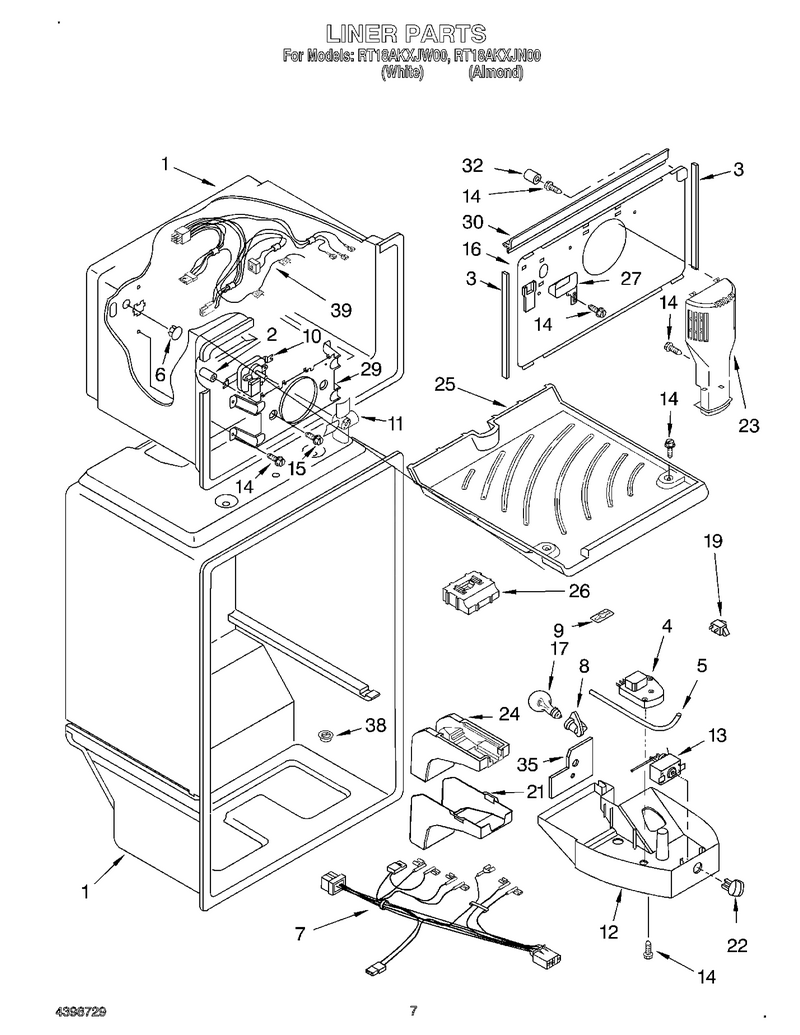

05 - Liner

...
...
1
Liner (Not A Serviceable Part) WPL---
...
2
Grommet WPL-WP531933
...
3
Gasket WPL-WP2254360
...
4
Timer-Def WPL-W10822278
...
5
Barrier WPL-WP2196003
...
6
Button-Plg WPL-WP941839
...
7
Wire Assy. Control Box WPL-2204616
...
8
Capacitor (Service) WPL-4387478
...
9
Clip, Defrost Timer WPL-2176341
...
10
Fan Motor WPL-2183833
...
11
Blade-Fan WPL-WP2163777
...
12
Control Box WPL-2200948
...
13
Thermostat WPL-WP2204605
...
14
Screw WPL-WP489478
...
15
Screw WPL-489412
...
16
Cover-Evaporator WPL-2201170
...
17
Bulb-Light WPL-W10887190
...
19
Switch WPL-W11384469
...
21
Cover, Air Diffuser WPL-2176281
...
22
Knob-Therm WPL-WP2202885
...
23
Air-Tower WPL-WP2182340
...
24
Diffuser WPL-WP2189452
...
25
Freezer Floor WPL-2172565
...
26
Air Diffuser, Top WPL-2200793
...
27
Cover, Hole WPL-2205003
...
29
Bracket, Fan Motor WPL-2200641
...
30
Gasket WPL-WP2254360
...
32
Cap-Tube WPL-WP487996
...
35
Shield, Heat WPL-2204639
...
38
Releas-Vac WPL-WP2210509
...
39
Wire Assembly WPL-2187284

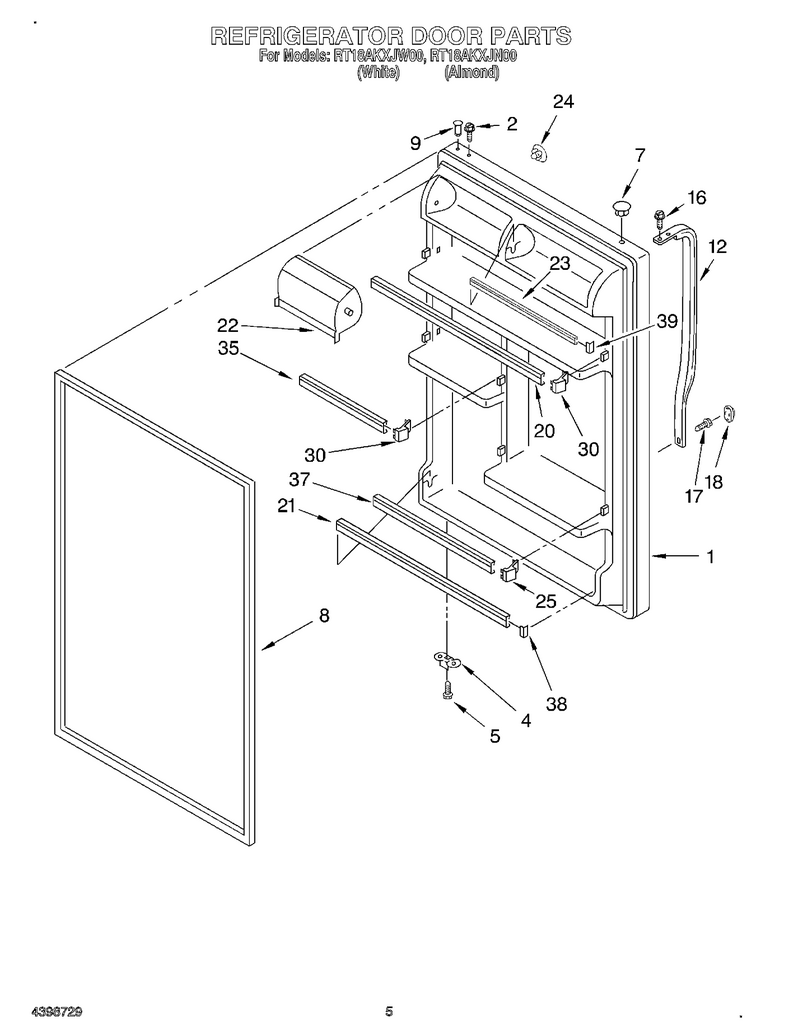

04 - Refrigerator Door

...
...
1
Dor-Fip Wh WPL-L2183948
...
2
Screw WPL-WP8281206
...
4
Bracket WPL-W11745278
...
5
Screw WPL-WP488921
...
7
Button-Plg WPL-WP2212648
...
8
Door Gasket, Magnetic (Service) WPL-2159057
...
9
Thimble WPL-WP2183003
...
12
Handle WPL-WP2202807T
...
16
Screw WPL-WP489357
...
17
Screw WPL-WP8281146
...
18
Cover WPL-WP2202819W
...
20
Trim-Door WPL-WP2201051
...
21
Trim-Door WPL-WPW10421484
...
22
Door-Comp WPL-WP2218113
...
23
Trim-Door WPL-WP2201061
...
24
Plug-Hndle WPL-WP2189008
...
25
Endcap WPL-WP2195915
...
30
Endcap WPL-WP2156003
...
35
Trim-Door WPL-WP2201052
...
37
Trim-Door WPL-WP2195943
...
38
Endcap-Trm WPL-WP2156006
...
39
Endcap-Trm WPL-WP2156007

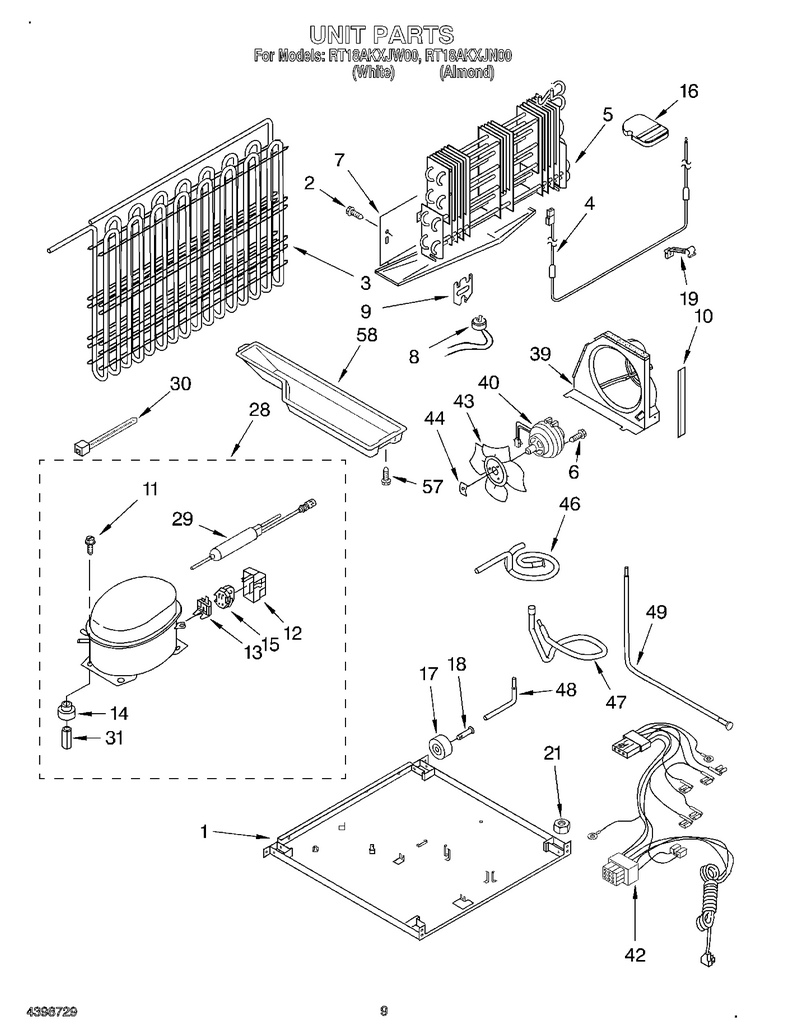

06 - Unit, Optional

...
...
1
Plate, Unit Mounting WPL-2201161
...
2
Screw WPL-WP489478
...
3
Condenser WPL-2205471
...
4
Heater WPL-WP2315531
...
5
Evaporator Assy. WPL-2195391
...
6
Screw WPL-WP8281196
...
7
Drain Pan WPL-2172619
...
8
Bimetl-Def WPL-WP4387503
...
9
Bracket, Heater WPL-2176301
...
10
Extension, Air Baffle WPL-2300638
...
11
Grommet (4) ((Production)) WPL-876811
...
12
Cover-Term WPL-WP2162358
...
13
Overload WPL-WP4387938
...
14
Grommet (4) ((Production)) WPL-876811
...
15
Overload WPL-WP4387938
...
16
Support Block WPL-2201184
...
17
Roller-Cab WPL-WPW10475495
...
18
Axle WPL-W11594405
...
19
Clip, Heater WPL-2182338
...
21
Nut (Not Serviced) WPL---
...
28
Compressor WPL-W10823815
...
29
Drier-Tube WPL-W10843121
...
30
Tie-Wire WPL-WPW10339879
...
31
Sleeve (4) (Service Only) WPL-4387559
...
39
Baffle-Air WPL-WP2198921
...
40
Motor-Cond WPL-W10822259
...
42
Wire Assy. Unit WPL-2199117
...
43
Blade-Fan WPL-WP2190685
...
44
Nut WPL-WP486692
...
46
Tube, Discharge WPL-2201142
...
47
Tube, Suction WPL-2189161
...
48
Tube, Process WPL-W10528578
...
49
Tube, Condenser To Heat Loop WPL-2174670
...
57
Screw WPL-489462
...
58
Valve, Access (5/8``) WPL-978029

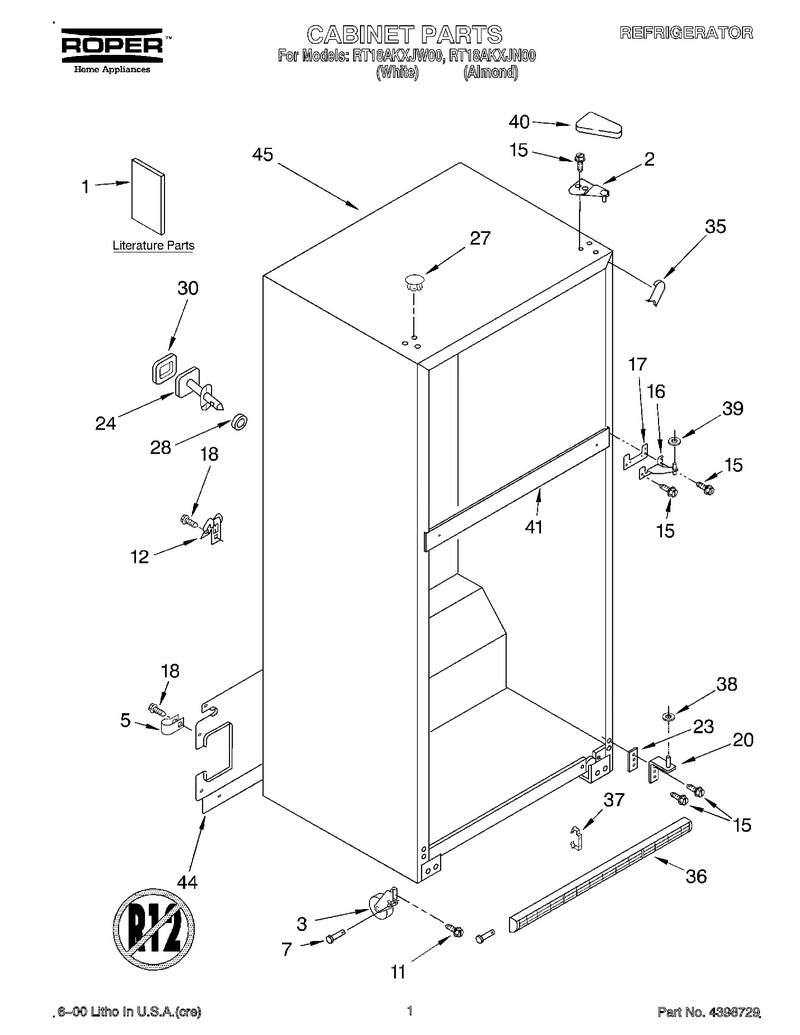

01 - Cabinet, Literature

...
...
1
Service & Wiring Sheet WPL-LIT2201079
...
2
Hinge-Door WPL-WP2261963
...
3
Roller-Cab WPL-WP2166108
...
5
Clamp WPL-WP488366
...
7
Axle WPL-W11594405
...
11
Screw WPL-WP3400504
...
12
Clamp, Cord WPL-549193
...
15
Screw WPL-WP489497
...
16
Hinge-Door WPL-WP2254618
...
17
Shim WPL-WP2183854
...
18
Screw WPL-WP489464
...
20
Hinge-Door WPL-WP2254473
...
23
Shim, Bottom Hinge WPL-2172743
...
24
Fitting, Water Tube (Not Serviced) WPL---
...
27
Hole Plug WPL-2151653
...
28
Seal, Front (Not Serviced) WPL---
...
30
Seal, Rear (Not Serviced) WPL---
...
35
Filler WPL-WPW10283959
...
36
Grille (Almond) WPL-2201010
...
37
Clip WPL-WP2189356
...
38
Washer WPL-WP487576
...
39
Washer WPL-WP489467
...
40
Cover WPL-WP2213360
...
41
Rail Center (Not Serviced) WPL---
...
44
Cover-Unit WPL-WP2189475
