Roper RT18AKXBW00

Model: RT18AKXBW00

Save Part Not Listed?
product name

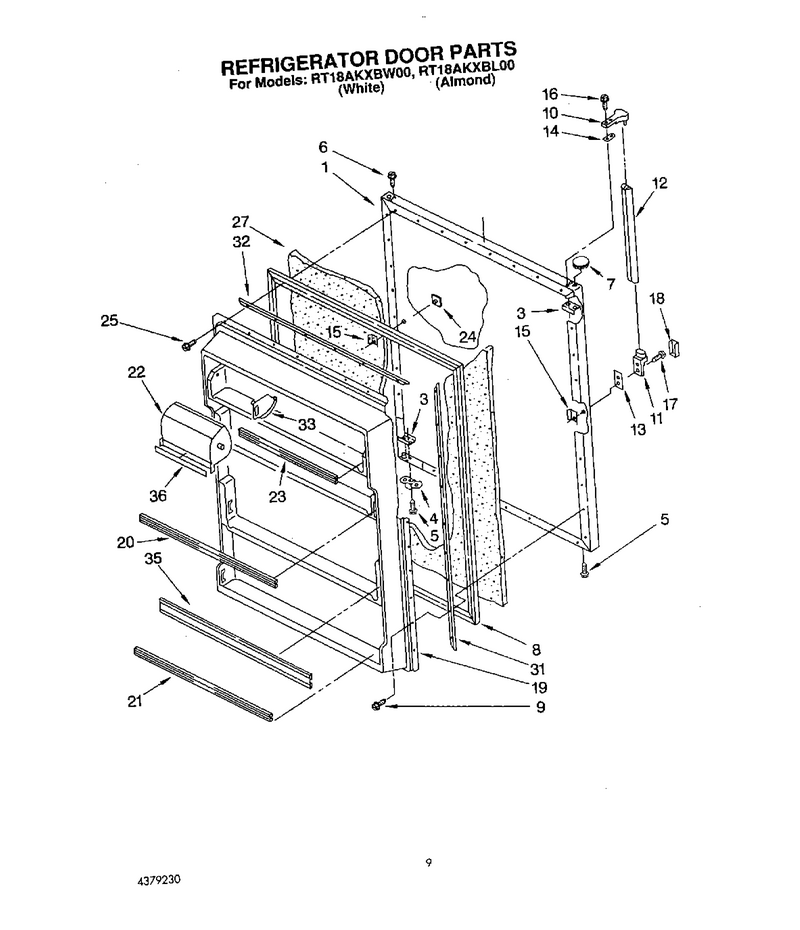

07 - Refrigerator Door, Lit/optional

...
...
Torx Key WPL-1117510
...
1
Panel, Refrigerator Door (Also Order Item 27) (Almond) WPL-1116578
...
3
Plate WPL-W10833053
...
4
Bracket WPL-W11745278
...
5
Screw WPL-WP488921
...
6
Screw WPL-WP8281206
...
7
Button-Plg WPL-WP2212648
...
8
Gasket-Dor WPL-2188447A
...
9
Screw WPL-WPW10141645
...
10
Handle End WPL-944157
...
11
Handle End, WPL-935105
...
12
Handle, Center WPL-1119757
...
13
Shim, Handle WPL-935076
...
14
Spacer WPL-WP943188
...
15
Plate WPL-WP939101
...
16
Screw WPL-WP488920
...
17
Screw WPL-WP488729
...
18
Cover, End Cap WPL-987873
...
19
Interior Door Panel WPL-2160165
...
20
Trim-Door WPL-WP2201061
...
21
Trim-Door WPL-WP2201061
...
22
Door-Comp WPL-2161116
...
23
Trim-Door WPL-WP2201061
...
24
Plug-Hndle WPL-WP2189000
...
25
Screw WPL-WP488729
...
27
Foam Insulation (Required When Replacing Exterior Door Panel) WPL-876029
...
31
Retainer, Gasket Side (2) WPL-1115136
...
32
Retainer, Gasket Top & Bottom WPL-1115137
...
33
Hinge Pin, Center WPL-2160051
...
35
Trim, Door Shelf WPL-2163249
...
36
Paint, Touch-Up (1/2oz. Black) WPL-72032

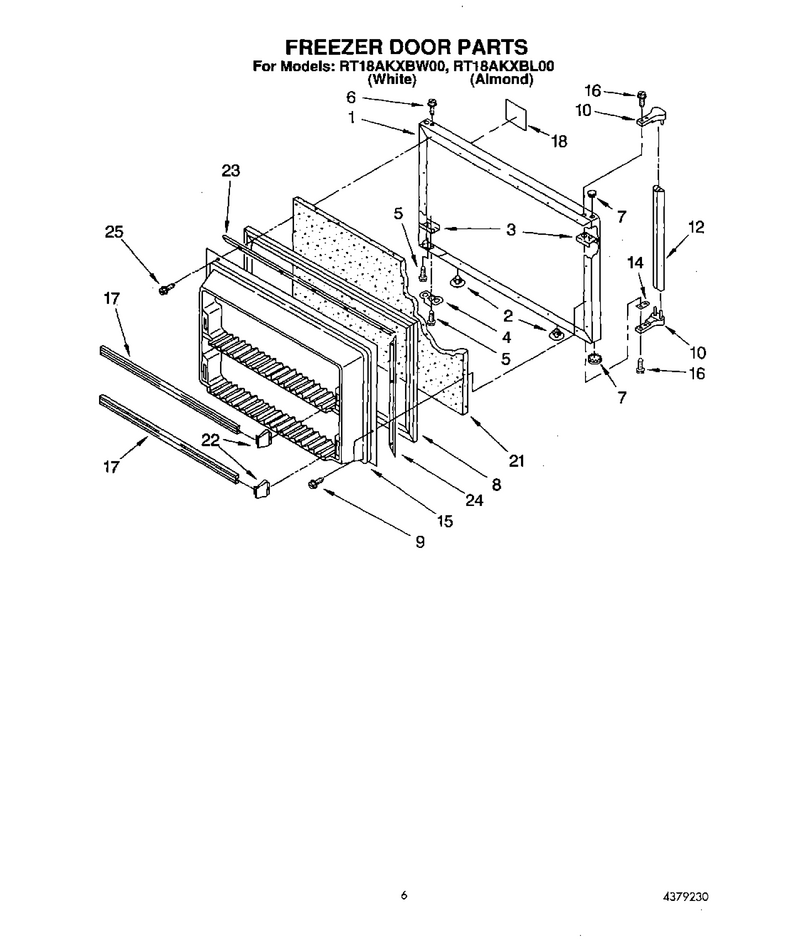

05 - Freezer Door

...
...
1
Panel, Freezer Door (Also Order Item 21) (Almond) WPL-2157711
...
2
Hole Plug (2) (White) WPL-534927
...
3
Plate WPL-W10833053
...
4
Bracket WPL-W11745278
...
5
Screw WPL-WP488921
...
6
Screw WPL-WP8281206
...
7
Button-Plg WPL-WP2212648
...
8
Door Gasket Magnetic WPL-1116735
...
9
Screw WPL-WP489069
...
10
Handle End (2) WPL-944157
...
12
Handle, Center WPL-1119757
...
14
Spacer WPL-WP943188
...
15
Interior Door Panel WPL-1116610
...
16
Screw WPL-WP488920
...
17
Trim-Door WPL-WP2201061
...
18
Nameplate WPL-2163676
...
21
Kit, Foam Slab (Required When Replacing Exterior Door Panel) WPL-876029
...
22
Endcap-Trm WPL-WP1106862
...
23
Retainer, Gasket Top & Bottom WPL-1115137
...
24
Retainer, Gasket Side (2) WPL-1115138
...
25
Screw WPL-WP488729

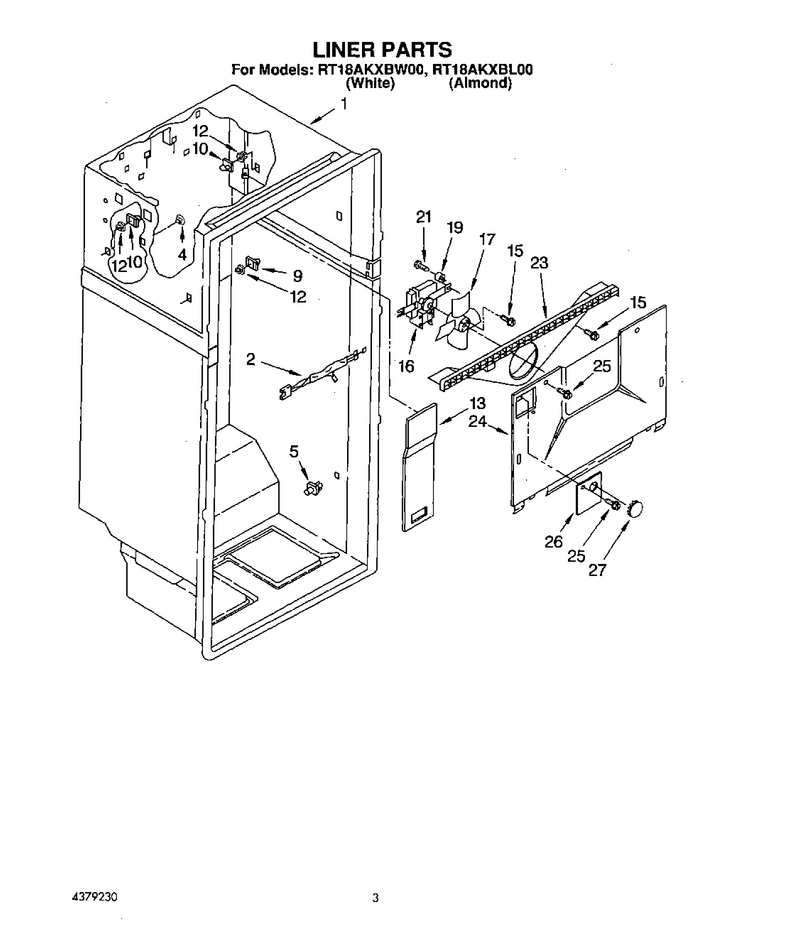

02 - Liner

...
...
1
Liner (Not A Serviceable Part) WPL---
...
2
Harns-Wire WPL-WP1127626
...
4
Button-Plg WPL-WP941839
...
5
Stud-Shelf WPL-W10854959
...
9
Stud-Shelf WPL-W11581579
...
10
Stud-Shelf WPL-819091
...
12
Stud-Shelf WPL-W11581579
...
13
Cover, Air Duct WPL-2153966
...
15
Screw WPL-WP489478
...
16
Motor-Evap WPL-482731
...
17
Blade-Fan WPL-WP1100938
...
19
Grommet WPL-WP531933
...
21
Screw WPL-489168
...
23
Scroll, Fan WPL-1116598
...
24
Evaporator Cover WPL-2151668
...
25
Screw WPL-WP488729
...
26
Cover WPL-WP2217784
...
27
Hole Plug WPL-1103725

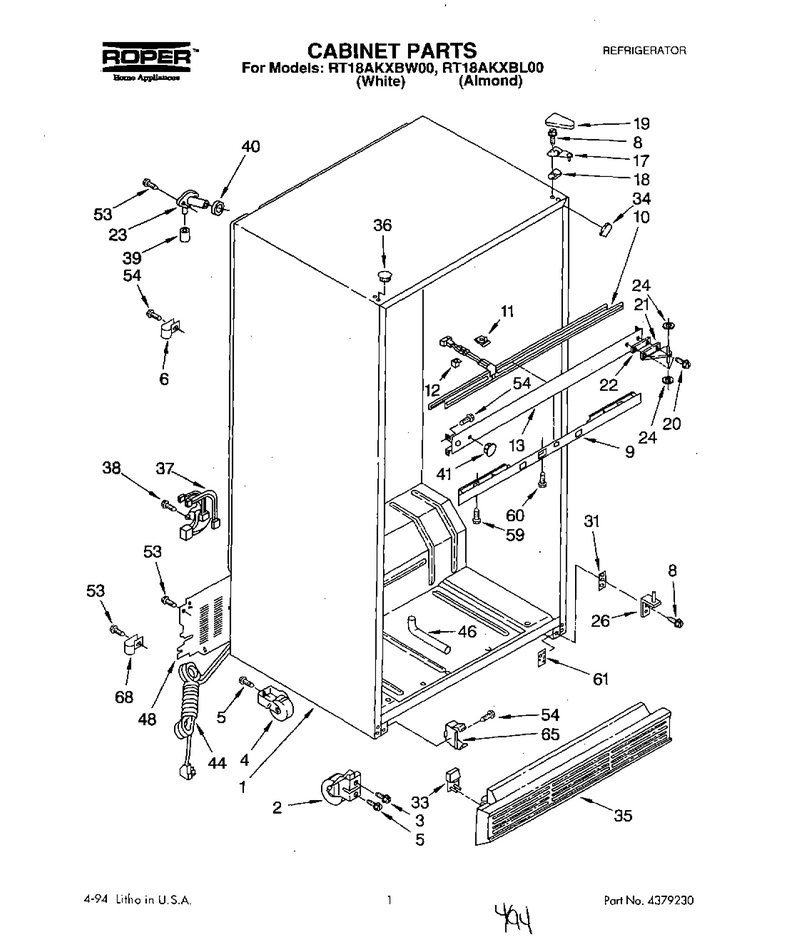

01 - Cabinet

...
...
1
Cabinet (Not A Serviceable Part) WPL---
...
2
Roller, Front WPL-2152011
...
3
Screw, 5/16-24 X 1-1/4 WPL-489393
...
4
Roller-Cab WPL-WPW10250570
...
5
Screw, 1/4-28 X 1/2 WPL-488454
...
6
Clamp WPL-WP488366
...
8
Screw WPL-WP999367
...
9
Control, Front Cover WPL-1116571
...
10
Heater, Mullion WPL-2154064
...
11
Clip, Mullion (3) WPL-2149060
...
12
Spacer (3) WPL-2149077
...
13
Center Rail WPL-2172701
...
17
Hinge-Door WPL-WP2189412
...
18
Shim, Hinge (2) WPL-1123515
...
19
Hinge Cover (Almond) WPL-2160404
...
20
Screw WPL-WP999367
...
21
Hinge-Door WPL-W10851192
...
22
Shim, Hinge Center WPL-836155
...
23
Fitting WPL-WP2196157
...
24
Washer WPL-WP487802
...
26
Hinge-Door WPL-WP2254473
...
31
Shim, Bottom Hinge WPL-2172743
...
33
Corner Filler, Grille WPL-1118078
...
34
Filler, Wrapper (Almond) WPL-2196095
...
35
Grille WPL-1118079
...
36
Button-Plg WPL-WP2151652
...
37
Wire Assy WPL-2176859
...
38
Screw WPL-WP250830
...
39
Cap-Tube WPL-WP487996
...
40
Gasket WPL-WP1106508
...
41
Hole Plug (3) (White) WPL-842031
...
44
Cord, Service WPL-937360
...
46
Tube, Drain WPL-2183033
...
48
Cover, Unit WPL-2172766
...
53
Screw WPL-WP489464
...
54
Screw WPL-WP489478
...
59
Screw WPL-WP488163
...
60
Screw WPL-WP489174
...
61
Tap-Plate, Bottom Hinge WPL-2157315
...
65
Clip WPL-WP2155013
...
68
Clamp, Cord WPL-549193

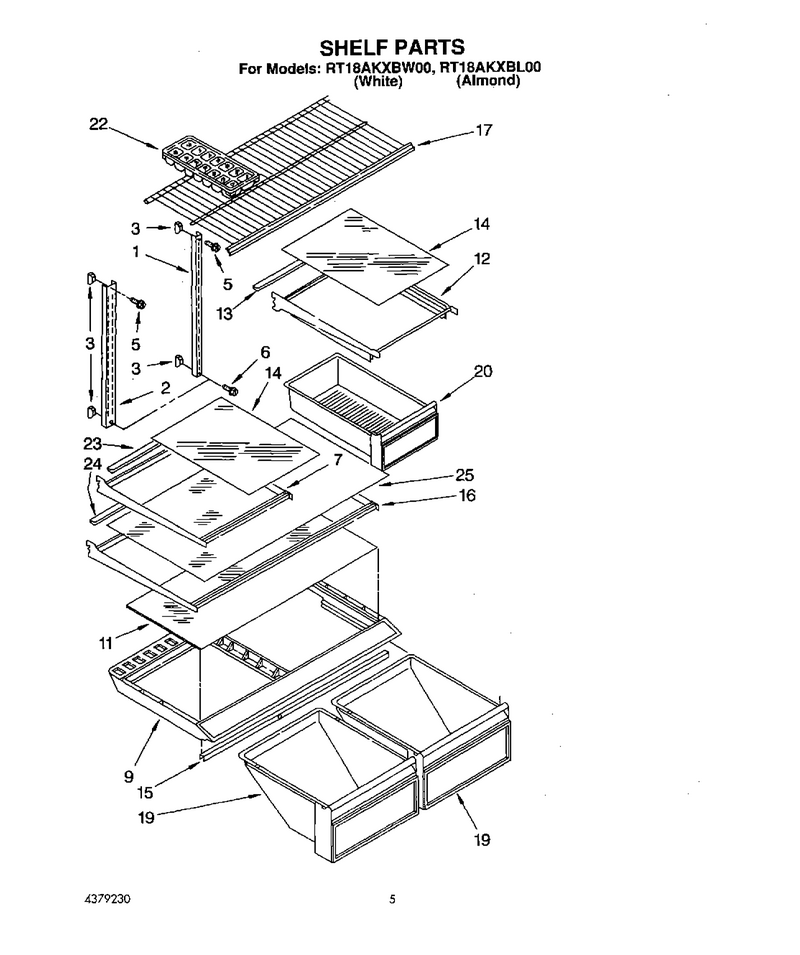

04 - Shelf

...
...
1
Shelf, Ladder (2) WPL-1114466
...
2
Shelf, Ladder Center WPL-1114465
...
3
Screw Support WPL-520965
...
5
Screw WPL-489383
...
6
Screw WPL-WP488163
...
7
Shelf, Cantilever WPL-1116693
...
9
Crisper Cover WPL-2157828
...
11
Shelf-Glas WPL-2164379
...
12
Pan Shelf, Cantilever WPL-1116703
...
13
Retainer, Shelf WPL-1125525
...
14
Glass, Shelf WPL-2163584
...
15
Support WPL-WP2172748
...
16
Shelf, Full Cantilever WPL-1116688
...
17
Shelf, Freezer WPL-1125849
...
19
Pan, Crisper WPL-1118110
...
20
Pan-Meat WPL-1115162
...
22
Tray WPL-WP841180A
...
23
Reflector WPL-2162942
...
24
Reflector, Shelf WPL-2163604
...
25
Glass, Shelf Full WPL-2163590

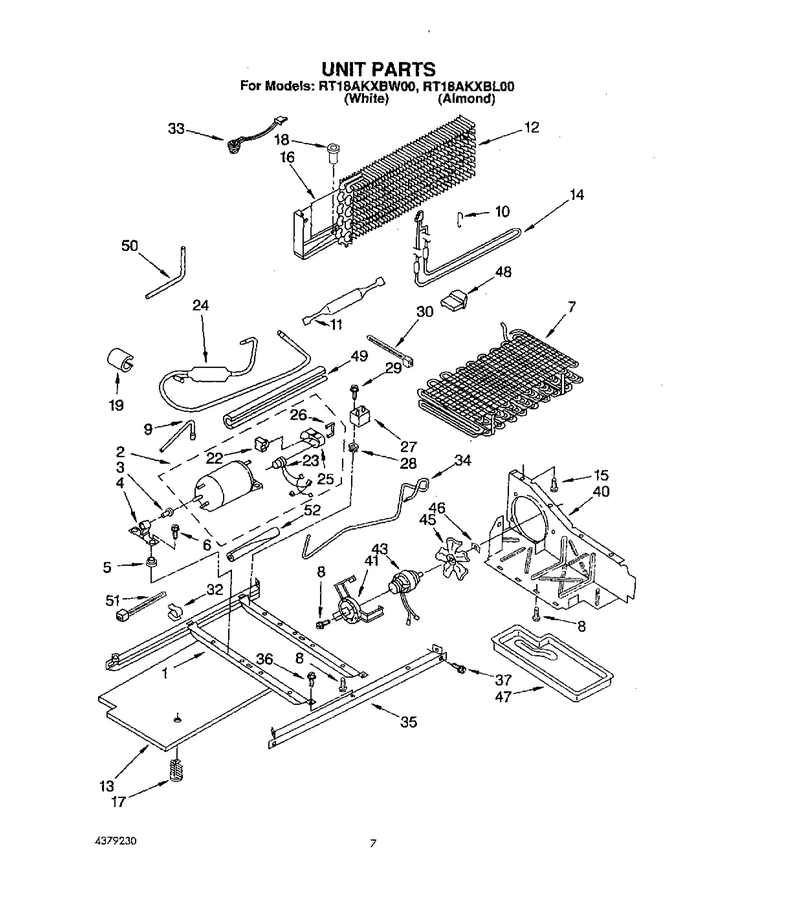

06 - Unit

...
...
1
Unit, Frame WPL-2159747
...
2
Compressor WPL-4387047
...
3
Grommet, Compressor Bracket WPL-1105219
...
4
Bracket, Mounting WPL-1105220
...
5
Grommet, Compressor (4) WPL-1105200
...
6
Screw WPL-489334
...
7
Condenser Assembly WPL-1116624
...
8
Screw WPL-WP489464
...
9
Tube, Process WPL-2154090
...
10
Support, Heater WPL-851358
...
11
Drier-Tube WPL-W10843121
...
12
Evaporator WPL-2174757
...
13
Cover, Unit Bottom WPL-2160517
...
14
Heater, Defrost WPL-2162020
...
15
Screw WPL-WP489478
...
16
Drain Pan & Heat Shield WPL-2153973
...
17
Clip WPL-489396
...
18
Drain Fitting WPL-2172811
...
19
Dampener WPL-WP2158826
...
22
Relay (See Overload) WPL---
...
23
Overload (Service (Includes Relay)) WPL-2154945
...
24
Muffler WPL-2154034
...
25
Terminal Cover WPL-2154452
...
26
Strap, Cover WPL-1105222
...
27
Capacitor WPL-WPW10662129
...
28
Grommet (4) WPL-937252
...
29
Screw WPL-W11693756
...
30
Tie-Wire WPL-WPW10339879
...
32
Clip, Wire (2) WPL-548745
...
33
Bimetl-Def WPL-WP4387503
...
34
Tube, Discharge WPL-2154028
...
35
Unit, Rail WPL-1116622
...
36
Screw WPL-WP489427
...
37
Screw WPL-489340
...
40
Air, Baffle WPL-2169432
...
41
Fan, Mounting Bracket WPL-2162060
...
43
Motor-Cond WPL-833697
...
45
Fan Blade WPL-2169191
...
46
Nut WPL-WP486692
...
47
Tray-Evap WPL-WP842041
...
48
Wedge, Air Baffle WPL-1118017
...
49
Sleeve WPL-WP2002171
...
50
Tube, Condenser To Heat Loop WPL-2154031
...
51
Tie-Wire WPL-WPW10339879
...
52
Valve, Access (3/16``) WPL-876764

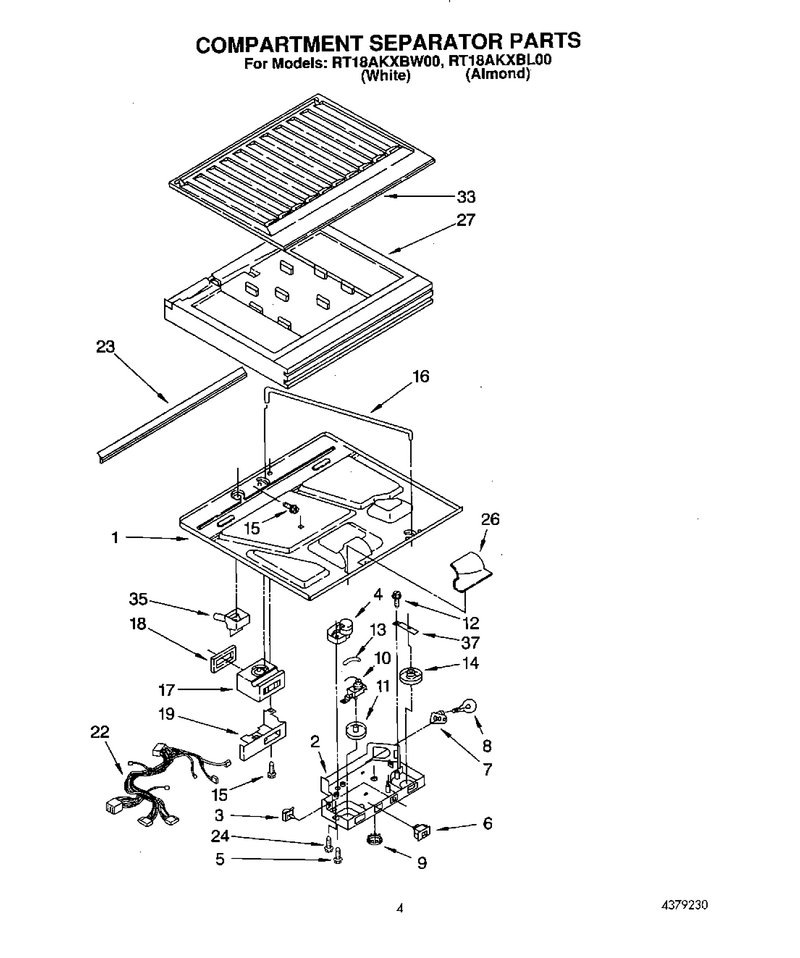

03 - Compartment Separator

...
...
1
Bottom, Compartment Separator WPL-1116561
...
2
Box, Control WPL-1126029
...
3
Switch WPL-WP2149705
...
4
Timer-Def WPL-WP2183400
...
5
Screw WPL-WP487353
...
6
Switch-Pm WPL-WP938213
...
7
Capacitor (Service) WPL-4387478
...
8
Bulb-Light WPL-W11679940
...
9
Hole Plug WPL-940014
...
10
Thermostat WPL-1123394
...
11
Knob, Thermostat WPL-1106931
...
12
Screw WPL-WP965173
...
13
Barrier WPL-WP2196003
...
14
Knob WPL-1115047
...
15
Screw WPL-WP489478
...
16
Rod, Connecting WPL-1116565
...
17
Air Diffuser Assembly WPL-2157253
...
18
Gasket, Air Diffuser WPL-2157255
...
19
Cover, Air Diffuser WPL-1108176
...
22
Wiring Assembly, Control Box WPL-2153995
...
23
Gasket, Bottom Separator WPL-2159734
...
24
Screw WPL-WP250830
...
26
Insulation, Filler WPL-1108196
...
27
Insulation, Compartment Separator WPL-1116569
...
33
Separator, Compartment (Top) WPL-2157398
...
35
Cup, Drain WPL-937065
...
37
Bracket, Control Knob WPL-1105457
