Roper RT14EKRDW00

Model: RT14EKRDW00

Save Part Not Listed?
product name

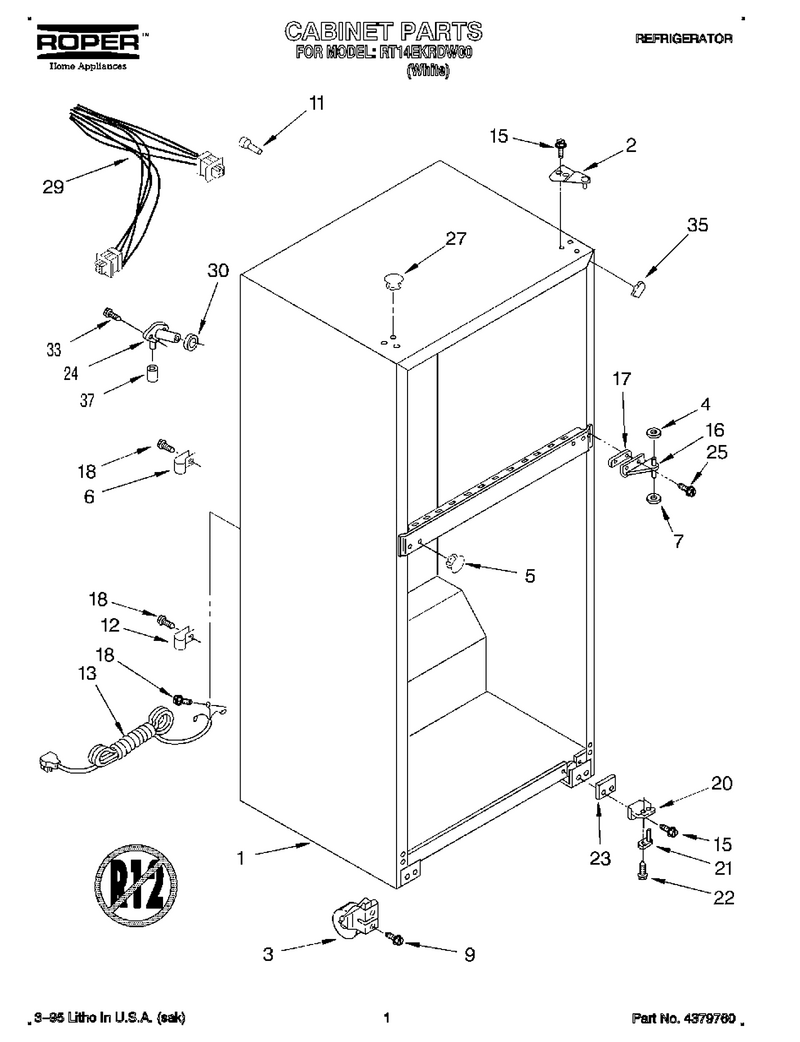

01 - Cabinet

...
...
1
Cabinet (Not A Serviceable Part) WPL---
...
2
Hinge-Door WPL-WP2189412
...
3
Roller-Front WPL-9790461
...
4
Washer WPL-WP487576
...
5
Hole Plug (3) (White) WPL-842031
...
6
Clamp WPL-WP488366
...
7
Washer WPL-WP487802
...
9
Screw WPL-9791768
...
11
Tube, Water Inlet WPL-836490
...
12
Clamp, Cord WPL-549193
...
13
Cord, Service WPL-937360
...
15
Screw WPL-WP999367
...
16
Hinge-Door WPL-WP2166037
...
17
Shim, Hinge Center WPL-2166043
...
18
Screw WPL-WP489478
...
20
Hinge WPL-WP2325482
...
21
Hinge-Pin WPL-WP9791682
...
22
Screw WPL-WP488714
...
23
Shim WPL-WP2201567
...
24
Fitting WPL-WP2196157
...
25
Screw WPL-WP999367
...
27
Button-Plg WPL-WP2151652
...
29
Cabinet, Wiring Assembly WPL-9790418
...
30
Gasket WPL-WP1106508
...
33
Screw WPL-WPW10141645
...
35
Filler WPL-W10859322
...
37
Cap-Tube WPL-WP487996

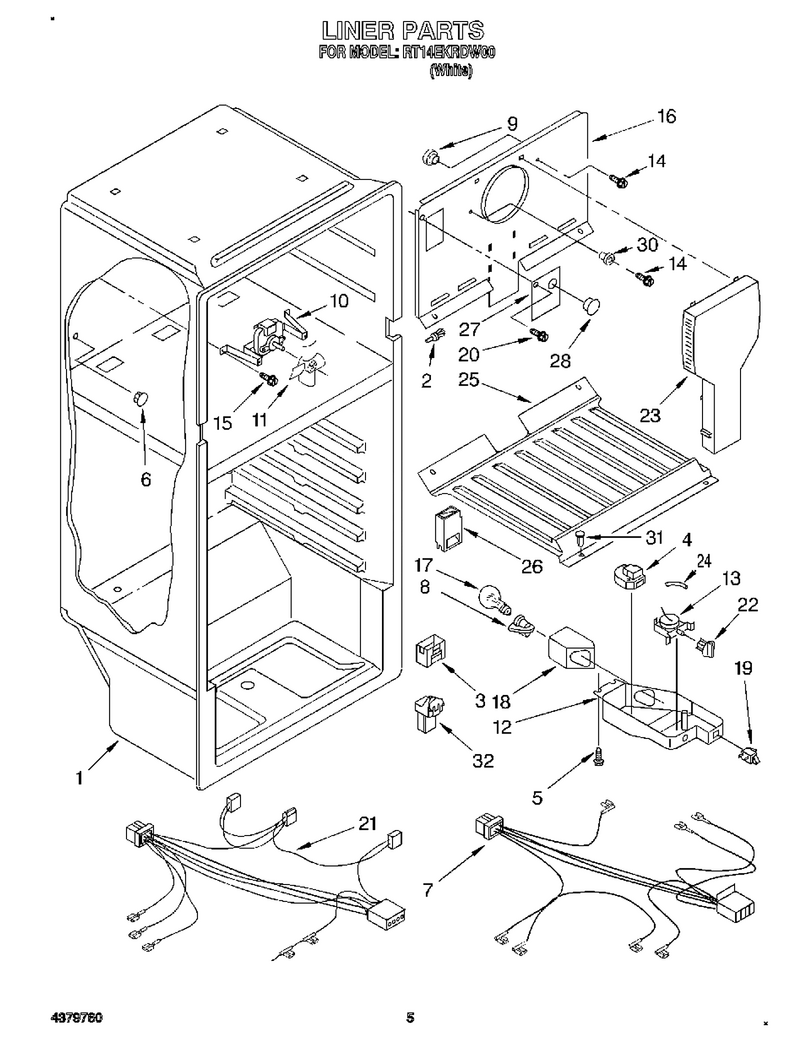

03 - Liner, Lit/optional

...
...
Service & Wiring Sheet WPL-LIT2169459
...
1
Liner (Not A Serviceable Part) WPL---
...
2
Rivet-Plastic WPL-939962
...
3
Cover WPL-WP2183061
...
4
Timer-Def WPL-WP2183400
...
5
Screw WPL-WP489174
...
6
Button-Plg WPL-WP941839
...
7
Wire Assembly (Control Box) WPL-2176927
...
8
Capacitor (Service) WPL-4387478
...
9
Grommet WPL-WP531933
...
10
Fan Motor & Bracket Assy. WPL-2166013
...
11
Blade-Fan WPL-WP1100939
...
12
Control Box WPL-2215213
...
13
Thermostat WPL-2174500
...
14
Screw WPL-WP489474
...
15
Screw WPL-WP489478
...
16
Cover-Evaporator WPL-9790382
...
17
Bulb-Light WPL-W11679940
...
18
Lens-Light WPL-W11034434
...
19
Switch WPL-W11384469
...
20
Screw WPL-WP488729
...
21
Wiring-Freezer WPL-9791403
...
22
Knob-Therm WPL-WP2202885
...
23
Air Tower WPL-9790408
...
24
Barrier WPL-WP2196003
...
25
Floor WPL-WP2174798
...
26
Diffuser WPL-WP2221992
...
27
Cover WPL-WP2217784
...
28
Hole Plug WPL-1103725
...
30
Sleeve WPL-2166010
...
31
Rivet WPL-WP489115
...
32
Sealer WPL-WP503695

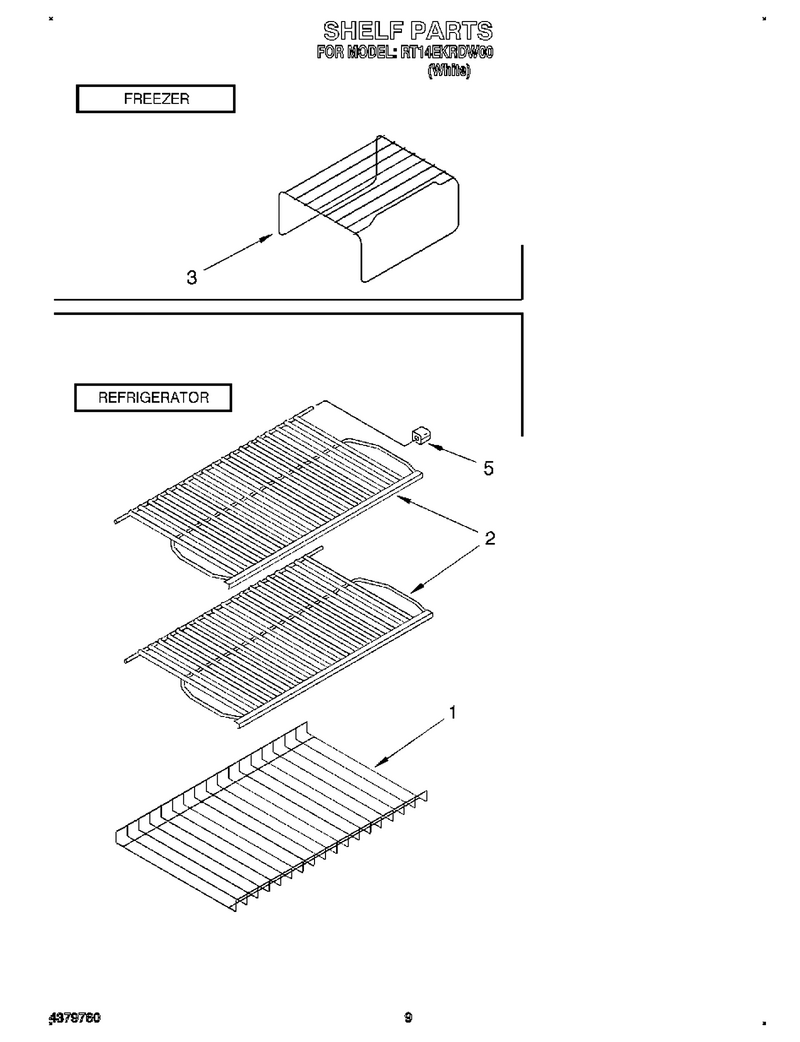

05 - Shelf

...
...
1
Trivet WPL-2163615
...
2
Shelf-Wire WPL-WP2192515
...
3
Shelf-Wire WPL-WPW10401596
...
5
Thimble (4) WPL-9791835

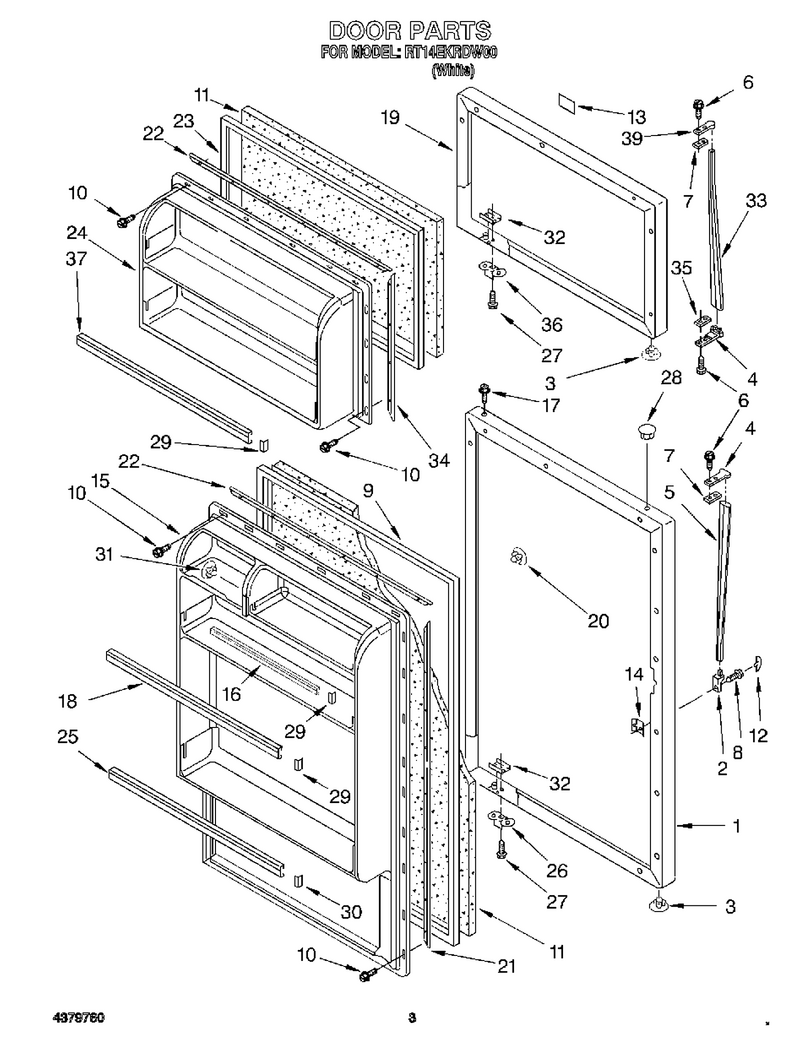

02 - Door

...
...
1
Refrigerator Door Panel (Also Order Item 11) (White) WPL-9790362
...
2
Endcap-Hdl WPL-819342
...
3
Hole Plug (2) (White) WPL-534927
...
4
Endcap-Hdl WPL-819342
...
5
Handle WPL-W10373956
...
6
Screw WPL-WP488920
...
7
Shim WPL-943187
...
8
Screw WPL-WP488729
...
9
Gasket-Dor WPL-2188448A
...
10
Screw WPL-WP489442
...
11
Foam Insulation (Required When Replacing Exterior Door Panel) WPL-876029
...
12
Cover WPL-WP1101634
...
13
Nameplate WPL-2163676
...
14
Plate WPL-WP939101
...
15
Panel, Interior Door (Refrigerator) WPL-2173725
...
16
Trim-Door WPL-WP2163629
...
17
Screw WPL-WP8281206
...
18
Trim-Door WPL-WP2163629
...
19
Freezer Door Panel (Also Order Item 11) (White) WPL-9790364
...
20
Plug-Hndle WPL-WP2189000
...
21
Retainer, Gasket WPL-1122551
...
22
Retainer, Gasket WPL-1120614
...
23
Gasket-Dor WPL-2188462A
...
24
Interior Door Panel (Freezer) WPL-9790358
...
25
Trim-Door WPL-WP1120826
...
26
Bracket WPL-W11745278
...
27
Screw WPL-WP488921
...
28
Button-Plg WPL-WP2212648
...
29
Endcap-Trm WPL-WP2156007
...
30
Endcap-Trm WPL-WP2156006
...
31
Hole Plug WPL-2163372
...
32
Plate WPL-W10833053
...
33
Handle WPL-W10373956
...
34
Retainer, Gasket WPL-1122553
...
35
Spacer WPL-WP943188
...
36
Bracket WPL-W11745278
...
37
Trim-Door WPL-WP2163629
...
39
Handle End WPL-1108955

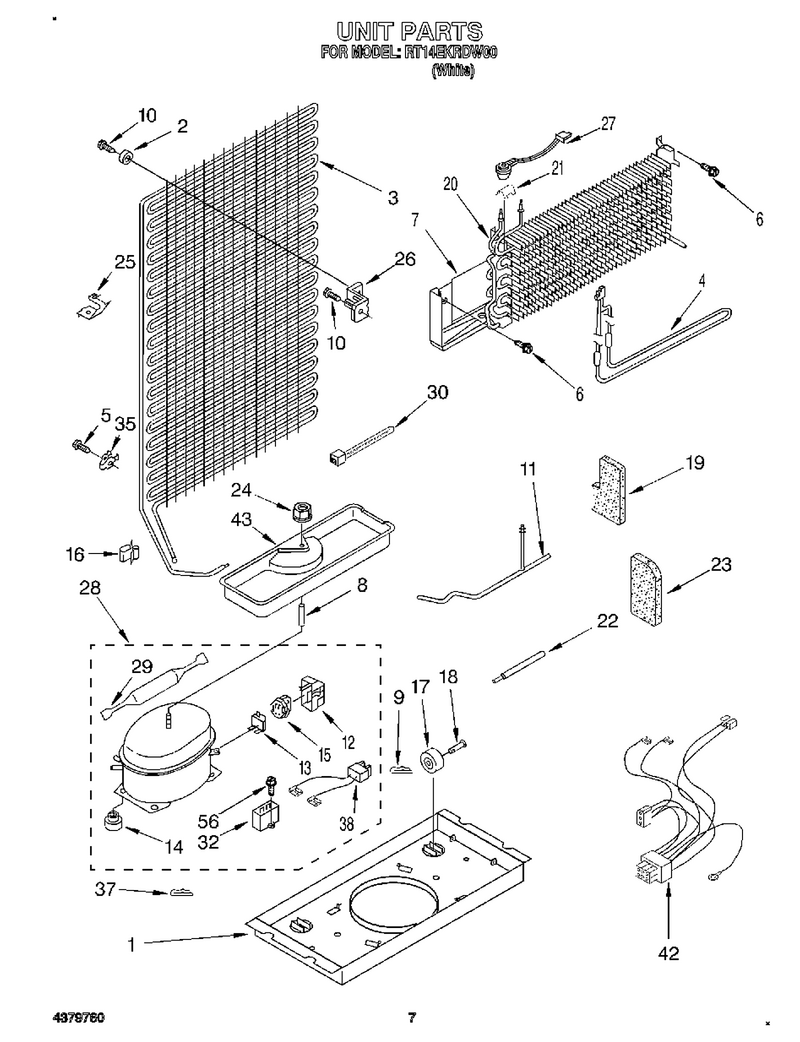

04 - Unit

...
...
1
Support WPL-WPW10222451
...
2
Bumper WPL-944772
...
3
Condenser WPL-9790413
...
4
Heater WPL-WP2263749
...
5
Screw WPL-WP965173
...
6
Screw WPL-WP965173
...
7
Heat Shield WPL-2319224
...
8
Spacer WPL-2154438
...
9
Clip-Pin WPL-20150912
...
10
Screw WPL-WP488163
...
11
Evacuation Tube Assembly WPL-2174791
...
12
Cover-Term WPL-WP2162358
...
13
Overload (Includes Relay) (Service) WPL-4387913
...
14
Grommet WPL-WP2163786
...
15
Relay (See Overload) WPL---
...
16
Clip WPL-W10812038
...
17
Roller-Cab WPL-4388239
...
18
Pin-Roller WPL-20150911
...
19
Support-Ev WPL-8201619
...
20
Evaporator WPL-WP2263919
...
21
Clip WPL-9791833
...
22
Tube WPL-W11661102
...
23
Support-Ev WPL-8201619
...
24
Nut WPL-285002
...
25
Clip WPL-4386951
...
26
Bracket, Condenser WPL-944791
...
27
Bimetl-Def WPL-WP4387490
...
28
Compressor WPL-W10309988
...
29
Drier-Tube WPL-W10843121
...
30
Tie-Wire WPL-WPW10339879
...
32
Capacitor WPL-999509
...
35
Clip, Tube (4) WPL-510414
...
37
Clip, Compressor WPL-24364001
...
38
Wire WPL-WP2172890
...
42
Wire Assy. Unit WPL-2177021
...
43
Tray-Evap WPL-WP2201801
...
56
Valve, Access (5/16``) WPL-978026
