Roper RT12DCRWW00

Model: RT12DCRWW00

Save Part Not Listed?
product name

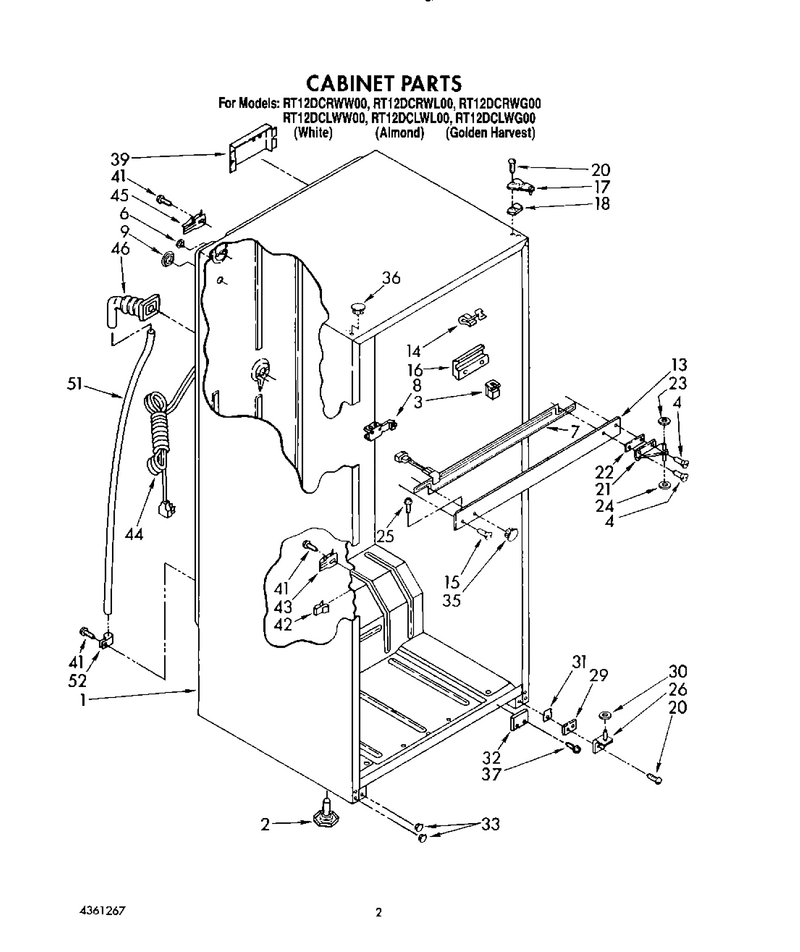

02 - Cabinet

...
...
1
Cabinet (Not A Serviceable Part) WPL---
...
2
Leveler WPL-W11117769
...
3
Spacer (2) WPL-1116484
...
4
Screw WPL-489179
...
6
Hole Plug WPL-940014
...
7
Heater, Mullion WPL-938278
...
8
Center Rail, Bracket (2) WPL-935692
...
9
Hole Plug WPL-655411
...
13
Center, Rail (White) WPL-944868
...
14
Breaker, Trim Clip WPL-1114428
...
15
Screw WPL-WP488729
...
16
Center, Rail Shim WPL-2151428
...
17
Shim, Hinge Top WPL-1100513
...
18
Shim, Hinge Top WPL-1100511
...
20
Screw, 10-32 X 23/32 WPL-489327
...
21
Hinge-Door WPL-W10851192
...
22
Shim, Hinge Center WPL-836155
...
23
Washer WPL-WP487802
...
24
Washer WPL-WP488296
...
25
Screw WPL-WP488729
...
26
Hinge Butt (Bottom L.h.) WPL-944778
...
29
Shim, Bottom WPL-935737
...
30
Washer WPL-WP487576
...
31
Tap Plate WPL-935743
...
32
Rail, Cover (Harvest Gold) WPL-935707
...
33
Hole, Plug (2) (Harvest Gold) WPL-941419
...
35
Hole Plug (2) (Harvest Gold) WPL-1119708
...
36
Hole Plug (3) (White) WPL-842031
...
37
Screw WPL-488895
...
39
Cover, Wiring WPL-946218
...
41
Screw WPL-WP489478
...
42
Clip WPL-W10812038
...
43
Clamp, Service Cord WPL-549193
...
44
Cord, Service WPL-937360
...
45
Clamp WPL-937357
...
46
Fitting, Drain WPL-937062
...
51
Tube-Drain WPL-8316810
...
52
Clamp (2) WPL-488946

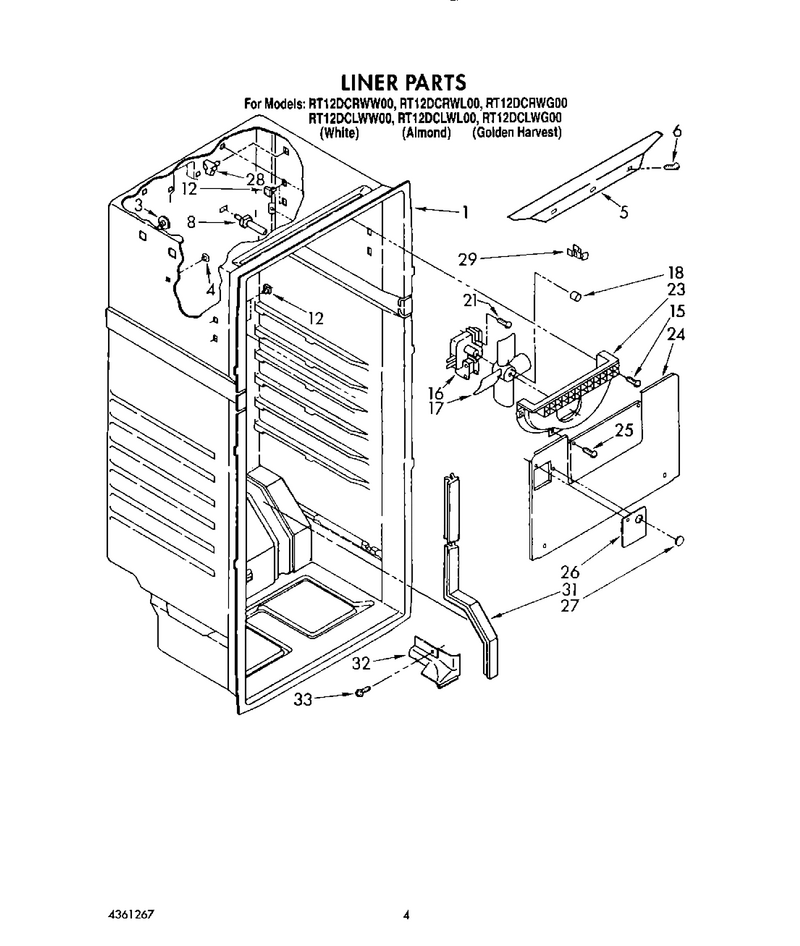

03 - Liner

...
...
1
Liner (Not A Serviceable Part) WPL---
...
3
Hole Plug WPL-2152241
...
4
Button-Plg WPL-WP941839
...
5
Baffle, Liner Top WPL-2150914
...
6
Screw WPL-489240
...
8
Stud, Evaporator (2) WPL-1108519
...
12
Stud, Evaporator (2) WPL-1108519
...
15
Screw WPL-WP489478
...
16
Motor, Fan WPL-1108698
...
17
Blade, Fan WPL-1108573
...
18
Ring, Compression WPL-992953
...
21
Screw, 8 X 1-1/4 (2) WPL-489165
...
23
Scroll, Fan WPL-1108518
...
24
Evaporator Cover WPL-1108509
...
25
Screw WPL-WP488729
...
26
Cover WPL-WP2217784
...
27
Hole Plug WPL-1103725
...
28
Stud-Shelf WPL-4388405
...
29
Clip, Ground WPL-1108523
...
31
Cover Tube, Rear WPL-935704
...
32
Cover Tube, Bottom WPL-941776
...
33
Screw WPL-WP488729

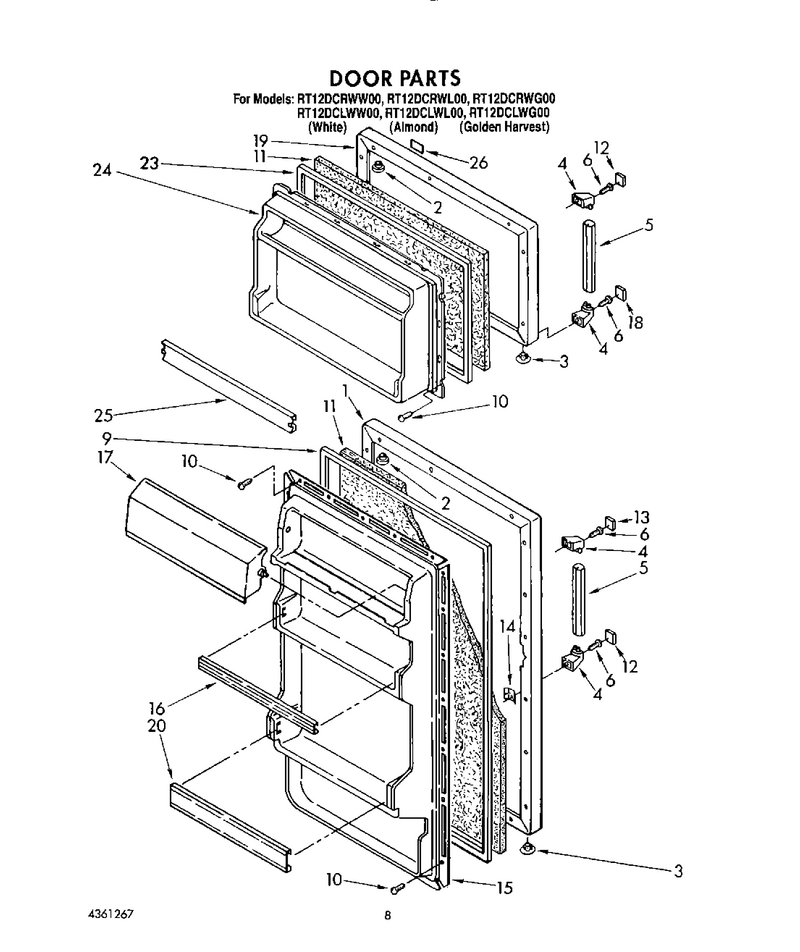

06 - Door, Lit/optional

...
...
Service & Wiring Sheet WPL-LIT1128207
...
1
Refrigerator Door Panel (Also Order Item 11) (Harvest Gold) WPL-944913
...
2
Cap, Hinge Sleeve (4) WPL-509929
...
3
Hole Plug (2) (White) WPL-534927
...
4
End Cap, Handle WPL-1124591
...
5
Handle WPL-845320
...
6
Screw WPL-817000
...
9
Gasket-Dor WPL-2188446A
...
10
Screw WPL-WP489069
...
11
Foam Insulation (Required When Replacing Exterior Door Panel) WPL-876029
...
12
Cover, Screw WPL-934724
...
13
Cover, Screw WPL-934724
...
14
Plate WPL-WP939101
...
15
Interior Door Panel (Refrigerator) WPL-2151209
...
16
Trim, Door Shelf WPL-1116116
...
17
Compartment Door WPL-2148606
...
18
Cover, Screw WPL-934724
...
19
Freezer Door Panel (Also Order Item 11) (Harvest Gold) WPL-944935
...
20
Trim, Door WPL-1114323
...
23
Gasket-Dor WPL-2188464A
...
24
Interior Door Panel (Freezer) WPL-2172478
...
25
Trim, Door (1) WPL-1104199
...
26
Paint, Touch-Up (1/2oz. Black) WPL-72032

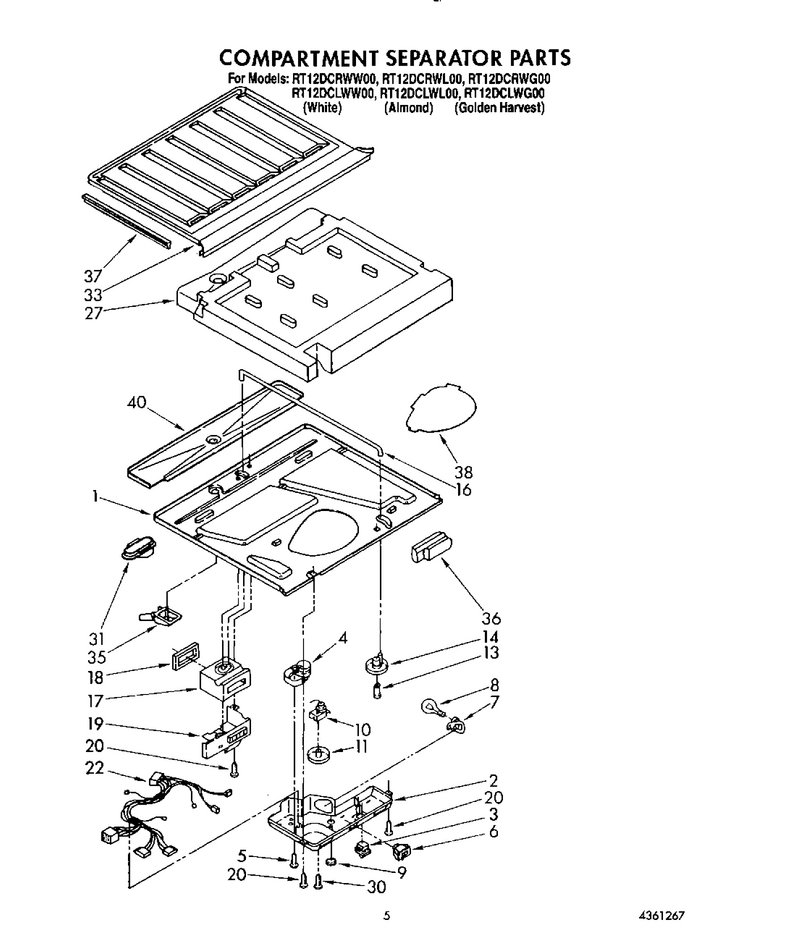

04 - Compartment Separator

...
...
1
Bottom, Compartment Separator WPL-1114546
...
2
Contrl-Box WPL-935724
...
3
Switch WPL-W11384469
...
4
Timer-Def WPL-W10822278
...
5
Screw WPL-WP487353
...
6
Switch-Pm WPL-WP938213
...
7
Capacitor (Service) WPL-4387478
...
8
Bulb-Light WPL-W11679940
...
9
Hole Plug WPL-940014
...
10
Thermostat WPL-WP819470
...
11
Knob, Thermostat WPL-937144
...
13
Retainer, Knob WPL-1111792
...
14
Knob, Air Control WPL-1111737
...
16
Rod, Connecting WPL-1104579
...
17
Air Diffuser Assembly WPL-1118973
...
18
Gasket, Air Diffuser WPL-2157255
...
19
Cover, Air Diffuser WPL-1108522
...
20
Screw WPL-WP489478
...
22
Wiring, Assembly Control Box WPL-1108491
...
27
Insulation, Compartment WPL-1114430
...
30
Screw, No.8-18 X 3/8``, Hwhtcs WPL-4159456
...
31
Hood, Air Return (2) WPL-1108521
...
33
Separator, Compartment (Top) WPL-1128228
...
35
Cup, Drain WPL-937065
...
36
Rear Corner, Block WPL-939056
...
37
Gasket (2) WPL-1114468
...
38
Heat Shield WPL-937227
...
40
Drain Pan WPL-1108512

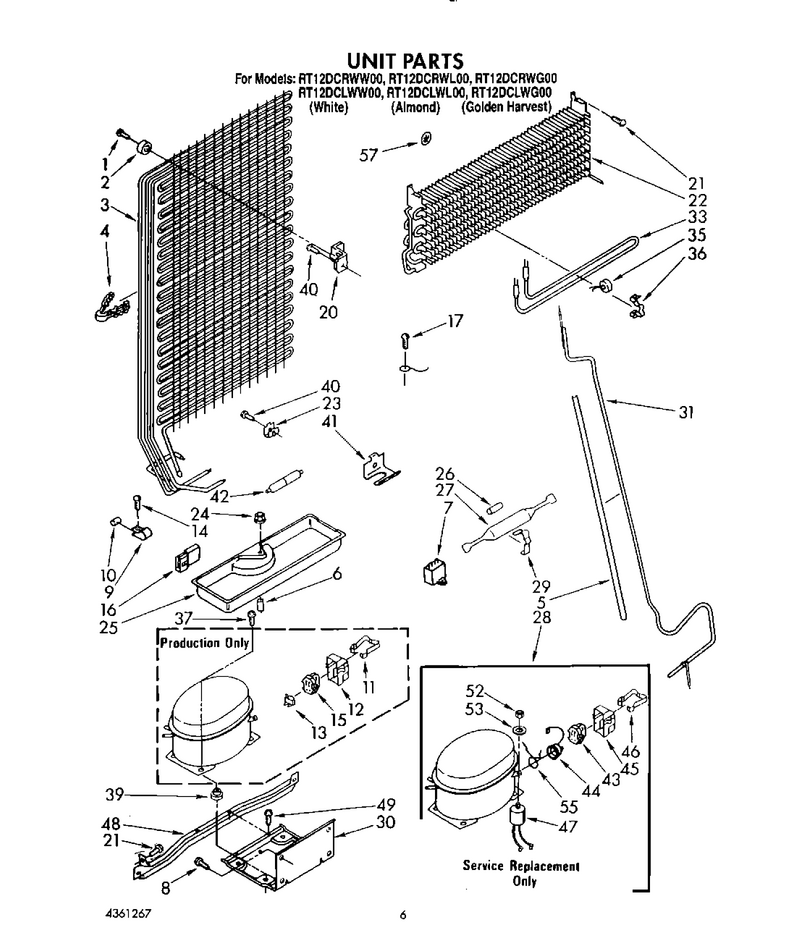

05 - Unit

...
...
1
Screw WPL-798639
...
2
Bumper (2) WPL-204349
...
3
Condenser & Precooler Assembly WPL-1116643
...
4
Clip, Tube (2) WPL-938232
...
5
Sleeve WPL-WP2002171
...
6
Spacer WPL-938275
...
7
Capacitor WPL-WPW10662129
...
8
Screw WPL-WP250830
...
9
Tube Clamp WPL-510716
...
10
Dampener WPL-1108064
...
11
Spring, Relay Case WPL-938384
...
12
Case, Relay WPL-1108115
...
13
Overload WPL-819198
...
14
Screw WPL-WPW10141625
...
15
Relay-Strt WPL-WP2262181
...
16
Connector WPL-WP717253
...
17
No Description Avaliable WPL-303776
...
20
Condenser Bracket (2) WPL-510721
...
21
Screw, 8 X 1/2 WPL-489240
...
22
Evaporator WPL-1108531
...
23
Clip, Condenser Mounting (2) WPL-935788
...
24
Nut WPL-285002
...
25
Tray-Evap WPL-WP2176668
...
26
Restrictor Sleeve WPL-510446
...
27
Drier-Tube WPL-W10843121
...
28
Compressor WPL-4387770
...
29
Clamp, Dryer WPL-1127590
...
30
Unit Mounting Plate WPL-942860
...
31
Exchanger, Heat WPL-1116647
...
33
Heater, Defrost WPL-1108538
...
35
Bimetl-Def WPL-482675
...
36
Clamp WPL-1110548
...
37
Grommet (4) ((Production)) WPL-876811
...
39
Grommet (4) ((Production)) WPL-876811
...
40
Screw WPL-WP488729
...
41
Evaporator Support (2) WPL-935700
...
42
Muffler WPL-1103820
...
43
Relay-Strt WPL-WP2262181
...
44
Overload WPL-1108114
...
45
Cover WPL-1108115
...
46
Strap WPL-938384
...
47
Capacitor WPL-WPW10662129
...
48
Unit Mounting Rail WPL-945449
...
49
Screw WPL-WP965173
...
52
Nut WPL-489142
...
53
Washer WPL-489143
...
55
Overload Spring WPL-1114190
...
57
Valve, Access (3/4``) WPL-978030

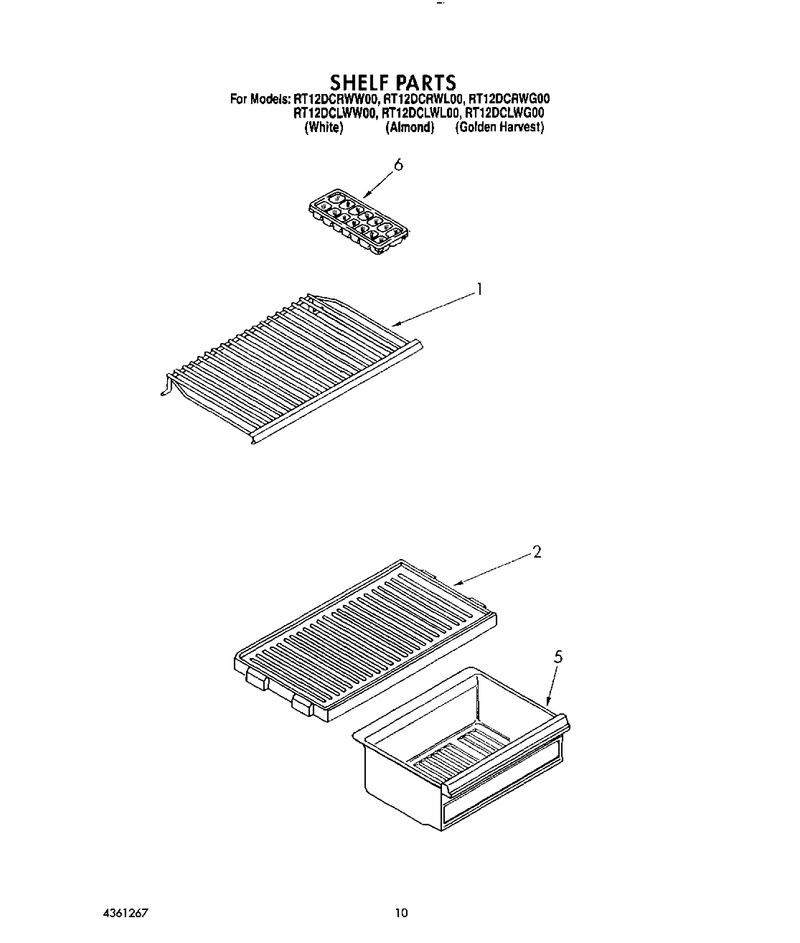

07 - Shelf

...
...
1
Shelf-Wire WPL-2217782
...
2
Cover, Crisper WPL-1108550
...
5
Pan, Crisper WPL-2191722
...
6
Tray WPL-WP841180A
