Roper RS22BRXDW01

Model: RS22BRXDW01

Save Part Not Listed?
product name

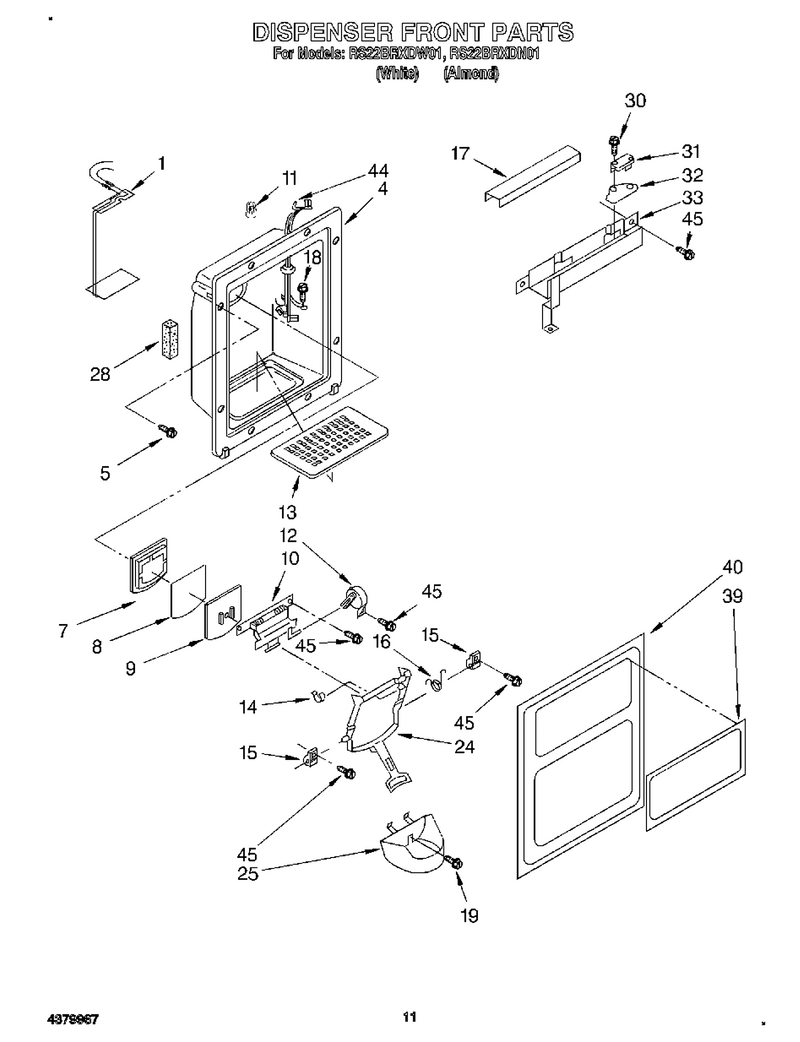

07 - Dispenser Front

...
...
1
Heater WPL-483058
...
4
Housing, Dispenser WPL-1116820
...
5
Screw WPL-W11693756
...
7
Gasket, Door WPL-983691
...
8
Shield, Ice Door WPL-987121
...
9
Door-Chute WPL-WP2147168
...
10
Door Mechanism Assembly WPL-2147167
...
11
Wire Connector WPL-227991
...
12
Mechanism WPL-WP1120581
...
13
Grille WPL-WP983900
...
14
Clip, Bearing (2) WPL-987917
...
15
Bearing, Lever (2) WPL-983697
...
16
Spring, Lever (2) WPL-983696
...
17
Shield, Wiring WPL-984494
...
18
Screw WPL-WP489128
...
19
Screw WPL-489197
...
24
Lever, Ice Dispenser WPL-1127421
...
25
Guide, Ice (White) WPL-1124730
...
28
Seal WPL-482672
...
30
Screw, WPL-489155
...
31
Swtch-Micr WPL-WP2162361
...
32
Insulator, Switch (2) WPL-984683
...
33
Bracket, Control WPL-1116811
...
39
Plaque, Front Cover WPL-2173414
...
40
Front Cover, Housing (Includes Item 39) WPL-2173413
...
44
Wiring Assembly, Door WPL-1118374
...
45
Screw WPL-WP3400906

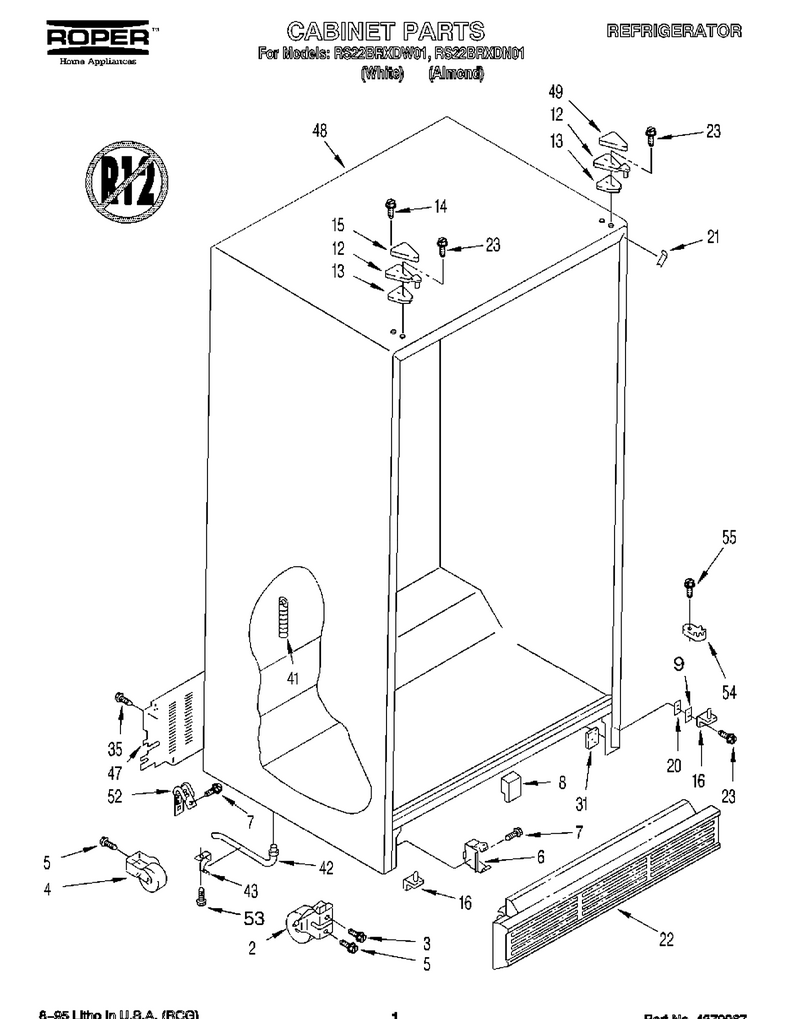

01 - Cabinet

...
...
2
Front Roller (2) WPL-4386774
...
3
Screw WPL-W10850698
...
4
Roller-Cab WPL-WPW10250570
...
5
Screw WPL-WP489427
...
6
Clip WPL-WP2155013
...
7
Screw WPL-WP489478
...
8
Insert, Air Baffle WPL-2176796
...
9
Shim WPL-2171882
...
12
Hinge-Door WPL-WP2196046
...
13
Shim, Hinge Top WPL-1123515
...
14
Screw WPL-489284
...
15
Cover WPL-WP1129262
...
16
Hinge-Door WPL-8201707
...
20
Spacer, Hinge WPL-1129868
...
21
Filler, Wrapper (Almond) WPL-2196095
...
22
Grille WPL-WP2155476
...
23
Screw WPL-WP999367
...
31
Tap Plate (2) WPL-2147310
...
35
Screw WPL-WP489464
...
41
Fitting WPL-W11566763
...
42
Extension WPL-WP1108438
...
43
Clip WPL-WP1108439
...
47
Cover-Unit WPL-WP2188756
...
48
Cabinet (Not A Serviceable Part) WPL---
...
49
Hinge Cover (White) WPL-1119787
...
52
Clamp, Service Cord WPL-549193
...
53
Screw WPL-WPW10141645
...
54
Cam-Door WPL-WPW10329686
...
55
Screw WPL-WP489483

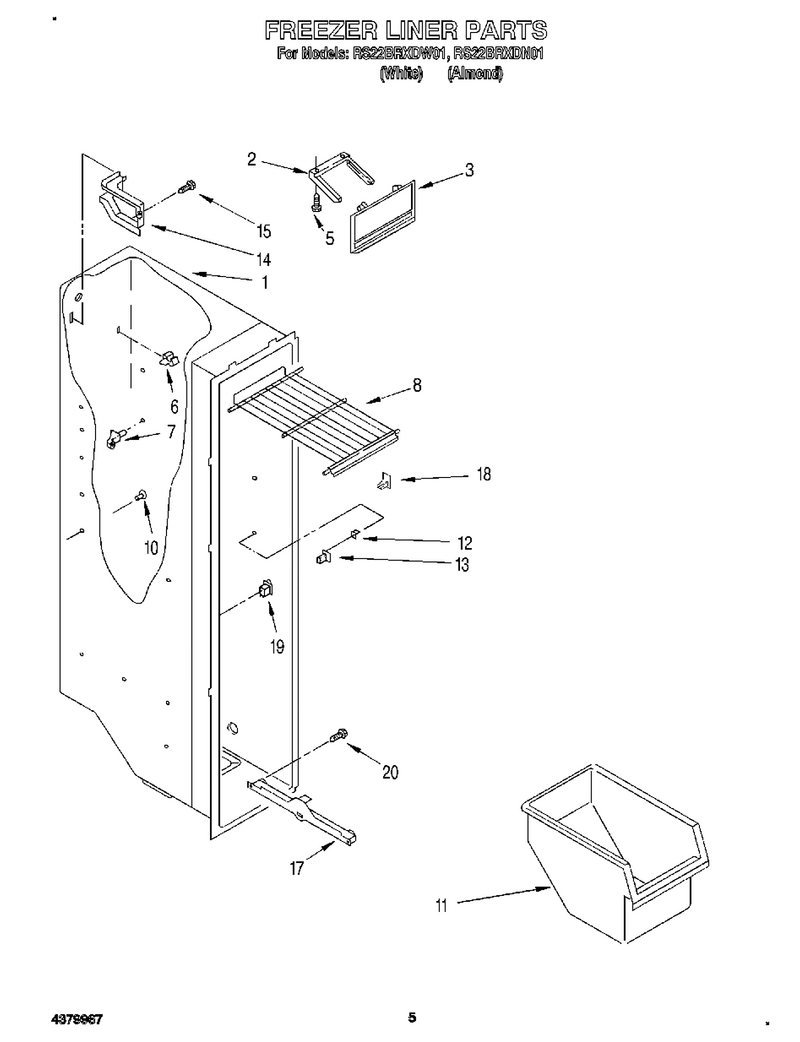

03 - Freezer Liner

...
...
1
Liner (Not A Serviceable Part) WPL---
...
2
Slide, Ice Door WPL-1115380
...
3
Door, Ice Compartment WPL-2171712
...
5
Screw WPL-WP489478
...
6
Clip-Air, Duct WPL-2215823
...
7
Stud-Shelf WPL-4388405
...
8
Shelf-Wire WPL-WP2174249K
...
10
Grommet WPL-2176134
...
11
Bin, Freezer WPL-2171707
...
12
Stud-Shelf WPL-W11581579
...
13
Stud-Shelf WPL-W11581579
...
14
Cover, Wiring WPL-2155572
...
15
Screw WPL-WP488729
...
17
Slide, Freezer Bin (Left Side) WPL-1115383
...
18
Stud-Shelf WPL-W11581579
...
19
Switch WPL-W11457217
...
20
Screw, 8-18 X 1.38 WPL-718257

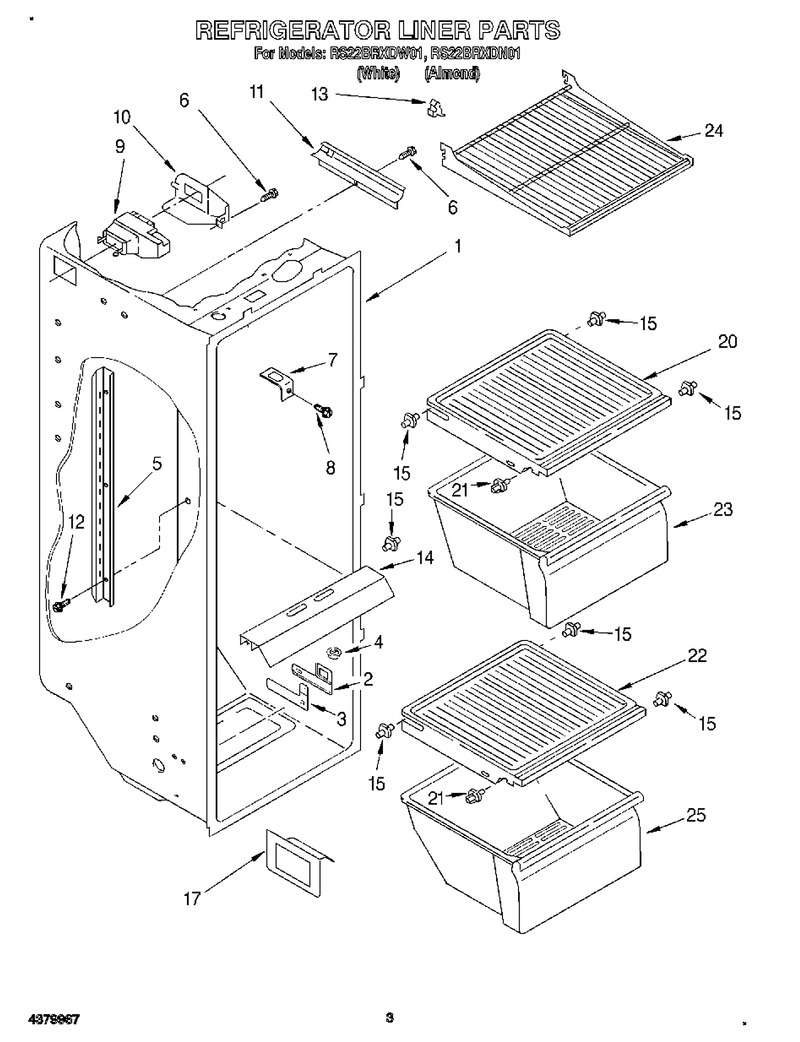

02 - Refrigerator Liner

...
...
1
Liner (Not A Serviceable Part) WPL---
...
2
Escutcheon, Meat Pan Control WPL-2194744
...
3
Slide Meat Pan Control WPL-2182757
...
4
Release Valve WPL-2171846
...
5
Ladder, Shelf WPL-2181796
...
6
Screw WPL-W10759522
...
7
Retainer WPL-WP2256085
...
8
Screw WPL-WP488488
...
9
Diffuser WPL-WPW10151374
...
10
Cover, Air Diffuser WPL-2152019
...
11
Cover, Conduit WPL-2150331
...
12
Screw WPL-WP488729
...
13
Clip-Air, Duct WPL-2215823
...
14
Lens WPL-2174436
...
15
Stud-Shelf WPL-4388538
...
17
Deflector WPL-2179350
...
20
Cover WPL-W10508993
...
21
Stud-Shelf WPL-4388539
...
22
Cover WPL-W10508993
...
23
Pan-Crispr WPL-WP2188656
...
24
Shelf, Wire (2) WPL-2163620
...
25
Pan-Meat WPL-WP2188664

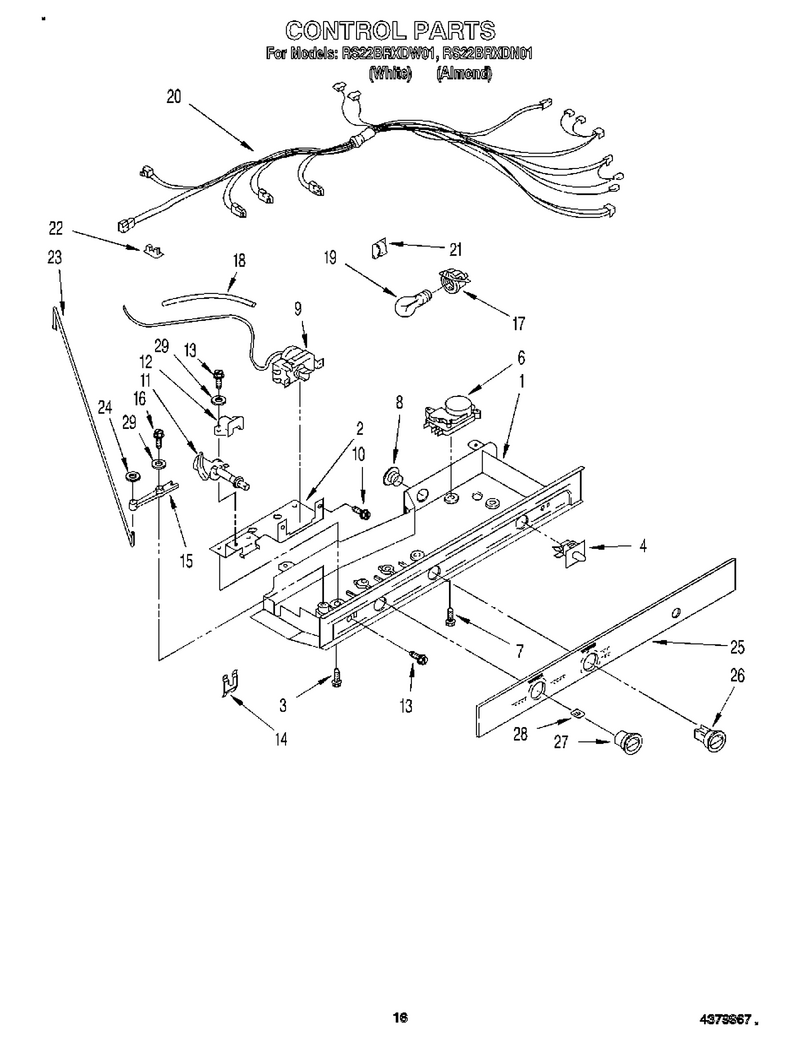

10 - Control

...
...
1
Contrl-Box WPL-4389197
...
2
Mounting Bracket WPL-1110629
...
3
Screw (2) WPL-489397
...
4
Switch WPL-WP2149705
...
6
Timer-Def WPL-W10822278
...
7
Screw WPL-489392
...
8
Hole Plug WPL-940014
...
9
Thermostat WPL-WP2198202
...
10
Screw WPL-WP965173
...
11
Cam Assembly WPL-2161250
...
12
Bearing Body WPL-1110560
...
13
Screw WPL-WP489478
...
14
Retainer, Damper WPL-938439
...
15
Arm-Pivot WPL-W11256541
...
16
Screw WPL-627068
...
17
Capacitor (Service) WPL-4387478
...
18
Barrier WPL-WP2196003
...
19
Light Bulb WPL-8009
...
20
Control Box Harness WPL-2149186
...
21
Clip WPL-WP1115374
...
22
Clip, Wiring WPL-1115375
...
23
Connecting Rod WPL-1123960
...
24
Fastener, Push-On WPL-489285
...
25
Escutcheon, Control Box WPL-2194977
...
26
Thermostat Knob WPL-2182111
...
27
Knob, Air Control WPL-1116853
...
28
Knob, Retainer WPL-837444
...
29
Spring, Washer WPL-489203

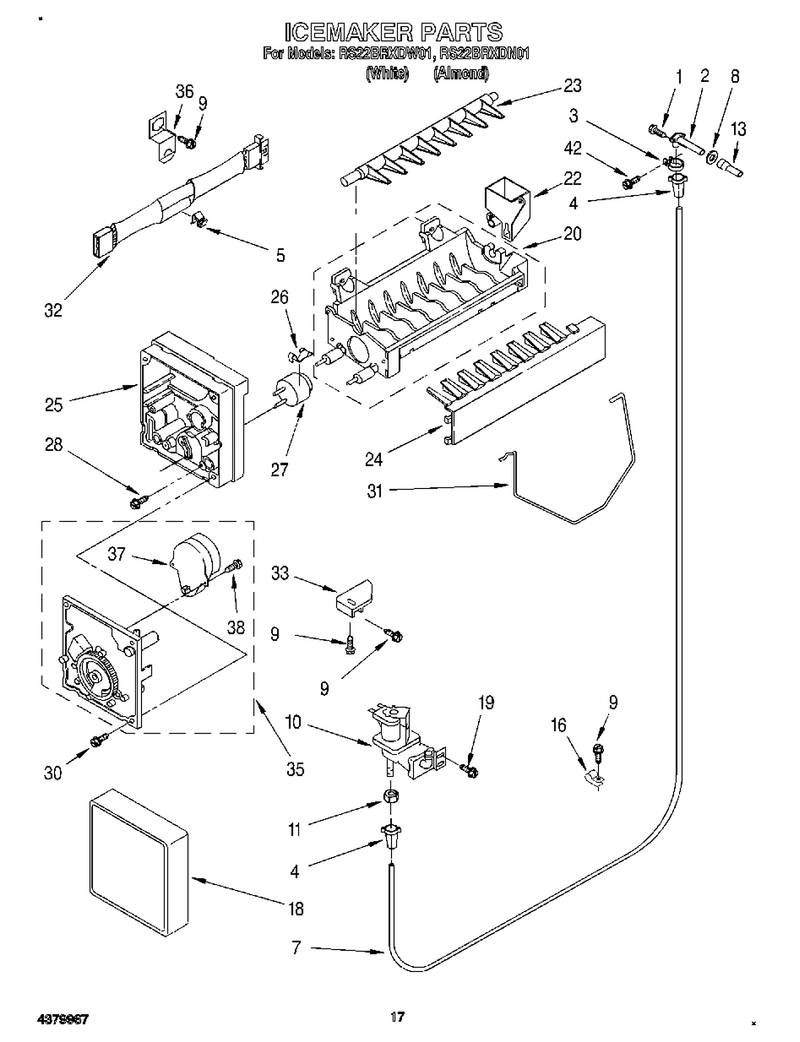

11 - Icemaker, Lit/optional

...
...
Torx Key WPL-1117510
...
1
Screw WPL-WPW10141645
...
2
Fitting WPL-WP2196157
...
3
Clamp WPL-WP488878
...
4
Insert, Tube WPL-4387491
...
5
Clip WPL-WP628379
...
7
Tube-Water WPL-W10823511
...
8
Gasket WPL-WP1106508
...
9
Screw WPL-WP489478
...
10
Valve-Inlt WPL-WP2315576
...
11
Nut WPL-WP627018
...
13
Tube, Water Inlet WPL-2171943
...
16
Clamp WPL-WP488366
...
18
Cover-Frnt WPL-WPW10289690
...
19
Screw WPL-WPW10141625
...
20
Grease WPL-WP542638
...
22
Cup-Fill WPL-WP628356
...
23
Arm-Ejectr WPL-WP627843
...
24
Arm-Stripr WPL-WP2182124
...
25
Housing-Im WPL-WP2195914
...
26
Clip WPL-WP2315522
...
27
Bimetl-Def WPL-WP627985
...
28
Screw (2) WPL-8533917
...
30
Screw WPL-WP681249
...
31
Arm-Shut WPL-W11342242
...
32
Harns-Wire WPL-WP2187464
...
33
Bracket WPL-W11500948
...
35
Motor-Modl WPL-W10190935
...
36
Clip-Mtg WPL-WP2155021
...
37
Motor-Modl WPL-W10190935
...
38
Screw WPL-489136
...
42
Screw WPL-WP488787
...
100
Bag, Insulation (36-5/8`` X 46``) WPL-606755

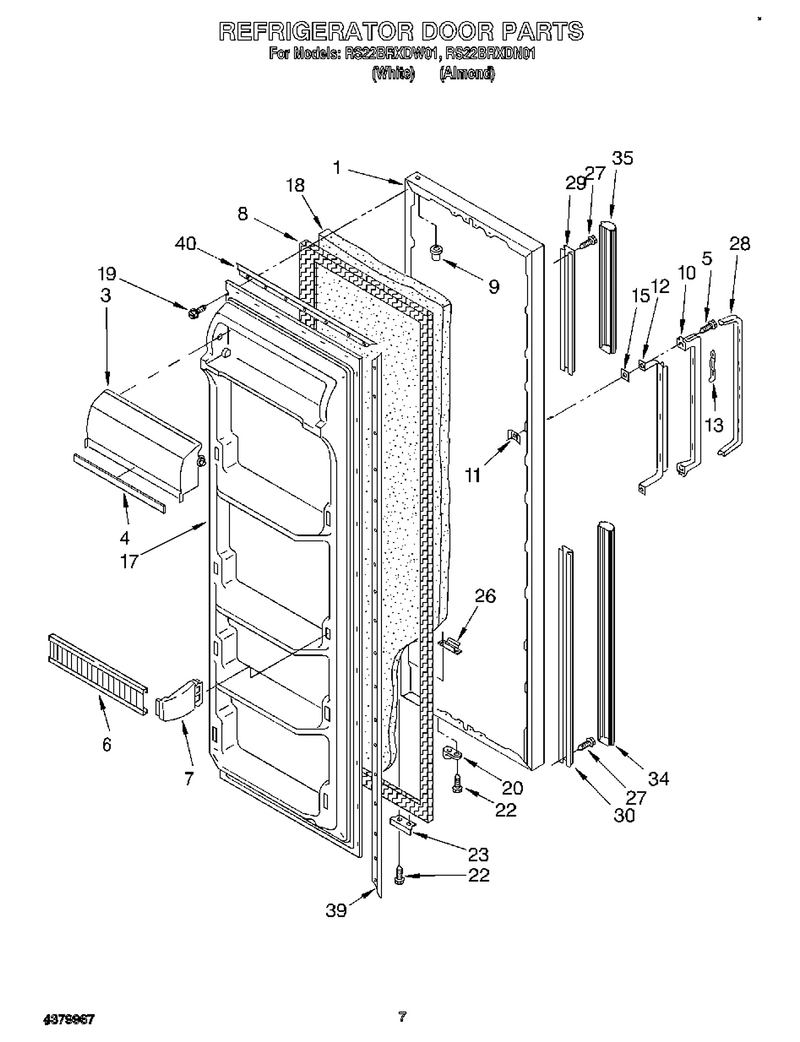

05 - Refrigerator Door

...
...
1
Refrigerator Door Panel (Almond (Also Order Item 18)) WPL-4362054
...
3
Door, Compartment WPL-2148289
...
4
Trim, Door Compartment WPL-1106959
...
5
Screw WPL-WPW10141645
...
6
Trim-Door WPL-WP2157313
...
7
Endcap-Trm WPL-WP1110713
...
8
Gasket-Dor WPL-2188404A
...
9
Cap, Hinge Sleeve WPL-509929
...
10
Handle, Center WPL-1127464
...
11
Plate WPL-WP939101
...
12
Reinforcement, Handle WPL-1127465
...
13
Clip, Handle WPL-849445
...
15
Shim WPL-2147097
...
17
Panel, Interior Door WPL-1129249
...
18
Foam Insulation (Required When Replacing Exterior Door Panel) WPL-876029
...
19
Screw WPL-WP489069
...
20
Cam-Door WPL-4318165
...
22
Screw WPL-WP999367
...
23
Bracket WPL-WP2195950
...
26
Tap, Plate WPL-2155335
...
27
Screw WPL-WP489478
...
28
Insert-Hdl WPL-4388238
...
29
Retainer, Top WPL-2147898
...
30
Retainer (Bottom) WPL-2147896
...
34
Extension (Bottom) WPL-1127473
...
35
Extension, Top WPL-2147445
...
39
Retainer WPL-WP1117766
...
40
Retainer, Gasket WPL-1118301

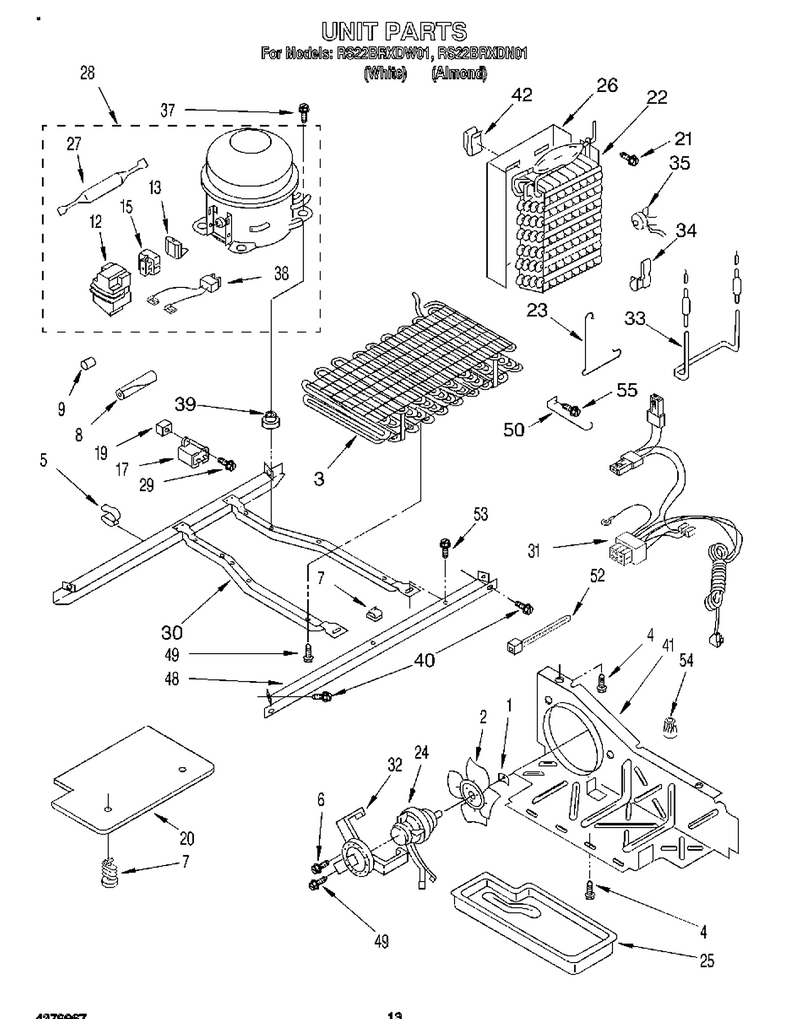

08 - Unit

...
...
1
Nut WPL-WP486692
...
2
Blade-Fan WPL-WP1108179
...
3
Condenser Assembly WPL-2198175
...
4
Screw WPL-WP489464
...
5
Clip, Wire & Tube WPL-2208280
...
6
Screw, 8-32 X 3/8 WPL-681390
...
7
Clip WPL-489396
...
8
Sleeve WPL-W11751592
...
9
Dampener WPL-WP2158826
...
12
Cover-Term WPL-WP2162358
...
13
Overload WPL-4387535
...
15
Relay (See Overload) WPL---
...
17
Capacitor WPL-2169137
...
19
Grommet (4) WPL-937252
...
20
Unit Cover, Bottom WPL-2182057
...
21
Screw WPL-WP489478
...
22
Evaporator WPL-WP2188822
...
23
Clip WPL-WP2161324
...
24
Motor-Cond WPL-833697
...
25
Tray-Evap WPL-WP842041
...
26
Heat Shield And Drain Pan WPL-2256149
...
27
Drier-Tube WPL-W10843121
...
28
Tube Kit WPL-876765
...
29
Screw WPL-W11693756
...
30
Unit Mounting Frame WPL-2304903
...
31
Unit, Harness WPL-2194749
...
32
Fan, Motor Bracket WPL-548695
...
33
Heater WPL-WP2323197
...
34
Clip WPL-2161330
...
35
Bimetl-Def WPL-WPW10225581
...
37
Grommet (4) ((Production)) WPL-876811
...
38
Wire WPL-WP2172890
...
39
Grommet (4) ((Production)) WPL-876811
...
40
Screw WPL-489340
...
41
Baffle, Air WPL-W10896764
...
42
Clip, Heat Shield WPL-2155547
...
48
Unit Mounting Rail WPL-2149717
...
49
Screw, No.8-18 X 3/8``, Hwhtcs WPL-4159456
...
50
Guard, Fan WPL-1105612
...
52
Strap WPL-851095
...
53
Screw WPL-WP489427
...
54
Wire Connector WPL-227991
...
55
Valve, Access (1/2``) WPL-978028

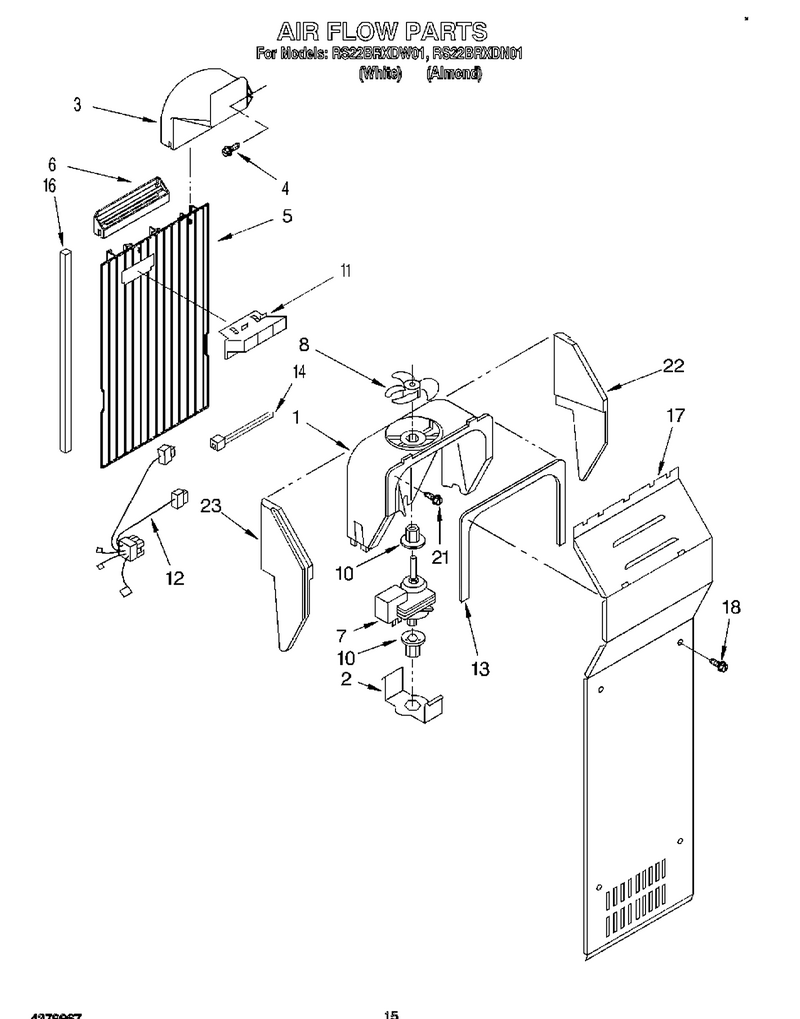

09 - Air Flow

...
...
1
Fan-Scroll WPL-W11254898
...
2
Retainer WPL-WP2155590
...
3
Scoop-Air WPL-WP2161231
...
4
Screw WPL-WP488729
...
5
Cover-Evap WPL-4388357
...
6
Diffuser, Air Duct WPL-2149544
...
7
Fan Motor WPL-4389144
...
8
Blade-Fan WPL-WP2169142
...
10
Grommet WPL-WP2176759
...
11
Duct, Icemaker WPL-2182146
...
12
Harness, Fan Evaporator, And Heater, Bi-Metal WPL-2161478
...
13
Gasket WPL-WP2155789
...
14
Tie-Wire WPL-WPW10339879
...
16
Gasket WPL-WP2304241
...
17
Cover-Evap WPL-4388357
...
18
Screw WPL-W11233072
...
21
Screw WPL-WP489478
...
22
Support Kit (Contains Right And Left) WPL-4388358
...
23
Support Kit (Contains Right And Left) WPL-4388358

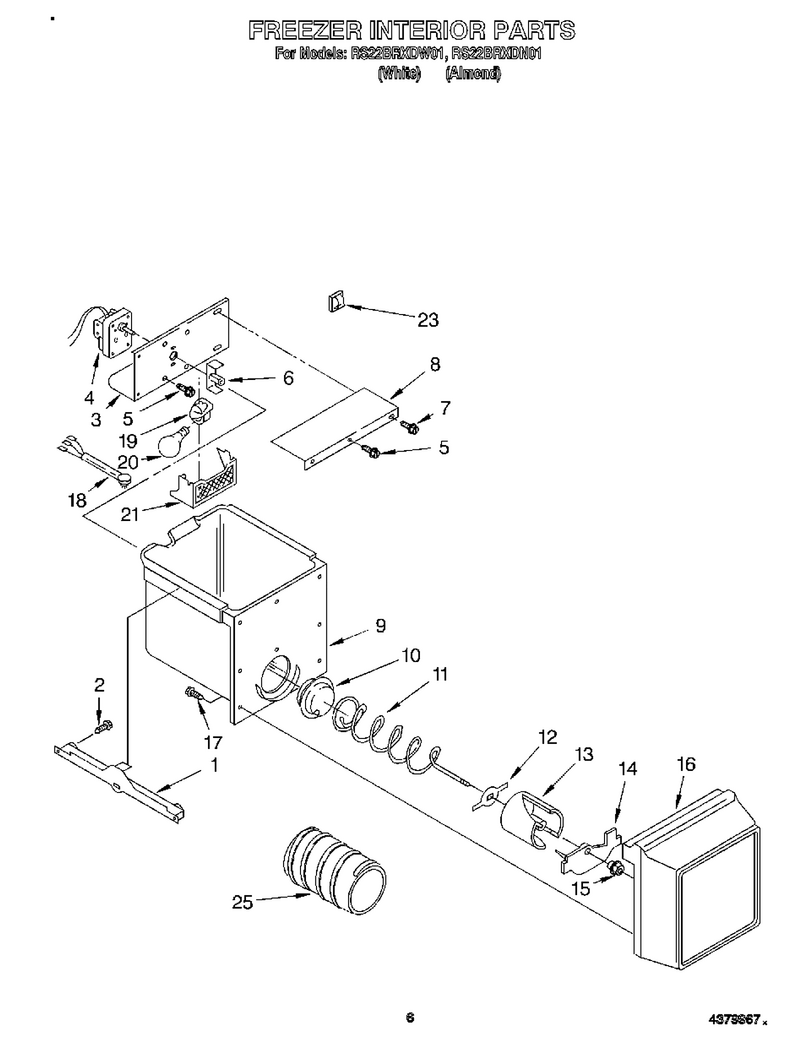

04 - Freezer Interior

...
...
1
Slide, Ice Container (Right) WPL-W10845583
...
2
Screw, 8-18 X 1.38 WPL-718257
...
3
Bracket WPL-WPW10284487
...
4
Motor WPL-2155262
...
5
Screw WPL-WP489399
...
6
Coupling WPL-WPW10169511
...
7
Screw WPL-WP489478
...
8
Bracket WPL-WPW10284487
...
9
Container WPL-WP2196089
...
10
Coupling WPL-W10749708
...
11
Auger WPL-2196293
...
12
Drum WPL-4388736
...
13
Drum WPL-4388736
...
14
Baffle WPL-2181722
...
15
Nut, Bearing WPL-946195
...
16
Front Cover WPL-2174351
...
17
Screw WPL-WP488787
...
18
Wiring Assembly, Ice Dispenser WPL-2194732
...
19
Capacitor (Service) WPL-4387478
...
20
Light Bulb WPL-8009
...
21
Lens-Light WPL-WP2171706
...
23
Clip WPL-WP1115374
...
25
Sleeve WPL-4317870

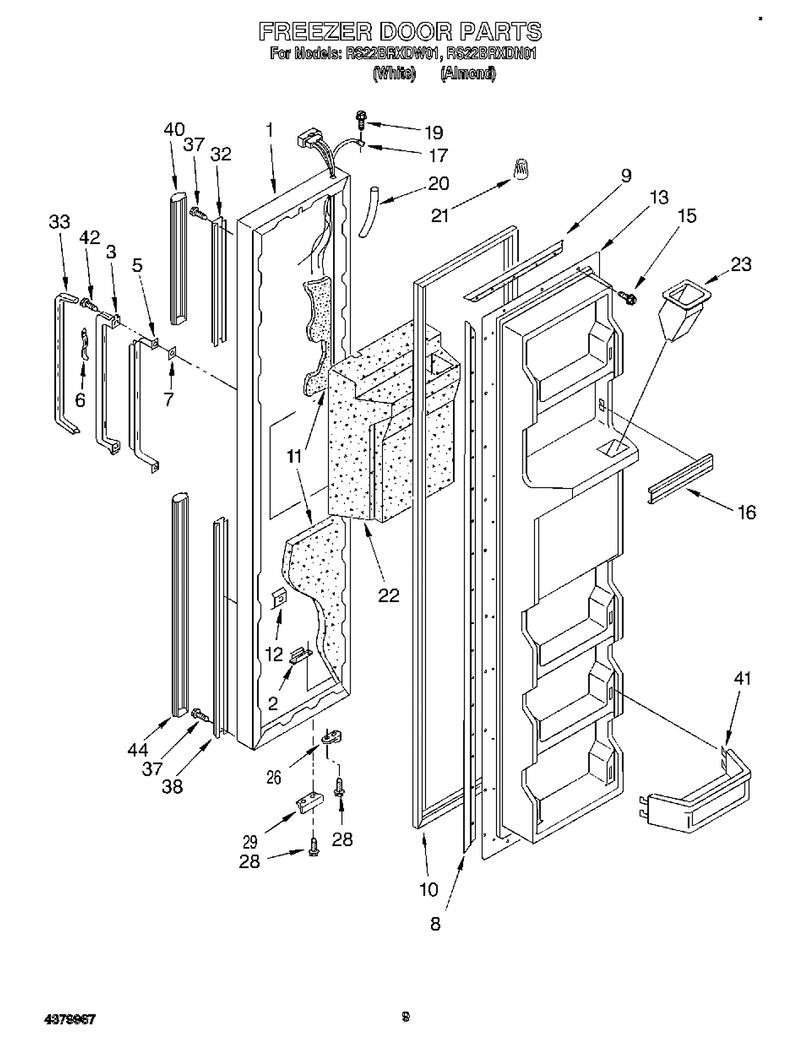

06 - Freezer Door

...
...
1
Panel-Ext WPL-2147453W
...
2
Tap, Plate WPL-2155335
...
3
Handle, Center WPL-1127464
...
5
Reinforcement, Handle WPL-1127465
...
6
Clip, Handle WPL-849445
...
7
Shim WPL-2147097
...
8
Retainer WPL-WP1117766
...
9
Retainer, Gasket WPL-1117767
...
10
Gasket-Dor WPL-2188405A
...
11
Foam Insullation (Required When Replacing Exterior Door Panel) WPL-876029
...
12
Plate WPL-WP939101
...
13
Panel-Int WPL-4317819
...
15
Screw WPL-WP489069
...
16
Trim-Door WPL-WP2201061
...
17
Harness, Door WPL-2171987
...
19
Screw WPL-WP488234
...
20
Tube, Water Line WPL-2196117
...
21
Connector, Wire WPL-227991
...
22
Insulation, Dispenser WPL-1116821
...
23
Chute, Ice WPL-1109488
...
26
Cam-Door WPL-4318165
...
28
Screw WPL-WP999367
...
29
Bracket WPL-WP2195950
...
32
Retainer, Top WPL-2147898
...
33
Insert-Hdl WPL-4388238
...
37
Screw WPL-WP489478
...
38
Retainer (Bottom) WPL-2147896
...
40
Extension, Top WPL-2147445
...
41
Trim, Door Shelf (4) WPL-2170705
...
42
Screw WPL-WPW10141645
...
44
Extension (Bottom) WPL-1127473
