Roper RS20DKXDW00

Model: RS20DKXDW00

Save Part Not Listed?
product name

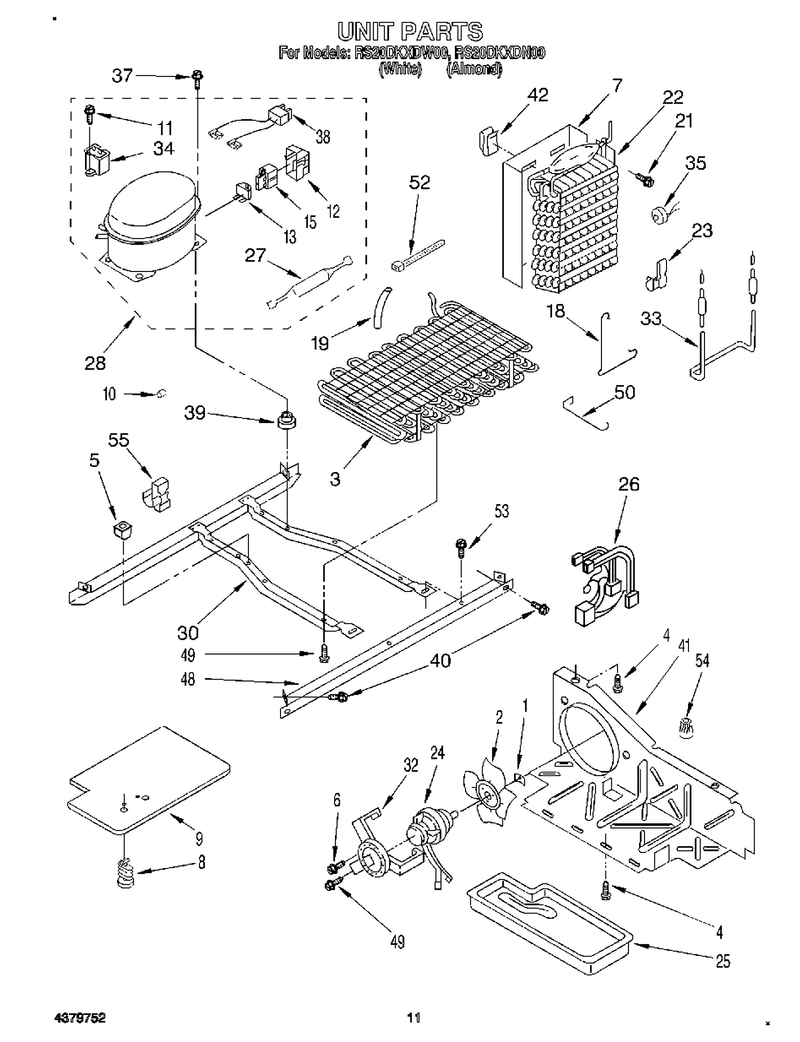

07 - Unit

...
...
1
Nut WPL-WP486692
...
2
Blade-Fan WPL-WP1108179
...
3
Condenser Assembly WPL-2198175
...
4
Screw WPL-WP489464
...
5
Grommet (4) WPL-937252
...
6
Screw, 8-32 X 3/8 WPL-681390
...
7
Heat Shield And Drain Pan WPL-2256149
...
8
Clip WPL-489396
...
9
Unit Cover, Bottom WPL-2182057
...
10
Dampener WPL-WP2158826
...
11
Screw WPL-W11693756
...
12
Cover-Term WPL-WP2162358
...
13
Overload WPL-4387535
...
15
Relay (See Overload) WPL---
...
18
Clip WPL-WP2161324
...
19
Sleeve WPL-W11751592
...
21
Screw WPL-WP965173
...
22
Evaporator WPL-WP2188822
...
23
Clip, Heater (2) WPL-2161330
...
24
Motor-Cond WPL-833697
...
25
Tray-Evap WPL-WPW10614158
...
26
Wire Assy WPL-2176859
...
27
Drier-Tube WPL-W10843121
...
28
Compressor WPL-W10309990
...
30
Frame WPL-1127943
...
32
Fan, Motor Bracket WPL-548695
...
33
Heater WPL-WP2323197
...
34
Capacitor WPL-2169137
...
35
Bimetl-Def WPL-WPW10225581
...
37
Grommet (4) ((Production)) WPL-876811
...
38
Wire WPL-WP2172890
...
39
Grommet (4) ((Production)) WPL-876811
...
40
Screw WPL-489340
...
41
Air Baffle WPL-2169417
...
42
Clip, Heat Shield WPL-2155547
...
48
Unit Mounting Rail WPL-2149717
...
49
Screw, No.8-18 X 3/8``, Hwhtcs WPL-4159456
...
50
Guard, Fan WPL-1105612
...
52
Strap WPL-851095
...
53
Screw WPL-WP489427
...
54
Connector, Wire WPL-227991
...
55
Valve, Access (5/8``) WPL-978029

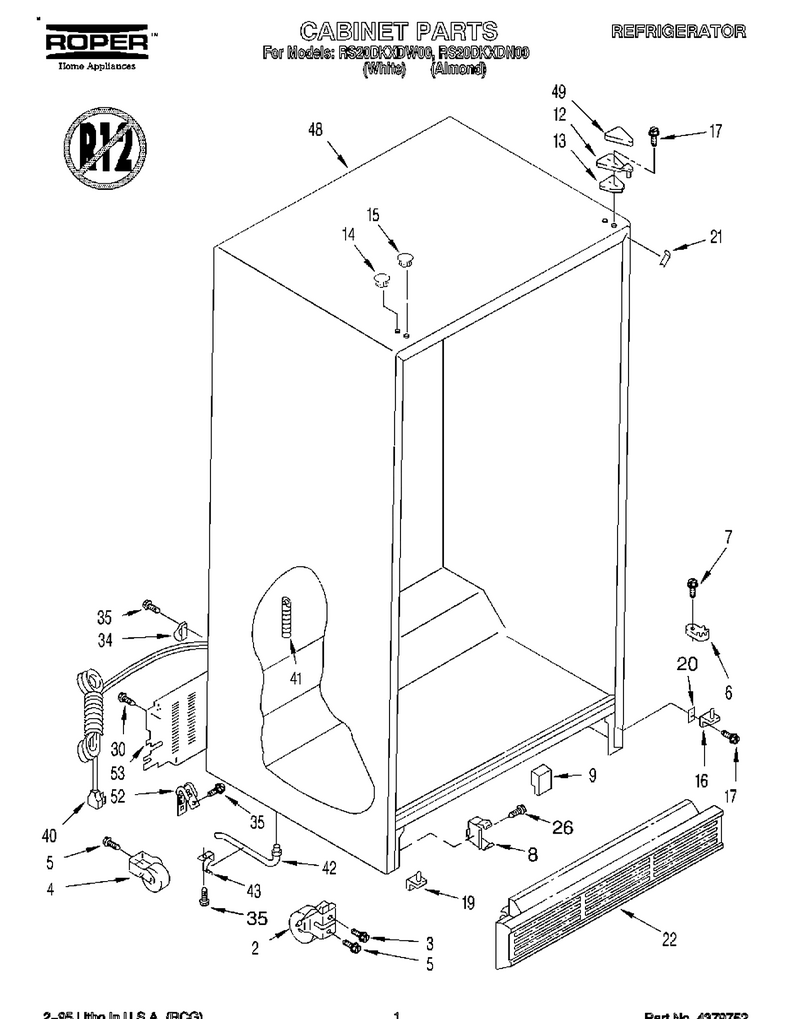

01 - Cabinet

...
...
2
Front Roller (2) WPL-4386774
...
3
Screw WPL-W10850698
...
4
Roller-Cab WPL-WPW10250570
...
5
Screw WPL-WP489427
...
6
Cam-Door WPL-WPW10329686
...
7
Screw WPL-WP489483
...
8
Clip WPL-WP2155013
...
9
Insert, Air Baffle WPL-2176796
...
12
Hinge-Door WPL-WP2196046
...
13
Shim, Hinge (2) WPL-1123515
...
14
Hole, Plug (White) WPL-849391
...
15
Hole Plug (White) WPL-1115352
...
16
Hinge Bottom (R.h.) WPL-2155321
...
17
Screw WPL-WP999367
...
19
Hinge Bottom (L.h.) WPL-2155323
...
20
Spacer, Hinge WPL-836196
...
21
Filler, Wrapper (Almond) WPL-2196095
...
22
Grille WPL-WP2155476
...
26
Screw WPL-WP489478
...
30
Screw WPL-WPW10141645
...
34
Clamp WPL-WP488366
...
35
Screw WPL-WP489464
...
40
Cord, Service WPL-937360
...
41
Fitting WPL-W11566763
...
42
Extension WPL-WP1108438
...
43
Clip WPL-WP1108439
...
48
Cabinet (Not A Serviceable Part) WPL---
...
49
Hinge Cover (White) WPL-1119787
...
52
Clamp, Service Cord WPL-549193
...
53
Cover-Unit WPL-WP2188756

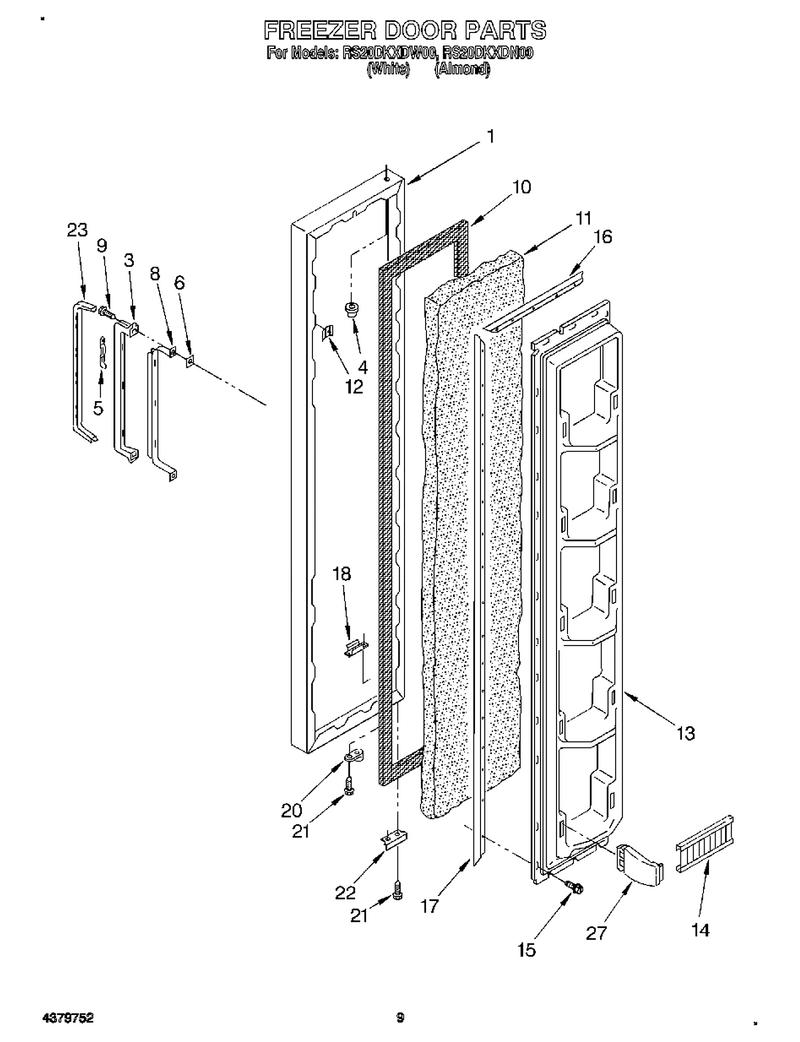

06 - Freezer Door

...
...
1
Freezer, Door Panel (White) WPL-4362034
...
3
Handle WPL-2147526
...
4
Cap, Hinge Sleeve WPL-509929
...
5
Handle, Reinforcement WPL-849445
...
6
Shim, Handle (2) WPL-2147097
...
8
Reinforcement, Handle WPL-1127465
...
9
Screw WPL-WPW10141645
...
10
Gasket-Dor WPL-2188405A
...
11
Foam Insulation (Required When Replacing Exterior Door Panel) WPL-876029
...
12
Plate WPL-WP939101
...
13
Interior, Door Panel WPL-2196141
...
14
Trim-Door WPL-WP2157313
...
15
Screw WPL-WP489069
...
16
Retainer, Gasket WPL-1117767
...
17
Retainer WPL-WP1117766
...
18
Tap, Plate WPL-2155335
...
20
Cam-Door WPL-4318165
...
21
Screw WPL-WP999367
...
22
Bracket WPL-WP2195950
...
23
Insert-Hdl WPL-4388238
...
27
Endcap-Trm WPL-WP2196100

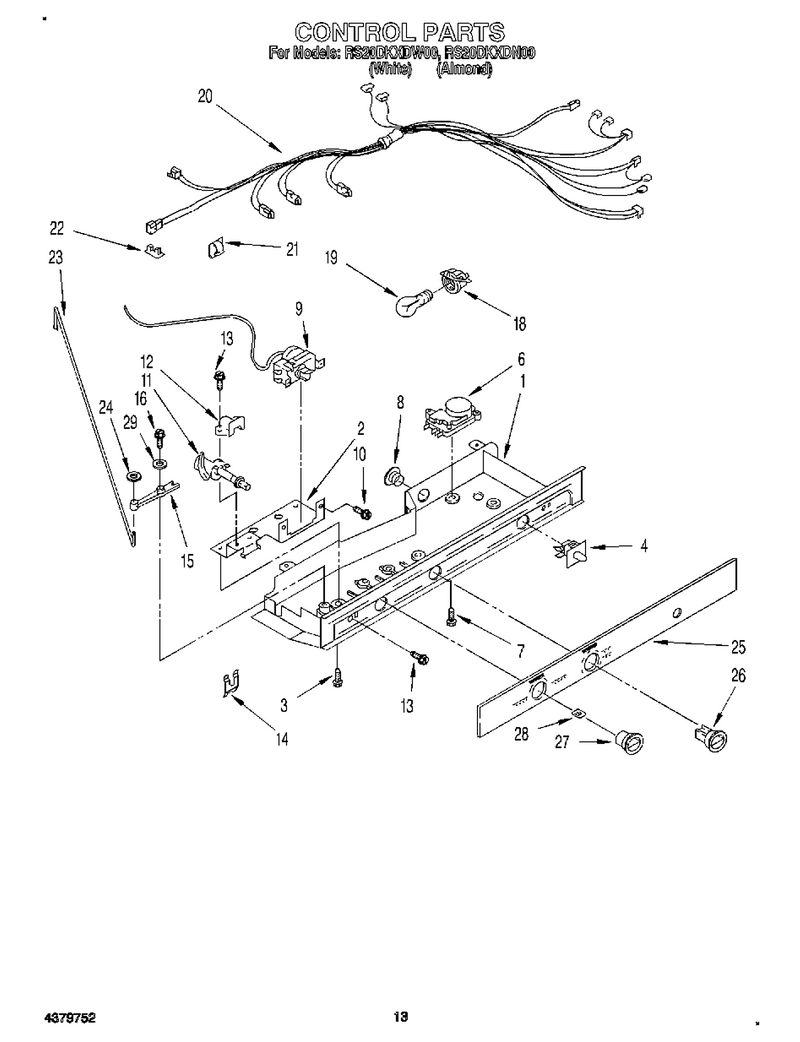

08 - Control, Lit/optional

...
...
Torx Key WPL-1117510
...
1
Contrl-Box WPL-4389197
...
2
Mounting Bracket WPL-1110629
...
3
Screw (2) WPL-489397
...
4
Switch WPL-WP2149705
...
6
Timer-Def WPL-W10822278
...
7
Screw WPL-489392
...
8
Hole Plug WPL-940014
...
9
Thermostat WPL-WP2198202
...
10
Screw WPL-WP965173
...
11
Cam Assembly WPL-2161250
...
12
Bearing Body WPL-1110560
...
13
Screw WPL-WP489478
...
14
Retainer, Damper WPL-938439
...
15
Arm-Pivot WPL-W11256541
...
16
Screw WPL-627068
...
18
Capacitor (Service) WPL-4387478
...
19
Light Bulb WPL-8009
...
20
Control Box Harness WPL-2149185
...
21
Clip WPL-WP1115374
...
22
Clip, Wiring WPL-1115375
...
23
Connecting Rod WPL-1123959
...
24
Fastener, Push-On WPL-489285
...
25
Escutcheon, Control Box WPL-2194977
...
26
Thermostat Knob WPL-2182111
...
27
Knob, Air Control WPL-1116853
...
28
Knob, Retainer WPL-837444
...
29
Paint, Pressurized Spray (12oz. Black) WPL-285006

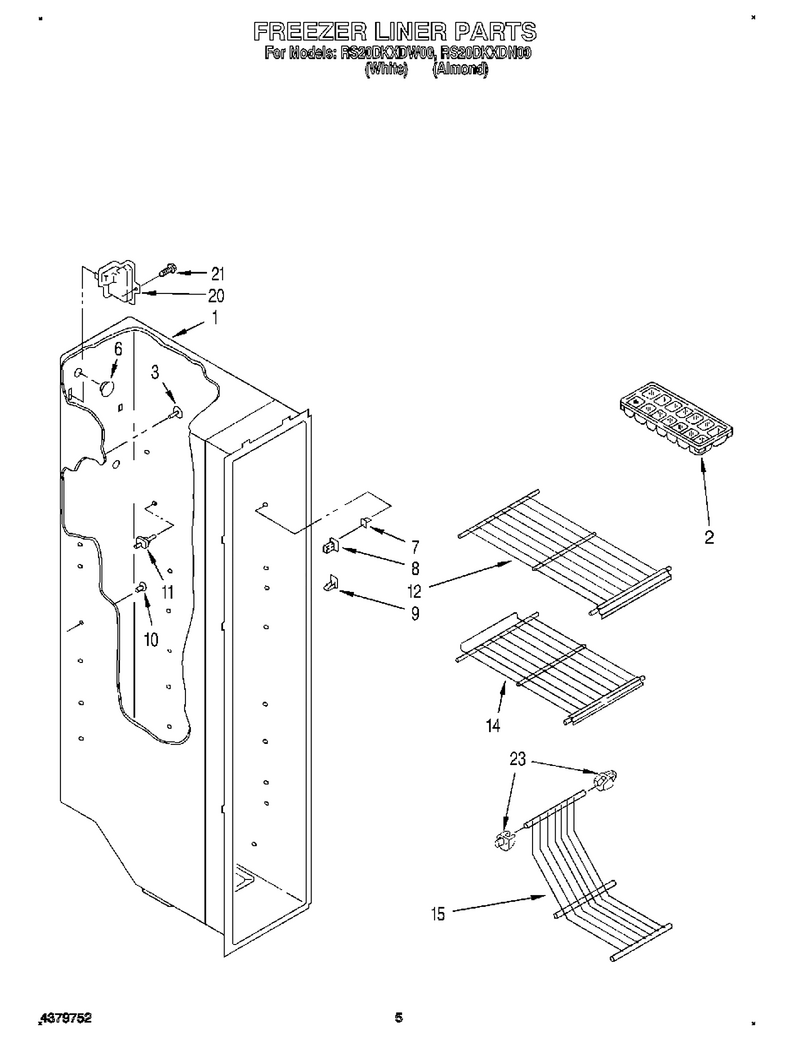

03 - Freezer Liner

...
...
1
Liner (Not A Serviceable Part) WPL---
...
2
Tray WPL-WP841180A
...
3
Button-Plg WPL-WP941839
...
6
Hole Plug WPL-655411
...
7
Stud-Shelf WPL-W11581579
...
8
Stud-Shelf WPL-W11581579
...
9
Stud-Shelf WPL-W11581579
...
10
Grommet (10) WPL-1110779
...
11
Stud-Shelf WPL-4388538
...
12
Shelf WPL-2163612
...
14
Shelf (1) WPL-2174269
...
15
Trivet WPL-2148400
...
20
Cover, Wiring WPL-2155401
...
21
Screw WPL-WP488729
...
23
Stud-Shelf WPL-819091

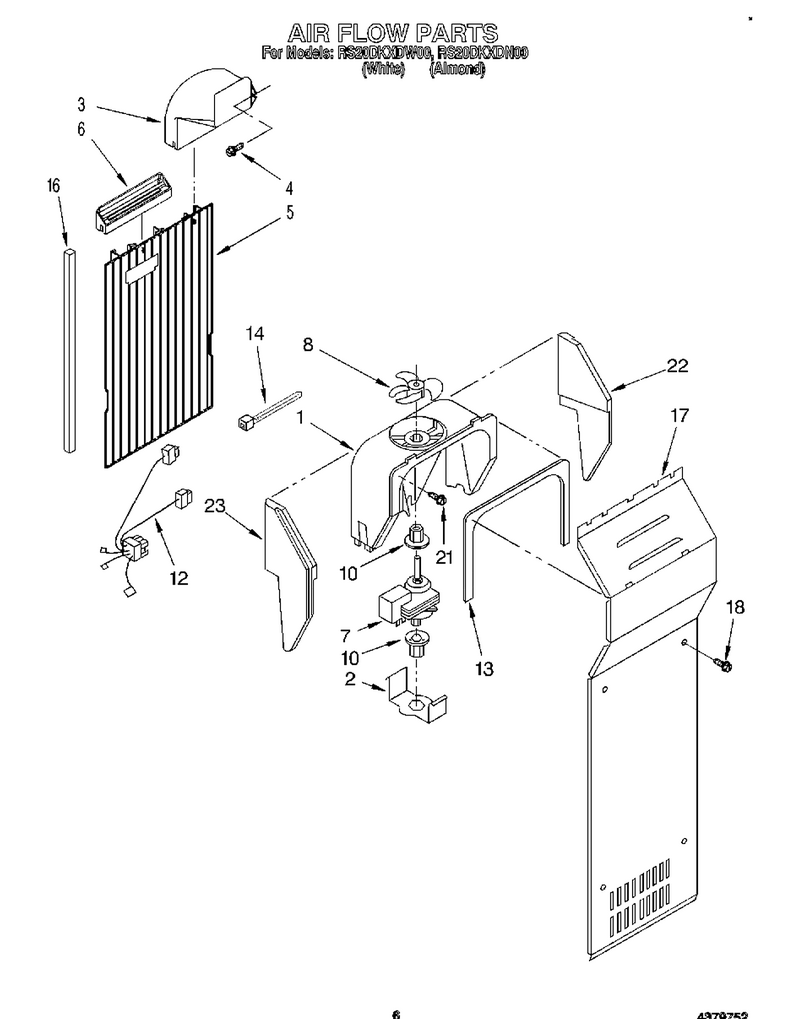

04 - Air Flow

...
...
1
Fan-Scroll WPL-W11254898
...
2
Retainer WPL-WP2155590
...
3
Scoop-Air WPL-WP2161231
...
4
Screw WPL-WP488729
...
5
Cover-Evap WPL-4388357
...
6
Diffuser, Air Duct WPL-2149544
...
7
Fan Motor WPL-4389144
...
8
Blade-Fan WPL-WP2169142
...
10
Grommet WPL-WP2176759
...
12
Harness, Fan, Evaporator, And Heater WPL-2161478
...
13
Gasket WPL-WP2155789
...
14
Tie-Wire WPL-WPW10339879
...
16
Gasket WPL-WP2304241
...
17
Cover-Evap WPL-4388357
...
18
Screw WPL-W11233072
...
21
Screw WPL-WP489478
...
22
Support Kit (Contains Right And Left) WPL-4388358
...
23
Support Kit (Contains Right And Left) WPL-4388358

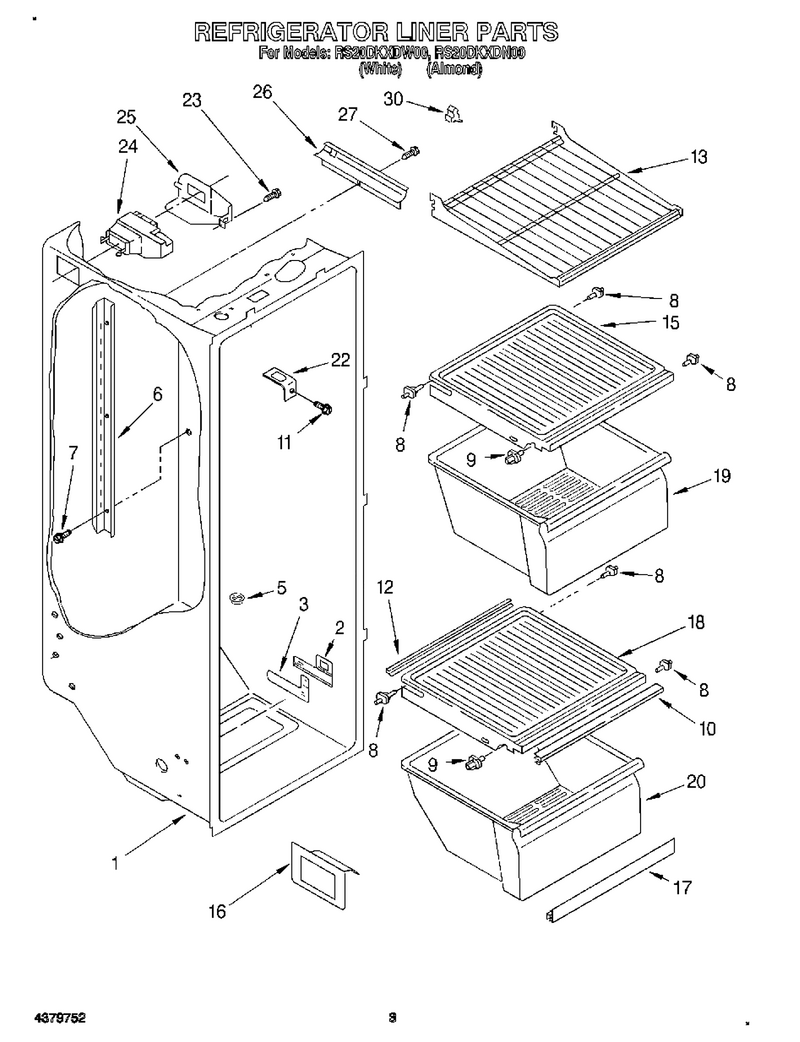

02 - Refrigerator Liner

...
...
1
Liner (Not A Serviceable Part) WPL---
...
2
Escutcheon, Meat Pan Control WPL-2194744
...
3
Slide Meat Pan Control WPL-2182757
...
5
Release Valve WPL-2171846
...
6
Shelf Ladder (2) WPL-2181796
...
7
Screw WPL-WP488729
...
8
Stud-Shelf WPL-4388538
...
9
Stud-Shelf WPL-4388539
...
10
Gasket, Front WPL-2174442
...
11
Screw WPL-WP488488
...
12
Gasket, Rear WPL-2174483
...
13
Shelf, Wire (3) WPL-2163617
...
15
Cover WPL-W10508993
...
16
Deflector WPL-2179350
...
17
Extension, Cover WPL-2179561
...
18
Cover WPL-W10508993
...
19
Pan-Crispr WPL-WP2188656
...
20
Pan-Meat WPL-WP2188664
...
22
Retainer WPL-WP2256085
...
23
Screw WPL-WP489478
...
24
Diffuser WPL-WPW10151374
...
25
Cover, Air Diffuser WPL-2152019
...
26
Cover, Conduit WPL-2150330
...
27
Screw WPL-W10759522
...
30
Clip-Air, Duct WPL-2215823

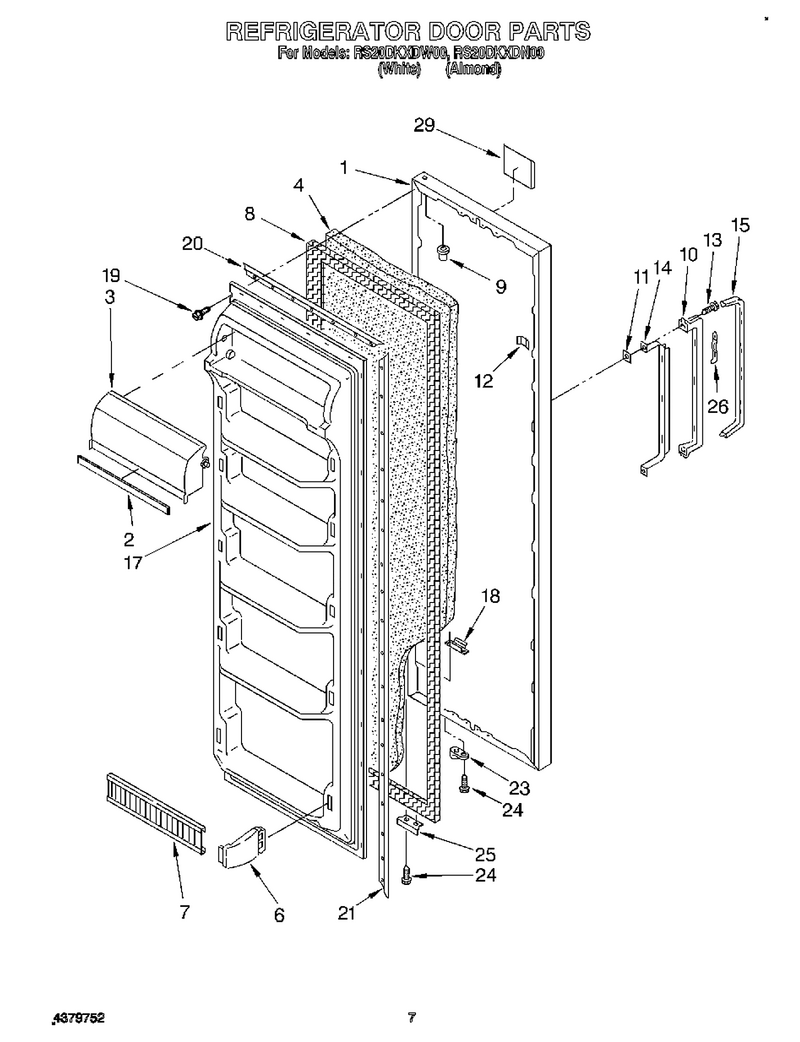

05 - Refrigerator Door

...
...
1
Refrigerator Door Panel (Almond (Also Order Item 4)) WPL-4362028
...
2
Trim, Door Compartment WPL-1106959
...
3
Compartment Door WPL-2148289
...
4
Foam Insulation (Required When Replacing Exterior Door Panel) WPL-876029
...
6
Endcap-Trm WPL-4388286
...
7
Trim-Door WPL-WP2157313
...
8
Gasket-Dor WPL-2188404A
...
9
Cap, Hinge Sleeve WPL-509929
...
10
Handle WPL-2147526
...
11
Shim, Handle (2) WPL-2147097
...
12
Plate WPL-WP939101
...
13
Screw WPL-WPW10141645
...
14
Reinforcement, Handle WPL-1127465
...
15
Insert-Hdl WPL-4388238
...
17
Panel, Interior Door WPL-1129249
...
18
Tap, Plate WPL-2155335
...
19
Screw WPL-WP489069
...
20
Retainer, Gasket WPL-1118301
...
21
Retainer WPL-WP1117766
...
23
Cam-Door WPL-4318165
...
24
Screw WPL-WP999367
...
25
Bracket WPL-WP2195950
...
26
Handle, Reinforcement WPL-849445
...
29
Nameplate WPL-2163676
