Roper RS20CKXXL00

Model: RS20CKXXL00

Save Part Not Listed?
product name

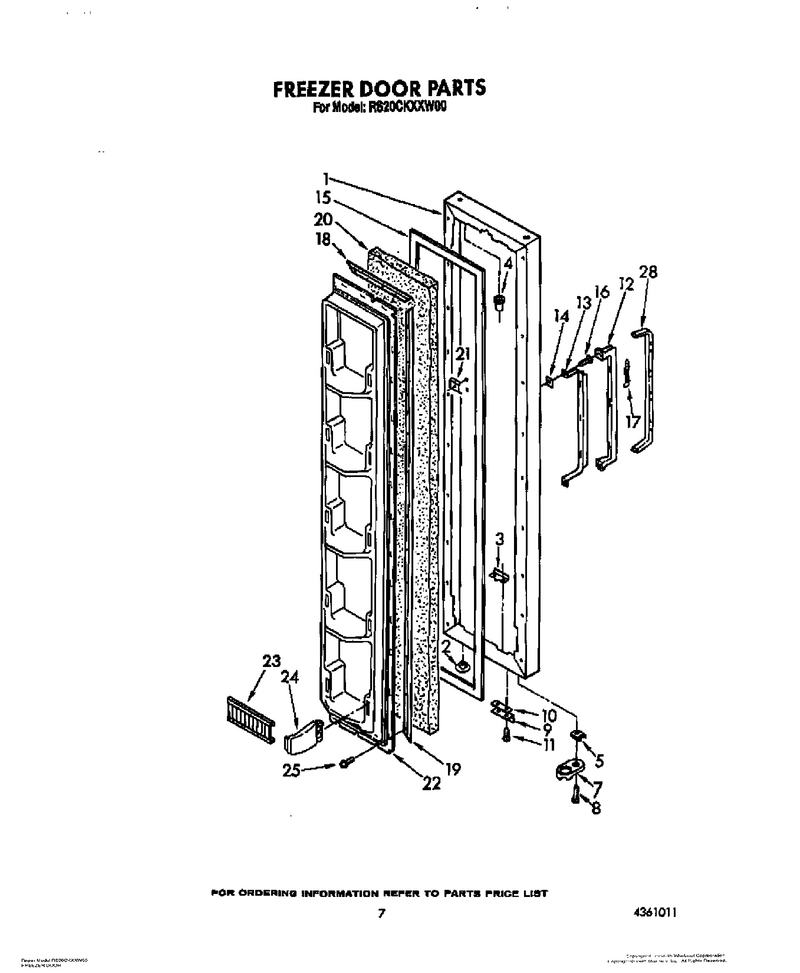

05 - Freezer Door

...
...
1
Freezer, Door Panel (White) WPL-4362012
...
2
Plug, Hole WPL-534927
...
3
Plate WPL-992245
...
4
Cap, Hinge Sleeve WPL-509929
...
5
Shim WPL-WP1104787
...
7
Cam-Door WPL-4318165
...
8
Screw WPL-WP489069
...
9
Bracket WPL-WP2195950
...
10
Shim WPL-988421
...
11
Screw WPL-WP489069
...
12
Handle Center WPL-2147526
...
13
Reinforcement, Handle WPL-1127465
...
14
Shim, Handle WPL-2147097
...
15
Gasket-Dor WPL-2188405A
...
16
Screw WPL-WPW10141645
...
17
Reinforcement (3) WPL-849445
...
18
Gasket Retainer, Top & Bottom WPL-1117767
...
19
Retainer WPL-WP1117766
...
20
Foam Insulation WPL-876029
...
21
Plate WPL-WP939101
...
22
Interior, Door Panel WPL-2196141
...
23
Trim, Shelf WPL-2152563
...
24
Endcap-Trm WPL-WP2196100
...
25
Screw WPL-WP489069
...
28
Insert-Hdl WPL-4388238

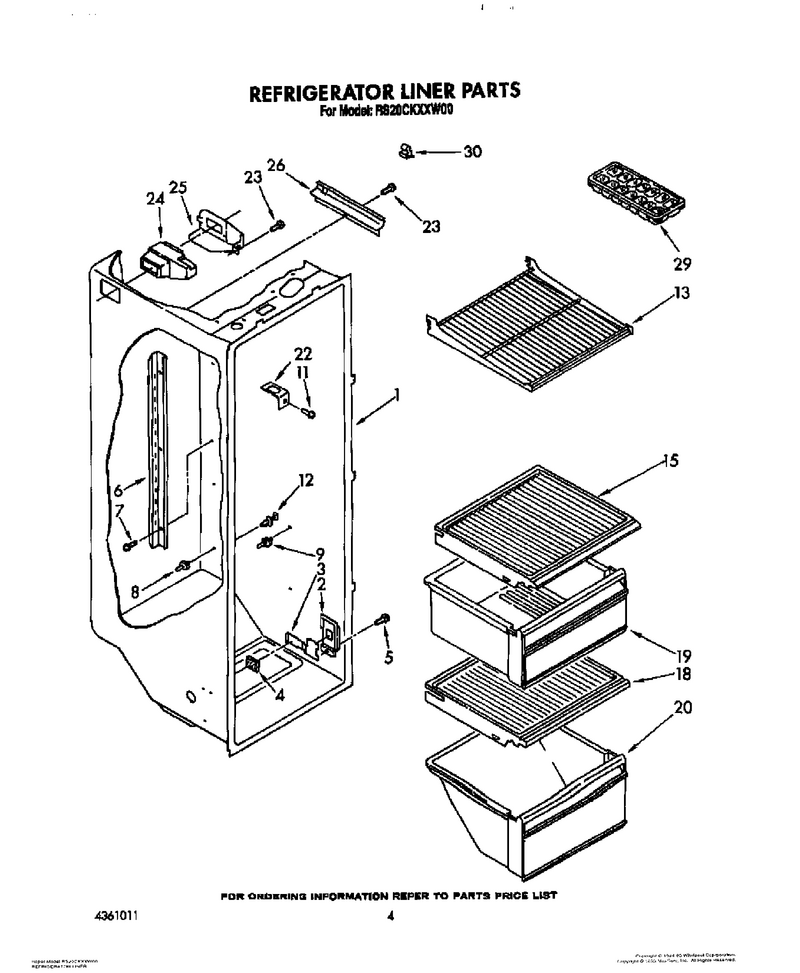

03 - Refrigerator Liner

...
...
1
Liner (Not A Serviceable Part) WPL---
...
2
Escutcheon, Meat Pan Control WPL-985468
...
3
Slide, Meat Pan Control WPL-984102
...
4
Pad, Foam WPL-992358
...
5
Screw 8-15 X 1/2 WPL-486214
...
6
Shelf Ladder (2) WPL-2181796
...
7
Screw WPL-WP488729
...
8
Stud-Shelf WPL-4388538
...
9
Stud-Shelf WPL-WP2149540
...
11
Screw WPL-WP488488
...
12
Stud-Shelf WPL-4388538
...
13
Shelf, Cantilever WPL-1114301
...
15
Crisper Cover WPL-1128981
...
18
Cover WPL-WP2148298
...
19
Pan-Crispr WPL-WP2148279
...
20
Meat Pan WPL-1110791
...
22
Retainer WPL-WP2256085
...
23
Screw WPL-W10759522
...
24
Diffuser WPL-WPW10151374
...
25
Cover, Air Diffuser WPL-2152019
...
26
Cover, Conduit WPL-2150330
...
29
Tray WPL-WP841180A
...
30
Clip-Air, Duct WPL-2215823

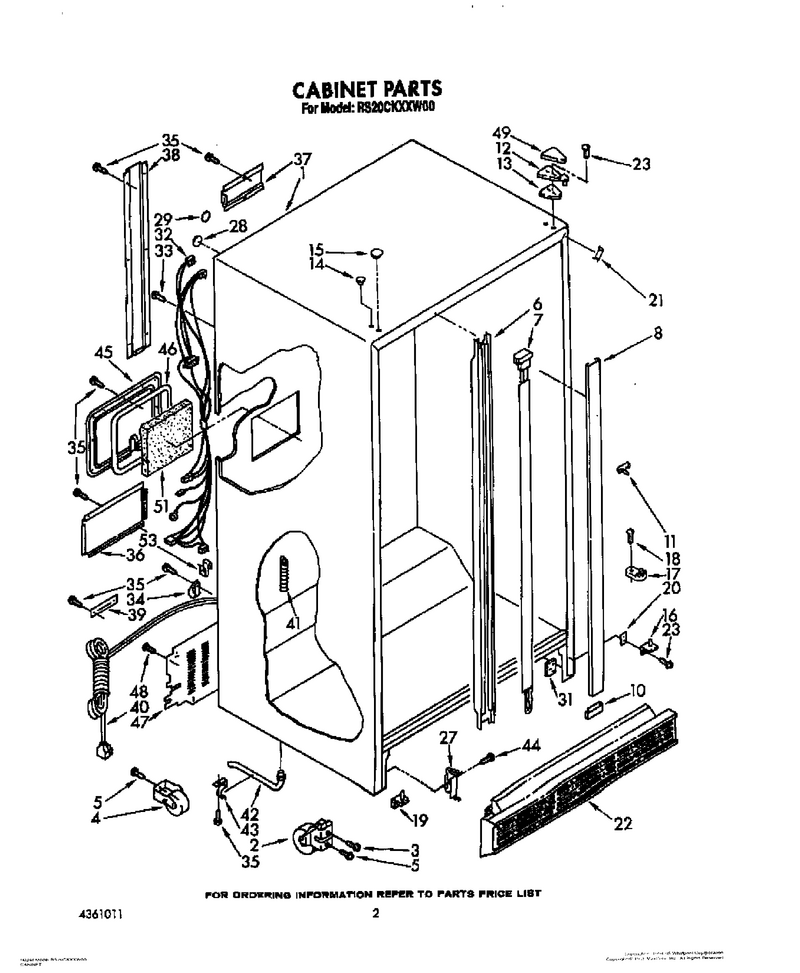

02 - Cabinet

...
...
1
Cabinet (Not A Serviceable Part) WPL---
...
2
Front Roller (2) WPL-2152011
...
3
Screw, Adjusting WPL-488681
...
4
Roller-Cab WPL-WPW10250570
...
5
Screw WPL-WP489427
...
6
Mullion Rail WPL-2155015
...
7
Heater Mullion WPL-1129434
...
8
Front Mullion Rail (Almond) WPL-1123969
...
10
Filler Bottom Mullion (Almond) WPL-1118362
...
11
Clip, Ground WPL-1110607
...
12
Hinge, Top (2) WPL-1123514
...
13
Shim, Hinge (2) WPL-1123515
...
14
Hole, Plug (White) WPL-849391
...
15
Hole Plug (Almond) WPL-1115354
...
16
Hinge Bottom (R.h.) WPL-2151619
...
17
Cam-Door WPL-WPW10329686
...
18
Screw WPL-WP489399
...
19
Hinge Bottom (L.h.) WPL-2151620
...
20
Spacer, Hinge WPL-1129868
...
21
Filler, Wrapper (Almond) WPL-2196095
...
22
Grille WPL-WP2155476
...
23
Screw WPL-489327
...
27
Clip WPL-WP2155013
...
28
Icemaker, Hole Seal WPL-2185731
...
29
Icemaker, Hole Seal WPL-2185731
...
31
Tap Plate (2) WPL-2147310
...
32
Cabinet Harness WPL-2149746
...
33
Screw WPL-WP250830
...
34
Clamp WPL-937357
...
35
Screw WPL-WP489464
...
36
Cover, Wiring WPL-1129193
...
37
Wiring Shield, Short WPL-1108440
...
38
Wiring Shield, Long WPL-1108441
...
39
Tube Clamp (2) WPL-1105607
...
40
Cord, Service WPL-937360
...
41
Drain, Ferrule Cap WPL-934607
...
42
Extension WPL-WP1108438
...
43
Clip WPL-WP1108439
...
44
Screw WPL-WP488729
...
45
Cover, Plug WPL-1108443
...
46
Sealing Gasket WPL-1115322
...
47
Cover, Unit WPL-1105531
...
48
Screw WPL-WPW10141645
...
49
Hinge Cover (White) WPL-1119787
...
51
Insulation WPL-1118237
...
53
Clip, Wire (2) WPL-548745

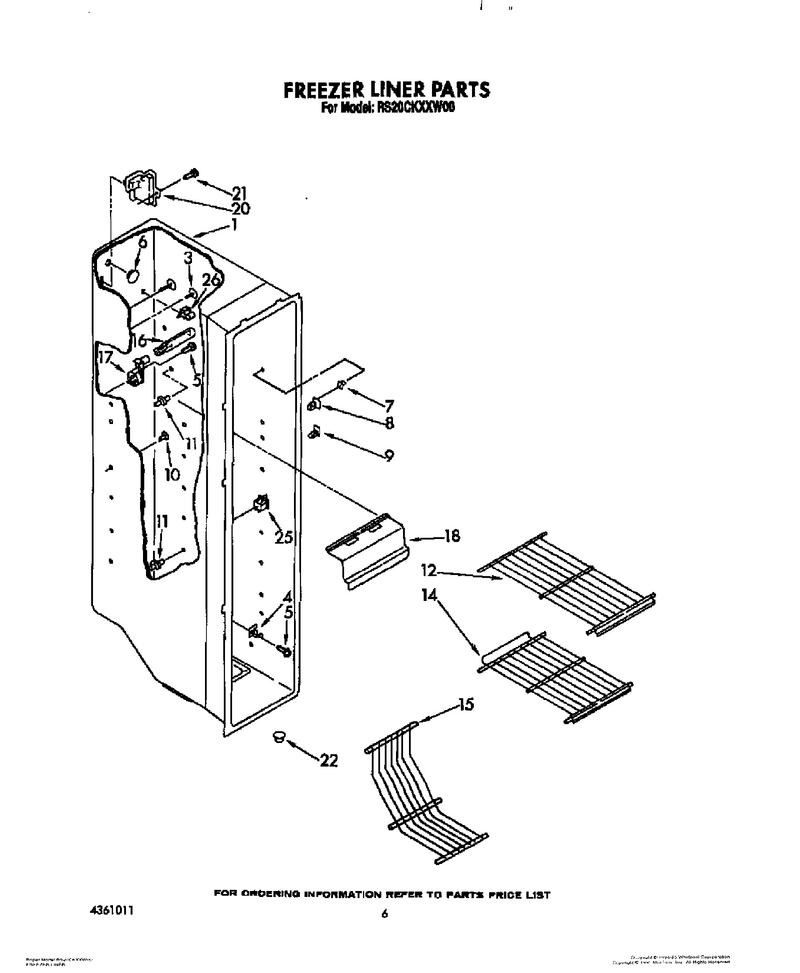

04 - Freezer Liner

...
...
1
Liner (Not A Serviceable Part) WPL---
...
2
Hole Plug WPL-944795
...
3
Button-Plg WPL-WP941839
...
4
Evaporator, Support WPL-1108436
...
5
Screw WPL-WP488729
...
6
Hole Plug WPL-655411
...
7
Stud-Shelf WPL-W11581579
...
8
Stud-Shelf WPL-W11581579
...
9
Stud-Shelf WPL-W11581579
...
10
Grommet, (6) WPL-1110779
...
11
Stud-Shelf WPL-819091
...
12
Cover-Wire WPL-2160913
...
14
Cover-Wire WPL-2160914
...
15
Trivet WPL-2148400
...
16
Bulb-Light WPL-WP548049
...
17
Socket Assembly WPL-1108630
...
18
Lens, Light WPL-1108445
...
20
Cover, Wiring WPL-1129915
...
21
Screw WPL-WP488729
...
22
Fitting, Drain WPL-942768
...
25
Switch WPL-W11384469
...
26
Clip-Air, Duct WPL-2215823

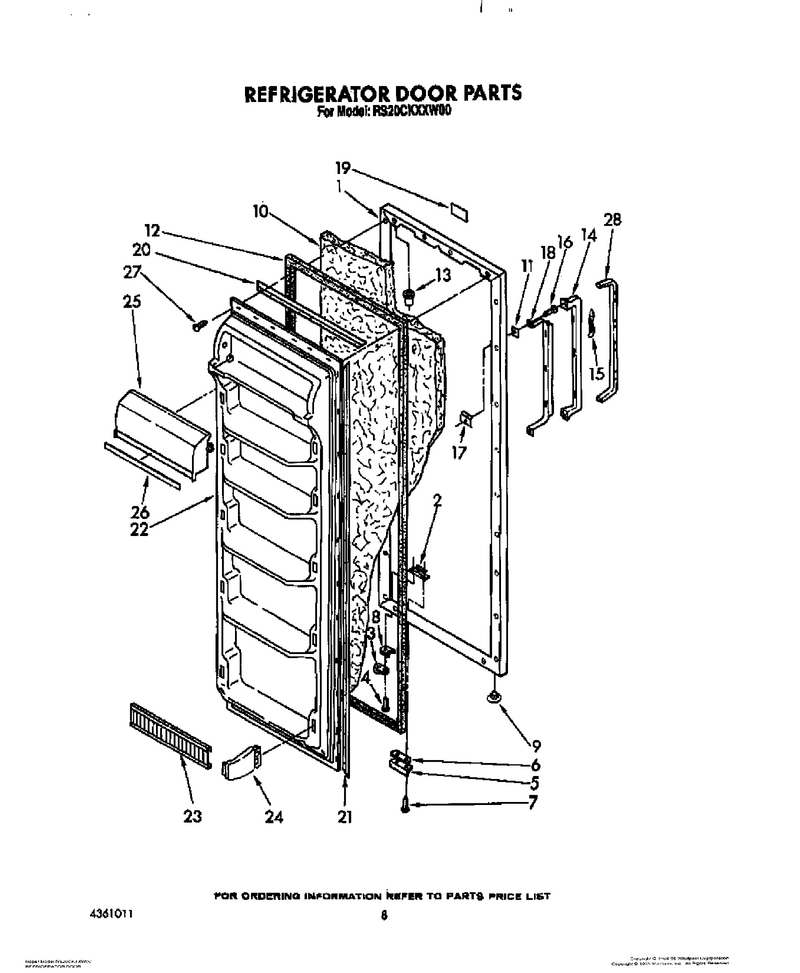

06 - Refrigerator Door

...
...
1
Refrigerator Door (White) WPL-2147643
...
2
Plate WPL-992245
...
3
Cam-Door WPL-4318165
...
4
Screw WPL-WP489069
...
5
Bracket WPL-WP2195950
...
6
Shim WPL-988421
...
7
Screw WPL-WP489069
...
8
Shim WPL-WP1104787
...
9
Hole Plug WPL-534927
...
10
Foam Insulation (Required When Replacing Exterior Door Panel) WPL-876029
...
11
Shim, Handle WPL-2147097
...
12
Gasket-Dor WPL-2188404A
...
13
Cap, Hinge Sleeve WPL-509929
...
14
Handle Center WPL-2147526
...
15
Reinforcement (3) WPL-849445
...
16
Screw WPL-WPW10141645
...
17
Plate WPL-WP939101
...
18
Reinforcement, Handle WPL-1127465
...
19
Nameplate WPL-1124315
...
20
Gasket Retainer, Top & Bottom WPL-1118301
...
21
Retainer WPL-WP1117766
...
22
Panel, Interior Door WPL-1129249
...
23
Trim, Shelf WPL-2152563
...
24
Endcap-Trm WPL-WP1110713
...
25
Door, Compartment WPL-1124431
...
26
Trim, Door Compartment WPL-2188148
...
27
Screw WPL-WP489069
...
28
Insert-Hdl WPL-4388238

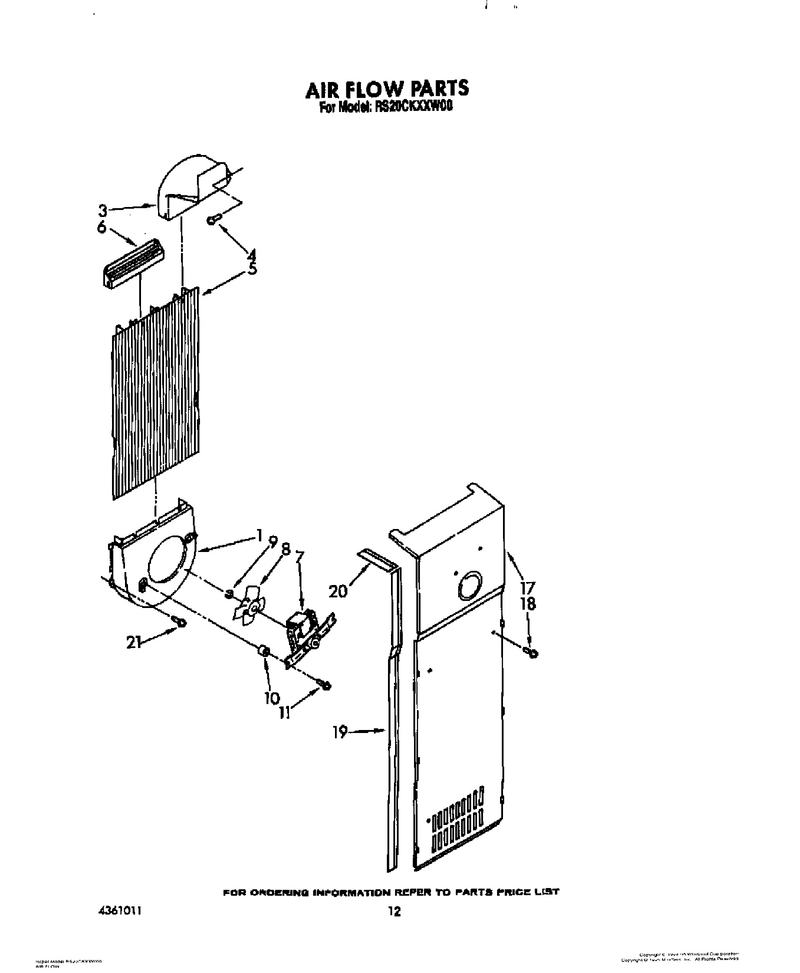

08 - Air Flow

...
...
1
Fan Scroll WPL-1127163
...
3
Scoop-Air WPL-WP2161231
...
4
Screw WPL-WP488729
...
5
Air Duct Freezer WPL-1108434
...
6
Diffuser, Air Duct WPL-2149544
...
7
Motor-Evap WPL-4318017
...
8
Blade-Fan WPL-WP992920
...
9
Ring, Compression WPL-992953
...
10
Grommet WPL-WP531933
...
11
Screw (2) WPL-489168
...
17
Cover, Evaporator WPL-1127168
...
18
Screw WPL-WP488729
...
19
Gasket (2) WPL-988494
...
20
Gasket, Evaporator Cover Top (2) WPL-1110676
...
21
Screw WPL-WP489478

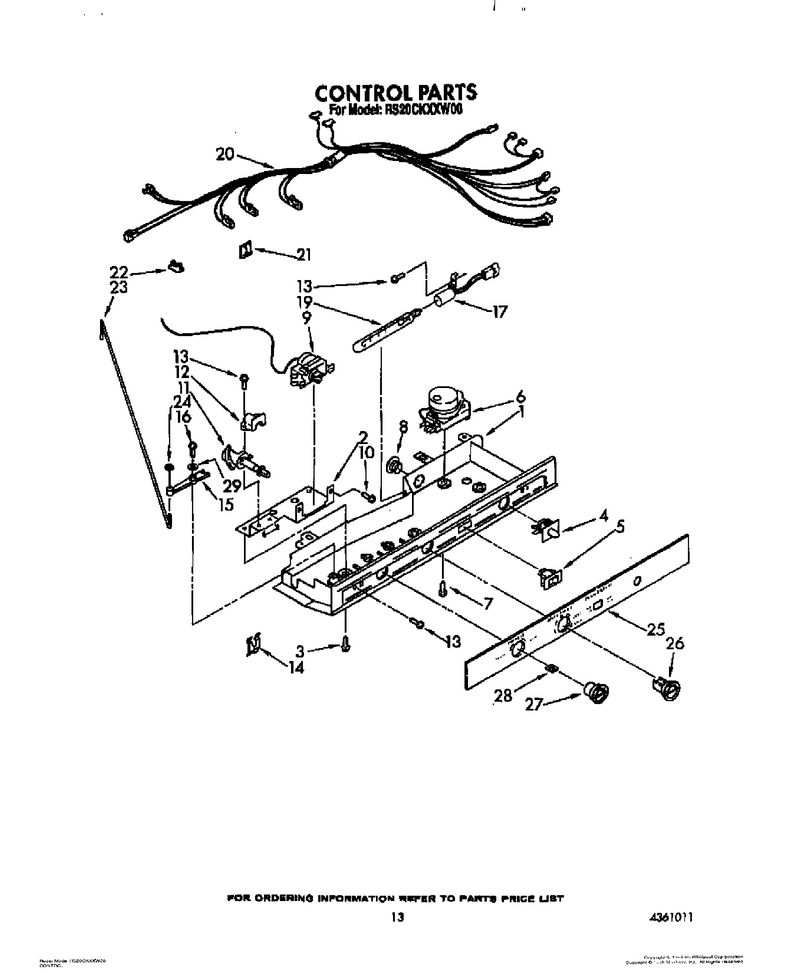

09 - Control, Lit/optional

...
...
Primer White (13 Oz. Spray Can) WPL-350942
...
1
Control Box WPL-1129413
...
2
Mounting Bracket WPL-1110629
...
3
Screw (2) WPL-489397
...
4
Switch WPL-WP2149705
...
5
Switch-Pm WPL-WP938213
...
6
Timer-Def WPL-W10822278
...
7
Screw WPL-489392
...
8
Hole Plug WPL-940014
...
9
Thermostat WPL-WP2198202
...
10
Screw WPL-WP965173
...
11
Cam Assembly WPL-1110566
...
12
Bearing Body WPL-1110560
...
13
Screw WPL-WP488729
...
14
Retainer, Damper WPL-938439
...
15
Arm-Pivot WPL-W11256541
...
16
Screw WPL-627068
...
17
Light Socket WPL-1110690
...
19
Bulb-Light WPL-WP548049
...
20
Control Box Harness WPL-2149756
...
21
Clip WPL-WP1115374
...
22
Clip, Wiring WPL-1115375
...
23
Connecting Rod WPL-1123959
...
24
Fastener, Push-On WPL-489285
...
25
Escutcheon WPL-1123995
...
26
Thermostat Knob WPL-2182111
...
27
Knob, Air Control WPL-1110562
...
28
Knob, Retainer WPL-837444
...
29
Tape WPL-W11238399

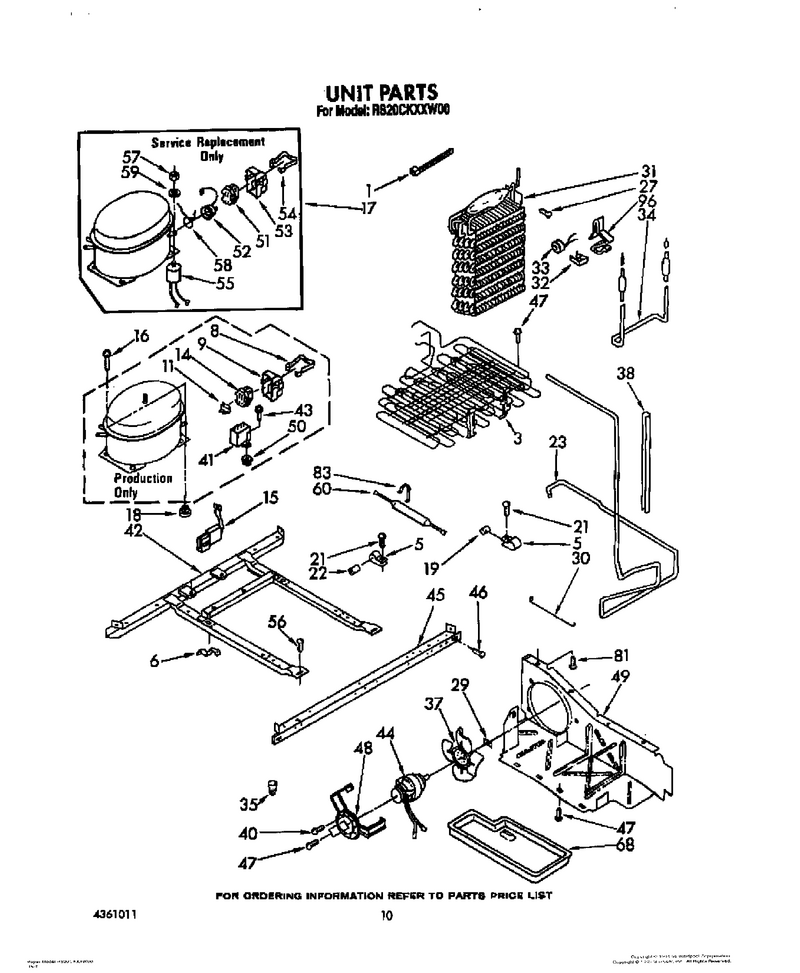

07 - Unit

...
...
1
Strap WPL-851095
...
3
Condenser Assembly WPL-1118657
...
5
Clamp (2) WPL-510716
...
6
Clip (2) WPL-548744
...
8
Strap, Cover WPL-938384
...
9
Cover WPL-1108115
...
11
Overload WPL-819198
...
14
Relay-Strt WPL-WP2262181
...
15
Housing Plug WPL-1118850
...
16
Grommet (4) ((Production)) WPL-876811
...
17
Compressor WPL-W10439638
...
18
Grommet (4) ((Production)) WPL-876811
...
19
Dampener WPL-WP2158826
...
21
Screw WPL-WPW10141625
...
22
Dampener WPL-1108064
...
23
Exchanger, Heat WPL-1127577
...
27
Screw WPL-WP488729
...
29
Nut WPL-WP486692
...
30
Guard, Fan WPL-1105612
...
31
Evaporator WPL-1106987
...
32
Clamp WPL-513584
...
33
Bimetl-Def WPL-WP4387499
...
34
Heater, Defrost WPL-2154542
...
35
Wire Connector WPL-227991
...
37
Blade-Fan WPL-WP1108179
...
38
Sleeve WPL-WP2002171
...
40
Screw, 8-32 X 3/8 WPL-681390
...
41
Capacitor WPL-WPW10662129
...
42
Frame WPL-1127942
...
43
Screw WPL-W11693756
...
44
Motor-Cond WPL-833697
...
45
Rail, Front WPL-2149717
...
46
Screw WPL-489340
...
47
Screw, No.8-18 X 3/8``, Hwhtcs WPL-4159456
...
48
Bracket, Fan Motor WPL-548695
...
49
Air Baffle WPL-2169417
...
50
Grommet (4) WPL-937252
...
51
Relay-Strt WPL-WP2262181
...
52
Overload WPL-819100
...
53
Cover WPL-1108115
...
54
Terminal Strap WPL-938384
...
55
Capacitor WPL-483059
...
56
Screw, No.8-18 X 3/8``, Hwhtcs WPL-4159456
...
57
Nut WPL-489142
...
58
Overload Spring WPL-1114190
...
59
Washer WPL-489143
...
60
Drier-Tube WPL-W10843121
...
68
Tray-Evap WPL-WPW10614158
...
81
Screw, 8-32 X 1/2 WPL-489050
...
83
Clamp, Dryer WPL-1127590
...
96
Valve WPL-WP978025
