Roper RS20CKXAL00

Model: RS20CKXAL00

Save Part Not Listed?
product name

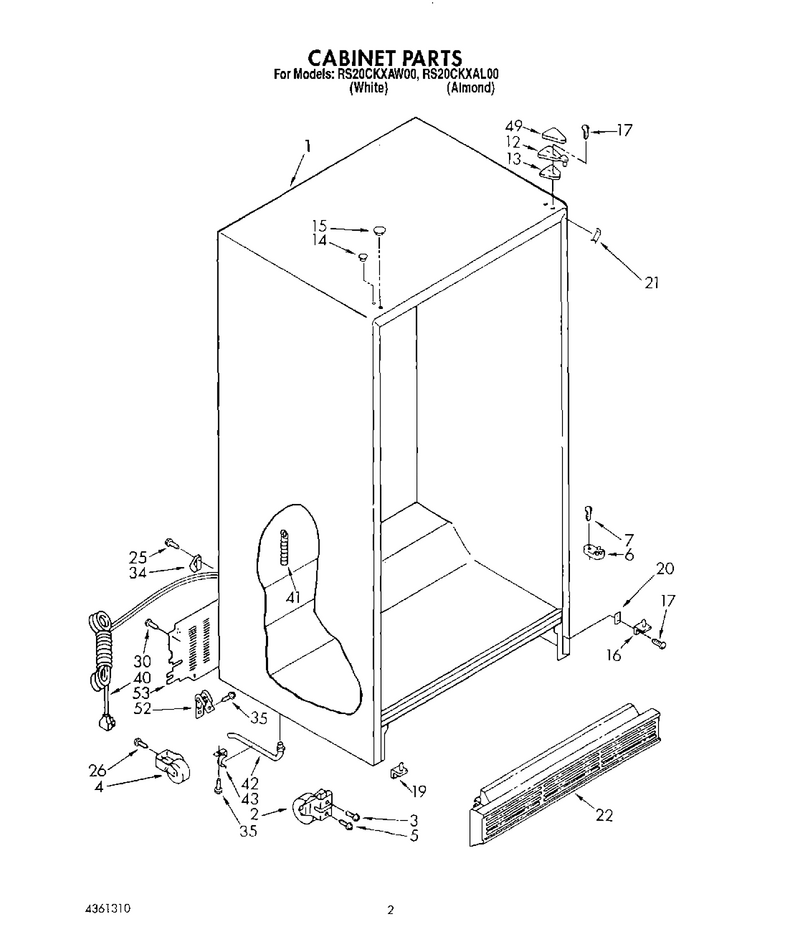

02 - Cabinet

...
...
1
Cabinet (Not A Serviceable Part) WPL---
...
2
Front Roller (2) WPL-2152011
...
3
Screw WPL-489393
...
4
Roller-Cab WPL-WPW10250570
...
5
Screw WPL-WP489427
...
6
Cam-Door WPL-WPW10329686
...
7
Screw WPL-WP489399
...
12
Hinge, Top (2) WPL-1123514
...
13
Shim, Hinge (2) WPL-1123515
...
14
Hole, Plug (White) WPL-849391
...
15
Hole Plug (Almond) WPL-1115354
...
16
Hinge Bottom (R.h.) WPL-2151619
...
17
Screw, 10-32 X 23/32 WPL-489327
...
19
Hinge Bottom (L.h.) WPL-2151620
...
20
Spacer, Hinge WPL-836196
...
21
Filler, Wrapper (White) WPL-1110708
...
22
Grille WPL-WP2155476
...
25
Screw WPL-WP489478
...
26
Screw, WPL-488454
...
30
Screw WPL-WPW10141645
...
34
Clamp WPL-WP488366
...
35
Screw WPL-WP489464
...
40
Cord, Service WPL-937360
...
41
Drain, Ferrule Cap WPL-934607
...
42
Extension WPL-WP1108438
...
43
Clip WPL-WP1108439
...
49
Hinge Cover (White) WPL-1119787
...
52
Clamp, Service Cord WPL-549193
...
53
Cover, Unit WPL-1105531

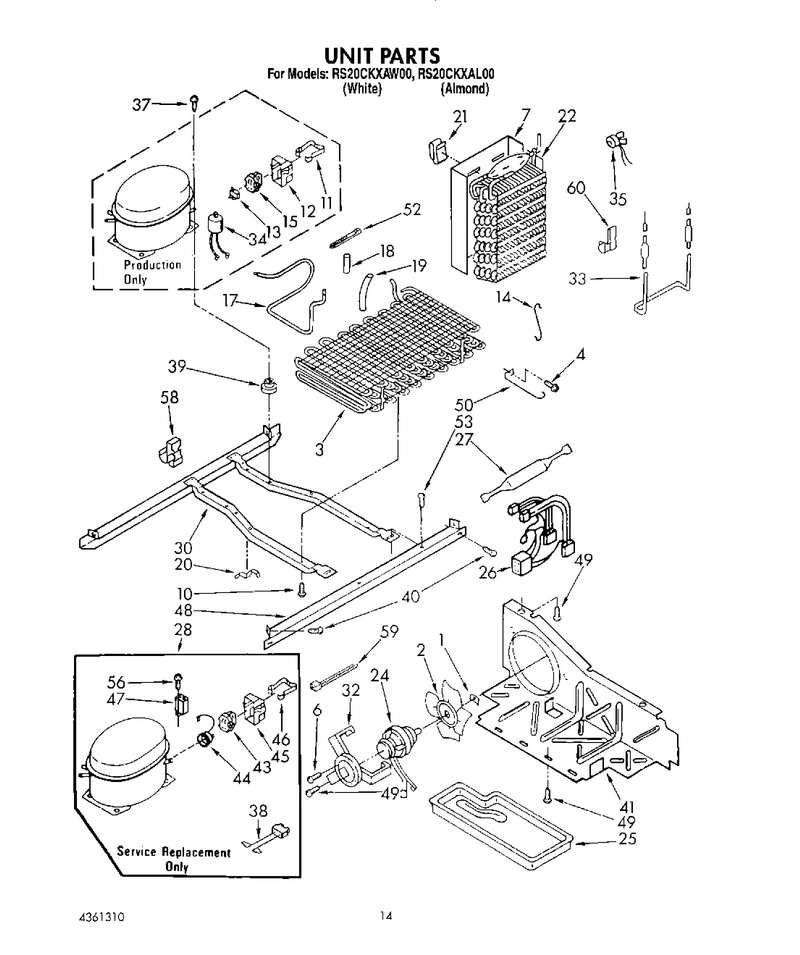

09 - Unit, Lit/optional

...
...
Service And Wiring Sheet WPL-LIT2155143
...
1
Nut WPL-WP486692
...
2
Blade-Fan WPL-WP1108179
...
3
Condenser Assembly WPL-2198175
...
4
Screw WPL-WP489478
...
6
Screw, 8-32 X 3/8 WPL-681390
...
7
Heat Shield And Drain Pan WPL-2256149
...
10
Screw WPL-WP489464
...
11
Spring, Relay Case WPL-943322
...
12
Case, Relay WPL-1105055
...
13
Overload WPL-WP2149959
...
14
Clip, Defrost Heater WPL-2161329
...
15
Relay WPL-2154436
...
17
Tube Suction WPL-2205764
...
18
Dampener WPL-WP2158826
...
19
Sleeve WPL-W11751592
...
20
Clip, Unit Cover (2) WPL-548744
...
21
Clip, Heat Shield WPL-2155547
...
22
Evaporator WPL-WP2188822
...
24
Motor-Cond WPL-833697
...
25
Tray-Evap WPL-WPW10614158
...
26
Wire Assy WPL-2176859
...
27
Drier-Tube WPL-W10843121
...
28
Compressor WPL-W10439652
...
30
Unit Mounting Frame WPL-1127942
...
32
Bracket, Fan Motor WPL-548695
...
33
Heater, Defrost WPL-2162079
...
34
Capacitor WPL-WPW10662129
...
35
Bimetl-Def WPL-WPW10225581
...
37
Screw WPL-489387
...
38
Wire WPL-WP2172890
...
39
Grommet (4) WPL-2162067
...
40
Screw WPL-489340
...
41
Air Baffle WPL-2169417
...
43
Relay (Order Overload, No.44, To Obtain Relay) WPL---
...
44
Overload WPL-1108114
...
45
Cover WPL-1108115
...
46
Strap WPL-938384
...
47
Capacitor WPL-WPW10662129
...
48
Unit Mounting Rail WPL-2149717
...
49
Screw, No.8-18 X 3/8``, Hwhtcs WPL-4159456
...
50
Guard, Fan WPL-1105612
...
52
Tie-Wire WPL-WPW10339879
...
53
Screw WPL-WP489427
...
56
Screw WPL-W11693756
...
58
Clip, Wire & Tube WPL-2208280
...
59
Tie-Wire WPL-WPW10339879
...
60
Valve, Access (5/8``) WPL-978029

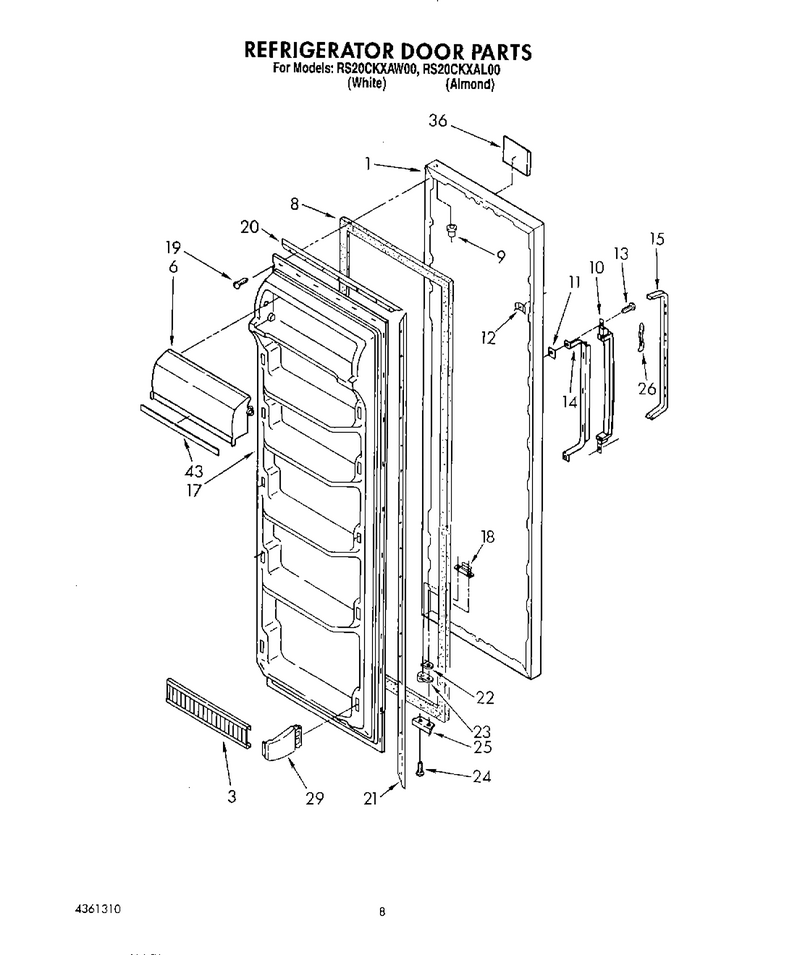

05 - Refrigerator Door

...
...
1
Refrigerator Door (White) WPL-2147643
...
3
Trim, Shelf WPL-2152563
...
6
Door, Compartment WPL-2148289
...
8
Gasket-Dor WPL-2188404A
...
9
Cap, Hinge Sleeve WPL-509929
...
10
Handle WPL-2147526
...
11
Shim, Handle (2) WPL-2147097
...
12
Plate WPL-WP939101
...
13
Screw WPL-WP489478
...
14
Reinforcement, Handle WPL-1127465
...
15
Insert-Hdl WPL-4388238
...
17
Panel, Interior Door WPL-1129249
...
18
Plate WPL-992245
...
19
Screw WPL-WP489069
...
20
Retainer, Gasket WPL-1118301
...
21
Retainer WPL-WP1117766
...
22
Shim WPL-WP1104787
...
23
Cam-Door WPL-4318165
...
24
Screw WPL-WP489069
...
25
Bracket WPL-WP2195950
...
26
Handle, Reinforcement WPL-849445
...
29
Endcap-Trm WPL-WP1110713
...
36
Nameplate WPL-2160005
...
43
Trim, Door Compartment WPL-2188148

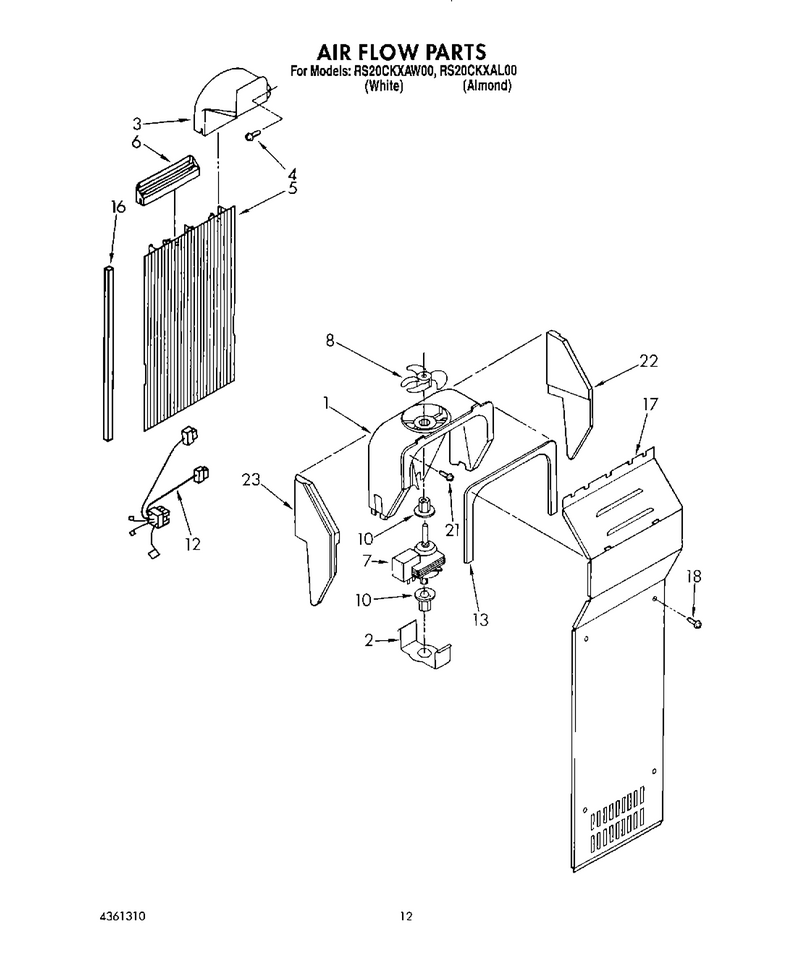

07 - Air Flow

...
...
1
Fan-Scroll WPL-W11254898
...
2
Retainer WPL-WP2155590
...
3
Scoop-Air WPL-WP2161231
...
4
Screw WPL-WP488729
...
5
Cover-Evap WPL-4388357
...
6
Diffuser, Air Duct WPL-2149544
...
7
Fan Motor WPL-4389144
...
8
Blade-Fan WPL-WP2169142
...
10
Grommet, Fan (2) WPL-2155589
...
12
Harns-Wire WPL-2149197
...
13
Gasket WPL-WP2155789
...
16
Gasket WPL-WP2304241
...
17
Cover-Evap WPL-4388357
...
18
Screw WPL-W11233072
...
21
Screw WPL-WP489478
...
22
Support Kit (Contains Right And Left) WPL-4388358
...
23
Support Kit (Contains Right And Left) WPL-4388358

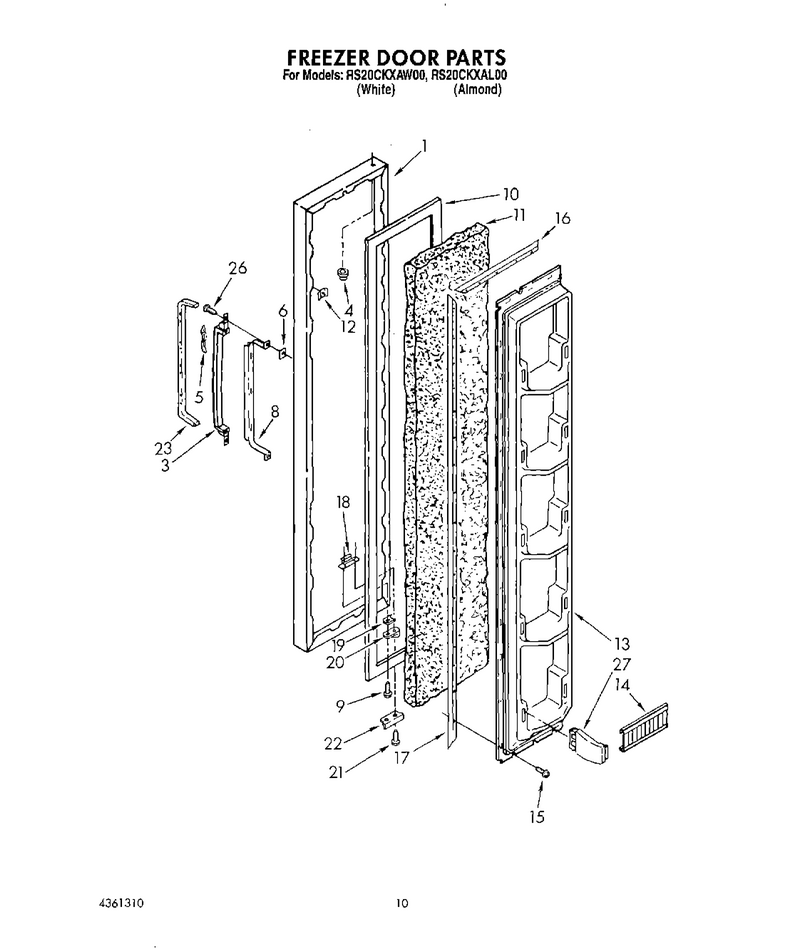

06 - Freezer Door

...
...
1
Freezer, Door Panel (Almond (Also Order Item 11)) WPL-4362013
...
3
Handle WPL-2147526
...
4
Cap, Hinge Sleeve WPL-509929
...
5
Handle, Reinforcement WPL-849445
...
6
Shim, Handle (2) WPL-2147097
...
8
Reinforcement, Handle WPL-1127465
...
9
Screw WPL-WPW10141645
...
10
Gasket-Dor WPL-2188405A
...
11
Foam Insulation (Required When Replacing Exterior Door Panel) WPL-876029
...
12
Plate WPL-WP939101
...
13
Interior, Door Panel WPL-2196141
...
14
Trim, Shelf WPL-2152563
...
15
Screw WPL-WP489069
...
16
Retainer, Gasket WPL-1117767
...
17
Retainer WPL-WP1117766
...
18
Plate WPL-992245
...
19
Shim WPL-WP1104787
...
20
Cam-Door WPL-4318165
...
21
Screw WPL-WP489069
...
22
Bracket WPL-WP2195950
...
23
Insert-Hdl WPL-4388238
...
26
Screw WPL-WP489478
...
27
Endcap-Trm WPL-WP2196100

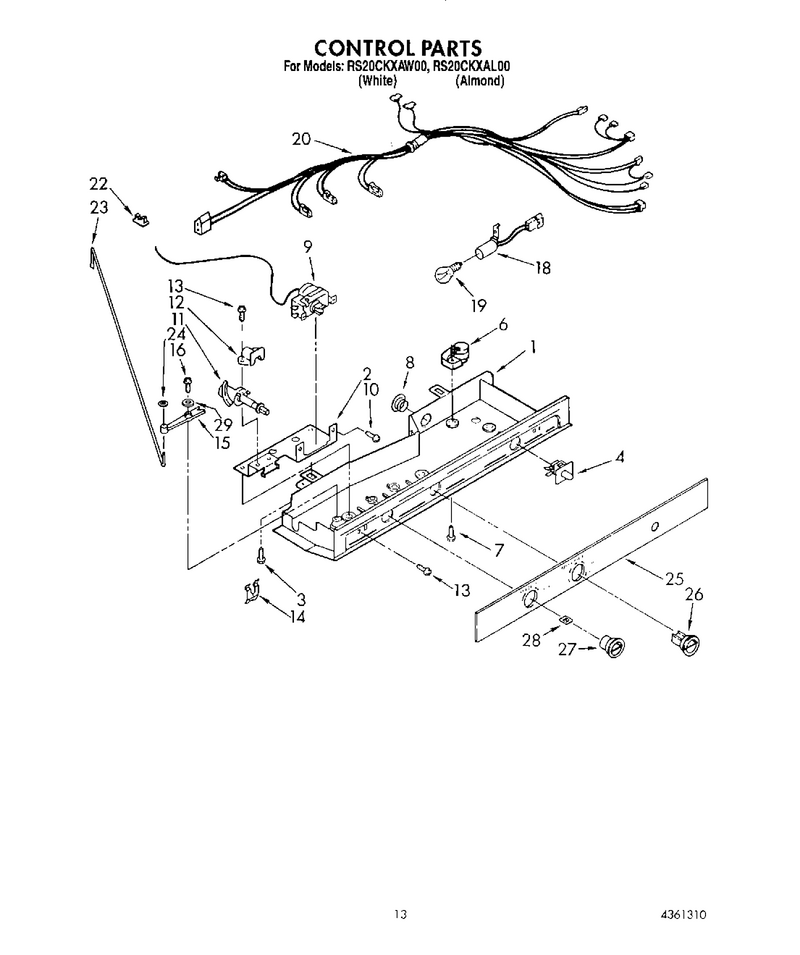

08 - Control

...
...
1
Contrl-Box WPL-4389197
...
2
Mounting Bracket WPL-1110629
...
3
Screw (2) WPL-489397
...
4
Switch WPL-WP2149705
...
6
Timer-Def WPL-W10822278
...
7
Screw WPL-489392
...
8
Hole Plug WPL-940014
...
9
Thermostat WPL-WP2198202
...
10
Screw WPL-WP965173
...
11
Cam Assembly WPL-2161250
...
12
Bearing Body WPL-1110560
...
13
Screw WPL-WP489478
...
14
Retainer, Damper WPL-938439
...
15
Arm-Pivot WPL-W11256541
...
16
Screw WPL-627068
...
18
Capacitor (Service) WPL-4387478
...
19
Light Bulb WPL-8009
...
20
Control Box Harness WPL-2149185
...
22
Clip, Wiring WPL-1115375
...
23
Connecting Rod WPL-1123959
...
24
Fastener, Push-On WPL-489285
...
25
Escutcheon, Control Box WPL-2152647
...
26
Thermostat Knob WPL-2182111
...
27
Knob, Air Control WPL-1110562
...
28
Knob, Retainer WPL-837444
...
29
Spring, Washer WPL-489203

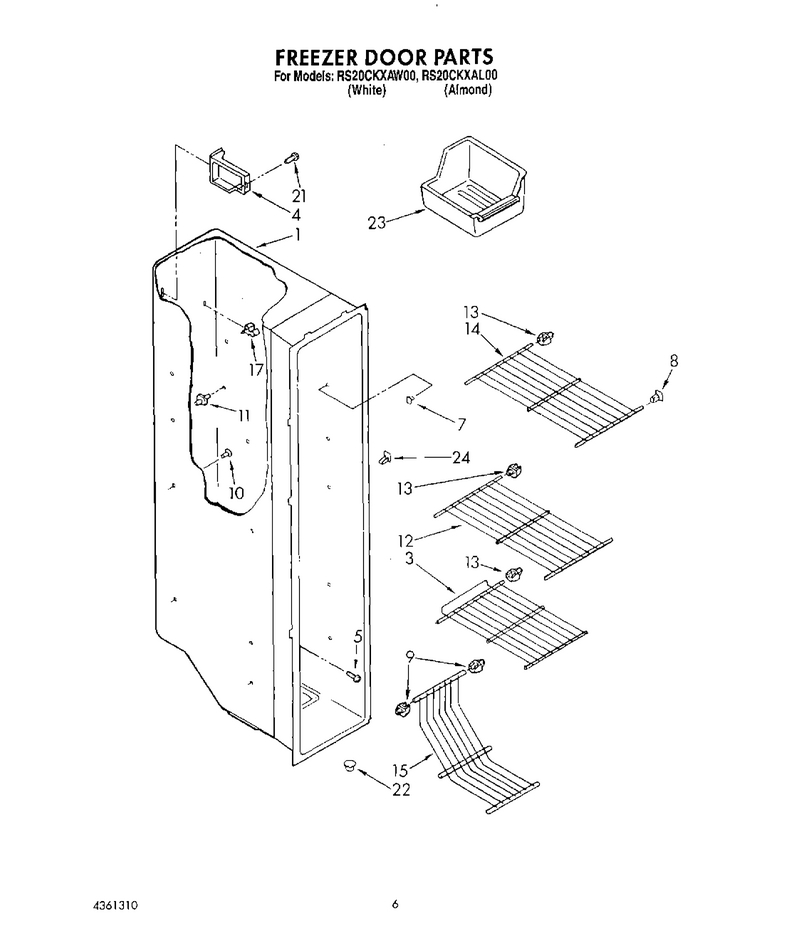

04 - Freezer Liner

...
...
1
Liner (Not A Serviceable Part) WPL---
...
3
Shelf WPL-2155603
...
4
Cover, Wiring WPL-2155571
...
5
Screw WPL-489327
...
7
Stud-Shelf WPL-W11581579
...
8
Stud-Shelf WPL-W11581579
...
9
Stud-Shelf WPL-819091
...
10
Grommet (10) WPL-1110779
...
11
Stud-Shelf WPL-4388538
...
12
Cover-Wire WPL-2160913
...
13
Stud-Shelf WPL-819091
...
14
Cover-Wire WPL-2160914
...
15
Trivet WPL-2148400
...
17
Clip-Air, Duct WPL-2215823
...
21
Screw WPL-WP488729
...
22
Fitting WPL-W11566763
...
23
Tray WPL-WP841180A
...
24
Stud-Shelf WPL-W11581579

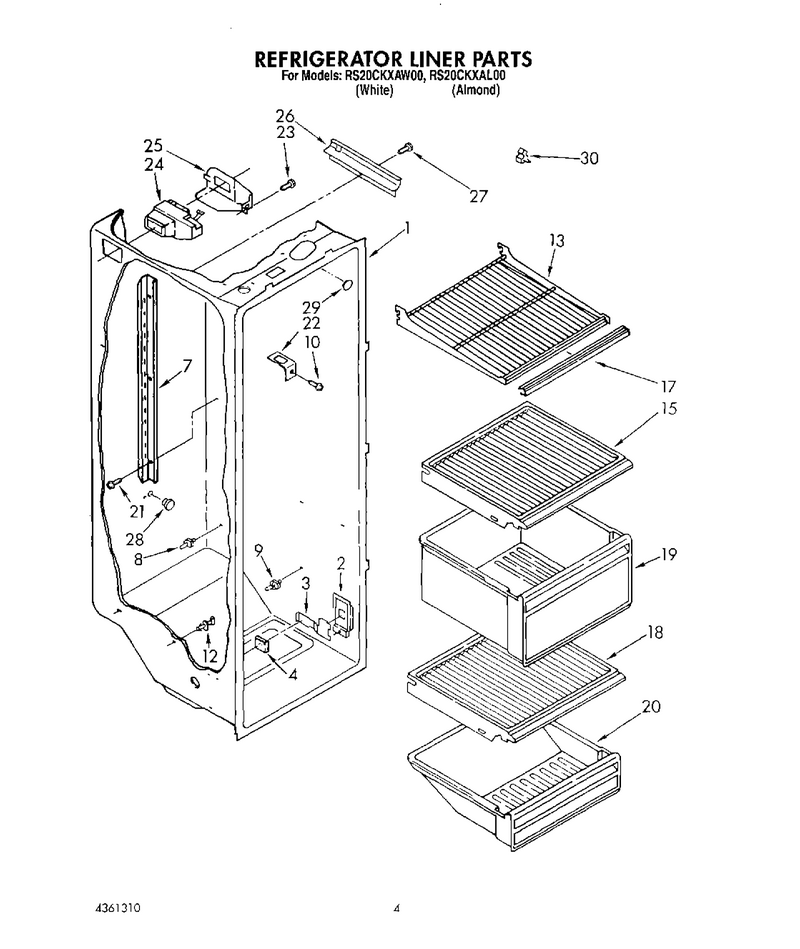

03 - Refrigerator Liner

...
...
1
Liner (Not A Serviceable Part) WPL---
...
2
Escutcheon, Meat Pan Control WPL-985468
...
3
Slide, Meat Pan Control WPL-984102
...
4
Pad, Foam WPL-992358
...
7
Shelf Ladder (2) WPL-2181796
...
8
Stud-Shelf WPL-4388538
...
9
Stud-Shelf WPL-4388538
...
10
Screw WPL-WP488488
...
12
Stud-Shelf WPL-WP2149540
...
13
Shelf, Cantilever (3) WPL-1118497
...
15
Crisper Cover WPL-1128981
...
17
Trim, Shelf WPL-1124421
...
18
Cover WPL-WP2148298
...
19
Pan-Crispr WPL-WP2148279
...
20
Meat Pan WPL-1110791
...
21
Screw WPL-WP488729
...
22
Retainer WPL-WP2256085
...
23
Screw WPL-WP489478
...
24
Diffuser WPL-WPW10151374
...
25
Cover, Air Diffuser WPL-2152019
...
26
Cover, Conduit WPL-2150330
...
27
Screw WPL-W10759522
...
28
Button-Plg WPL-WP941839
...
29
Icemaker, Hole Seal WPL-2185731
...
30
Clip-Air, Duct WPL-2215823
