Roper RS20AQXFN01

Model: RS20AQXFN01

Save Part Not Listed?
product name

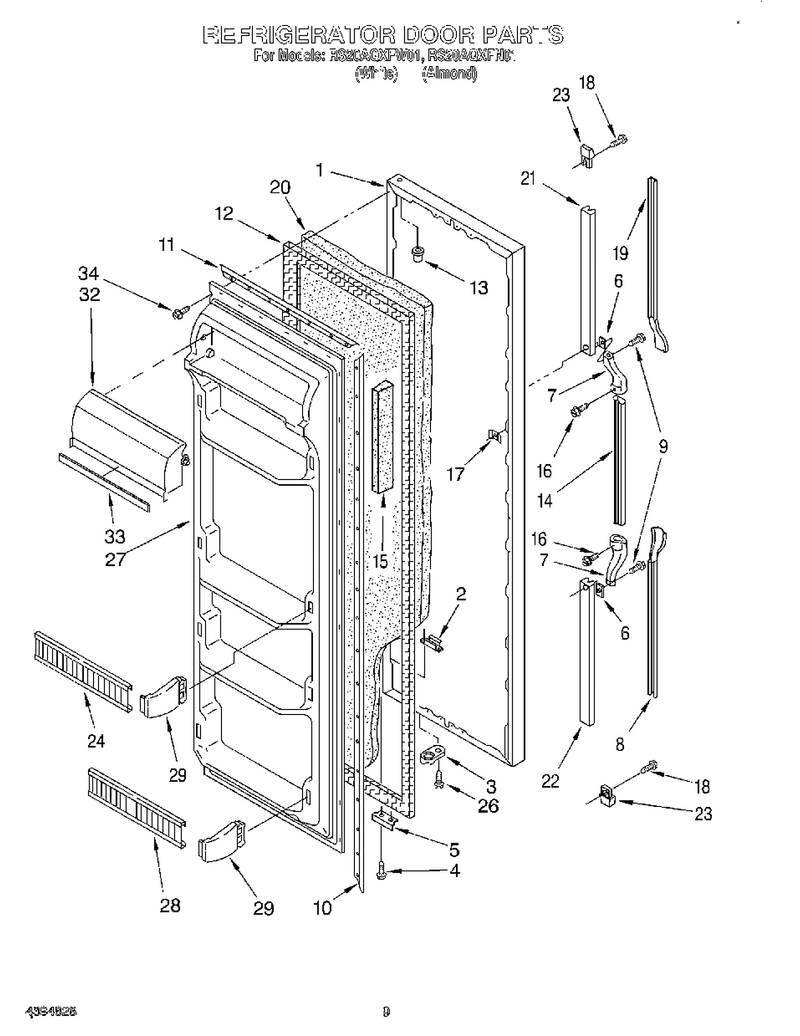

06 - Refrigerator Door

...
...
1
Refrigerator Door Panel WPL-2194192W
...
2
Tap, Plate WPL-2155335
...
3
Cam-Door WPL-4318165
...
4
Screw WPL-WP489483
...
5
Bracket WPL-WP2195950
...
6
Shim WPL-935075
...
7
End Cap (2) WPL-1119359
...
8
Insert, Bottom (Almond) WPL-2194773N
...
9
Screw WPL-WP489463
...
10
Retainer WPL-WP1117766
...
11
Gasket Retainer, Top & Bottom WPL-1118301
...
12
Gasket-Dor WPL-2188404A
...
13
Cap, Hinge Sleeve WPL-509929
...
14
Handle, Center (Almond) WPL-2194767N
...
15
Reinforcement, Shelf WPL-2152266
...
16
Screw WPL-489022
...
17
Screw Anchor WPL-941242
...
18
Screw WPL-WP3400852
...
19
Insert, Top (Almond) WPL-2194774N
...
20
Foam Insulation (Required When Replacing Exterior Door Panel) WPL-876029
...
21
Insert Retainer (Bottom) WPL-2194770
...
22
Insert Retainer (Bottom) WPL-2194770
...
23
End Cap (2) WPL-2156220
...
24
Trim-Door WPL-WP2182189
...
26
Screw WPL-WP3400012
...
27
Interior Door Panel (Also Order Item No.15) WPL-2196137
...
28
Trim-Door WPL-WP2256010
...
29
Endcap-Trm WPL-WP2196189
...
32
Compartment Door WPL-2148289
...
33
Trim, Door Compartment WPL-2188148
...
34
Screw WPL-WP489069

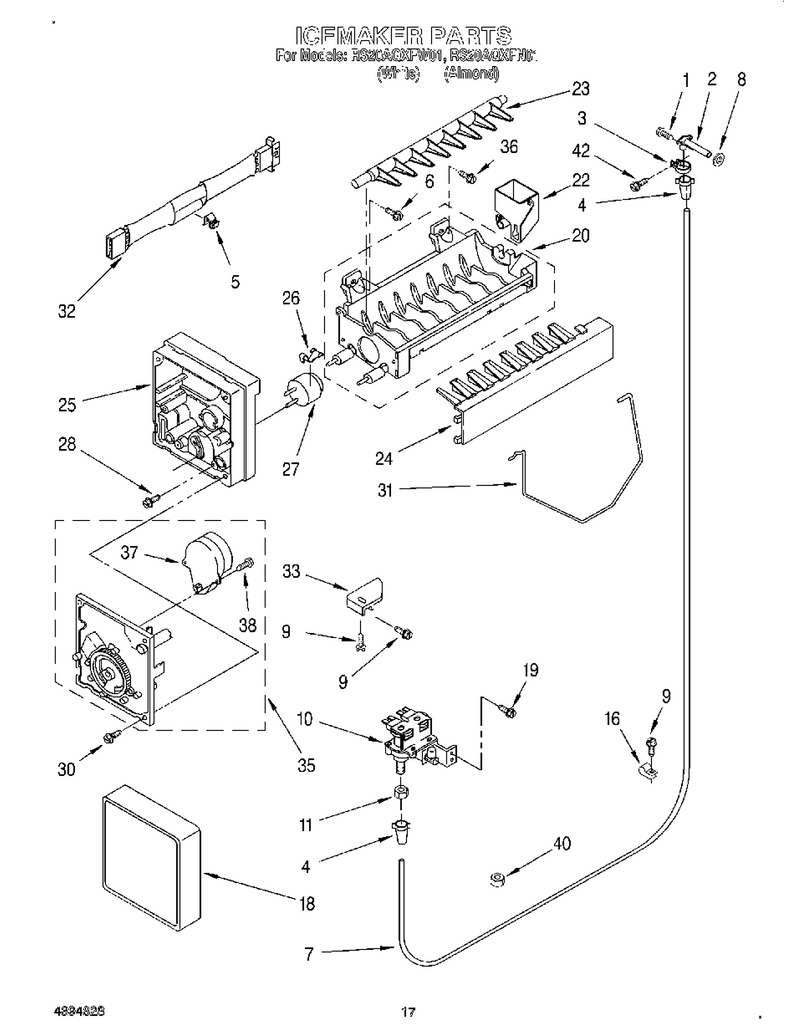

10 - Icemaker

...
...
1
Screw WPL-WPW10141645
...
2
Fitting WPL-WP2196157
...
3
Clamp WPL-WP488878
...
4
Insert, Tube WPL-4387491
...
5
Clip WPL-WP628379
...
6
Screw WPL-WP488163
...
7
Tube-Water WPL-W10823511
...
8
Gasket WPL-WP1106508
...
9
Screw WPL-WP489478
...
10
Valve-Inlt WPL-W10853654
...
11
Nut WPL-WP627018
...
16
Clamp WPL-WP488366
...
18
Cover-Frnt WPL-WPW10289690
...
19
Screw WPL-WPW10141625
...
20
Grease WPL-WP542638
...
22
Cup-Fill WPL-WP628356
...
23
Arm-Ejectr WPL-WP627843
...
24
Arm-Stripr WPL-WP2182124
...
25
Housing-Im WPL-WP2195914
...
26
Clip WPL-WP2315522
...
27
Adhesive WPL-WP4317852
...
28
Screw (2) WPL-8533917
...
30
Screw WPL-WP681249
...
31
Arm-Shut WPL-W11342242
...
32
Harns-Wire WPL-WP2187464
...
33
Bracket WPL-W11500948
...
35
Motor-Modl WPL-W10190935
...
36
Screw WPL-489486
...
37
Motor-Modl WPL-W10190935
...
38
Screw WPL-489136
...
40
Nut WPL-4318011
...
42
Screw WPL-WP488787
...
100
Complete Icemaker Assembly WPL-4317943

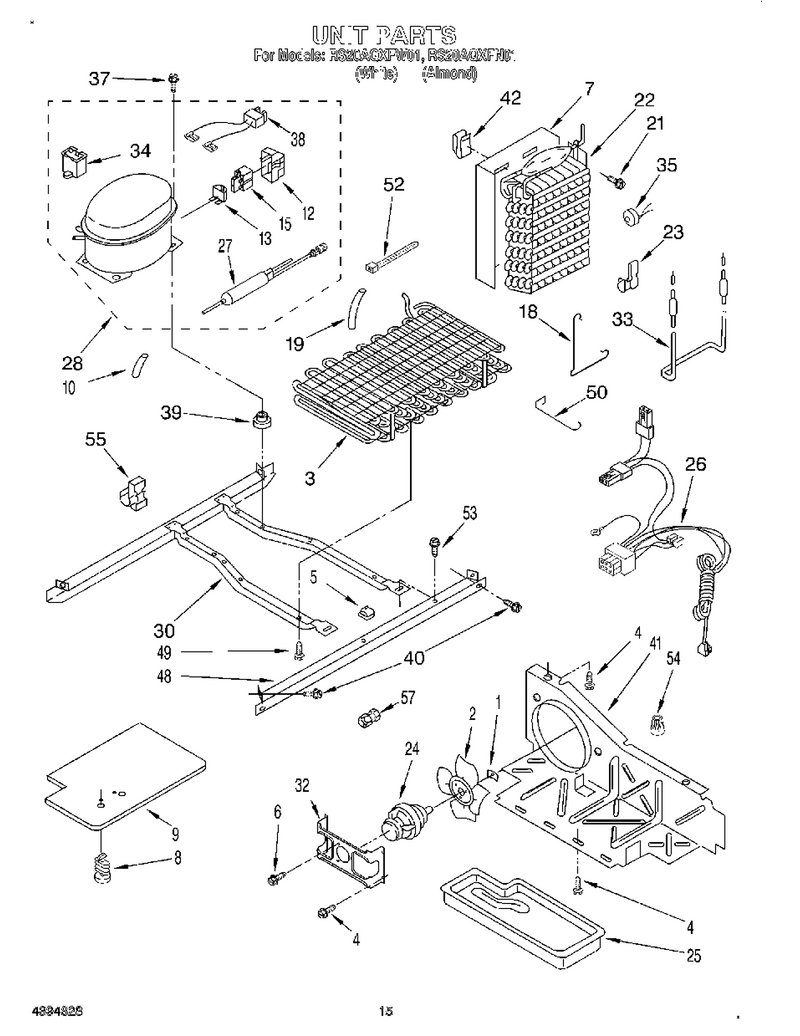

09 - Unit

...
...
1
Nut WPL-WP486692
...
2
Blade-Fan WPL-WP1108179
...
3
Condenser Assembly WPL-2198175
...
4
Screw WPL-WP489464
...
5
Clip, Tube WPL-2200079
...
6
Screw, 8-32 X 3/8 WPL-681390
...
7
Heat Shield And Drain Pan WPL-2256149
...
8
Clip WPL-489396
...
9
Cover, Unit Compartment WPL-2182057
...
10
Dampener WPL-WP2158826
...
12
Cover-Term WPL-WP2162358
...
13
Overload WPL-WP61006294
...
15
Relay-Strt WPL-W10920279
...
18
Clip WPL-WP2161324
...
19
Sleeve WPL-W11751592
...
21
Screw WPL-WP965173
...
22
Evaporator WPL-WP2188822
...
23
Clip, Heater (2) WPL-2161330
...
24
Motor-Cond WPL-W10822259
...
25
Tray-Evap WPL-WPW10614158
...
26
Unit, Harness WPL-2194749
...
27
Drier-Tube WPL-W10843121
...
28
Compressor WPL-W10309990
...
30
Frame WPL-1127943
...
32
Bracket WPL-WP2181929
...
33
Heater WPL-WP2323197
...
34
Capacitor (Service Compressor Only) WPL-2169137
...
35
Bimetl-Def WPL-WPW10225581
...
37
Grommet (4) ((Production)) WPL-876811
...
38
Wire WPL-WP2172890
...
39
Grommet (4) ((Production)) WPL-876811
...
40
Screw WPL-489340
...
41
Air Baffle WPL-2169417
...
42
Clip, Heat Shield WPL-2155547
...
48
Unit Mounting Rail WPL-2149717
...
49
Screw, No.8-18 X 3/8``, Hwhtcs WPL-4159456
...
50
Guard, Fan WPL-1105612
...
52
Tie-Wire WPL-WPW10339879
...
53
Screw WPL-WP489427
...
54
Connector, Wire WPL-227991
...
55
Clip, Wire & Tube WPL-2208280
...
57
Valve, Access (3/8``) WPL-978027

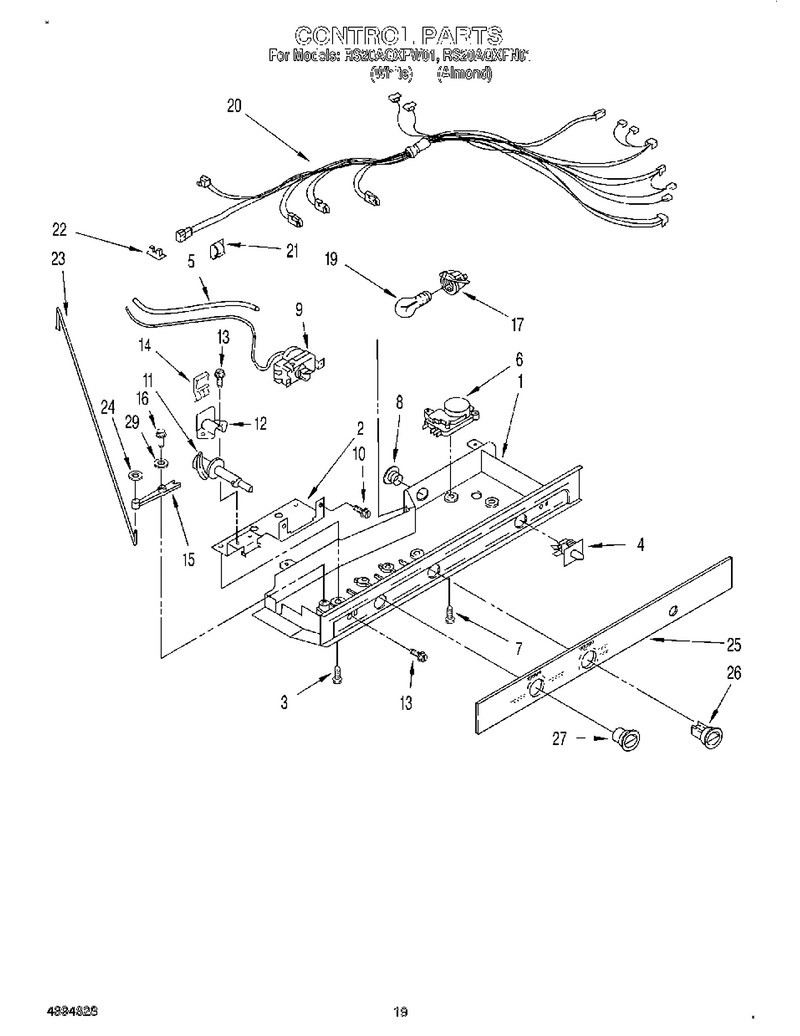

11 - Control, Lit/optional

...
...
Energy Label WPL-LIT2198054
...
1
Contrl-Box WPL-4389197
...
2
Mounting Bracket WPL-1110629
...
3
Screw (2) WPL-489397
...
4
Switch WPL-WP2149705
...
5
Barrier WPL-WP2196003
...
6
Timer-Def WPL-W10822278
...
7
Screw WPL-489392
...
8
Hole Plug WPL-940014
...
9
Thermostat WPL-WP2198202
...
10
Screw WPL-WP965173
...
11
Cam WPL-WP2182195
...
12
Bearing Body WPL-1110560
...
13
Screw WPL-WP489478
...
14
Clip WPL-WP2196062
...
15
Arm-Pivot WPL-W11256541
...
16
Screw WPL-627068
...
17
Capacitor (Service) WPL-4387478
...
19
Light Bulb WPL-8009
...
20
Control Box Harness WPL-2198306
...
21
Clip WPL-WP1115374
...
22
Clip, Wiring WPL-1115375
...
23
Connecting Rod WPL-1123959
...
24
Fastener, Push-On WPL-489285
...
25
Escutcheon, Control Box WPL-2194977
...
26
Thermostat Knob WPL-2182111
...
27
Knob, Air Control WPL-2197871
...
29
Kit, Evaporator Repair (Aluminum Epoxy) WPL-799833

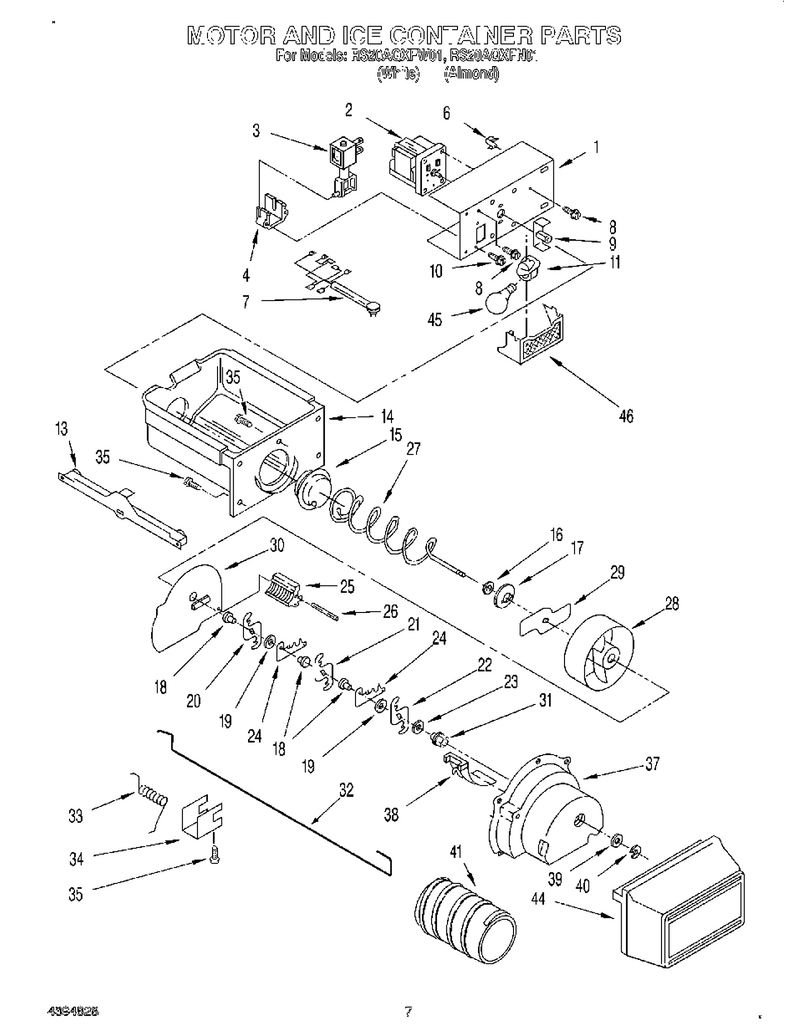

05 - Motor And Ice Container

...
...
1
Bracket WPL-WPW10284487
...
2
Motor WPL-WP2188242
...
3
Solenoid WPL-WP2152713
...
4
Guide WPL-W10850503
...
6
Clip WPL-WP1115374
...
7
Wiring Assembly, Ice Dispenser WPL-2169490
...
8
Screw WPL-WP489399
...
9
Coupling WPL-WPW10169511
...
10
Screw WPL-WP489478
...
11
Capacitor (Service) WPL-4387478
...
13
Slide, Ice Container (Right) WPL-W10845583
...
14
Container WPL-WP2196090
...
15
Coupling WPL-W10749708
...
16
Stop, Cone WPL-1118480
...
17
Feeder Cone WPL-1119074
...
18
Spacer WPL-WP1119005
...
19
Spacer WPL-WP1119007
...
20
Blade, Rotary A WPL-W10278731
...
21
Blade, Rotary B WPL-W10278732
...
22
Blade, Rotary C WPL-W10278733
...
23
Washer WPL-WP489235
...
24
Blade, Fixed (2) WPL-1119009
...
25
Block Blade WPL-2157405
...
26
Roll Pin WPL-489229
...
27
Conveyor WPL-2181957
...
28
Drum WPL-4388736
...
29
Drum WPL-4388736
...
30
Baffle WPL-W10852691
...
31
Bearing WPL-WP1119018
...
32
Control Arm WPL-2169938
...
33
Spring, Return WPL-1119020
...
34
Retainer Clip, Rod WPL-1119021
...
35
Screw WPL-WP488787
...
37
Housing WPL-WPW10185018
...
38
Deflector WPL-WP1119017
...
39
Washer, Plain WPL-489234
...
40
Ring-E WPL-WP489236
...
41
Sleeve WPL-4317870
...
44
Cover WPL-WP2171709
...
45
Light Bulb WPL-8009
...
46
Lens-Light WPL-WP2171706

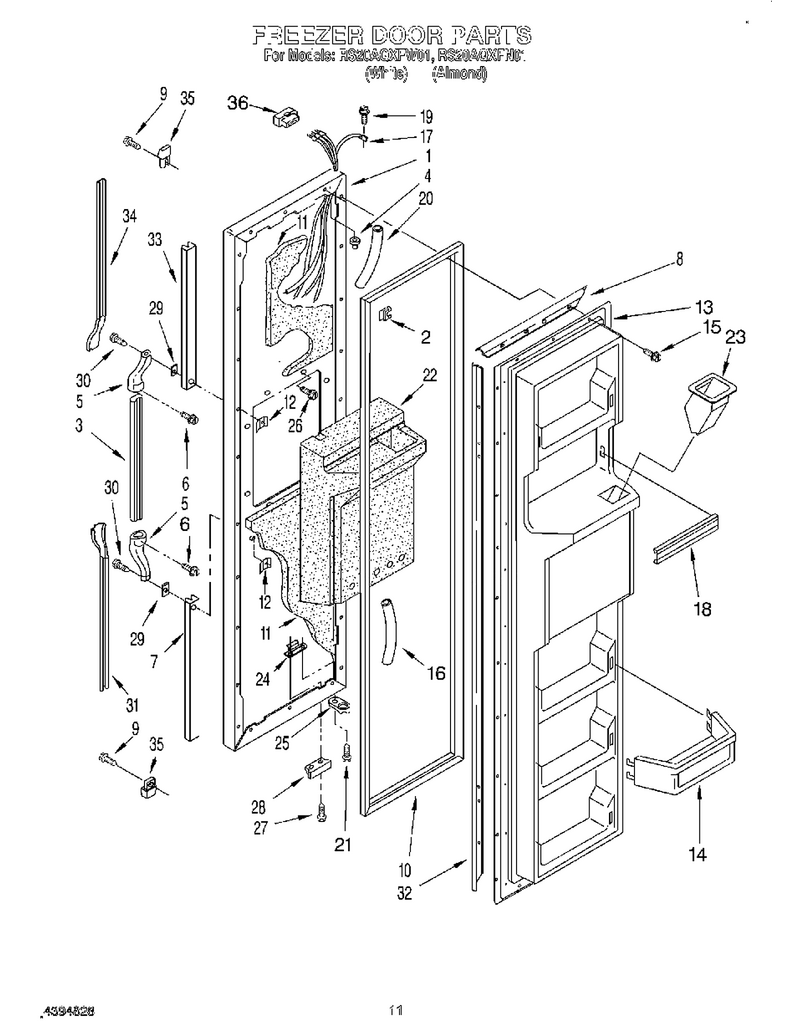

07 - Freezer Door

...
...
1
Freezer Door Panel WPL-2194273W
...
2
Clip WPL-2198369
...
3
Handle (Almond) WPL-2194767N
...
4
Cap, Hinge Sleeve WPL-939886
...
5
End Cap WPL-1119359
...
6
Screw WPL-489022
...
7
Insert Retainer (Bottom) WPL-2194770
...
8
Retainer, Gasket WPL-1117767
...
9
Screw WPL-WP3400852
...
10
Gasket-Dor WPL-2188405A
...
11
Foam Insulation (Required When Replacing Exterior Door Panel) WPL-876029
...
12
Plate WPL-WP939101
...
13
Panel, Interior Door WPL-2196140
...
14
Trim, Door Shelf (4) WPL-2169749
...
15
Screw WPL-WP489069
...
16
Tube, Water Line WPL-2196117
...
17
Wire Harness WPL-2180229
...
18
Trim-Door WPL-WP2201061
...
19
Screw WPL-WP3400906
...
20
Tube, Door Wiring WPL-2169027
...
21
Screw WPL-WP3400012
...
22
Insulation, Dispenser WPL-2149014
...
23
Chute, Ice WPL-2180204
...
24
Tap, Plate WPL-2155335
...
25
Cam-Door WPL-4318165
...
26
Screw WPL-WP489128
...
27
Screw WPL-WP489483
...
28
Bracket WPL-WP2195950
...
29
Shim WPL-935075
...
30
Screw WPL-WP489463
...
31
Insert, Bottom (Almond) WPL-2194773N
...
32
Retainer WPL-WP1117766
...
33
Insert Retainer (Bottom) WPL-2194770
...
34
Insert, Top (Almond) WPL-2194774N
...
35
End Cap WPL-2156220
...
36
Connector WPL-WP2154473

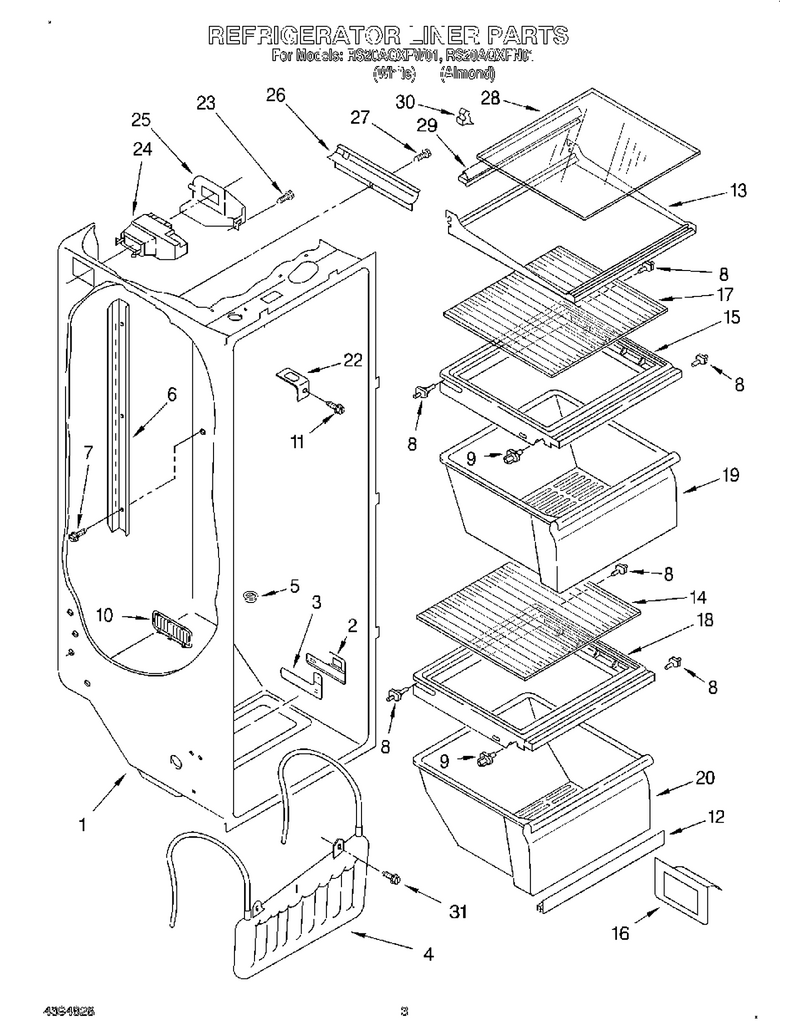

02 - Refrigerator Liner

...
...
1
Liner (Not A Serviceable Part) WPL---
...
2
Escutcheon, Meat Pan Control WPL-2194744
...
3
Slide Meat Pan Control WPL-2182757
...
4
Reservoir WPL-WP2256126
...
5
Release Valve WPL-2171846
...
6
Shelf Ladder (2) WPL-2181796
...
7
Screw WPL-WP488729
...
8
Stud-Shelf WPL-4388538
...
9
Stud-Shelf WPL-4388539
...
10
Louver-Cab WPL-8201651
...
11
Screw WPL-WP488488
...
12
Extension WPL-2179561
...
13
Shelf, Cantilever WPL-2173178
...
14
Shelf-Glas WPL-W10864399
...
15
Cover WPL-W10508993
...
16
Deflector WPL-2179350
...
17
Shelf-Glas WPL-W10864399
...
18
Cover WPL-W10508993
...
19
Pan-Crispr WPL-WP2188656
...
20
Pan-Meat WPL-WP2188664
...
22
Retainer WPL-WP2256085
...
23
Screw WPL-WP489478
...
24
Diffuser WPL-WPW10151374
...
25
Cover, Air Diffuser WPL-2152019
...
26
Cover, Conduit WPL-2150330
...
27
Screw WPL-W10759522
...
28
Glass, Shelf WPL-2177978
...
29
Retainer, Shelf WPL-1125525
...
30
Clip-Air, Duct WPL-2215823
...
31
Screw WPL-798639

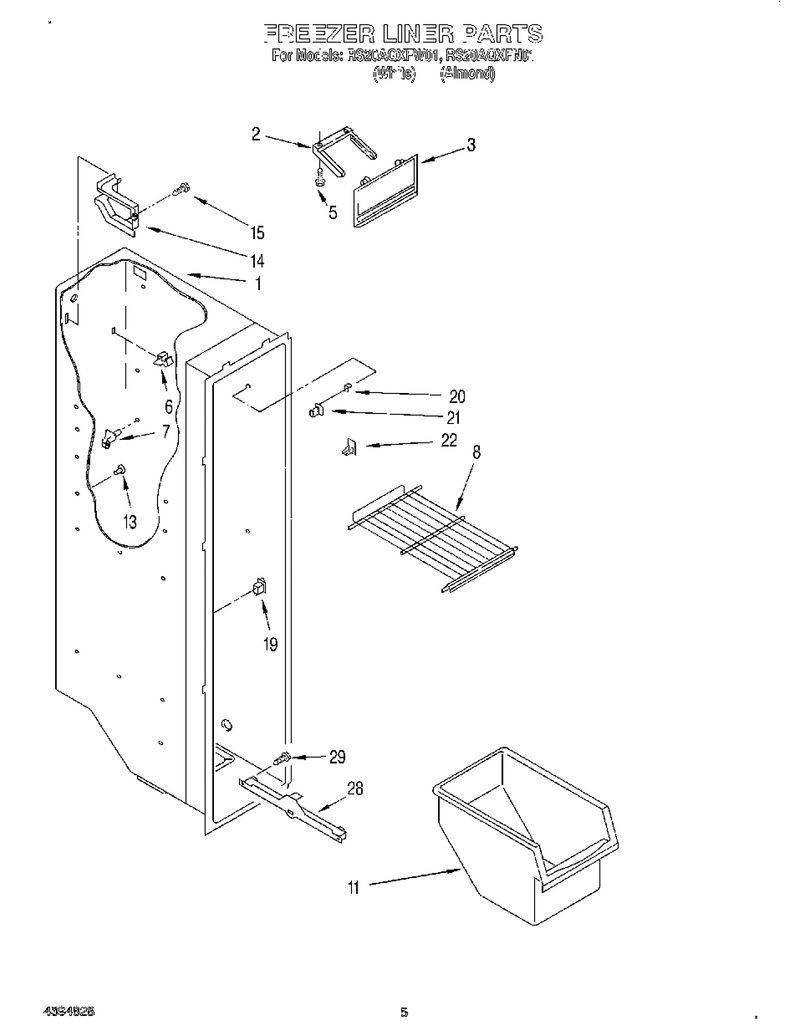

03 - Freezer Liner

...
...
1
Liner (Not A Serviceable Part) WPL---
...
2
Slide, Ice Door WPL-1115380
...
3
Door, Ice Compartment WPL-2171712
...
5
Screw WPL-WP489478
...
6
Clip-Air, Duct WPL-2215823
...
7
Stud-Shelf WPL-4388405
...
8
Shelf (1) WPL-2174269
...
11
Bin, Freezer WPL-2171707
...
13
Grommet (4) WPL-2176134
...
14
Cover, Wiring WPL-2155572
...
15
Screw WPL-W11233072
...
19
Switch WPL-W11457217
...
20
Stud-Shelf WPL-W11581579
...
21
Stud-Shelf WPL-W11581579
...
22
Stud-Shelf WPL-W11581579
...
28
Slide, Ice Container (Left Side) WPL-1115383
...
29
Screw, 8-18 X 1.38 WPL-718257

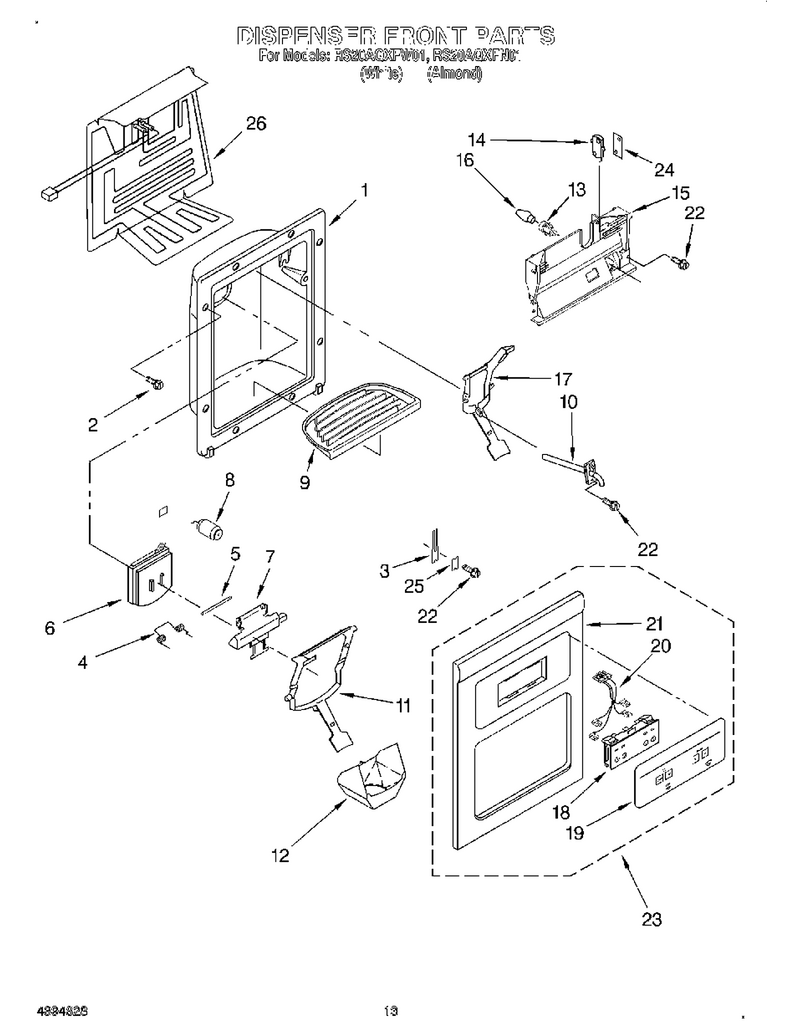

08 - Dispenser Front

...
...
1
Housing, Dispenser (White) WPL-2180220
...
2
Screw WPL-WP489069
...
3
Clip WPL-WP2194719
...
4
Spring WPL-WPW10224328
...
5
Pin-Door WPL-WP2196195
...
6
Ice Dor Kt WPL-W10823377
...
7
Ice Dor Kt WPL-W10823377
...
8
Ice Dor Kt WPL-W10823377
...
9
Grille, Overflow (White) WPL-2183787W
...
10
Fitting WPL-WP4388152
...
11
Arm-Dispsr WPL-WP2180259
...
12
Guide-Ice WPL-WP2180224
...
13
Lamp Holder WPL-2180200
...
14
Swtch-Micr WPL-WP2162361
...
15
Bracket WPL-WP2180226
...
16
Bulb-Light WPL-WP22002263
...
17
Arm-Dispsr WPL-WPW10152858
...
18
Switch WPL-WP2180279
...
19
Plaque, Front Cover (White) WPL-2194837W
...
20
Wire Assembly WPL-2187408
...
21
Front Cover, Housing (Not Available, Order No.23) WPL---
...
22
Screw WPL-WP3400906
...
23
Front Cover Assembly (Includes Items 18, 19, 20 & 21) (White) WPL-2194835W
...
24
Spacer WPL-WP625834
...
25
Clip WPL-WP2195051
...
26
Heater WPL-483058

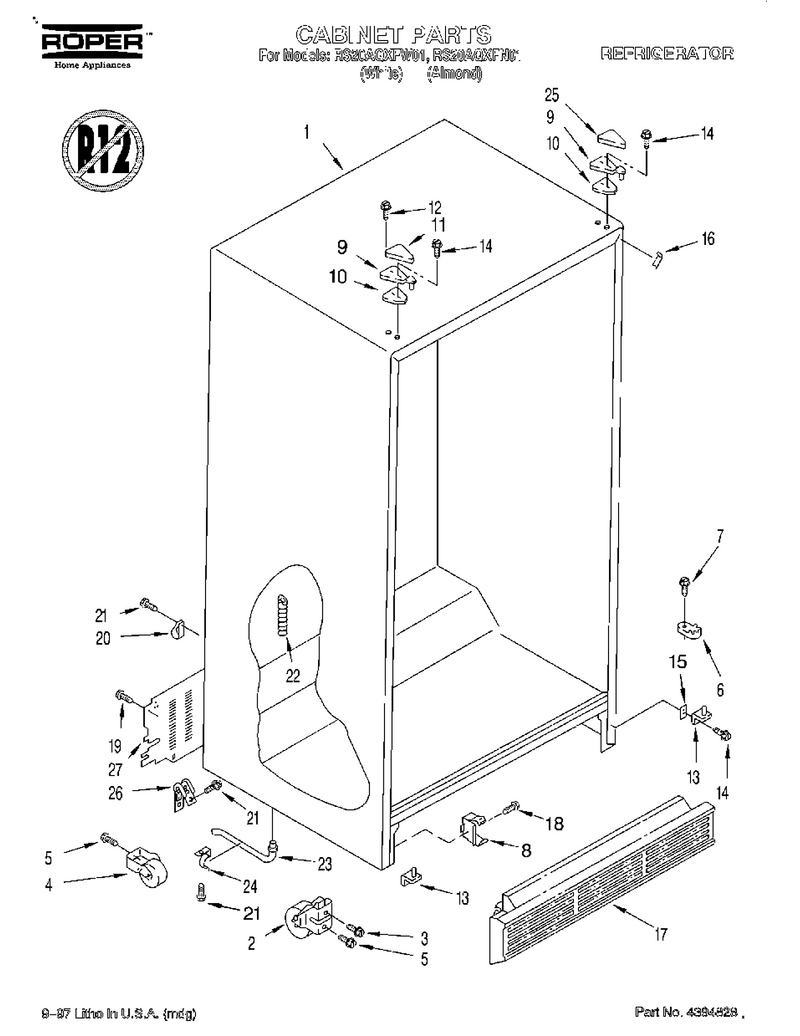

01 - Cabinet

...
...
1
Cabinet (Not A Serviceable Part) WPL---
...
2
Front Roller (2) WPL-4386774
...
3
Screw WPL-W10850698
...
4
Roller-Cab WPL-WPW10250570
...
5
Screw WPL-WP489427
...
6
Cam-Door WPL-WPW10329686
...
7
Screw WPL-WP489483
...
8
Clip WPL-WP2155013
...
9
Hinge-Door WPL-WP2196046
...
10
Shim, Hinge (2) WPL-2196048
...
11
Cover WPL-WP1129262
...
12
Screw WPL-489284
...
13
Hinge-Door WPL-8201707
...
14
Screw WPL-WP489497
...
15
Shim WPL-WP2181911
...
16
Filler, Wrapper (Almond) WPL-2196095
...
17
Grille WPL-WP2155476
...
18
Screw WPL-WP489478
...
19
Screw WPL-WPW10141645
...
20
Clamp WPL-WP488366
...
21
Screw WPL-WP489464
...
22
Fitting WPL-W11566763
...
23
Extension WPL-WP1108438
...
24
Clip WPL-WP1108439
...
25
Hinge Cover (2) (White) WPL-1119787
...
26
Clamp, Service Cord WPL-549193
...
27
Cover-Unit WPL-WP2188756

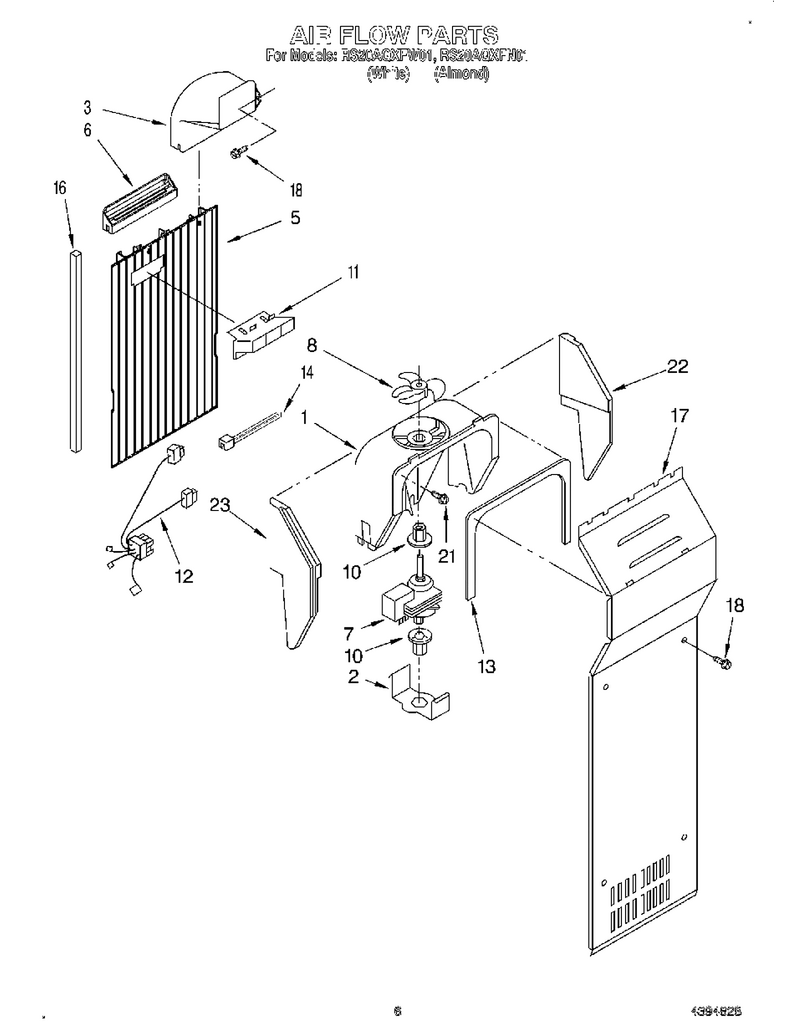

04 - Air Flow

...
...
1
Fan-Scroll WPL-W11254898
...
2
Retainer WPL-WP2155590
...
3
Scoop-Air WPL-WP2161231
...
5
Cover-Evap WPL-4388357
...
6
Diffuser, Air Duct WPL-2149544
...
7
Fan Motor WPL-4389144
...
8
Blade-Fan WPL-WP2169142
...
10
Grommet WPL-WP2176759
...
11
Duct, Icemaker WPL-2182146
...
12
Harness, Fan, Evaporator, And Heater WPL-2161478
...
13
Gasket WPL-WP2155789
...
14
Tie-Wire WPL-WPW10339879
...
16
Gasket WPL-WP2304241
...
17
Cover-Evap WPL-4388357
...
18
Screw WPL-W11233072
...
21
Screw WPL-WP489478
...
22
Support Kit (Contains Right And Left) WPL-4388358
...
23
Support Kit (Contains Right And Left) WPL-4388358
Schematic Image Zoomed
Scroll to zoom • Drag to pan • Click to close
Press Esc or click background to close Pinch to zoom • Tap to close
Shopper Approved
USA Today Champions 2025
BBB Accredited
Newsweek Best Online Shops 2025
Google Reviews
Processing
