Roper RME30002

Model: RME30002

Save Part Not Listed?
product name

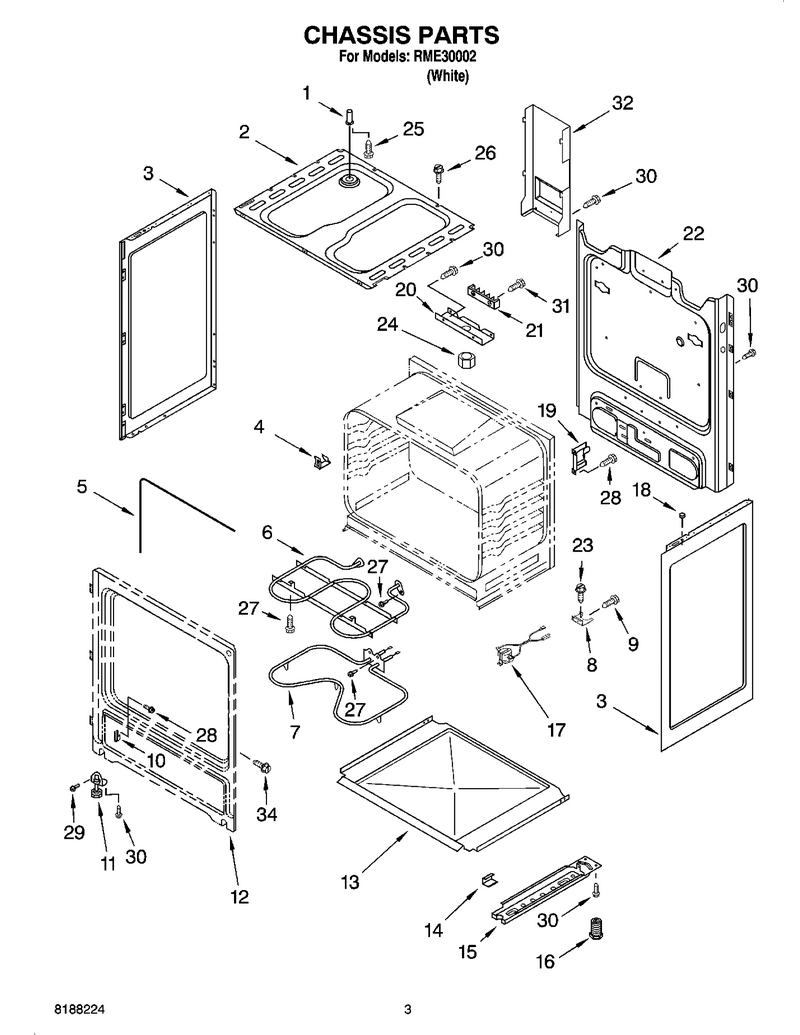

03 - Chassis Parts

...
...
1
Vent Tube WPL-9755804
...
2
Box-Burner WPL-W11699791
...
3
Panel-Side WPL-WPW10575396
...
4
Clip, Therm Bulb WPL-98005642
...
5
Gaskt-Door WPL-W11542153
...
6
Elmnt-Brol WPL-W10856603
...
7
Elmnt-Bake WPL-WPW10308477
...
8
Bracket, T-Stat WPL-9756355
...
9
Screw WPL-3196172
...
10
Glide-Drwr WPL-WP9759785
...
11
Foot-Level WPL-WP3196037
...
12
Frame, Front (Not Serviceable) WPL---
...
13
Retainer WPL-WP8054068
...
14
Clip, Panel (6) WPL-3196576
...
15
Rail-Base WPL-WPW10306546
...
16
Foot-Level WPL-WPW10058460
...
17
Thermostat, Safe WPL-9757158
...
18
Bumper WPL-238614
...
19
Clip, Oven Support WPL-W10404688
...
20
Brkt-Srvce WPL-W11728255
...
21
Block-Term WPL-WP8203546
...
22
Back, Main WPL-8274034
...
23
Screw WPL-WP489491
...
24
Nut WPL-WP112432
...
25
Screw WPL-WP3196567
...
26
Screw WPL-WP3400832
...
27
Screw WPL-WP3196174
...
28
Screw WPL-WP3196557
...
29
Screw WPL-WP98008545
...
30
Screw WPL-W11233072
...
31
Screw WPL-WP3400016
...
32
Cover-Blck WPL-WPW10326122
...
34
Screw WPL-WP7101P246-60

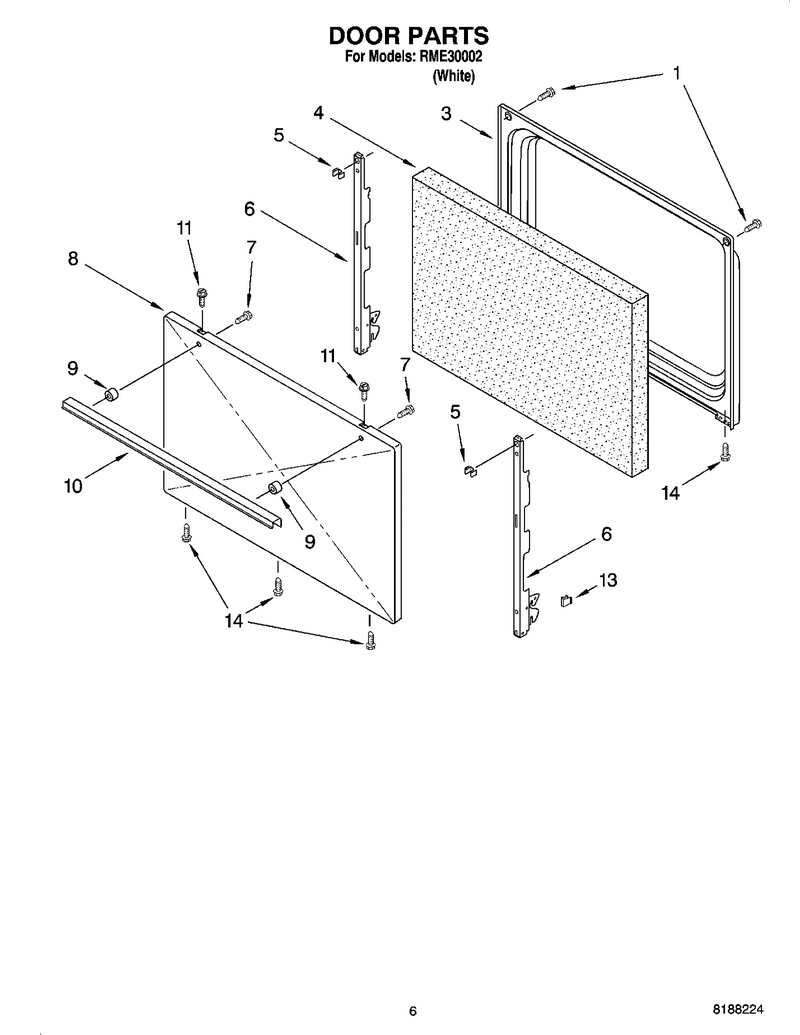

05 - Door Parts, Optional Parts

...
...
Paint, Spray (White) WPL-350930
...
1
Screw WPL-WP3196162
...
3
Liner WPL-3186294
...
4
Insulation WPL-WPW10278991
...
5
Bracket, Saddle (2) WPL-3195729
...
6
Hinge Assy. (2) WPL-8053809
...
7
Screw WPL-WP3196163
...
8
Panel-Door WPL-W10903447
...
9
Spacer WPL-WP3196143
...
10
Hndle-Door WPL-WP3195263
...
11
Screw, Top (White) WPL-3196558
...
13
Clip WPL-WP3196925
...
14
Screw WPL-WP3196175

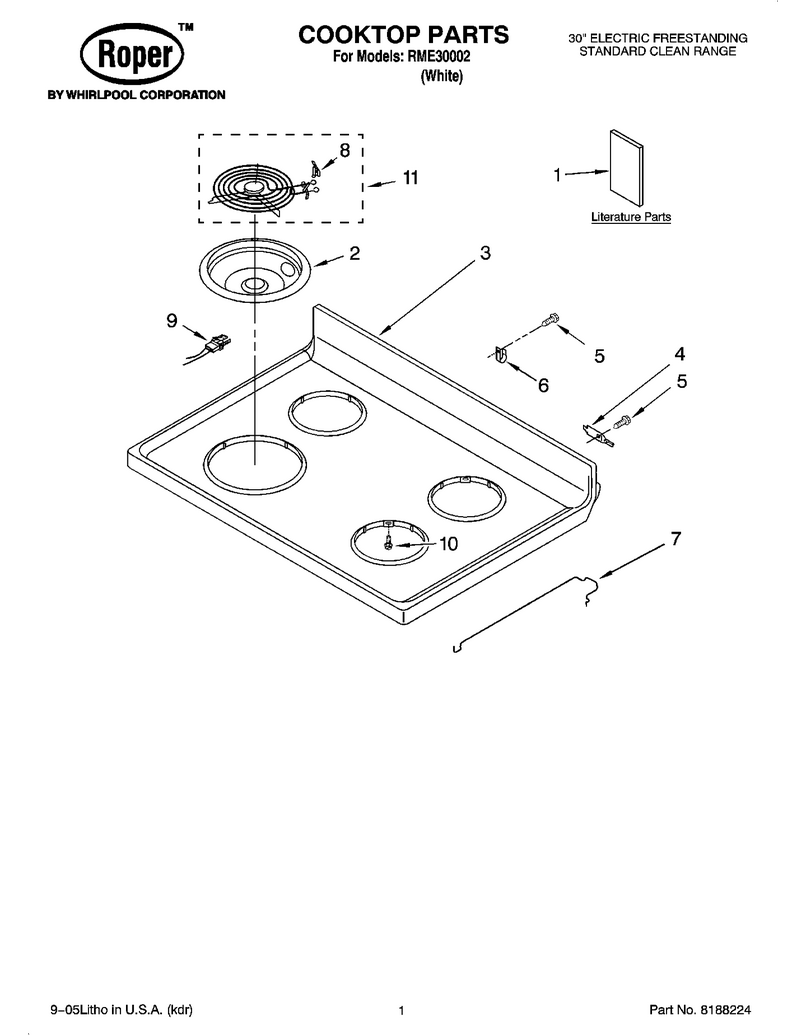

01 - Cooktop Parts

...
...
1
Instructions, Installation WPL-9756848
...
2
Bowl-Drip WPL-W10196405RW
...
3
Cooktop (White) WPL-3186235
...
4
Pin-Cooktp WPL-WP3195060
...
5
Screw WPL-W11233072
...
6
Clamp WPL-WP308605
...
7
Rod-Cktop WPL-WP3195812
...
8
Clip WPL-WP3195917
...
9
Receptacle, Elmnt WPL-814399
...
10
Screw WPL-WP3196154
...
11
Elmnt-Surf WPL-WP9761346

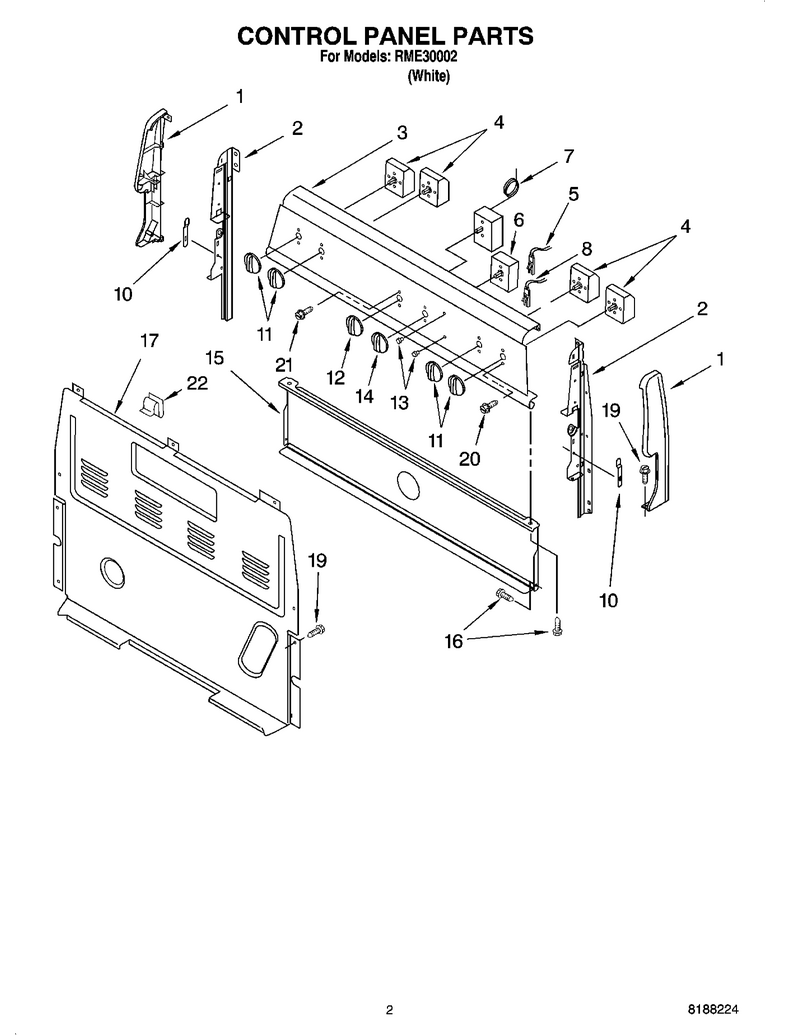

02 - Control Panel Parts

...
...
1
Endcap (Right Hand) WPL-3195319
...
2
Support, Endcap (Left Hand) WPL-8523408
...
3
Panel, Console WPL-9756775
...
4
Switch-Inf WPL-WP3148953
...
5
Light-Ind WPL-WP8523265
...
6
Swtch-Oven WPL-WP3188987
...
7
Thrmst-Ovn WPL-WP9762852
...
8
Indicator, Oven WPL-314031
...
10
Clip, Spring (2) WPL-3196200
...
11
Knob WPL-WP3196028
...
12
Knob, Thermostat WPL-3196049
...
13
Lens-Light WPL-WP3196068
...
14
Knob, Selector WPL-3196031
...
15
Shield, Heat WPL-8053912
...
16
Screw WPL-WP4449746
...
17
Cover-Rear WPL-WP8272473
...
19
Screw WPL-W11233072
...
20
Screw WPL-WP3400882
...
21
Screw WPL-WP3196170
...
22
Clip WPL-WP8273564

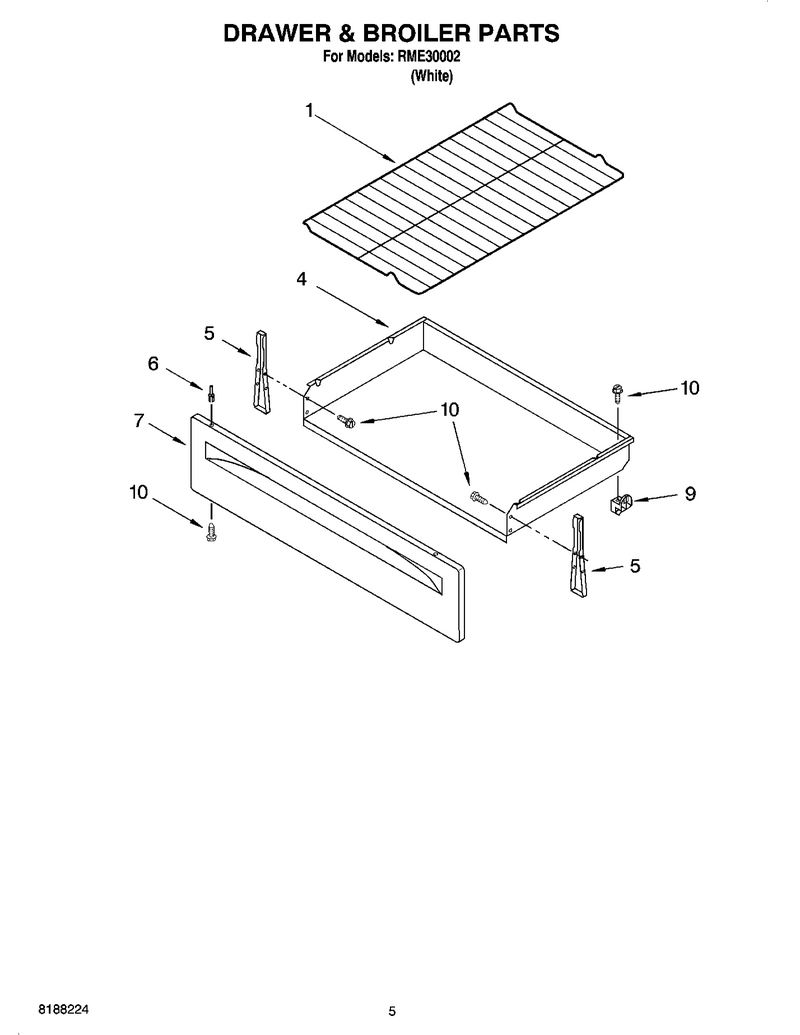

04 - Drawer & Broiler Parts

...
...
1
Rack-Oven WPL-WPW10256908
...
4
Drawer, Storage WPL-9761031
...
5
Brkt-Mntg WPL-W10838990
...
6
Rivet WPL-WP3196814
...
7
Panel-Drwr WPL-W11219377
...
9
Glide-Drwr WPL-WP8053334
...
10
Screw WPL-WP3400832
