Roper RH1099REW00

Model: RH1099REW00

Save Part Not Listed?
product name

Popular Parts

Popular Parts

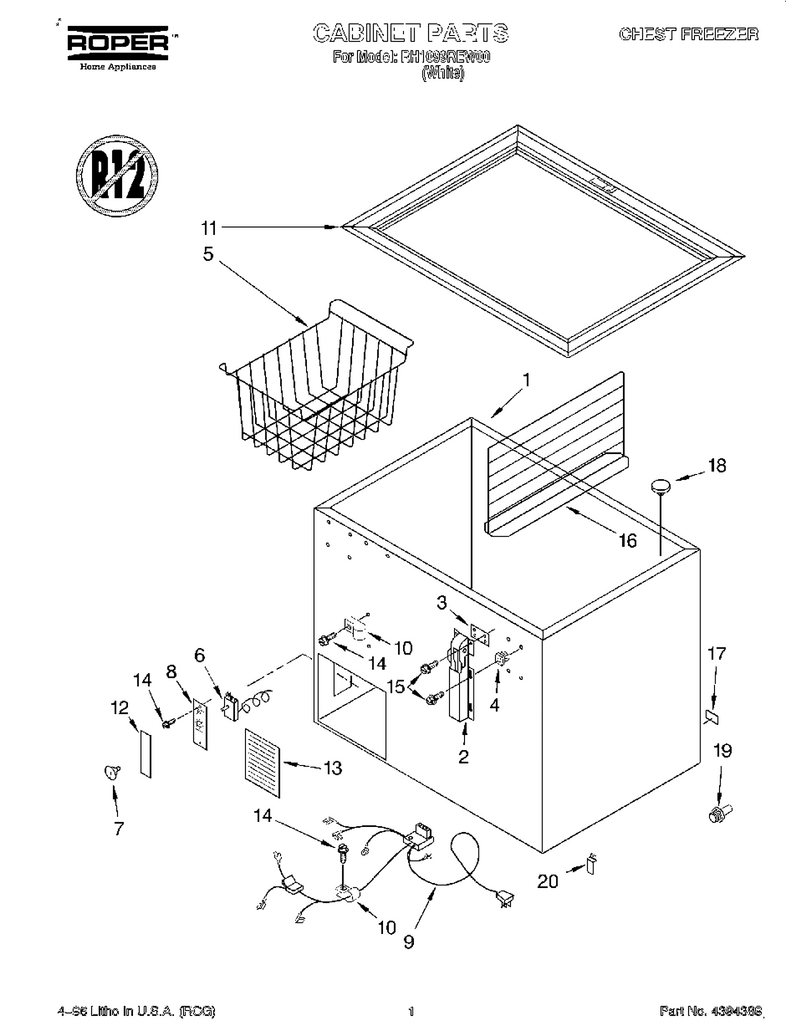

01 - Section

...
...
Energy Label WPL-LIT4356607
...
1
Cabinet (Not A Serviceable Part) WPL---
...
2
Hinge Assembly WPL-4356526
...
3
Spacer, Hinge WPL-1-17548-006
...
4
Grommet, Plastic WPL-4356321
...
5
Basket WPL-8210434A
...
6
Thermostat WPL-4356323
...
7
Knob, Temp. Control WPL-68001452
...
8
Control Box WPL-W10682894
...
9
External, Wiring Harness WPL-4356588
...
10
Clamp, Tubing WPL-488946
...
11
Breaker Strip WPL-4356634
...
12
Insert, Control WPL-4356584
...
13
Access Panel WPL-4356622
...
14
Screw WPL-3-24004-049
...
15
Screw WPL-4356491
...
16
Divider (Optional) WPL-4356529
...
17
Drain Plug WPL-4356505
...
18
Drain Cap WPL-4356455
...
19
Adptr-Hose WPL-W11663505
...
20
Clip WPL-4356728

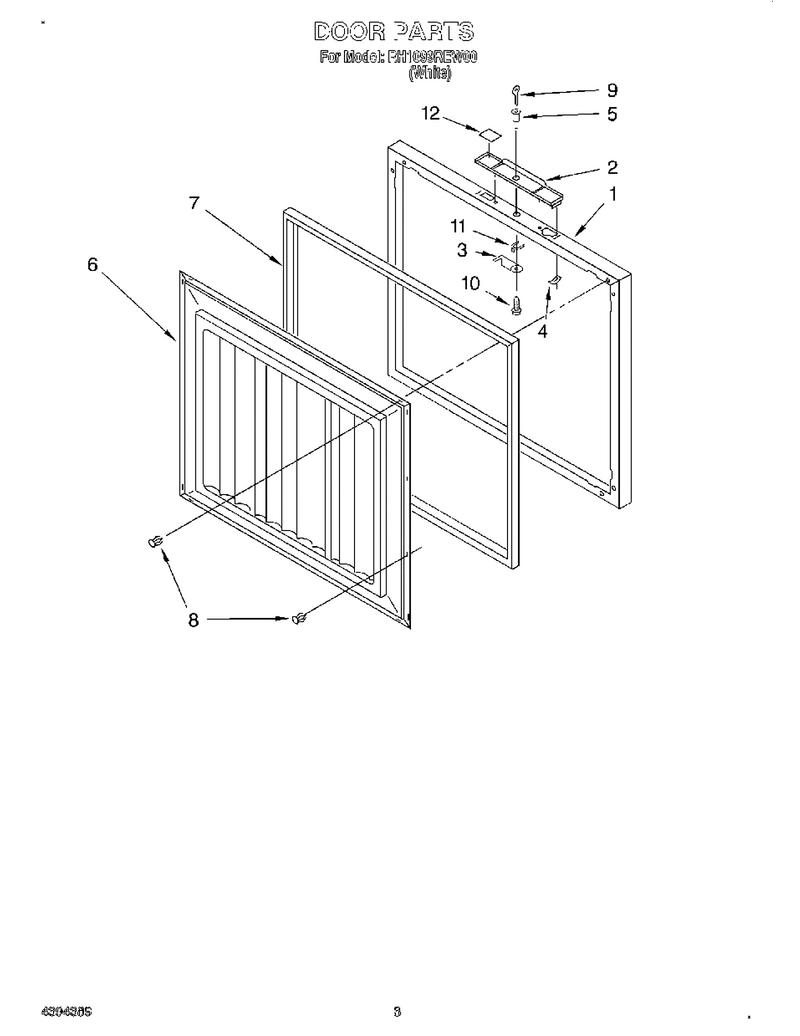

02 - Section

...
...
1
Panel-Ext WPL-4356650
...
2
Handle WPL-4356483
...
3
Hook WPL-2-35195-002
...
4
Clip, Oblong WPL-3-24059-024
...
5
Lock Kit (Includes Items 3, 9, 10 & 11) WPL-4356484
...
6
Interior Door Panel WPL-4356543
...
7
Gasket WPL-4356651
...
8
Rivet WPL-WP596788
...
9
Key WPL-4356304
...
10
Screw WPL-W11233072
...
11
Clip, Spring WPL-1-26359
...
12
Nameplate WPL-4356372

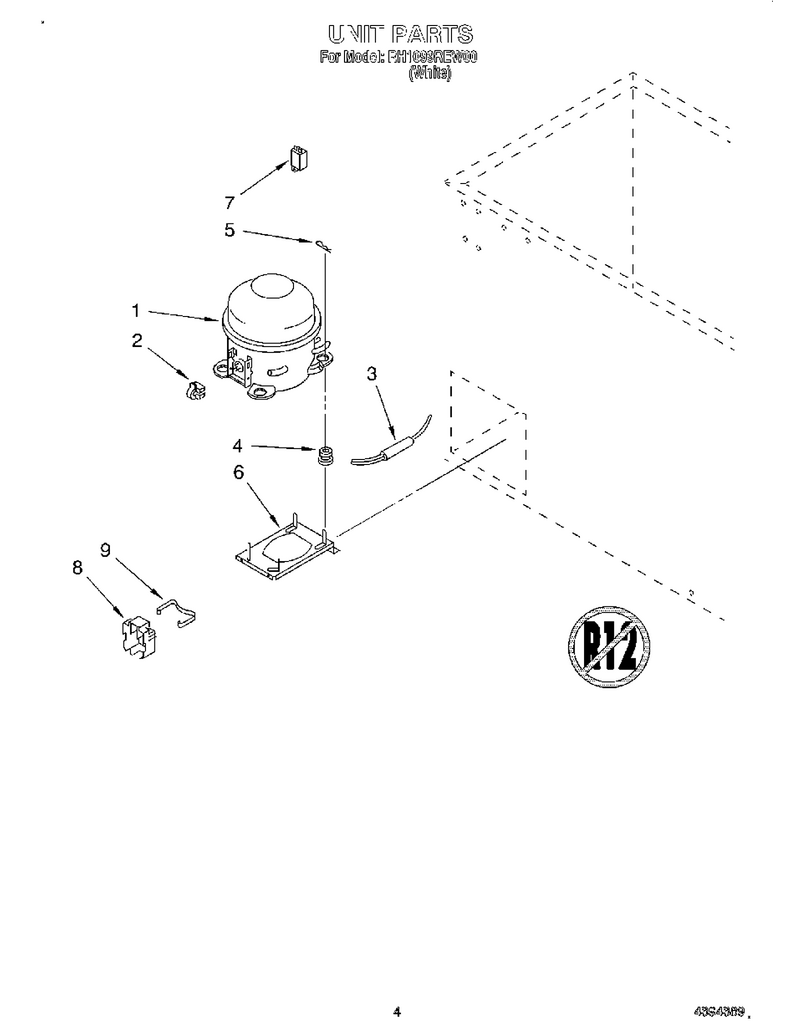

03 - Section

...
...
1
Compressor WPL-W10473567
...
2
Relay WPL-4356415
...
3
Drier-Tube WPL-W10843121
...
4
Grommet, Mounting Compressor WPL-4356335
...
5
Clip, Hitch Pin WPL-4356336
...
6
Base, Compressor WPL-4356590
...
7
Capacitor WPL-WPW10662129
...
8
Cover WPL-4356587
...
9
Clip, Cover WPL-4356406
