Roper RH1000REW01

Model: RH1000REW01

Save Part Not Listed?
product name

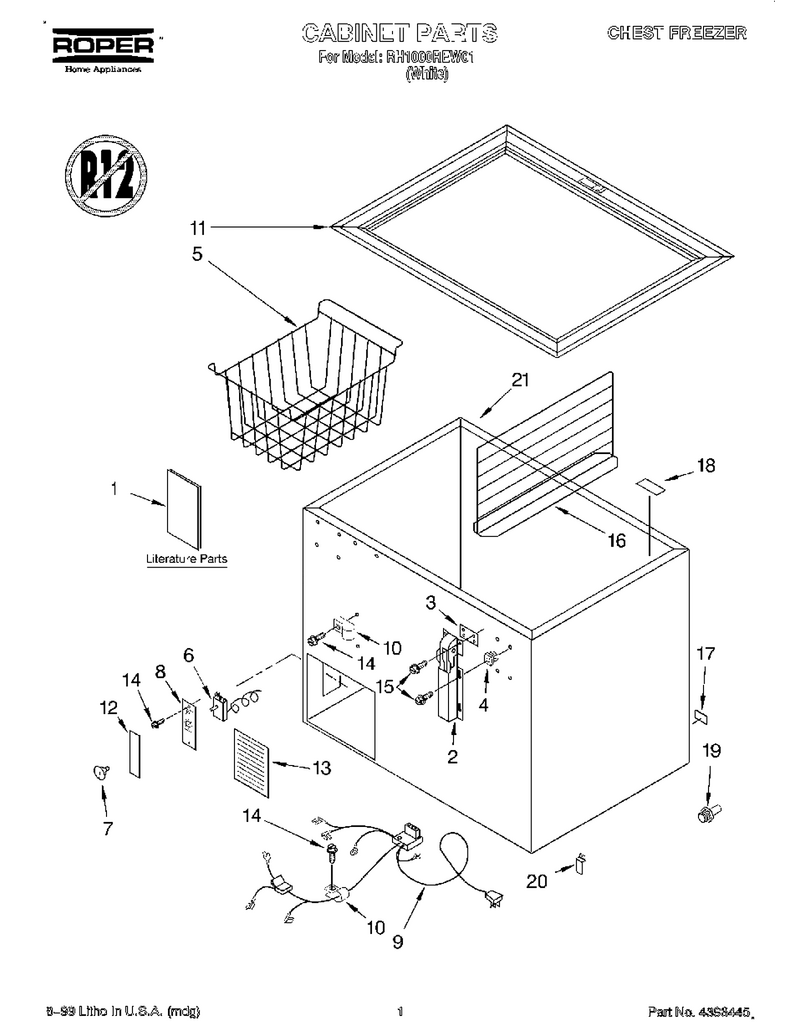

01 - Section

...
...
1
Literature Parts (Owner`s Manual) WPL-LIT4356739
...
2
Hinge Assembly WPL-4356490
...
3
Spacer, Hinge WPL-1-17548-006
...
4
Grommet, Plastic WPL-4356321
...
5
Basket WPL-8210434A
...
6
Thermostat WPL-WP4-35940-001
...
7
Knob, Temp. Control WPL-68001452
...
8
Control Box WPL-W10682894
...
9
Harness, Wiring WPL-4-35130-004
...
10
Clamp, Tubing WPL-488946
...
11
Breaker Strip WPL-4356633
...
12
Insert, Control WPL-4356584
...
13
Access Panel WPL-4356622
...
14
Screw WPL-3-24004-049
...
15
Screw WPL-4356491
...
16
Divider (Optional) WPL-4356529
...
17
Drain Plug WPL-4356505
...
18
Drain, Cap WPL-4356456
...
19
Adptr-Hose WPL-W11663505
...
20
Clip WPL-4356728
...
21
Paint, Bulk (1 Qt.) (White (Uncut)) WPL-799344

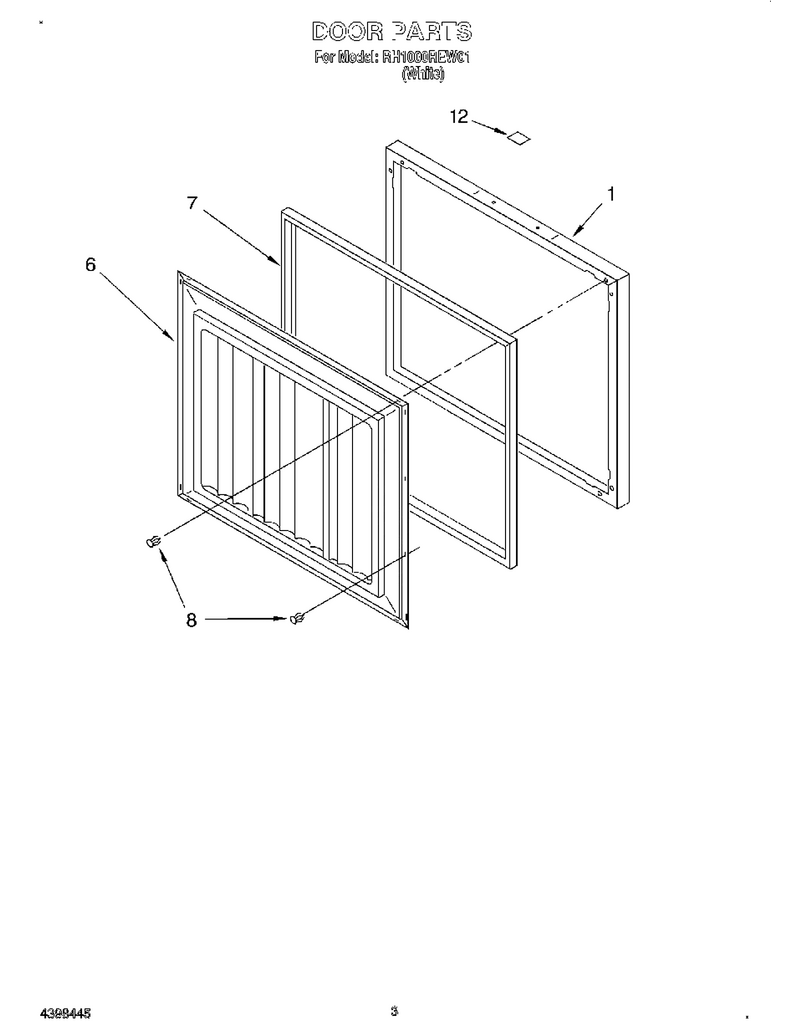

02 - Section

...
...
1
Exterior Door Panel (Includes Insulation) WPL-4356659
...
6
Interior Door Panel WPL-4356531
...
7
Gasket WPL-4356651
...
8
Rivet WPL-WP596788
...
12
Nameplate WPL-4356372

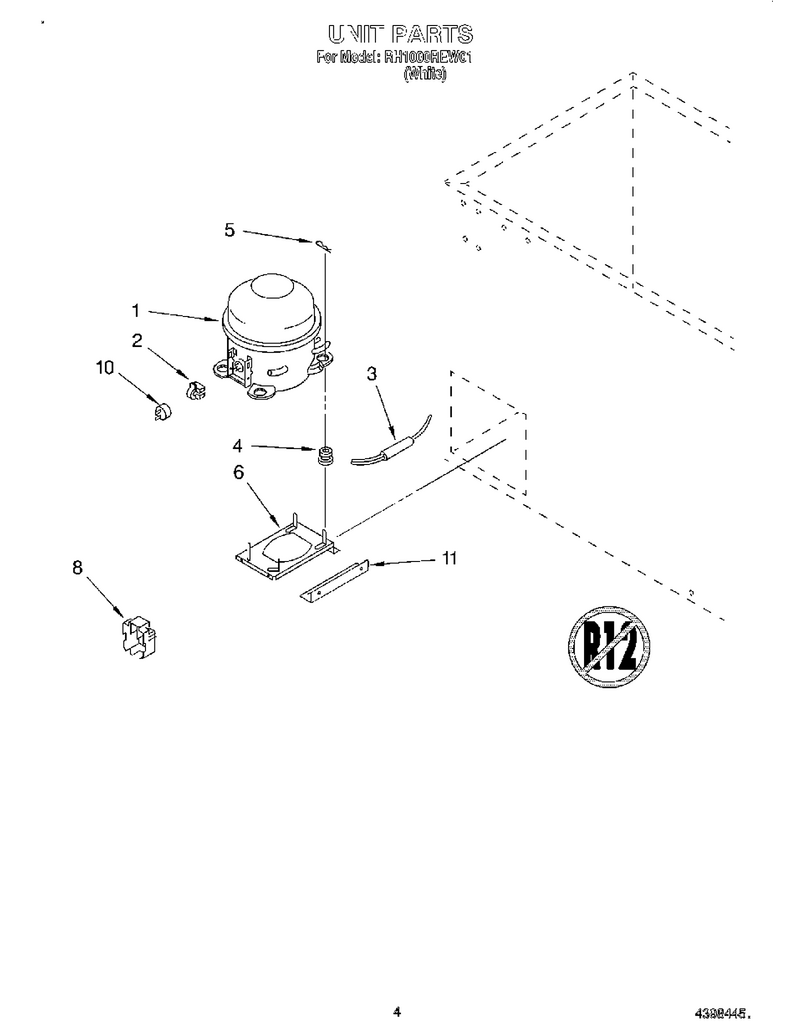

03 - Section

...
...
1
Compressor WPL-8201727
...
2
Relay WPL-4356716
...
3
Drier-Tube WPL-W10843121
...
4
Grommet, Mounting Compressor WPL-4356335
...
5
Clip, Hitch Pin WPL-4356336
...
6
Base, Compressor WPL-4356590
...
8
Cover-Term WPL-WP2162358
...
10
Overload WPL-2264602
...
11
Brace WPL-3-81556-001
