Roper RH0599REW02

Model: RH0599REW02

Save Part Not Listed?
product name

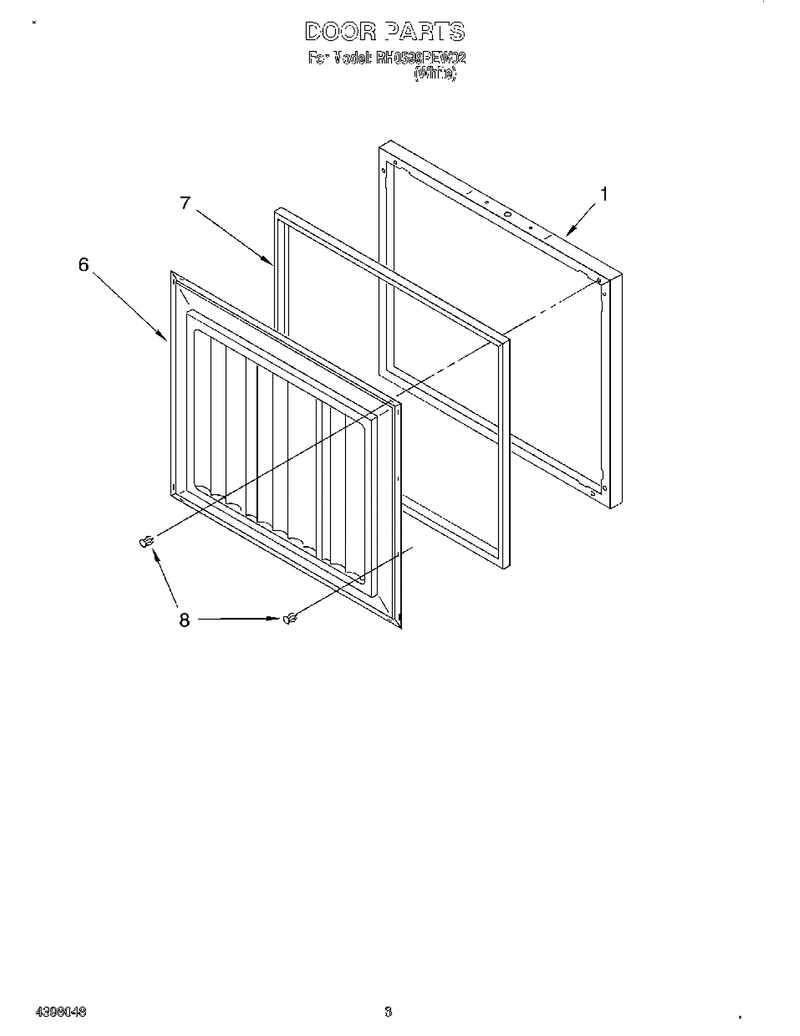

02 - Section

...
...
1
Exterior Door Panel (Includes Insulation) WPL-4356655
...
6
Interior Door Panel WPL-4356564
...
7
Gasket WPL-4356714
...
8
Rivet WPL-WP596788

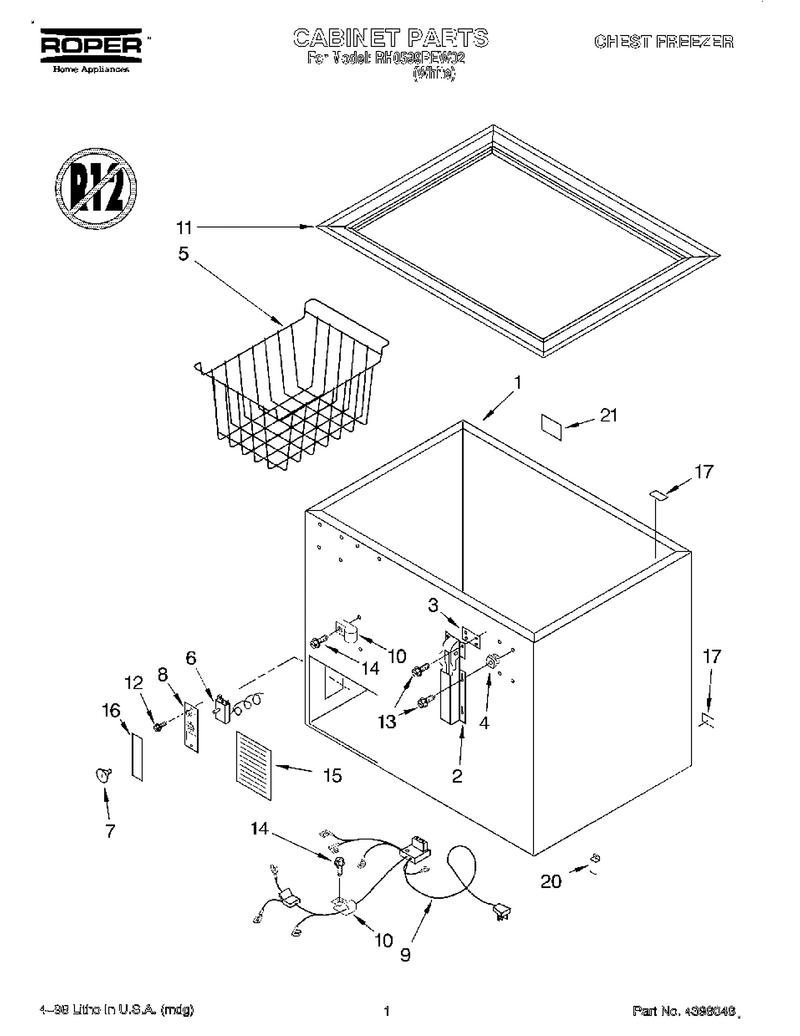

01 - Section

...
...
Energy Label WPL-LIT4356626
...
1
Cabinet (Not A Serviceable Part) WPL---
...
2
Hinge Assembly WPL-4356514
...
3
Spacer, Hinge WPL-1-17548-006
...
4
Grommet, Plastic WPL-4356321
...
5
Wire Basket WPL-4356346
...
6
Thermostat WPL-WP4-35940-001
...
7
Thermostat, Knob WPL-4356710
...
8
Control Box WPL-W10682894
...
9
External, Wiring Harness WPL-4356588
...
10
Clamp, Tubing WPL-488946
...
11
Breaker Strip WPL-4356681
...
12
Screw WPL-3-24004-049
...
13
Screw WPL-4356491
...
14
Screw WPL-W11233072
...
15
Access Panel WPL-4356622
...
16
Insert, Control WPL-4356584
...
17
Drain Cap WPL-4356713
...
20
Clip WPL-4356728
...
21
Enamel, White (13 Oz. Spray Can) WPL-350942

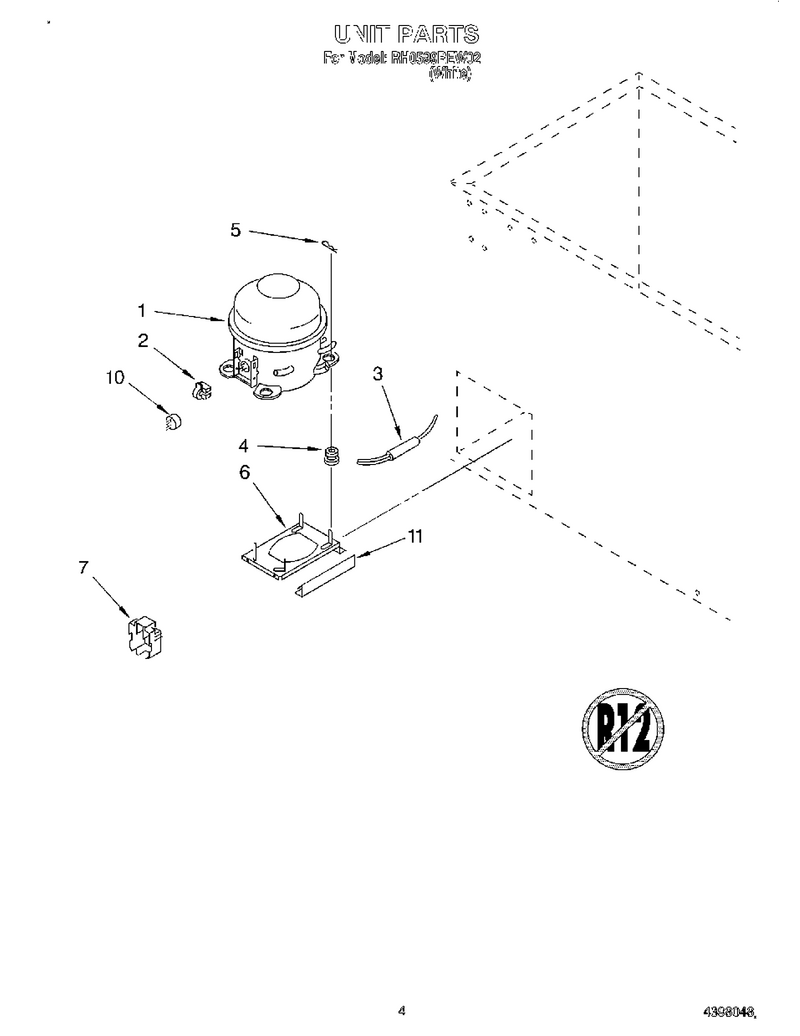

03 - Section

...
...
1
Compressor WPL-8201727
...
2
Relay WPL-4356597
...
3
Drier-Tube WPL-W10843121
...
4
Grommet, Mounting Compressor WPL-4356335
...
5
Clip, Hitch Pin WPL-4356336
...
6
Base, Compressor WPL-4356680
...
7
Cover-Term WPL-WP2162358
...
10
Overload WPL-4356598
...
11
Brace WPL-3-81556-001
