Roper RH0588RBW00

Model: RH0588RBW00

Save Part Not Listed?
product name

Popular Parts

Popular Parts

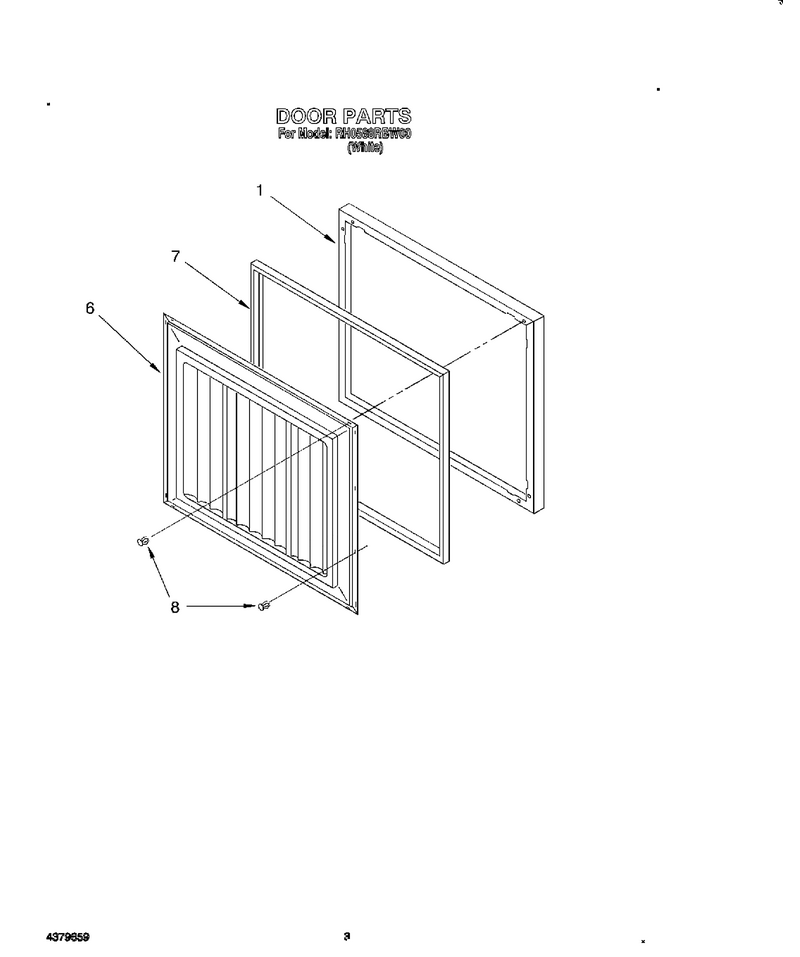

02 - Section

...
...
1
Exterior Door Panel (Includes Insulation) WPL-4356655
...
6
Interior Door Panel WPL-4356510
...
7
Gasket WPL-4356714
...
8
Rivet WPL-WP596788

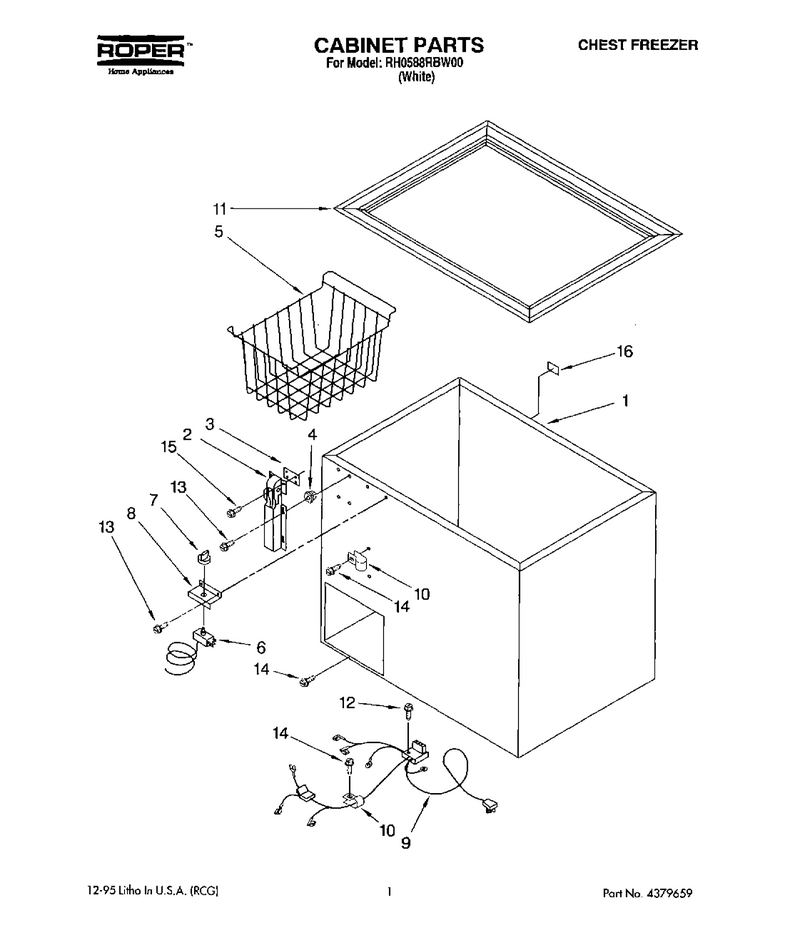

01 - Section

...
...
Use & Care Guide WPL-LIT2165306
...
1
Cabinet (Not A Serviceable Part) WPL---
...
2
Hinge Assembly WPL-4356514
...
3
Spacer, Hinge WPL-1-17548-006
...
4
Grommet, Plastic WPL-4356321
...
5
Wire Basket (Optional) WPL-4356346
...
6
Thermostat WPL-4356323
...
7
Thermostat, Knob WPL-4356324
...
8
Thermostat, Control Bracket WPL-4356409
...
9
External, Wiring Harness WPL-4356495
...
10
Clamp, Tubing WPL-488946
...
11
Breaker Strip WPL-4356407
...
12
Screw WPL-487980
...
13
Screw WPL-4356491
...
14
Screw WPL-W11233072
...
15
Screw WPL-489181
...
16
Paint, Bulk (1 Qt.) (White (Uncut)) WPL-799344

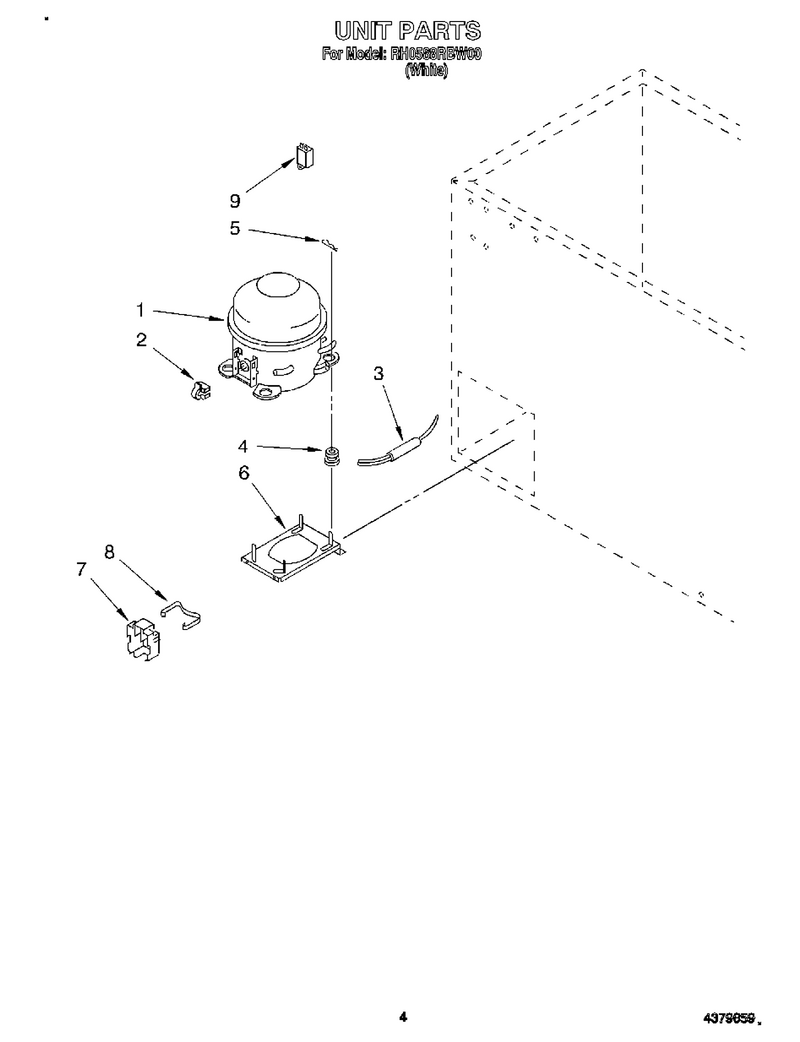

03 - Section

...
...
1
Compressor WPL-4356513
...
2
Relay WPL-4356415
...
3
Drier-Tube WPL-W10843121
...
4
Grommet, Mounting Compressor WPL-4356335
...
5
Clip, Hitch Pin WPL-4356336
...
6
Base, Compressor WPL-4356337
...
7
Cover WPL-4356405
...
8
Clip, Cover WPL-4356406
...
9
Capacitor WPL-WPW10662129
