Roper RH0500RWW00

Model: RH0500RWW00

Save Part Not Listed?
product name

Popular Parts

Popular Parts

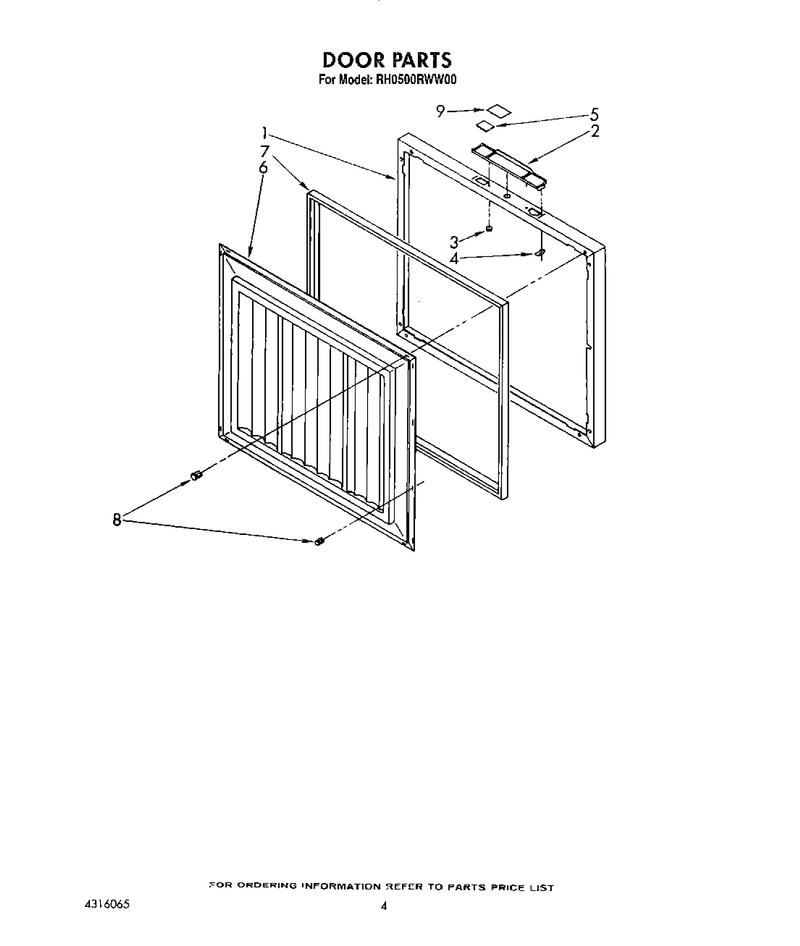

03 - Section

...
...
1
Exterior, Door Panel WPL-4356383
...
2
Handle WPL-4356339
...
3
Clip, Handle Round WPL-4356340
...
4
Clip, Oblong WPL-3-24059-024
...
5
Seal, Handle Pins WPL-4356341
...
6
Interior, Door Panel WPL-4356342
...
7
Gasket WPL-4356385
...
8
Rivet WPL-WP596788
...
9
Nameplate WPL-4356372

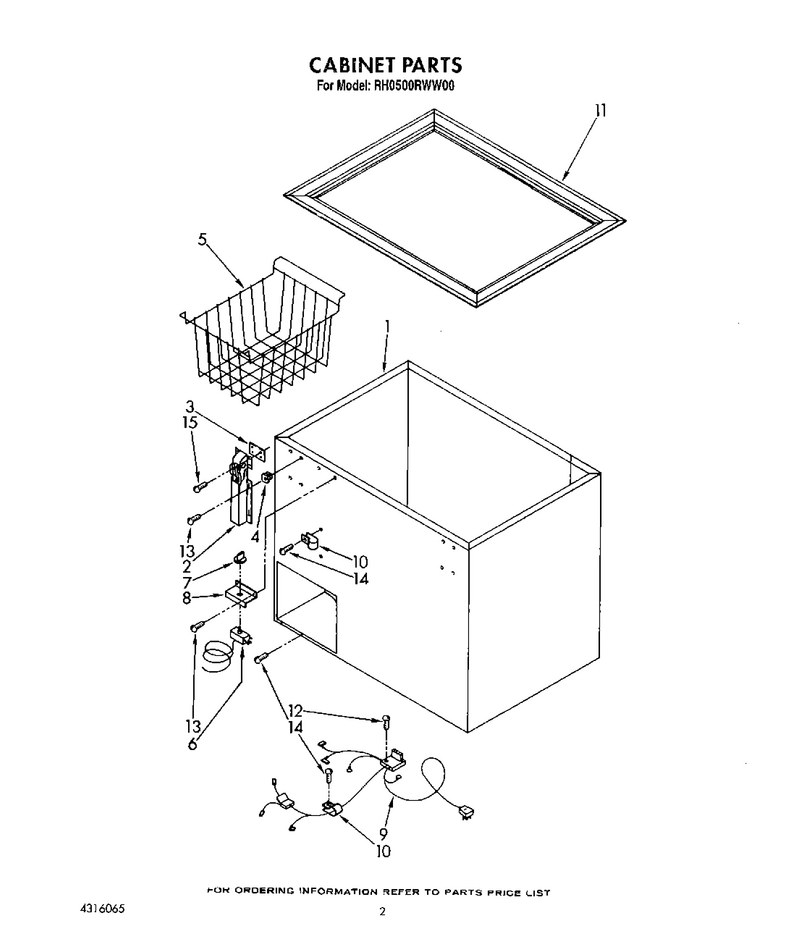

02 - Section

...
...
Parts List WPL-LIT4316065
...
1
Cabinet (Not A Serviceable Part) WPL---
...
2
Hinge Assembly (With Spring) WPL-4356490
...
3
Spacer, Hinge WPL-1-17548-006
...
4
Grommet, Plastic WPL-4356321
...
5
Wire Basket WPL-4356346
...
6
Thermostat WPL-4356323
...
7
Thermostat, Knob WPL-4356324
...
8
Thermostat, Control Bracket WPL-4356370
...
9
External, Wiring Harness WPL-4356347
...
10
Clamp, Tubing WPL-488946
...
11
Breaker Strip WPL-4356384
...
12
Screw WPL-487980
...
13
Screw WPL-WP308685
...
14
Screw WPL-WP488787
...
15
Paint, Bulk (1 Qt.) (White (Uncut)) WPL-799344

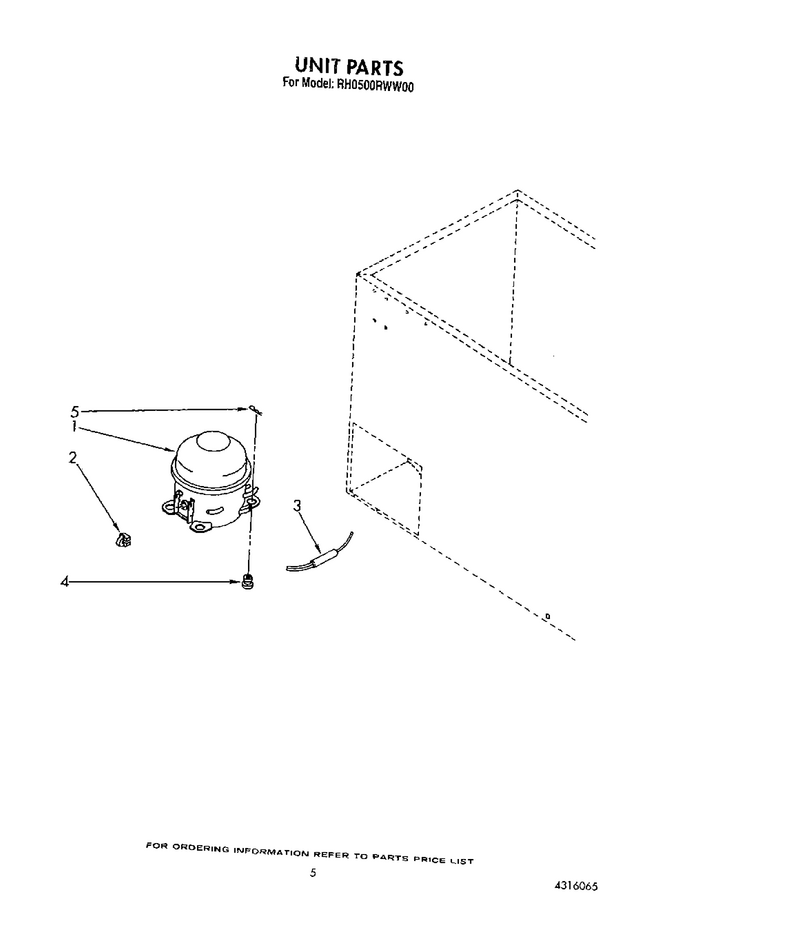

04 - Section

...
...
1
Compressor WPL-4356513
...
2
Relay WPL-4356392
...
3
Drier-Tube WPL-W10843121
...
4
Grommet, Mounting Compressor WPL-4356335
...
5
Clip, Hitch Pin WPL-4356336
