Roper RH0500REW00

Model: RH0500REW00

Save Part Not Listed?
product name

Popular Parts

Popular Parts

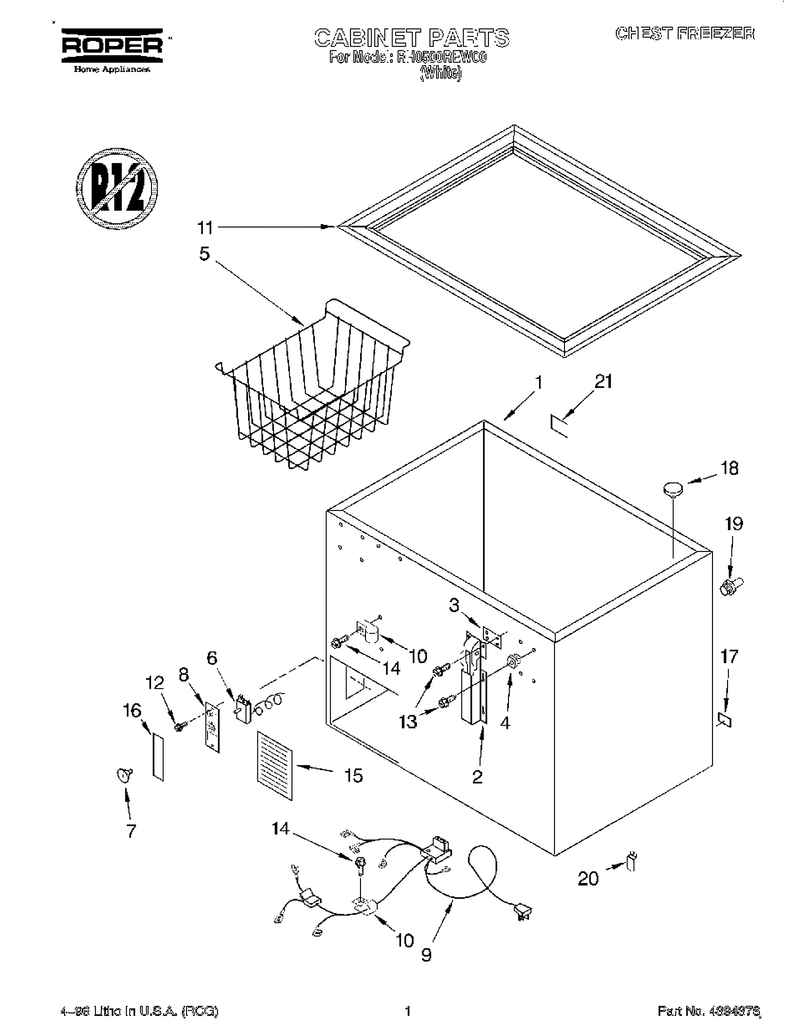

01 - Section

...
...
Use & Care Guide WPL-LIT2165306
...
1
Cabinet (Not A Serviceable Part) WPL---
...
2
Hinge Assembly WPL-4356514
...
3
Spacer, Hinge WPL-1-17548-006
...
4
Grommet, Plastic WPL-4356321
...
5
Wire Basket (Optional) WPL-4356346
...
6
Thermostat WPL-4356323
...
7
Knob, Temp. Control WPL-68001452
...
8
Control Box WPL-W10682894
...
9
External, Wiring Harness WPL-4356588
...
10
Clamp, Tubing WPL-488946
...
11
Breaker Strip WPL-4356566
...
12
Screw WPL-3-24004-049
...
13
Screw WPL-4356491
...
14
Screw WPL-W11233072
...
15
Access Panel WPL-4356622
...
16
Insert, Control WPL-4356584
...
17
Drain, Cap WPL-4356505
...
18
Drain Cap (Inner) WPL-4356455
...
19
Adptr-Hose WPL-W11663505
...
20
Clip WPL-4356728
...
21
Enamel, White (13 Oz. Spray Can) WPL-350942

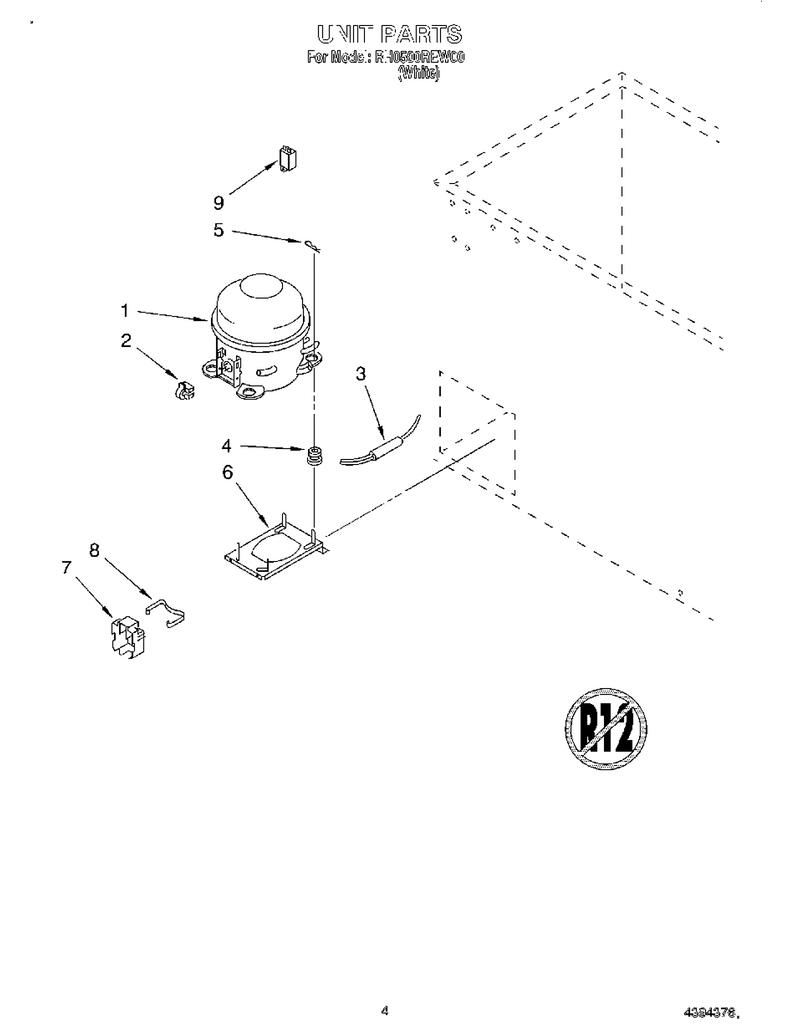

03 - Section

...
...
1
Compressor WPL-W10823815
...
2
Relay WPL-4356415
...
3
Drier-Tube WPL-W10843121
...
4
Grommet, Mounting Compressor WPL-4356335
...
5
Clip, Hitch Pin WPL-4356336
...
6
Base, Compressor WPL-4356590
...
7
Cover WPL-4356587
...
8
Clip, Cover WPL-4356406
...
9
Capacitor WPL-WPW10662129

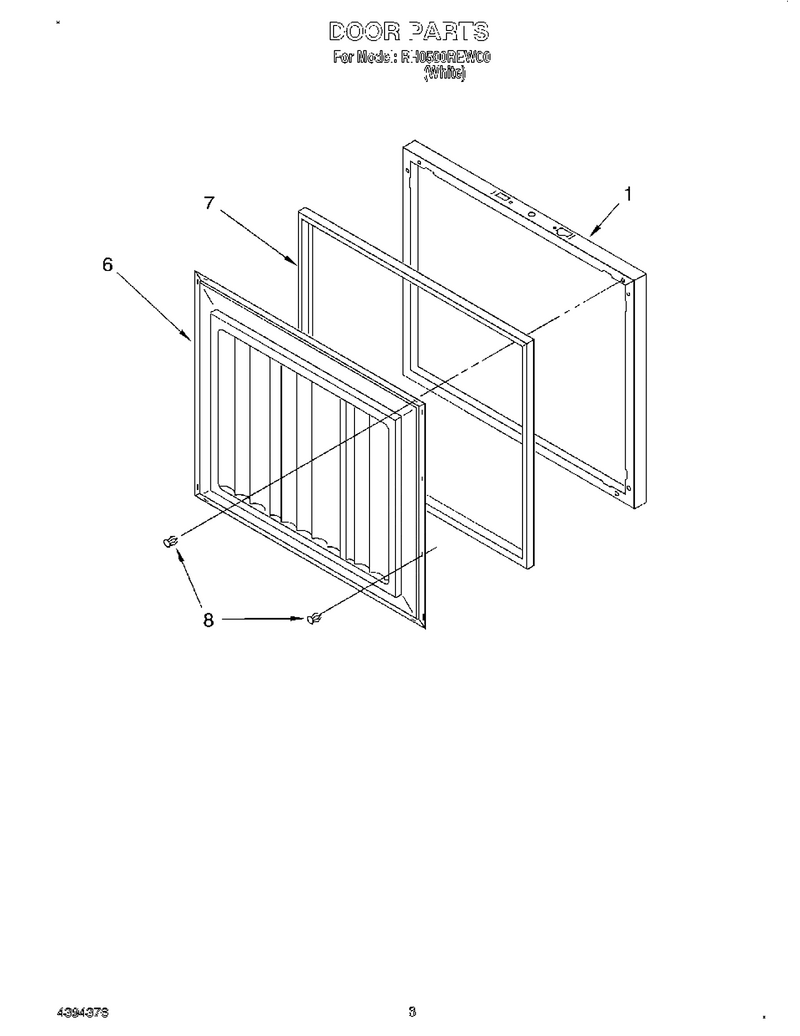

02 - Section

...
...
1
Exterior Door Panel (Includes Insulation) WPL-4356655
...
6
Interior Door Panel WPL-4356564
...
7
Gasket WPL-4356714
...
8
Rivet WPL-WP596788
